Description
Store propane safely and discreetly with this heavy-duty 1000 Gallon Underground Propane Tank. Designed for whole-home heating, large commercial applications, generators, and multiple high-demand appliances, this ASME-certified tank offers an efficient and long-term fuel storage solution.
Key Features & Construction
- ASME Certified: Built in accordance with ASME Rules for Construction of Pressure Vessels (Section VIII, Division 1) and complies with NFPA 58.
- Corrosion Protection: Heavy-duty steel body coated with a durable, ready-to-bury protective finish designed to withstand harsh underground soil conditions.
- Pressure Rating: Rated at 250 psig from -20°F to 125°F and registered with the National Board.
- Vacuum Pre-Purged: Factory-sealed and vacuum pre-purged to simplify the initial propane fill.

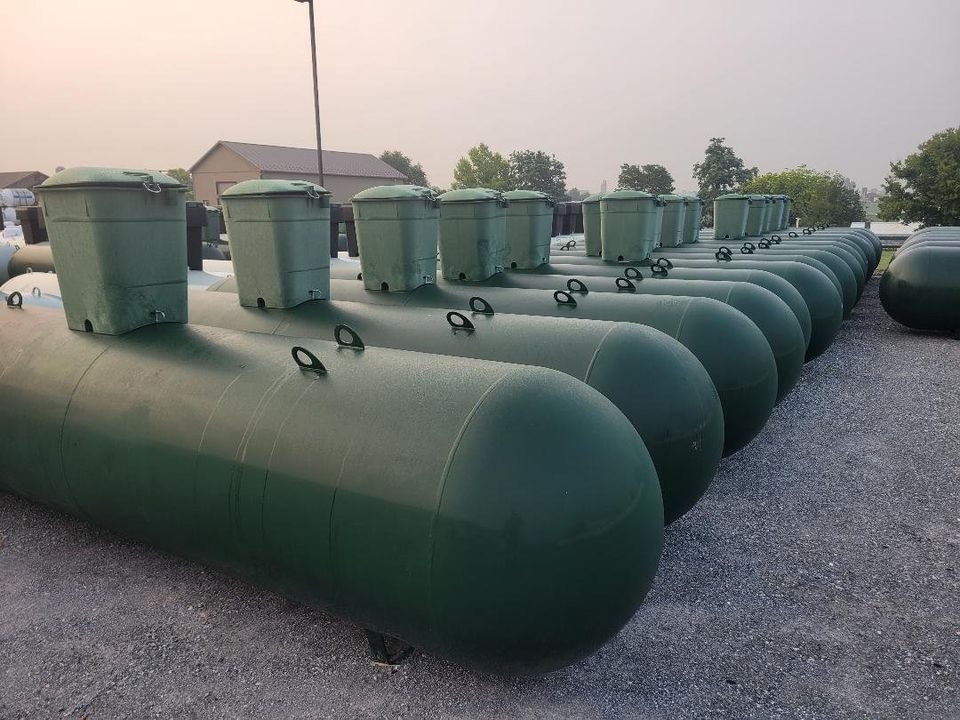

- Composite Dome: Features a durable green composite dome providing easy access and ample working space for valves and fittings.
Specifications & Capacity
- Water Capacity: 1,000 Gallons (approx. 800 gallons usable propane capacity)
- Head Type: Hemi head design

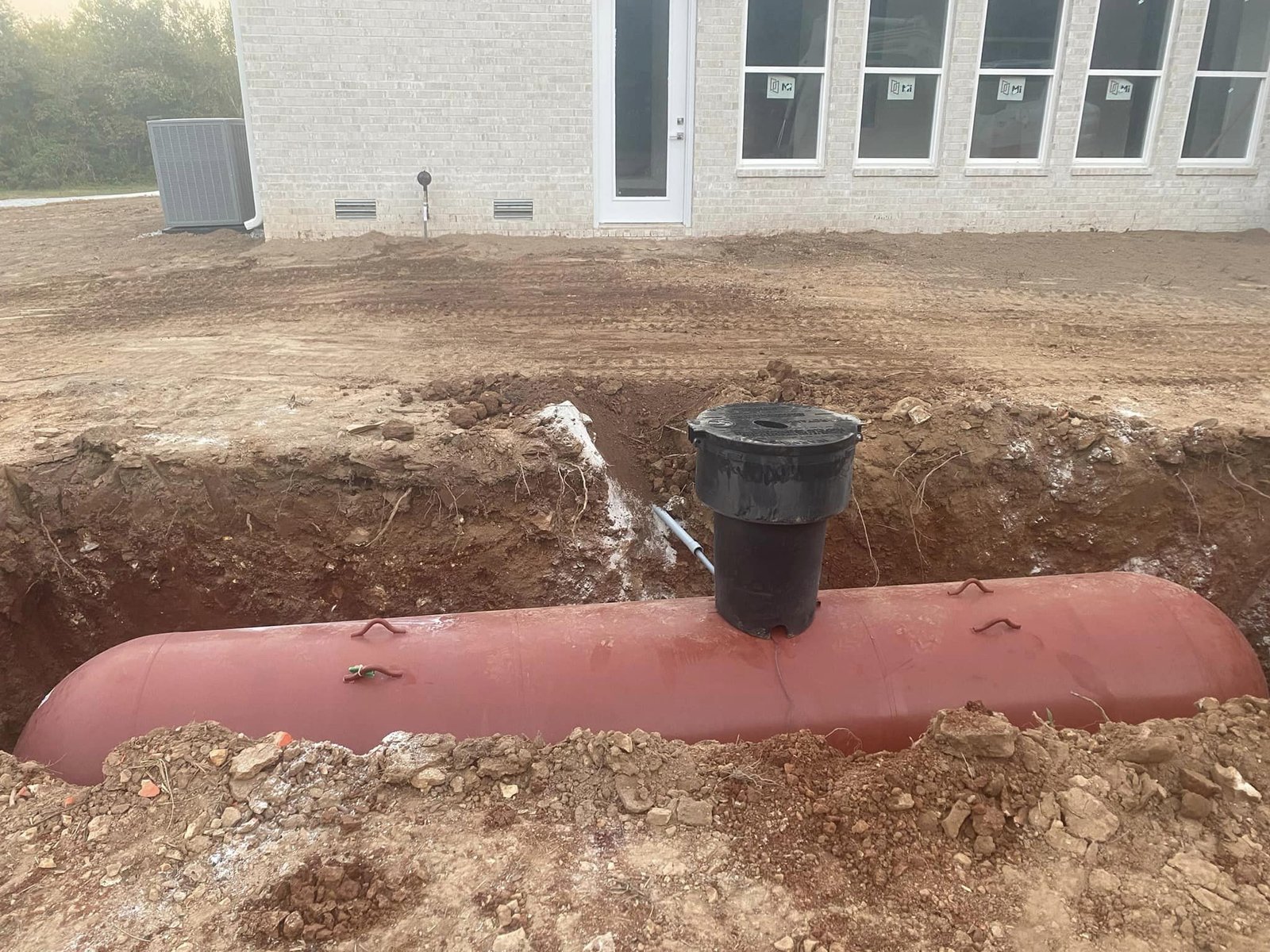

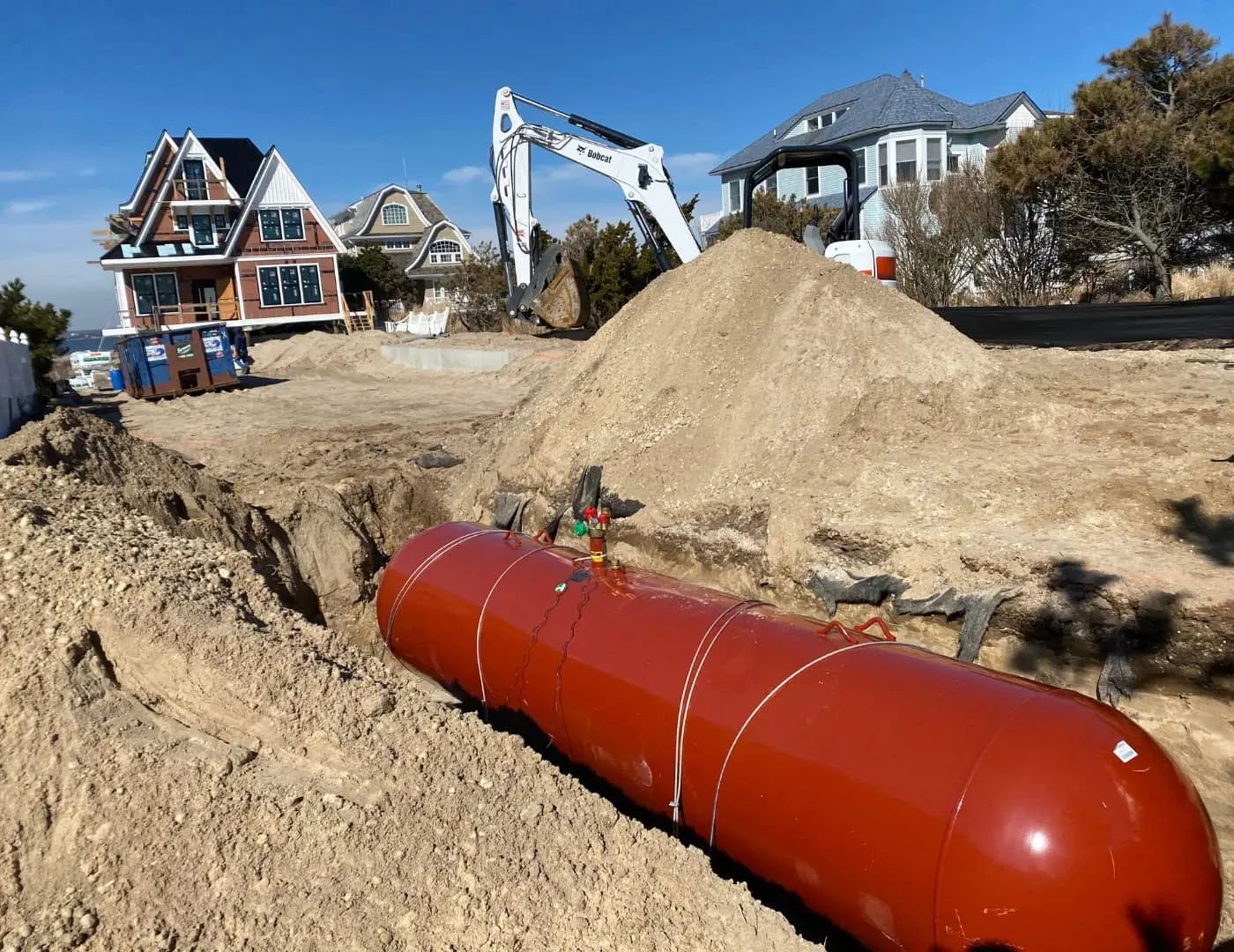

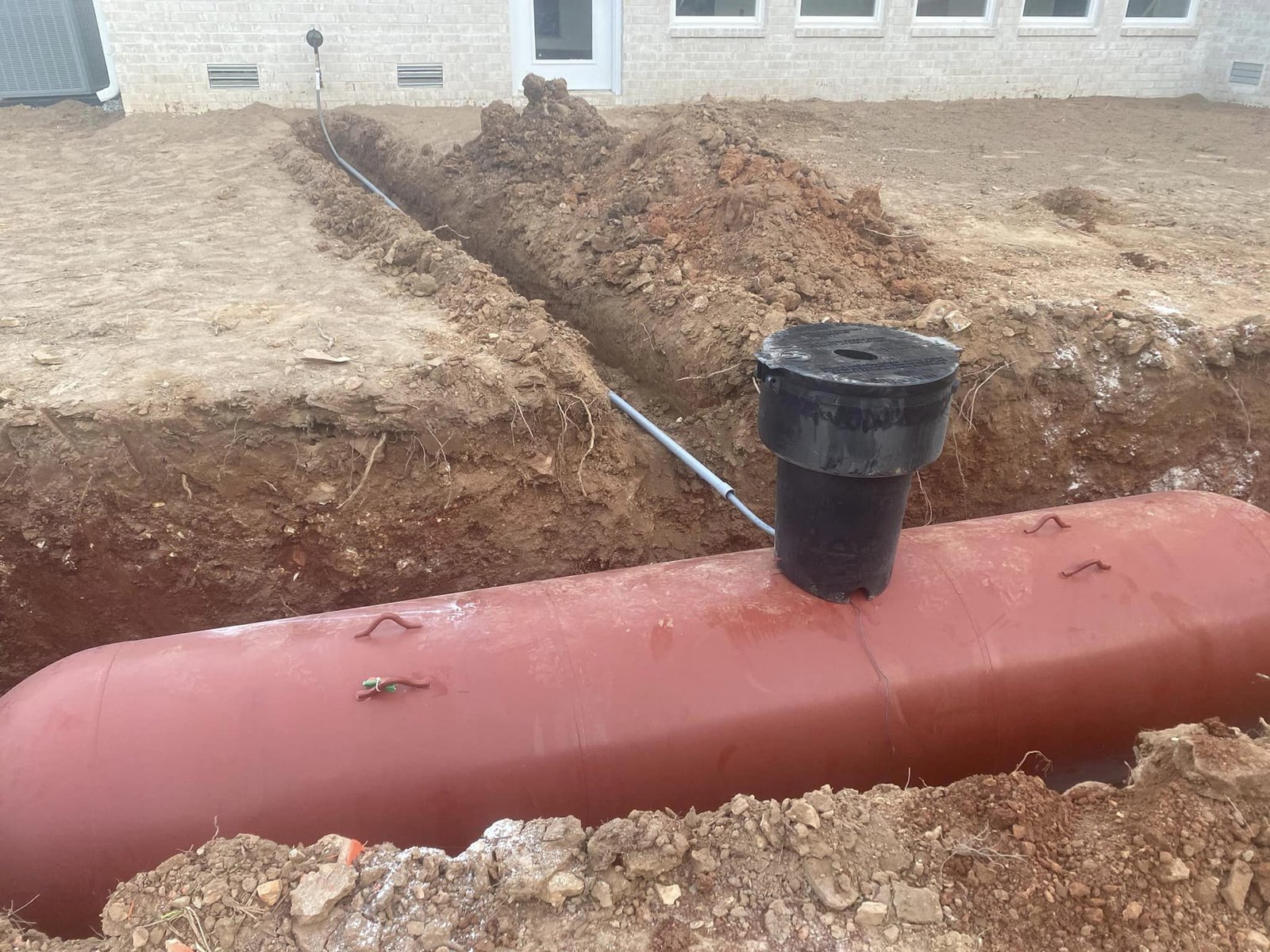

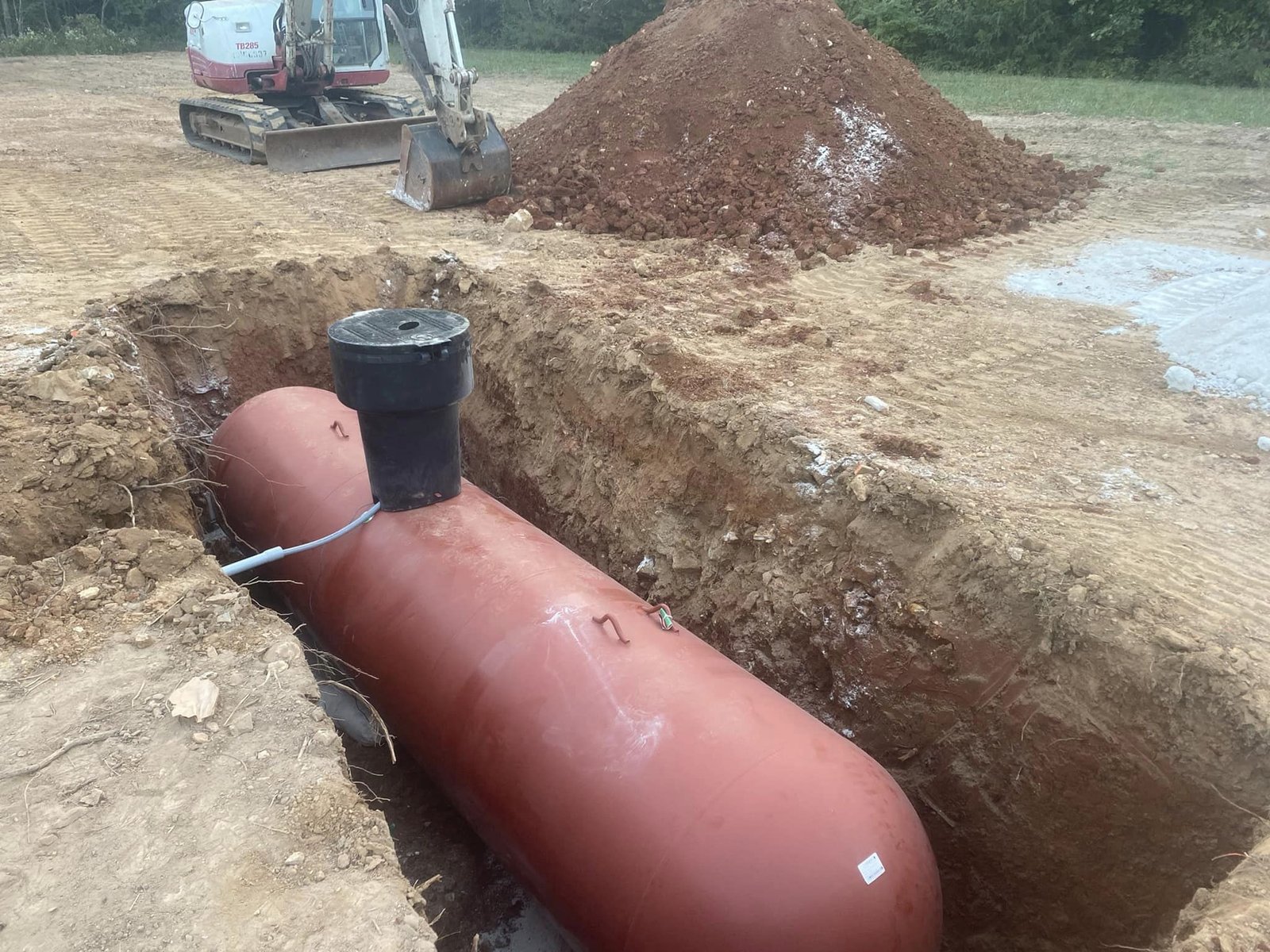

- Installation: Suitable for underground / shallow burial installation for residential or commercial properties.
| Product Type | Underground Propane Tank |
| Water Capacity | 1000 gal (3785.0 L) |
| Pressure Rating | 250 psig |
| Temperature Rating | -20°F to 125°F |
| Standards & Certifications | ASME Section VIII Div 1, NFPA 58, National Board |
| Head Type | Hemi |
| Outside Diameter | 40.96 in (1040.4 mm) |
| Overall Length | 15 ft 10.88 in (4848.2 mm) |
| Overall Height | 4 ft 9.5 in to 6 ft (1460.5 mm – 1828.8 mm) |
| Leg Width | 16.25 in (412.8 mm) |
| Leg Spacing | 9 ft (2743.2 mm) |
| Weight | 1760 lb (798.3 kg) |
| Country of Origin | U.S.A. |
