Description
The 10ft DNV 2.7-1 Refrigerated Offshore Container is engineered for temperature-controlled storage and transport of sensitive cargo in demanding offshore marine environments. Fully compliant with DNV 2.7-1, EN 12079, and ISO/CSC certifications, this unit is built to withstand extreme offshore conditions, rough seas, and corrosive weather.

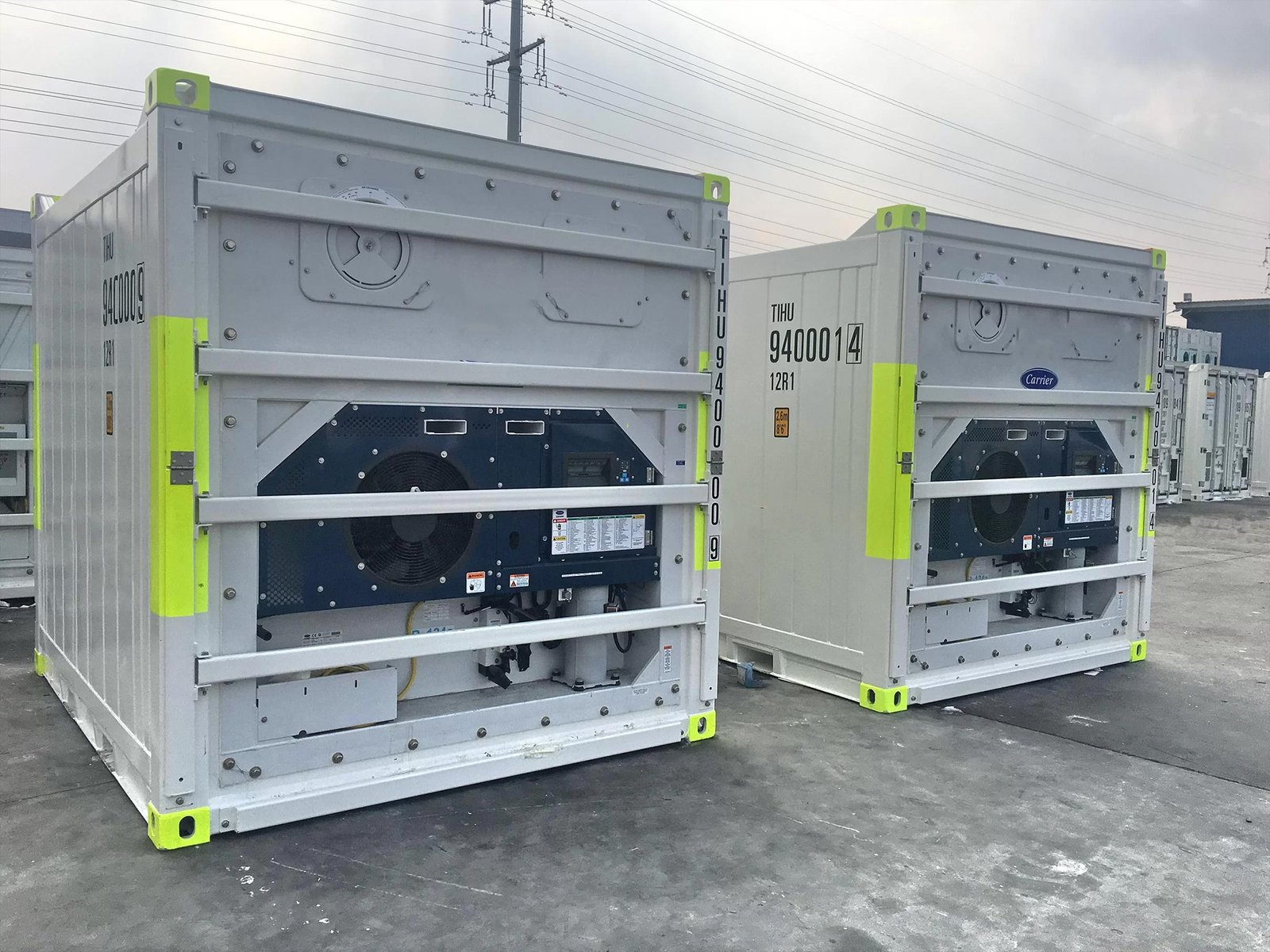

Equipped with a Carrier Micro-Link 3 Primeline cooling engine, this refrigerated container provides a versatile operating temperature range from -25°C to +25°C. The interior features stainless steel cladding, excellent insulation, and an extruded T-bar aluminium floor engineered for optimal airflow and consistent thermal distribution.
Key Features & Construction
- Offshore Rigging & Handling: Features integrated pad eyes for crane lifting, forklift pockets for yard handling, and corner castings for secure horizontal and vertical twist-lock stacking.
- Cargo Protection: Fitted with front and door protective bars, internal tie-down points, and double doors with heavy-duty locking mechanisms.
- Electrical & Controls: Operates via a 32A power connection with standard 16A consumption, including an extra-long power connecting cable.
- Durable Coating: Finished in standard RAL 9003 marine-grade paint for exceptional corrosion resistance.
| Product Type | Refrigerated Offshore Shipping Container |
| Certifications | DNV 2.7-1, EN 12079, ISO/CSC |
| External Dimensions (LxWxH) | 2,991 x 2,438 x 2,591 mm |
| Internal Dimensions (LxWxH) | 2,381 x 2,284 x 2,261 mm |
| Door Opening (WxH) | 2,280 x 2,244 mm |
| Internal Volume | 12.3 m³ |
| Tare Weight | 2,820 kg |
| Max Payload | 8,000 kg |
| Max Gross Weight | 10,820 kg |
| Temperature Range | -25°C to +25°C |
| Refrigeration Unit | Carrier Micro-Link 3 Primeline |
| Power Supply Connection | 32 A |
| Power Consumption | 16 A |
| Flooring | T-bar Aluminium |
| Internal Cladding | Stainless Steel |
| Standard Color | RAL 9003 |
