Description

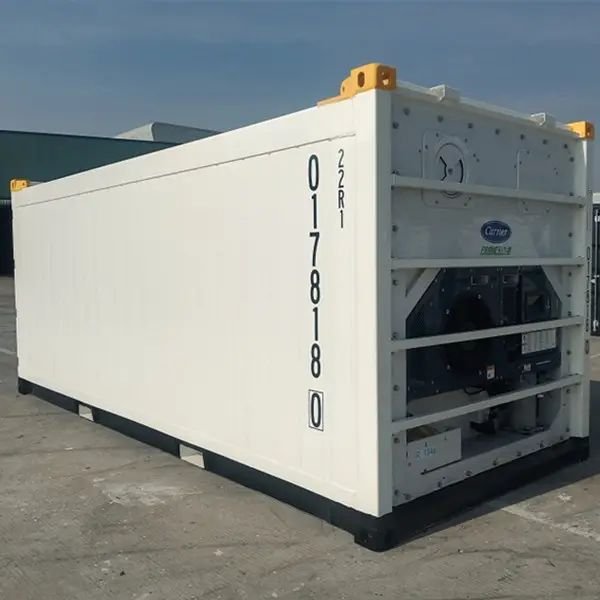

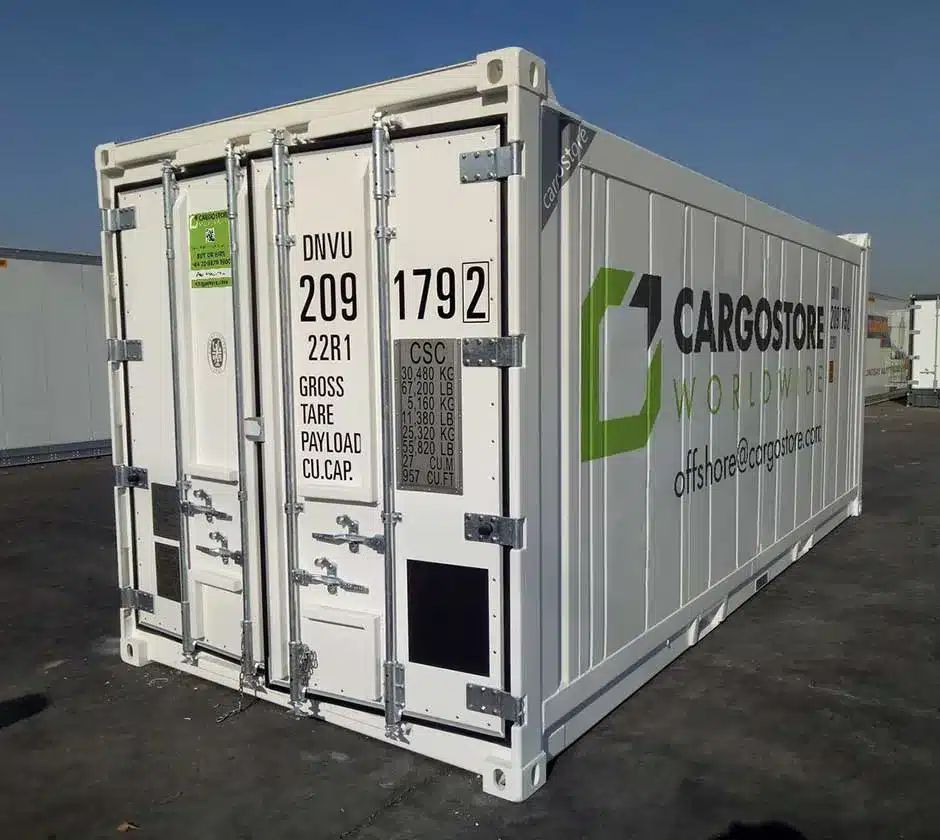

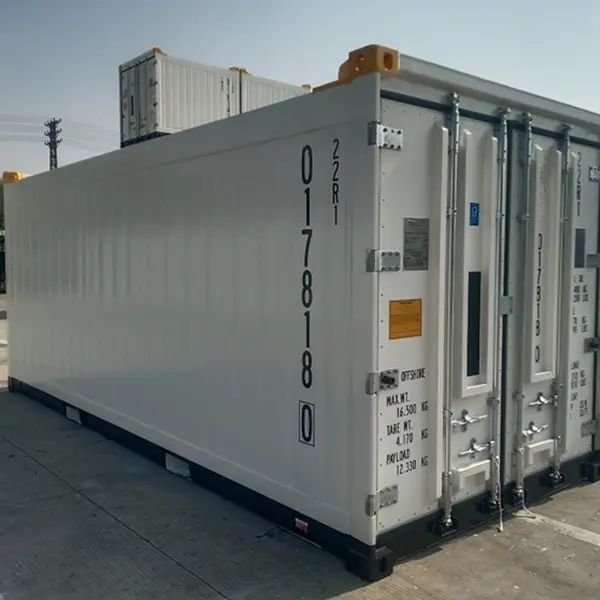

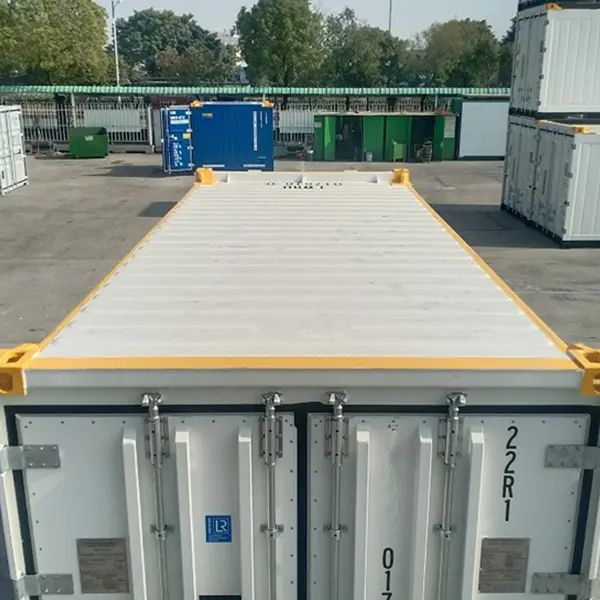

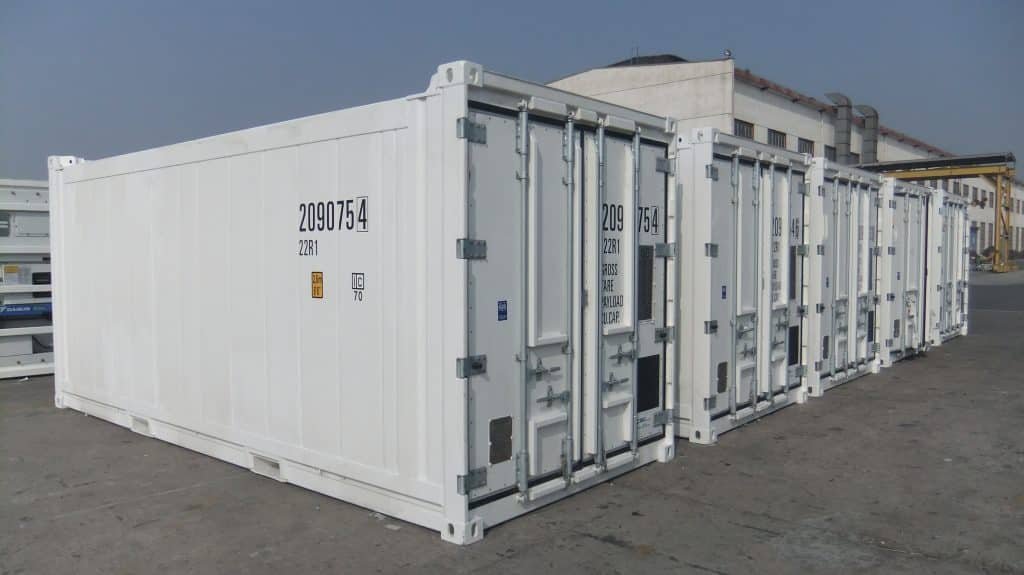

Engineered for demanding offshore environments, this 20ft refrigerated container (reefer) delivers reliable temperature-controlled storage and transport for perishable goods, food supplies, and temperature-sensitive chemicals. Certified to DNV 2.7-1 and EN 12079 standards, it is built to withstand high seas, harsh marine weather, and saline conditions.
Key Features & Performance
- Temperature Control: Integrated cooling systems from Carrier, Thermo King, or Daikin maintain internal temperatures ranging from -35°C to +30°C in ambient conditions up to +50°C.
- Heavy-Duty Construction: Manufactured with high-strength corten steel and Q345D materials with anti-corrosion protection and reinforced lifting points.
- Certified Rigging: Designed for safe crane handling and intermodal offshore transport; units can be stacked with certified slings attached.
- Capacity & Payload: Provides 27 m³ (957 cu ft) of storage space with a maximum gross weight rating of 20,000 kg and payload capacity up to 14,930 kg.
- Power Compatibility: Supports 3-phase electrical configurations (380V/400V/415V/440V/460V at 50/60Hz).
| Product Type | Offshore Refrigerated Container |
| Container Size | 20 ft |
| Certifications | DNV 2.7-1, EN 12079, ISO 10855, CSC |
| Material | Corten Steel / Q345D |
| Cubic Capacity | 27 m³ |

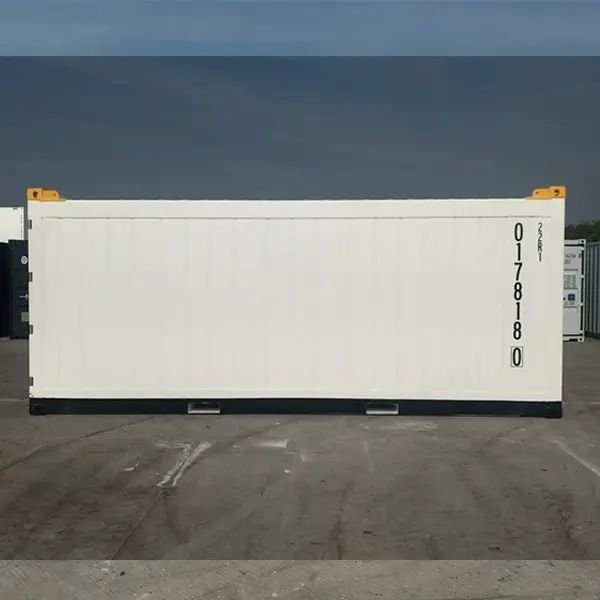

| External Dimensions (L x W x H) | 6.06 m x 2.44 m x 2.59 m |

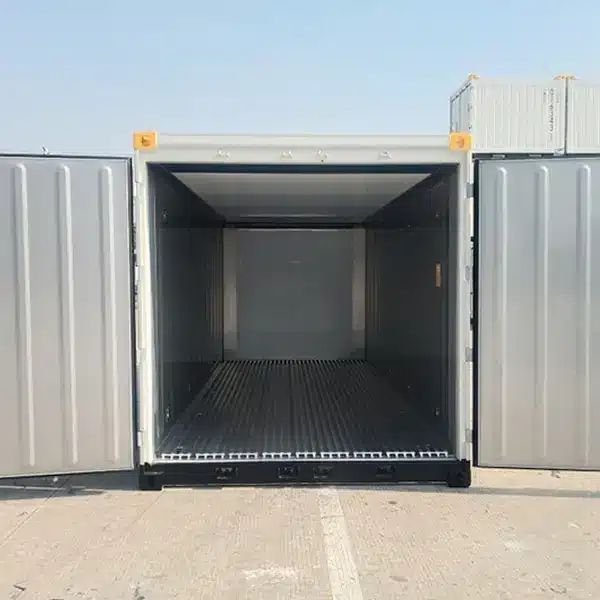

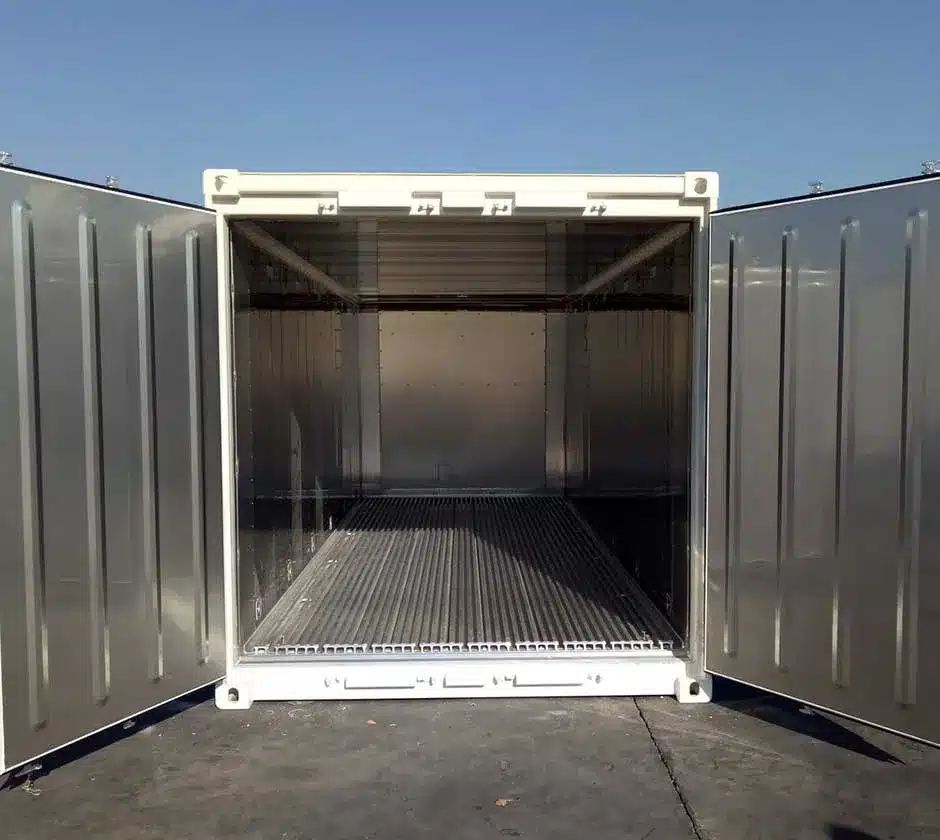

| Internal Dimensions (L x W x H) | 5.49 m x 2.28 m x 2.26 m |
| Tare Weight | 5,070 kg |
| Maximum Gross Weight | 20,000 kg |
| Maximum Payload | 14,930 kg |
| Temperature Range | -35°C to +30°C |

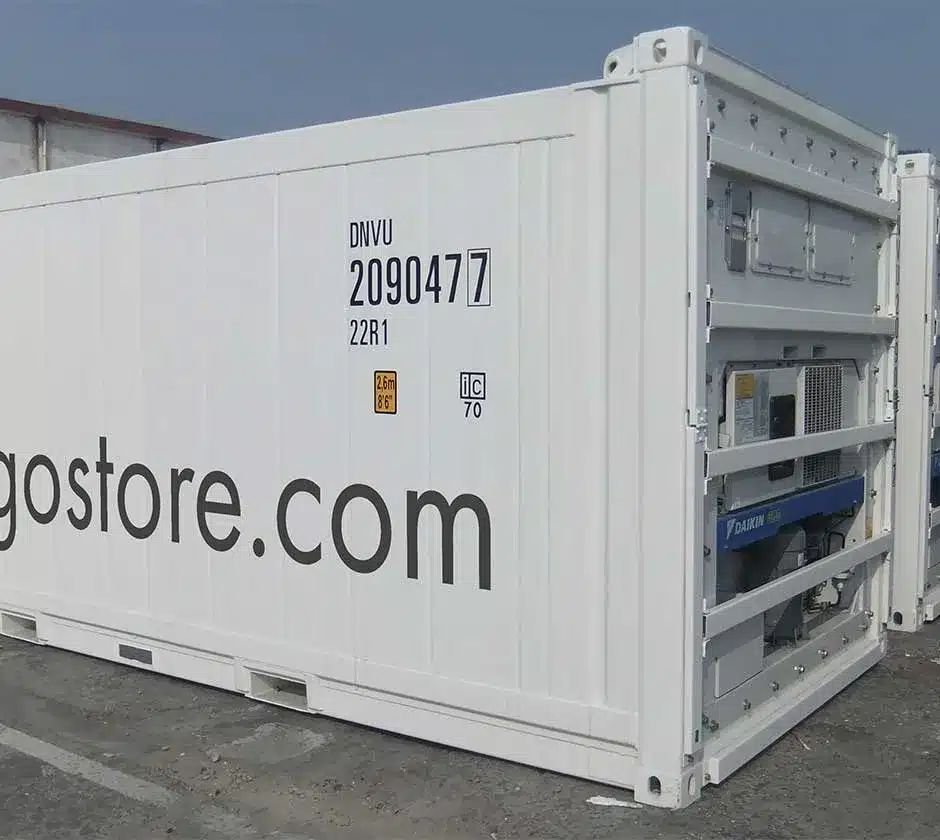

| Refrigeration Unit | Carrier Transicold, Thermo King, or Daikin |
| Electrical Configuration | 3-Phase (380/400/415/440/460V, 50/60Hz) |
| Slings | Supplied with DNV certified slings |
