Description

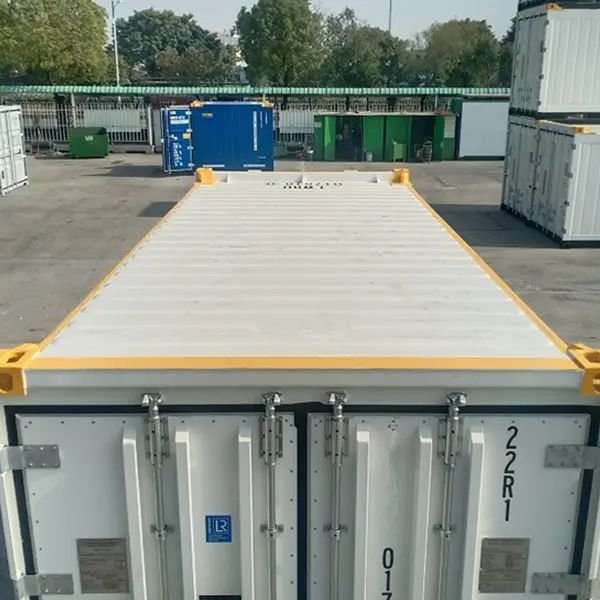

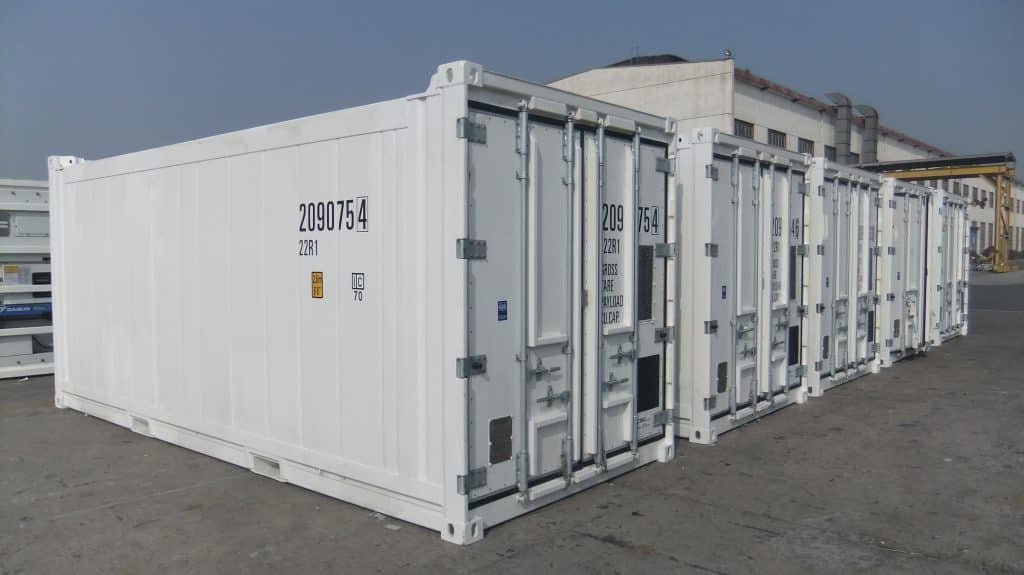

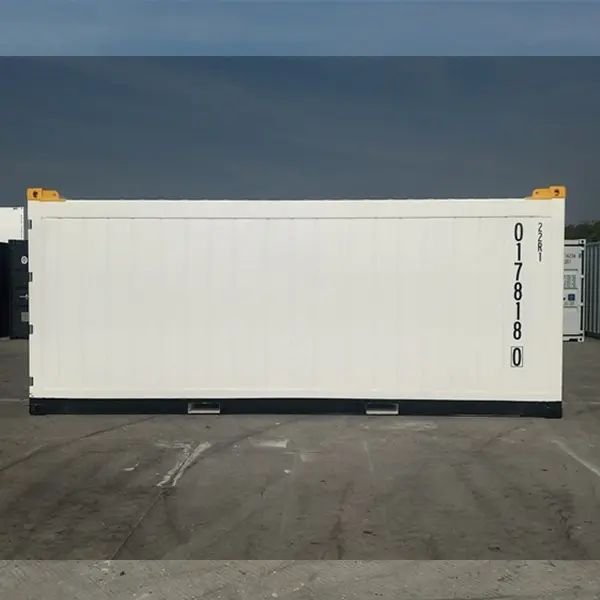

Designed and certified to meet stringent offshore marine requirements, this 20ft DNV refrigerated container offers reliable, heavy-duty cold storage for offshore oil and gas rigs, vessels, and harsh maritime environments. Built to endure severe weather and marine conditions, it complies with DNV 2.7-1, EN 12079, ISO, and CSC standards.
Constructed with high-grade Corten steel and Q345D materials with corrosion-resistant finishes, this container is engineered for structural strength, weather resistance, and dependable long-term performance. It features integrated cooling systems compatible with leading machinery including Daikin, Carrier Transicold, and Thermo King, maintaining temperatures ranging from -35°C to +30°C in high ambient conditions up to +50°C.
Equipped for crane lifting with certified slings and robust pad eyes, the container allows stacking even while slings remain mounted, optimizing deck space and handling efficiency.
| Product Type | Offshore Refrigerated Shipping Container |
| Material | Corten Steel / Q345D |
| Certifications & Standards | DNV 2.7-1, EN 12079, ISO 10855-1, CSC |
| Classification Approvals | BV / DNV / LR |
| Nominal Size | 20 ft |
| External Dimensions | 6.06 m x 2.44 m x 2.59 m (20′ x 8′ x 8′ 6″) |
| Internal Dimensions | 5.49 m x 2.28 m x 2.26 m (18′ x 7′ 7″ x 7′ 6″) |
| Internal Cubic Capacity | 27 m³ (957 cu ft) |
| Tare Weight | 5,070 kg (11,180 lb) |
| Maximum Gross Weight | 20,000 kg (44,090 lb) |
| Maximum Payload | 14,930 kg (32,910 lb) |
| Temperature Range | -35°C to +30°C |
| Refrigeration Unit Compatibility | Carrier Transicold, Thermo King, Daikin |
| Electrical Configuration | 3-Phase, AC 380-460V, 50/60Hz |
| Control System | Integrated Microprocessor Control |
| Surface Treatment | High Anti-Corrosion Painting / Hot-Dip Galvanized |
