Description

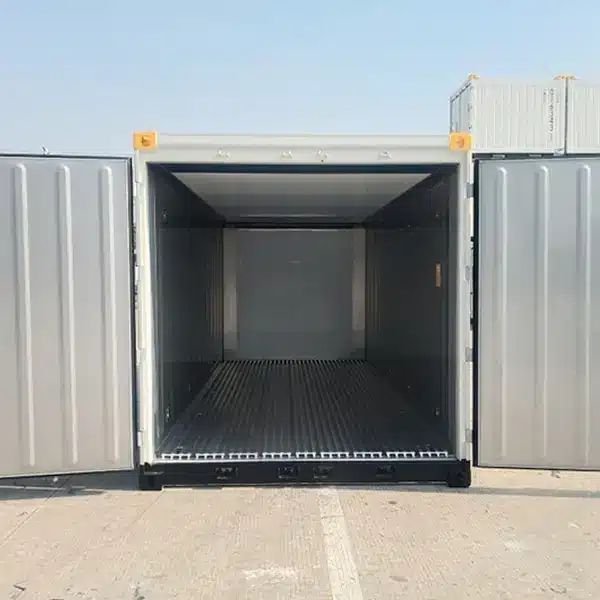

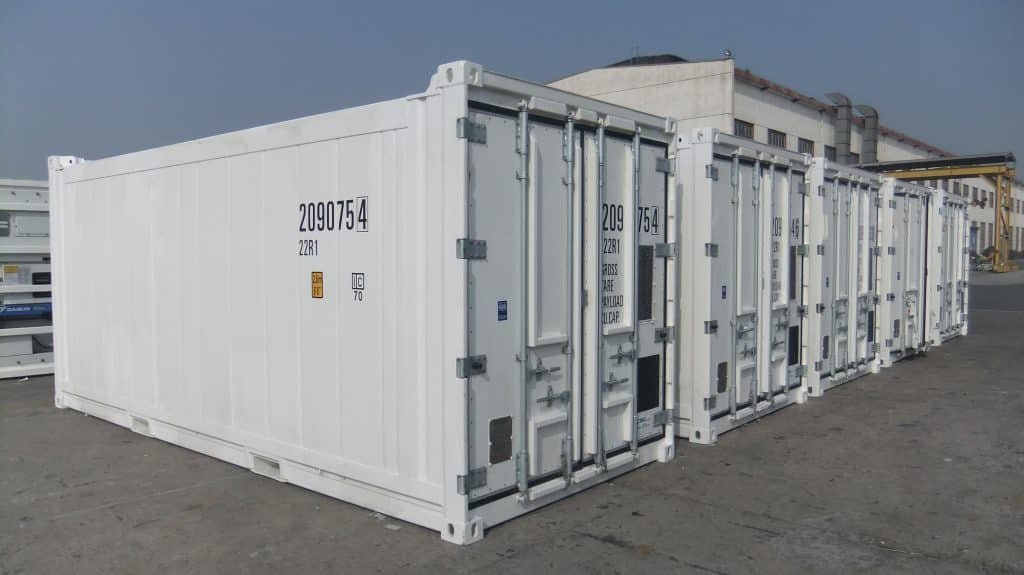

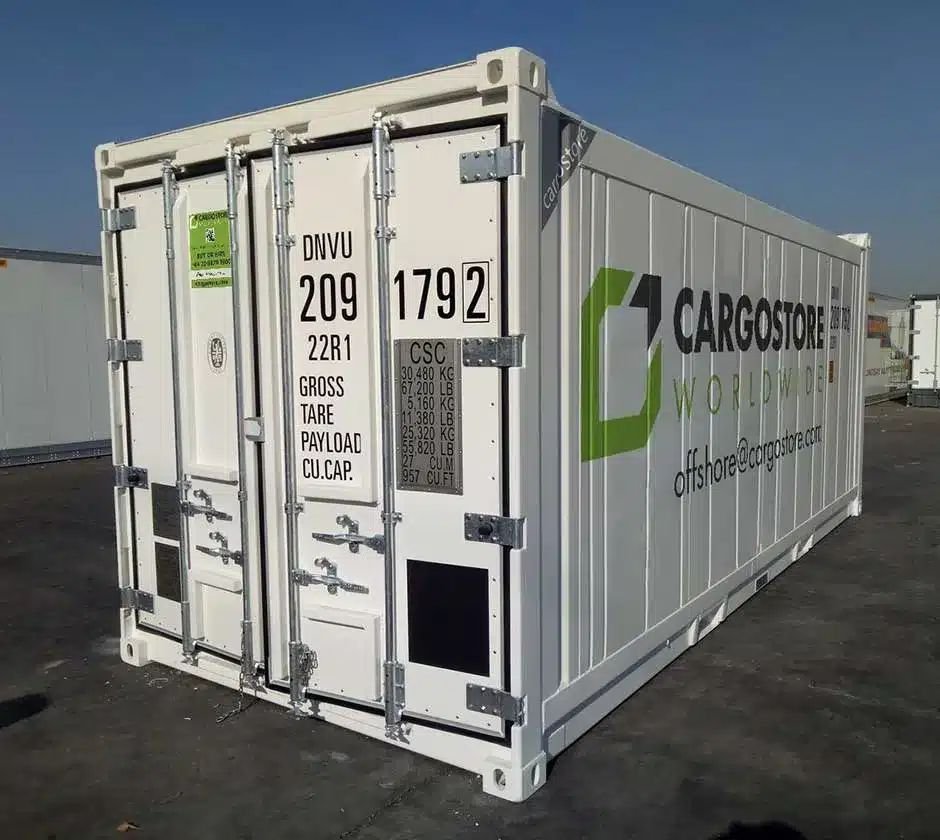

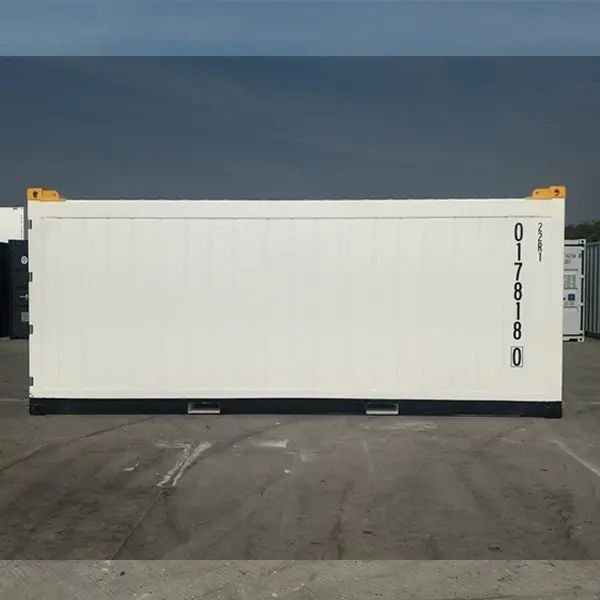

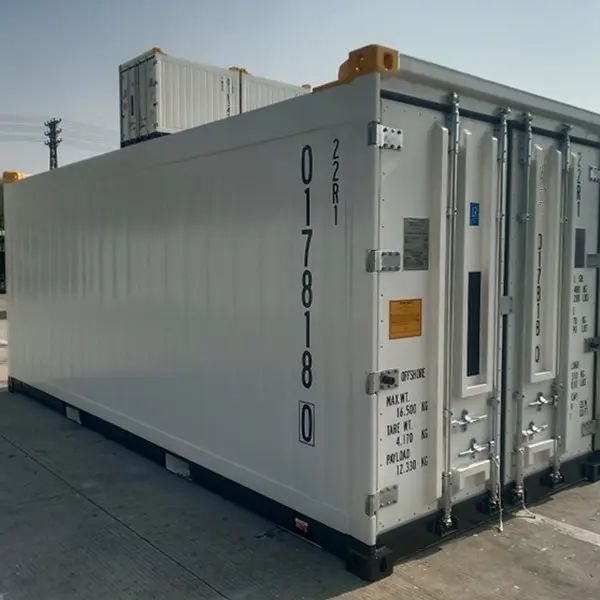

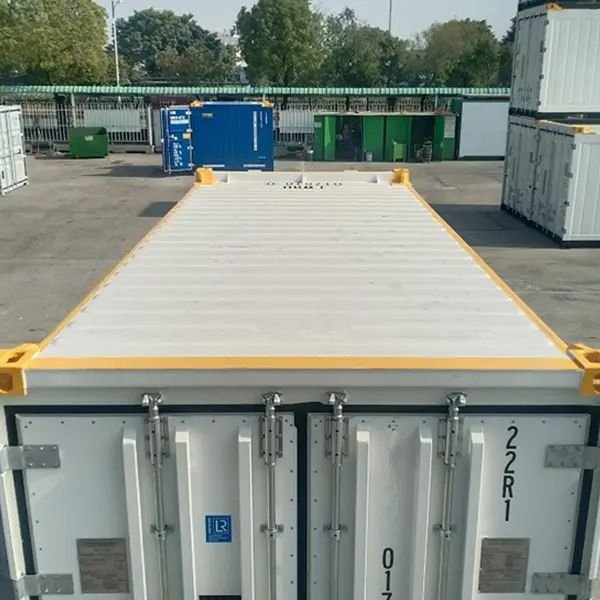

Engineered to meet the stringent demands of maritime and energy operations, this 20ft DNV certified refrigerated offshore container provides dependable, temperature-controlled cold storage. Designed and tested in accordance with DNV 2.7-1, EN 12079, ISO, and CSC standards, it ensures perishable cargo and temperature-sensitive supplies remain protected in extreme offshore environments.

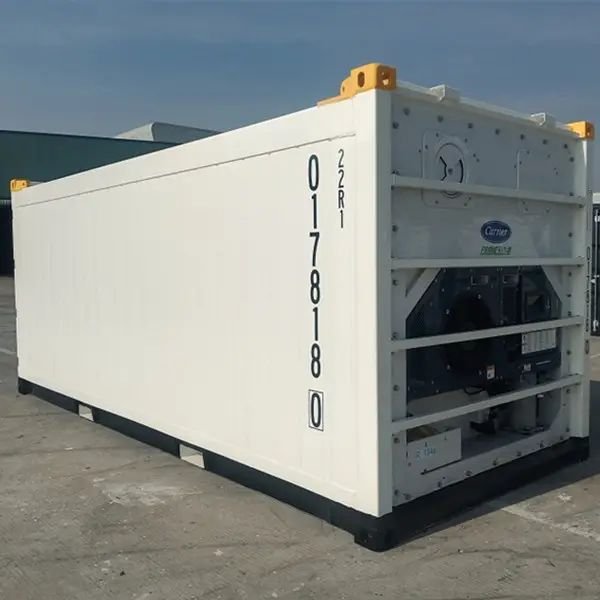

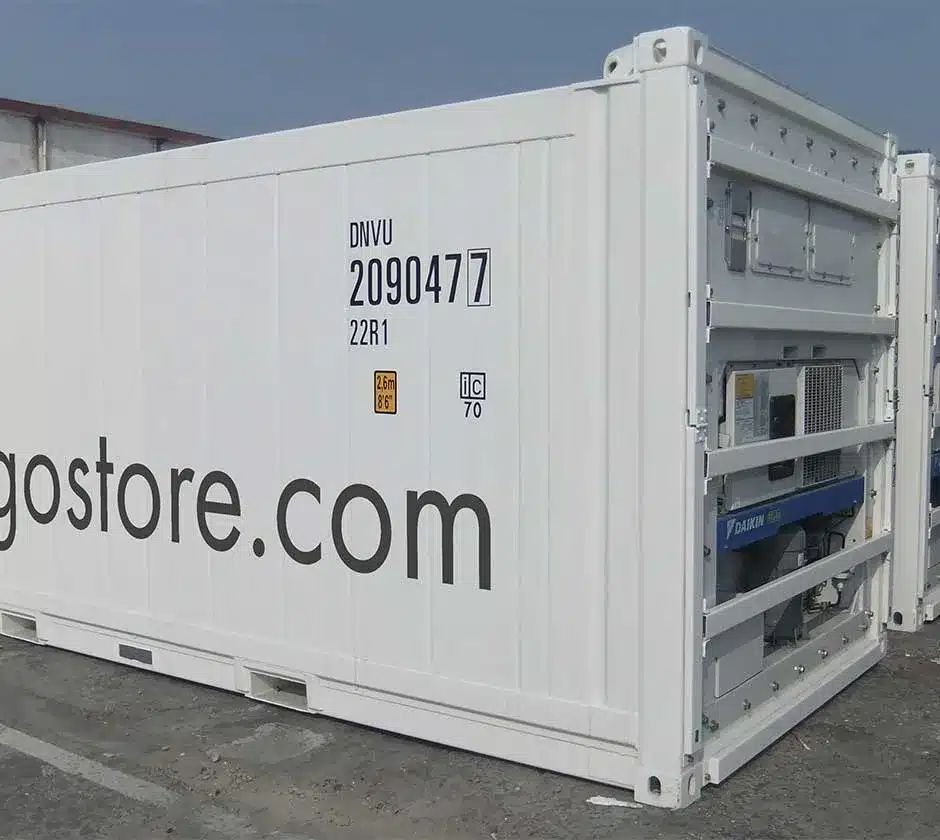

Constructed with durable corten steel and heavy-duty corner castings, this offshore reefer is built to endure harsh marine exposure. Equipped with advanced refrigeration machinery from industry-standard manufacturers including Thermo King, Carrier Transicold, or Daikin, it delivers precise temperature management ranging from -35°C to +30°C in ambient operating environments up to +50°C.
Key Features
- Certified Offshore Design: Built to DNV 2.7-1 and EN 12079 standards for offshore crane lifting and platform placement.
- Robust Construction: Manufactured with high-strength corten steel featuring anti-corrosion surface treatment.
- Precise Climate Control: Integrated microprocessor controls accommodate cooling, chilling, and freezing from -35°C to +30°C.
- Stackable Operation: Engineered to allow multi-tier stacking with certified lifting slings mounted.
- Flexible Power Options: Compatible with 3-phase AC power configurations (380V/400V/415V/440V/460V at 50/60Hz).
| Product Type | Offshore Refrigerated Container |
| Certifications | DNV 2.7-1, EN 12079, ISO 10855-1, CSC |
| External Dimensions | 6.06 m x 2.44 m x 2.59 m (20′ x 8′ x 8’6″) |

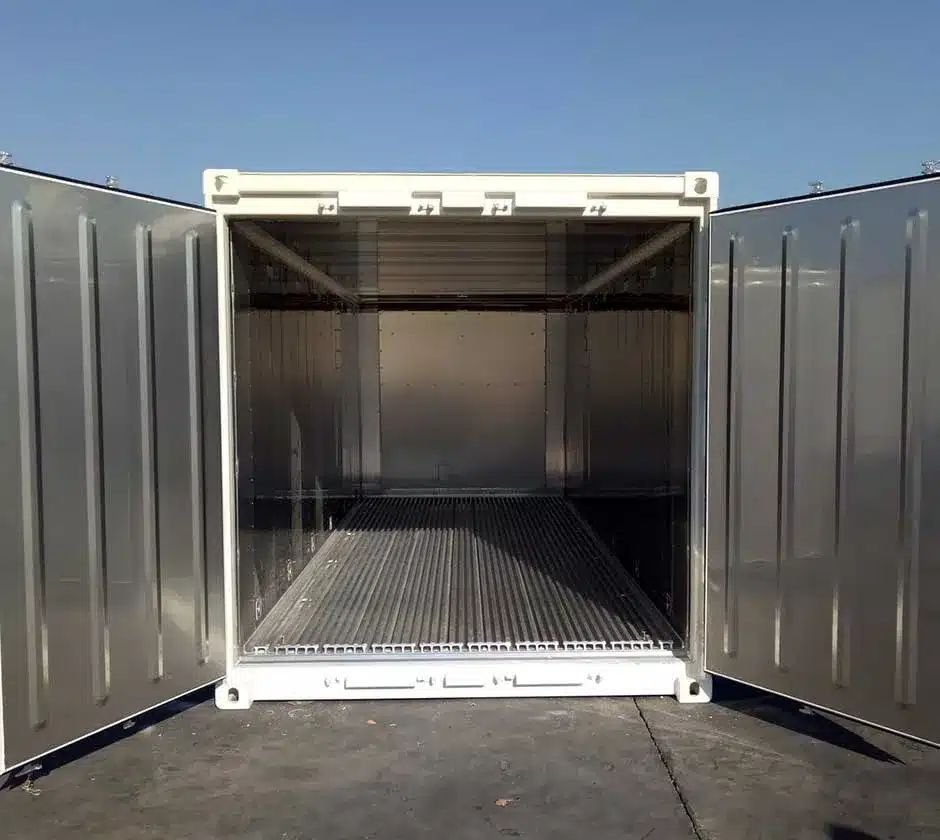

| Internal Dimensions | 5.49 m x 2.28 m x 2.26 m (18′ x 7’7″ x 7’6″) |
| Cubic Capacity | 27 m³ (957 cu. ft.) |
| Tare Weight | 5,070 kg (11,180 lbs) |
| Max Gross Weight | 20,000 kg (44,090 lbs) |
| Max Payload | 14,930 kg (32,910 lbs) |
| Refrigeration Unit | Carrier Transicold, Thermo King, or Daikin |
| Temperature Range | -35°C to +30°C |
| Ambient Operating Temperature | Up to +50°C |
| Electrical Configuration | 3-Phase, AC 380-460V, 50/60Hz |
| Material | Corten Steel / Q345D |
