Description

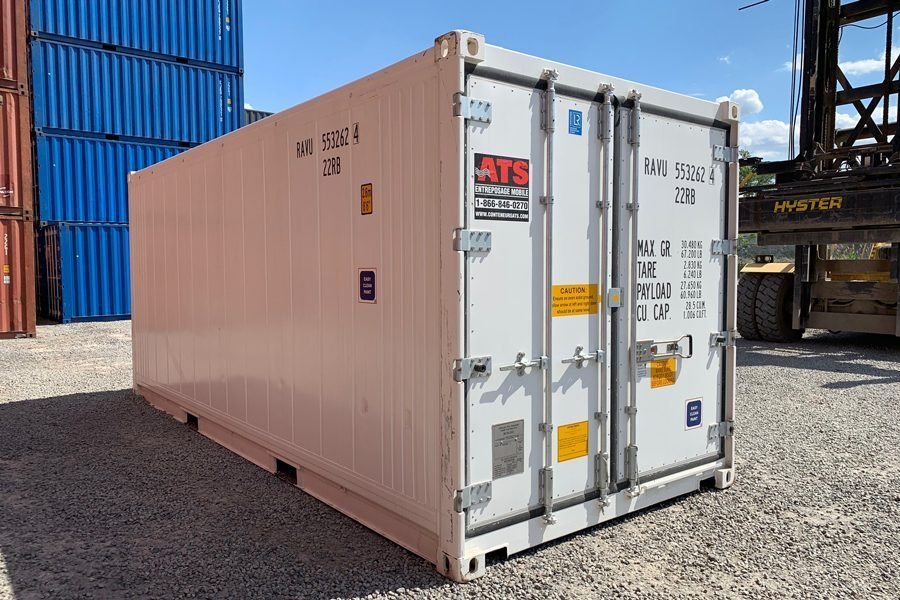

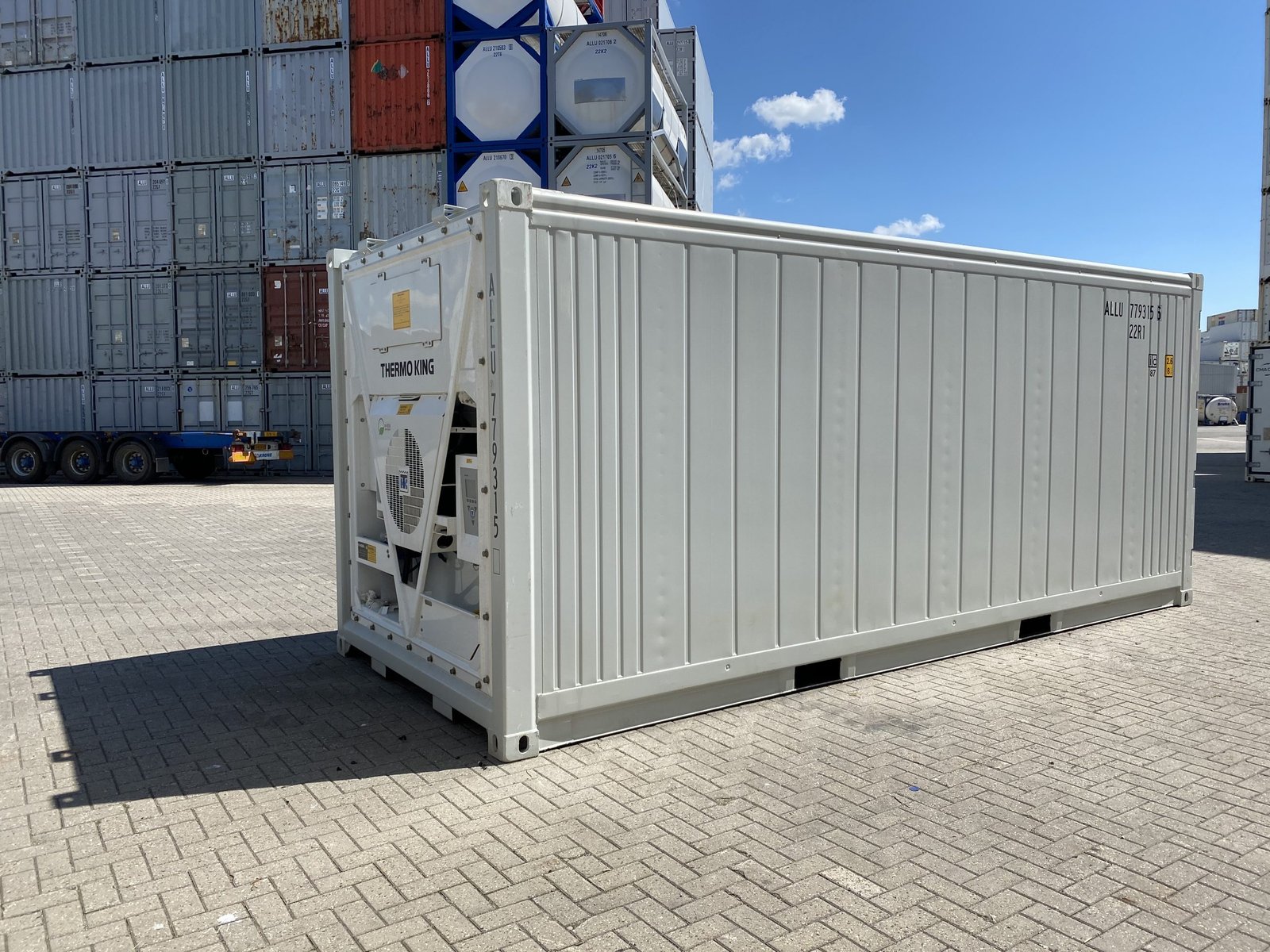

The 20ft refrigerated shipping container (reefer) provides dependable, heavy-duty cold storage and temperature-controlled cargo transportation. Built to standard ISO dimensions, this unit is designed to store and protect perishable goods—including food, beverages, pharmaceuticals, and floriculture—from heat, mold, and humidity.

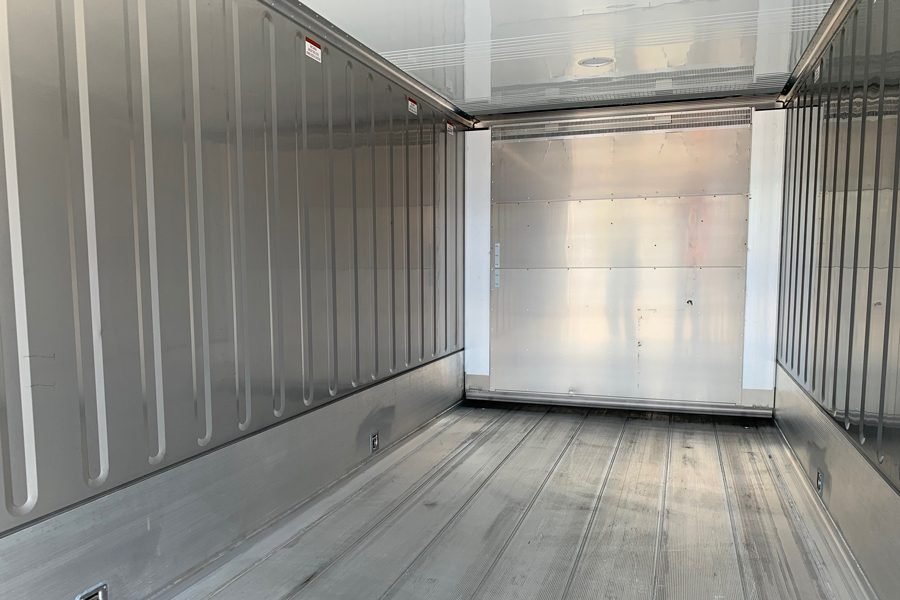

Featuring stainless steel (MGSS) outer cladding and corrosion-resistant Corten steel construction, the interior is finished with food-grade stainless steel and aluminum linings for easy cleaning and sanitation. An aluminum 6082 T6 T-grid floor promotes efficient airflow throughout the 28.2 m³ (995 cu. ft.) internal capacity, while heavy-duty lockable double doors and built-in drainage maintain a clean, secure environment.

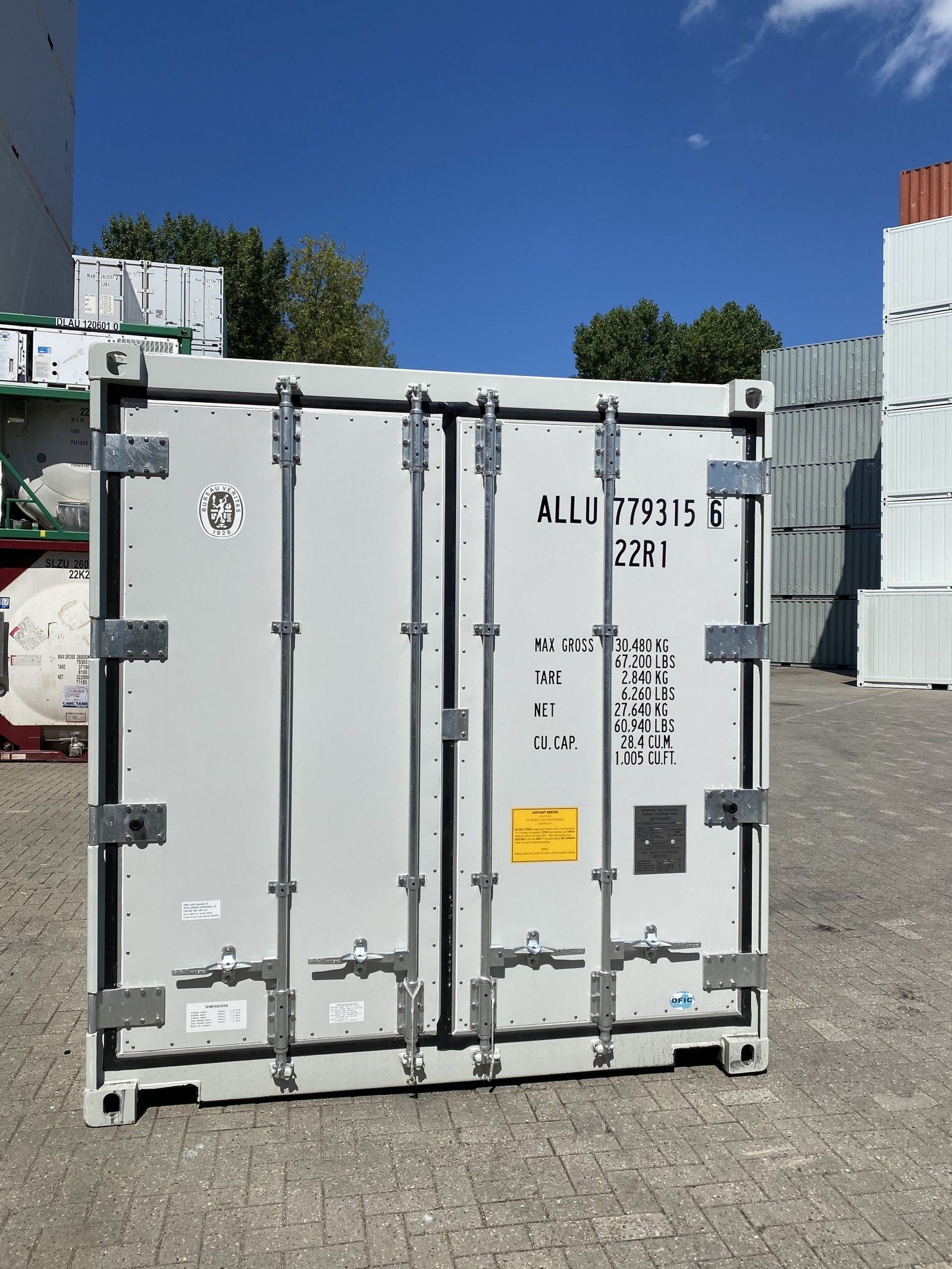

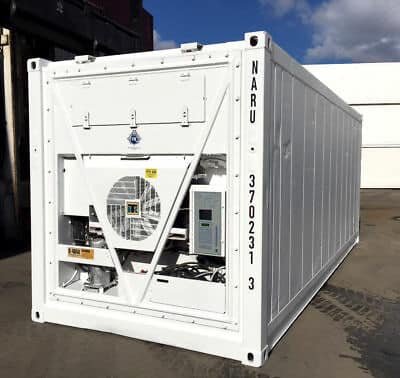

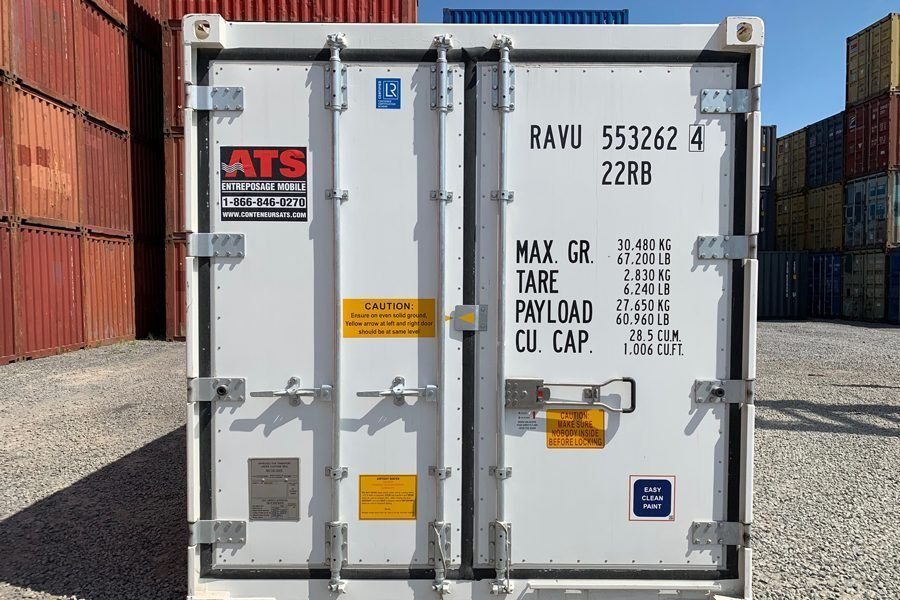

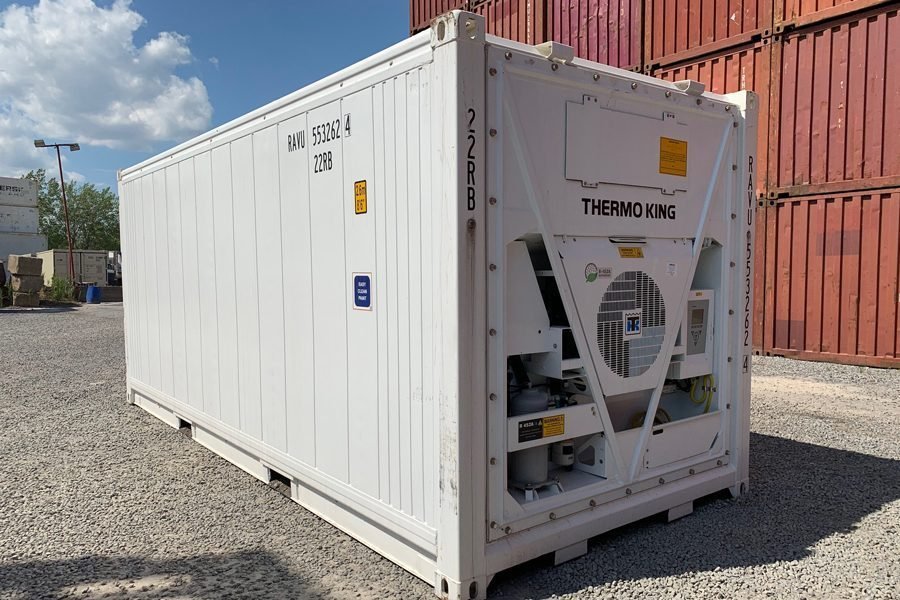

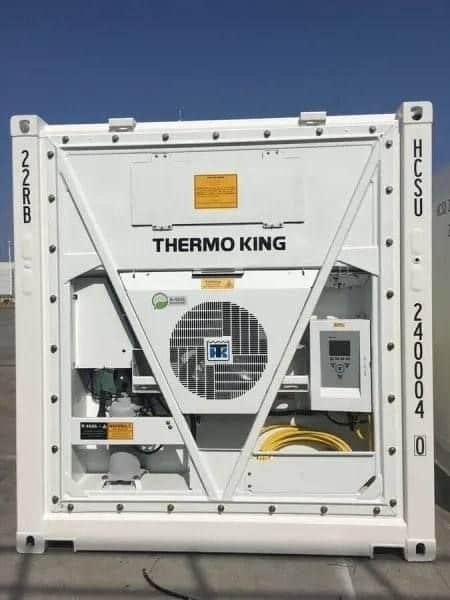

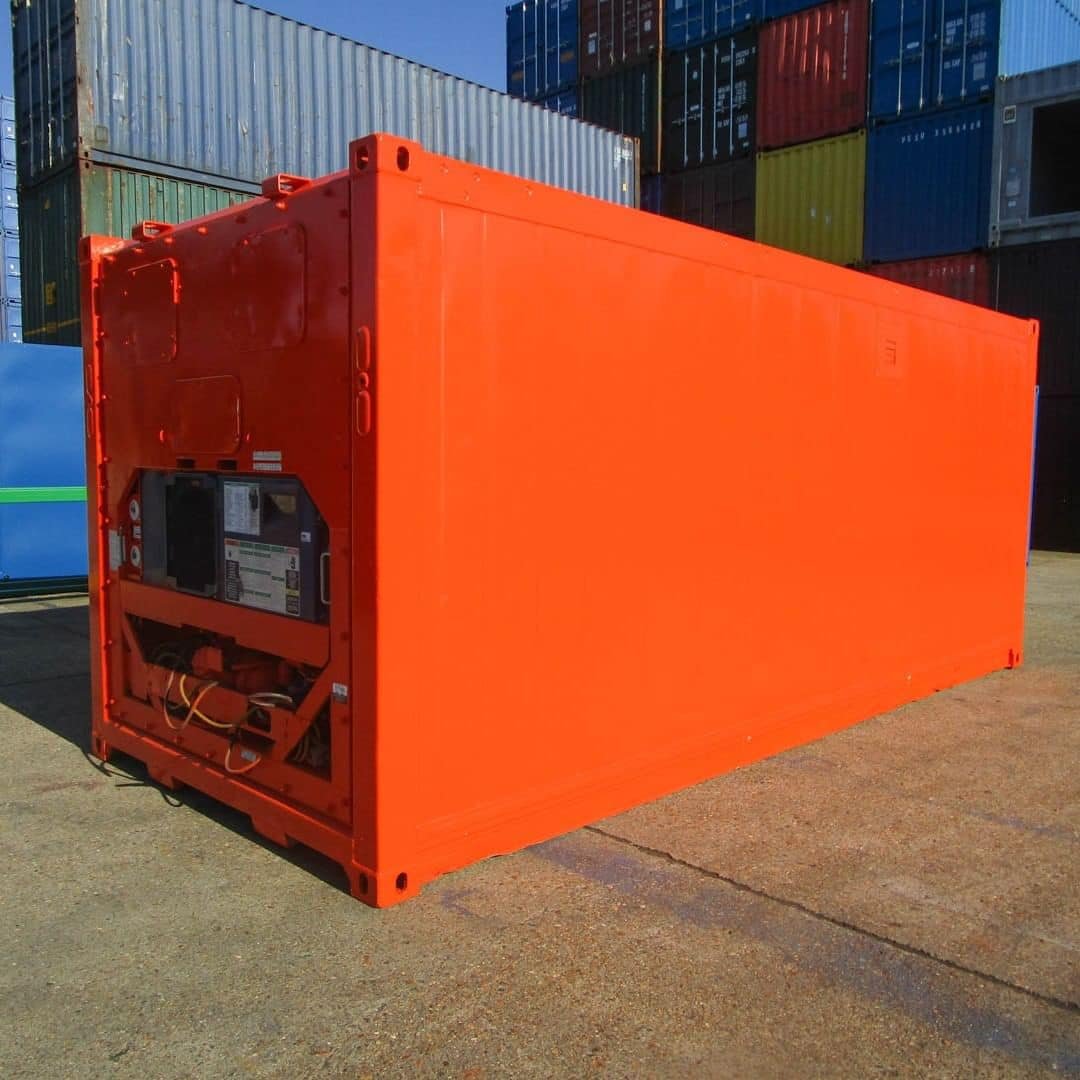

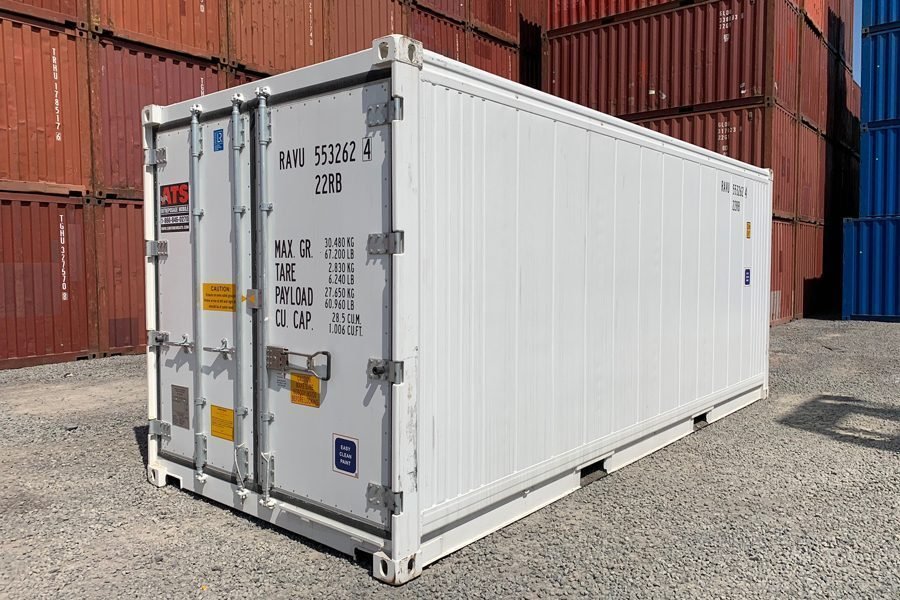

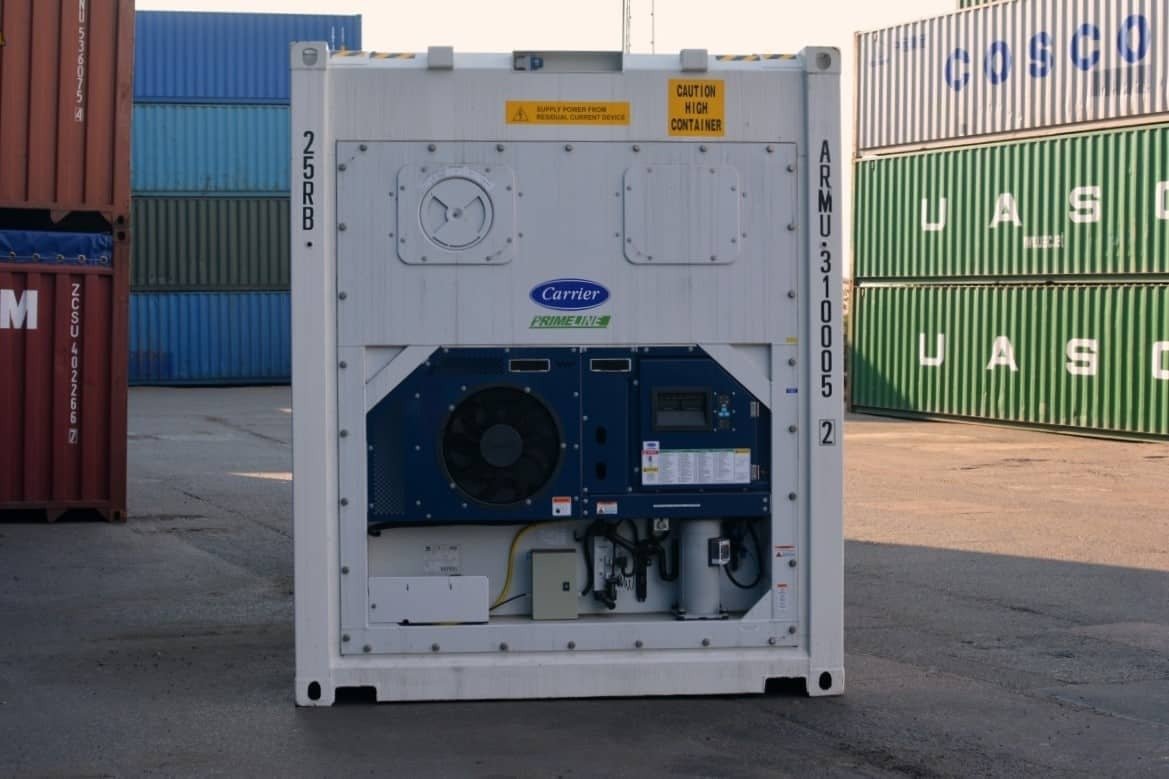

Equipped with a high-performance refrigeration system utilizing eco-friendly R452A refrigerant, the unit supports a broad operational temperature range from -40°C to +30°C (-40°F to +86°F). Built-in interior lighting, a panic alarm with exterior siren and strobe, an interior-release safety door, and forklift pockets deliver practical, safe operation across commercial, agricultural, and industrial sites.
| Container Type | 20ft Refrigerated ISO Container |
| ISO Code | 22R1 |
| Exterior Dimensions | 20’L x 8’W x 8’6″H (6,058 mm x 2,438 mm x 2,591 mm) |
| Interior Dimensions | 17’10″L x 7’6″W x 7’5″H (5,454 mm x 2,284 mm x 2,263 mm) |
| Door Opening | 7’6″W x 7’5″H (2,290 mm x 2,291 mm) |
| Cubic Capacity | 28.2 m³ |
| Tare Weight | 6,190 lbs (2,808 kg) |
| Maximum Payload | 61,010 lbs (27,673 kg) |
| Maximum Gross Weight | 67,200 lbs (30,480 kg) |
| Temperature Range | -40°C to +30°C (-40°F to +86°F) |

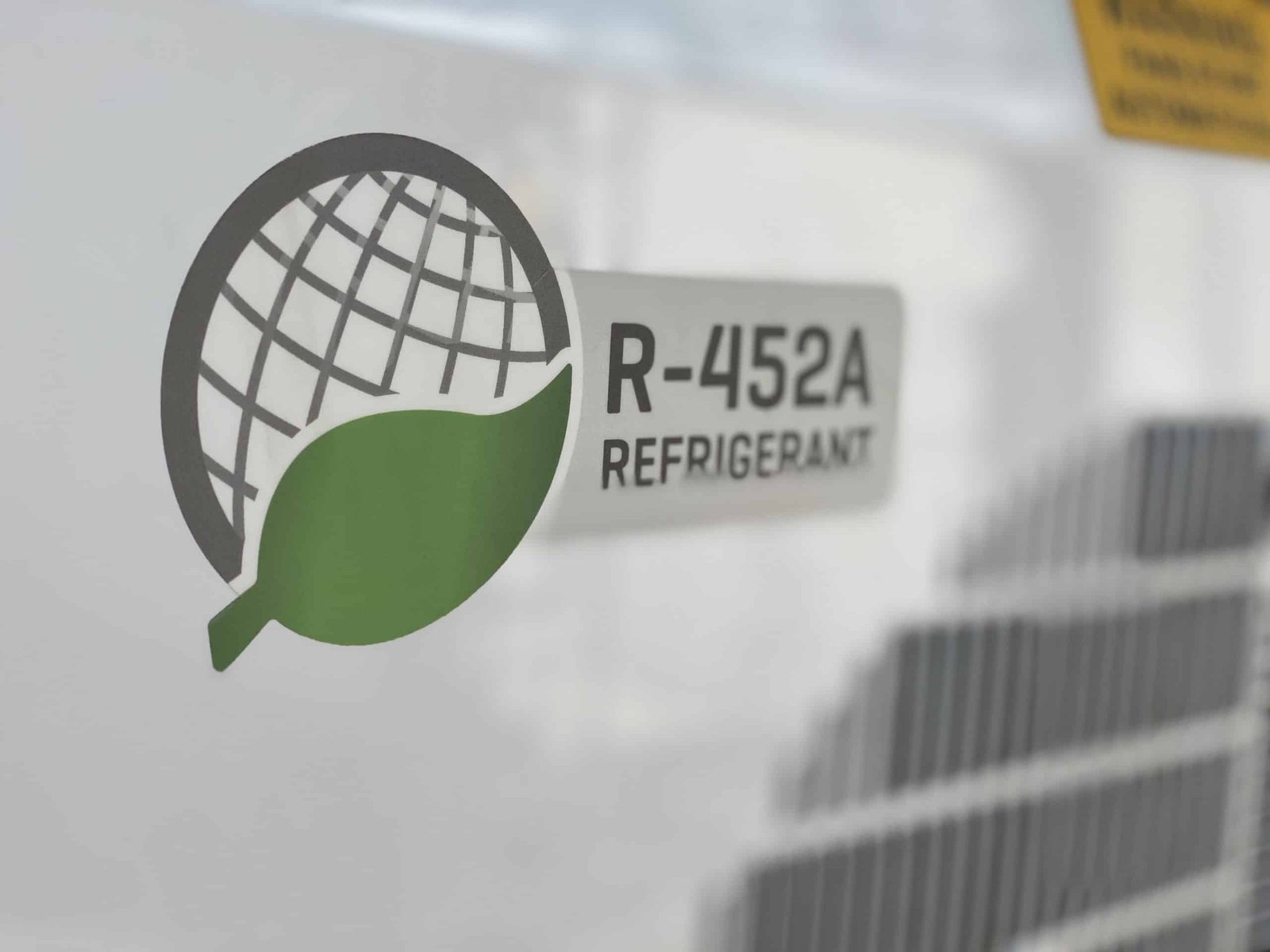

| Refrigerant | R452A |
| Electrical Requirements | 460V, 3-Phase, 30A |
| Floor Material | High Grade Aluminium 6082 T6 T-Floor |
| Cladding & Body Material | MGSS Stainless Steel & Corten Steel |
| Forklift Pockets | 14″ x 4.5″ with 80″ center-to-center spacing |
| Power Cable Length | 50 ft. |
| Certifications | CSC Certified, ATO-DLO, USDA |
