Description

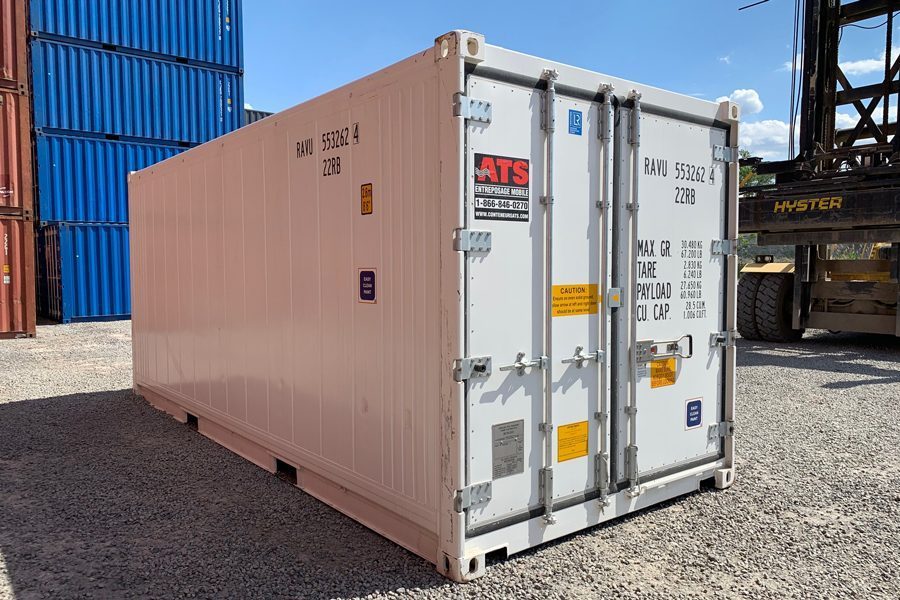

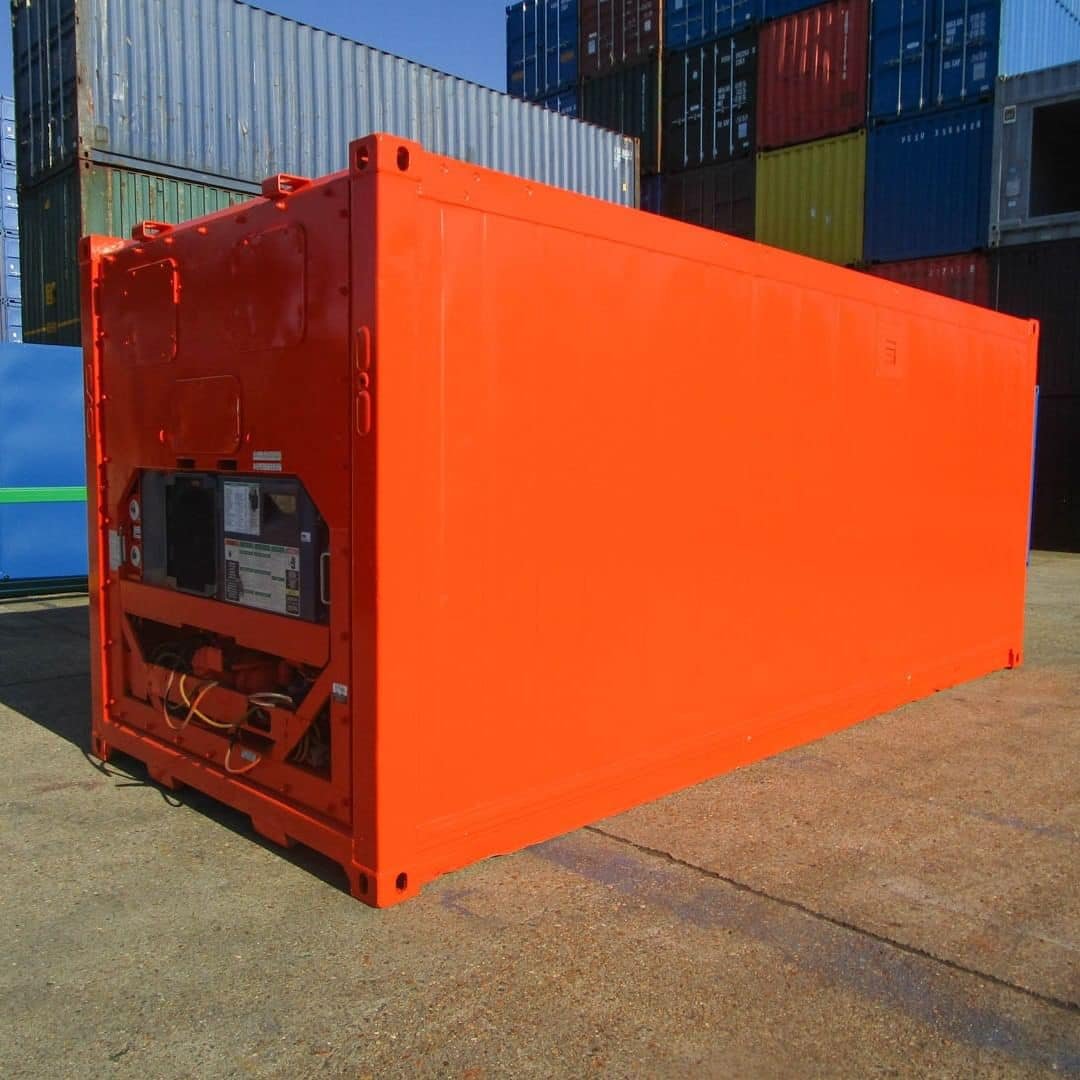

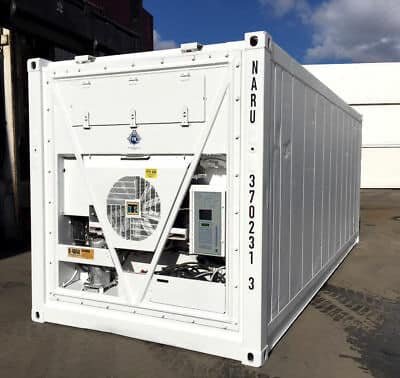

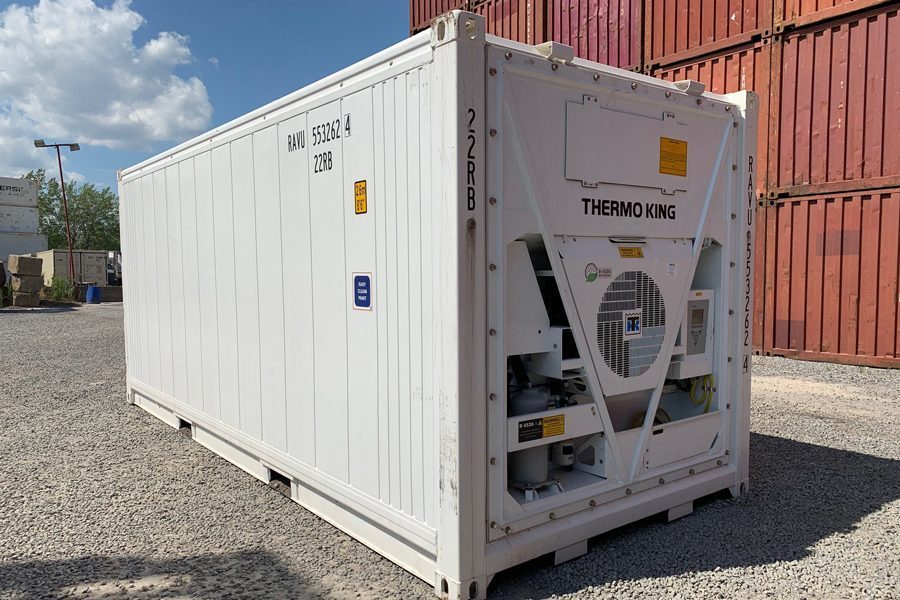

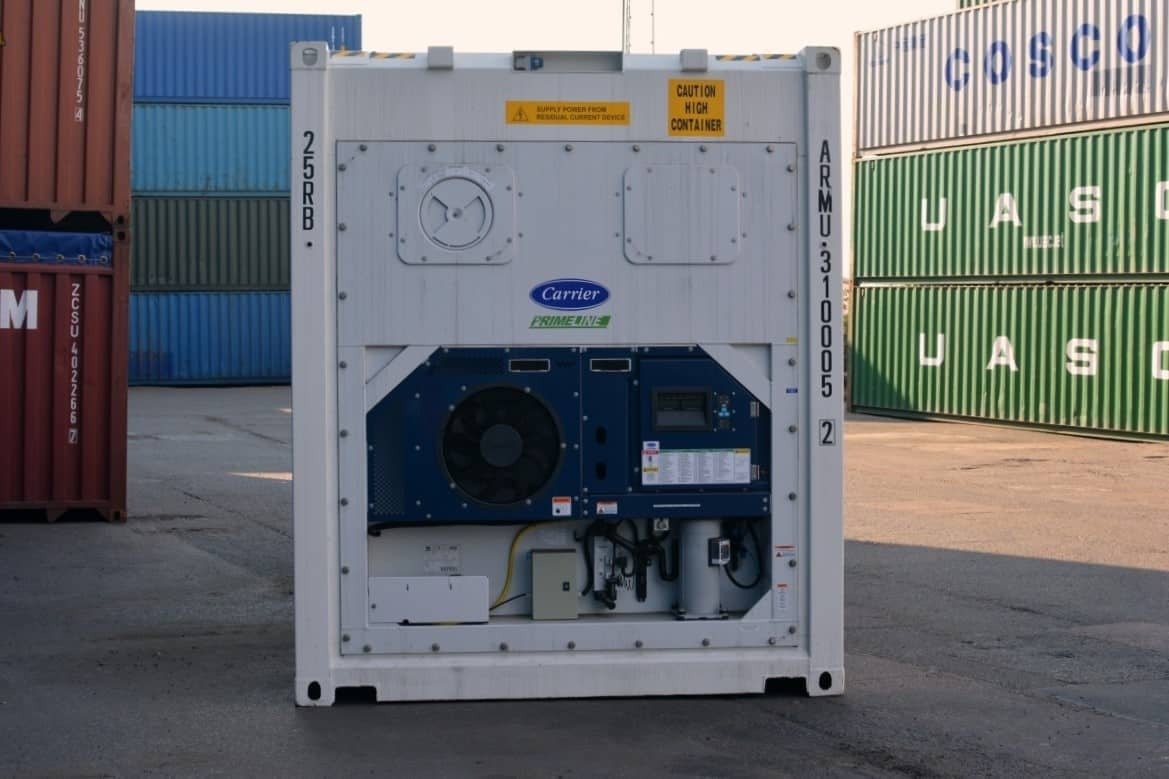

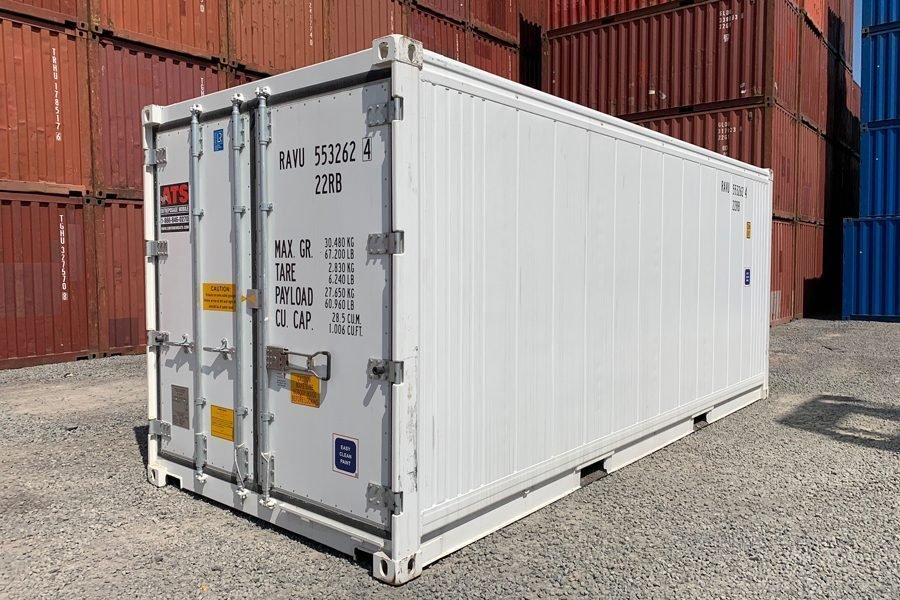

Designed for reliable temperature-controlled storage and freight transportation, this 20-foot ISO refrigerated shipping container (reefer) provides heavy-duty cold storage for food, beverages, pharmaceuticals, floral products, and temperature-sensitive materials. Constructed with a durable outer body, stainless steel (MGSS) outer cladding, and food-grade interior surfaces of stainless steel and aluminum, it ensures sanitary containment and easy washdown.

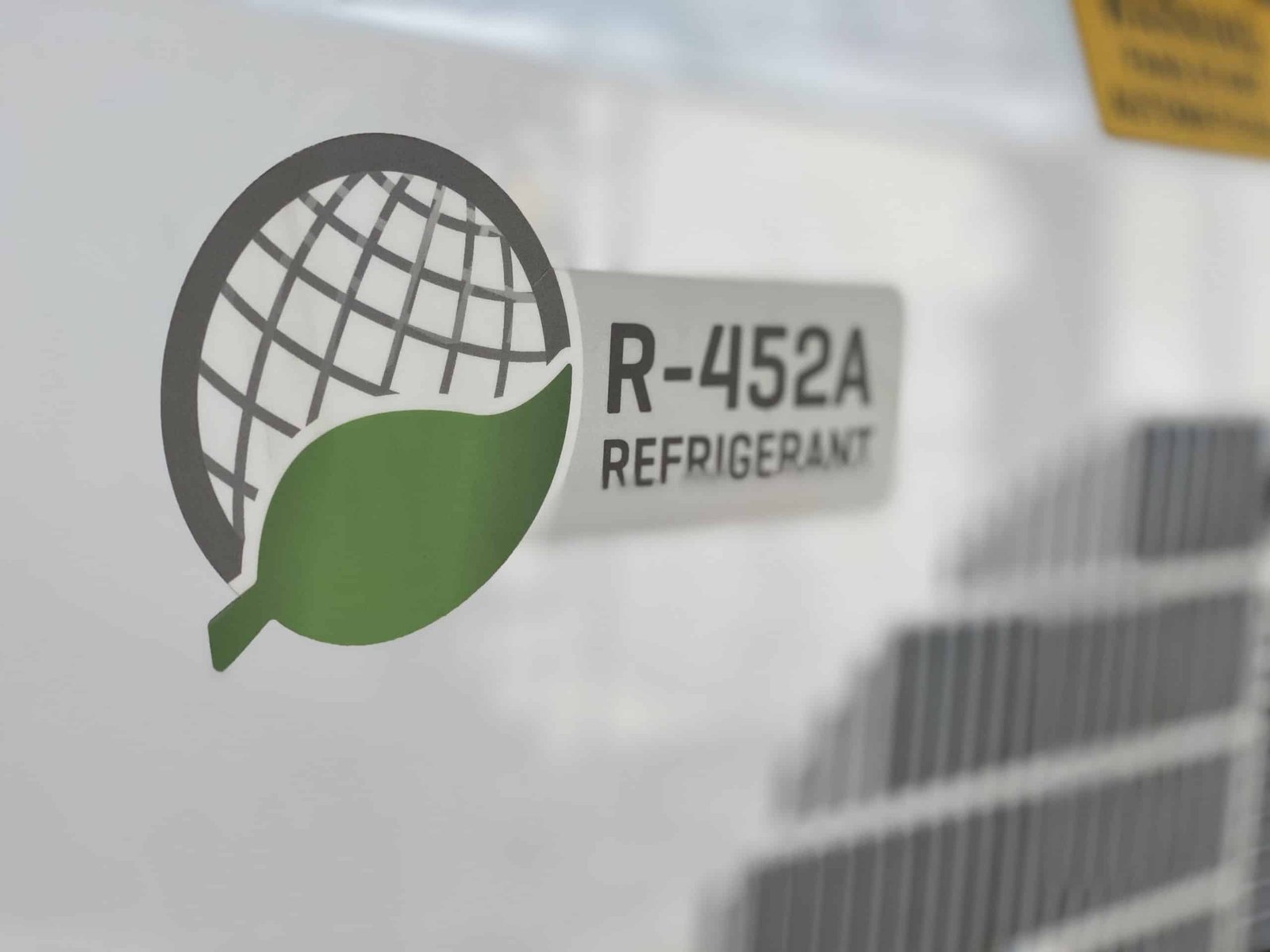

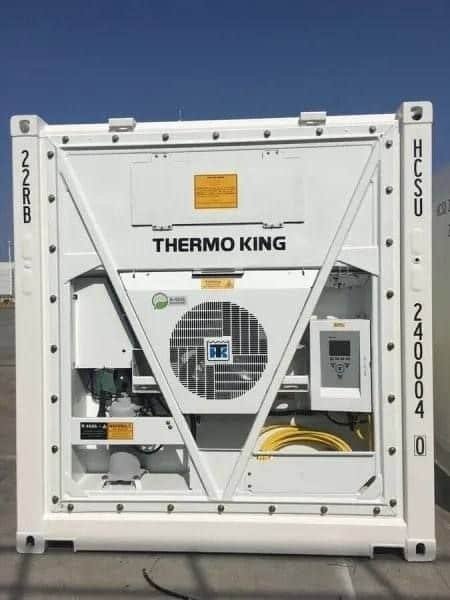

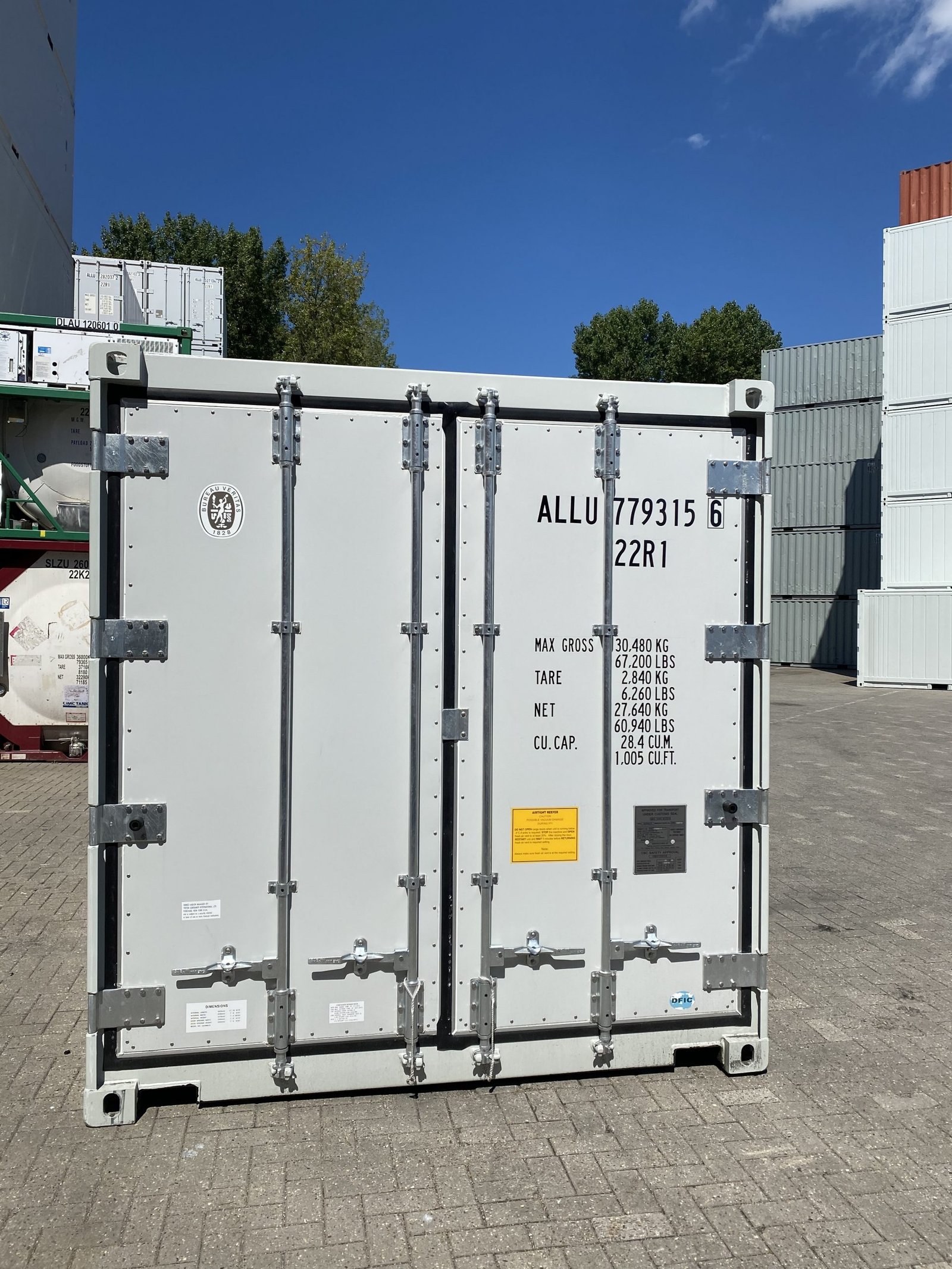

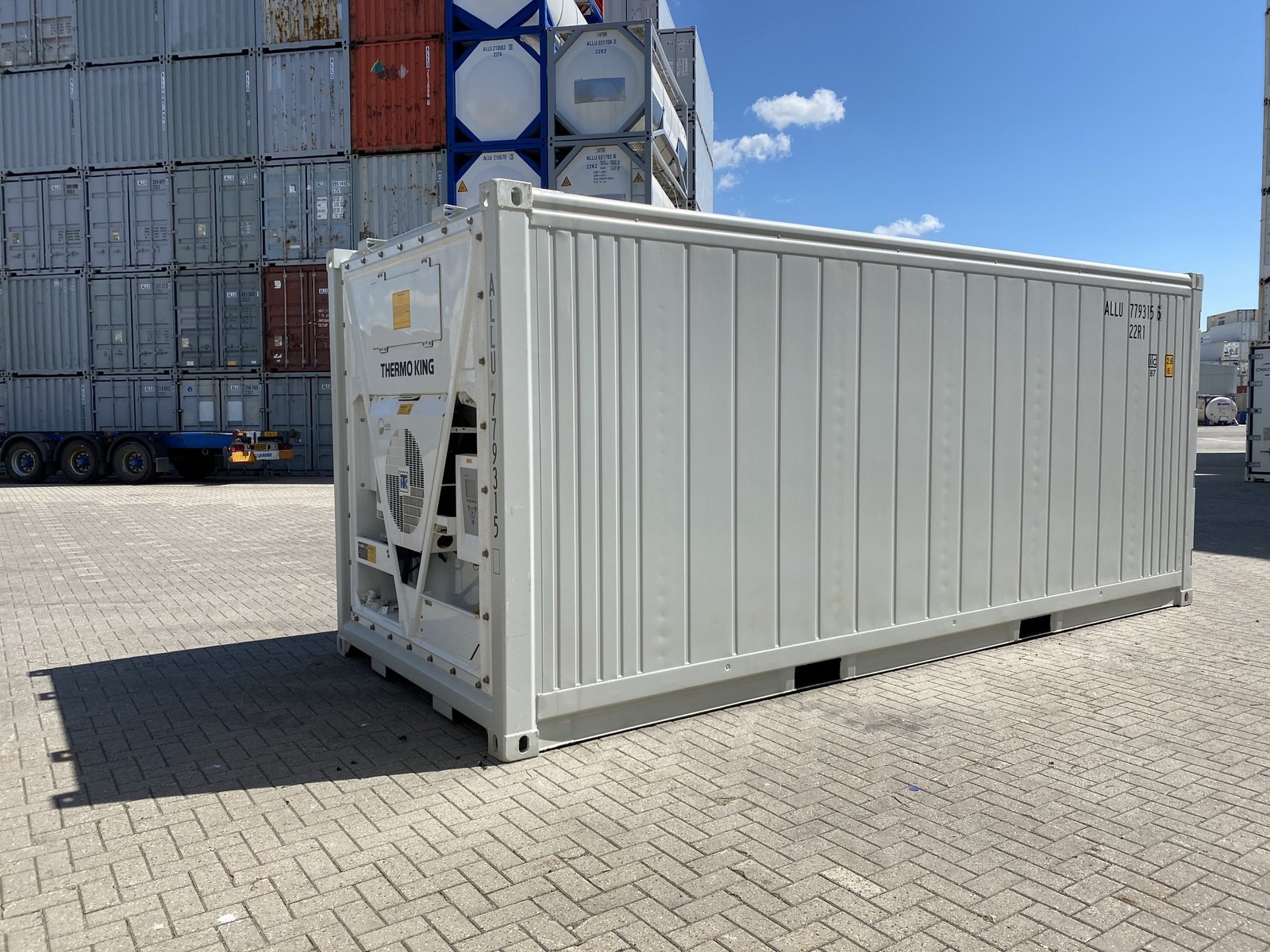

Featuring high-performance refrigeration machinery utilizing environmentally friendly R452A refrigerant, the unit maintains temperature ranges from -40°C to +30°C (-20°F to 70°F) with rapid pull-down capabilities. Built on a standard ISO footprint, it fits neatly into standard parking spaces or loading bays and includes forklift pockets, lockable double cargo doors, and an aluminum T-grid floor designed for optimal airflow.
Key Features & Construction
- Thermal Performance: Low heat leakage design with digital scroll compressor technology and heavy-duty sliding curtains to help maintain interior temperatures.

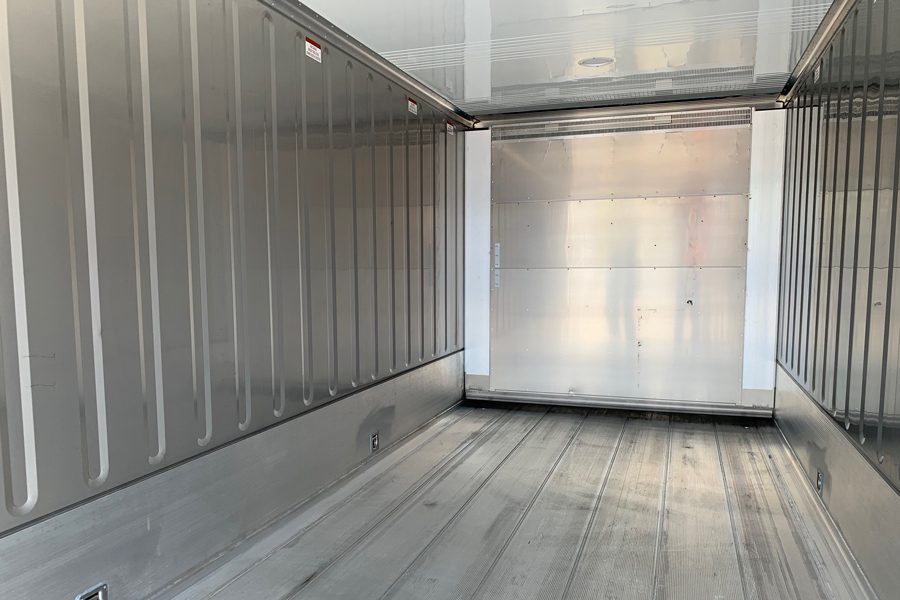

- Heavy-Duty Interior: High-grade aluminum 6082 T6 T-floor, aluminum scuff liners, and MGSS sill and underfloor engineering.
- Safety & Access: Interior lighting with switch, panic alarm with exterior siren and strobe, safety exit mechanism operable from the inside, and 4 self-closing automatic floor drains.
- Certifications & Power: CSC certified for global shipping line compliance; powered via standard 3-phase 460V / 30A connection (50 ft. power cable included) or compatible generator sets.
| Container Type | 20ft ISO Refrigerated Container |
| ISO Code | 22R1 |
| Outer Cladding | Stainless steel (MGSS) |
| Interior Flooring | High Grade Aluminium 6082 T6 T-Grid Floor |
| Refrigerant | R452A |
| Temperature Range | -40°C to +30°C (-20°F to 70°F) |
| Voltage / Electrical Requirement | 460V, 3 Phase, 30A (or 400V 32A 5-pole) |
| Power Cable Length | 50ft. |
| External Dimensions (L x W x H) | 20’L x 8’W x 8’6″H (6,058 mm x 2,438 mm x 2,591 mm) |
| Internal Dimensions (L x W x H) | 17’10″L x 7’6″W x 7’5″H (5,454 mm x 2,284 mm x 2,263 mm) |
| Door Opening (W x H) | 7’6″W x 7’5″H (2,290 mm x 2,291 mm) |
| Cubic Capacity | 28.2 m³ |

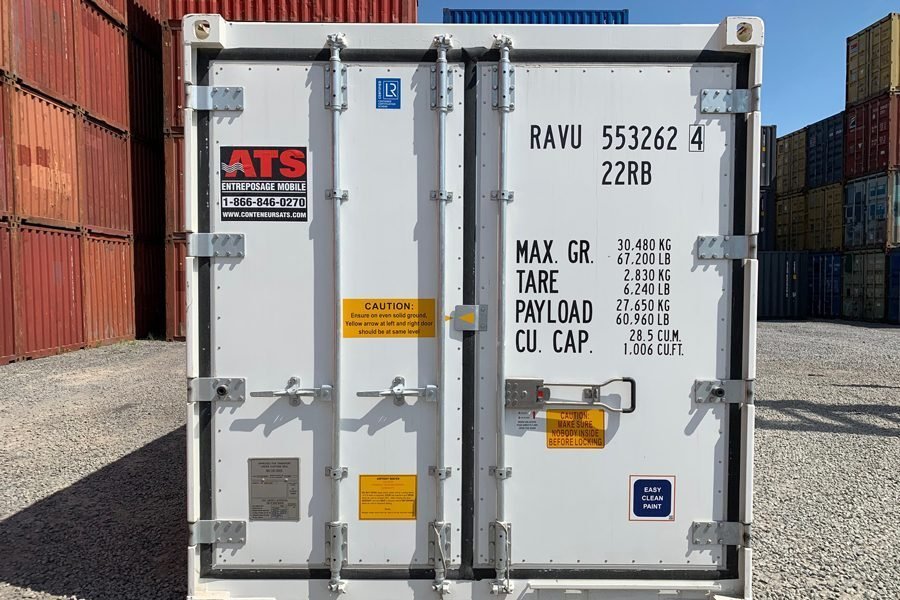

| Maximum Gross Weight | 30,480 kg (67,200 lbs) |
| Tare Weight | 2,880 kg to 2,980 kg (approx. 6,190 lbs) |
| Payload Capacity | 27,500 kg to 27,600 kg (approx. 61,010 lbs) |
| Floor Drains | 4 Automatic self-closing drains (2 front, 2 rear) |
| Forklift Pockets | 14″ x 4.5″ with 80″ center-to-center spacing |
| Heat Leakage | 23 kcal/deg.C.hr |
