Description

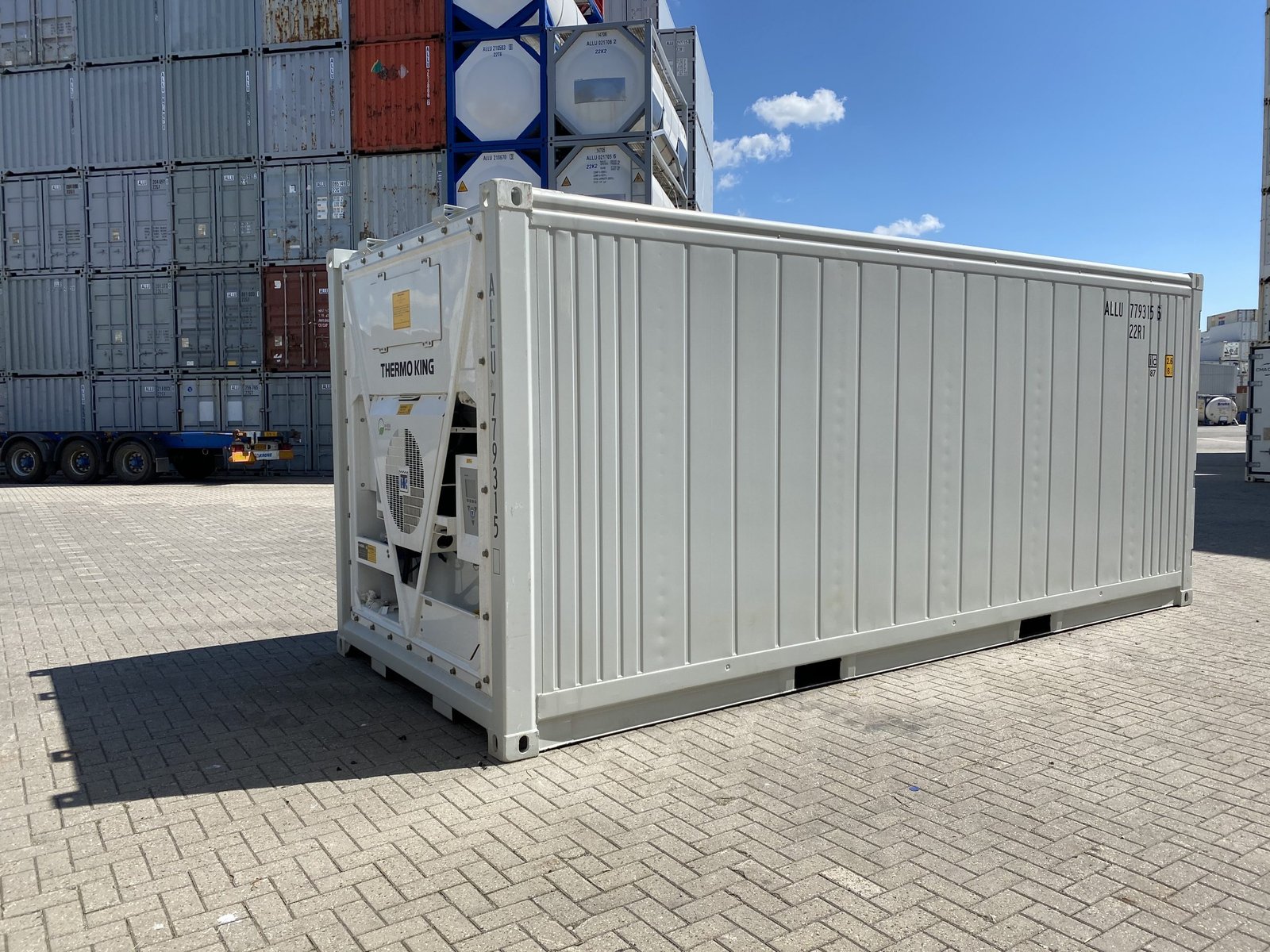

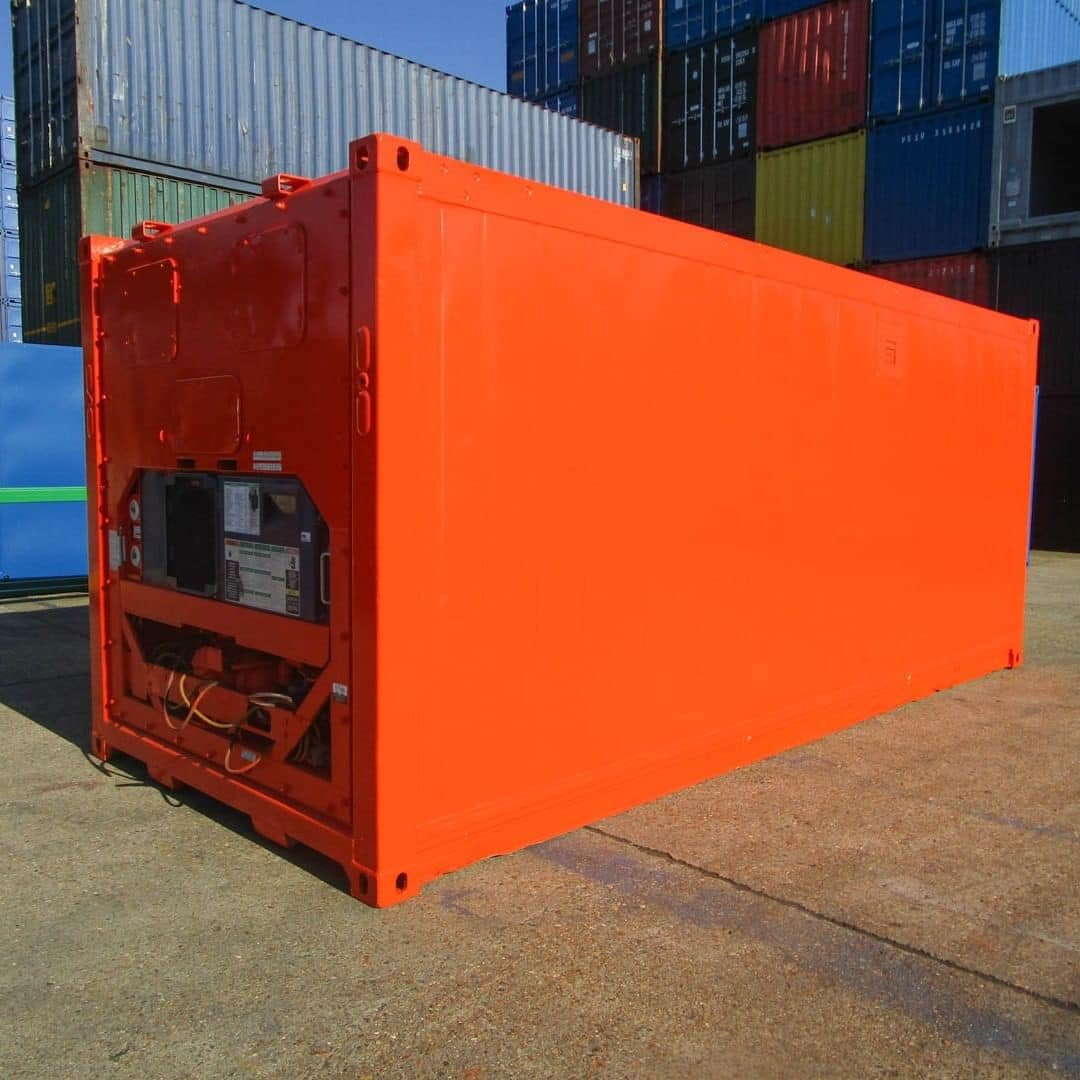

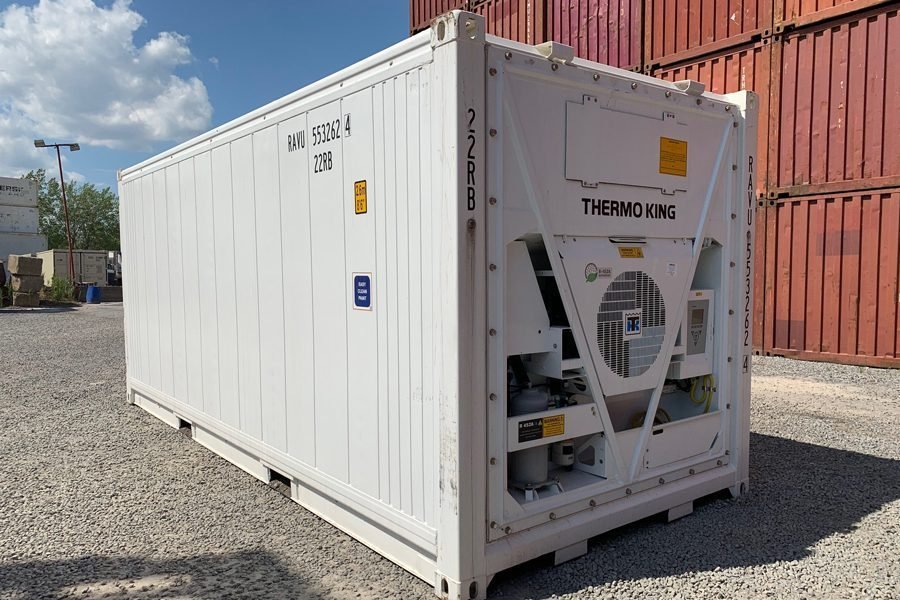

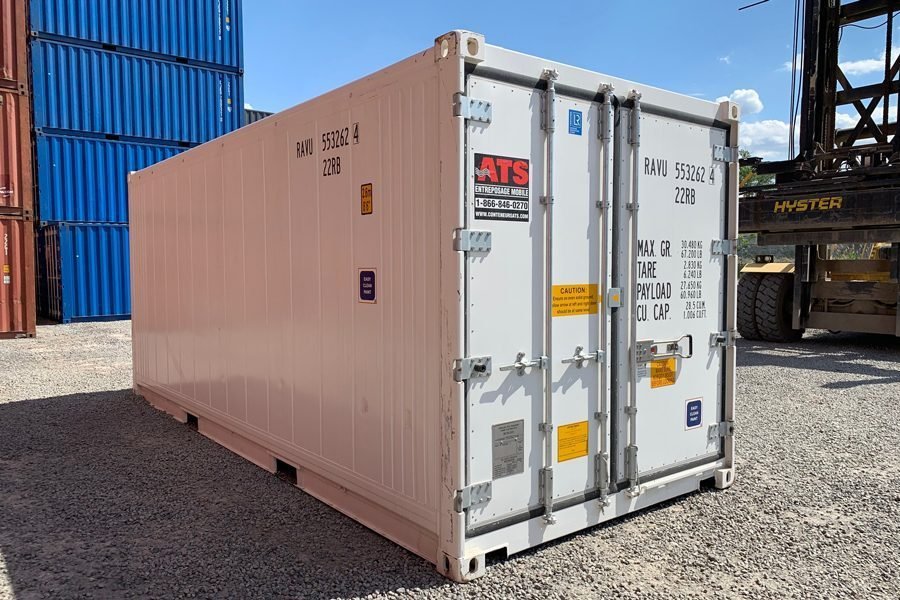

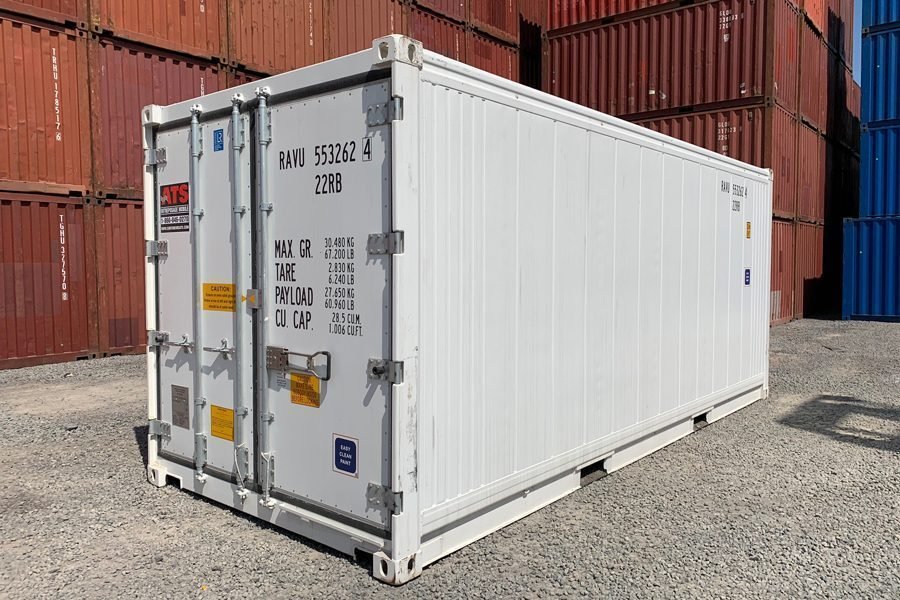

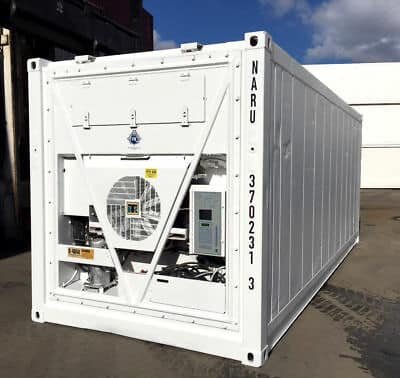

The 20ft ISO Refrigerated Shipping Container (Reefer) provides reliable, high-performance temperature-controlled storage and transport for perishable cargo, food and beverages, pharmaceuticals, floral inventory, and sensitive goods. Engineered for static on-site cold storage or global cargo transit, this unit offers an adjustable temperature range from -40°C to +30°C with rapid pull-down capabilities.
Durable Construction & Efficient Insulation

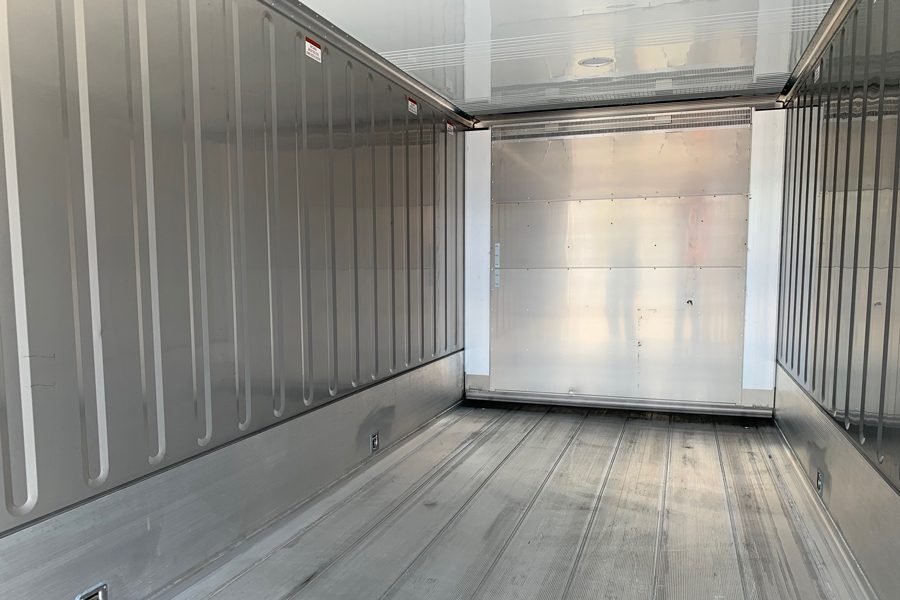

Built on a robust ISO container frame with stainless steel (MGSS) outer cladding, the unit features a high-grade aluminum T-grid flat floor and stainless steel/aluminum interior lining that is easy to sanitize. Superior thermal insulation and an engineered door sill design provide minimal heat and air leakage to maximize energy efficiency.
Safety & Operational Features

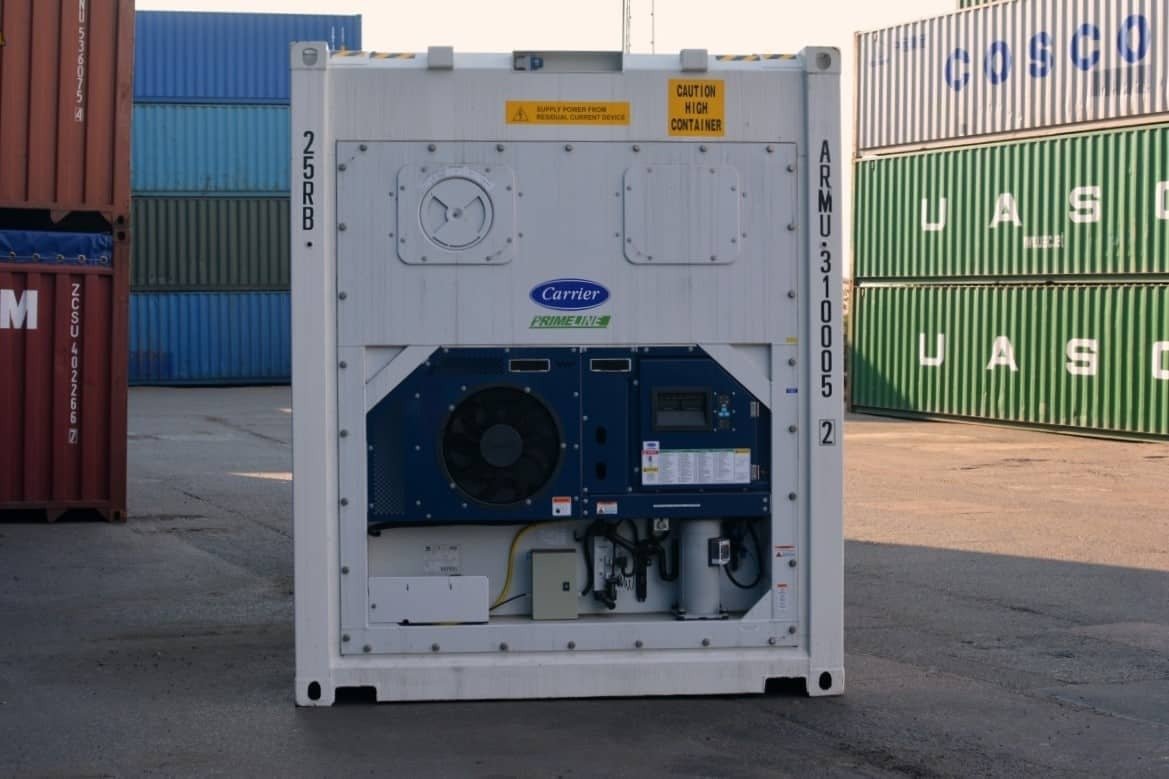

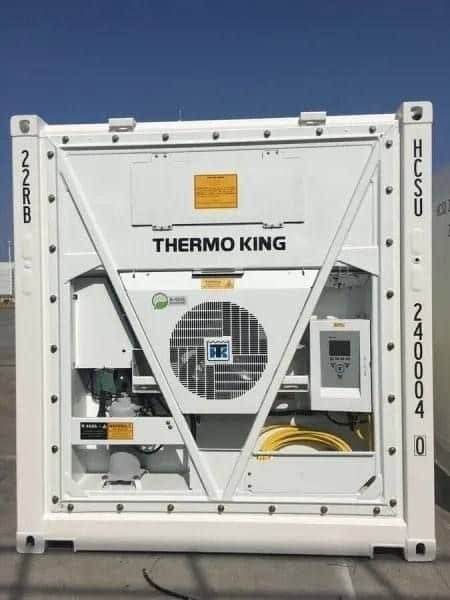

- Temperature Control: Advanced digital scroll compressor running environmentally friendly R452A refrigerant.
- Safety Systems: Internal panic alarm with exterior siren and strobe light, plus an interior safety-release door mechanism that allows egress from inside.
- Airflow & Temperature Retention: Heavy-duty sliding door curtain to minimize ambient temperature loss during loading.
- Drainage & Handling: Four automatic self-closing floor drains, integrated interior lashing bars, forklift pockets, and a 50 ft power cable.
- Compliance & Export: Certified with a standard CSC plate for international freight and shipping line compatibility.
| Container Type | 20ft ISO Refrigerated Container |
| ISO Code | 22R1 |
| Outer Cladding | Stainless Steel (MGSS) |
| Interior Material | Stainless Steel and Aluminum |
| Flooring | Aluminum T-Grid / Flat Floor |

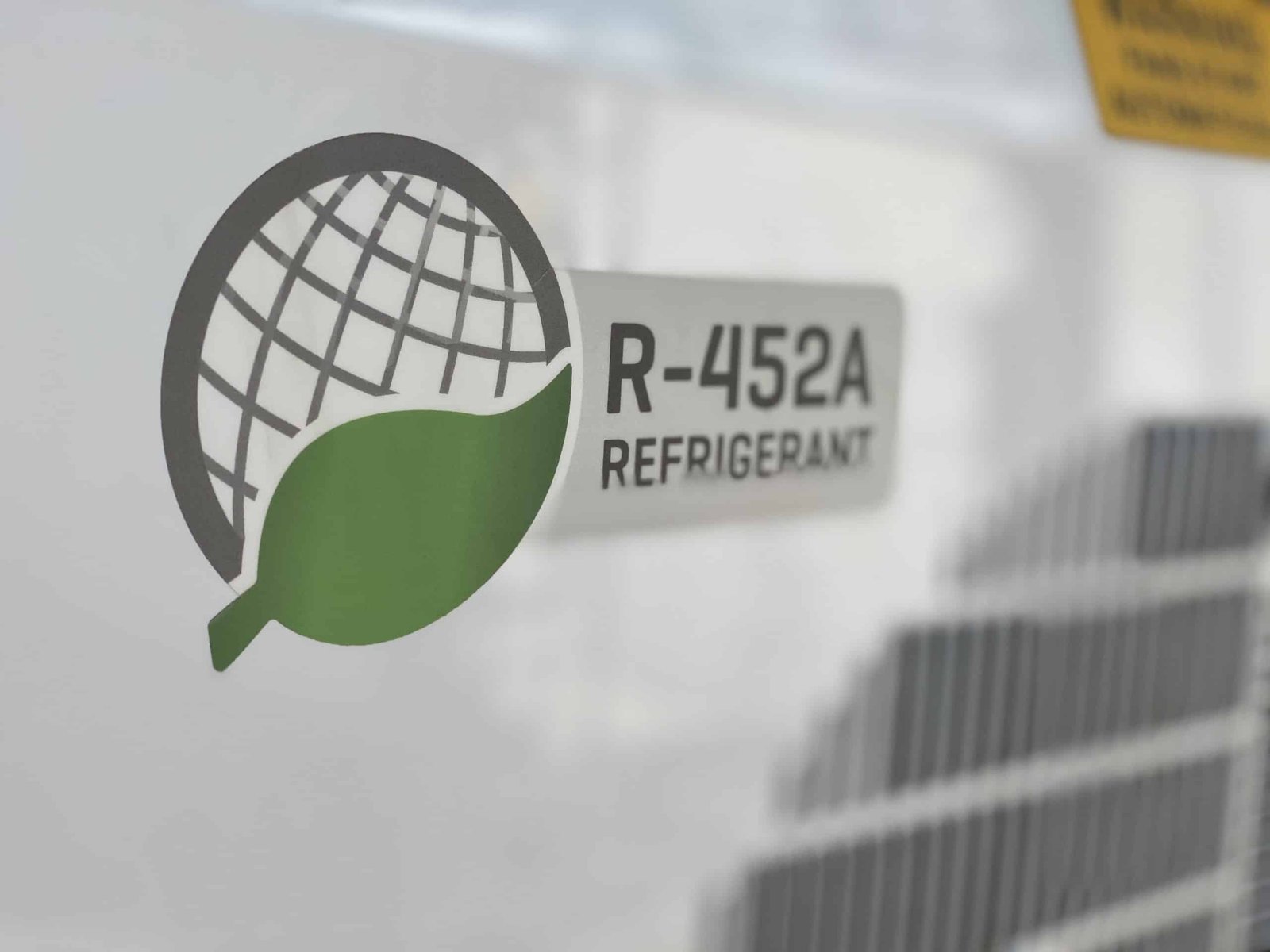

| Refrigerant | R452A |
| Temperature Range | -40°C to +30°C |
| Voltage / Electrical | 460V, 3 Phase, 30A |
| External Dimensions (L x W x H) | 6,058 mm x 2,438 mm x 2,591 mm (20′ x 8′ x 8’6″) |
| Internal Dimensions (L x W x H) | 5,454 mm x 2,284 mm x 2,263 mm (17’10” x 7’6″ x 7’5″) |

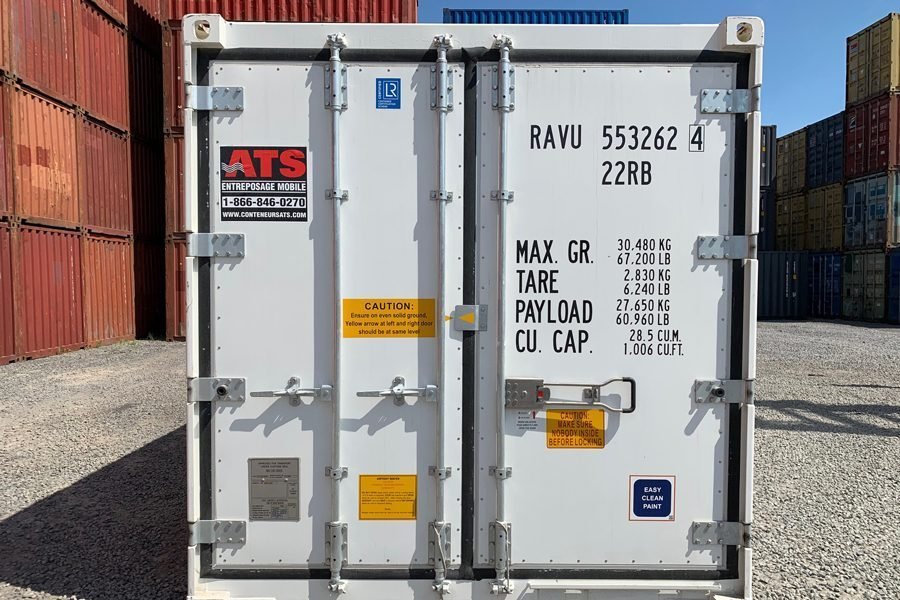

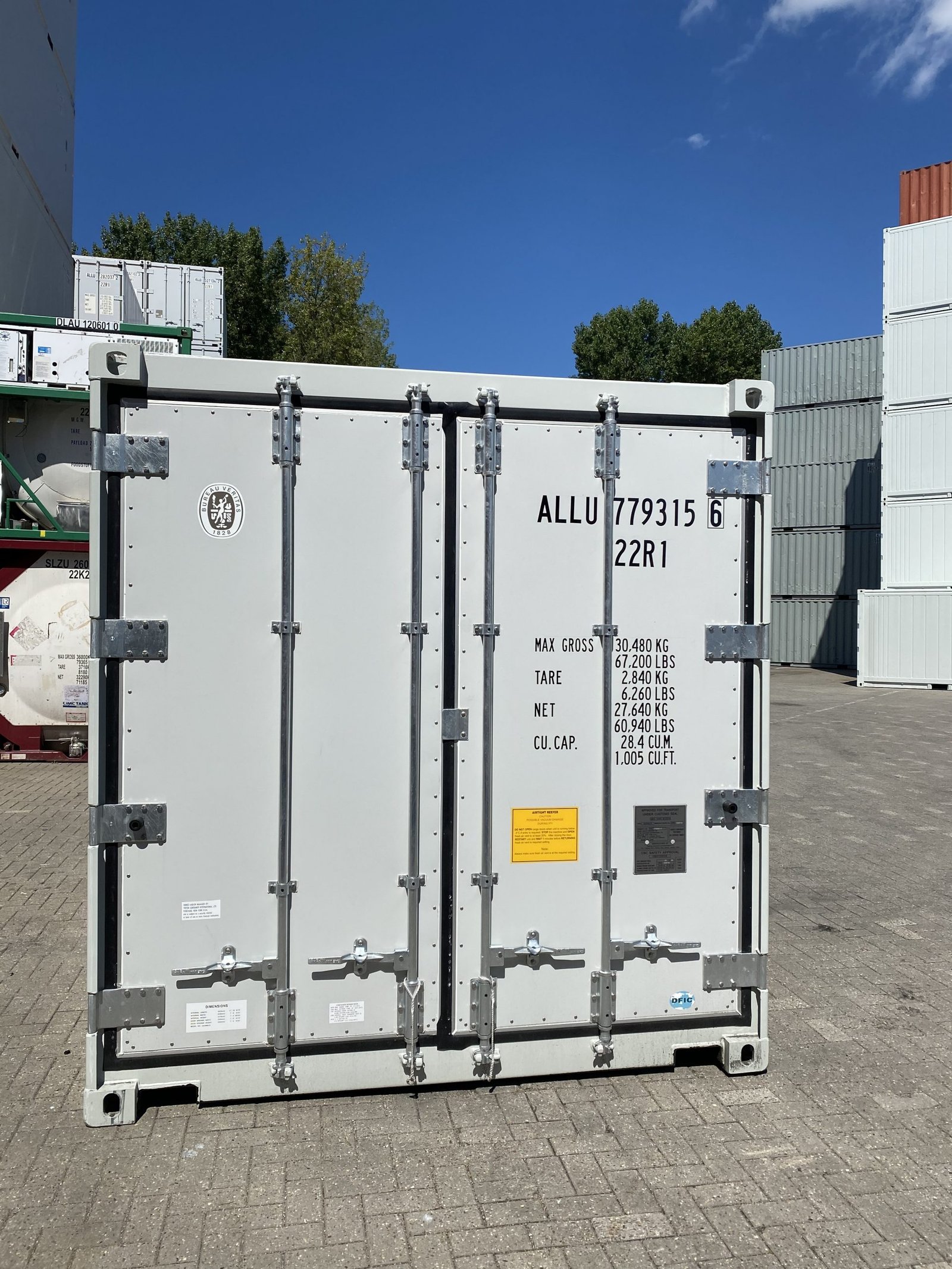

| Door Opening (W x H) | 2,290 mm x 2,291 mm (7’6″ x 7’5″) |
| Cubic Capacity | 28.2 m³ |
| Maximum Gross Weight | 30,480 kg |
| Tare Weight (Including Machinery) | 2,880 kg – 2,980 kg |
| Payload Capacity | 27,500 kg – 27,600 kg |
| Power Cable Length | 50 ft |
| Drainage | 4 Automatic self-closing floor drains |
