Description

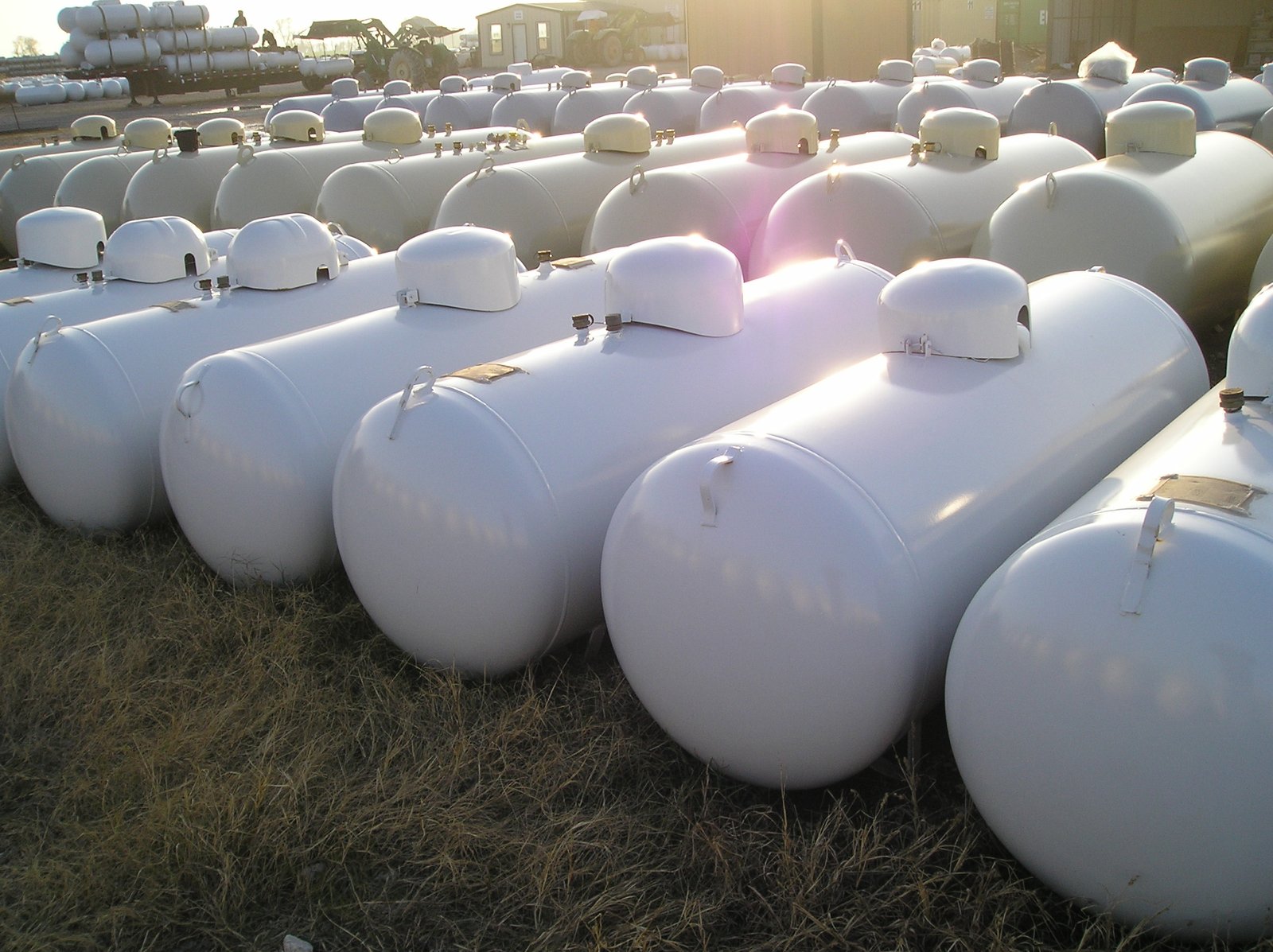

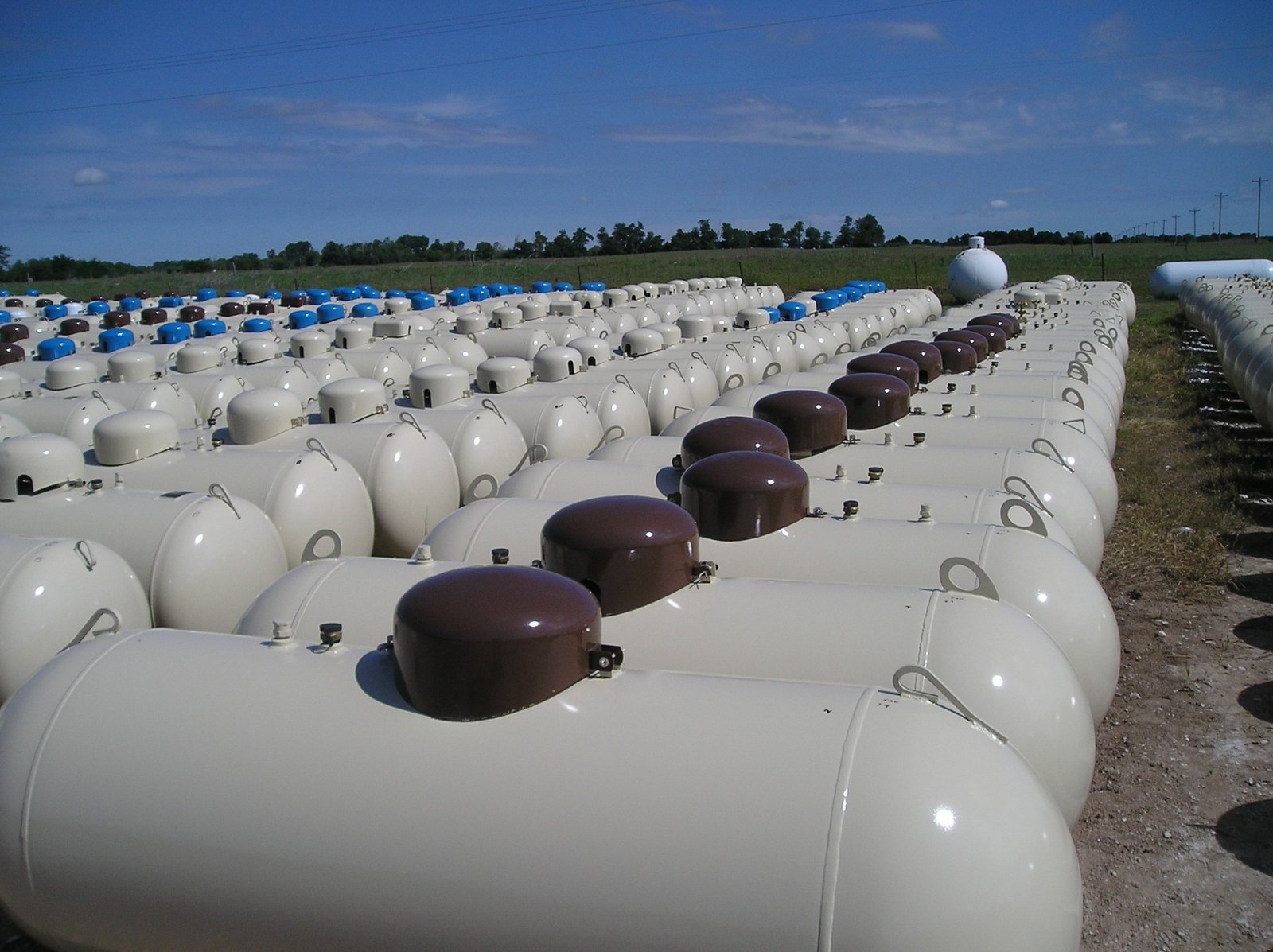

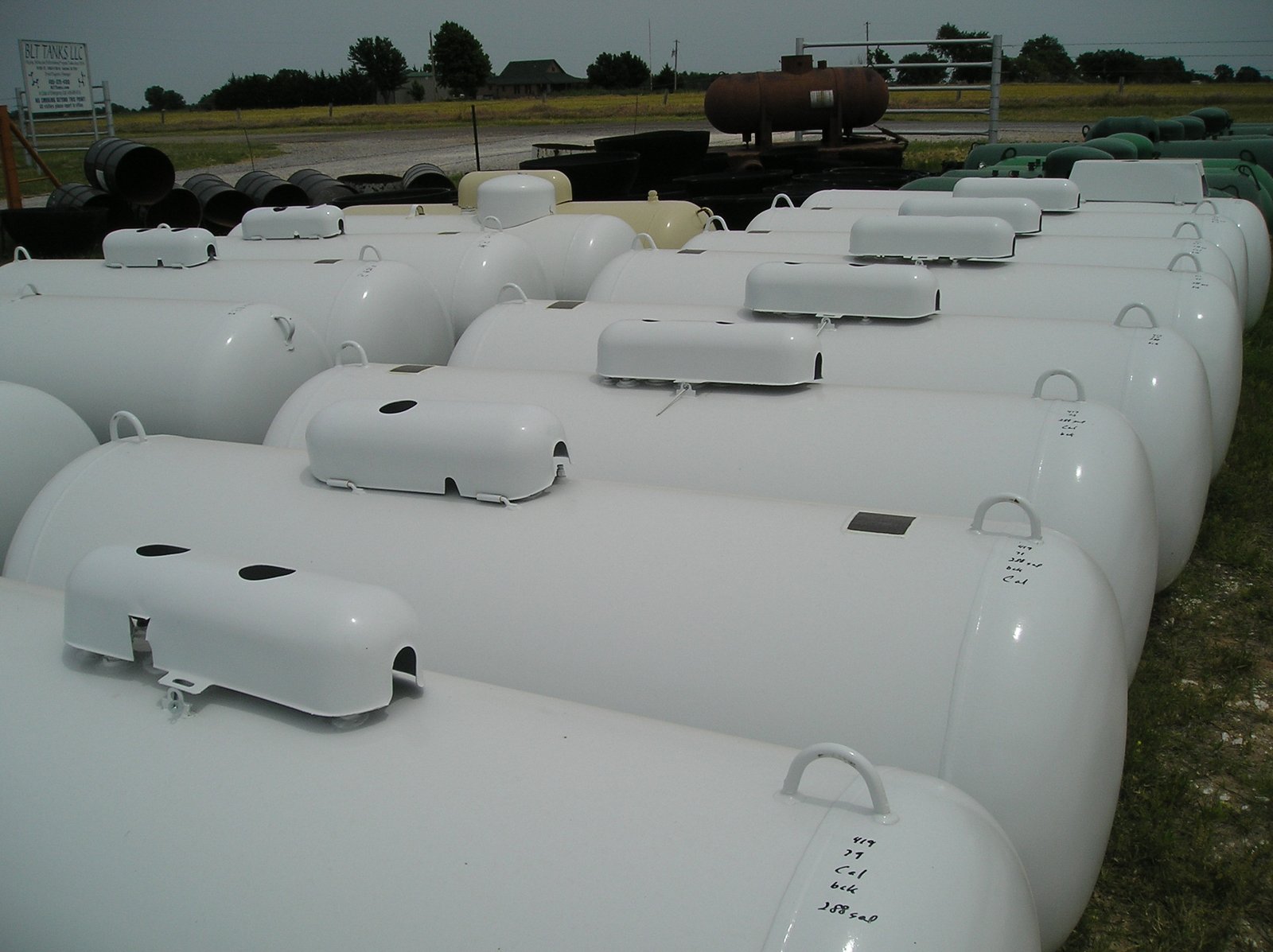

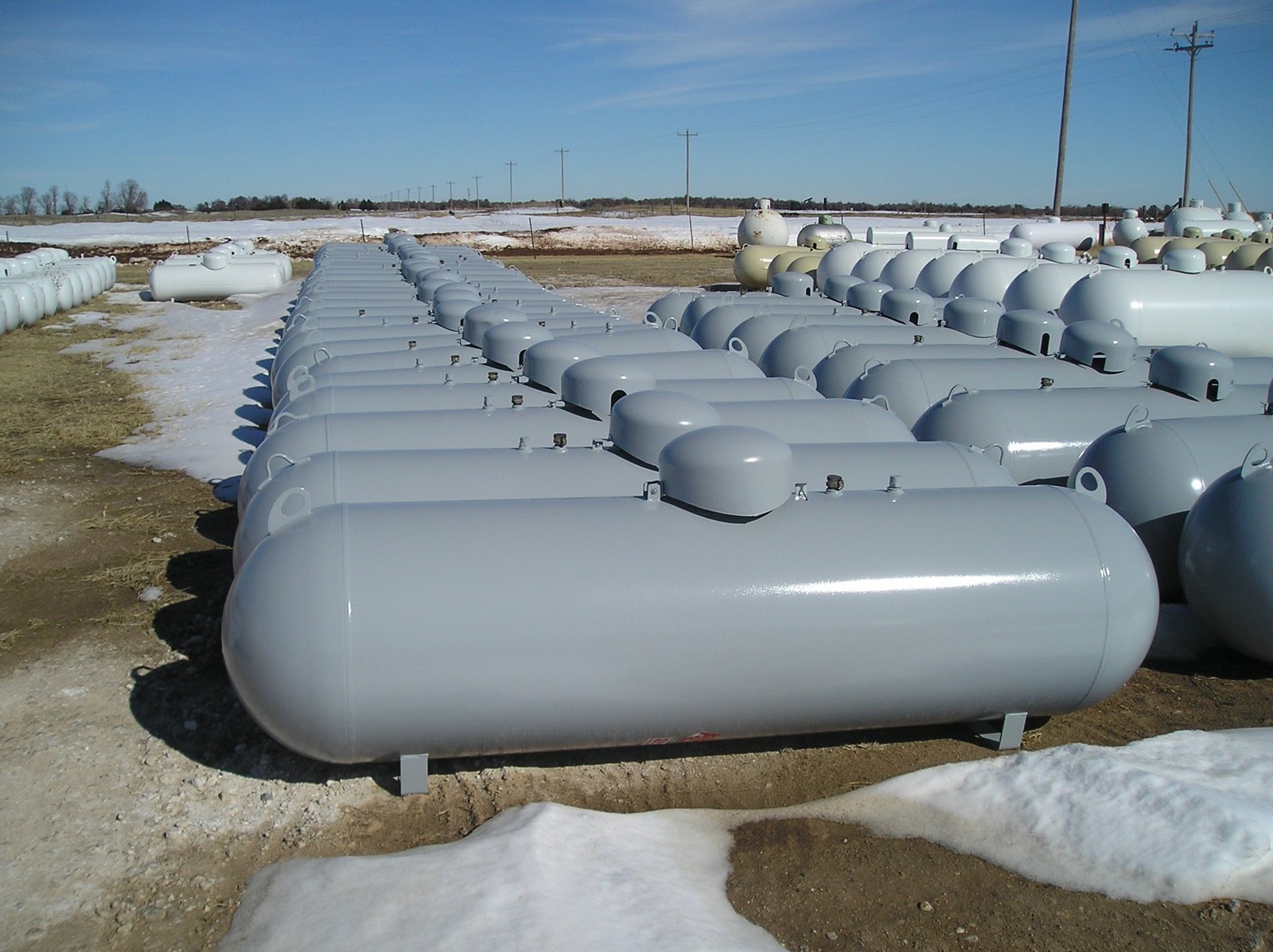

This 500-gallon above-ground horizontal propane tank is designed for reliable residential heating, commercial power, generators, and pool heaters. Fabricated to strict ASME Section VIII, Division 1 standards and complying with NFPA 58 regulations, it provides a safe, durable fuel storage solution for whole-home systems.
Key Features & Construction
- Durable Finish: Coated with TGIC powder coating for robust exterior protection against the elements.
- ASME Certified: Conforms to the latest edition of the ASME code for Pressure Vessels and registered with the National Board and CRN.
- Pressure Rating: Rated at 250 psig from -20°F to 125°F; capable of being evacuated to a full vacuum (14.7 psi).

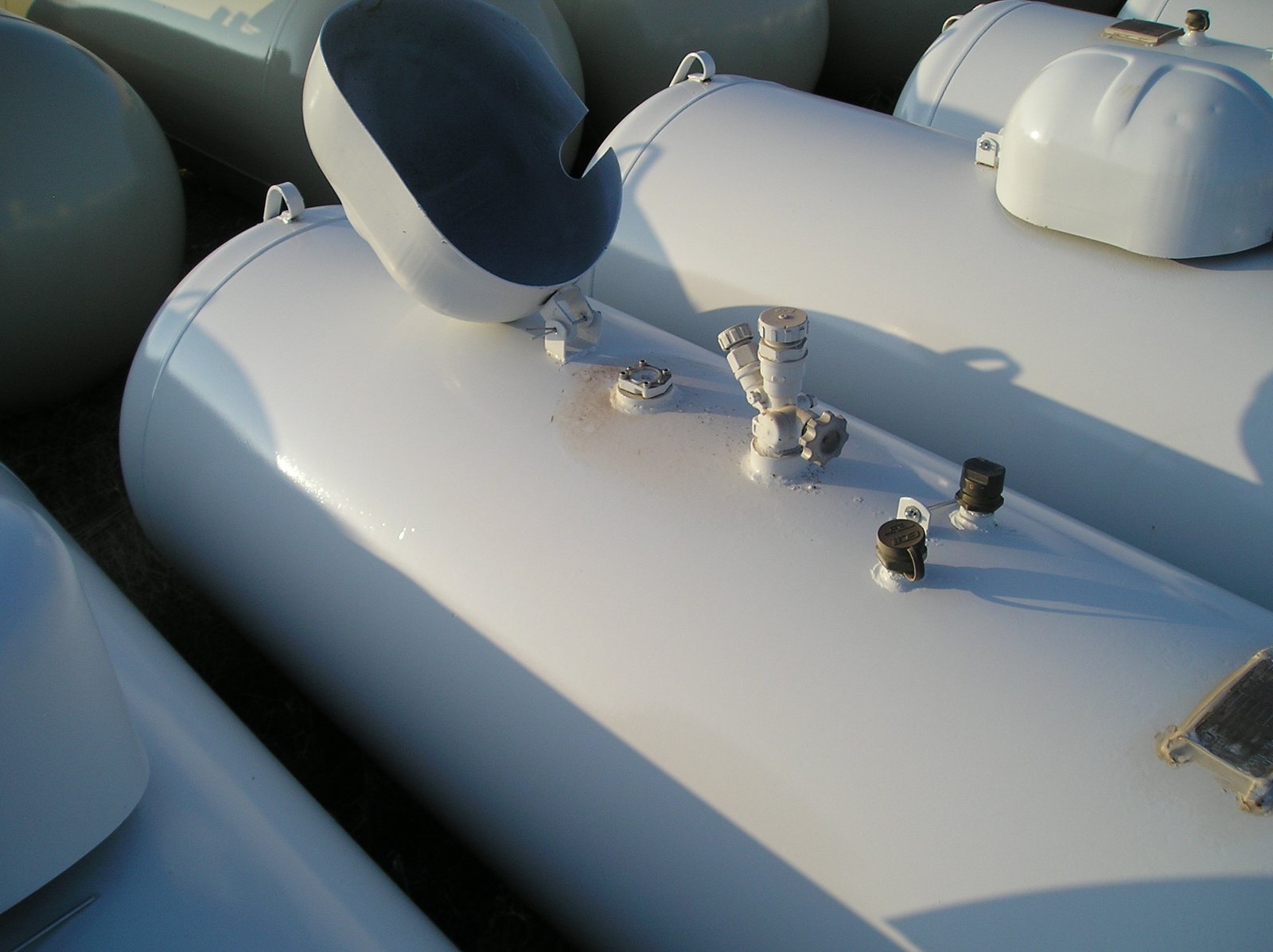

- Fittings & Hardware: Features vacuum-purged construction, steel galvanized dome, and a #72 liquid level outage valve orifice.
Capacity & Sizing
With a total water capacity of 500 gallons, this tank holds approximately 400 gallons of propane when filled to the standard 80% safety level. It is ideally sized for homes ranging from 2,500 to 4,500 sq ft or commercial operations requiring continuous heating and appliance support.
| Product Type | Above Ground Propane Tank |
| Water Capacity | 500 gal |
| Propane Capacity (at 80%) | Approx. 400 gal |
| Outside Diameter | 37.5 in |
| Overall Length | 9 ft 10 in |
| Overall Height | 3 ft 11.5 in |
| Leg Width | 15 in |
| Leg Spacing | 5 ft |
| Empty Weight | 920 lbs |
| Head Type | Elliptical |
| Pressure Rating | 250 psig (-20°F to 125°F) |
| Vessel Finish | TGIC Powder Coated |
| Code Compliance | ASME Section VIII Div 1, NFPA 58 |
