Description

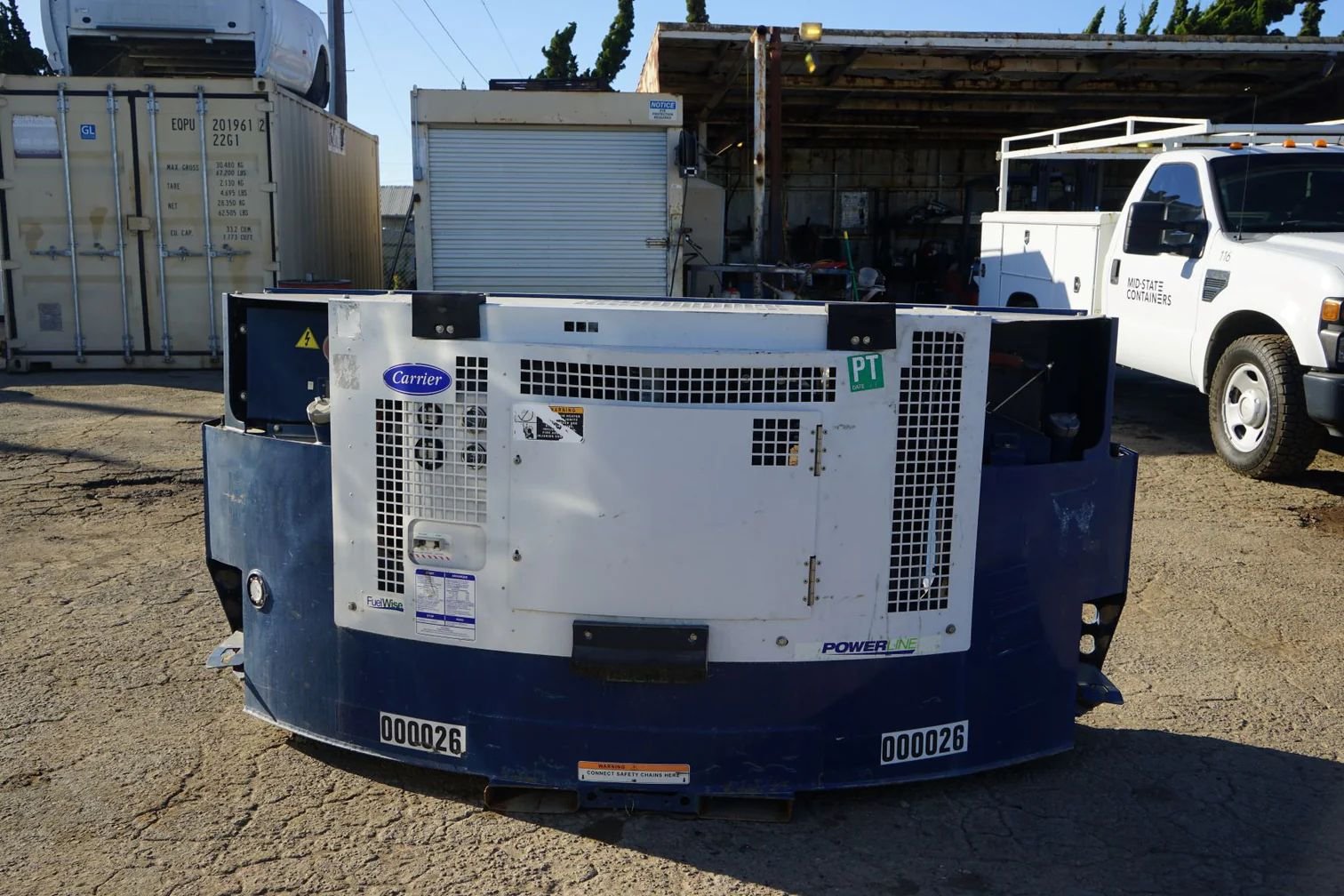

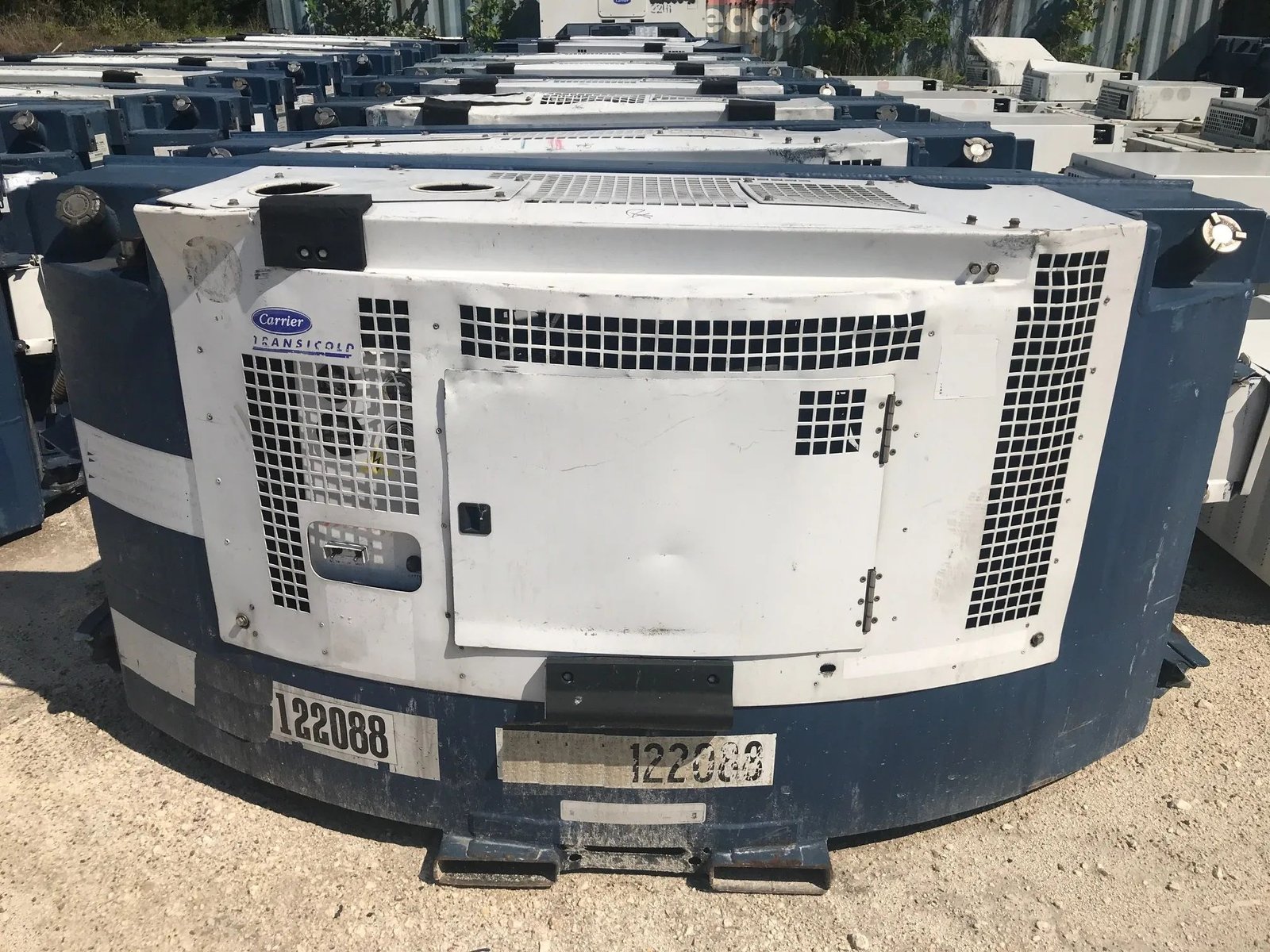

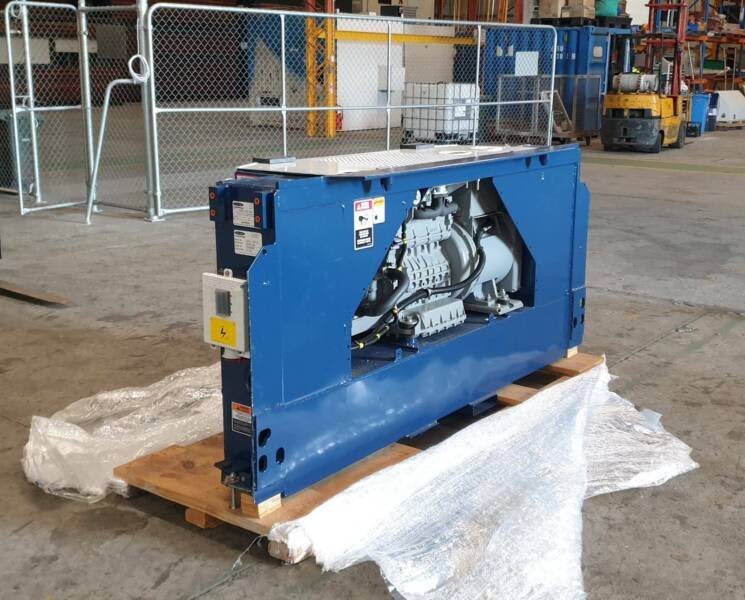

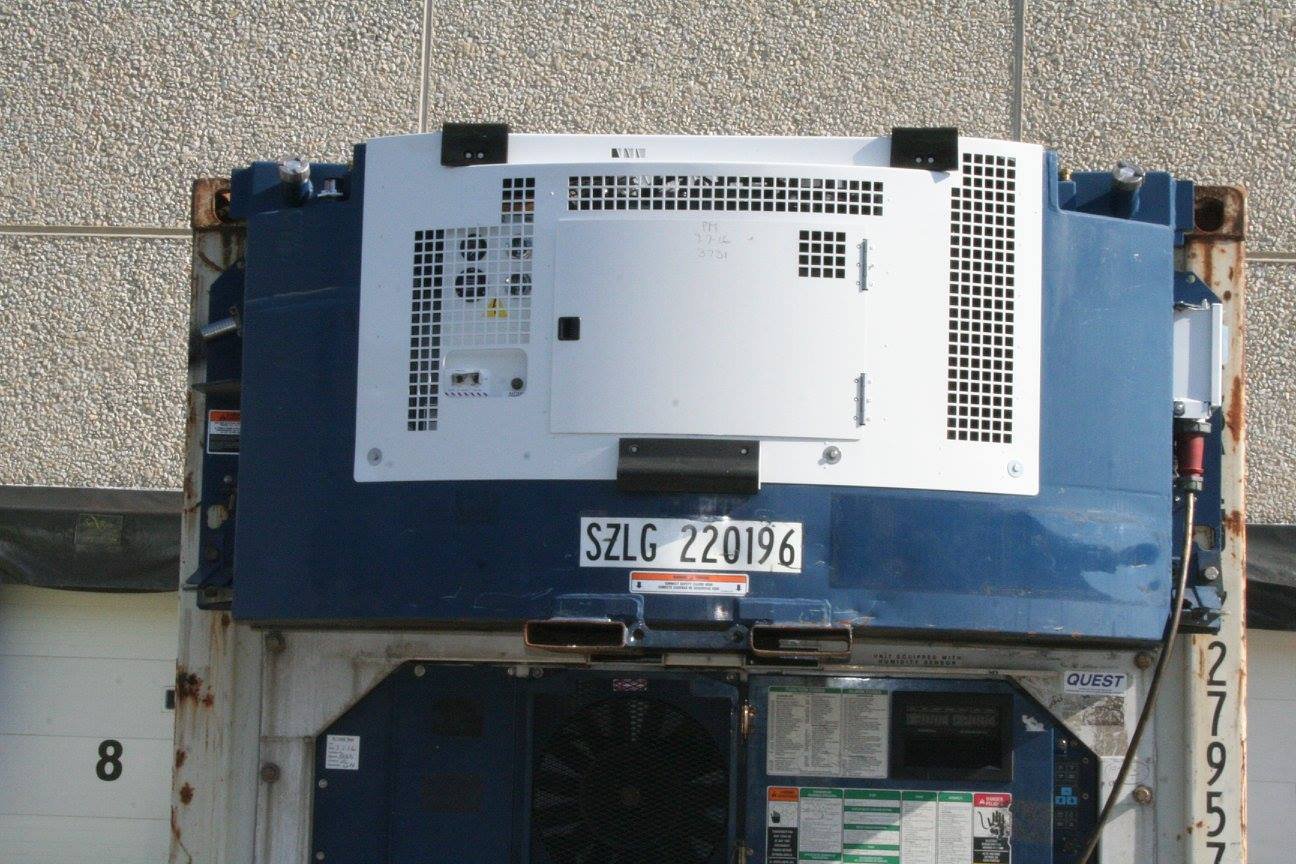

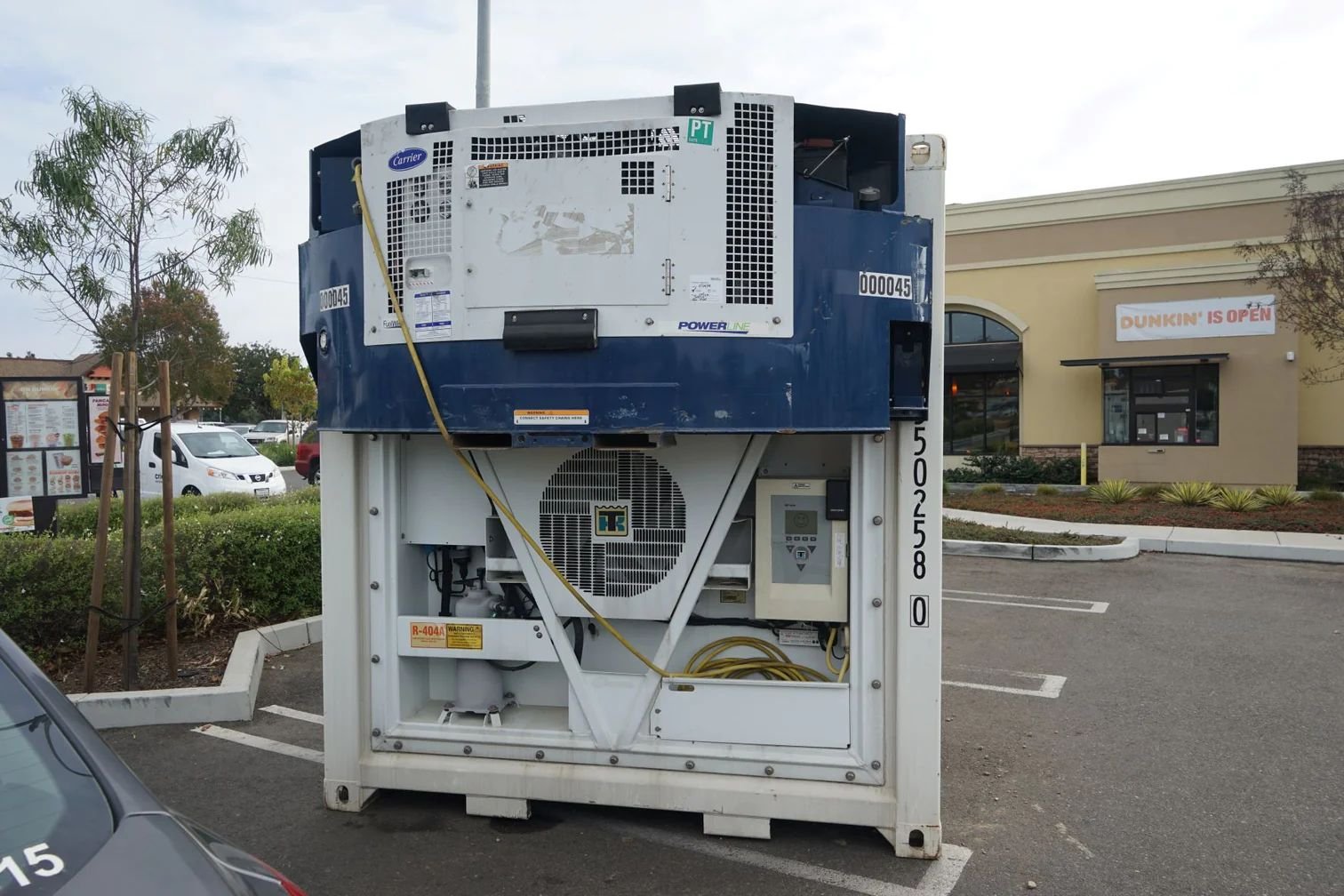

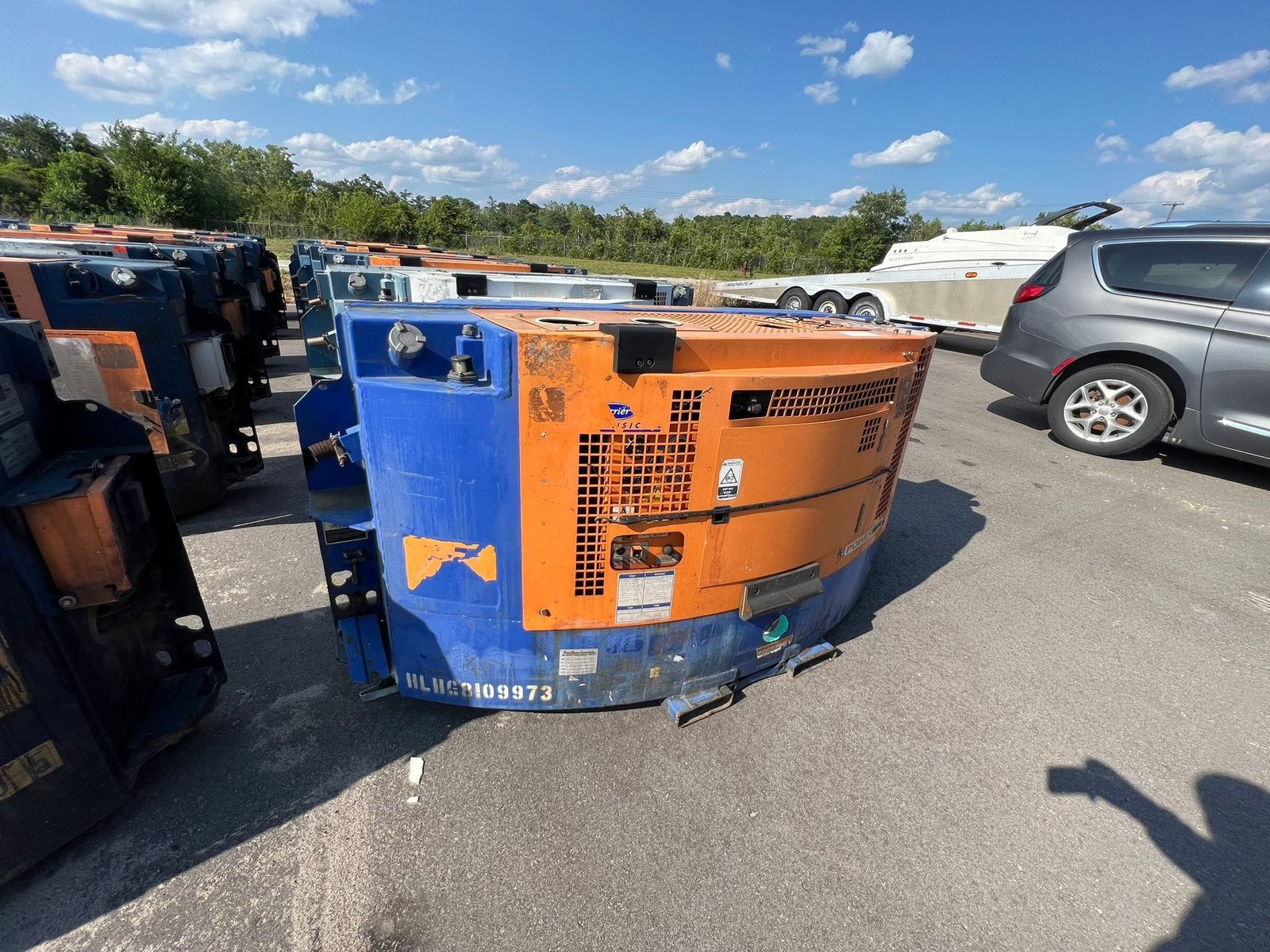

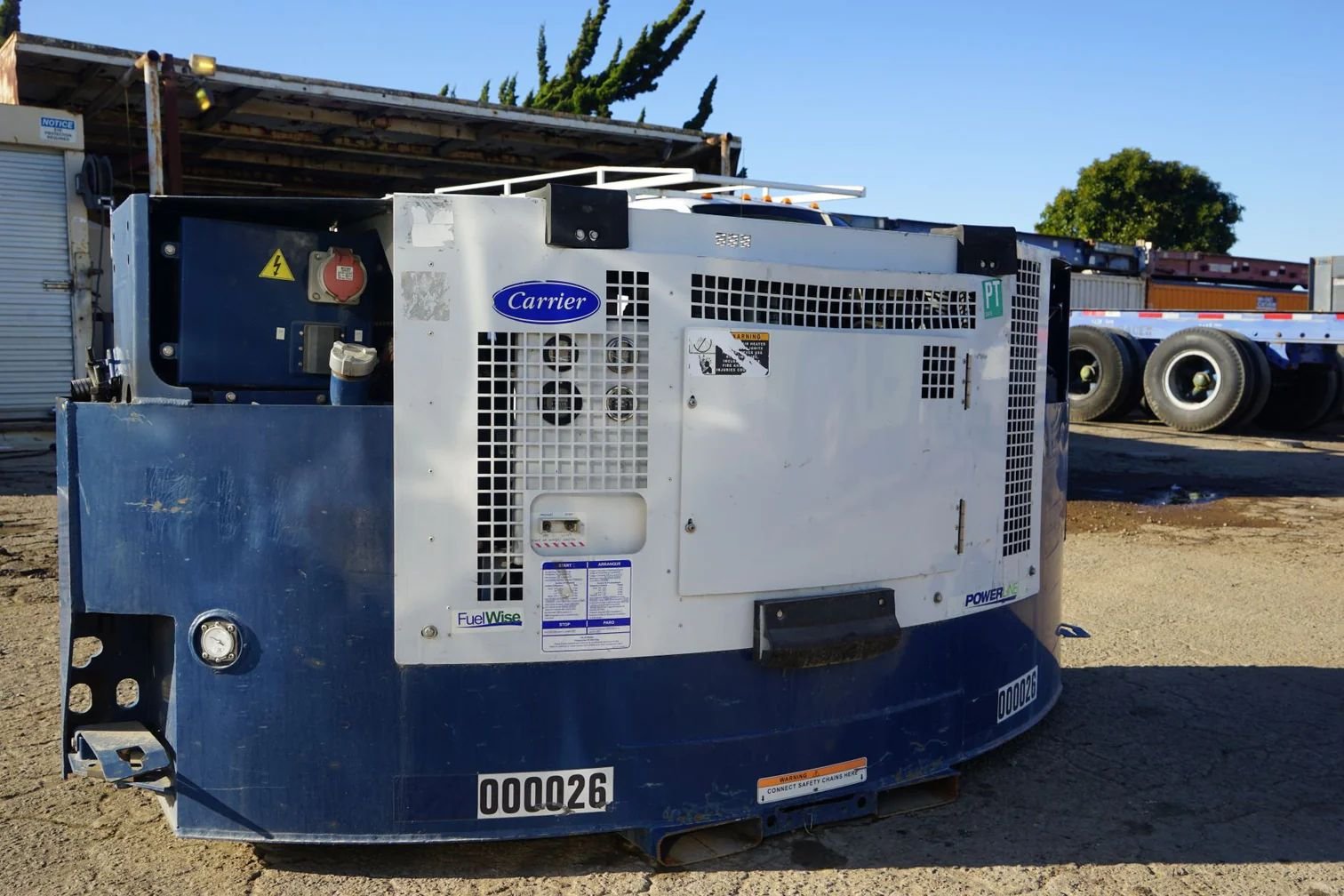

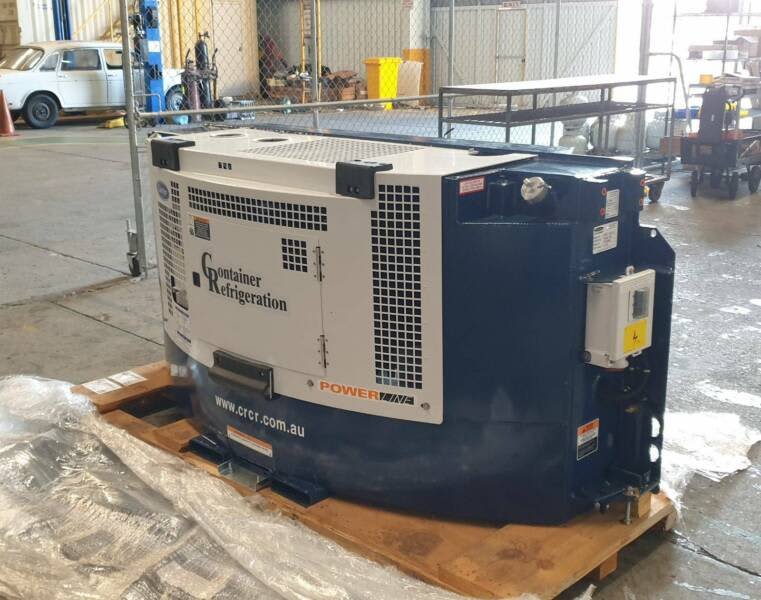

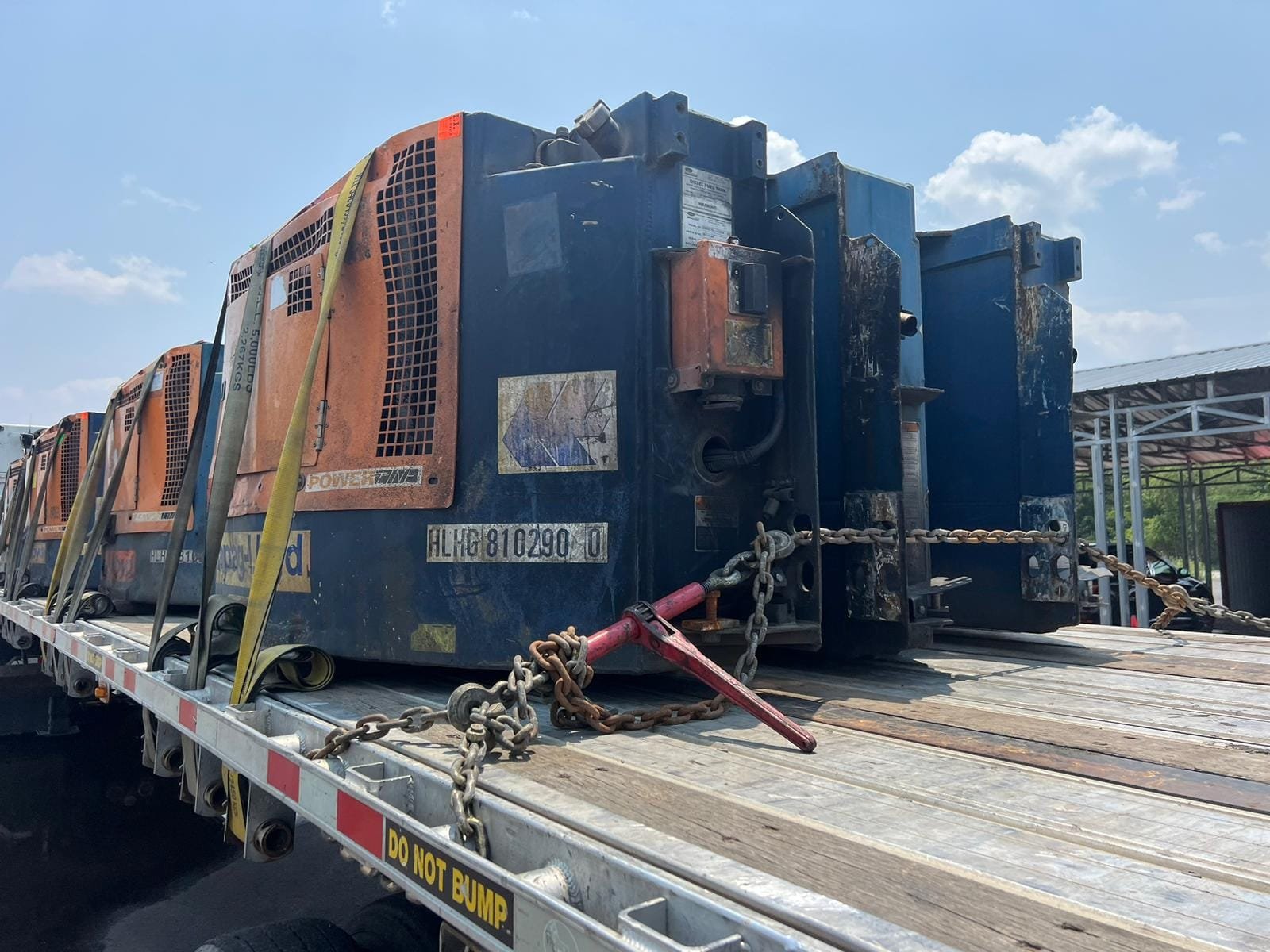

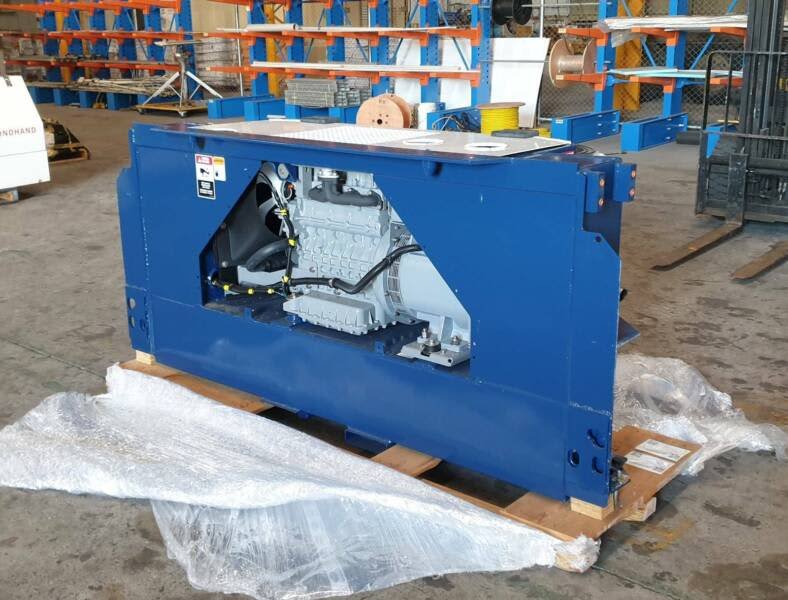

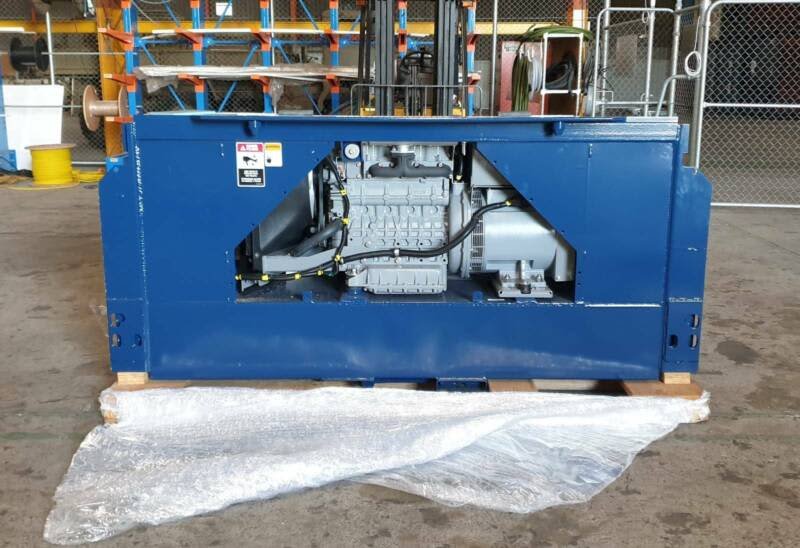

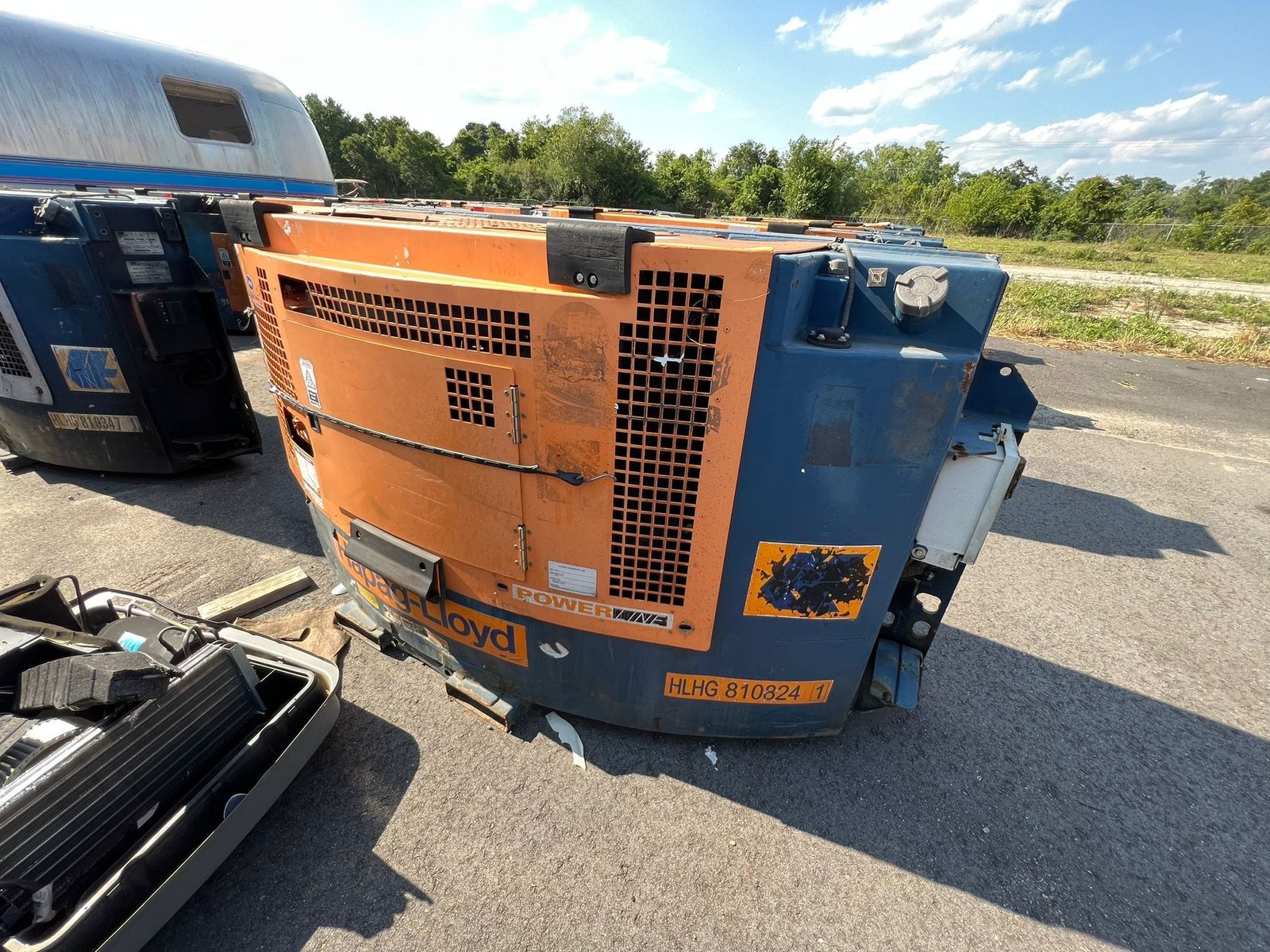

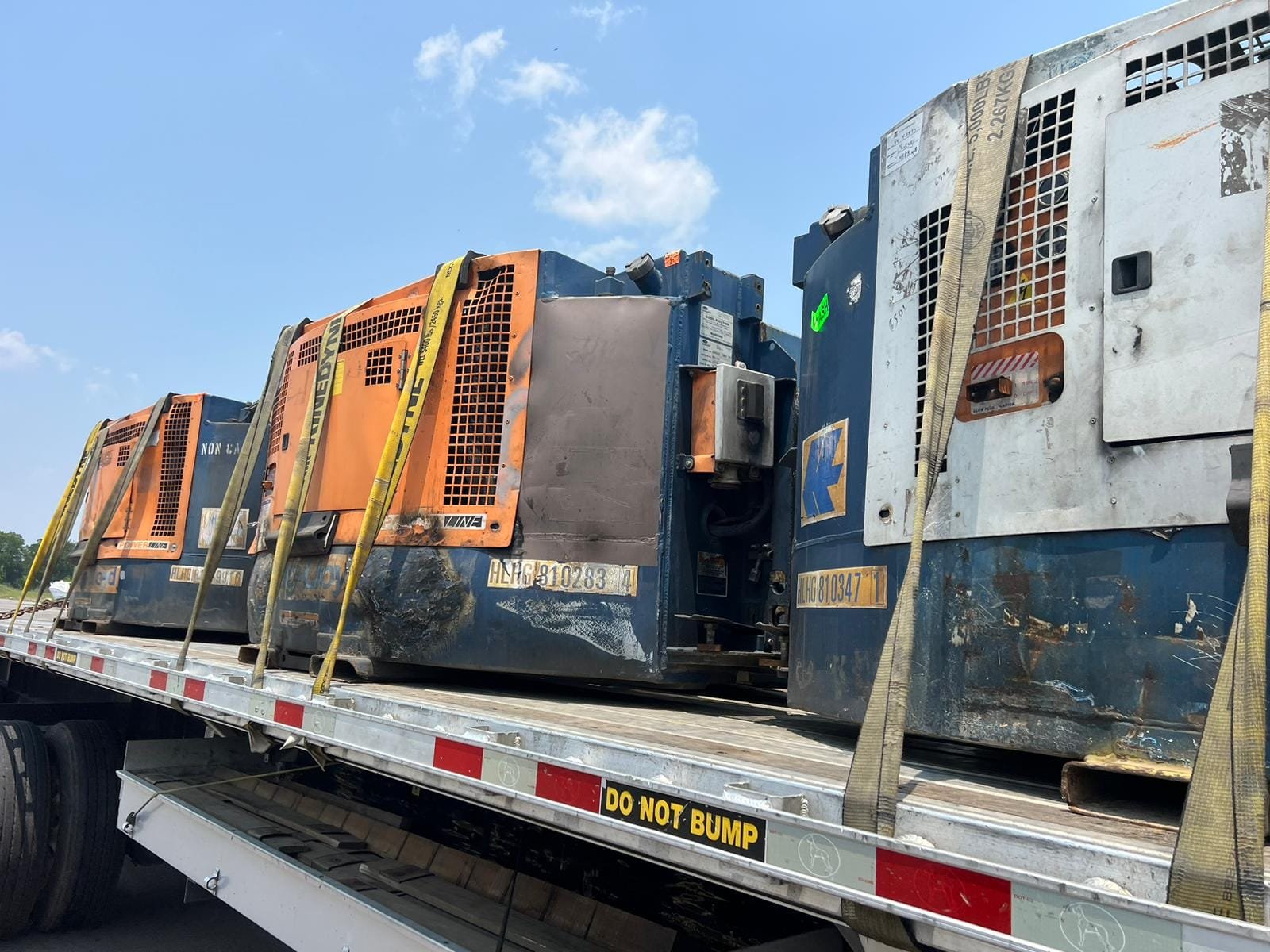

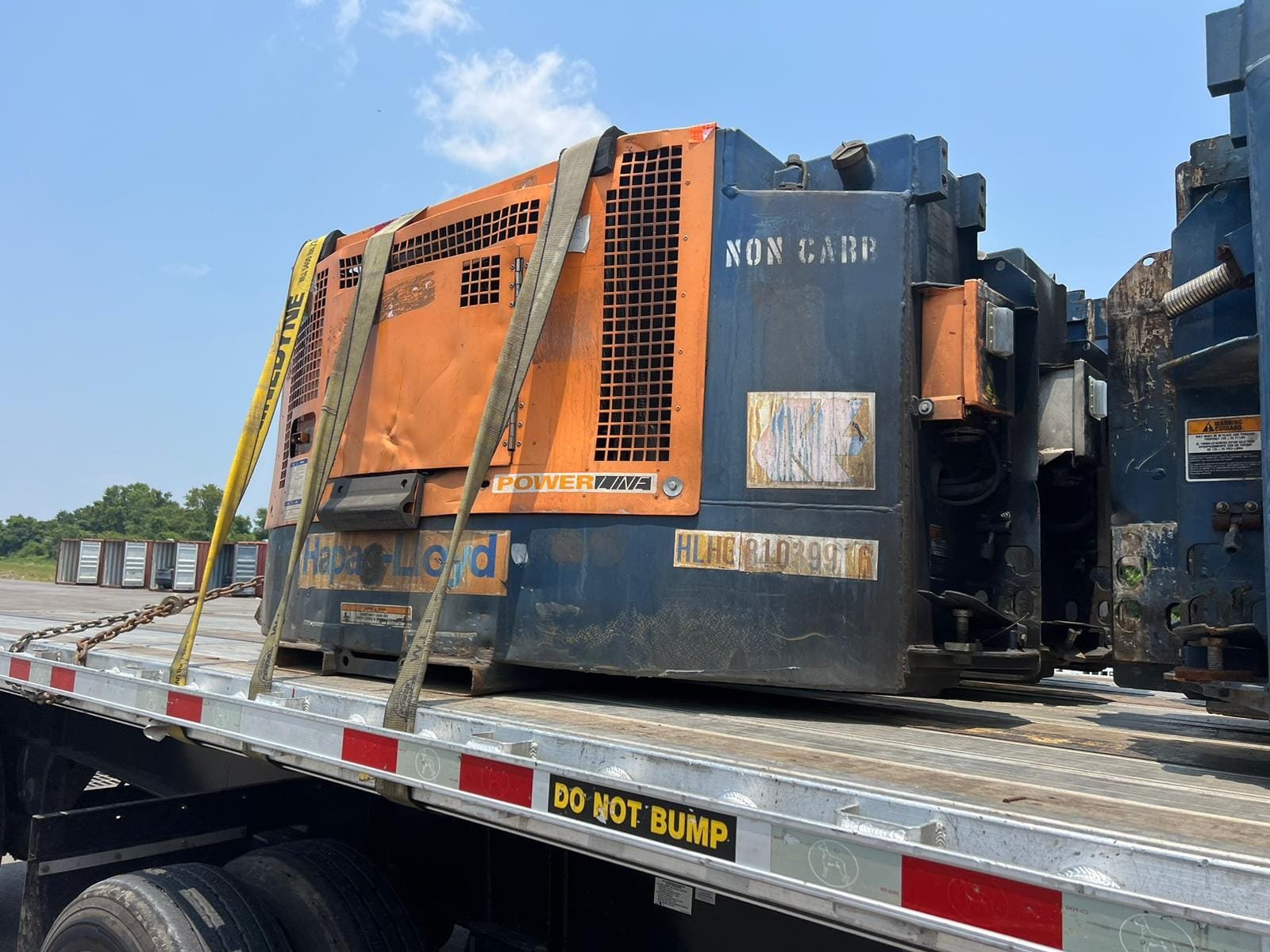

The Carrier 69RG15-120W-13 Clip-On Generator Set provides dependable, autonomous electrical power engineered for ISO and DNV 2.7-1 refrigerated shipping containers. Designed for continuous, unattended operation during road and rail transport worldwide, this generator set mounts directly to container chassis corner castings using pin-mounting brackets or self-aligning ratchet clamp locks.
Key Performance & Engineering
- Engine: CT4-134DI 4-cylinder water-cooled 2.2-liter direct-injection diesel engine equipped with a speed sensor and electronic governor.
- Generator Output: Brushless, self-regulated generator producing 15 kW (18.75 kVA), 460 VAC, 3-phase, 60 Hz.
- Emission Compliance: U.S. EPA Tier 4: Series 13.
- Cooling & Rotor: Disc-type radial fan cooling system with a sealed large-diameter rear bearing and vacuum pressure-impregnated rotor.
- Safety & Controls: Low-mounted waterproof control box featuring preheat, start/run/off switches, and automatic safety stops for low oil pressure and high coolant temperature.
- Extended Runtime: Built-in 130-gallon (492 L) fuel tank supporting multi-day operations.
| Brand | Carrier |
| Manufacturer | Carrier Transicold |
| Model | 69RG15-120W-13 |
| Power Output | 15 kW (18.75 kVA) |
| Voltage | 460V AC, 3-Phase, 60 Hz |
| Engine Type | CT4-134DI 4-cylinder water-cooled 2.2 L direct-injection diesel engine |
| Emission Standard | U.S. EPA Tier 4 |
| Fuel Tank Capacity | 130 gal (492 L) |
| Battery | 12V DC maintenance-free |
| Dimensions | 2,324 mm x 706 mm x 1,078 mm (91.5 in x 27.8 in x 42.5 in) |
| Weight | 1,675 lbs |
| Cooling System | Disc type radial fan |
| Mounting Type | Clip-on pin-mounting / corner casting ratchet clamp locks |
| Controls | Waterproof control box with safety stops |
