Description

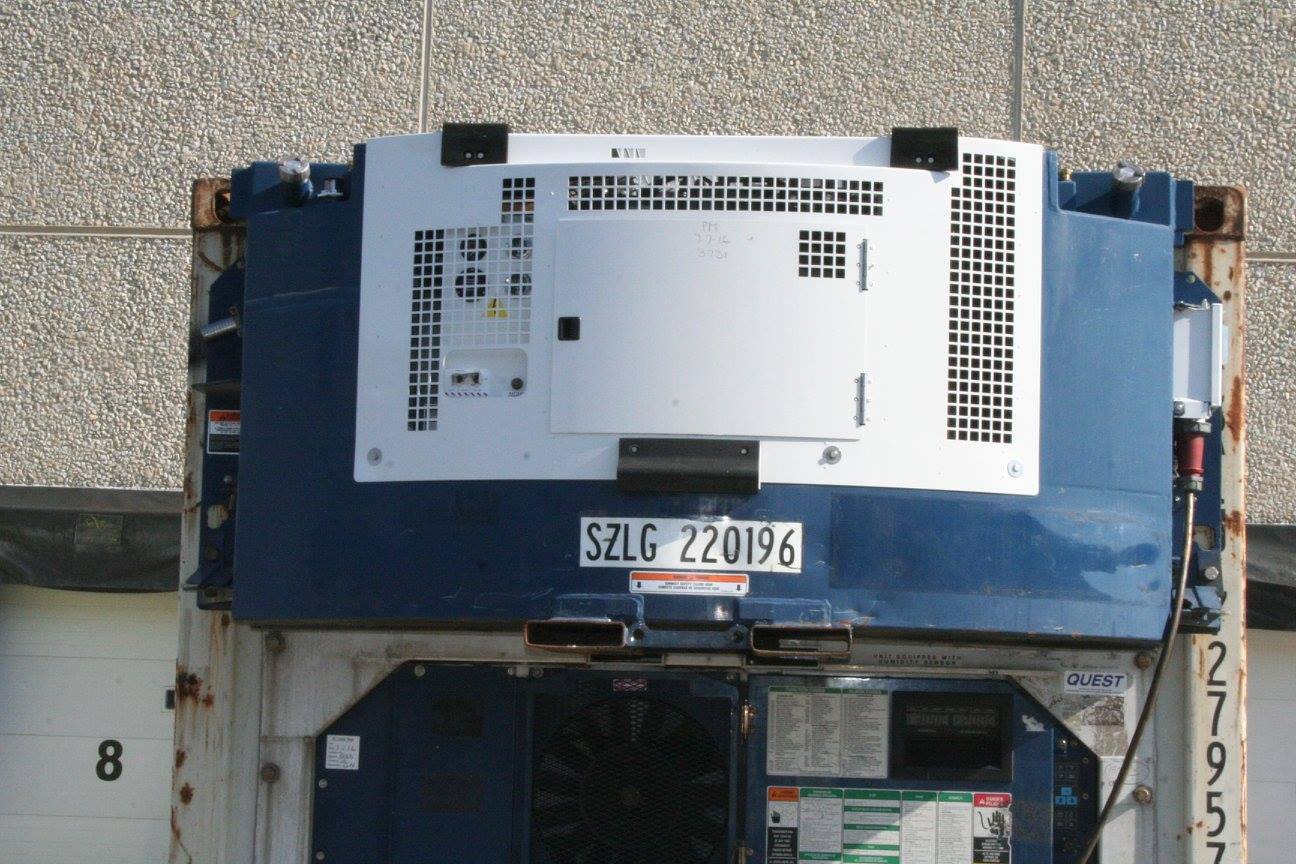

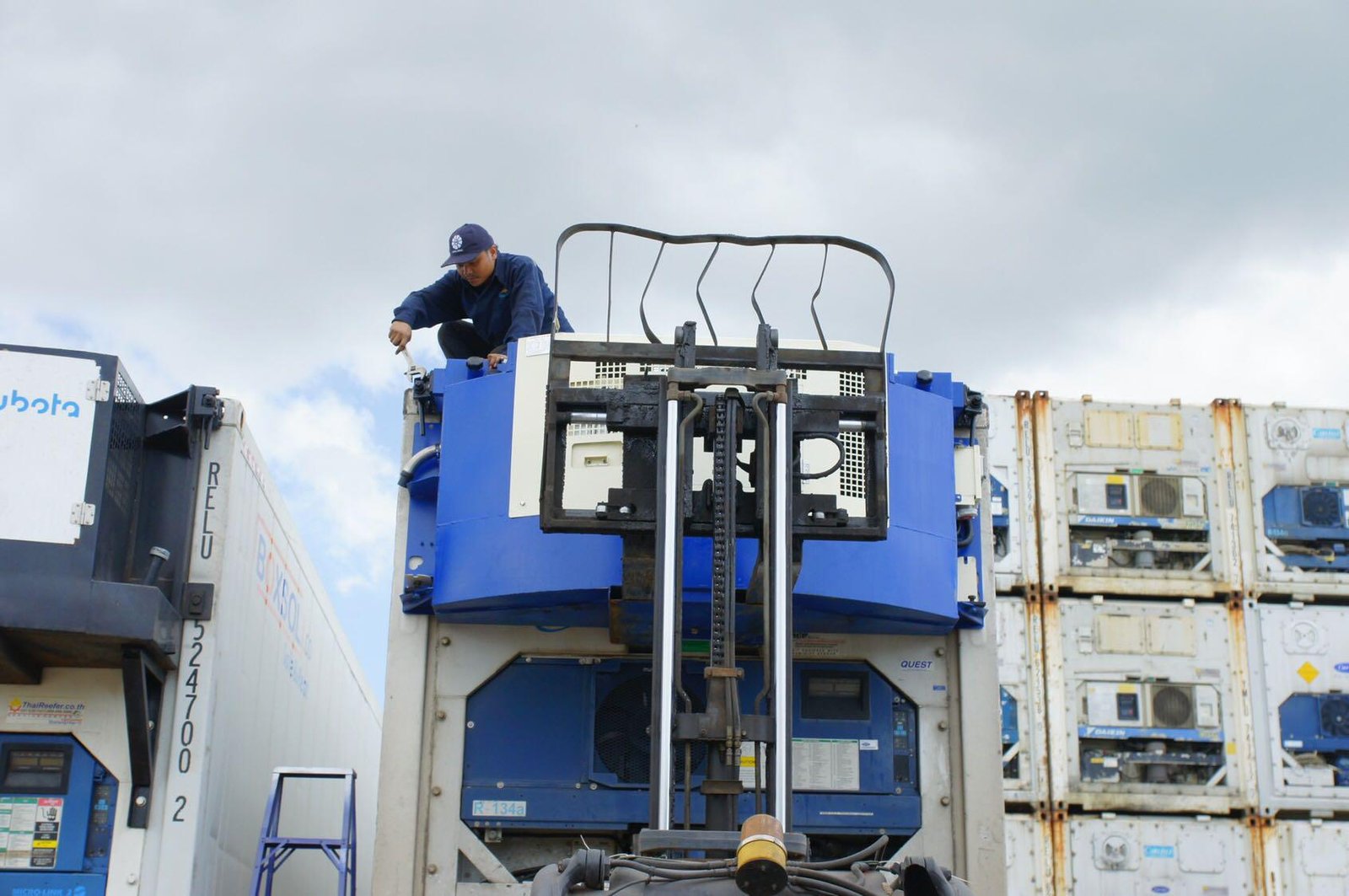

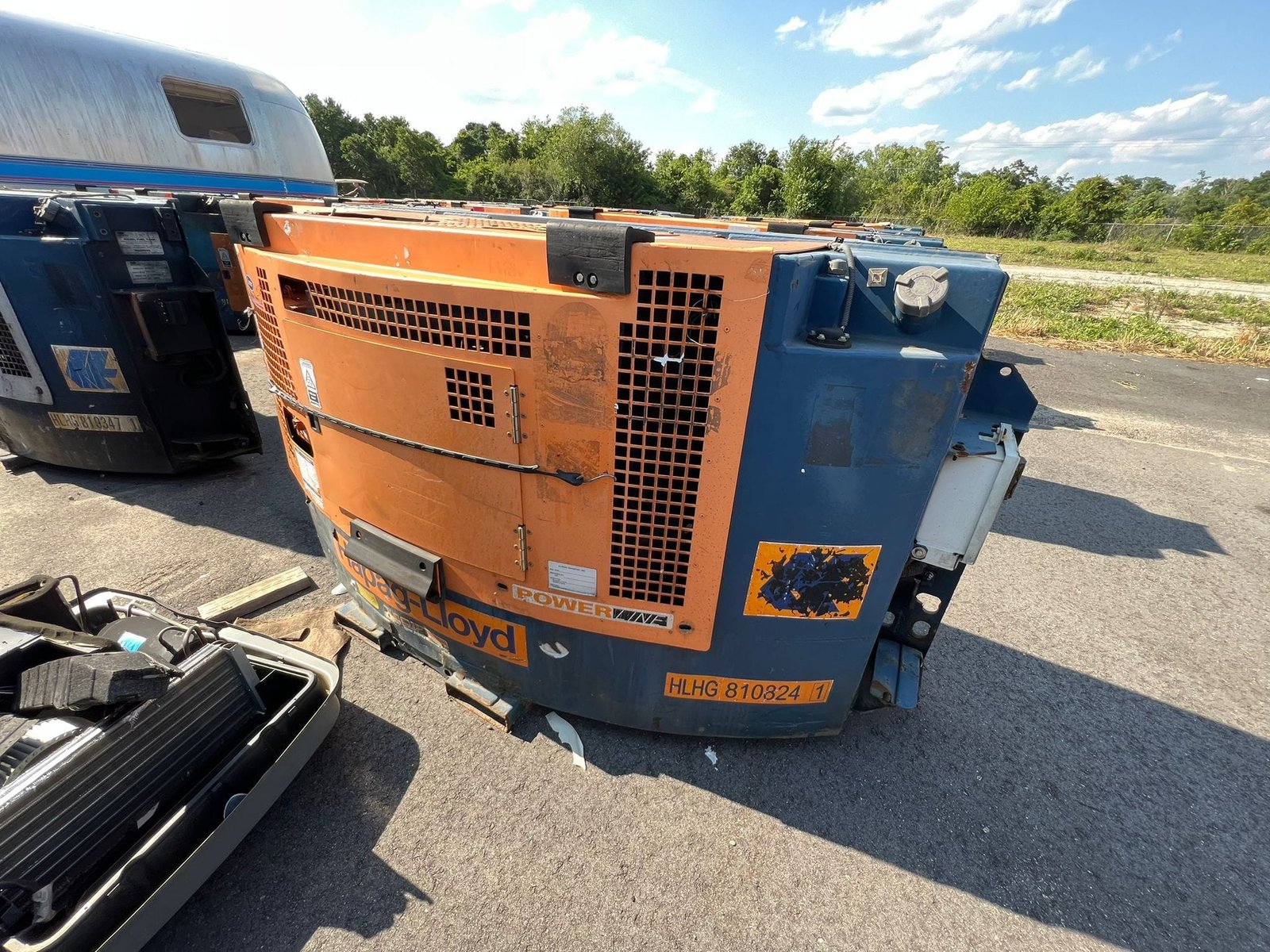

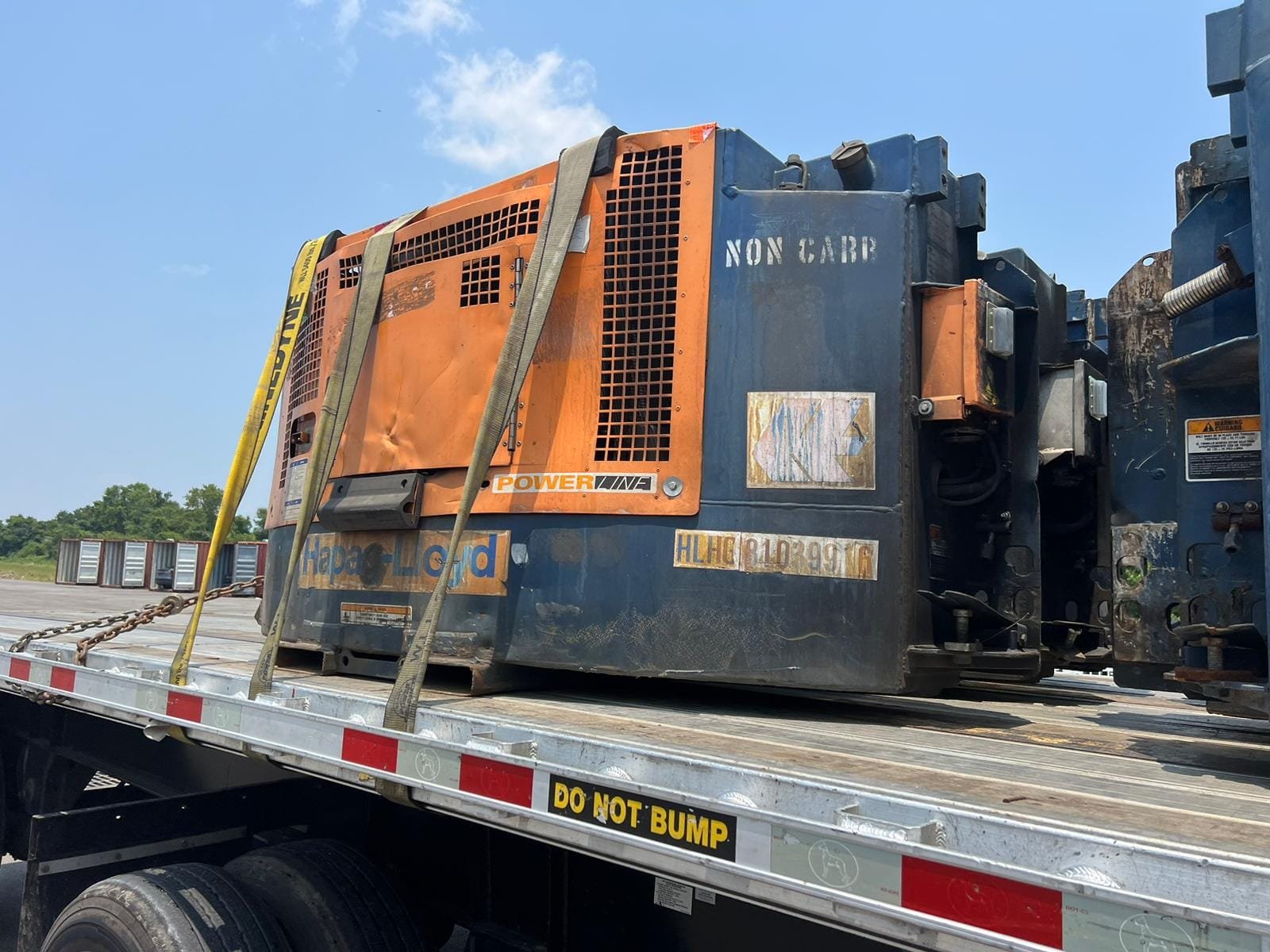

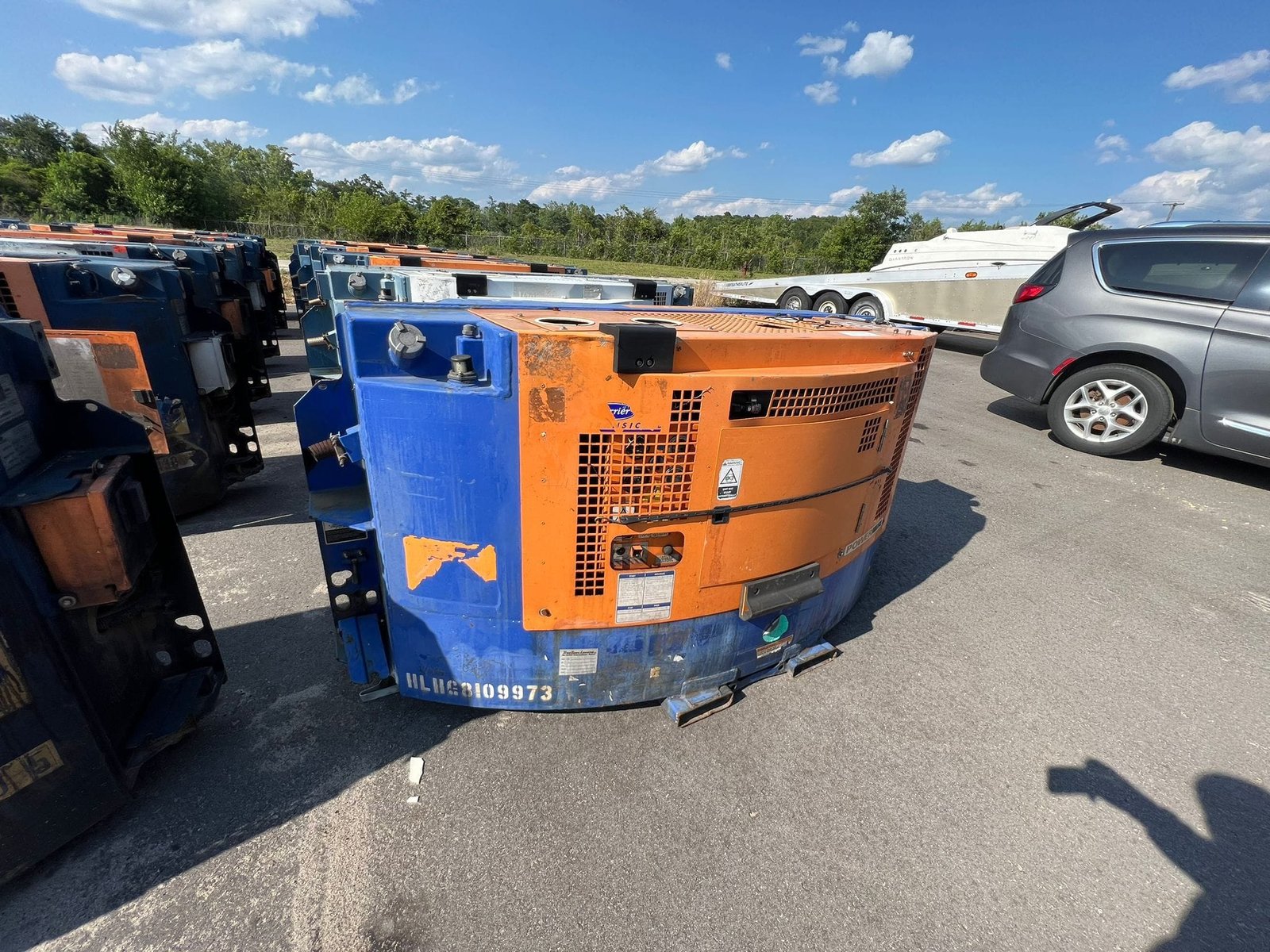

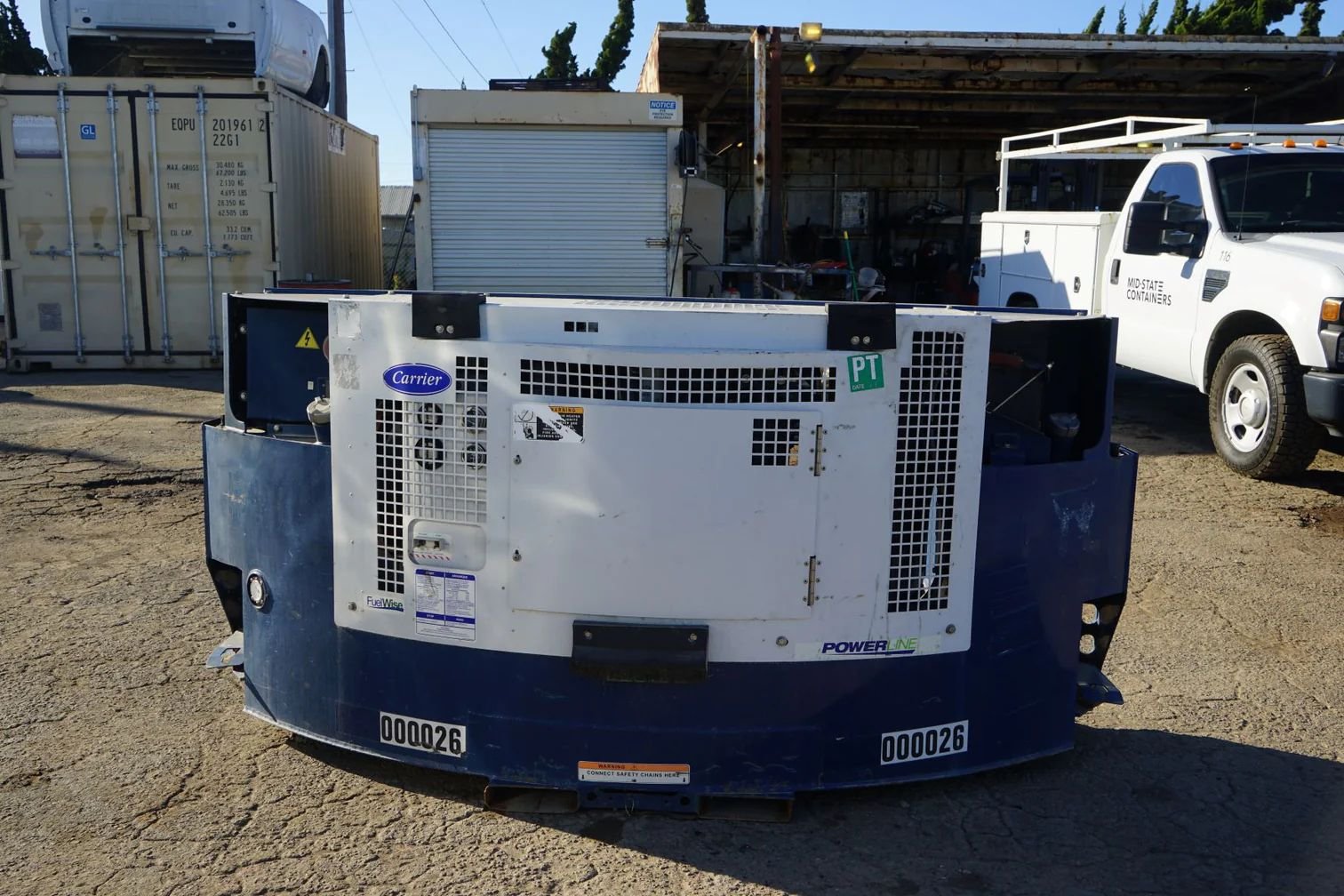

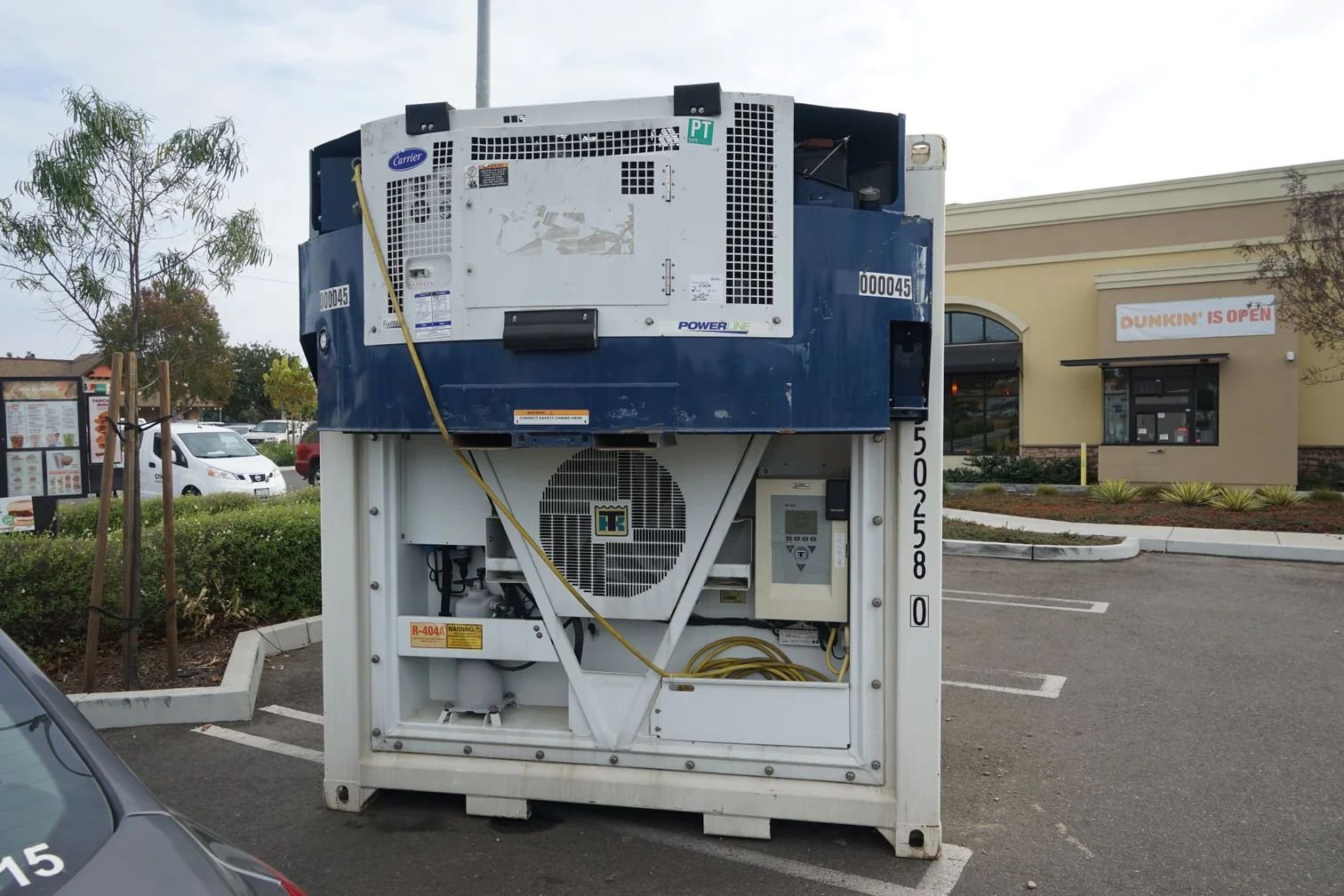

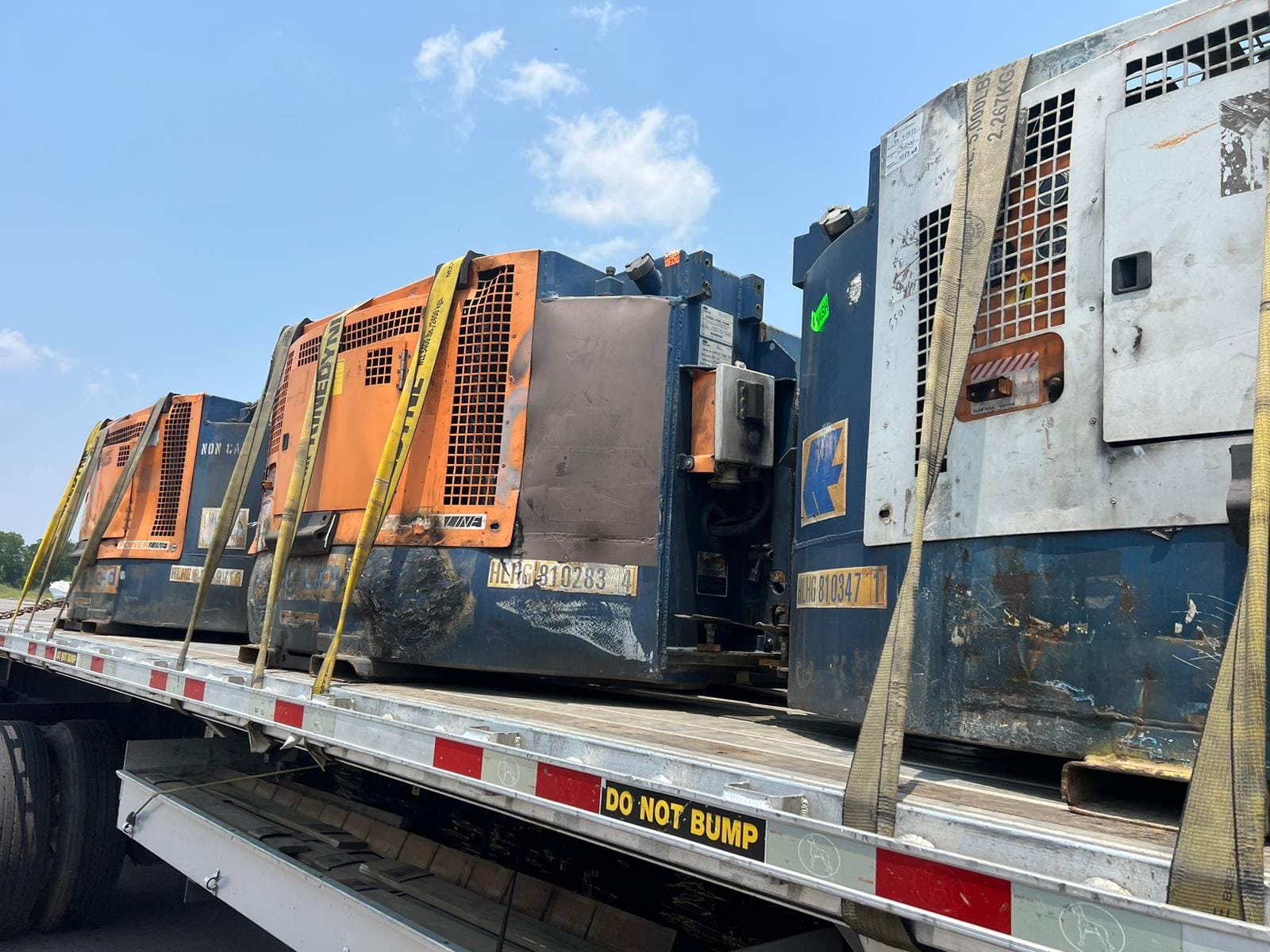

The Carrier 69RG15-120W-24 Clip-On Generator Set is engineered specifically to deliver dependable, continuous power for ISO refrigerated shipping containers during road or rail transport. Designed to mount securely to the top corner castings of reefer units, this generator provides a nominal 15 kW electrical output (3-phase, 460V) to maintain cargo temperature throughout transit.

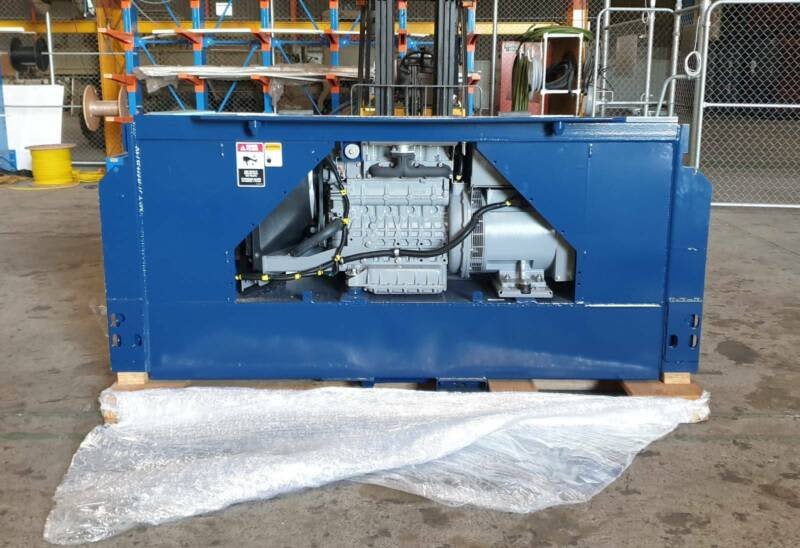

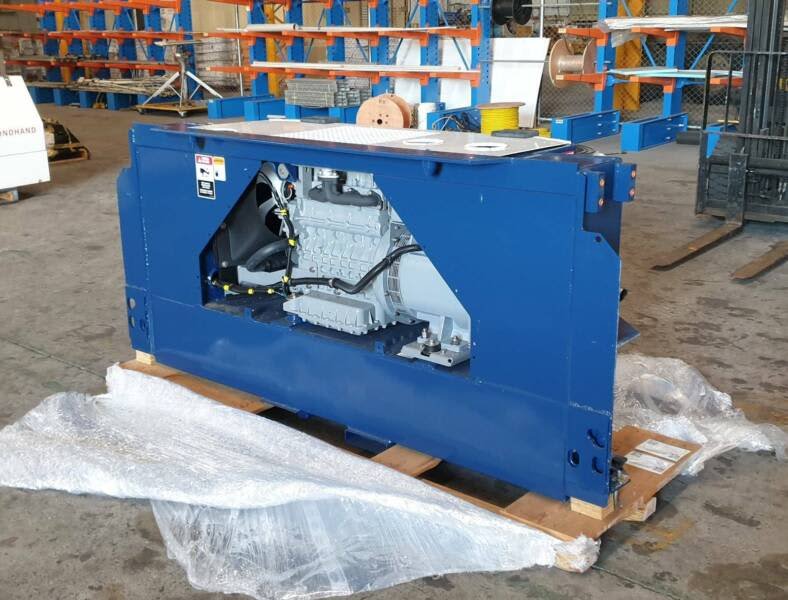

Powered by a 2.4-liter, 4-cylinder water-cooled V2403-CR-E4B diesel engine with common rail injection, the unit delivers reliable 23.9 kW engine performance with full U.S. EPA Tier 4 and CARB compliance. A 120-gallon fuel tank paired with FuelWise electronic control functionality ensures long unattended runtimes and optimized fuel economy.
Built for demanding transport environments, the generator features durable powder-coated frame components, stainless steel exhaust and hardware, a patented E-coat tube and fin radiator, and enclosed forklift pockets for safe handling.
| Brand | Carrier |
| Model Number | 69RG15-120W-24 |
| Engine | V2403-CR-E4B, 4-cylinder, water-cooled, 2.4-liter, Common rail injection diesel engine |
| Engine Power | 23.9 kW |
| Generator Output | Nominal 15 kW high-efficiency permanent magnet generator |
| Electrical Output | 3-Phase, 460V |
| Fuel Tank Capacity | 120 gal |
| Emissions Compliance | U.S. EPA Tier 4, CARB compliant |
| Mounting System | Pin-mount system (optional clamp-mount system) |
| Weight | 1974 lb / 895 kg (less fuel) |
| Battery | 12V DC maintenance-free battery |
| Radiator | Patented E-coat tube and fin radiator |
| Air Cleaner | High-efficiency dry element air cleaner |
| Oil Filter | Full-flow spin-on oil filter with internal bypass |
| Operating Ambient Temperature (Run) | -40° to +52°C (-40° to +125° F) |
| Operating Ambient Temperature (Start) | -26° to +52°C (-15° to +125° F) |
