Description

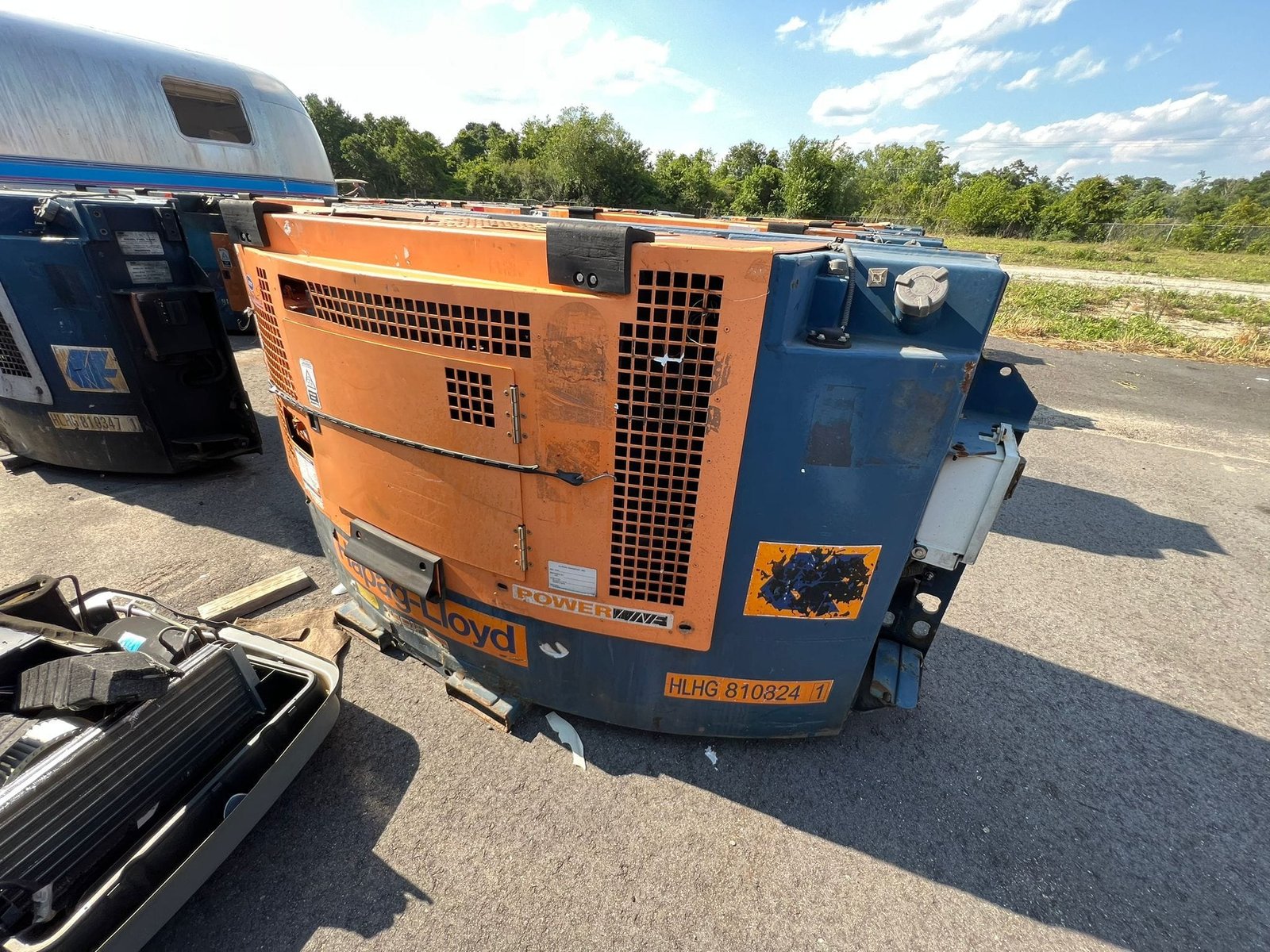

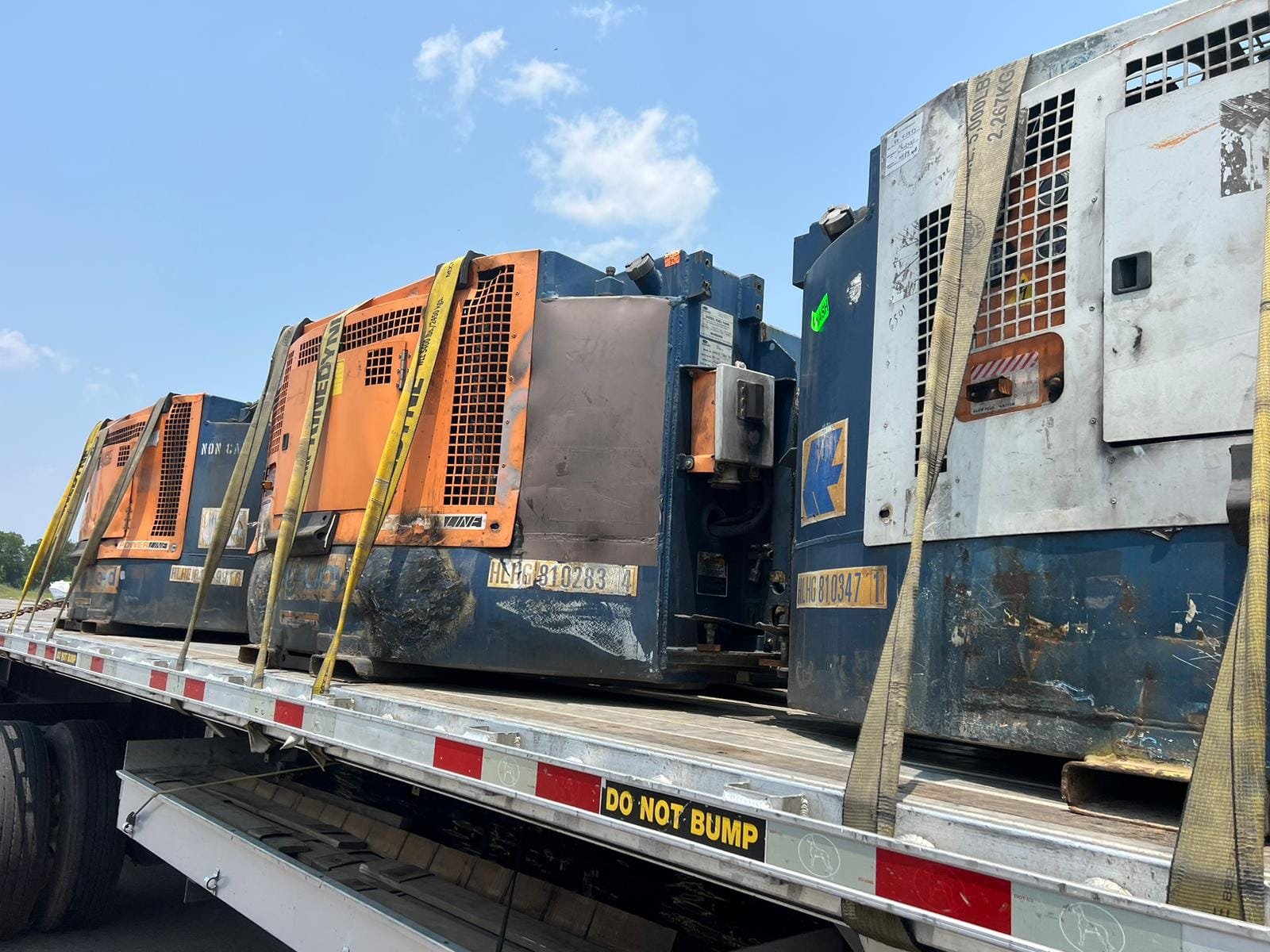

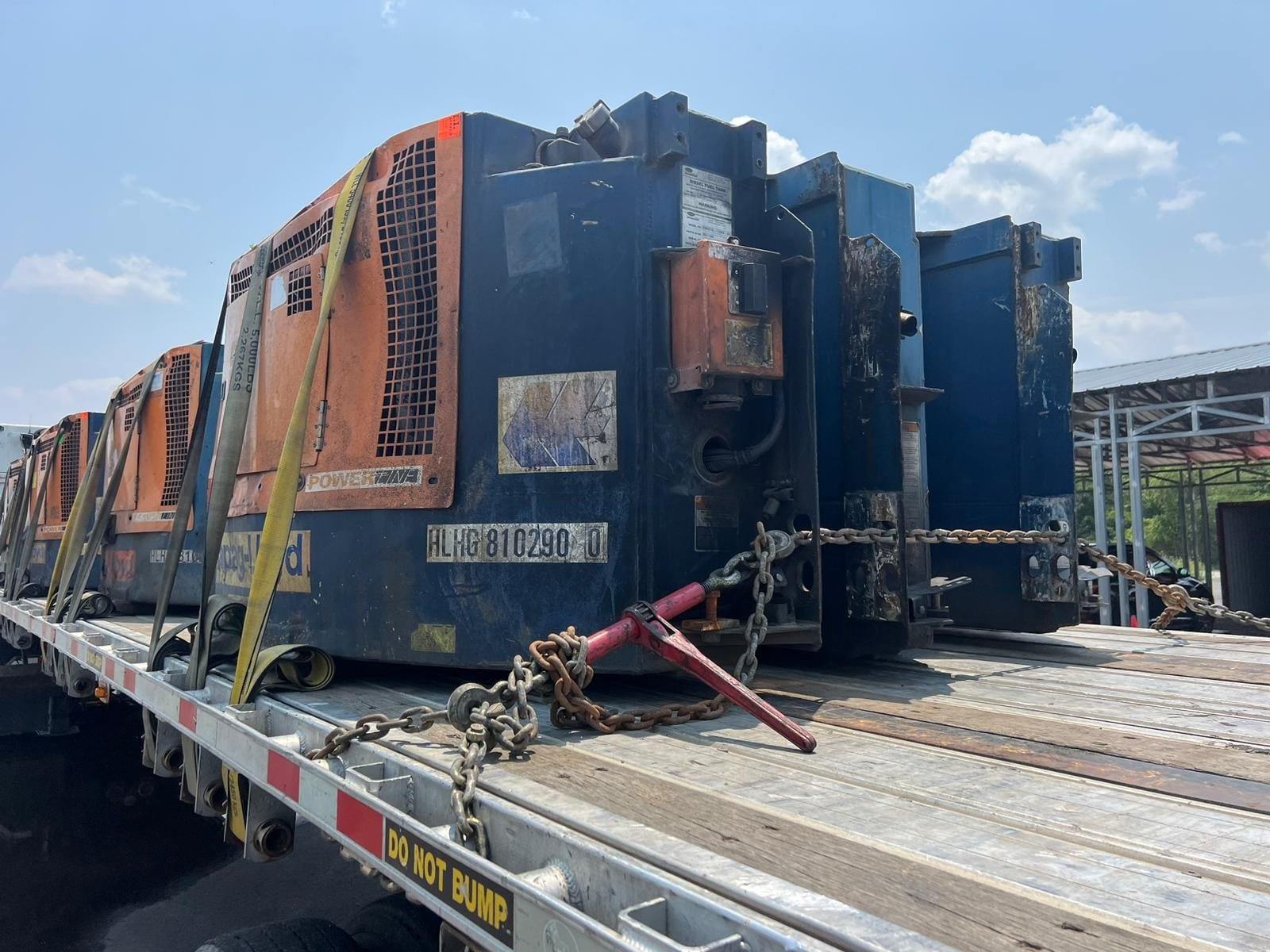

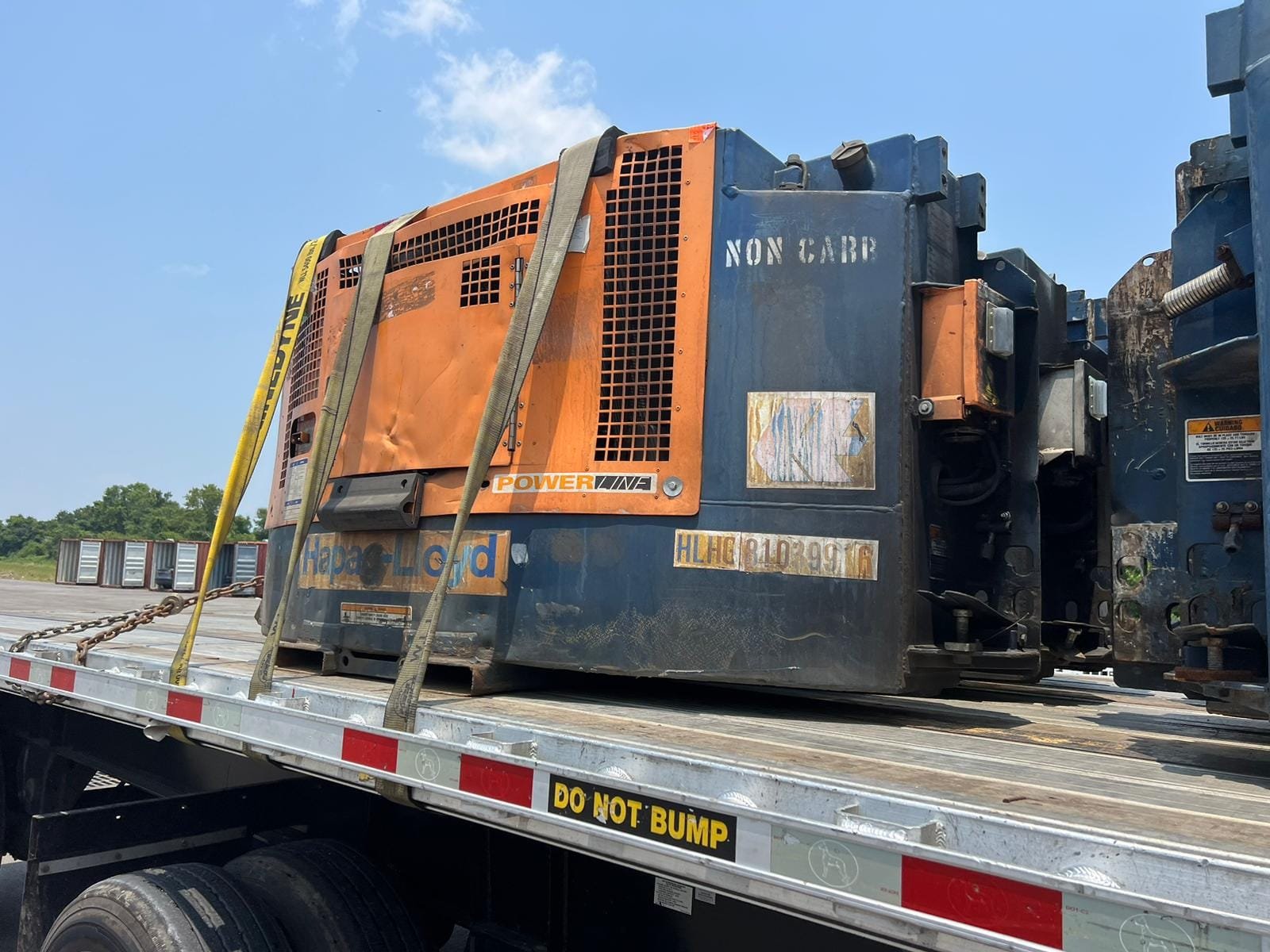

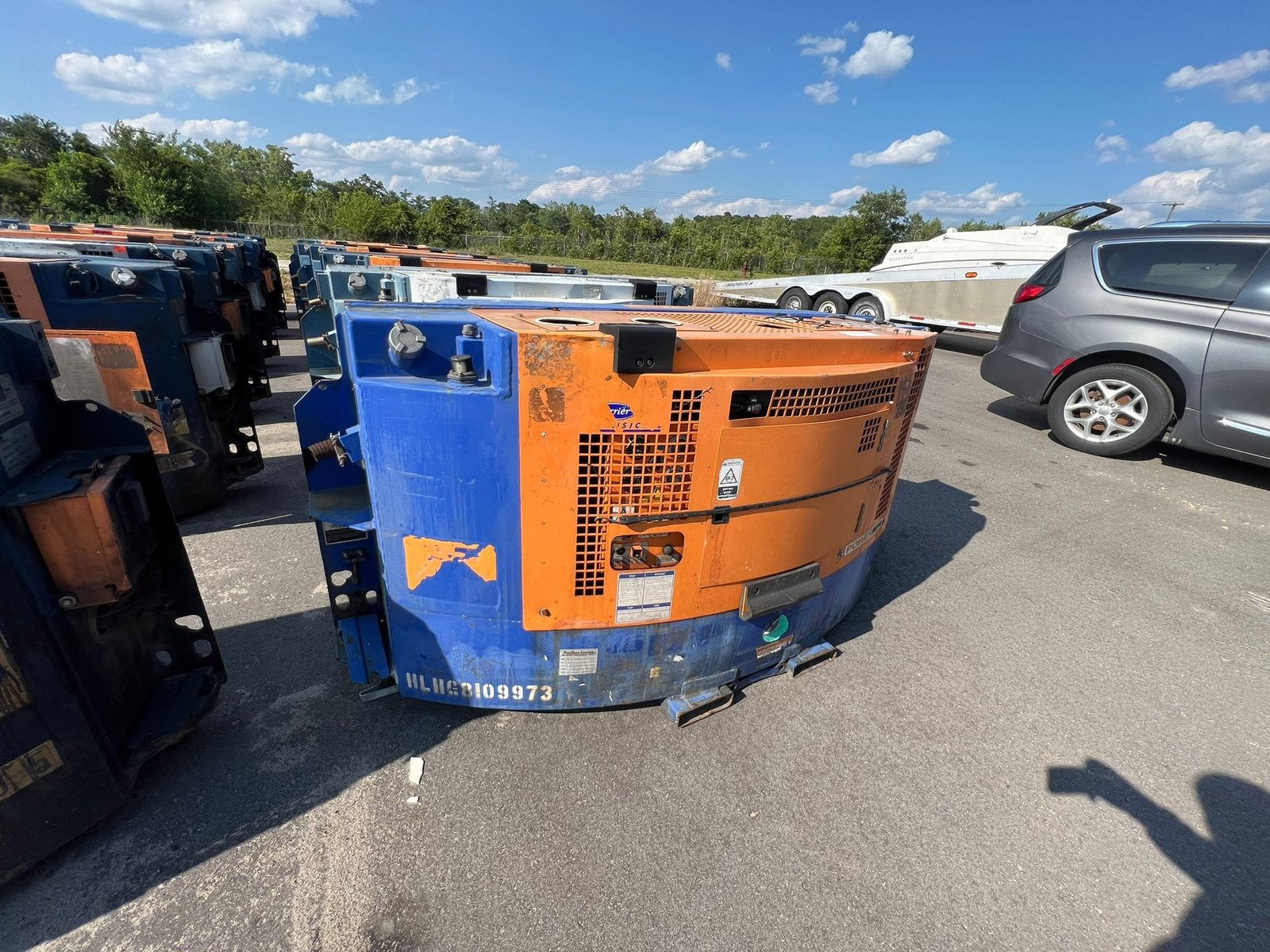

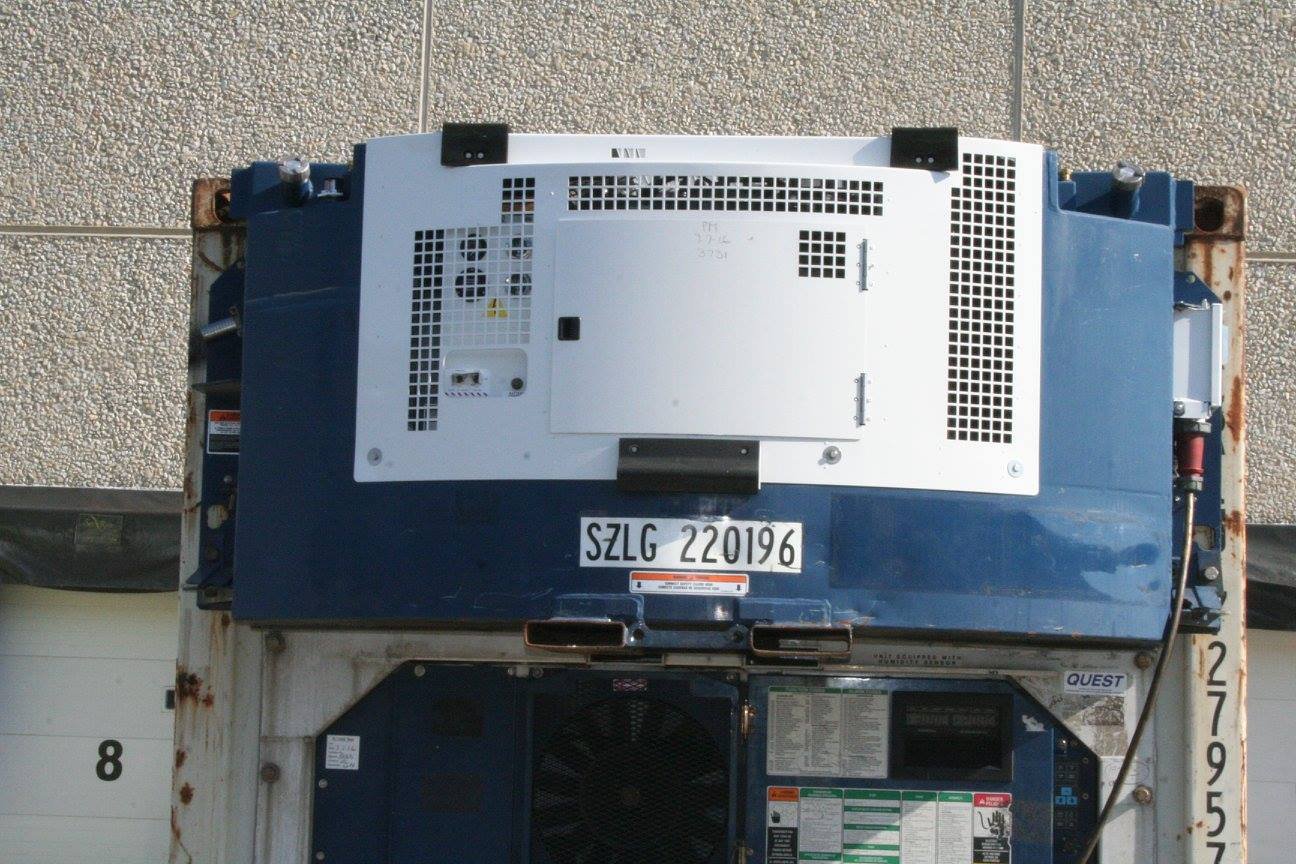

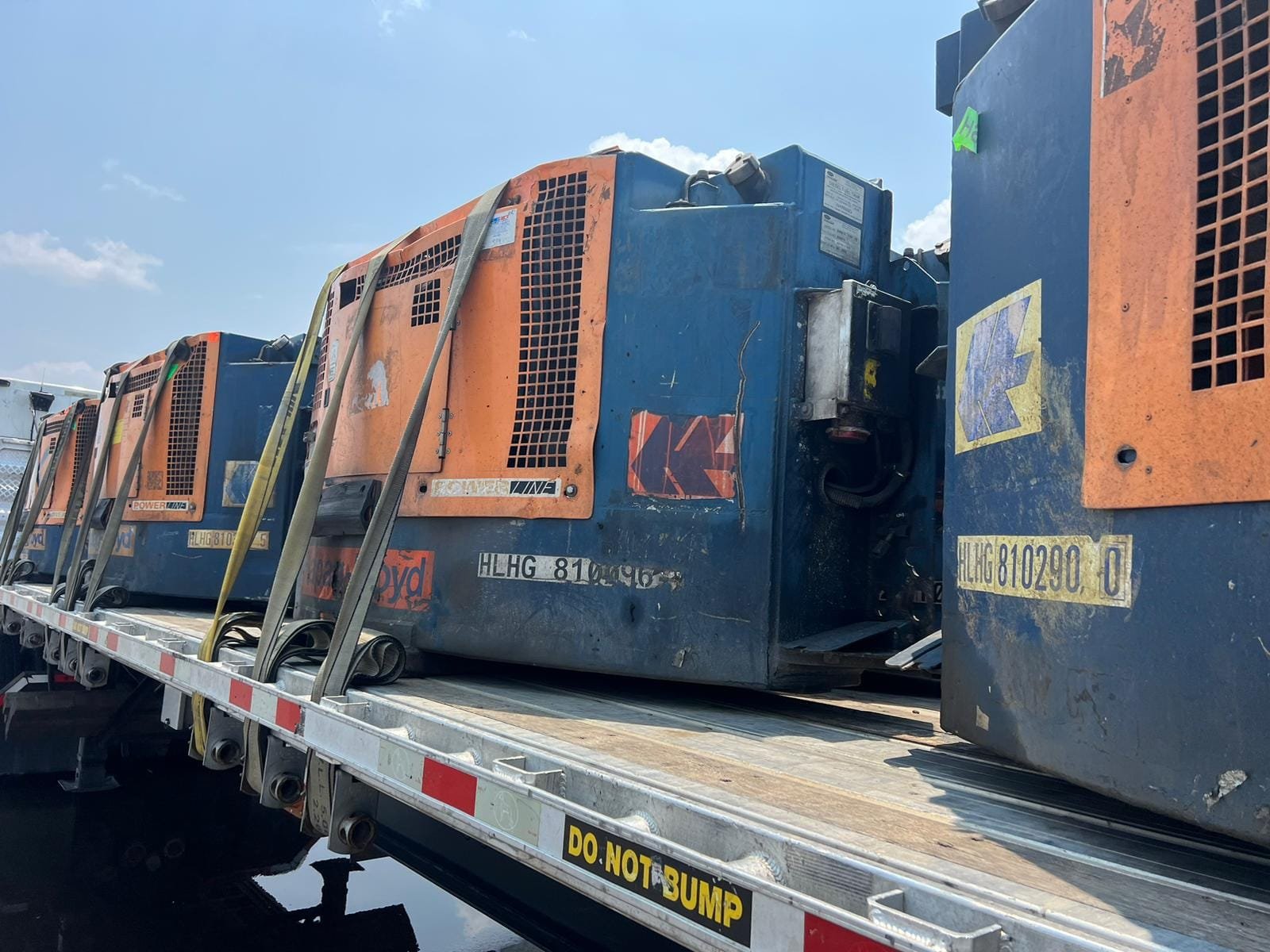

The Carrier PowerLINE 69RG15-120W-24 Clip-On Generator Set is engineered for continuous, reliable power delivery to ISO refrigerated containers during road and rail transport. Built with heavy-duty construction and corrosion-resistant components, this generator mounts directly to container header rails to provide steady 460V power while allowing unobstructed access to refrigeration control boxes.
Key Features & Performance
- Efficient Power Output: Equipped with a nominal 15 kW high-efficiency permanent magnet generator and a 4-cylinder, water-cooled V2403-CR-E4B diesel engine.
- Fuel Savings: Features FuelWise technology with two-speed functionality to reduce fuel consumption and cut operating emissions.
- Robust Construction: Built with stainless steel exhaust and hardware, a powder-coated frame, an aluminum service door, and a patented E-coat radiator.
- Safe & Easy Handling: Features enclosed forklift pockets, pin-mount attachment (with optional clamp mounting), and safety shutdown controls for low oil pressure and high water temperature.
- Extended Runtime: Fitted with a 120-gallon fuel tank and an expanded oil pan capacity to maximize operational intervals between servicing.
| Brand | Carrier |
| Manufacturer | Carrier Transicold |
| Model Number | 69RG15-120W-24 |
| Engine | V2403-CR-E4B, 4-cylinder, water-cooled, 2.4-liter, Common rail injection diesel engine |
| Generator | Nominal 15 kW high-efficiency permanent magnet generator |
| Output Voltage | 460V, 3-phase |
| Controller | Controller with enhanced FuelWise functionality |
| Fuel Tank Capacity | 120-gallon fuel tank |
| Mounting Type | Pin-mount system (optional clamp-mount) |
| Battery | 12V DC maintenance-free battery |
| Weight | 1974 lb / 895 kg (less fuel) |
| Operating Temperature Range | -40° to +52°C (-40° to +125°F) |
| Emissions Compliance | U.S. EPA Tier 4 |
