Description

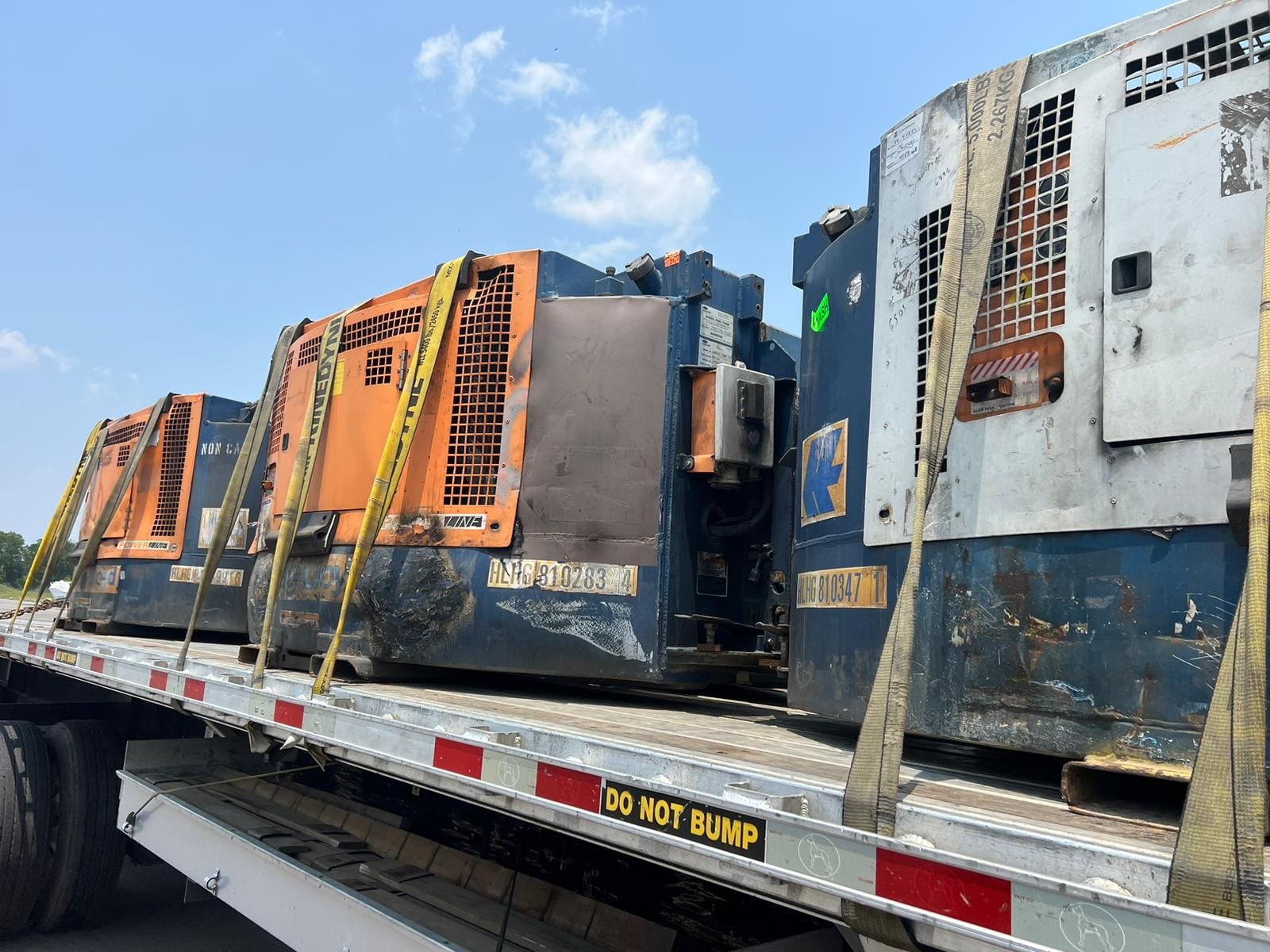

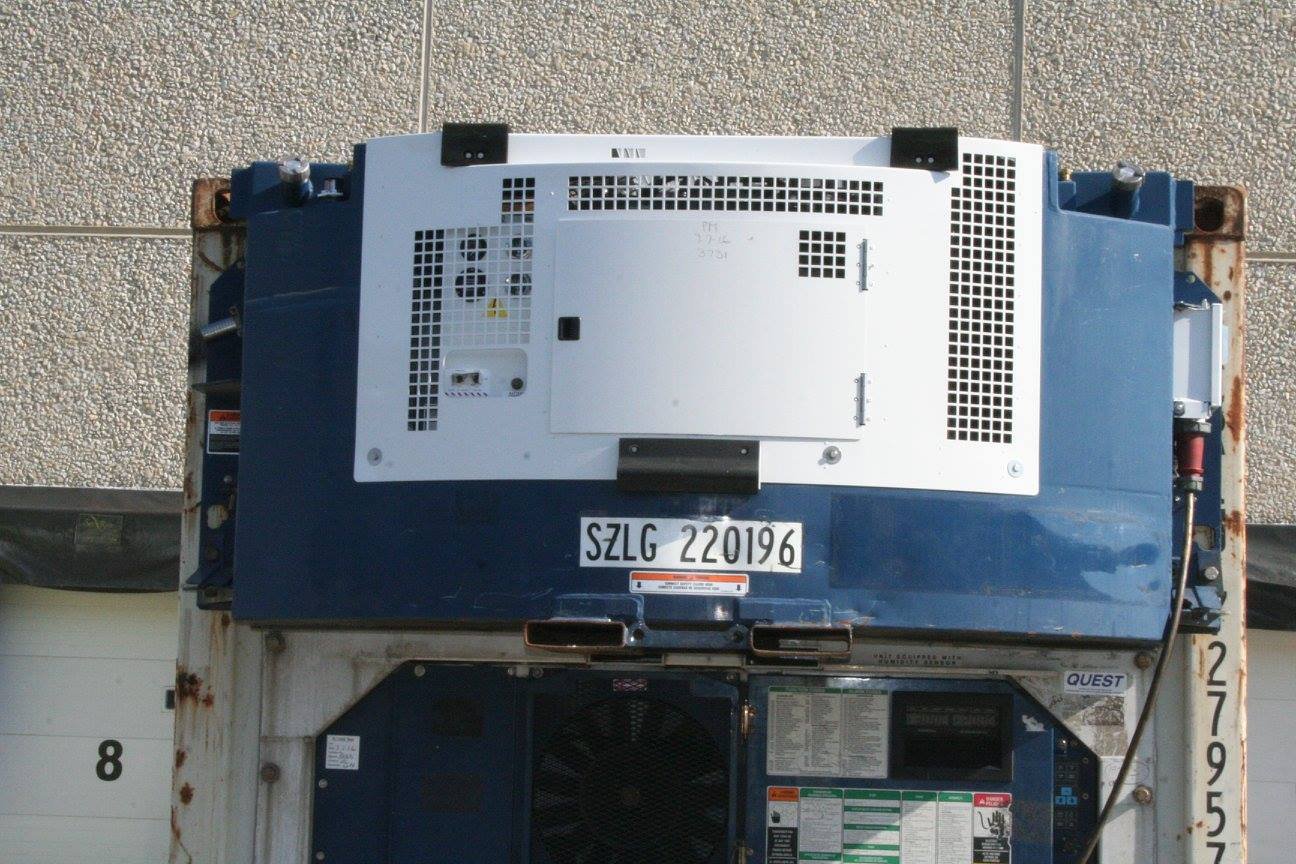

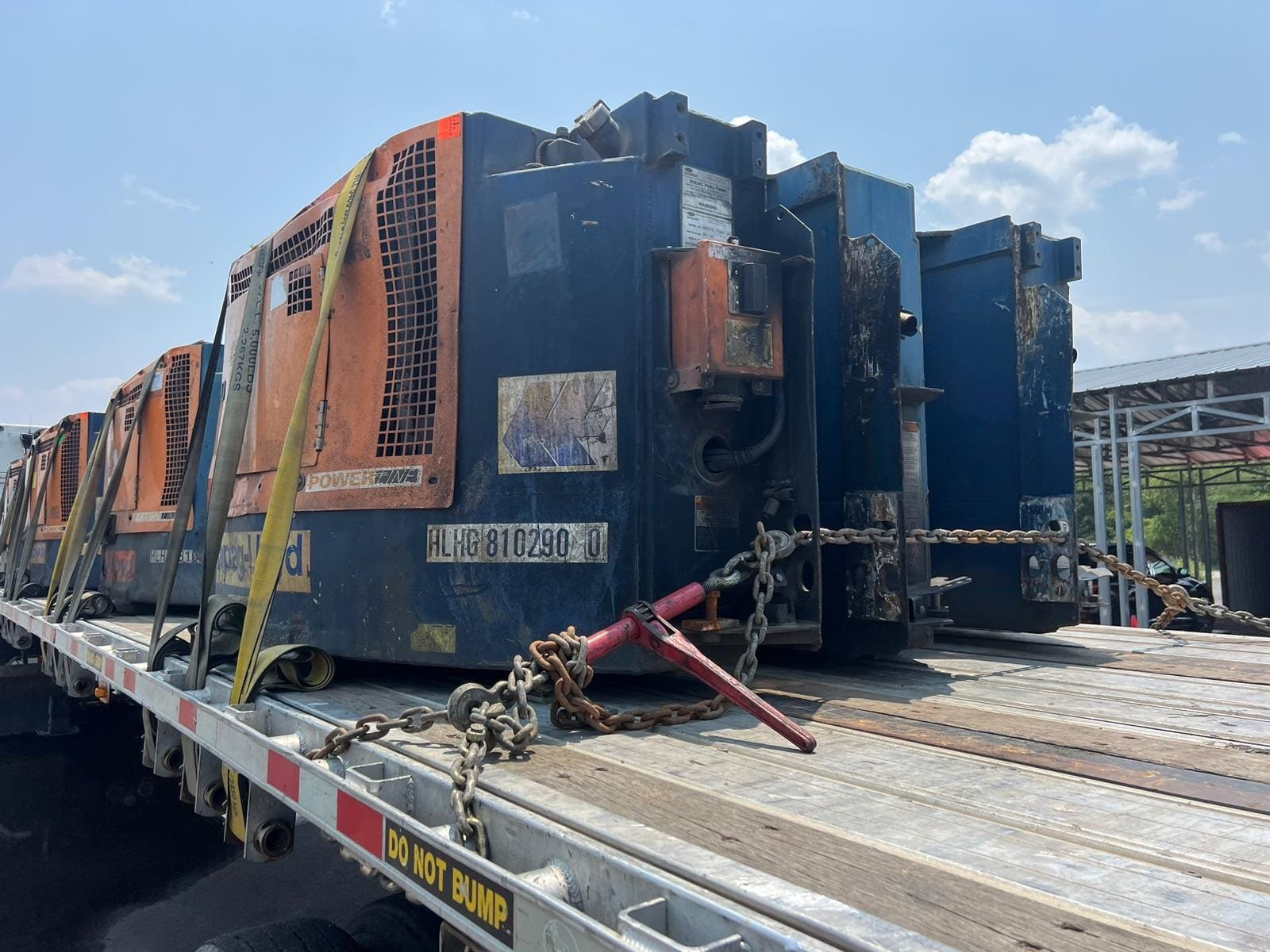

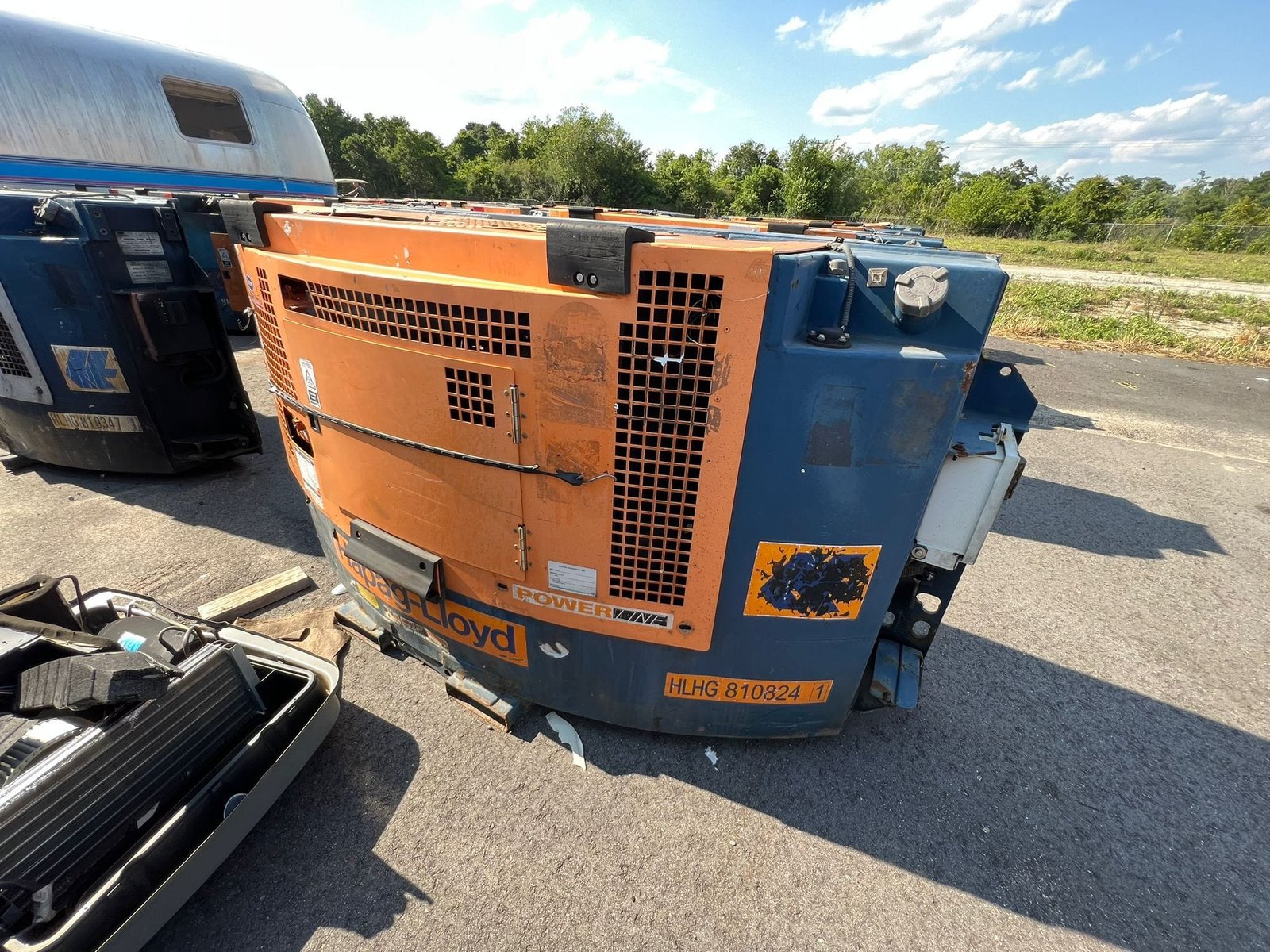

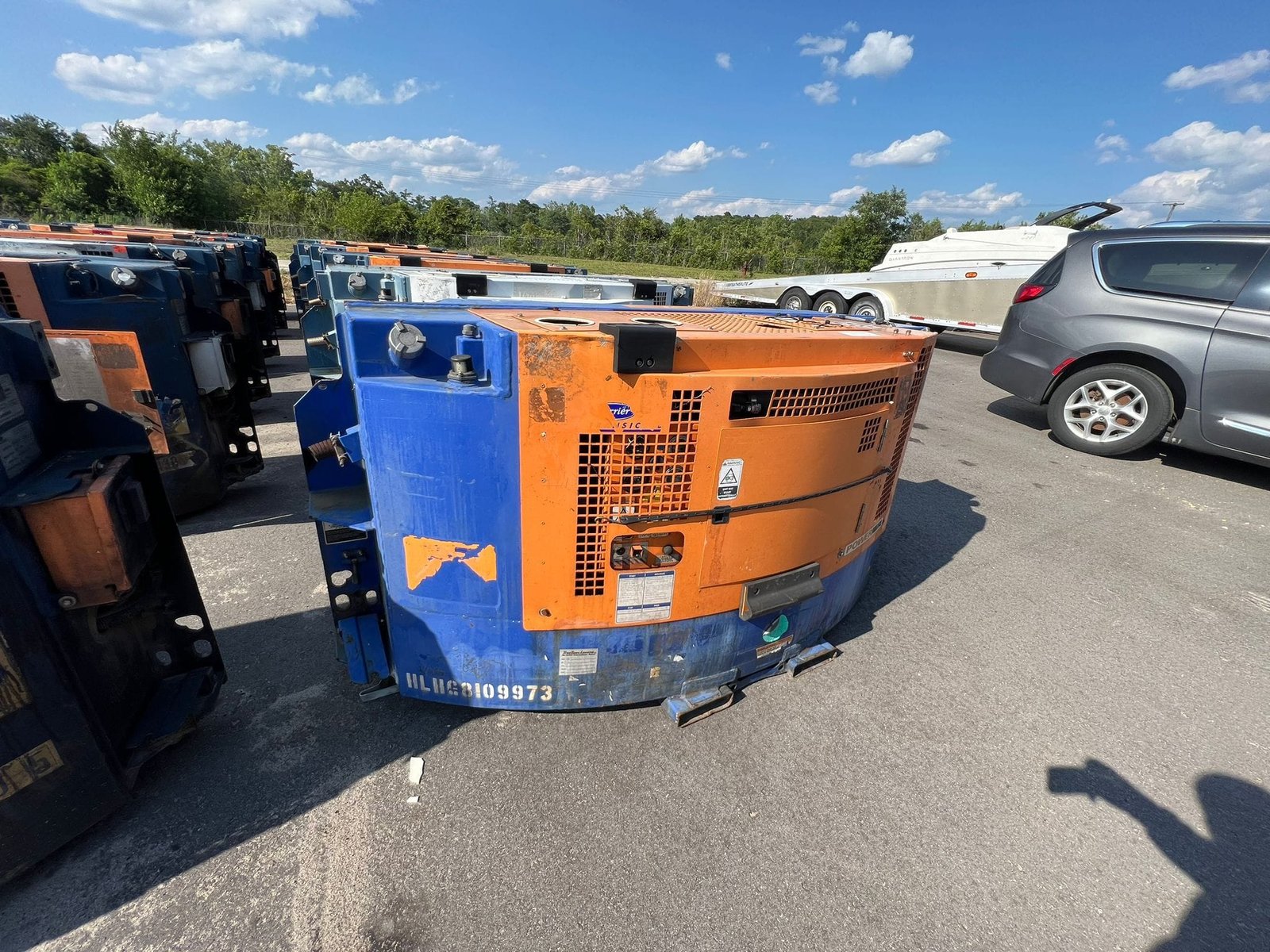

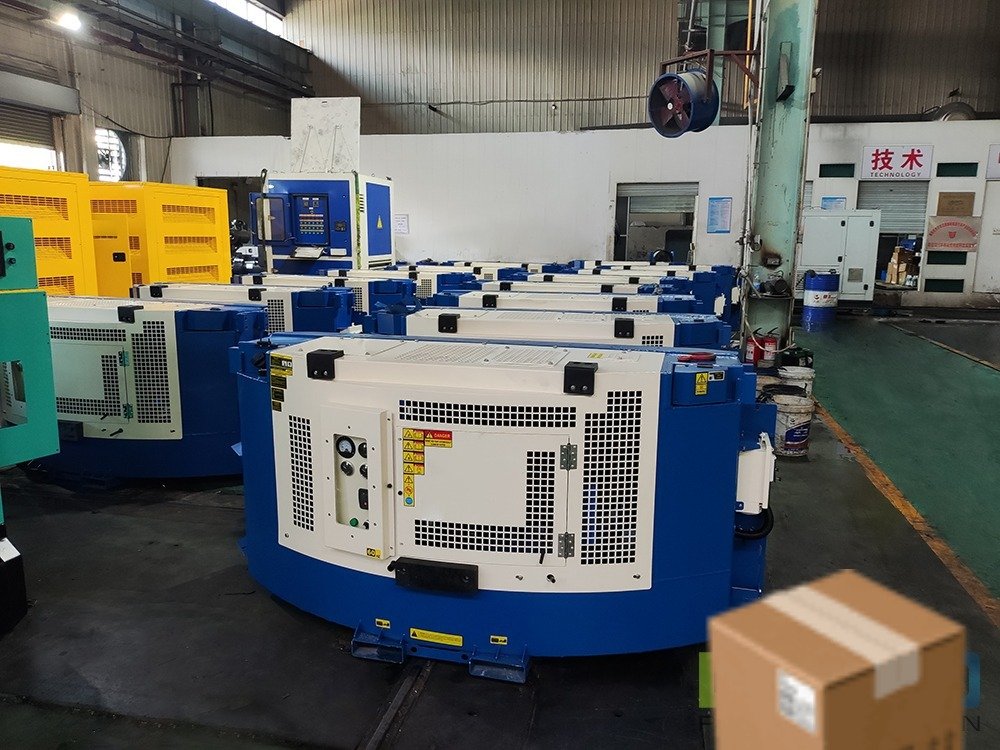

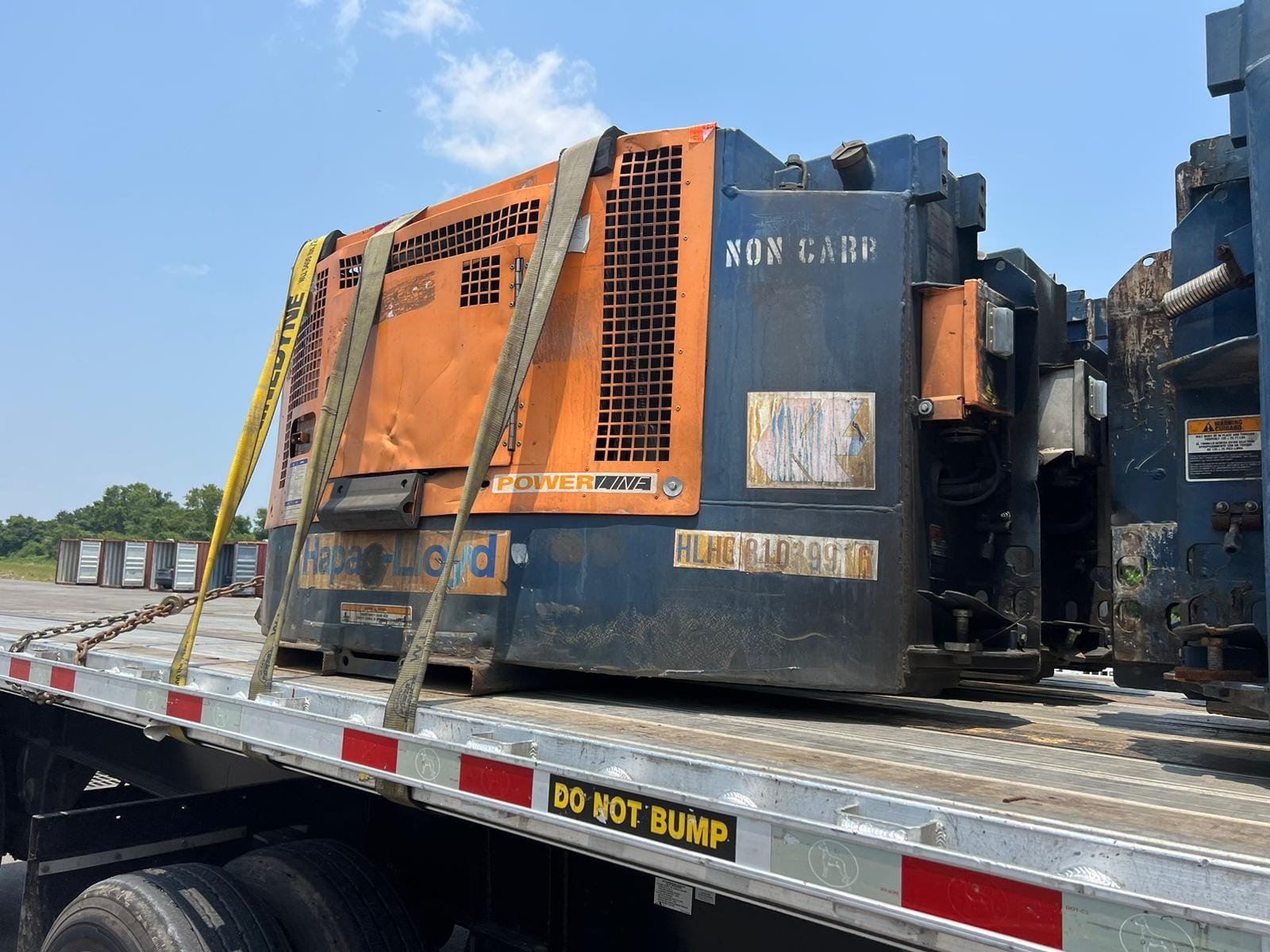

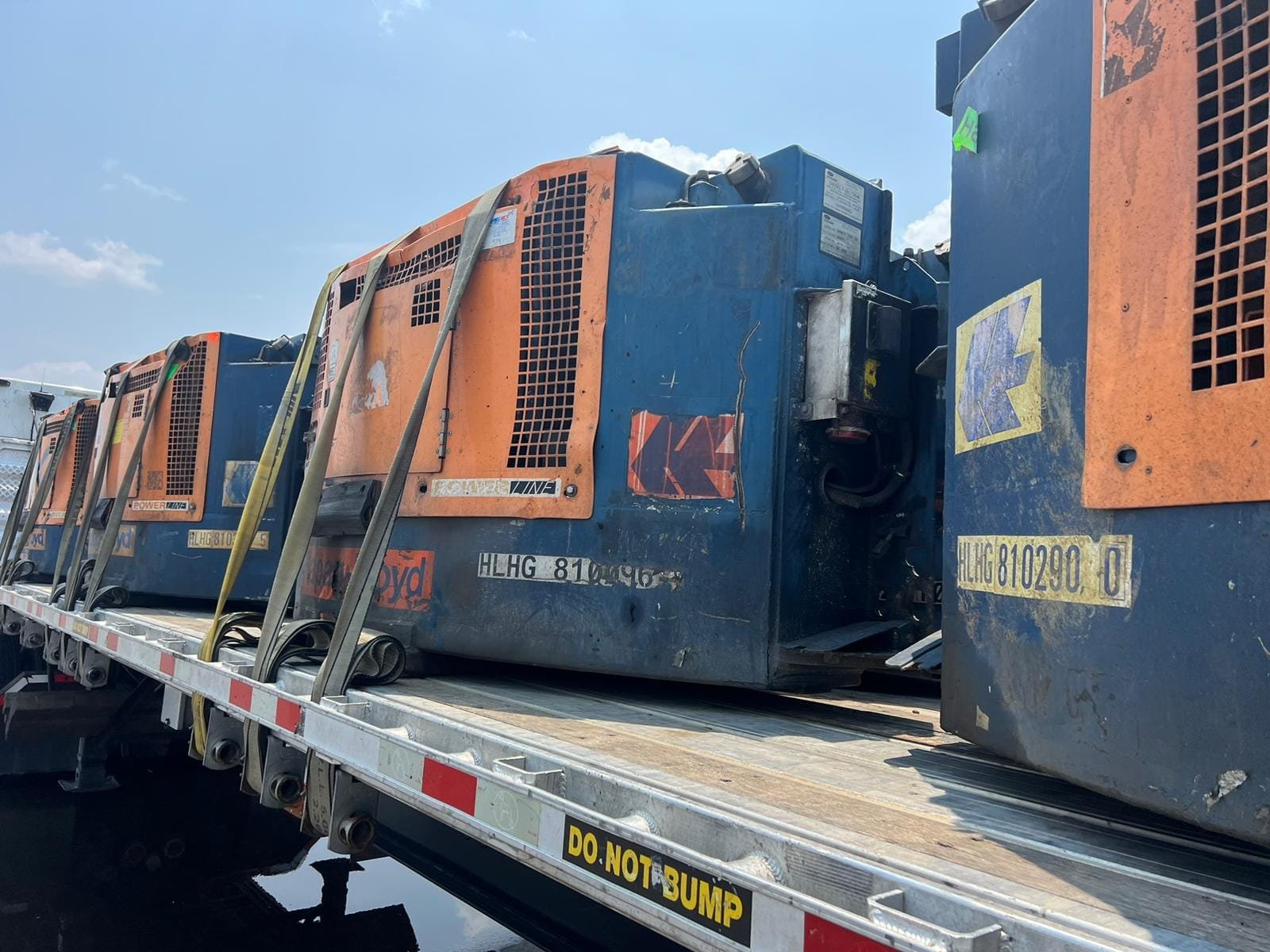

The Carrier 69RG15-120W-24 PowerLINE Series 24 Clip-On Generator Set provides reliable, continuous, unattended power for refrigerated ISO shipping containers during highway or rail transport. Engineered to mount directly to the top corner castings above the refrigeration unit, this generator ensures uninterrupted temperature control for cargo in transit.
Powered by a robust 2.4-liter V2403-CR-E4B 4-cylinder, water-cooled common rail diesel engine (23.9 kW), it drives a nominal 15 kW permanent magnet generator delivering 460V 3-phase output. Designed for demanding intermodal environments, it features enhanced FuelWise technology for optimized fuel economy, a 120-gallon fuel capacity, and full compliance with U.S. EPA Tier 4 standards.
Key Features
- Standard pin-mount attachment system for secure container mounting
- Durable powder-coated frame, sheet metal, and stainless steel hardware
- Patented E-coat tube and fin radiator designed for long service life
- Comprehensive safety shutdowns for low oil pressure and high coolant temperature
- Accessible low-mounted controls and large aluminum service access door
- Enclosed forklift pockets for secure handling and repositioning
| Brand | Carrier Transicold |
| Model Number | 69RG15-120W-24 |
| Product Type | Clip-On Generator Set |
| Series | PowerLINE Series 24 |
| Engine | V2403-CR-E4B, 4-cylinder, water-cooled, 2.4-liter diesel |
| Engine Power | 23.9 kW |
| Generator Output | 15 kW |
| Voltage | 460V |
| Phase | 3-phase |
| Fuel Tank Capacity | 120 gal |
| Weight (Less Fuel) | 1974 lb (895 kg) |
| Mount System | Pin-mount |
| Emissions Compliance | EPA Tier 4, CARB |
| Operating Temperature Range | -40° to +52°C (-40° to +125° F) |
