Description

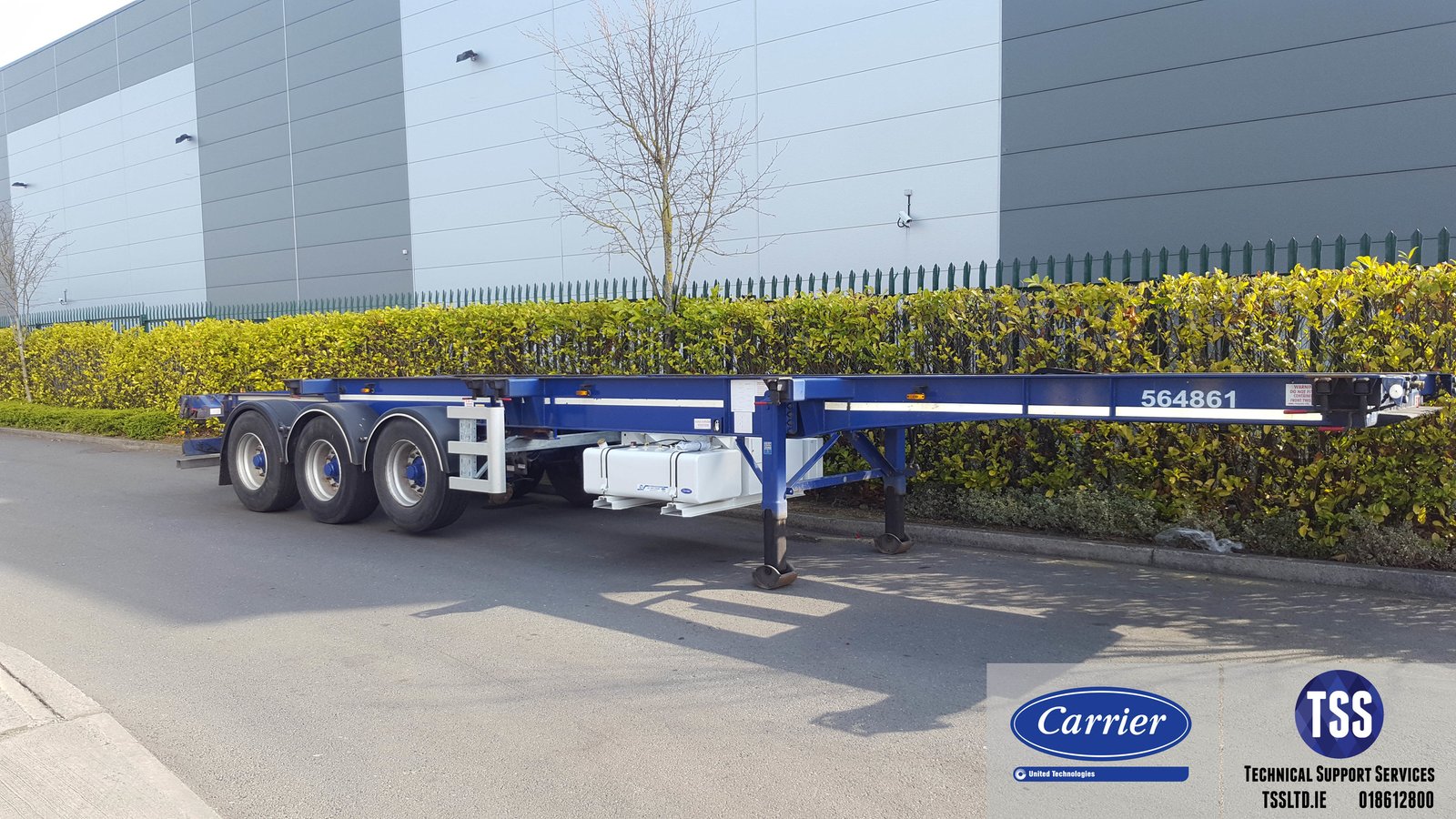

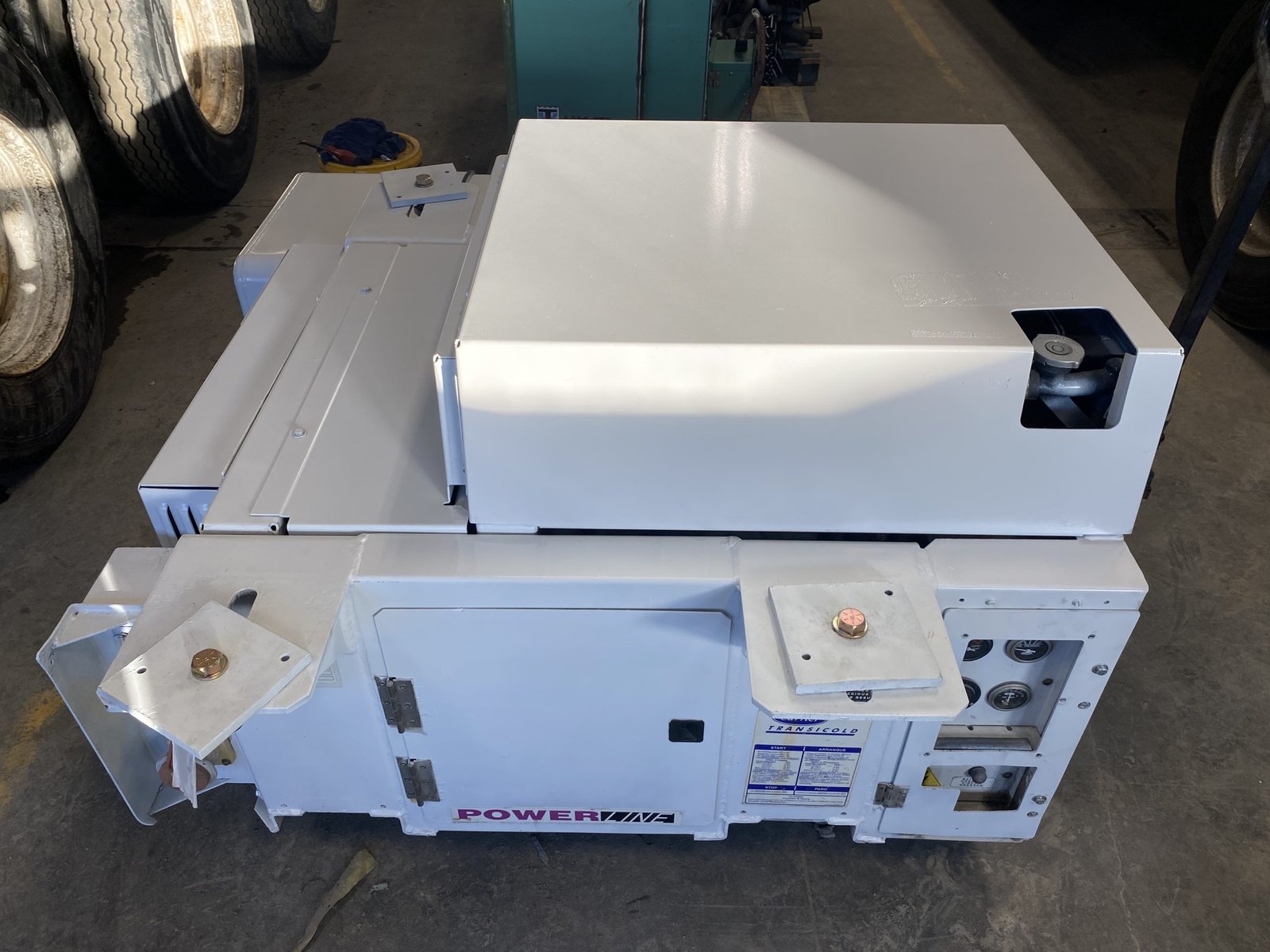

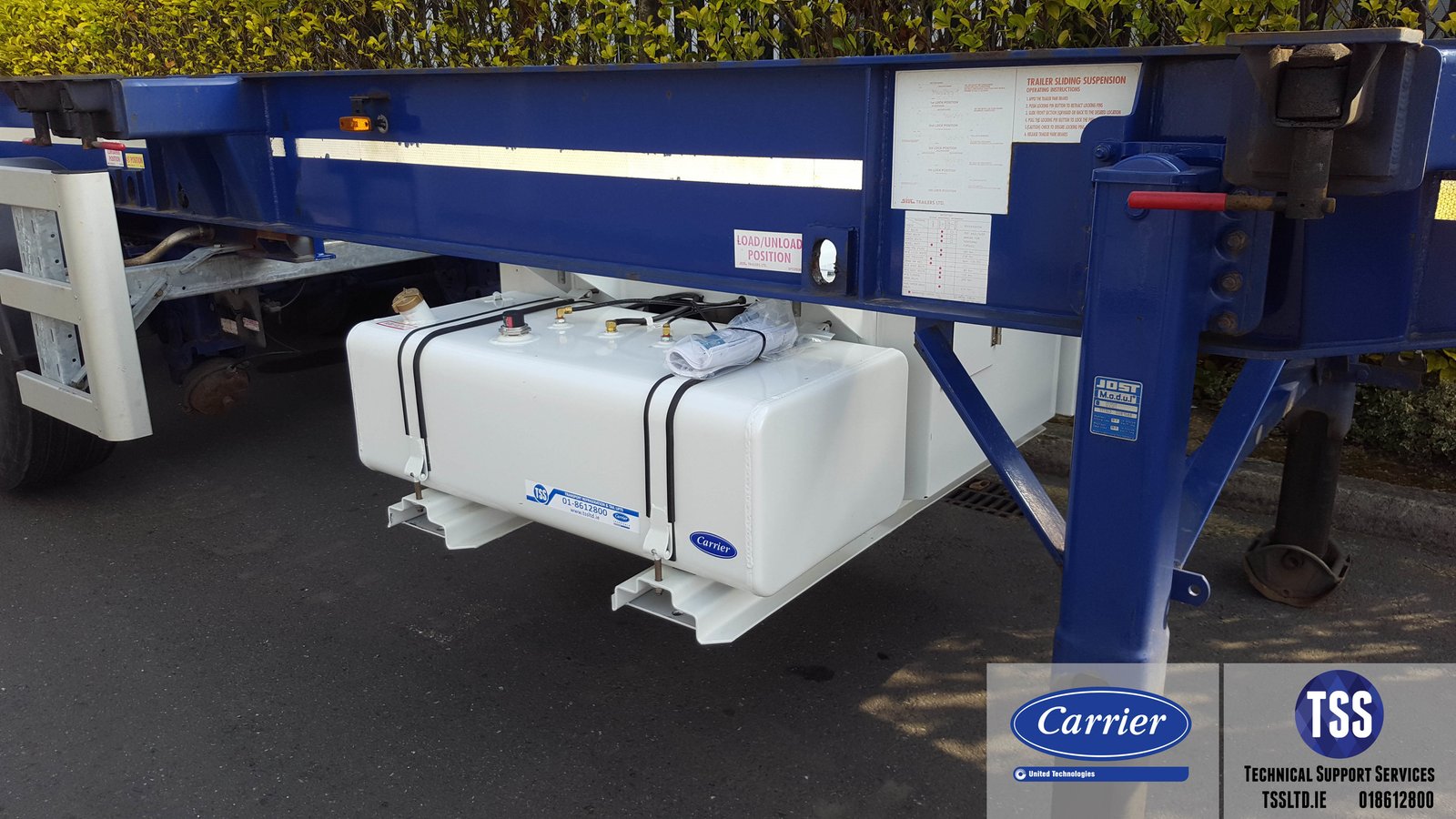

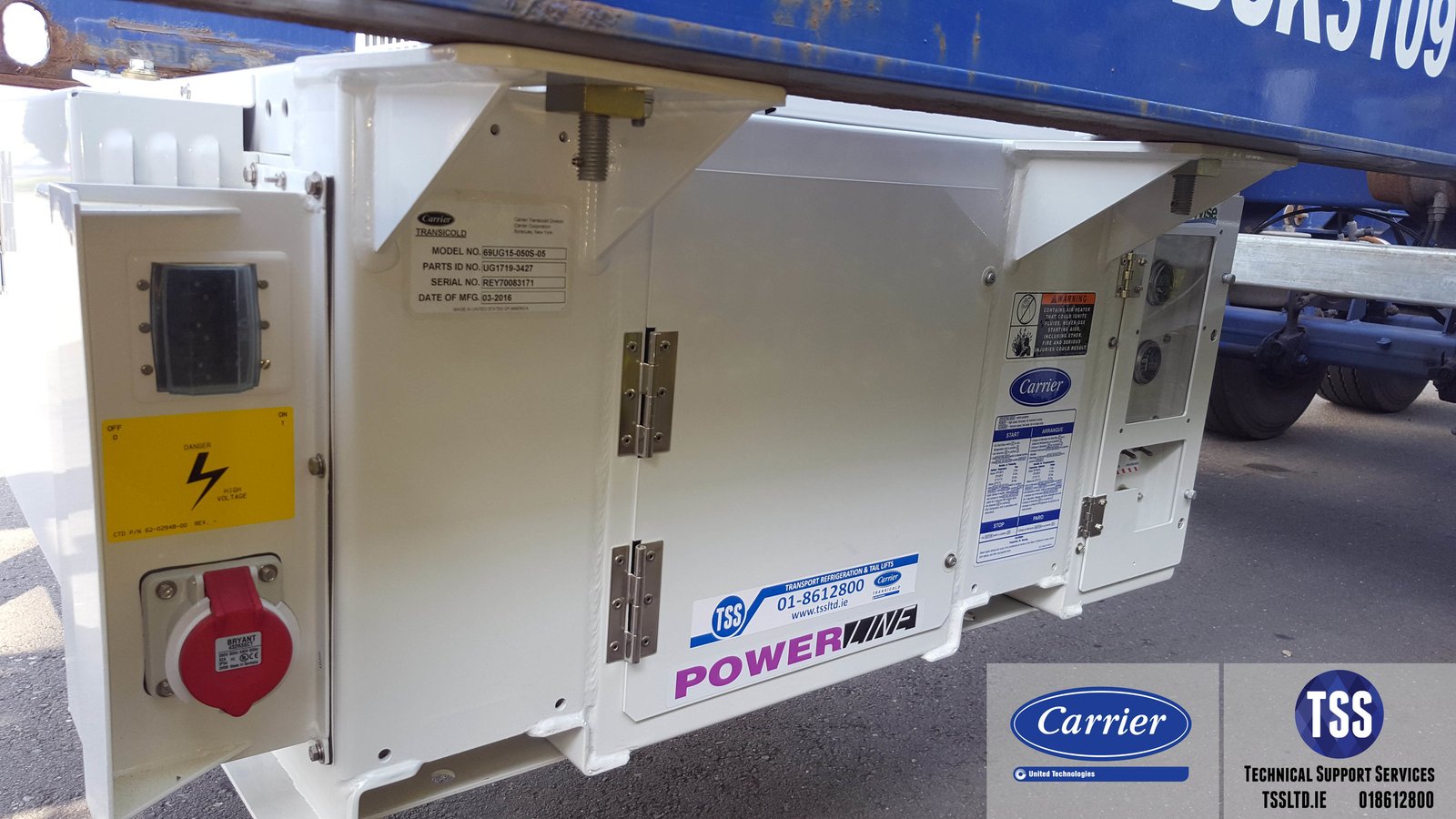

The Carrier Transicold PowerLINE 69UG15-050S-55 undermount generator set delivers reliable, continuous, unattended power for ISO refrigerated containers transported by road or rail. Engineered to mount beneath a container chassis, this diesel-driven unit provides a full 15 kW power output to keep refrigeration systems operating smoothly in transit or at remote locations lacking external power infrastructure.

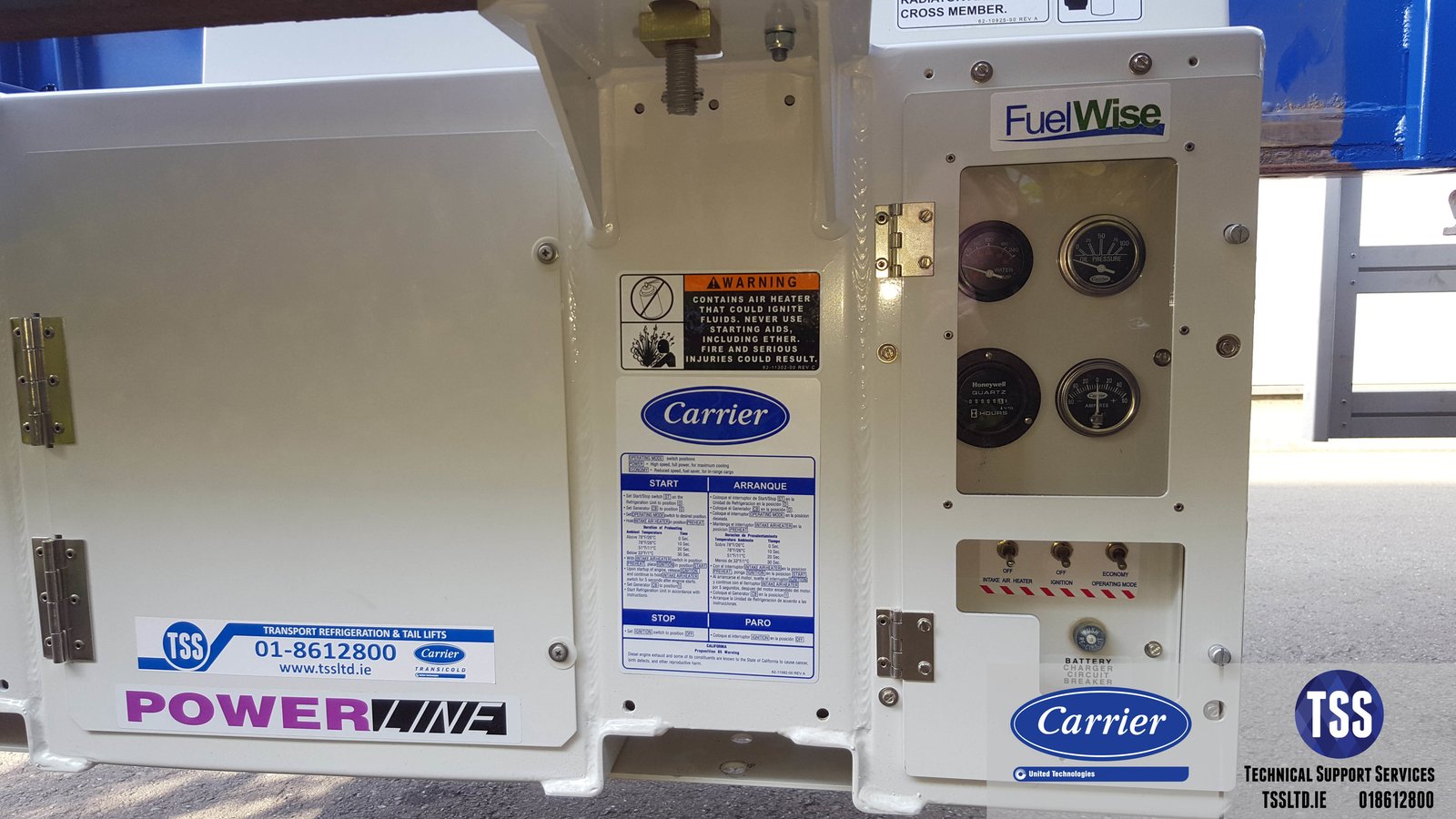

Powered by a proven 2.2-liter, 18.5 kW direct-injection diesel engine, the Series 55 meets stringent EU Stage V nonroad mobile machinery emission standards and features a permanent-magnet generator for high operating efficiency. The integrated FuelWise™ two-speed functionality automatically adjusts between 1500 rpm (50 Hz) and 1800 rpm (60 Hz) according to refrigeration load, significantly reducing fuel consumption, extending operating range, and lowering emissions.

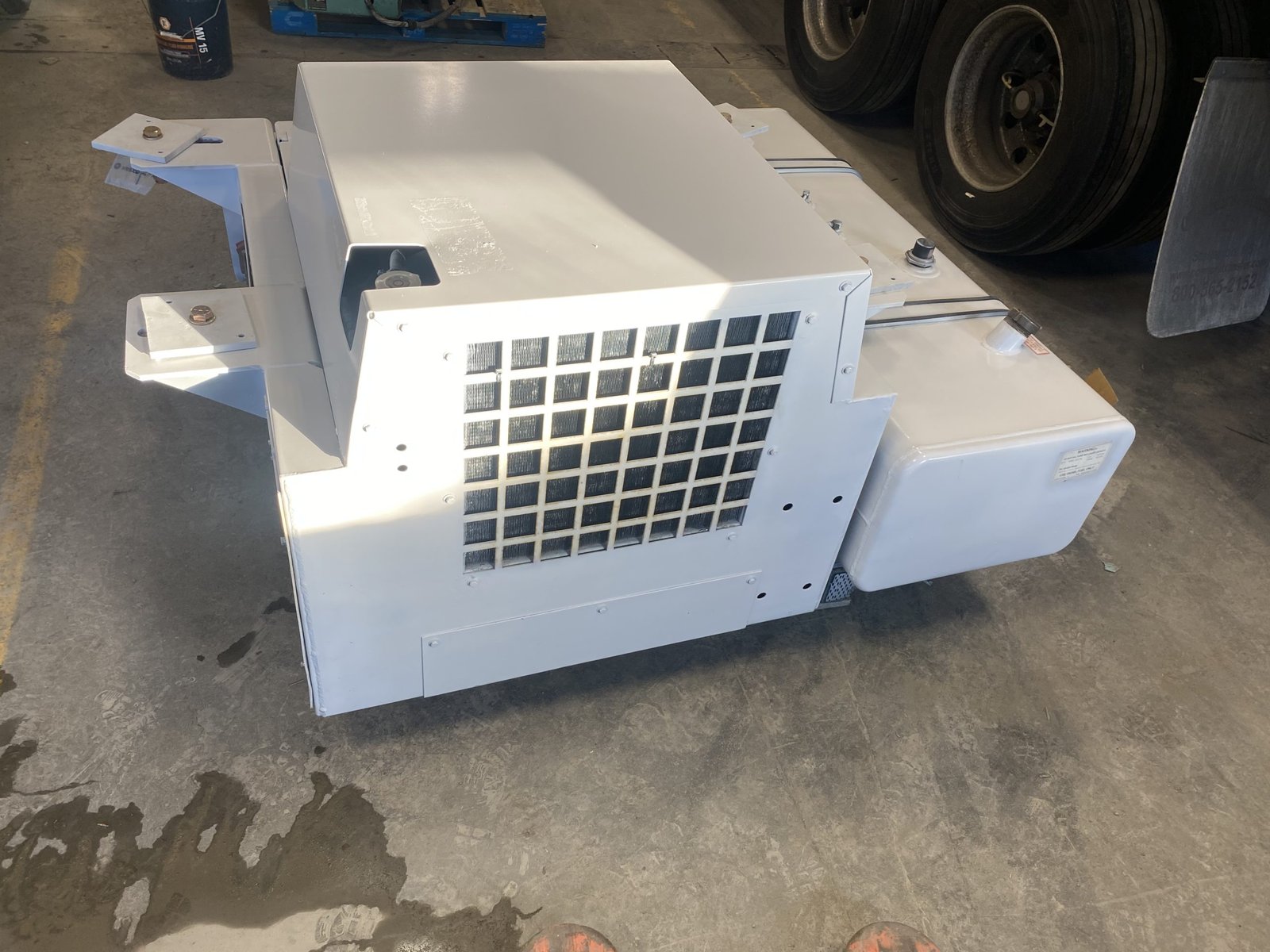

Built for durability in harsh transport environments, the unit features powder-coated frame and sheet metal components for superior corrosion resistance, an E-coat tube and fin radiator, and a stainless steel exhaust. Maintenance is streamlined through standard full-flow spin-on oil filters with internal bypass filtration, an integral fuel filter with water separator, and safety stop controls for low oil pressure and high water temperature.
| Brand | Carrier |
| Manufacturer | Carrier Transicold |
| Model Number | 69UG15-050S-55 |
| Product Type | Undermount Generator Set |
| Power Output | 15 kW |

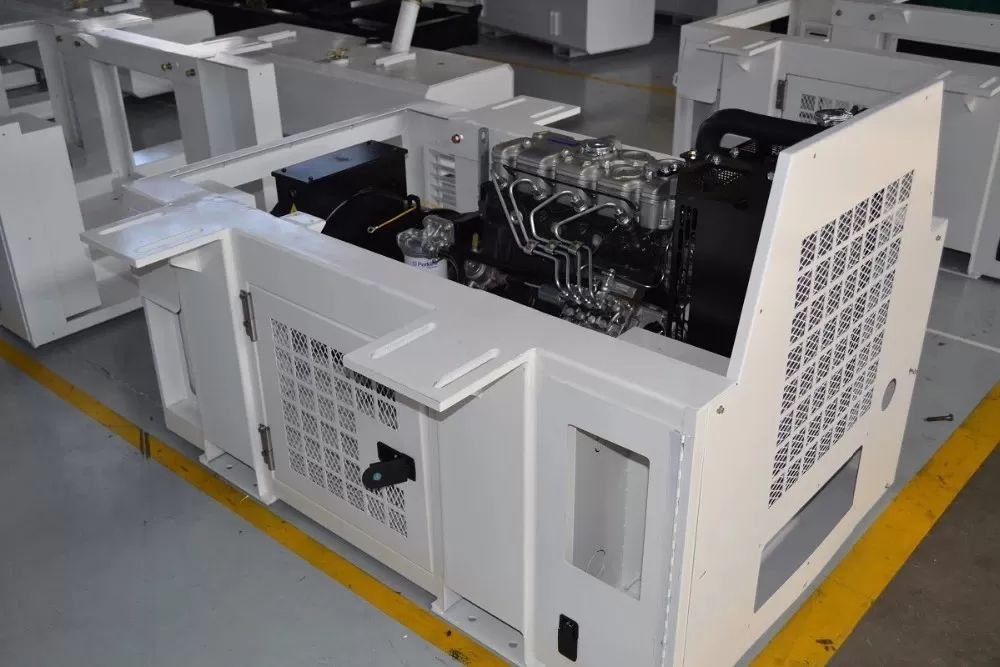

| Engine Type | 2.2-liter 4-cylinder direct-injection diesel engine (18.5 kW) |
| Emissions Standard | EU Stage V Compliant / CE |
| Fuel Type | Diesel |

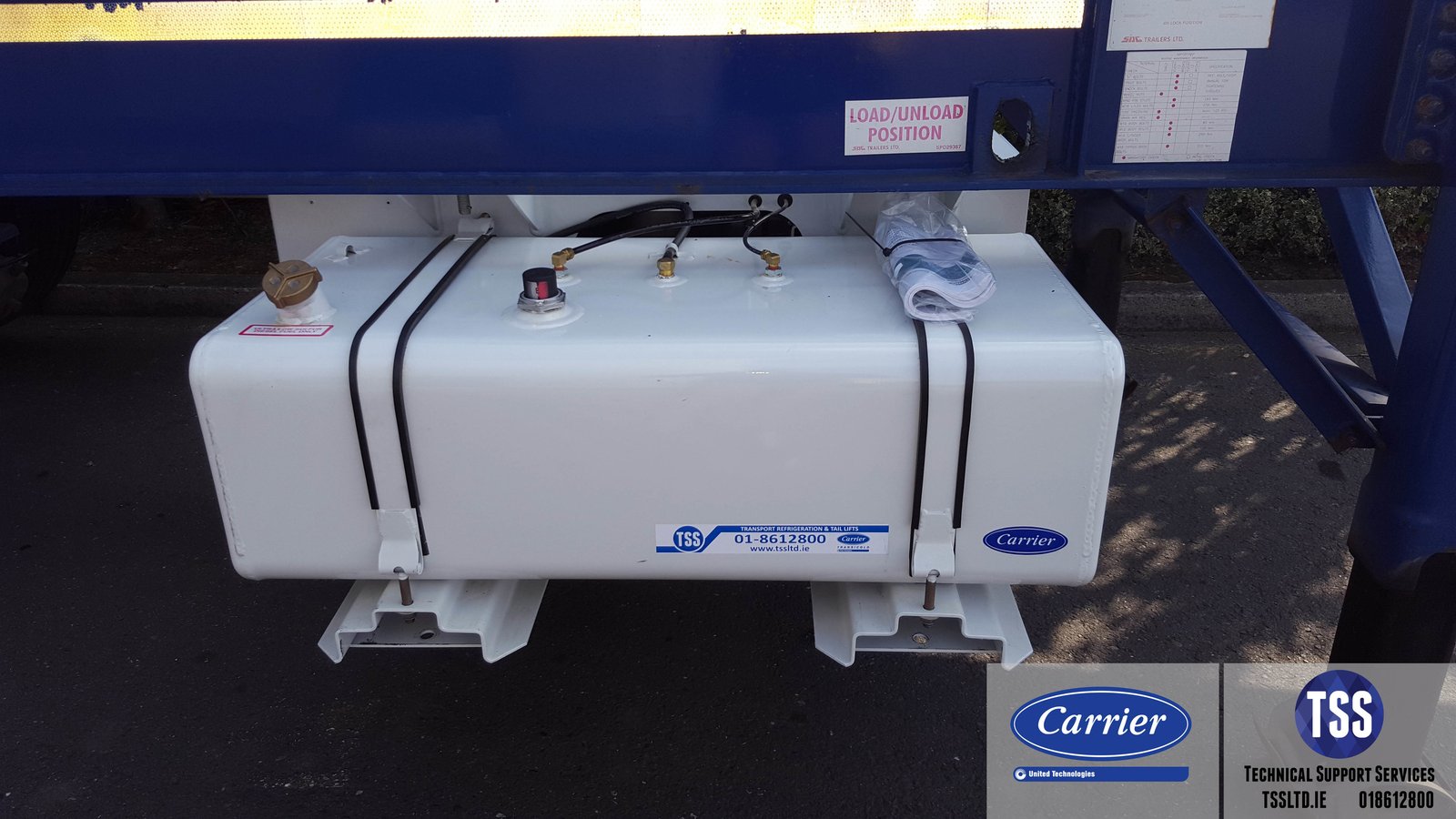

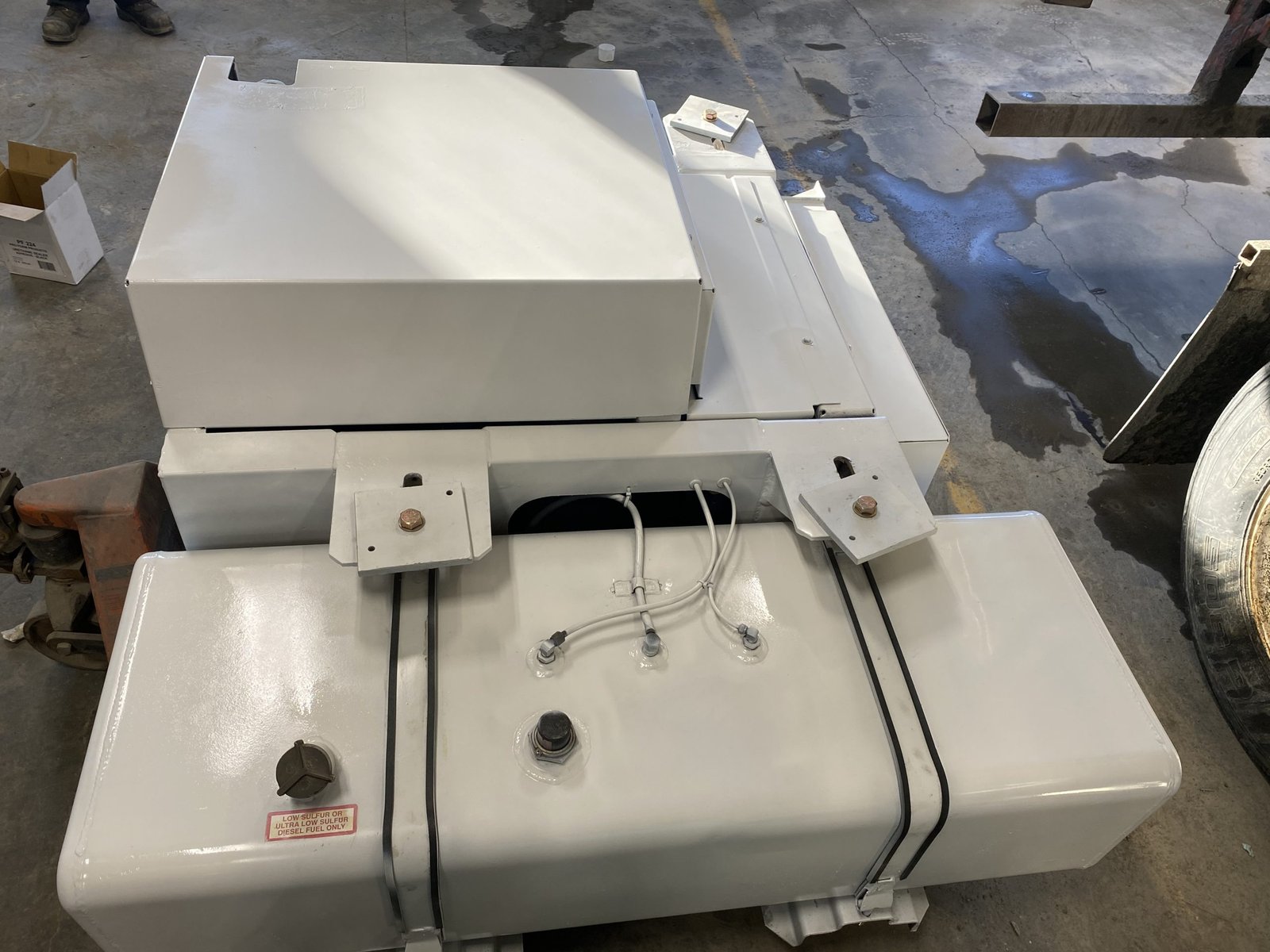

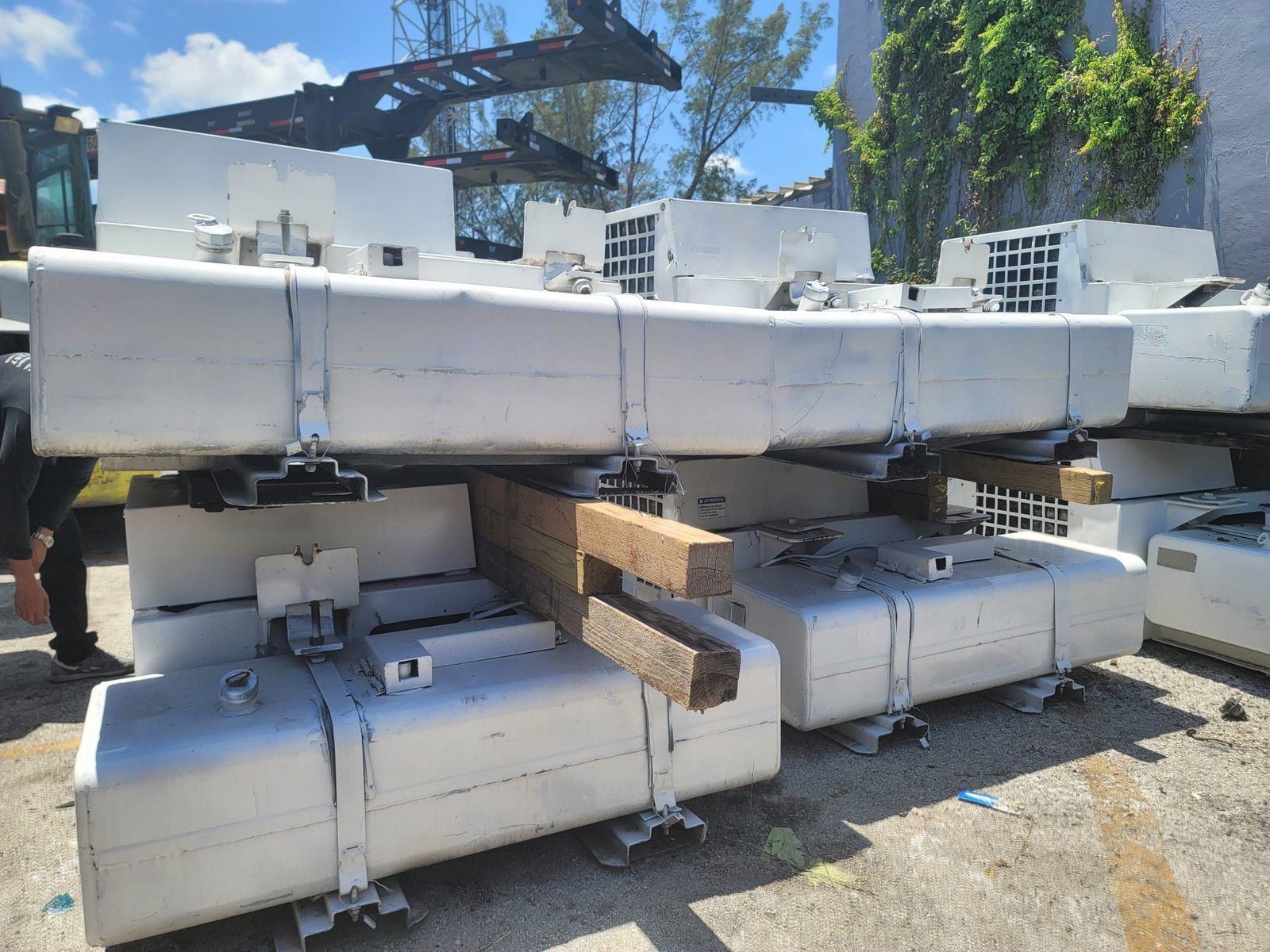

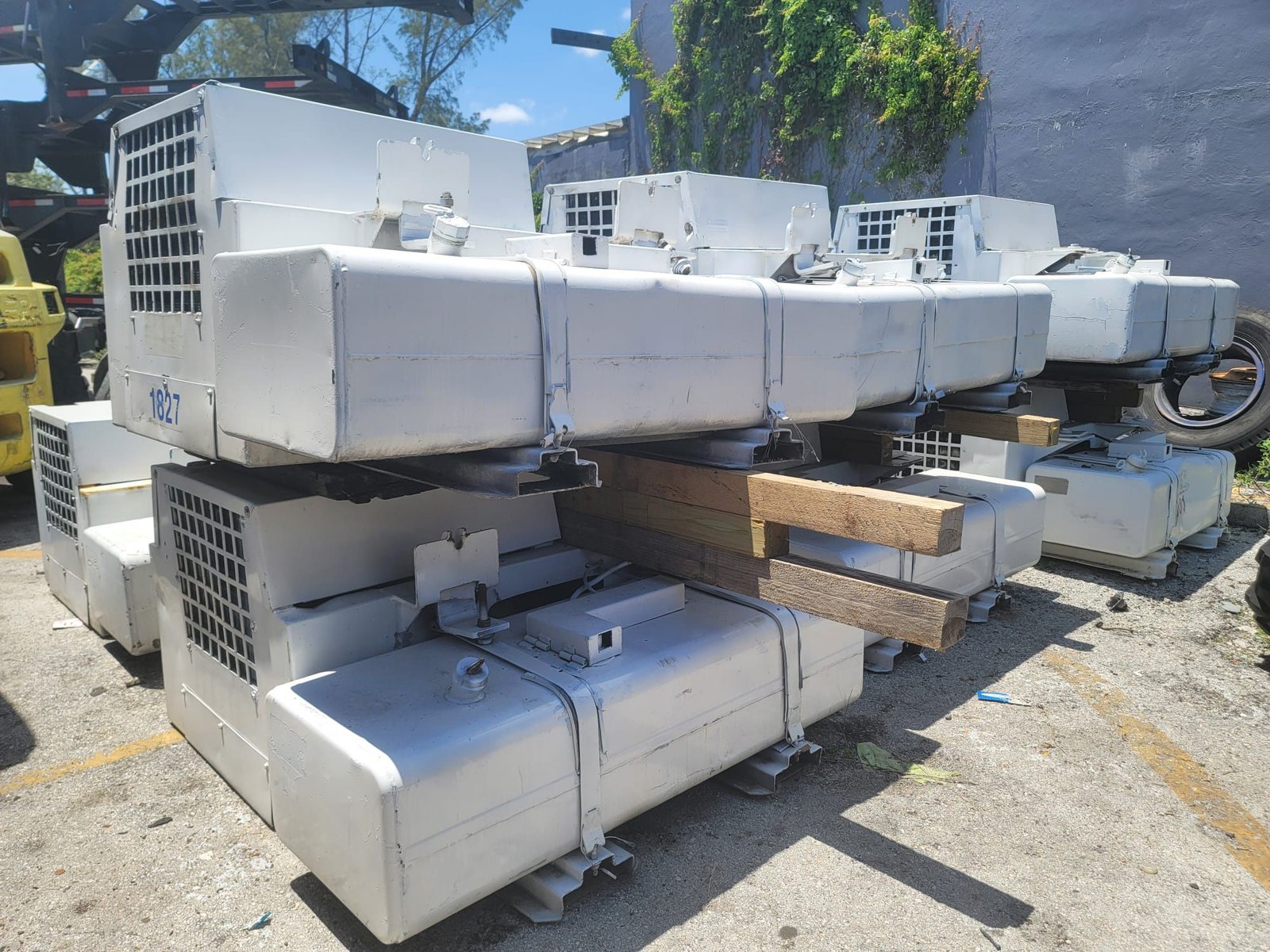

| Fuel Tank Capacity | 189 L (50 gal) standard integrated steel tank |
| Battery | 12V DC maintenance-free |
| Mounting Type | Standard 4-point mounting |
| Approximate Weight | 729 kg (with 189 L steel tank, less fuel) |
| Operating Ambient Temperature (Run) | -40°C to +52°C (-40°F to +125°F) |
| Operating Ambient Temperature (Start) | -26°C to +52°C (-15°F to +125°F) |
| Structural Temperature Range | -40°C to +52°C (-40°F to +125°F) |

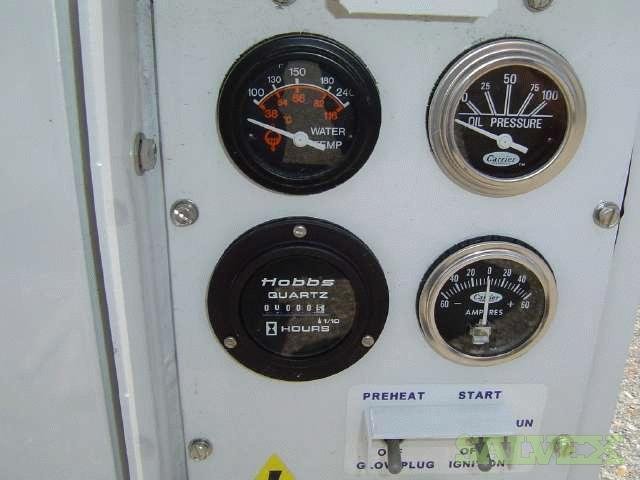

| Safety Systems | Safety stop controls for low oil pressure and high water temperature |
