Description

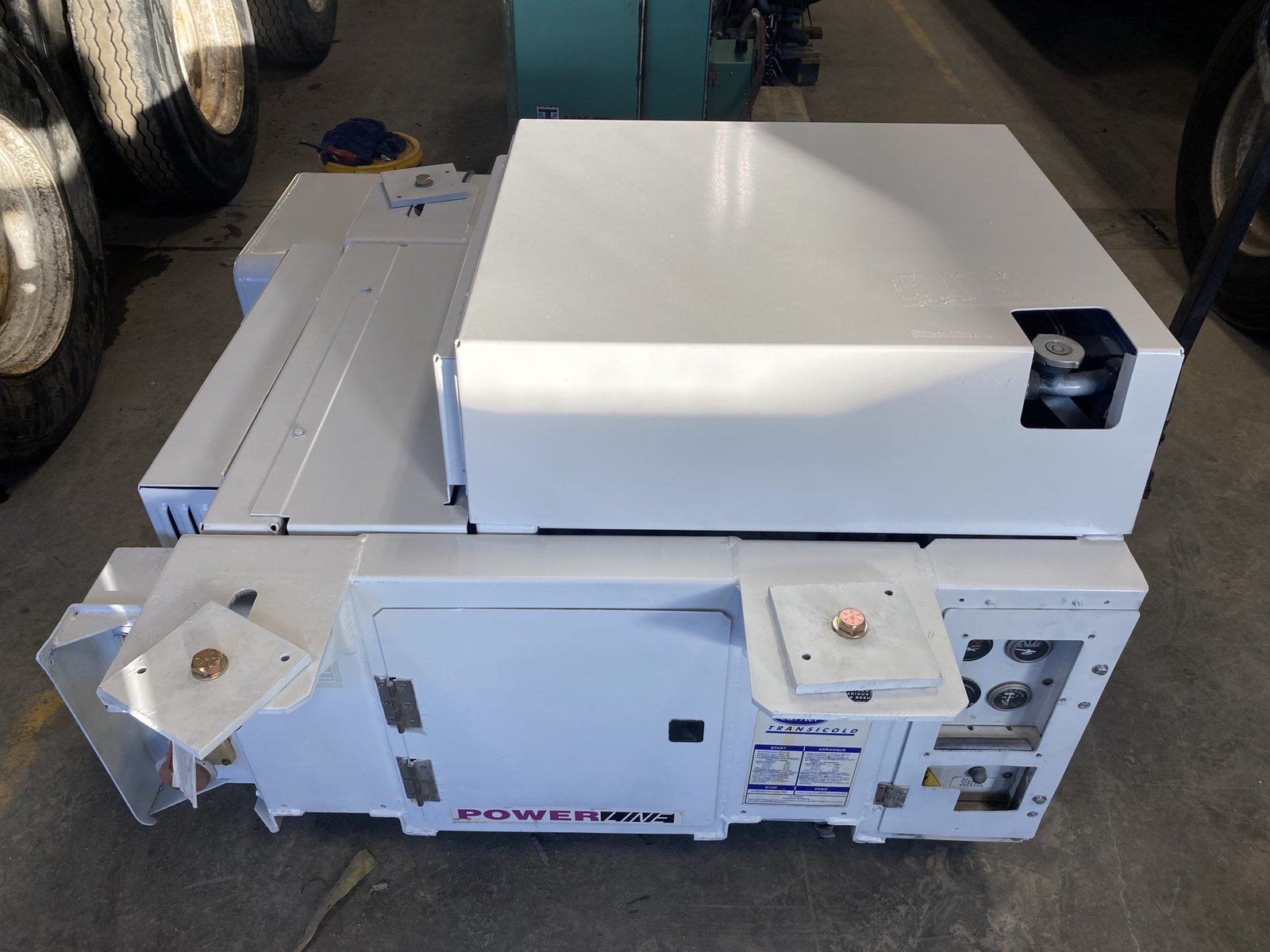

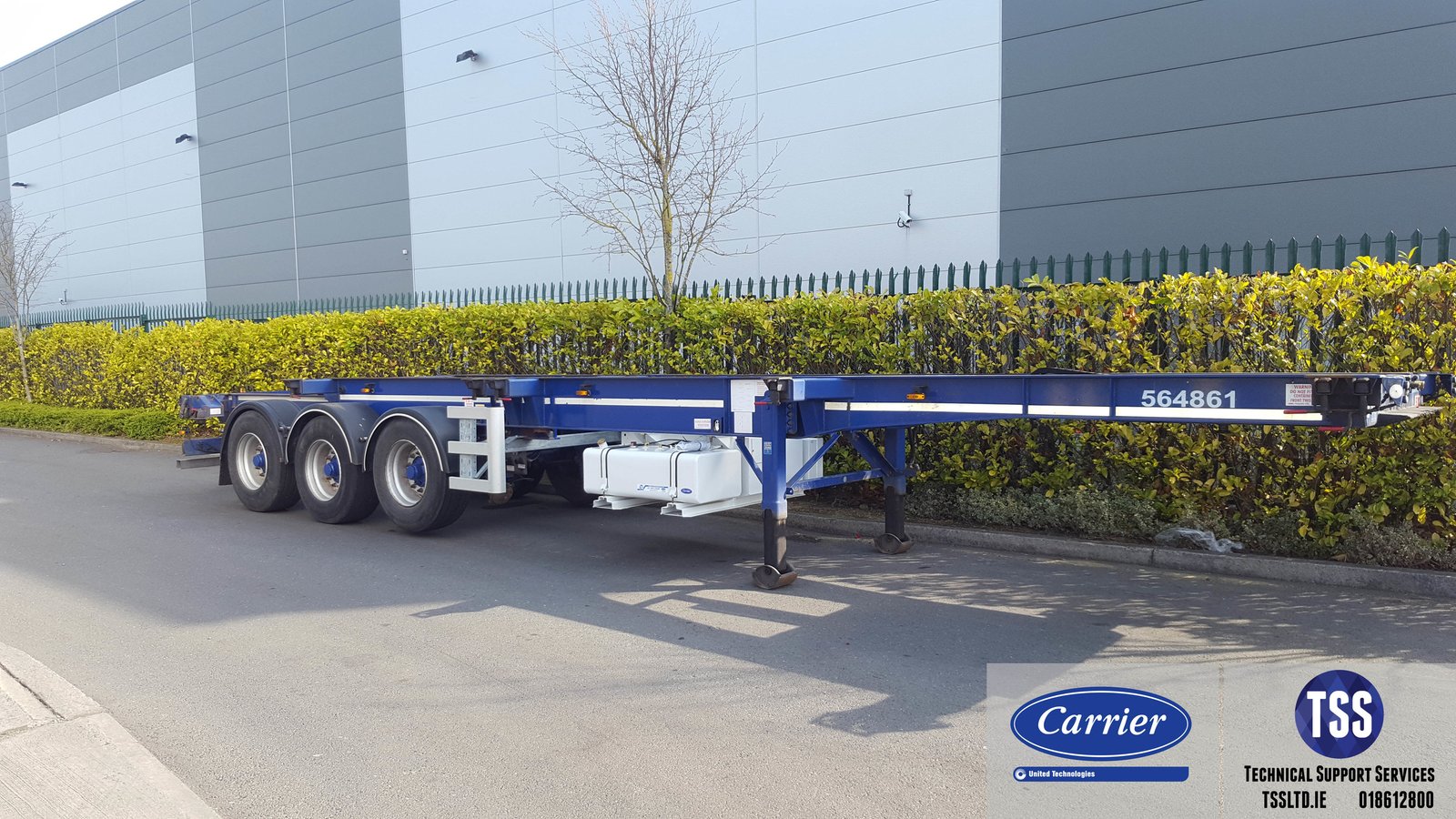

Carrier Transicold PowerLINE Series 24 undermount generator sets provide reliable, continuous, unattended power for refrigerated containers in road and rail transport. Built on a rugged, high-efficiency platform, model 69UG15-068S-24 delivers nominal 15 kW output to support standard ISO reefer units in any transport environment.
Performance & Compliance

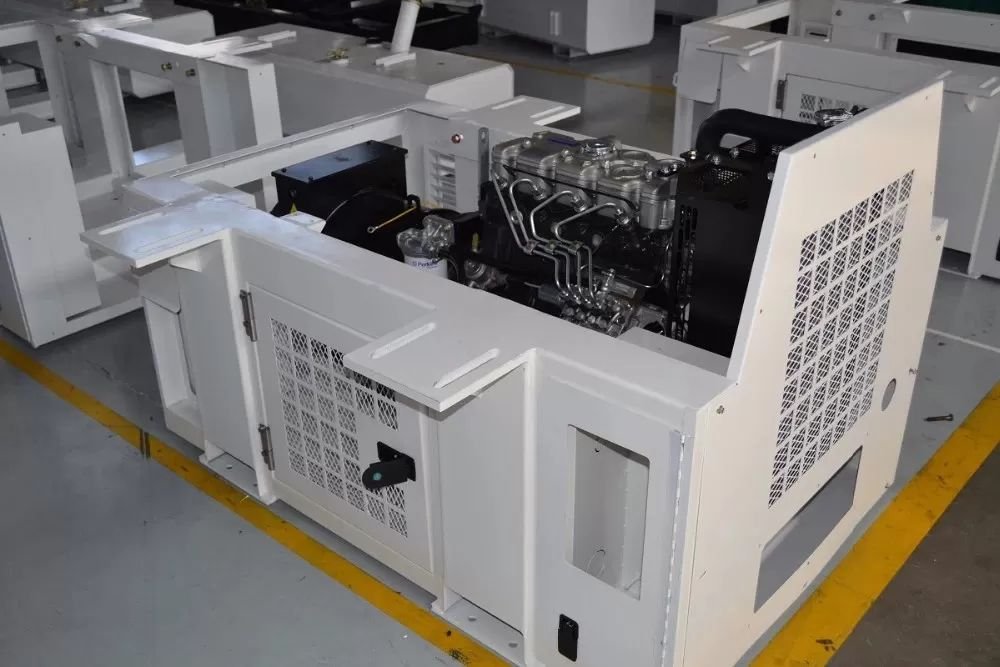

Equipped with a V2403-CR-E4B 4-cylinder, 2.4-liter water-cooled common rail injection diesel engine, this generator set meets EPA Tier 4 standards and achieves lifetime CARB compliance with a 96% reduction in particulate emissions. An integrated Engine Control Unit (ECU) regulates fuel metering via high-pressure common rail delivery for optimal efficiency and lower emissions.
Key Features
- Nominal 15 kW high-efficiency permanent magnet generator

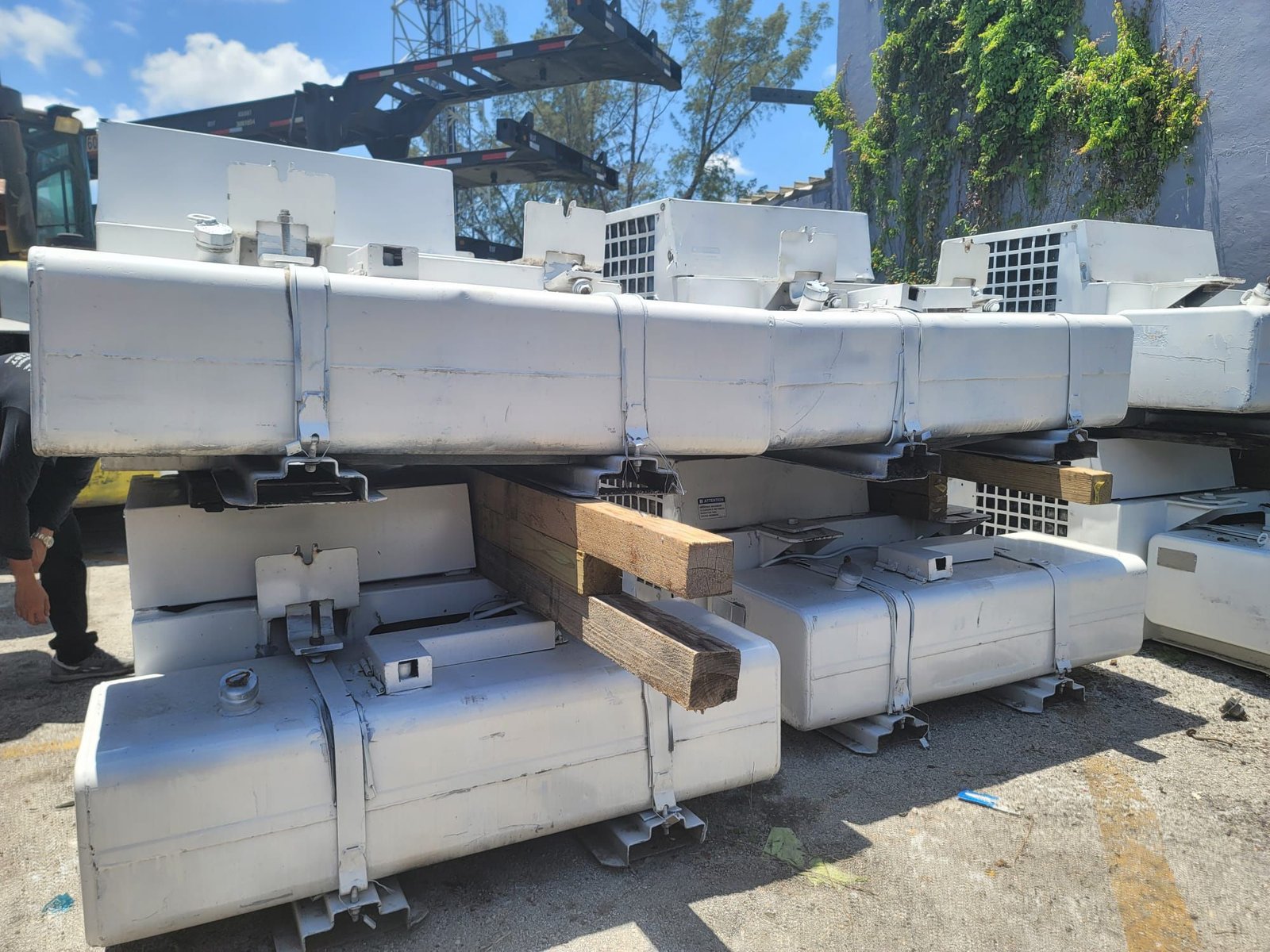

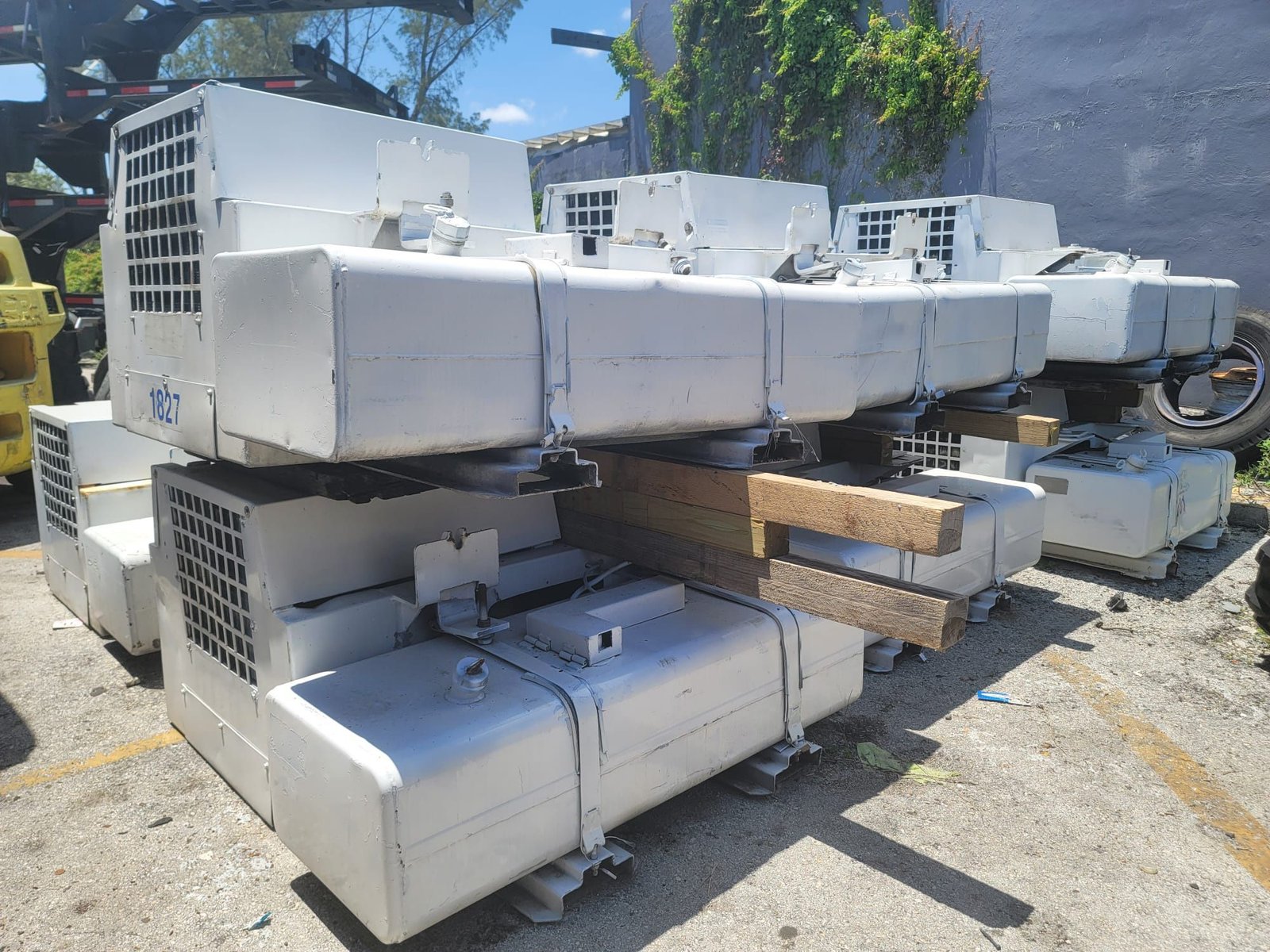

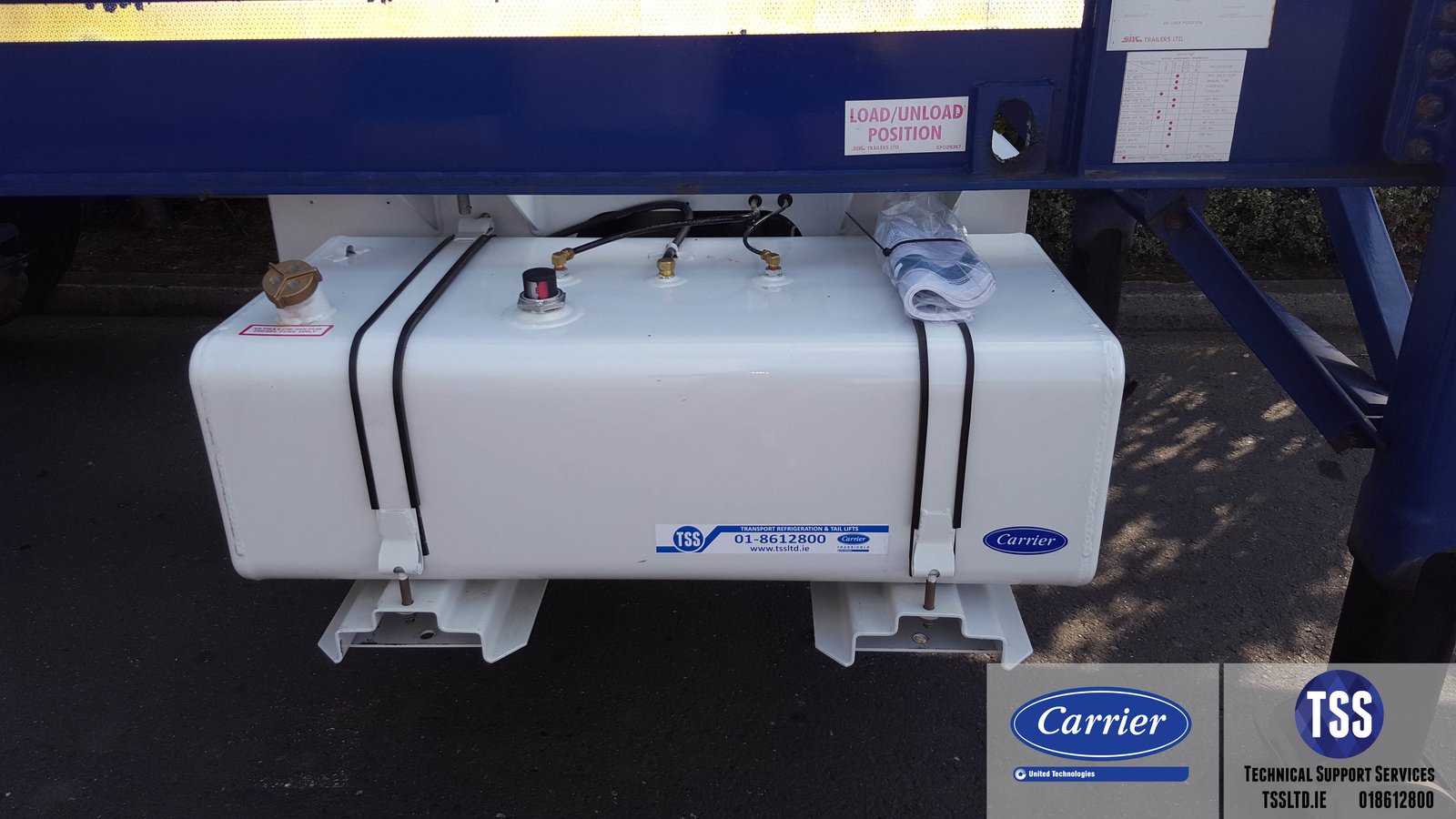

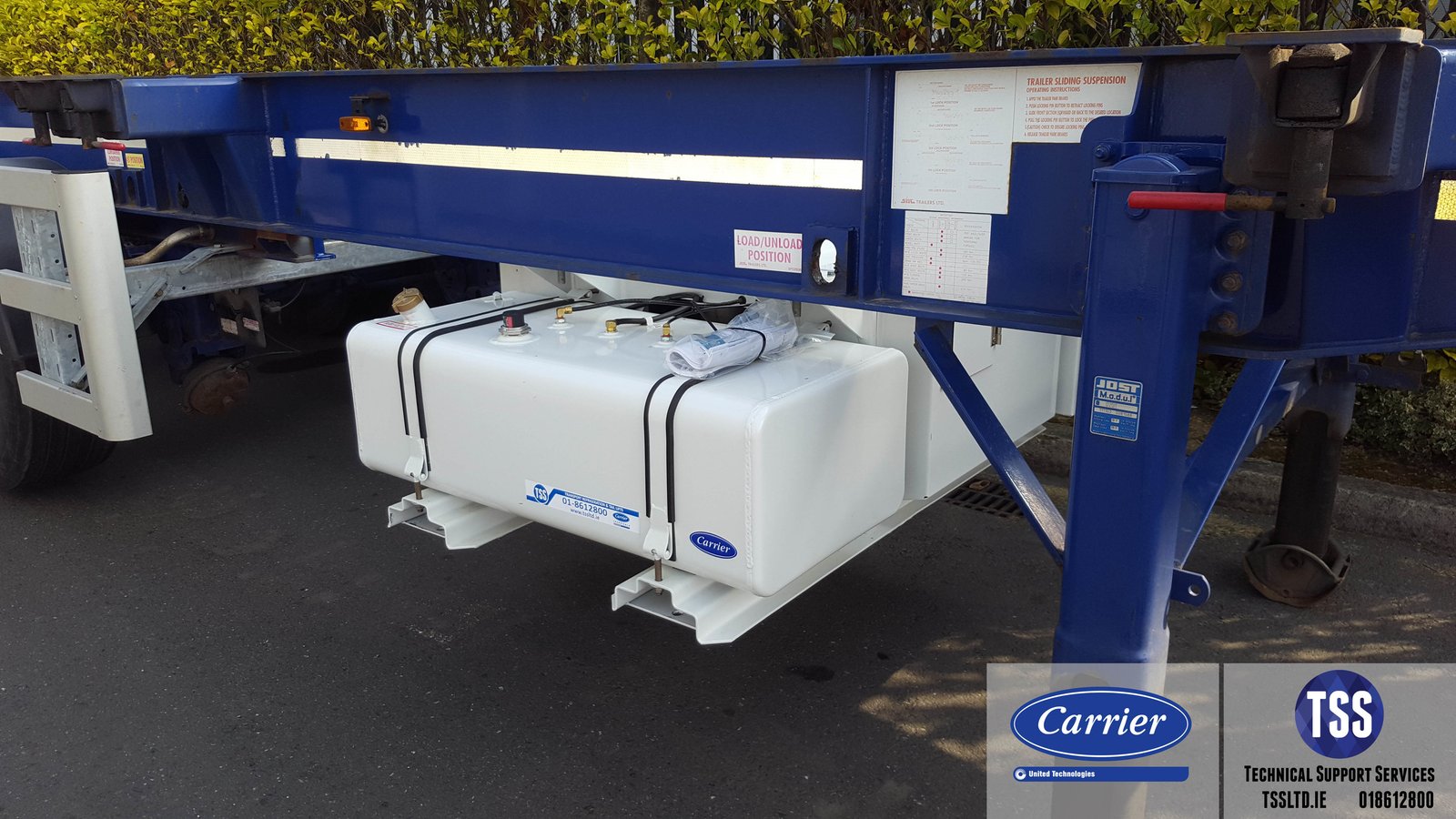

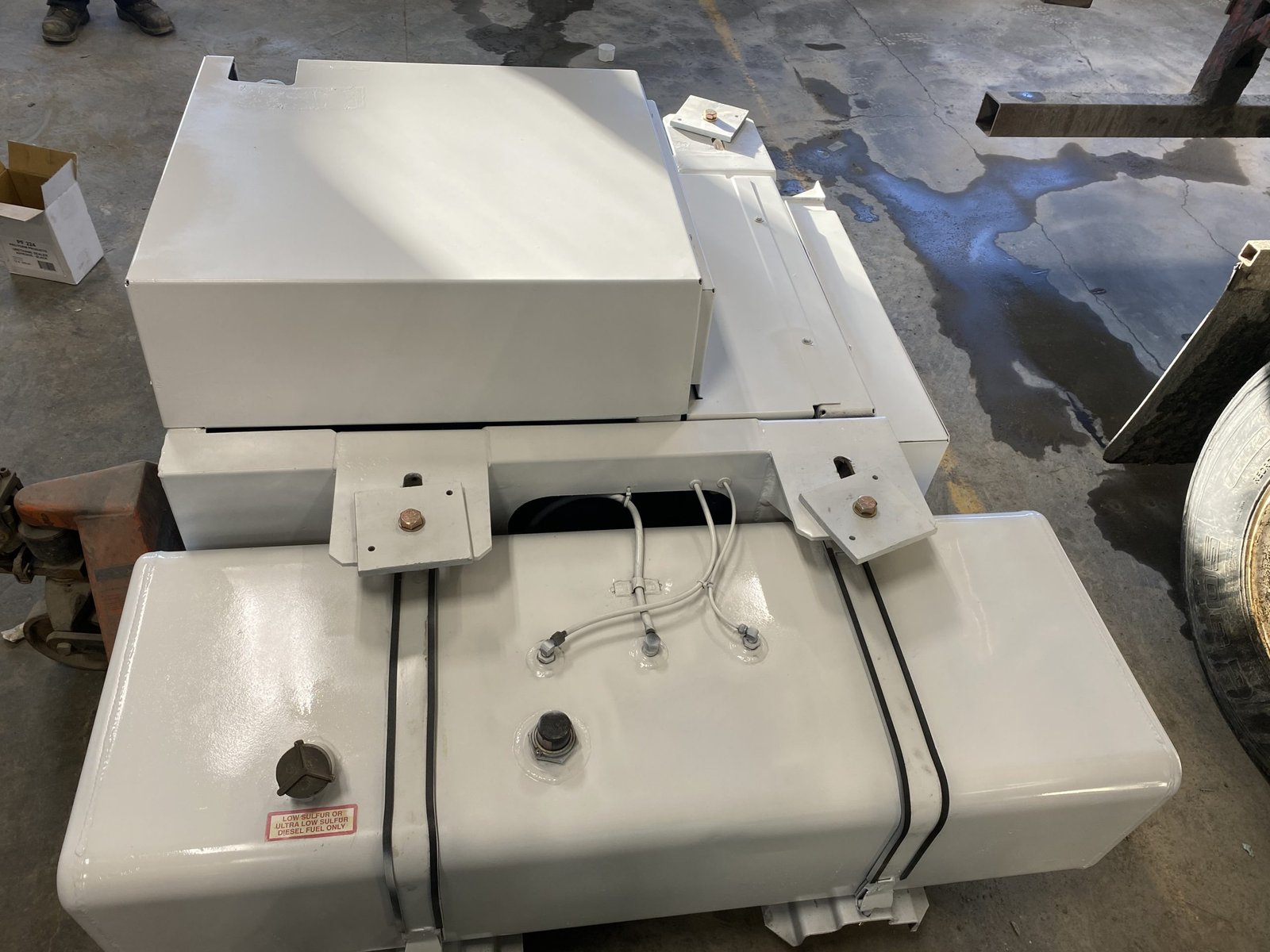

- 68-gallon steel fuel tank (options available for 50-gal or 80-gal configurations)
- All-steel fabricated frame construction with four-point PlateMount system
- Controller featuring enhanced FuelWise functionality
- Patented E-coat tube and fin radiator with powder-coated frame components

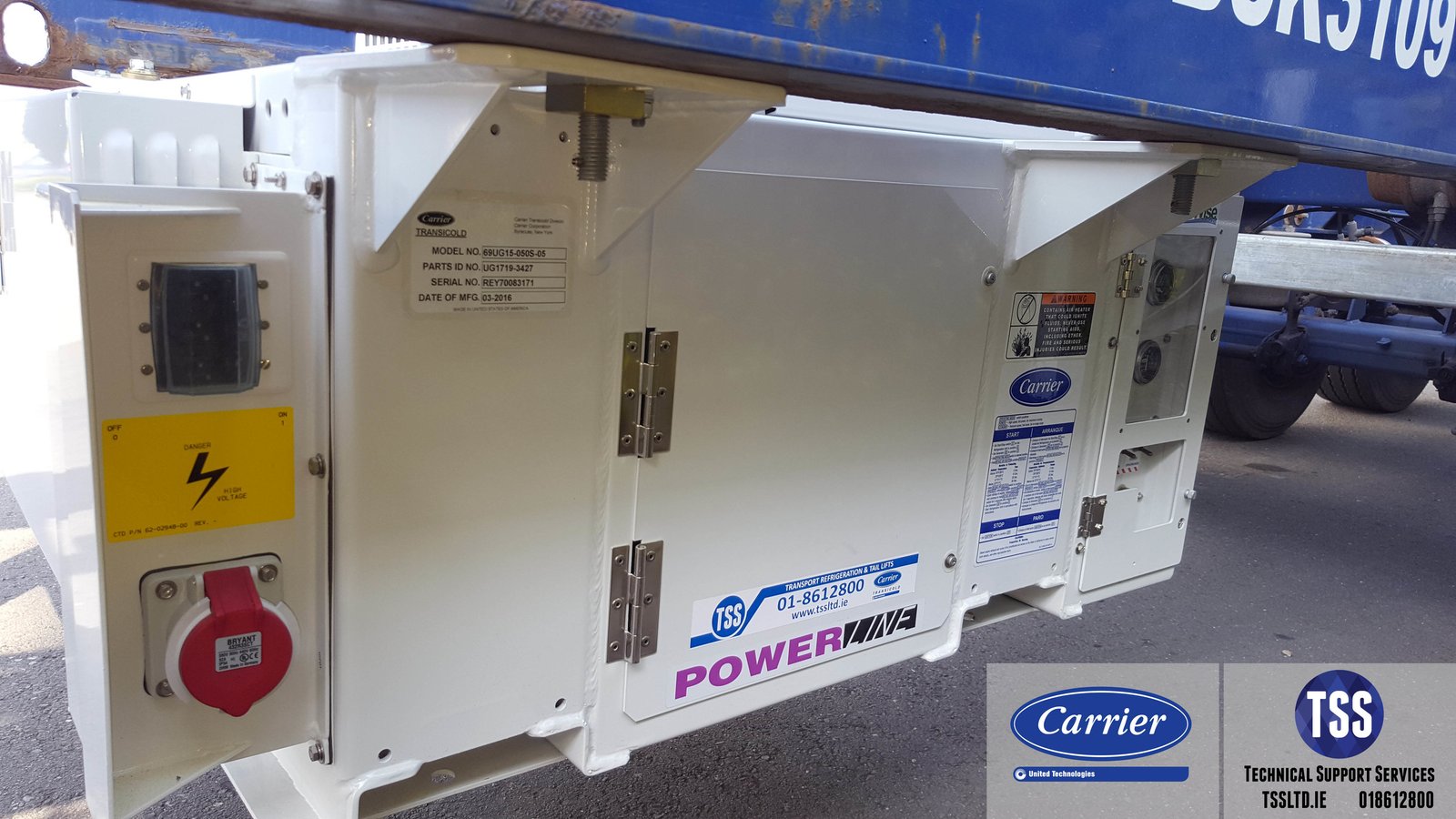

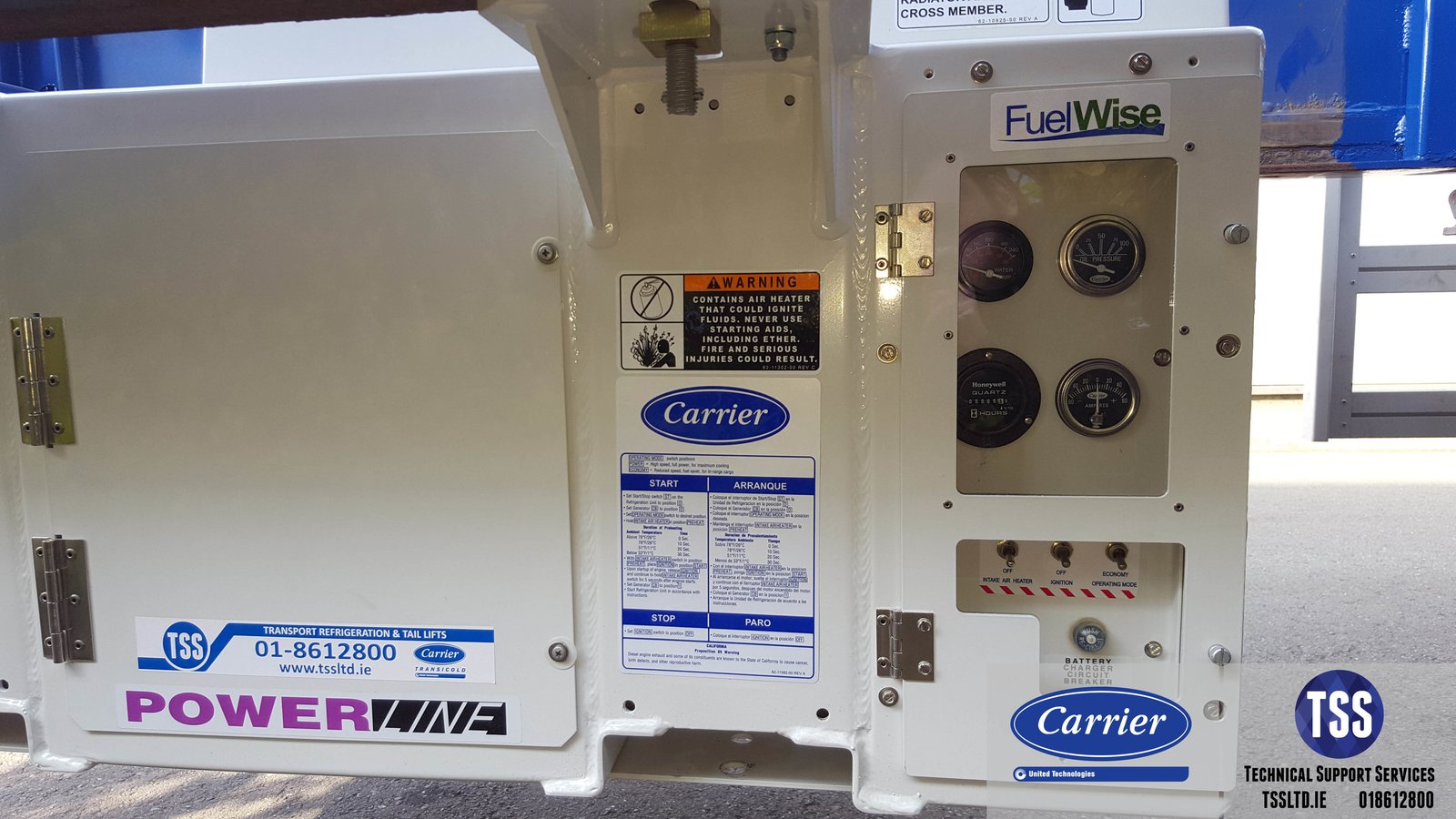

- Driver-side waterproof controls and large aluminum service access doors
- Forklift pockets allowing mounting from either side

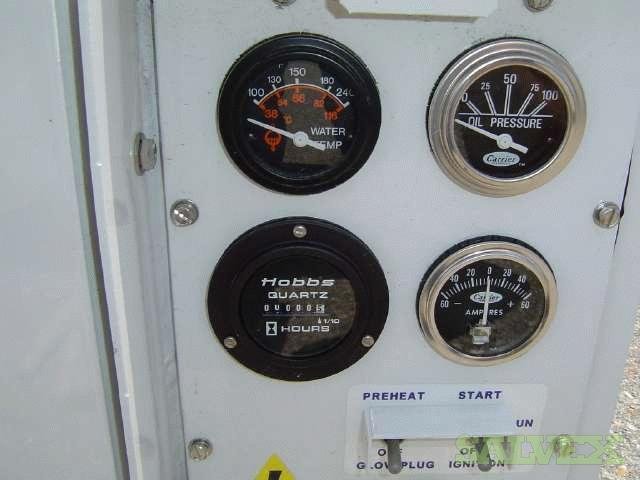

- Comprehensive safety stop controls for low oil pressure and high water temperature
| Brand | Carrier |
| Model | 69UG15-068S-24 |
| Series | PowerLINE Series 24 |
| Product Type | Undermount Generator Set |
| Power Output | 15 kW |
| Engine | V2403-CR-E4B, 4-cylinder, water-cooled, 2.4 L common rail injection diesel engine |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 68 gal (257.5 L) |
| Emissions Compliance | CARB (Series 24), EPA Tier 4 |
| Battery | 12V DC maintenance-free |
| Approximate Weight | 1664 lb / 775 kg (with 68-gallon tank, less fuel) |
| Operating Temperature Range | -40°C to +52°C (-40°F to +125°F) |
