Description
The Carrier PowerLINE 69RG15 Clip-On Generator Set delivers reliable, continuous, and unattended electrical power for refrigerated containers transported across road and rail. Engineered with rugged construction and simplified operations, this clip-on genset provides seamless power for ISO and DNV 2.7-1 reefers.
Key Performance & Efficiency
- FuelWise™ Technology: Equipped with dual-speed functionality (1800 rpm / 60 Hz and 1500 rpm / 50 Hz), automatically adjusting engine speed to refrigeration load for significant fuel savings.
- High-Efficiency Generator: Features a nominal 15 kW brushless, self-regulated design with single-winding contactless architecture for maximum durability and reliability.

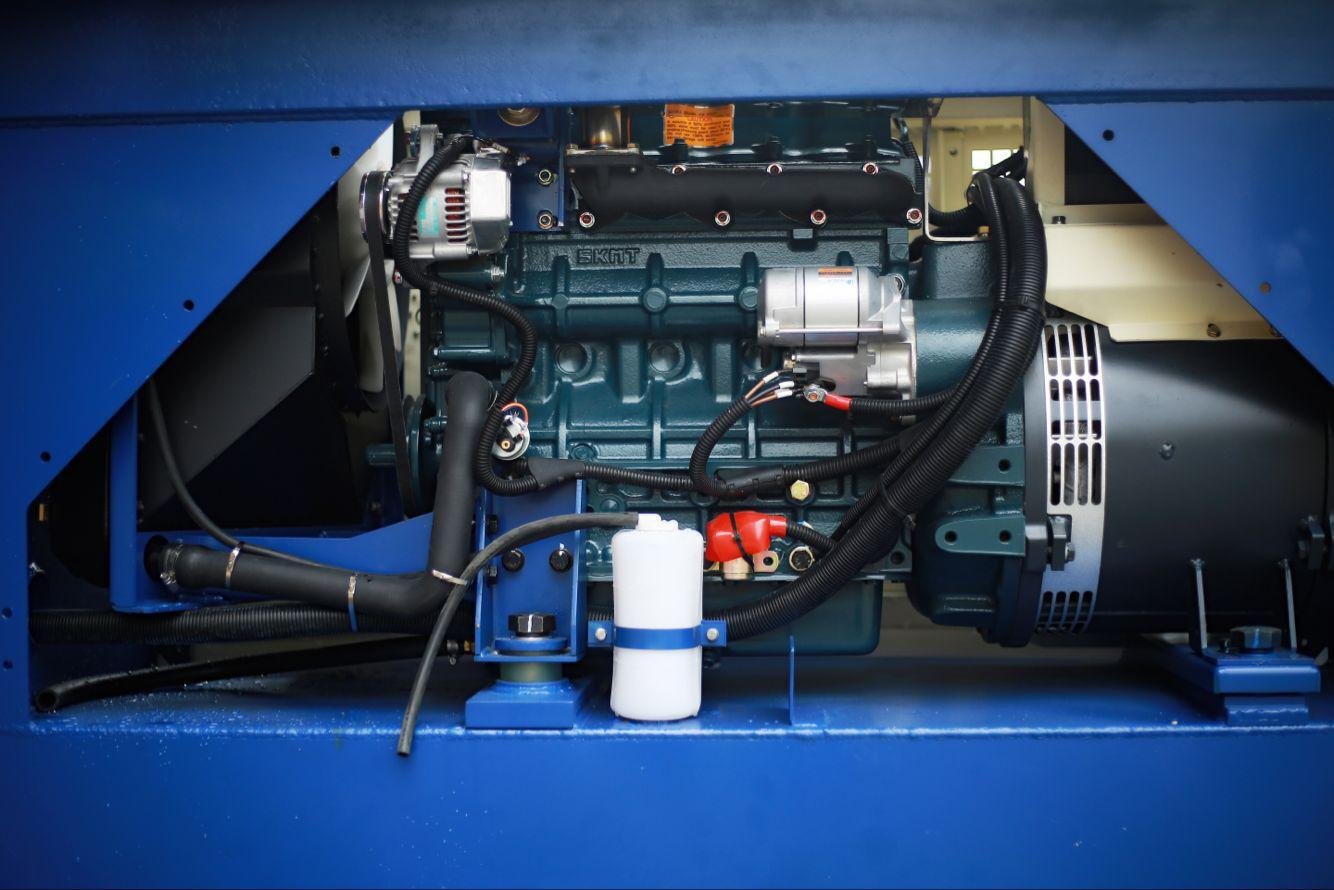

- Reliable Diesel Engine: Powered by a proven CT4-134DI 4-cylinder, 2.2-liter water-cooled direct-injection diesel engine with electronic governor and speed sensor.
Mounting & Construction
- Quick Installation: Mounts securely to refrigerated container chassis corner castings using either standard RG15 pin-mounting brackets or self-aligning ratchet clamp locks within minutes.
- High Capacity Fuel Tank: 130-gallon (492 L) fuel capacity engineered for extended, uninterrupted transport operations.
- Controls & Safety: Features low-mounted controls in a waterproof control box, 12V DC maintenance-free battery, and integrated safety shutdown controls for low oil pressure and high coolant temperature.
| Brand | Carrier |
| Manufacturer | Carrier Transicold |
| Series | PowerLINE |
| Power Output | 15 kW, 18.75 kVA, 460V AC, 3 Phase, 60 Hz |
| Engine | CT4-134DI 4-cylinder water-cooled 2.2L direct-injection diesel |

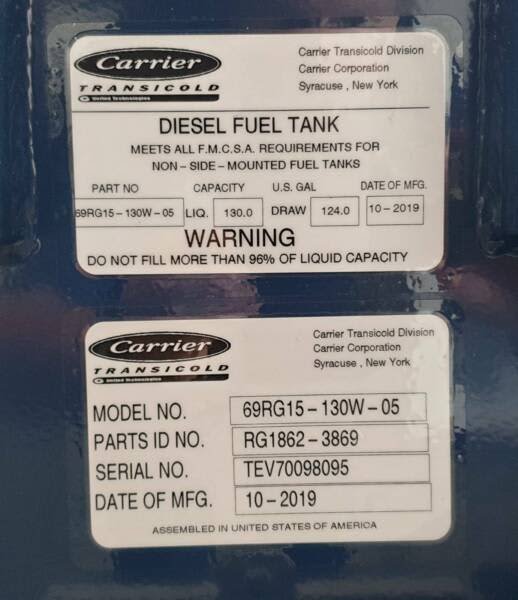

| Fuel Capacity | 130 US gal (492 L) |
| External Dimensions | 2,324 mm x 706 mm x 1,078 mm (91.5″ x 27.8″ x 42.5″) |
| Dry Weight | 830 kg (1,830 lbs) |
| Generator Type | Nominal 15 kW brushless, self-regulated |
| Battery | 12V DC maintenance-free |
| Emissions Compliance | U.S. EPA Tier 4 |
| Operating Temperature Range | -40°C to +52°C (-40°F to +125°F) |
| Mounting Type | Clip-on pin mounting bracket / Ratchet clamp locks |
