Description

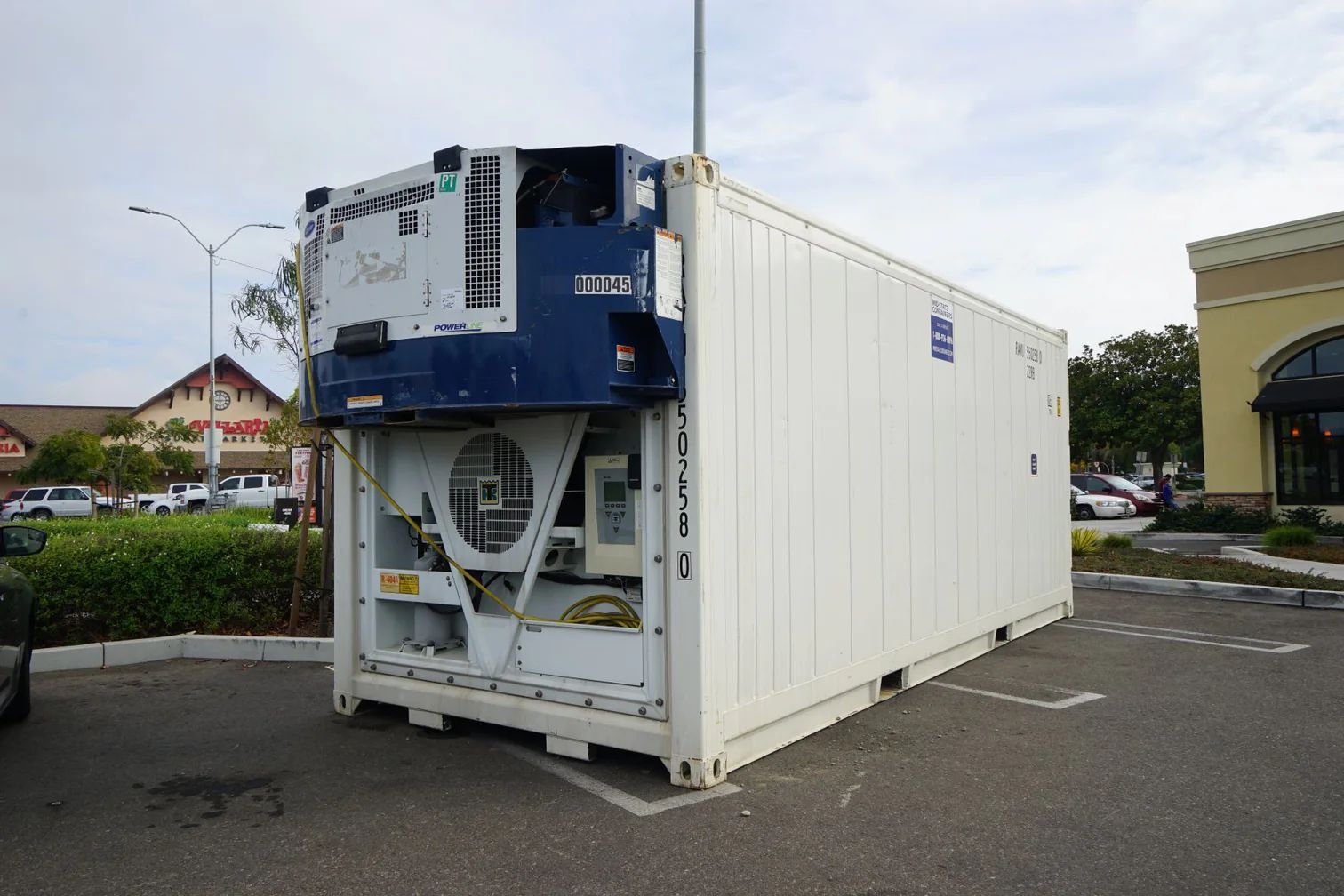

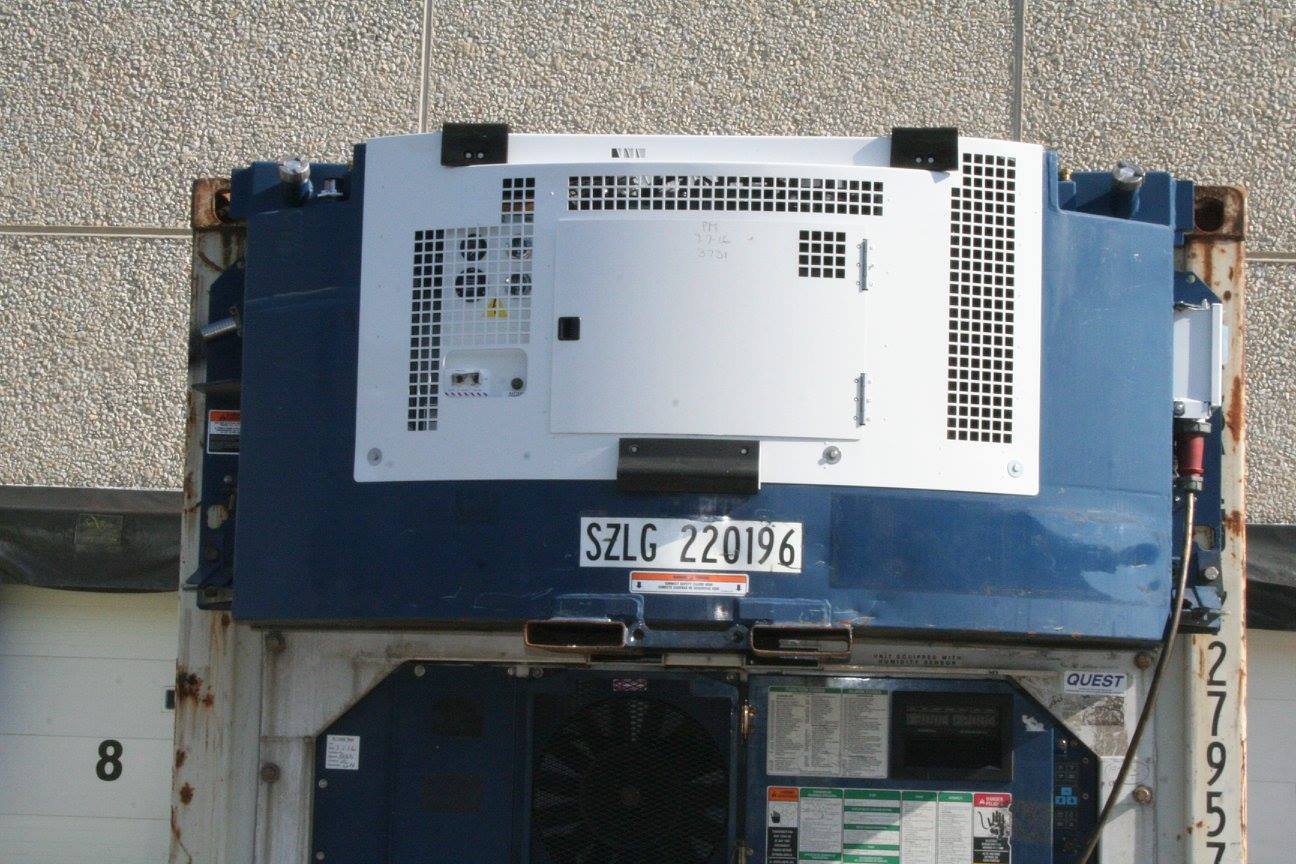

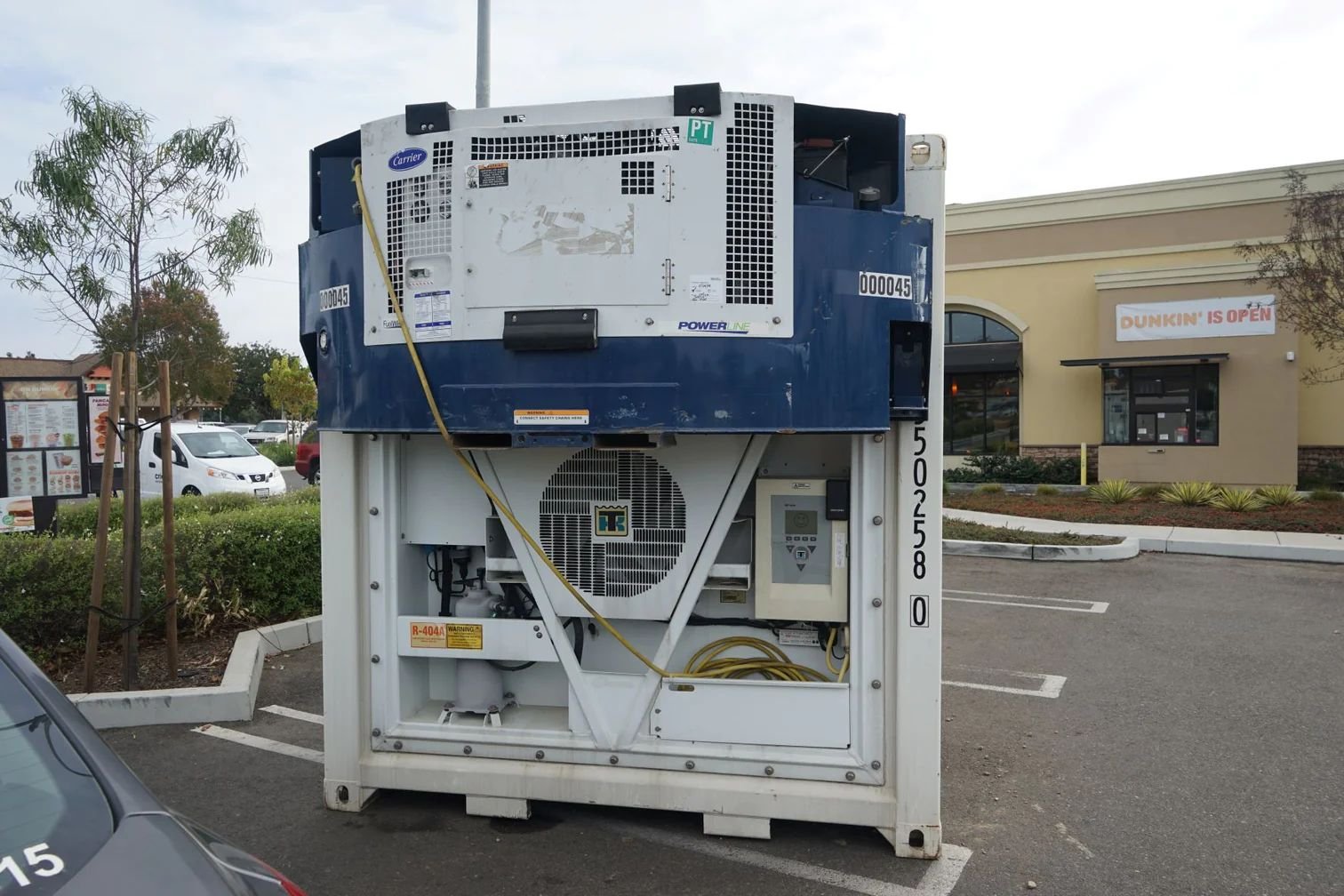

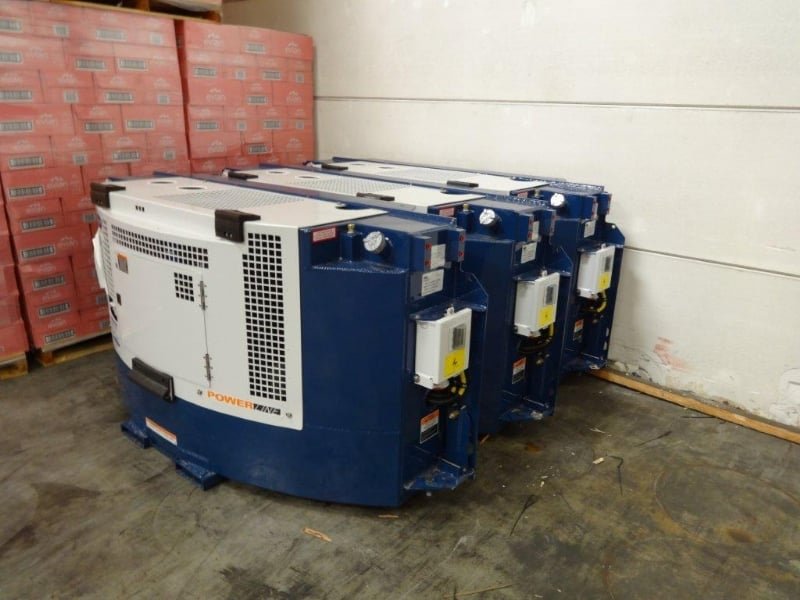

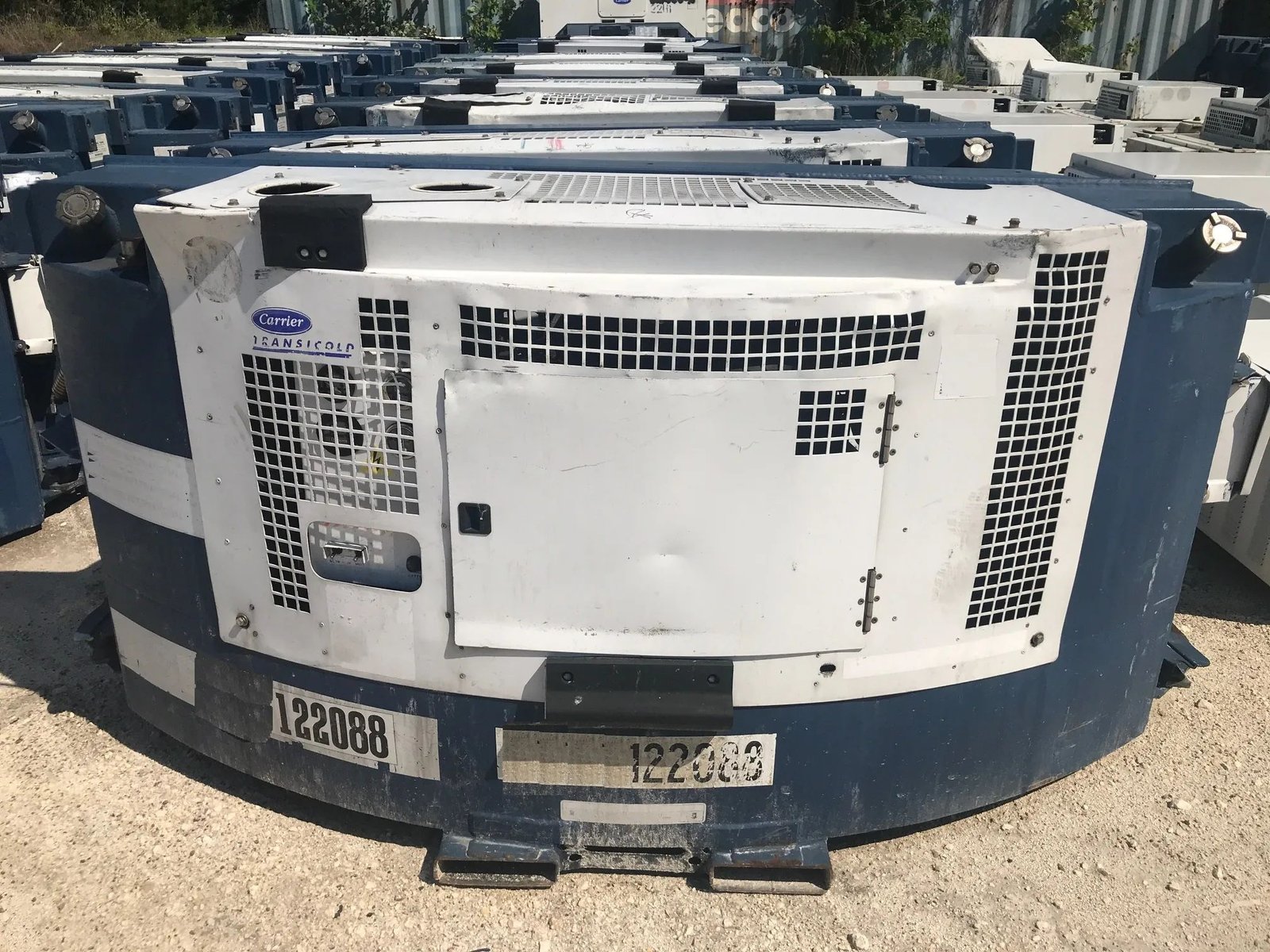

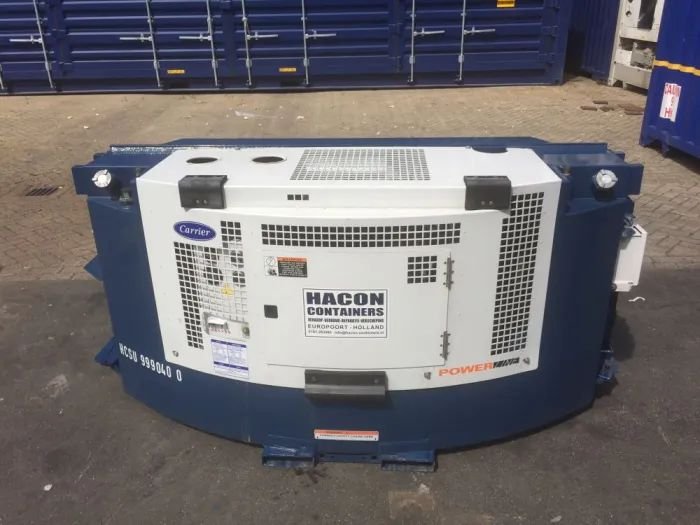

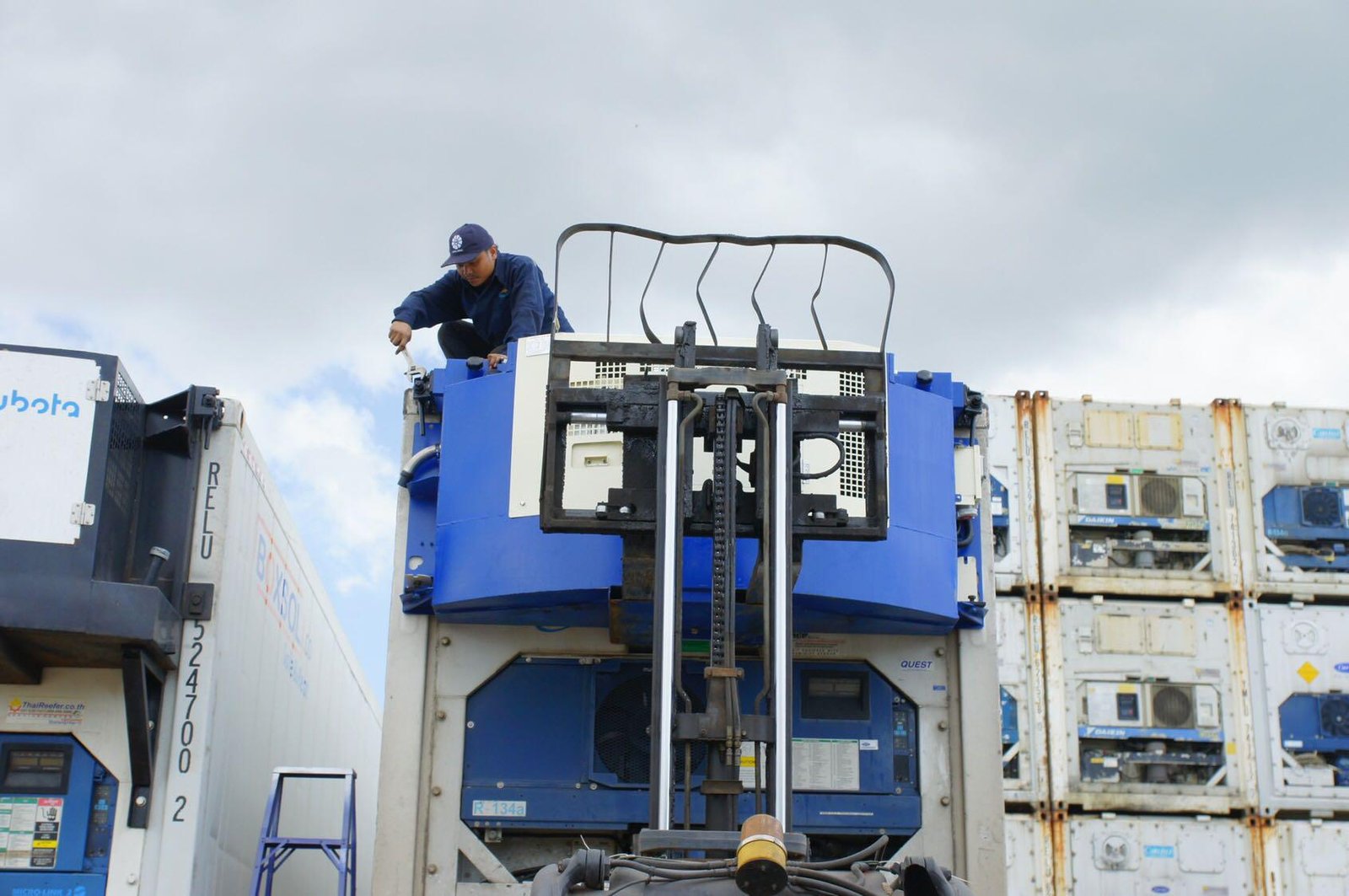

The Carrier PowerLINE 69RG15-120W-55 clip-on generator set delivers reliable, continuous, and unattended electrical power designed specifically for all-electric refrigerated containers transported via road or rail. Engineered with rugged construction and simplified operation, it mounts directly to container chassis corner castings in minutes using a pin-mounting bracket or self-aligning ratchet clamp locks.
Key Features & Performance

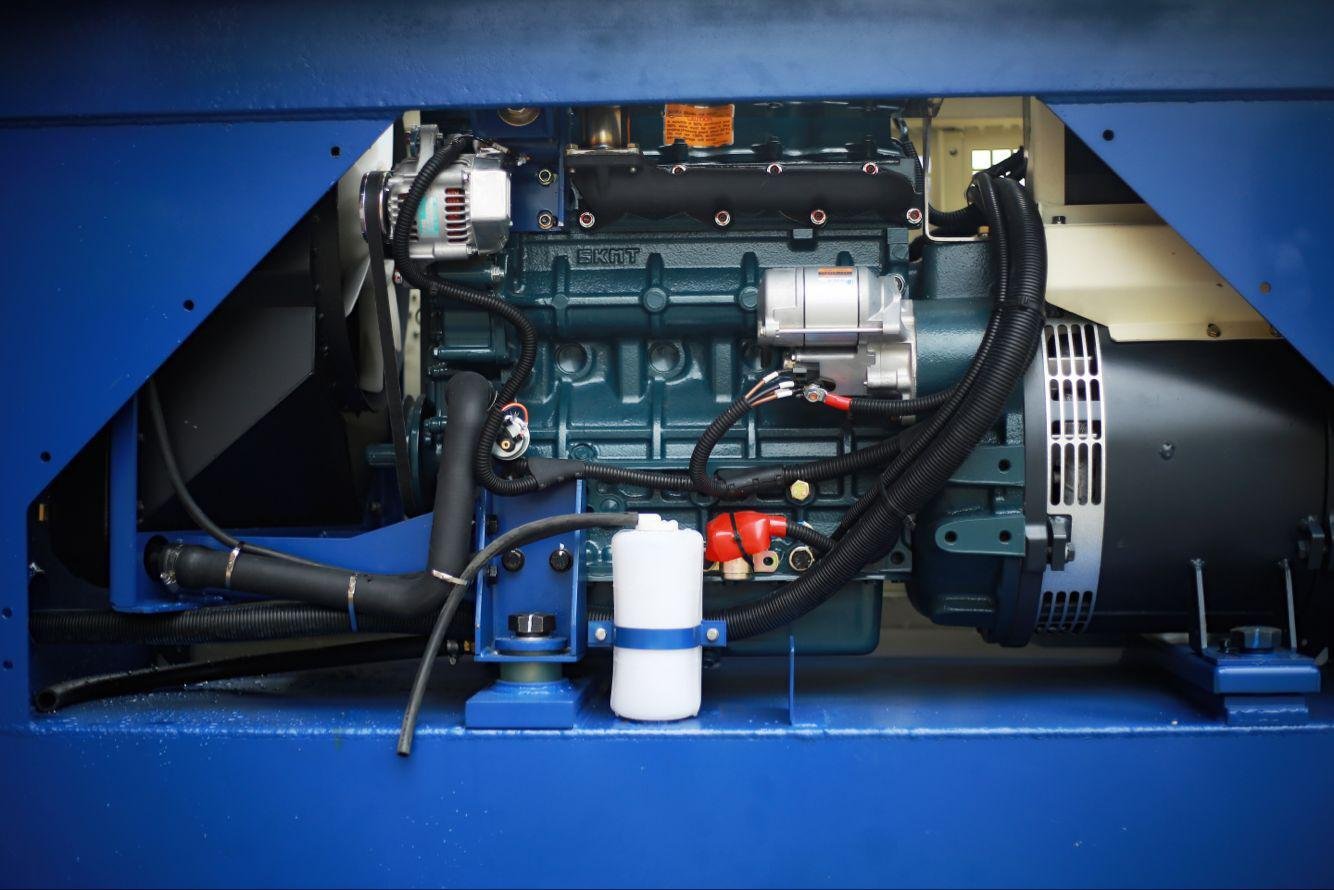

- Engine: CT4-134DI 4-cylinder water-cooled 2.2-liter direct-injection diesel engine equipped with a speed sensor and electronic governor.
- Electrical Output: Nominal 15 kW, 18.75 kVA, 460 VAC, 3-phase, 60 Hz brushless and self-regulated generator.
- Fuel Capacity: Large 130 US gallon (492 L) fuel tank for extended runtime.
- Cooling & Build: Disc-type radial cooling fan, sealed large-diameter rear bearing, and vacuum pressure-impregnated rotor.
- Controls & Protection: Low-mounted, waterproof control box with preheat, start/run/off switches, and automatic safety shutdowns for low oil pressure and high coolant temperature.
- Compatibility: Suitable for ISO and DNV 2.7-1 reefer containers.
| Brand | Carrier Transicold |
| Model | 69RG15-120W-55 |
| Product Type | Clip-On Generator Set |
| Power Output | 15 kW, 18.75 kVA, 460 VAC, 3 Phase, 60 Hz |
| Engine | CT4-134DI 4-cylinder water-cooled 2.2 L direct-injection diesel |
| Fuel Capacity | 130 US gal (492 L) |
| External Dimensions | 2,324 mm x 706 mm x 1,078 mm (91.5″ x 27.8″ x 42.5″) |
| Weight | 830 kg (1,830 lbs) less fuel |
| Battery | 12V DC maintenance-free |

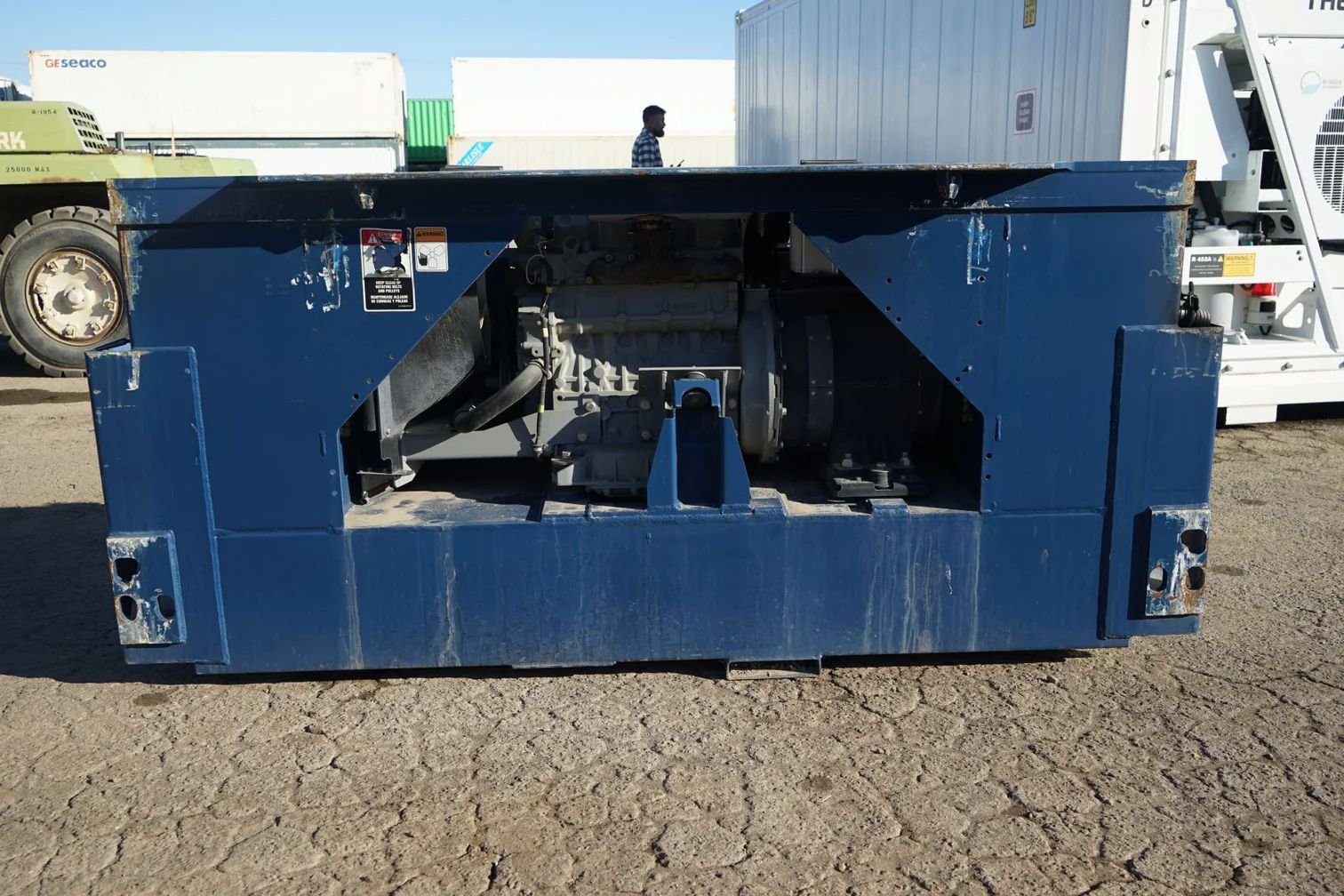

| Mounting Type | Pin-mounting bracket / Ratchet clamp locks to corner castings |
| Operating Temperature Range | -40°C to +52°C (-40°F to +125°F) |
| Safety Features | Low oil pressure and high coolant temperature automatic stop |
