Description

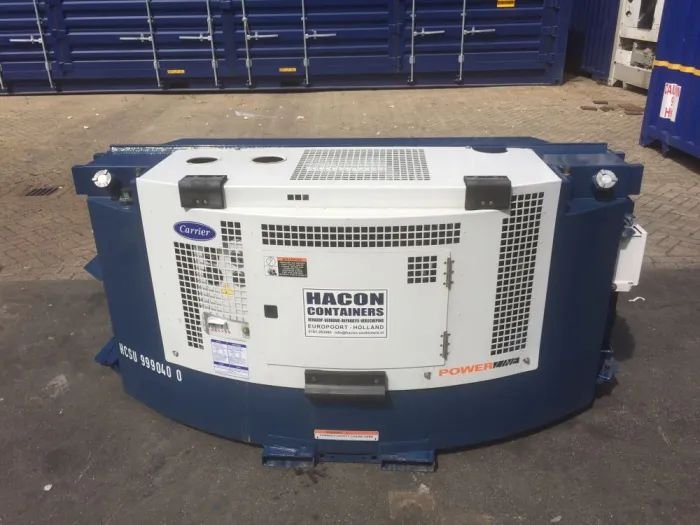

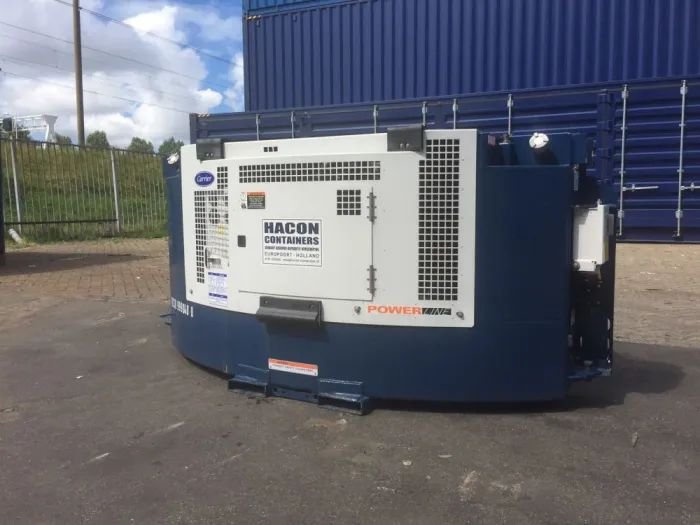

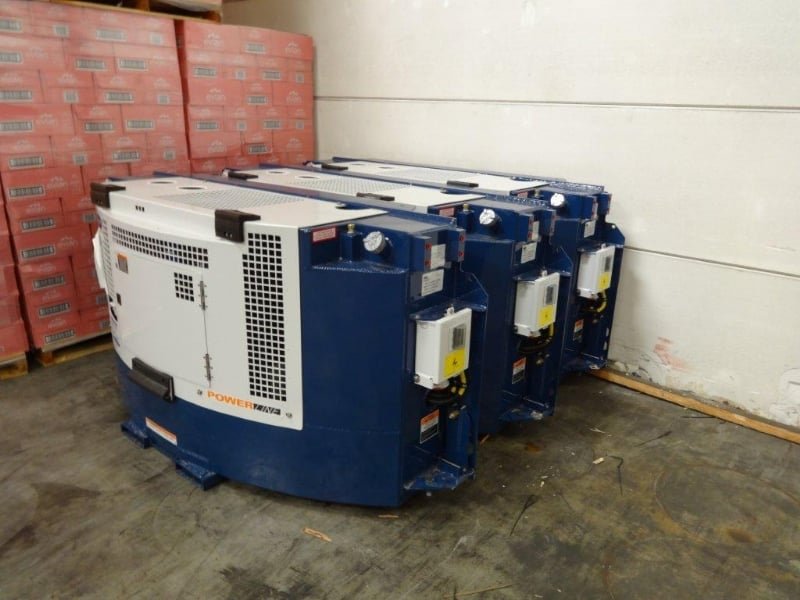

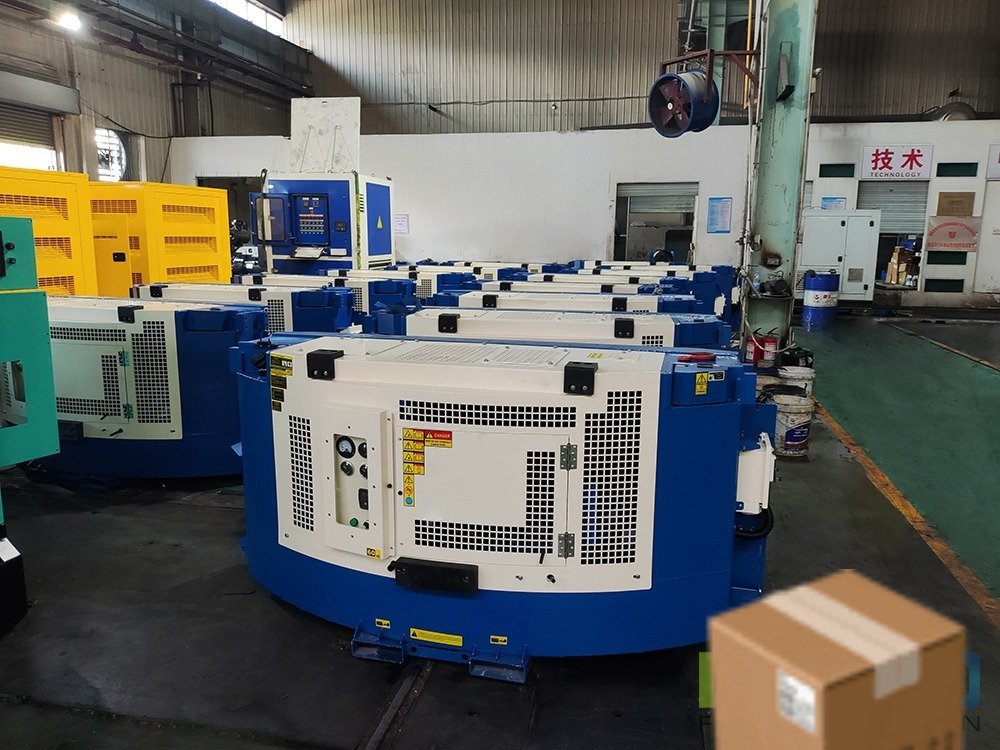

The Carrier Transicold PowerLINE® 69RG15-120W-55 clip-on generator set provides dependable, uninterrupted electrical power designed for all ISO refrigerated containers during road or rail transport. Built for continuous, unattended operation, this generator set ensures critical cargo temperatures are maintained when disconnected from external power sources.

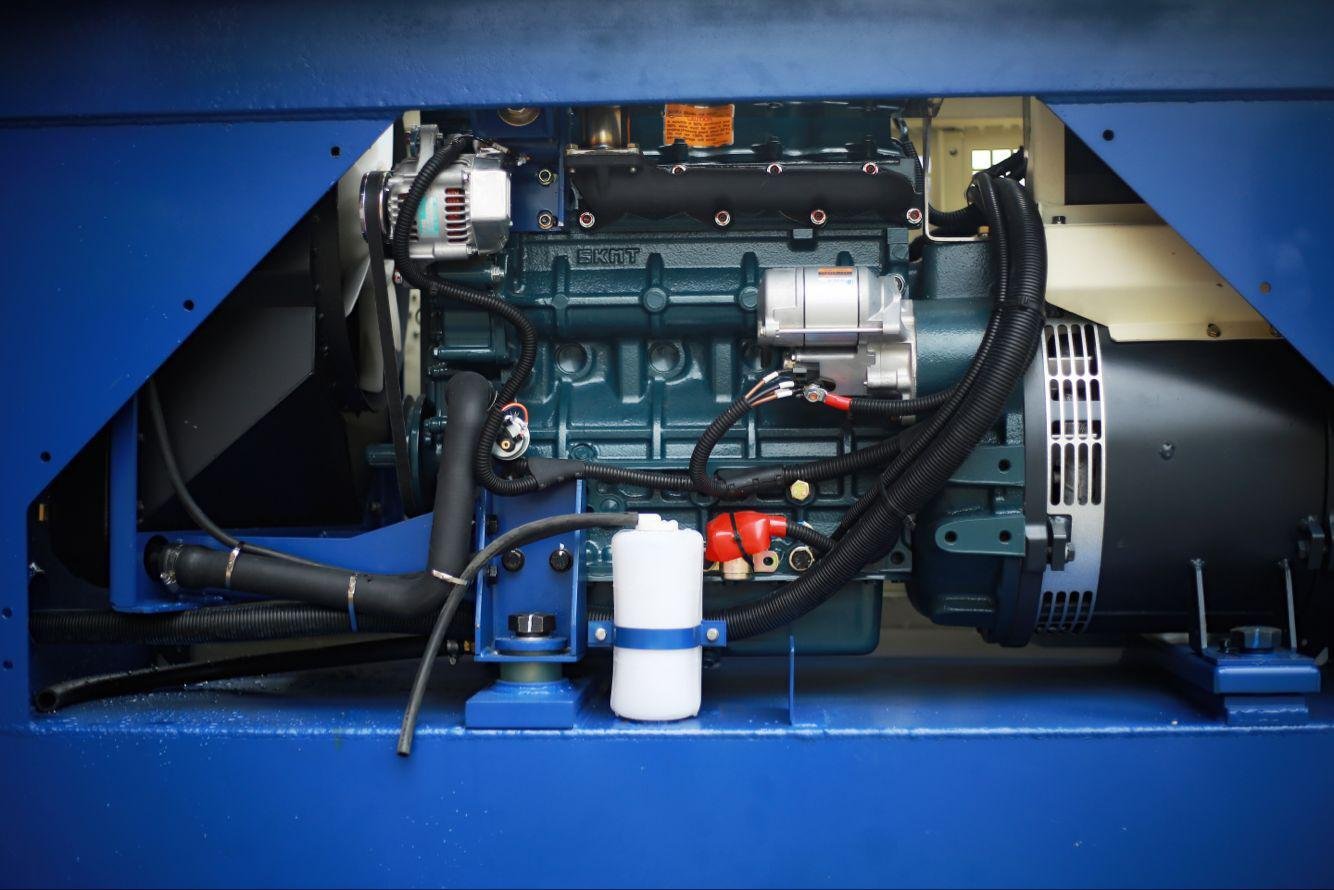

Featuring an industry-standard 2.2-liter direct-injection diesel engine and an ultra-high-efficiency permanent magnet generator, the PowerLINE Series 55 delivers 15 kW of continuous output. Built-in FuelWise™ two-speed functionality automatically switches between 1,800 rpm (60 Hz) and 1,500 rpm (50 Hz) based on refrigeration load, significantly lowering fuel consumption and emissions.
Key Features & Operation

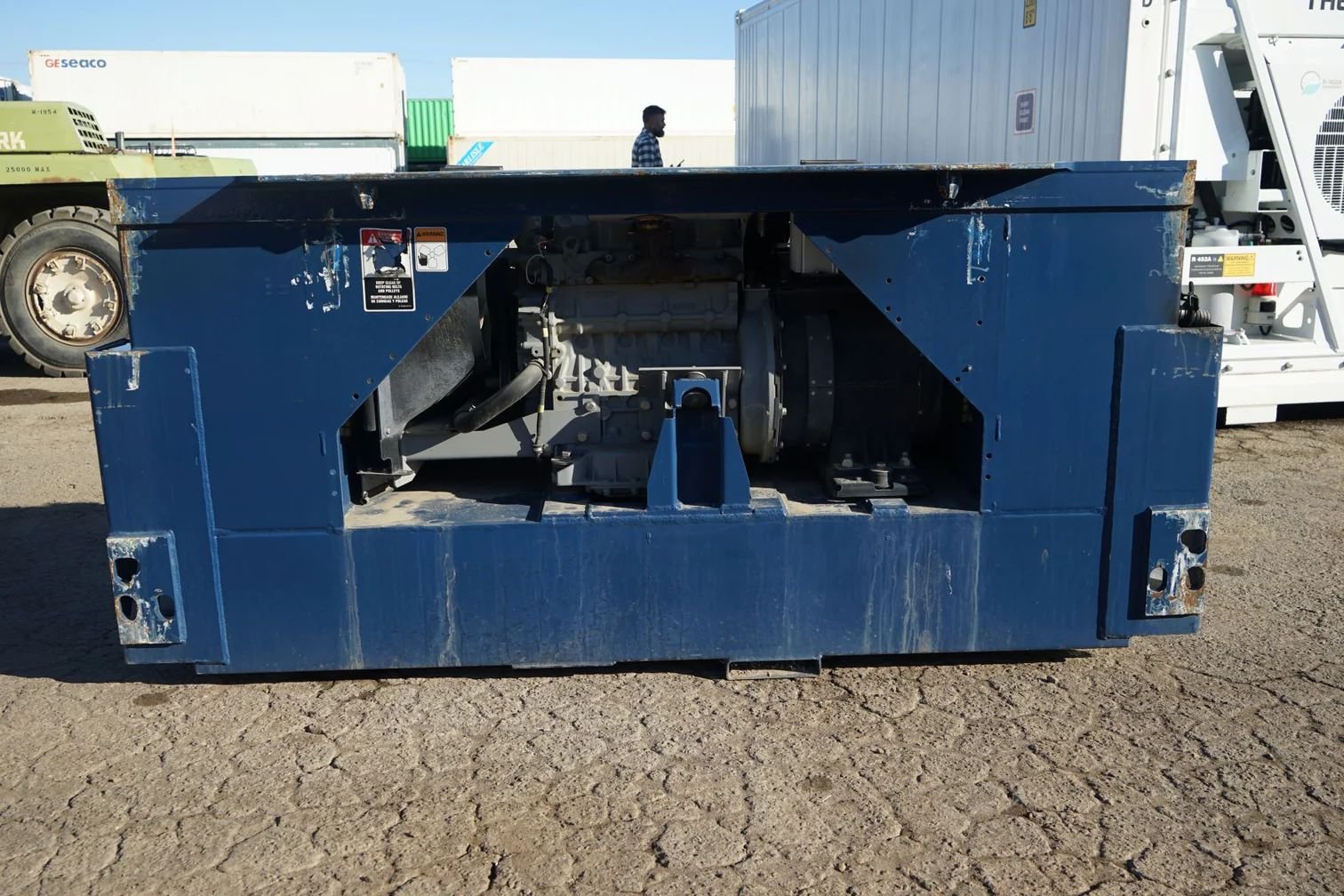

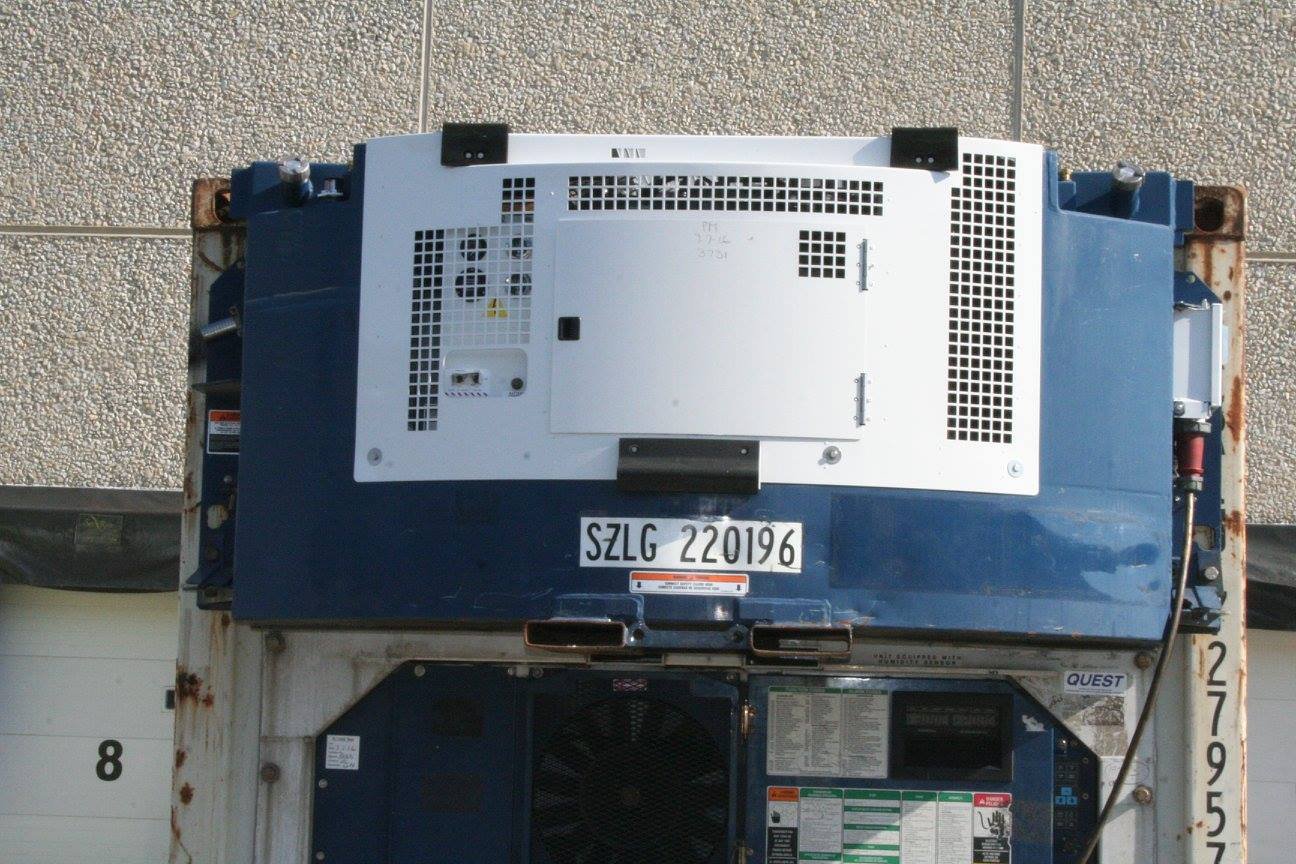

- Mounting Flexibility: Easy attachment to container chassis via time-saving pin-mounting brackets or secure clamp locks at corner castings.
- Robust Construction: Engineered to withstand harsh transit environments, featuring sealed bearings, radial fan cooling, and a deep footprint with reinforced fork pockets to resist damage.
- Clear Controls: Low-mounted, waterproof control box with up-front analog instrumentation, electronic governor speed sensing, and safety shutoff controls for low pressure and high temperature.
- Standards Compliance: Meets EU Stage V and US EPA nonroad emissions regulations.
| Brand | Carrier Transicold |
| Model | 69RG15-120W-55 |
| Power Output | 15 kW (18.75 kVA) |
| Electrical Output | 460V AC, 3-Phase, 60 Hz |
| Engine | 2.2L 4-cylinder direct-injection diesel |
| Fuel Capacity | 130 gal (492 L) |
| Dimensions (L x W x H) | 2,324 mm x 706 mm x 1,078 mm (91.5″ x 27.8″ x 42.5″) |
| Weight (Dry / Approx.) | 830 kg (1,830 lb) |
| Battery | 12V DC maintenance-free |
| Operating Ambient Temperature | -40°C to +52°C (-40°F to +125°F) |
| Mounting Type | Clip-On (Pin Mount or Corner Casting Clamp) |
| Emissions Compliance | EU Stage V / US EPA Tier 4 |
