Description

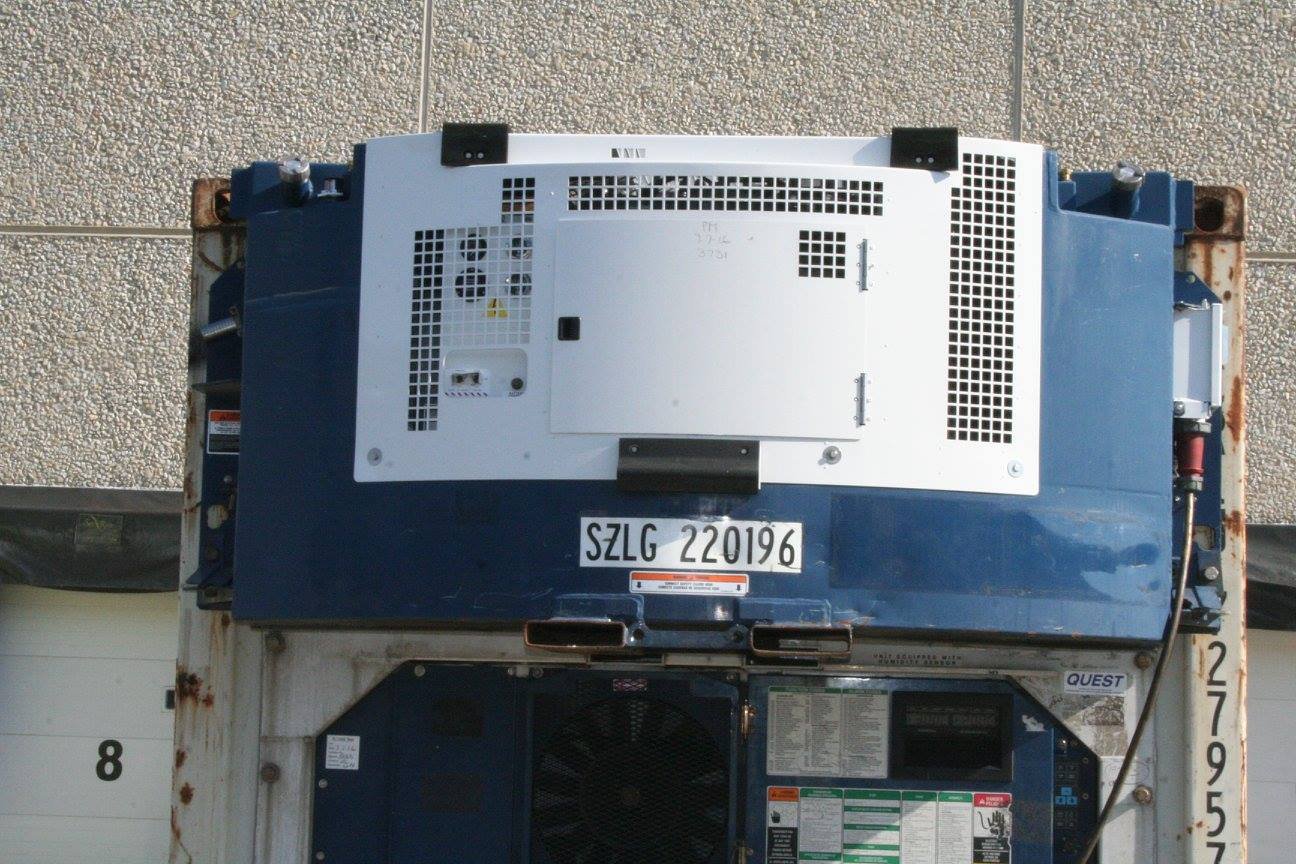

The Carrier PowerLINE Clip-On Generator Set delivers dependable, continuous, and unattended power for refrigerated containers transported by road or rail worldwide. Built with rugged construction and straightforward operation, this clip-on genset mounts securely to container corner castings on ISO and DNV 2.7-1 reefers using pin-mounting brackets or self-aligning ratchet clamps for fast attachment and removal.

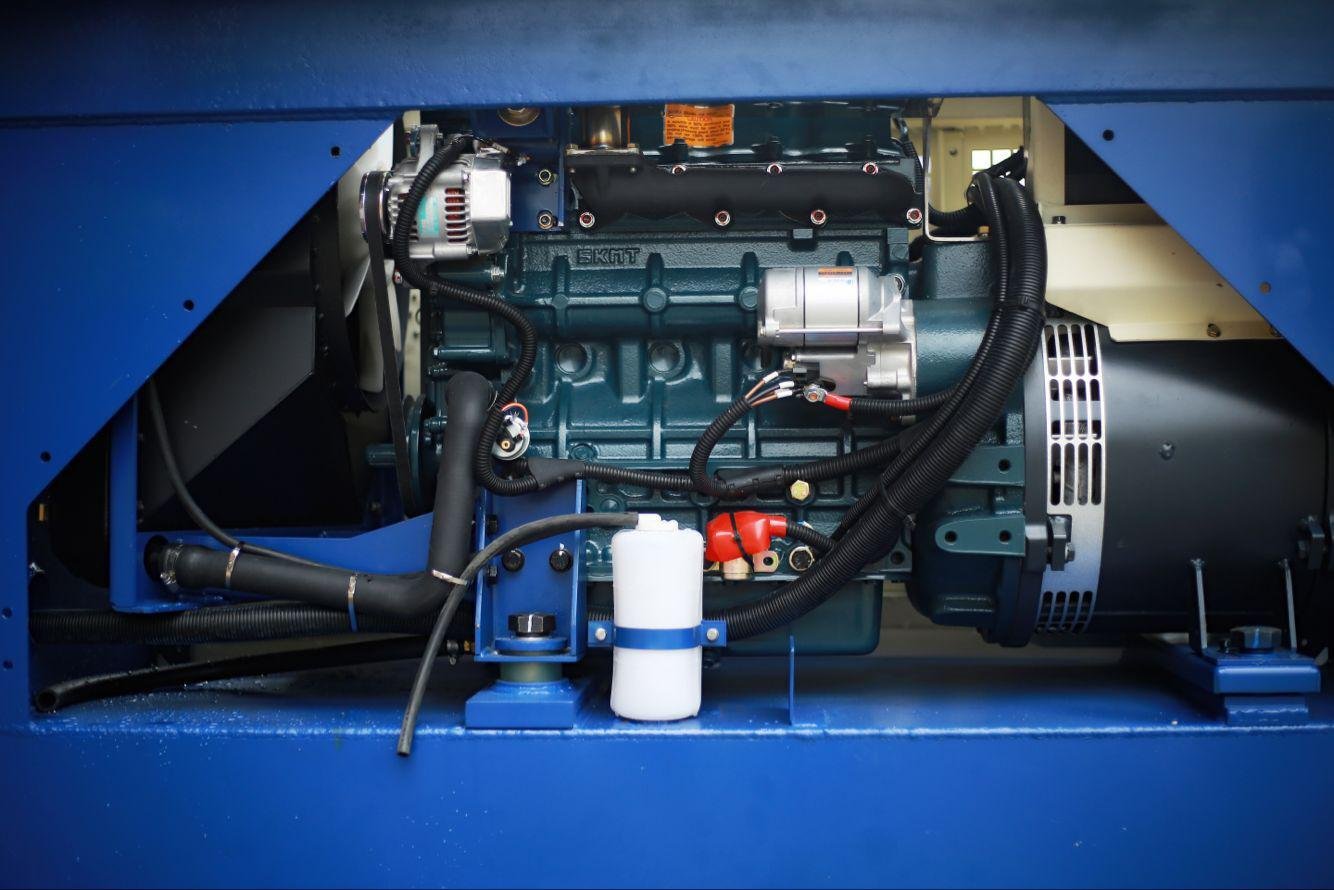

Powered by a direct-injection 2.2-liter CT4-134DI 4-cylinder water-cooled diesel engine, the generator produces 15 kW (18.75 kVA) at 460 VAC, 3-phase, 60 Hz. It features a heavy-duty 130-gallon fuel tank for extended runtime, disc-type radial fan cooling, a sealed rear bearing, and vacuum pressure-impregnated rotor construction. Operation and maintenance are streamlined with low-mounted waterproof controls, a maintenance-free 12V DC battery, safety stop controls for low oil pressure and high coolant temperature, and preheat/start/run switches.
| Brand | Carrier |
| Product Type | Clip-On Container Generator Set |
| Power Output | 15 kW (18.75 kVA), 460V AC, 3-Phase, 60 Hz |
| Engine | CT4-134DI 4-cylinder water-cooled 2.2L direct-injection diesel |
| Fuel Capacity | 130 US gal (492 L) |
| Dimensions | 2,324 mm x 706 mm x 1,078 mm (91.5″ x 27.8″ x 42.5″) |
| Weight | 1,675 lbs (760 kg) |
| Generator Type | Nominal 15 kW brushless, self-regulated |
| Battery | 12V DC maintenance-free |
| Cooling System | Disc type radial fan |
| Mounting Type | RG15 pin-mounting bracket / self-aligning ratchet clamp |
| Container Compatibility | ISO and DNV 2.7-1 Reefer Containers |
| Safety Controls | Low oil pressure, high water temperature shut-off |
| Control Box | Low-mounted waterproof control box with preheat and start/run/off switches |
