Description

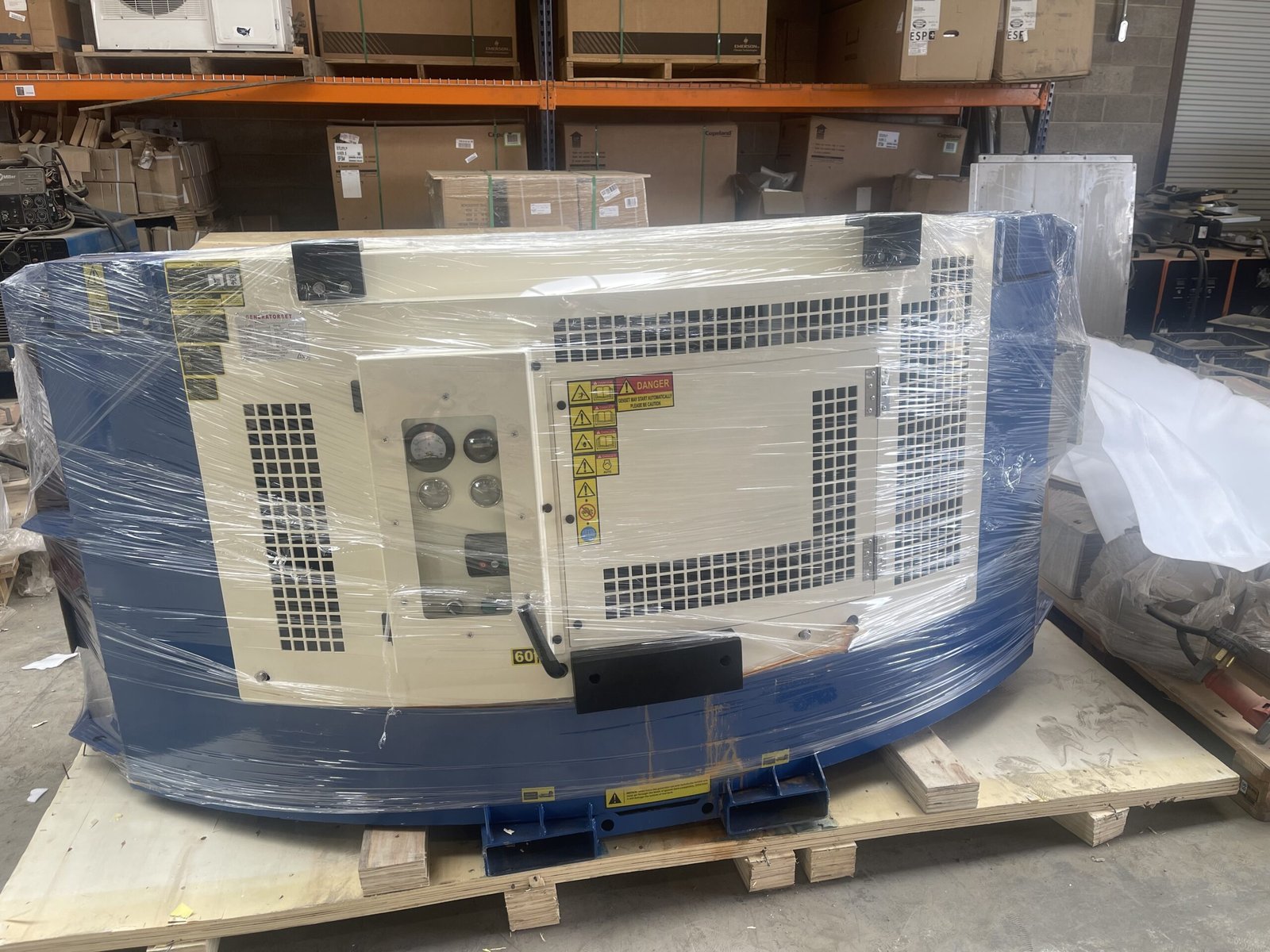

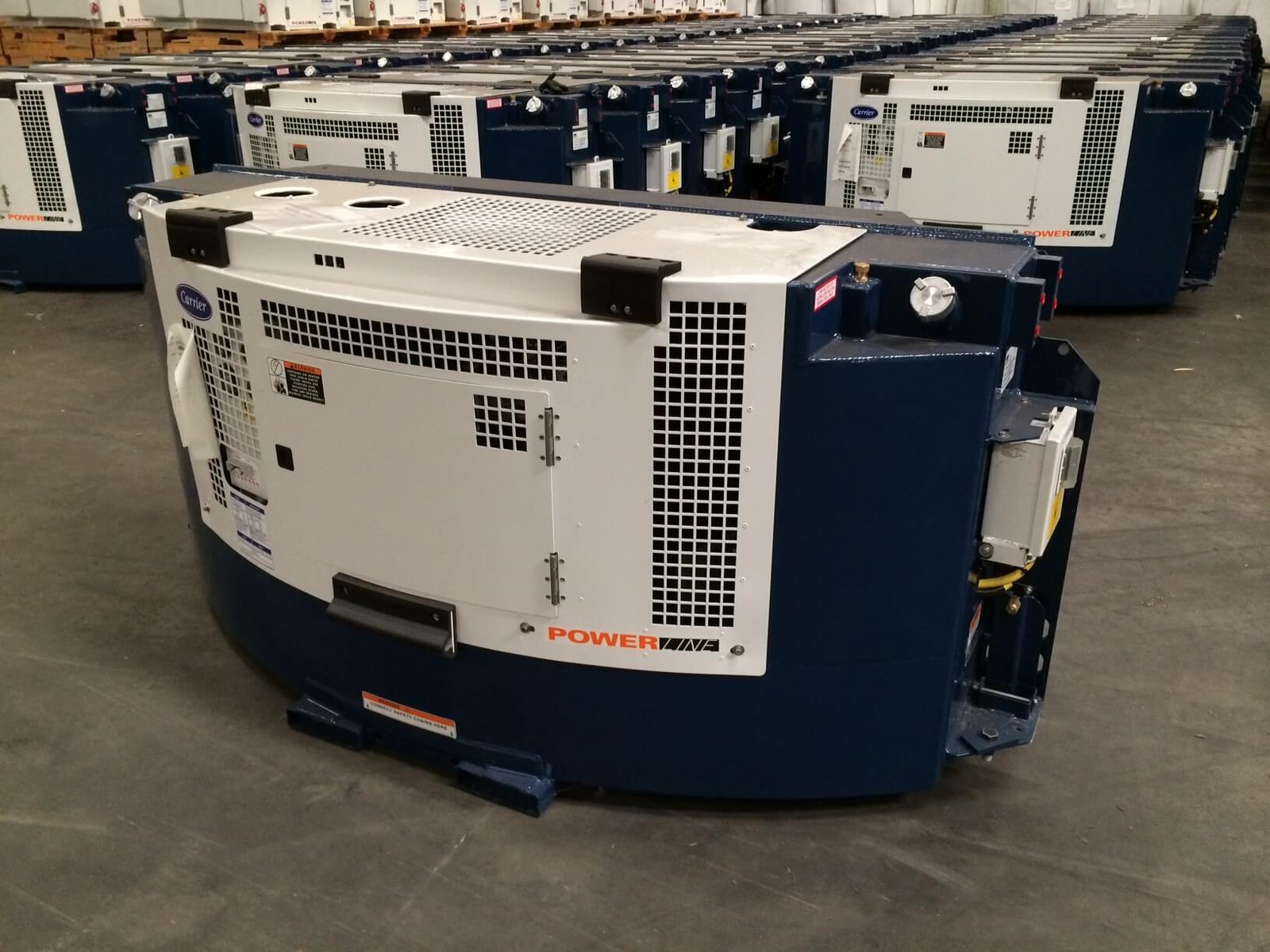

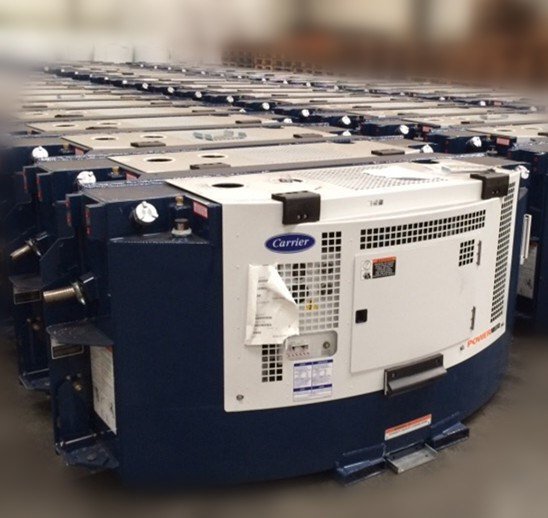

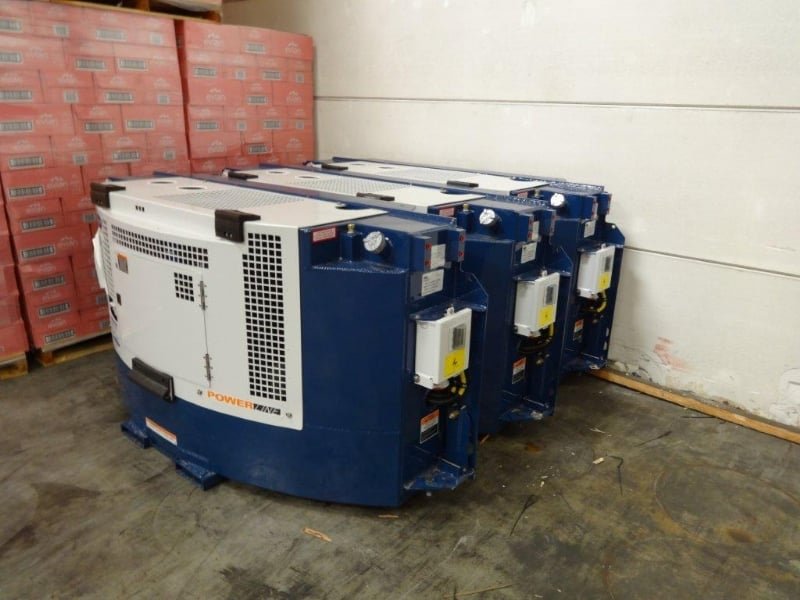

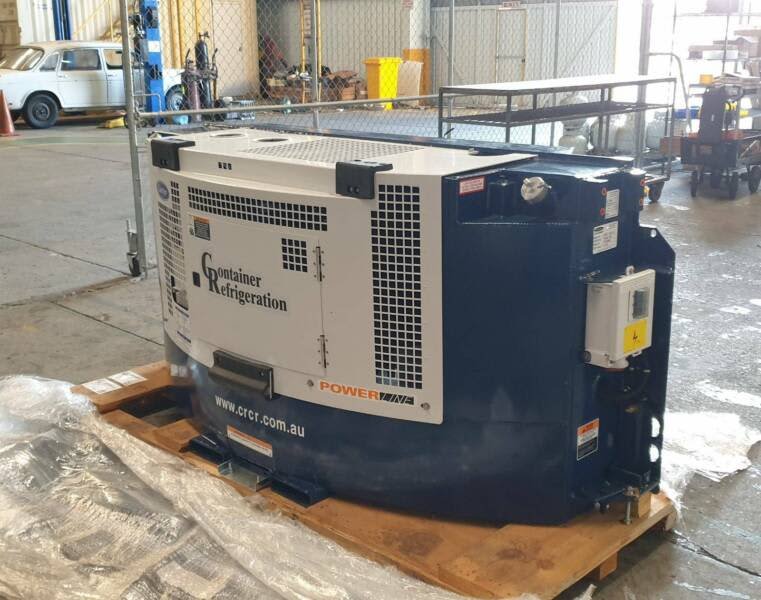

Designed and built for continuous, unattended operation, the Carrier PowerLINE® Clip-On Generator Set delivers dependable electrical power for refrigerated containers transported across road or rail networks worldwide. Engineered to attach directly to container corner castings in minutes, it ensures seamless temperature control and autonomy when external power is unavailable.
High-Performance Power & Efficient Engine
- Reliable Diesel Engine: Powered by a robust CT4-134DI 4-cylinder, 2.2-liter water-cooled direct-injection diesel engine equipped with an electronic governor and speed sensor.
- Substantial Output: Brushless, self-regulated generator producing a nominal 15 kW (18.75 kVA), 460 VAC, 3-phase power at 60 Hz.
- Extended Runtime: High-capacity 130 US gallon (492 L) fuel tank supports autonomous operation ranging from short transfers to continuous multi-day hauls.
Durable Construction & Easy Operation
- Rugged Enclosure: Features a disc-type radial cooling fan, sealed large-diameter rear bearing, and vacuum pressure-impregnated rotor for longevity in demanding transit environments.
- Secure Mounting: Rapid pin-mounting bracket or self-aligning ratchet clamp locks securely anchor the unit directly onto ISO and DNV 2.7-1 reefer corner castings.
- Operator-Friendly Controls: Waterproof, low-mounted control box fitted with preheat, start/run/off switches, and automatic safety shutdowns for low oil pressure and high coolant temperature.
| Brand | Carrier |
| Product Type | Clip-On Container Generator Set |
| Power Output | 15 kW (18.75 kVA) |
| Electrical Configuration | 460 VAC, 3-Phase, 60 Hz |
| Engine Model | CT4-134DI 4-cylinder water-cooled direct-injection diesel engine |
| Engine Displacement | 2.2 L |
| Fuel Tank Capacity | 130 US gal (492 L) |
| Generator Type | Nominal 15 kW brushless, self-regulated |
| Battery | 12V DC maintenance-free |
| External Dimensions | 2,324 mm x 706 mm x 1,078 mm (91.5″ x 27.8″ x 42.5″) |
| Weight | 1,675 lbs (818 kg) |
| Mounting Compatibility | ISO and DNV 2.7-1 Reefers (Pin-mounting bracket / Ratchet clamp locks) |
| Safety Controls | Automatic shutdown for low pressure and high water temperature |
