Description

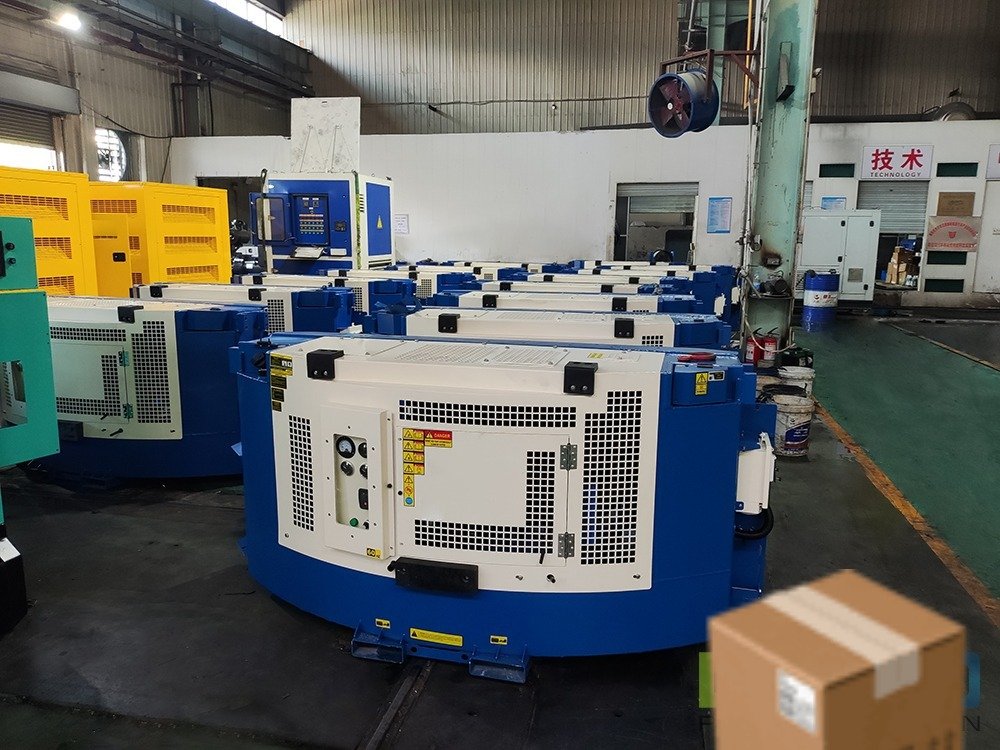

Carrier Clip-On Generator Sets provide reliable, continuous, and unattended power for refrigerated containers during road or rail transport worldwide. Engineered for rugged performance and ease of operation, these clip-on gensets deliver autonomous electricity to maintain cold-chain integrity across low-temperature cargo shipments.
Key Features & Performance

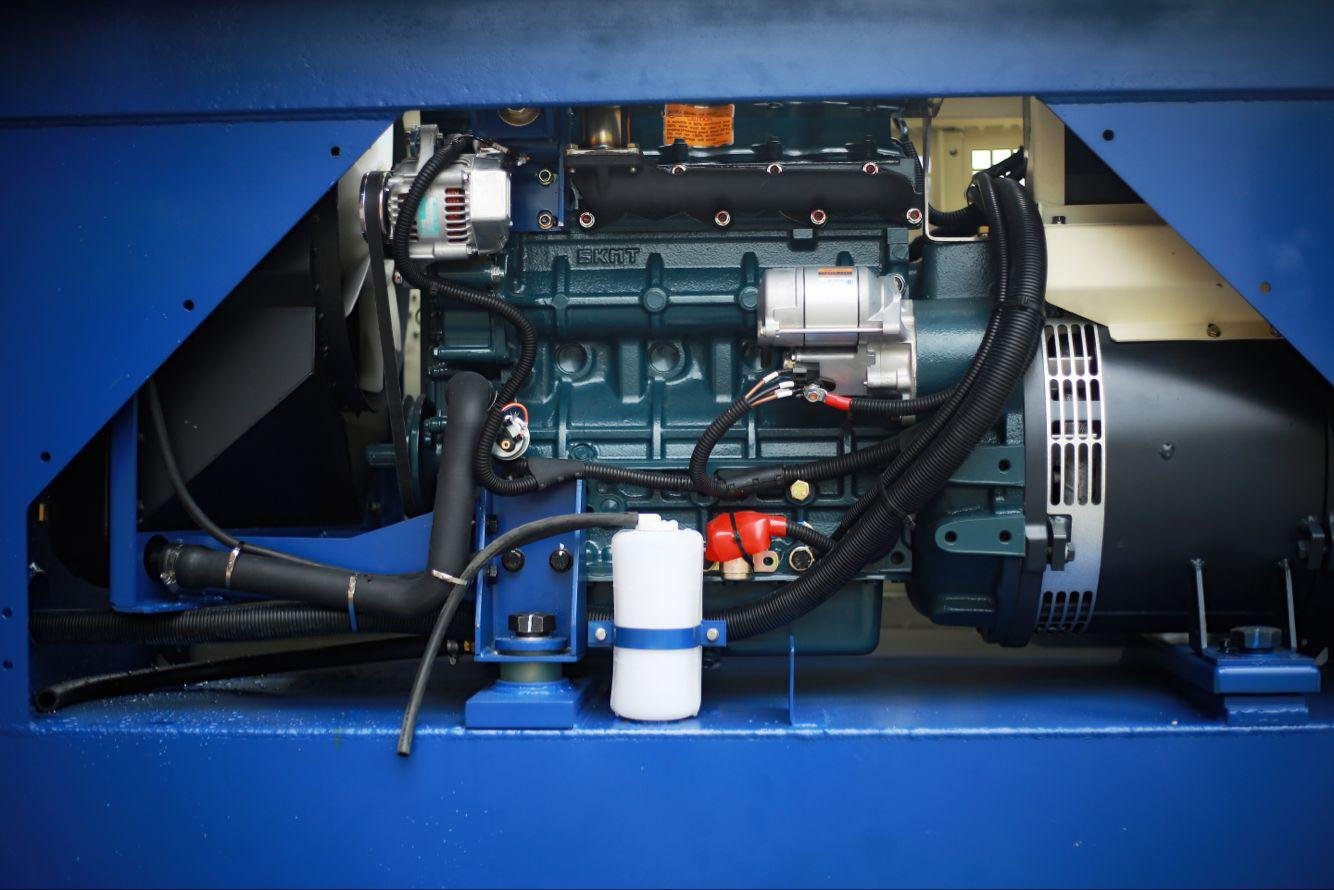

- Reliable Engine: Powered by an industry-standard CT4-134DI 4-cylinder, water-cooled 2.2-liter direct-injection diesel engine equipped with a speed sensor and electronic governor.
- Robust Electrical Output: Brushless, self-regulated generator delivering nominal 15 kW (18.75 kVA), 460 VAC, 3-phase power at 60 Hz.
- Extended Runtime: Features an integrated 130 US gallon (492 L) fuel capacity, making it an ideal continuous power solution for reefer transport.
- Advanced Cooling & Construction: Fitted with a disc-type radial cooling fan, sealed large-diameter rear bearing, and a vacuum pressure-impregnated rotor.
- Intuitive Safety & Control: Low-mounted, waterproof control box with preheat and start/run/off switches, plus automatic safety stops for low oil pressure and high coolant temperature.

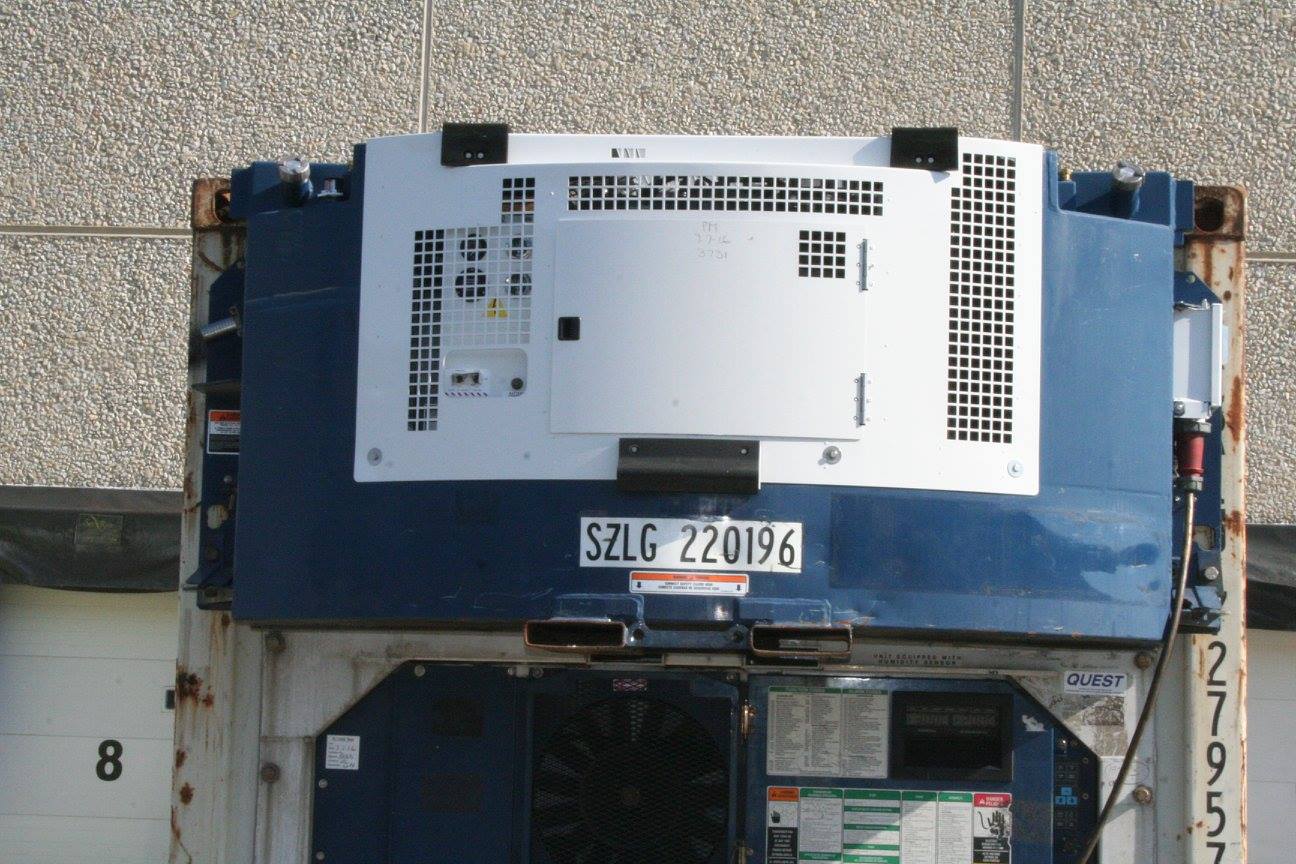

- Versatile Mounting: Designed for ISO and DNV 2.7-1 reefers, attaching directly via RG15 pin-mounting brackets or self-aligning ratchet clamp locks to corner castings for fast, secure installation and removal in minutes.
| Brand | Carrier |
| Product Type | Clip-On Generator Set |
| Engine | CT4-134DI 4-cylinder water-cooled 2.2-liter direct-injection diesel engine |
| Power Output | 15 kW / 18.75 kVA, 460 VAC, 3-Phase, 60 Hz |
| Fuel Capacity | 130 US gal (492 L) |
| Weight | 1,675 lbs |
| Dimensions | 91.5” x 27.8” x 42.5” (2,324 mm x 706 mm x 1,078 mm) |
| Battery | 12V DC maintenance-free |
| Controls | Low-mounted waterproof control box with preheat and start/run/off switches |
| Safety Controls | Automatic shutdown for low oil pressure and high coolant temperature |
| Compatibility | ISO and DNV 2.7-1 Refrigerated Containers |
| Mounting System | RG15 pin-mounting bracket / ratchet clamp locks to corner castings |
