Description

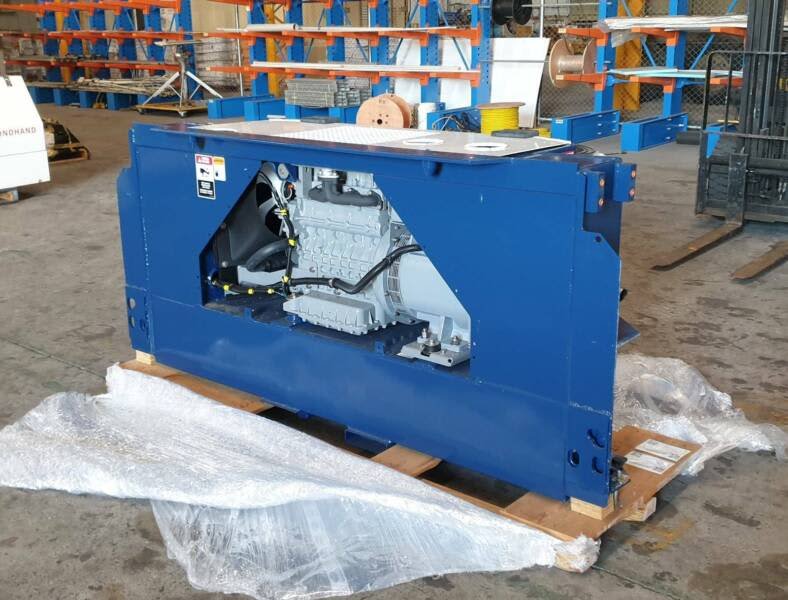

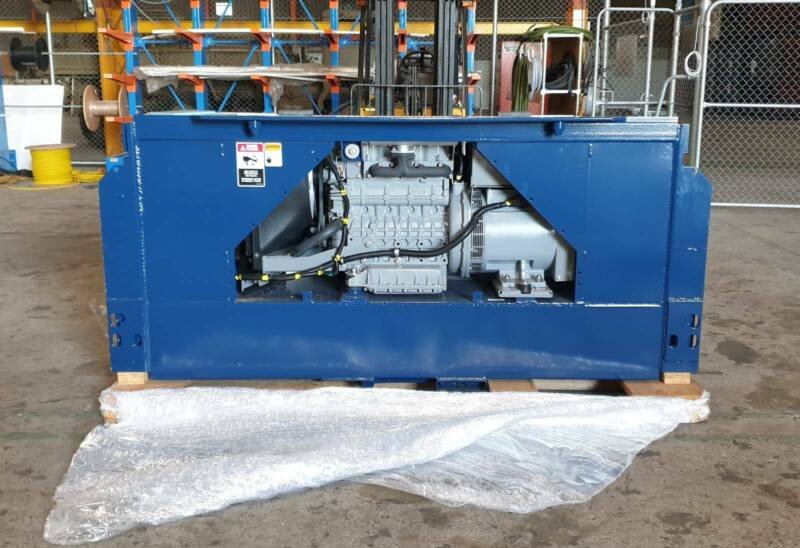

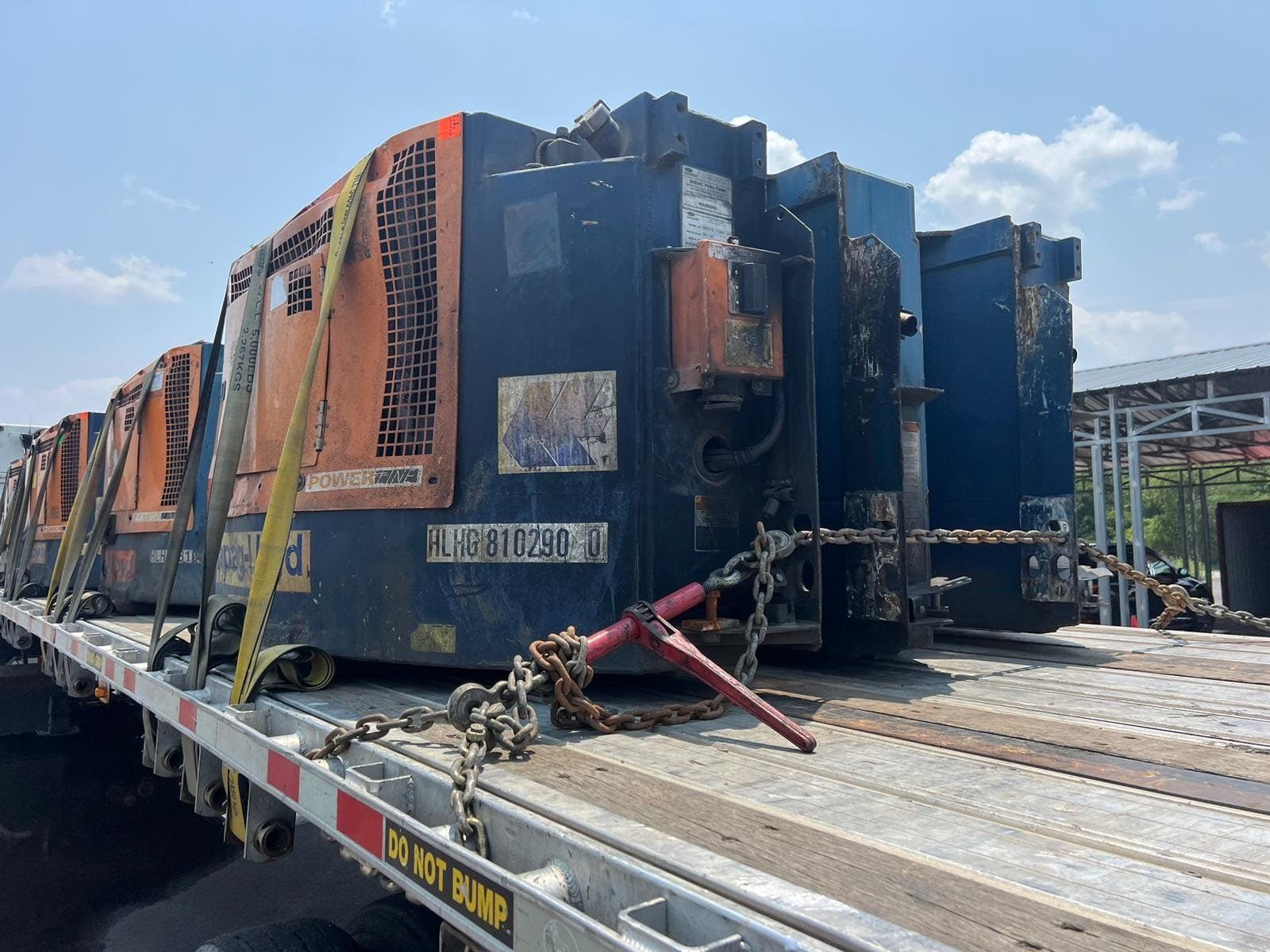

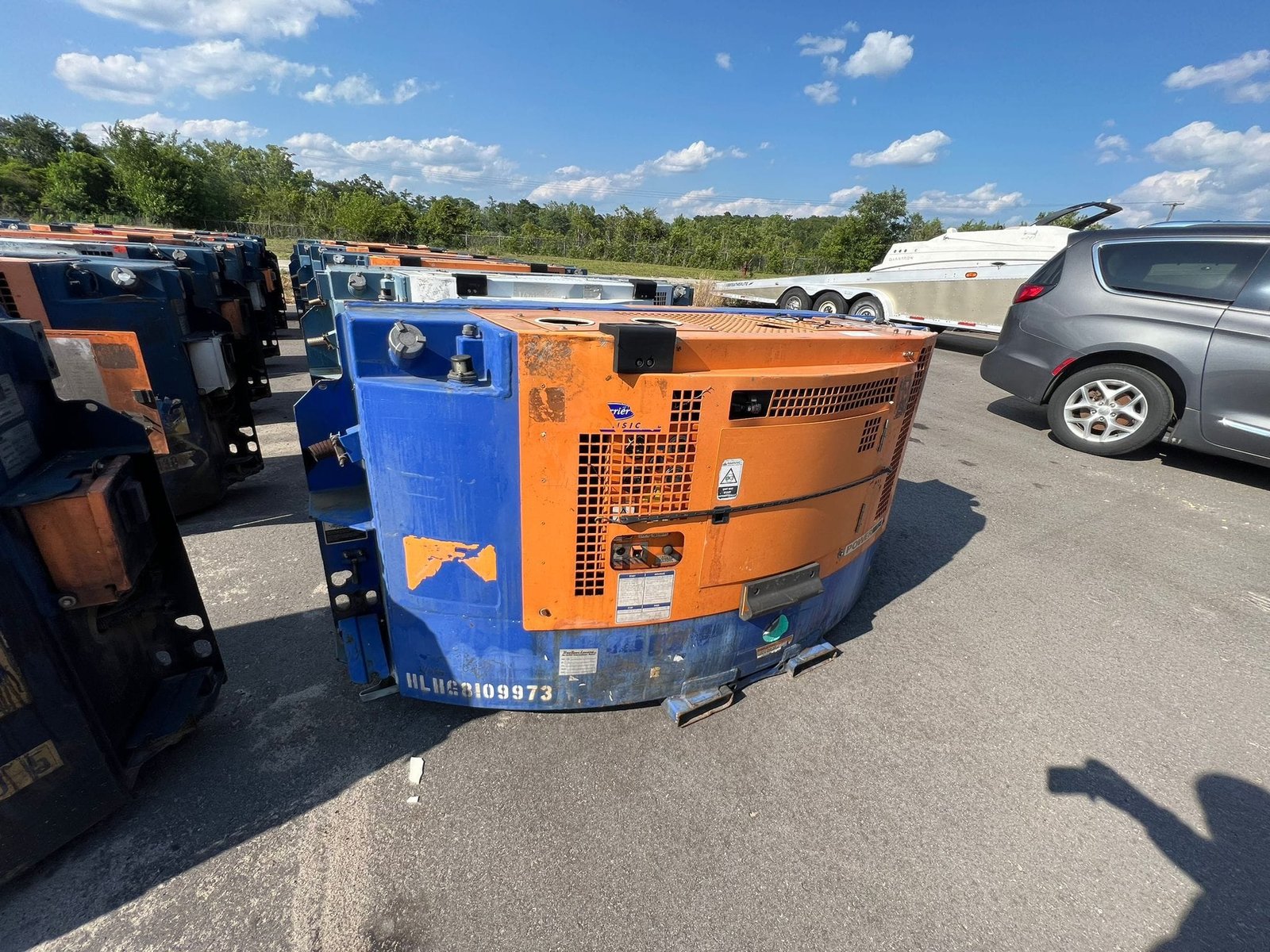

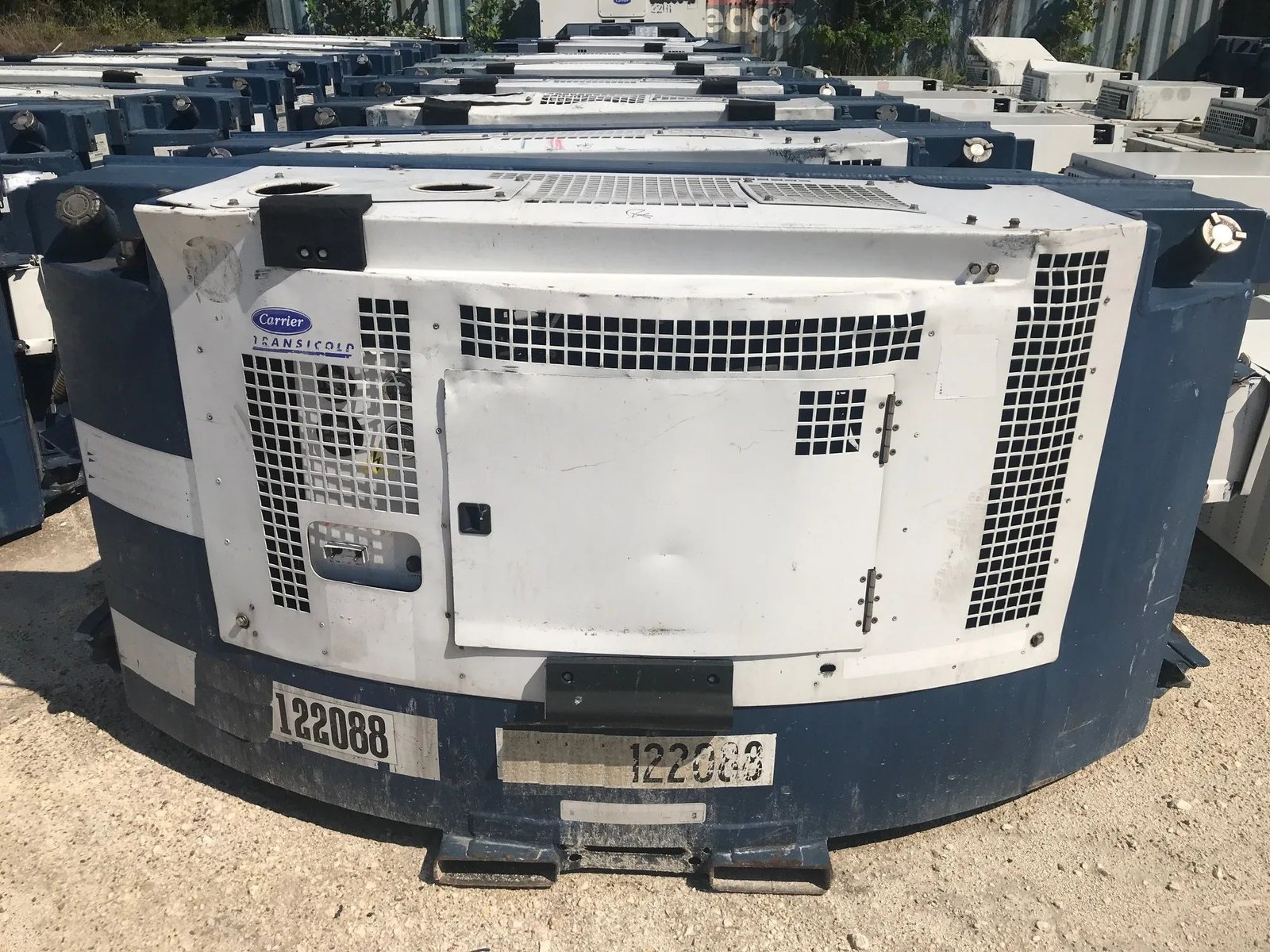

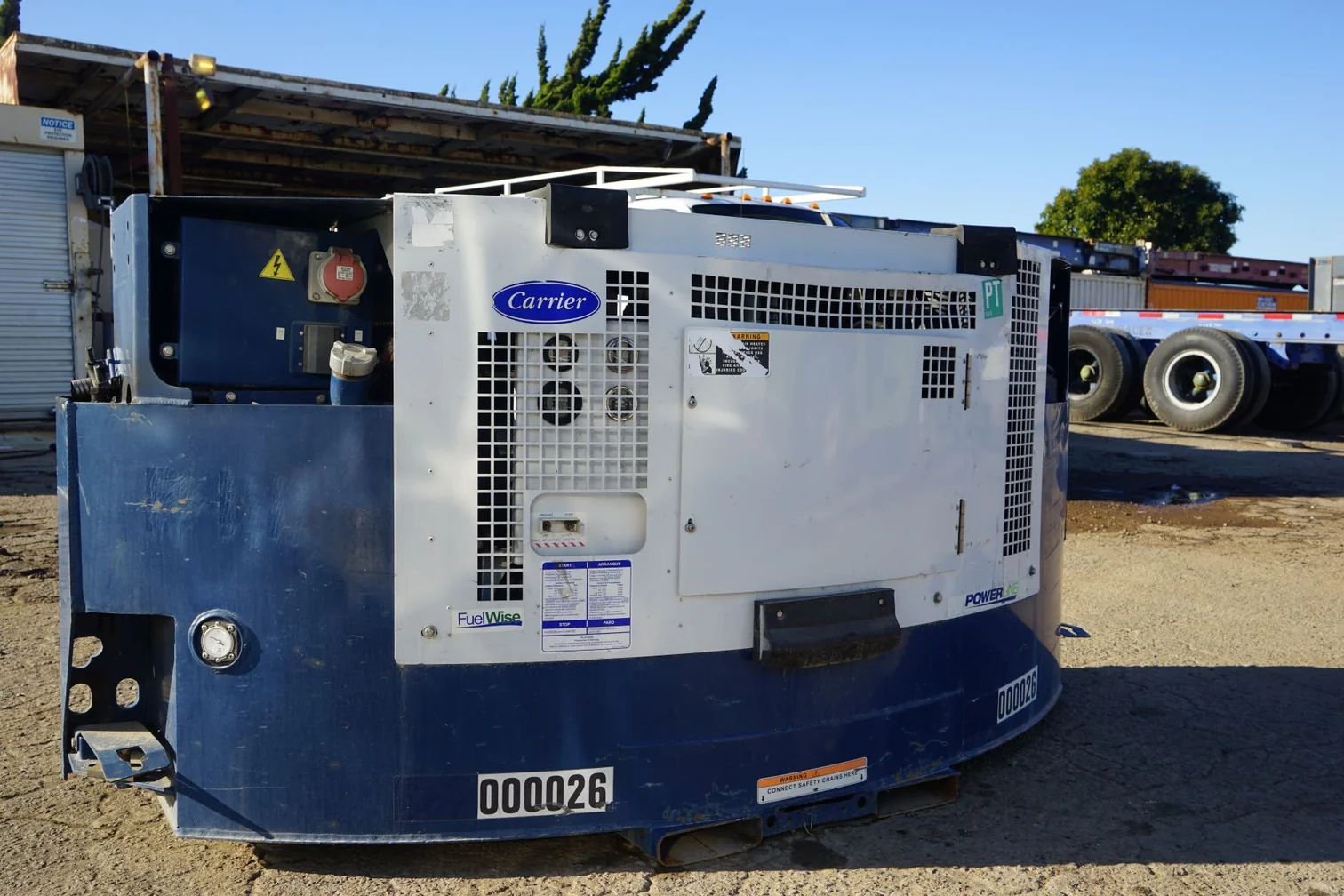

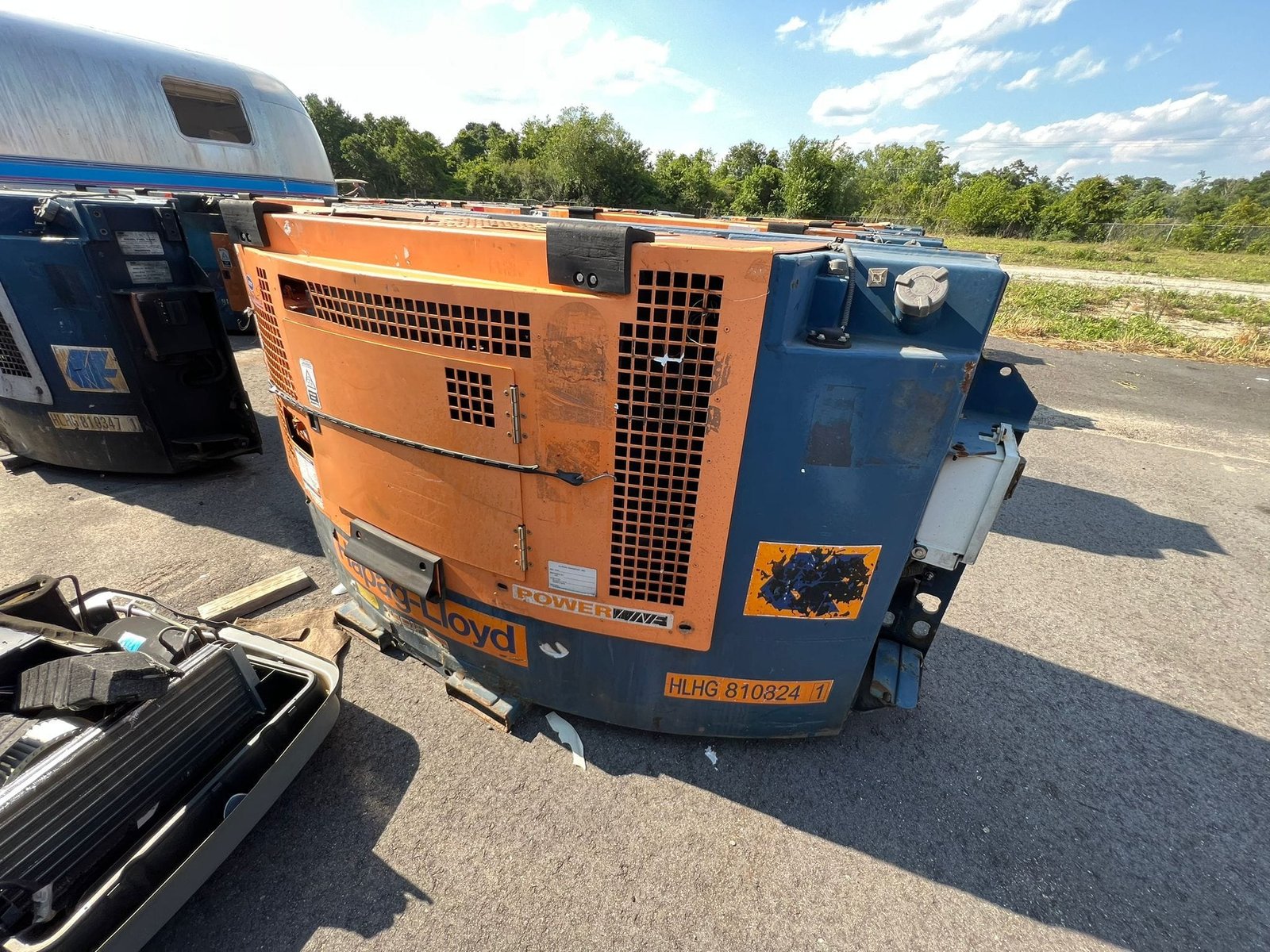

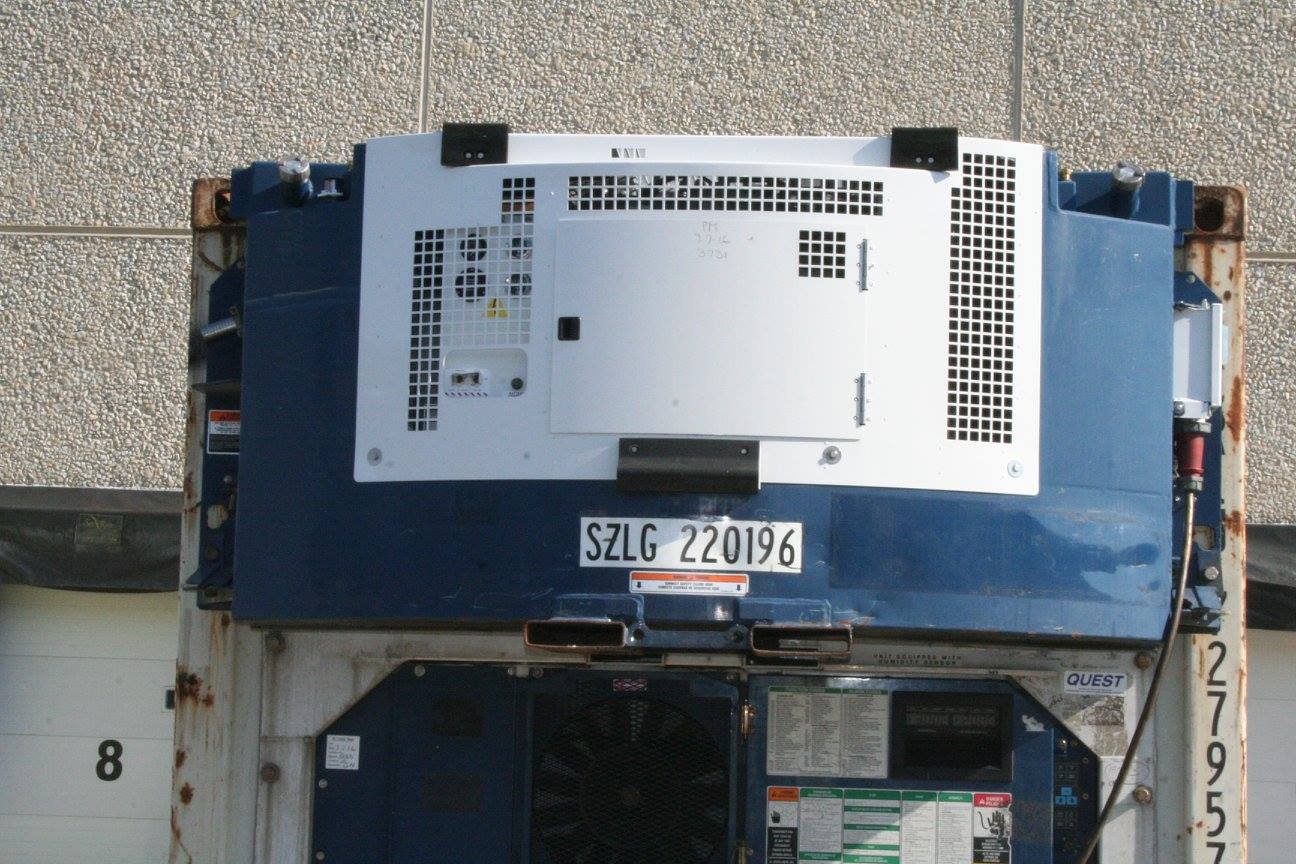

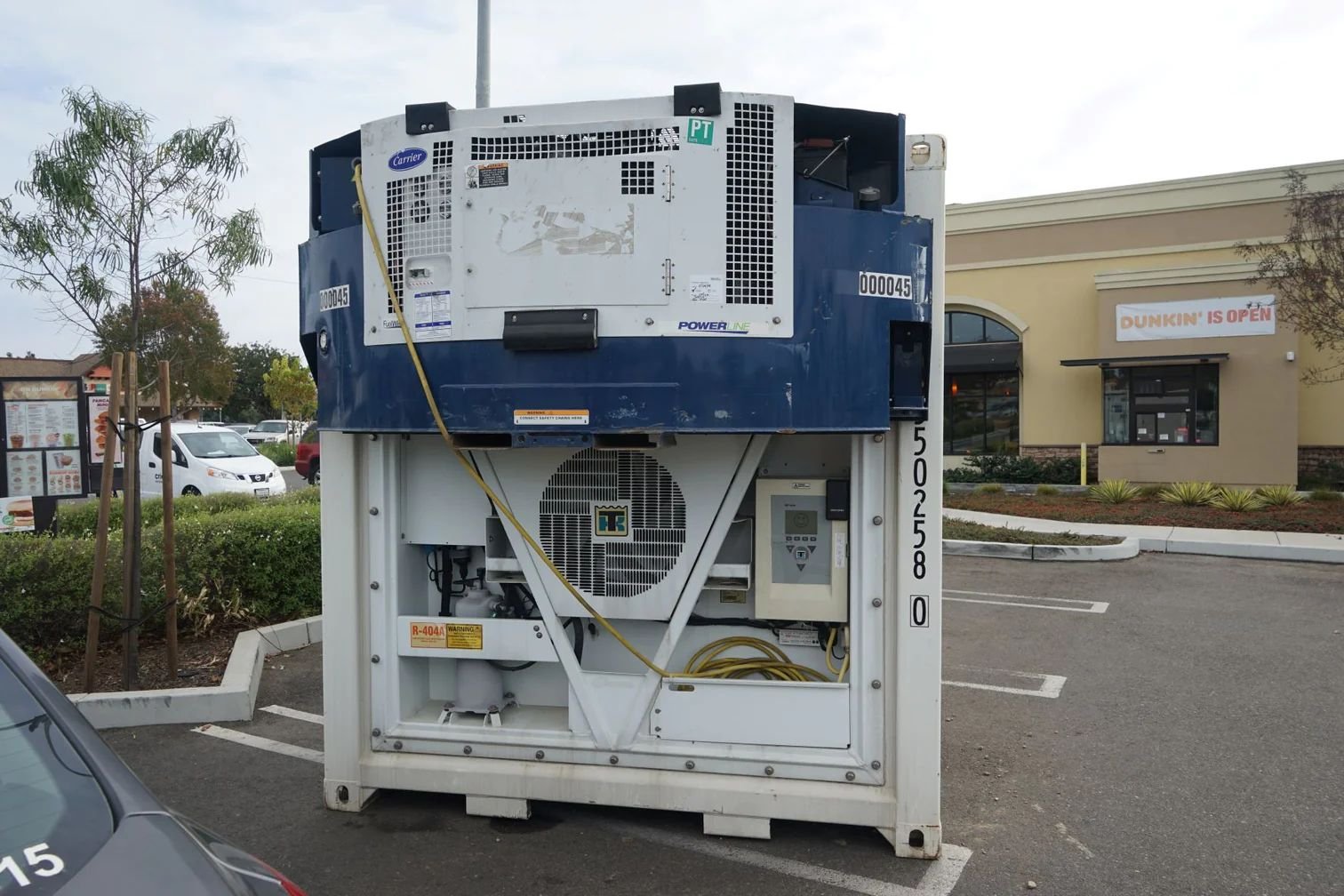

The Carrier PowerLINE Series 13 Clip-On Generator Set (model 69RG15-120W-13) is engineered for continuous, unattended power delivery to refrigerated containers during road or rail transit. Designed to mount directly to standard ISO and DNV 2.7-1 reefer corner castings above the refrigeration unit, this generator provides dependable 460V, 3-phase power in transit or stationary applications.
Key Features & Performance
- Reliable Diesel Engine: Powered by a CT4-134DI 4-cylinder, 2.2-liter direct-injection water-cooled diesel engine equipped with electronic governing and speed sensing.
- High Electrical Output: Brushless, self-regulated generator delivers 15 kW (18.75 kVA) at 460 VAC, 3-phase, 60 Hz.
- Robust Fuel Capacity: 130-gallon (492 L) fuel tank supports extended operation from short-haul runs up to multi-day deployments.
- Quick & Secure Mounting: Features RG15 pin-mounting brackets and self-aligning ratchet clamp locks for safe, fast attachment and removal.
- Durable Controls & Safety: Waterproof control box housing low-mounted manual controls, preheat switch, and automated safety stops for low oil pressure and high coolant temperature.
| Brand | Carrier |
| Manufacturer | Carrier Transicold |
| Model Number | 69RG15-120W-13 |
| Series | PowerLINE Series 13 |
| Power Output | 15 kW, 18.75 kVA, 460V AC, 3 Phase, 60 Hz |
| Engine Model | CT4-134DI 4-cylinder water-cooled 2.2 liter direct-injection diesel engine |
| Fuel Capacity | 130 US gal (492 L) |
| Generator Type | 15 kW brushless, self-regulated |
| Battery | 12V DC maintenance-free |
| External Dimensions | 2,324 mm x 706 mm x 1,078 mm (91.5″ x 27.8″ x 42.5″) |
| Weight | 1,675 lbs (760 kg) |
| Total Operating Weight | 1,804 lbs (818 kg) / 1,875 lbs (851 kg) |
| Mounting Type | Clip-on corner casting mount |
| Safety Features | Low oil pressure and high water temperature shutdown |
| Operating Temperature Range | -40°C to +52°C (-40°F to +125°F) |
