Description

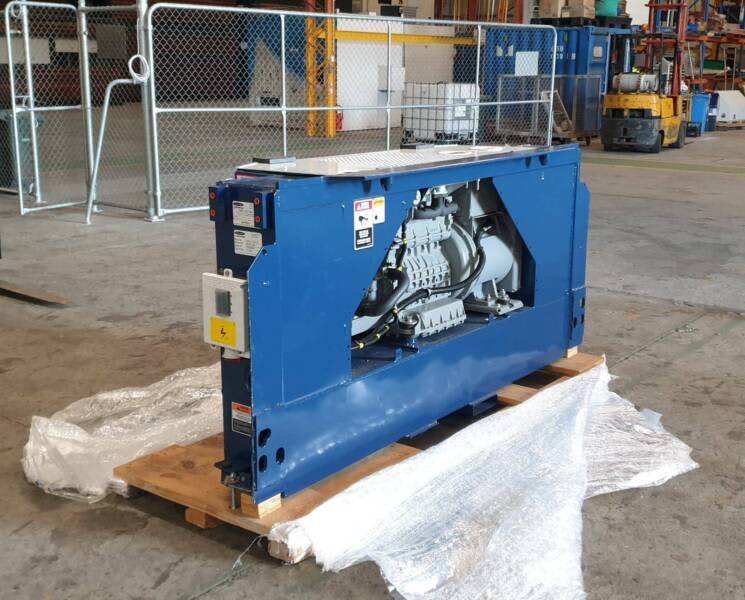

The Carrier Clip-On Generator Set delivers dependable, continuous power designed for ISO refrigerated containers transported worldwide by road or rail. Engineered for quick attachment and reliable operation, it mounts directly to container chassis corner castings in just minutes using pin-mounting brackets or self-aligning ratchet clamp locks.
Reliable Power & Performance
- Powered by a robust 2.2-liter CT4-134DI 4-cylinder water-cooled direct-injection diesel engine equipped with a speed sensor and electronic governor.
- Delivers nominal 15 kW (18.75 kVA) 460V AC 3-phase 60 Hz electrical output to reliably power standard reefer units.
- Features a high-capacity 130-gallon (492-liter) fuel tank suited for extended autonomous runtime.
- Equipped with a disc-type radial cooling fan and a sealed large-diameter rear bearing for maximum longevity.
Operational Safety & Controls
- Waterproof, low-mounted control box featuring manual controls and preheat/start/run switches.
- Integrated automatic safety shutdown systems for low oil pressure and high coolant temperature.
- Designed to operate in extreme ambient temperature ranges from -40°C to +52°C (-40°F to +125°F).
| Brand | Carrier |
| Manufacturer | Carrier Transicold |
| Product Type | Reefer Clip-On Generator Set |
| Power Output | 15 kW (18.75 kVA), 460V AC, 3 Phase, 60 Hz |
| Engine | CT4-134DI 4-Cylinder 2.2L Direct-Injection Diesel |
| Fuel Tank Capacity | 130 gal (492 L) |
| Dimensions (L x W x H) | 2,324 mm x 706 mm x 1,078 mm (91.5 in x 27.8 in x 42.5 in) |
| Weight (Less Fuel) | 830 kg (1,830 lb) |
| Battery | 12V DC Maintenance-Free |
| Operating Temperature Range | -40°C to +52°C (-40°F to +125°F) |
| Mounting Type | Clip-on corner casting mount / Ratchet clamp |
| Compatibility | ISO and DNV 2.7-1 Refrigerated Containers |
