Description

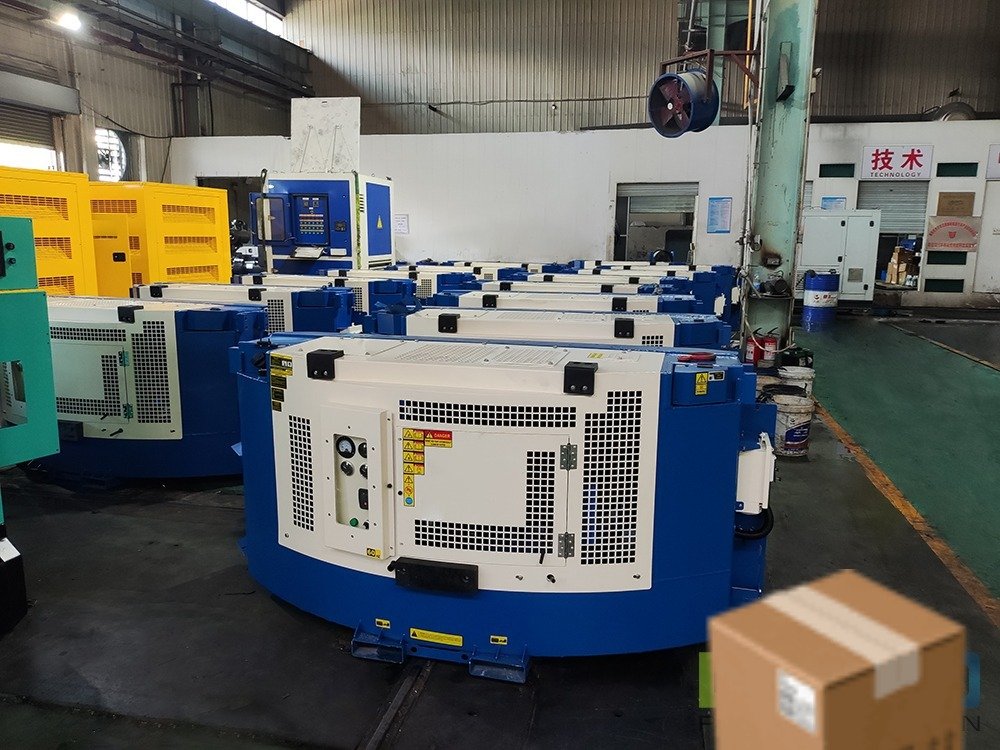

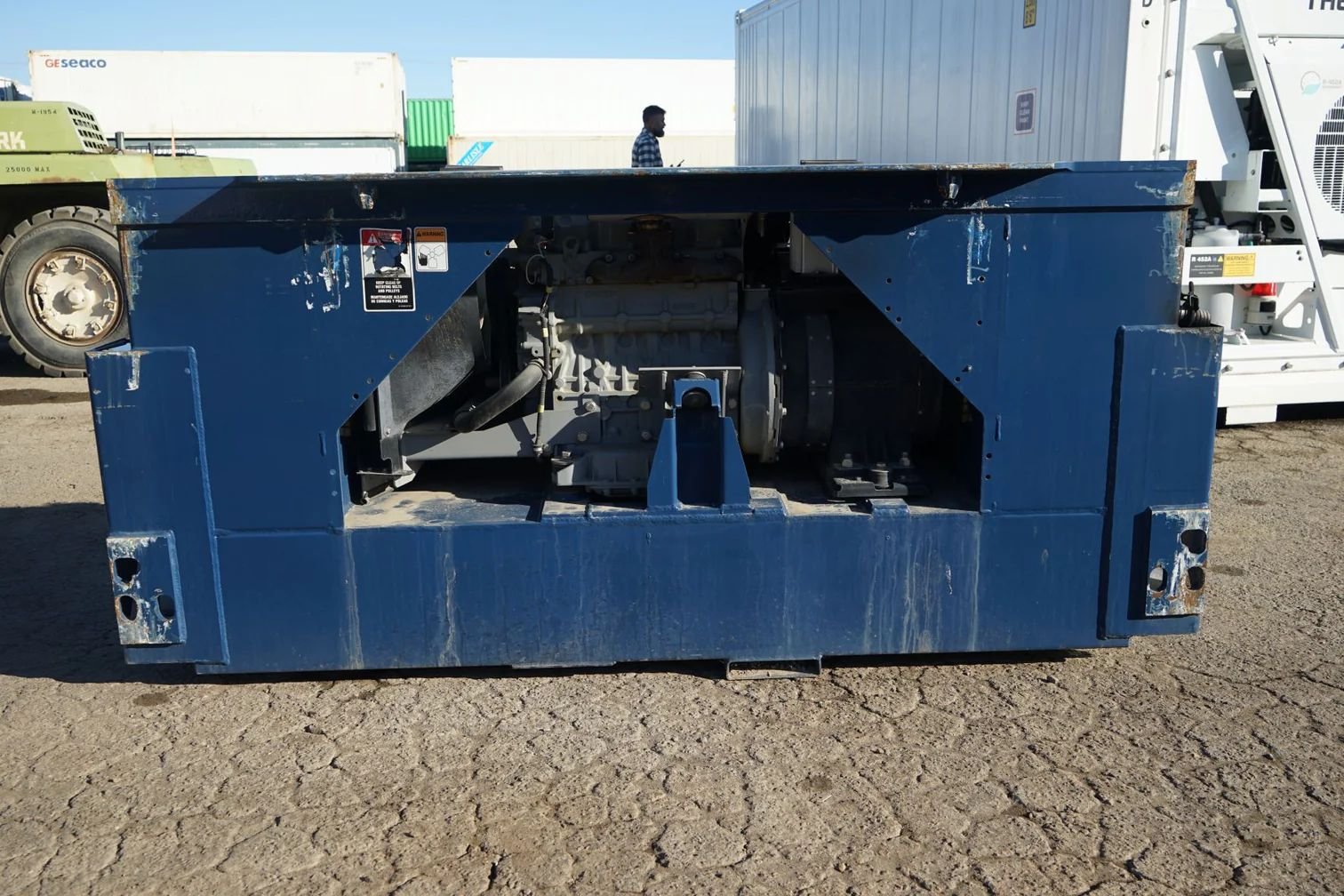

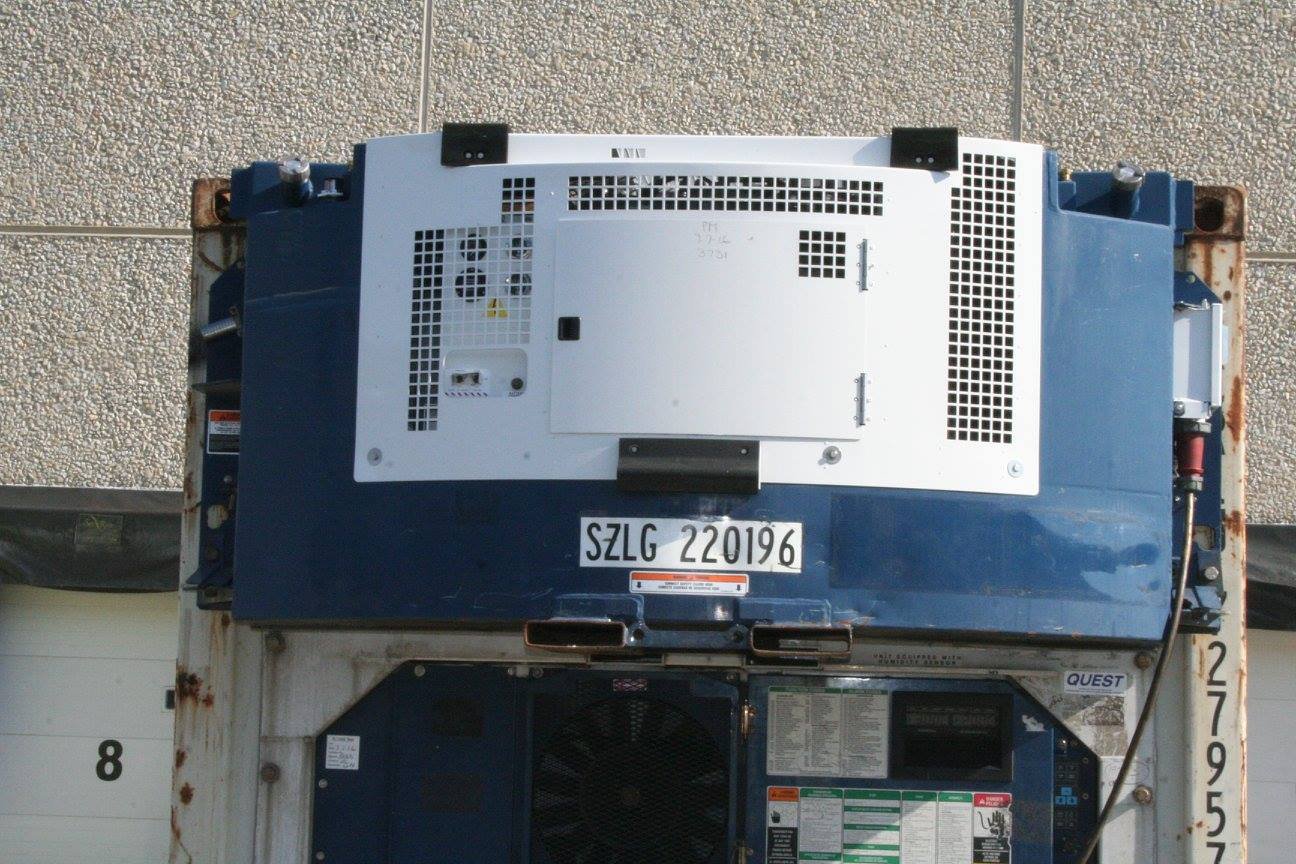

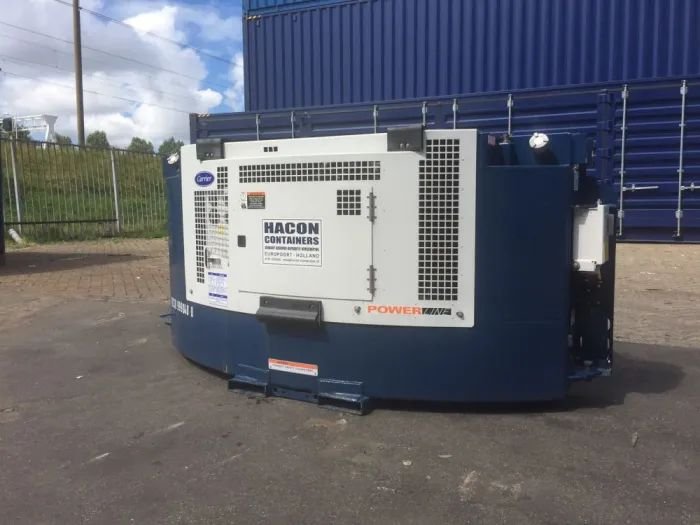

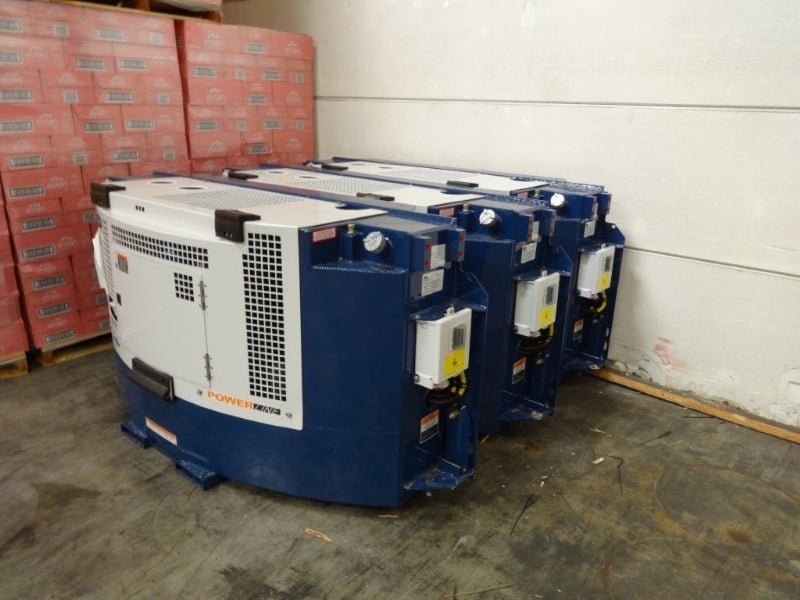

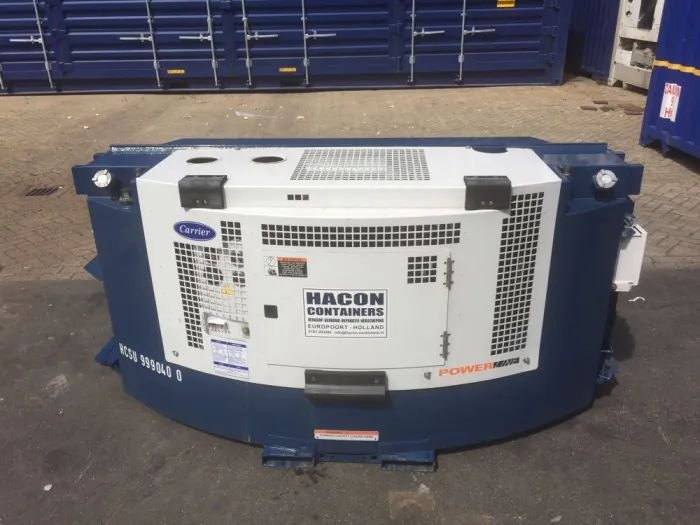

The Carrier Transicold PowerLINE 69RG15-120W-55 Clip-On Generator Set provides dependable, continuous electrical power for all-electric refrigerated containers transported via road or rail. Engineered for seamless compatibility with ISO and DNV 2.7-1 reefers, this heavy-duty unit mounts securely to container corner castings using pin-mounting brackets or self-aligning ratchet clamp locks, allowing for attachment and removal in minutes.
Performance and Engine Specifications

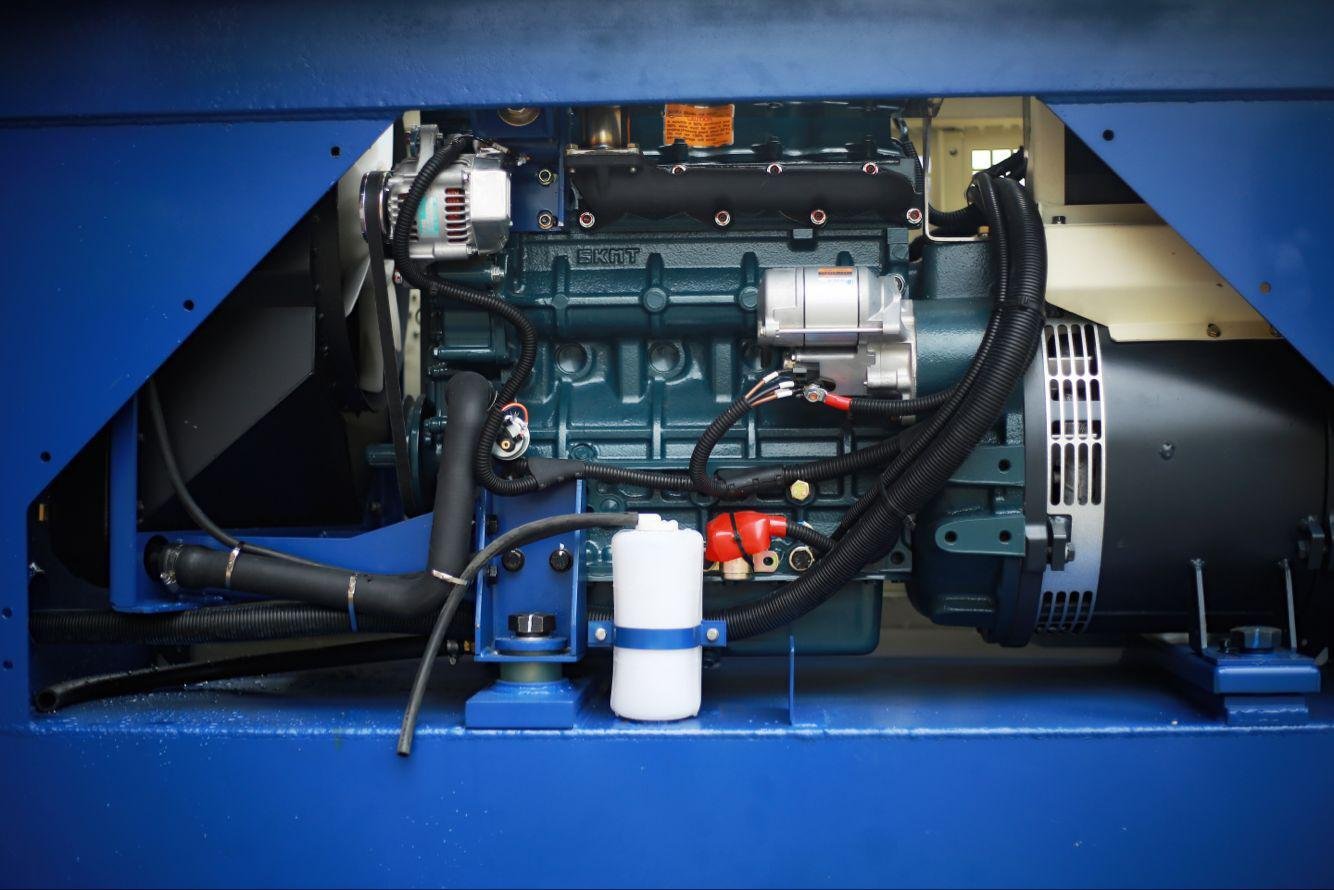

Equipped with a reliable CT4-134DI 4-cylinder, water-cooled 2.2-liter direct-injection diesel engine, the 69RG15 delivers a 15 kW (18.75 kVA) 460 VAC, 3-phase 60 Hz output. The system includes an electronic governor, speed sensor, disc-type radial cooling fan, and a vacuum pressure-impregnated rotor for maximum durability during long hauls.
Fuel Capacity and Controls
Designed for extended autonomous runtime, the genset features an integral 130-gallon fuel tank. Operation is managed through low-mounted, easy-to-read analog instrumentation within a waterproof control box, featuring essential safety stop controls for low oil pressure and high water temperature.
| Brand | Carrier |
| Model | 69RG15-120W-55 |
| Product Type | Clip-On Reefer Generator Set |
| Power Output | 15 kW, 18.75 kVA, 460 VAC, 3 Phase, 60 Hz |
| Engine | CT4-134DI 4-cylinder water-cooled 2.2 L direct-injection diesel |
| Fuel Capacity | 130 gal |
| External Dimensions | 91.5″ L x 27.8″ W x 42.5″ H |
| Weight | 1,675 lb |
| Battery | 12V DC maintenance-free |
| Controls | Waterproof control box with low-mounted analog instrumentation |
| Safety Features | Automatic safety stops for low oil pressure and high water temperature |
| Mounting Type | Corner casting pin-mounting bracket / ratchet clamp locks |
