Description

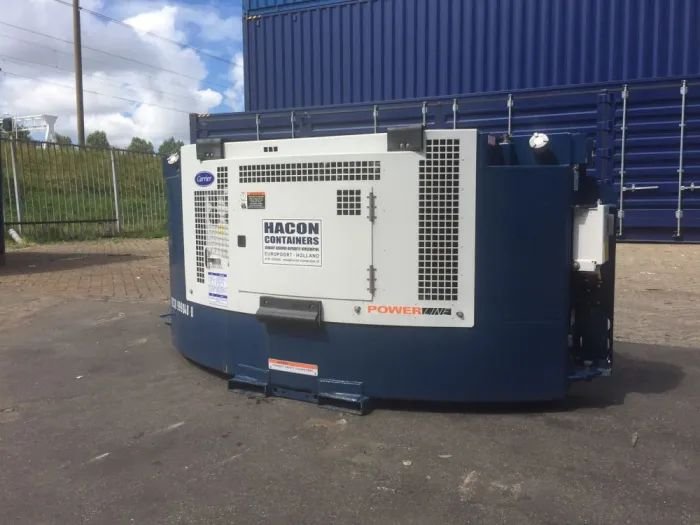

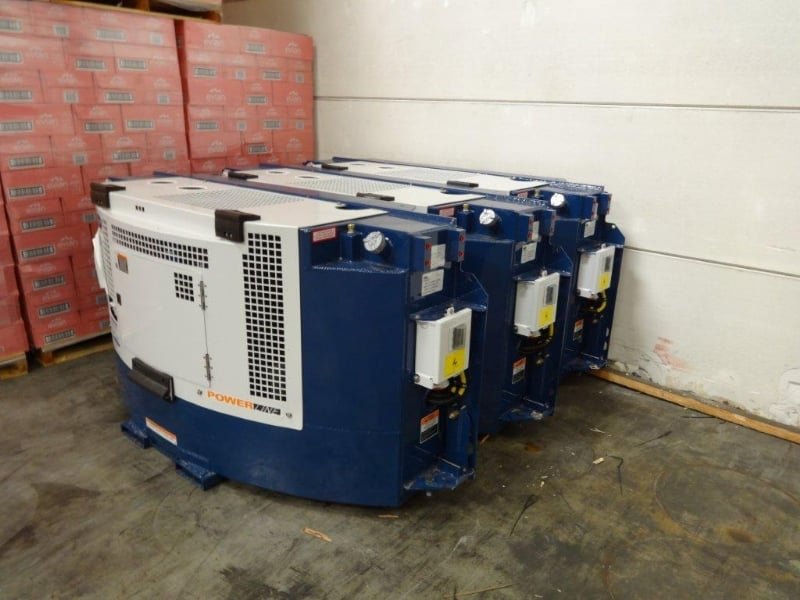

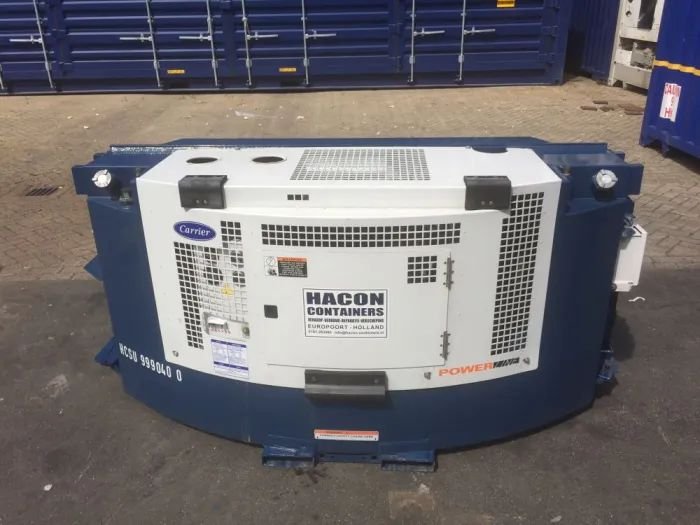

The Carrier PowerLINE 69RG15-120W-55 Clip-On Generator Set is engineered for continuous, unattended operation to deliver dependable electrical power to ISO refrigerated containers during road and rail transport. Built with a robust 2.2-liter direct-injection diesel engine and an ultra-high-efficiency generator, it produces a reliable 15 kW (18.75 kVA) 460V AC, 3-phase output tailored to operate all-electric reefer systems worldwide.
Equipped with Carrier Transicold’s FuelWise two-speed functionality (1,800 rpm / 60 Hz and 1,500 rpm / 50 Hz), this generator set automatically adjusts engine speeds based on refrigeration load demands to maximize fuel efficiency and lower operational emissions. Designed for quick and flexible installation, the unit offers pin-mounting brackets or optional clamp attachments to corner castings, allowing secure mounting and dismounting in minutes.
Key Features:
- Reliable Power Delivery: 15 kW, 18.75 kVA nominal output at 460V AC, 3-phase, 60 Hz.
- Fuel Efficiency: Integrated FuelWise two-speed technology optimizes fuel consumption during low-load conditions.
- Durable Construction: Features a 492 L (130 US gal) fuel tank, reinforced fork pockets, and weather-resistant enclosed electrical components.
- Easy Operation: Low-mounted analog instrumentation, waterproof control box, and built-in safety stop controls for low oil pressure and high coolant temperature.
| Brand | Carrier |
| Model | 69RG15-120W-55 |
| Product Type | Clip-On Generator Set |
| Power Output | 15 kW, 18.75 kVA, 460V AC, 3-Phase, 60 Hz |

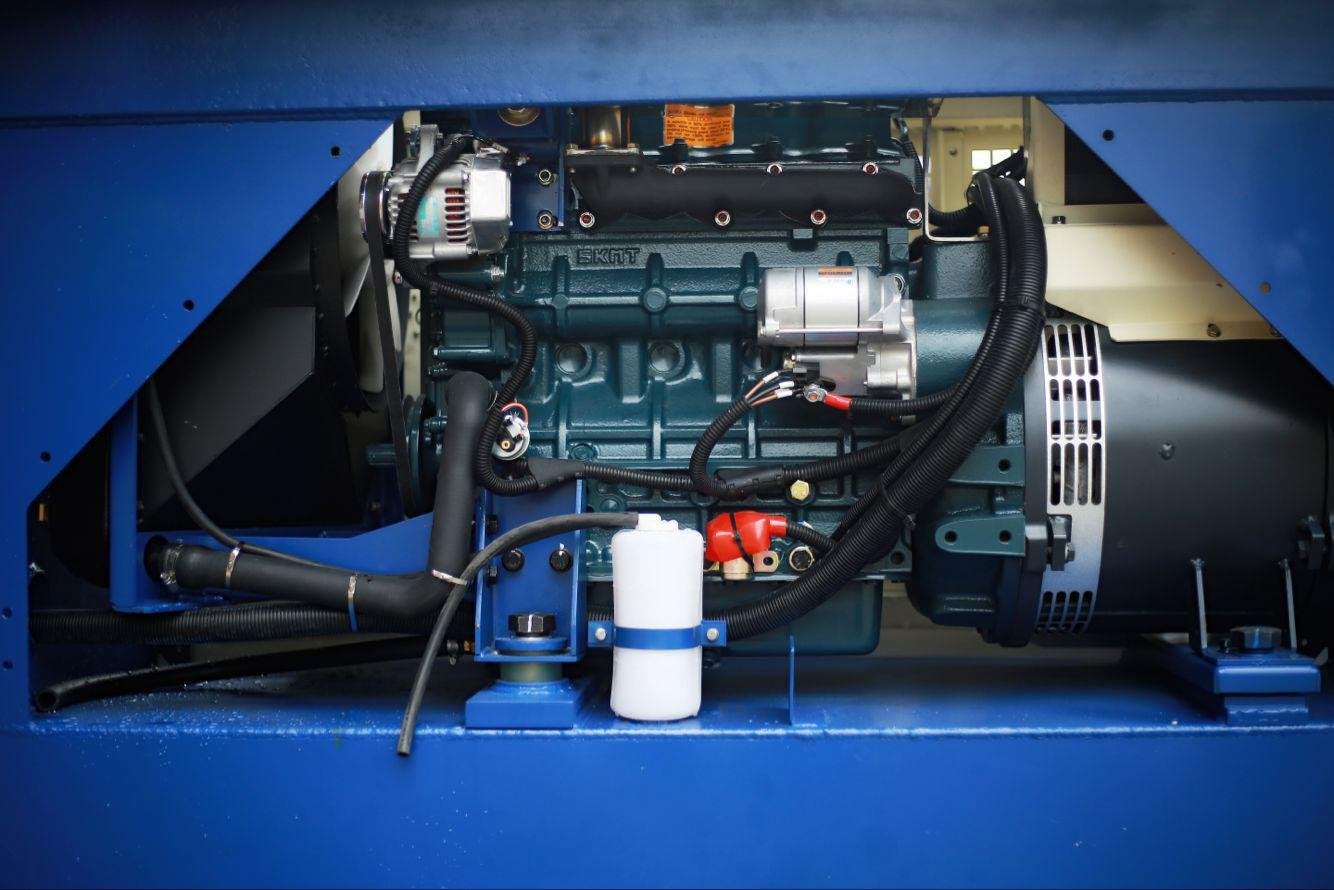

| Engine | CT4-134DI 4-cylinder water-cooled 2.2L direct-injection diesel engine |
| Fuel Capacity | 130 US gal (492 L) |
| Dimensions (L x W x H) | 2,324 mm x 706 mm x 1,078 mm (91.5 in x 27.8 in x 42.5 in) |
| Weight (Less Fuel) | 830 kg (1,830 lb) |
| Battery | 12V DC maintenance-free |

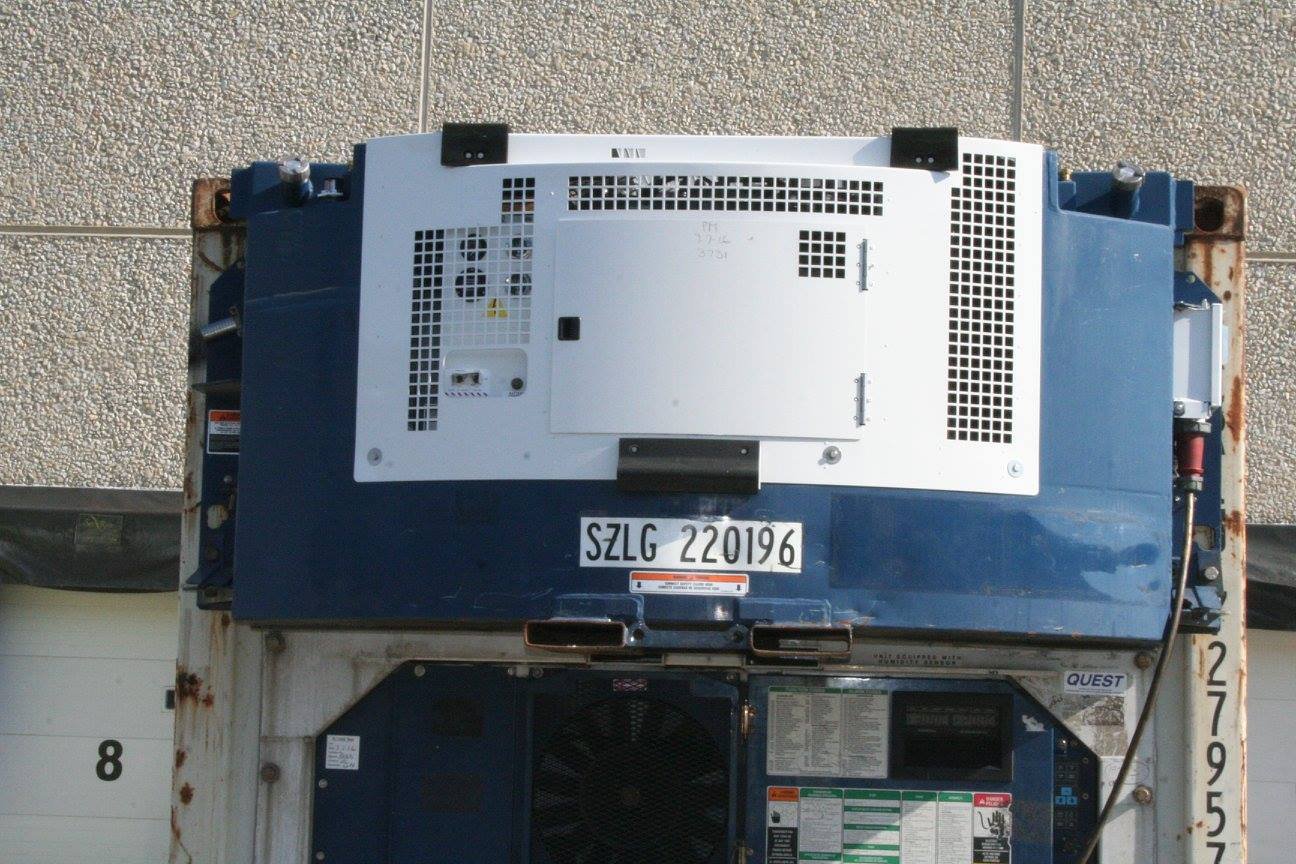

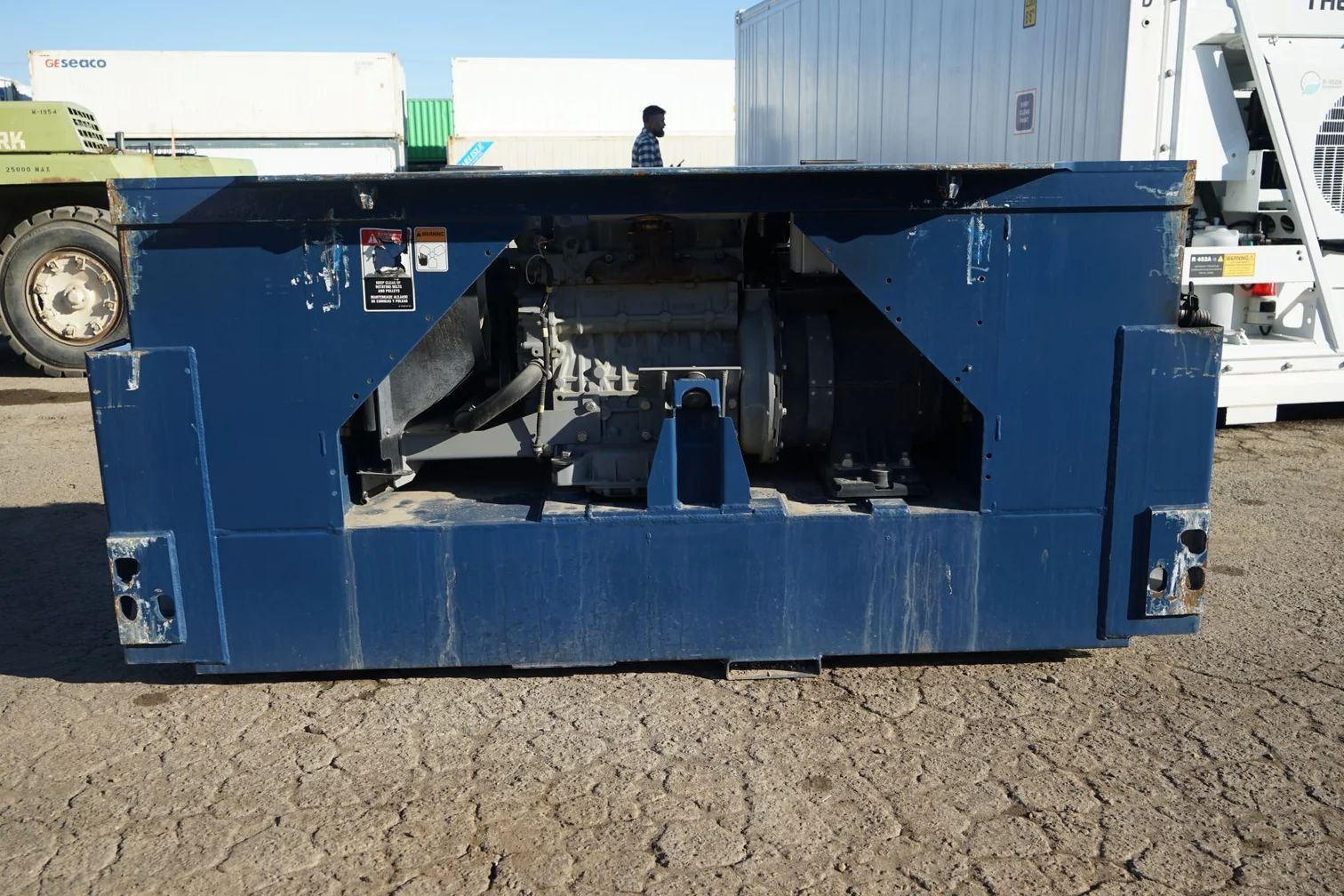

| Mounting Type | Pin-mounting bracket or corner-casting clamp |
| Operating Ambient Temperature | -40°C to +52°C (-40°F to +125°F) |
| Safety Controls | Low-pressure and high-water temperature safety shutoff |
