Description

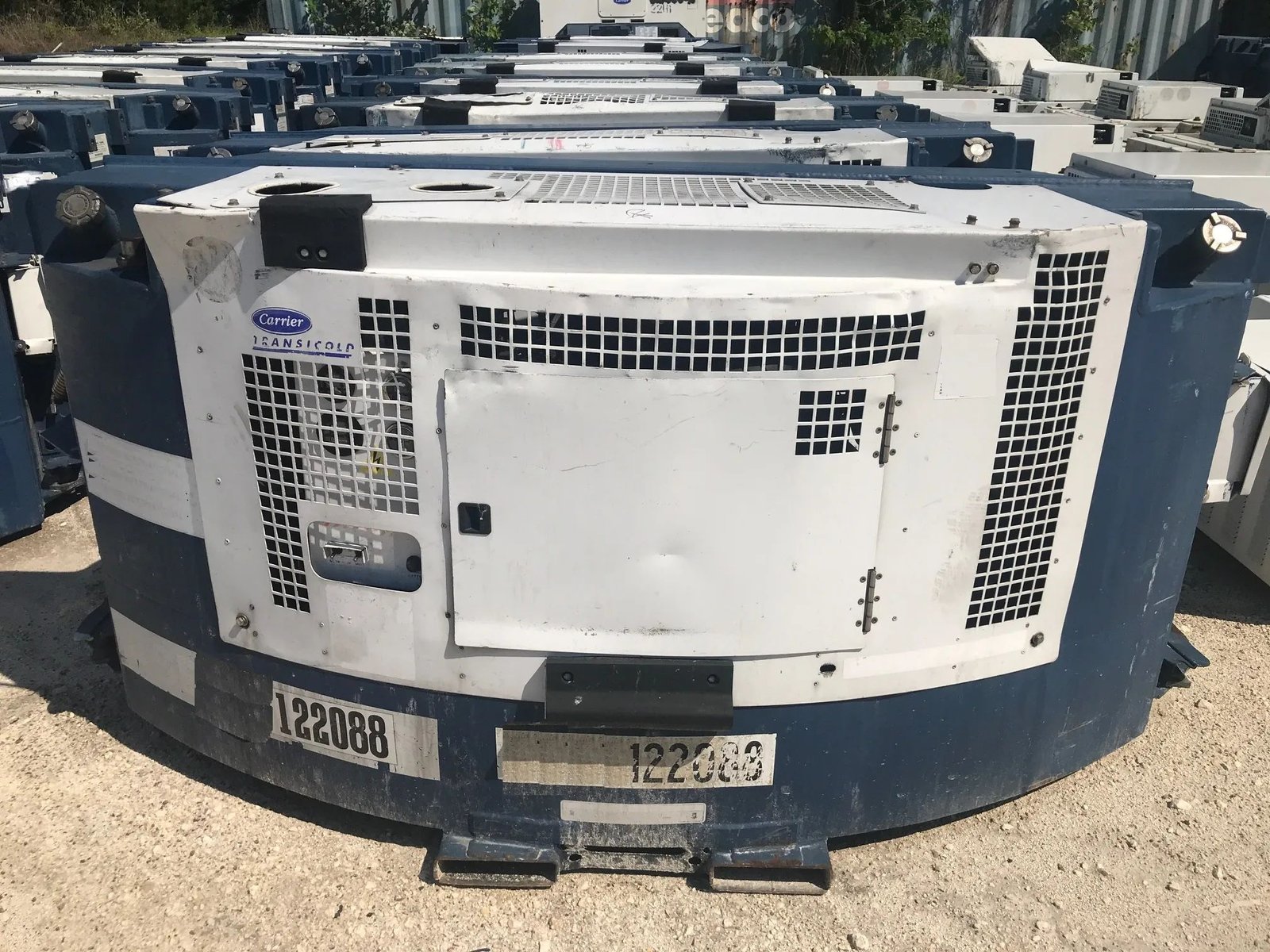

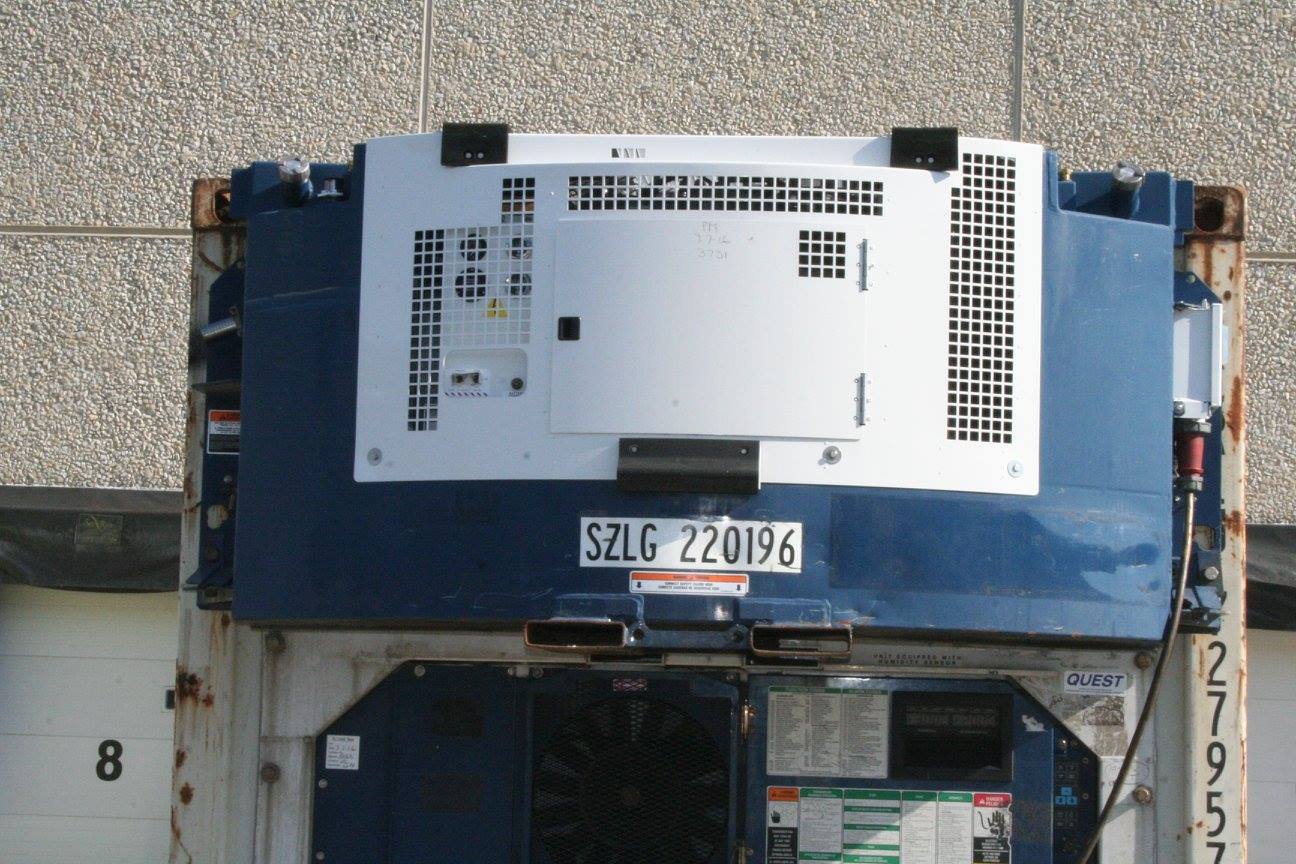

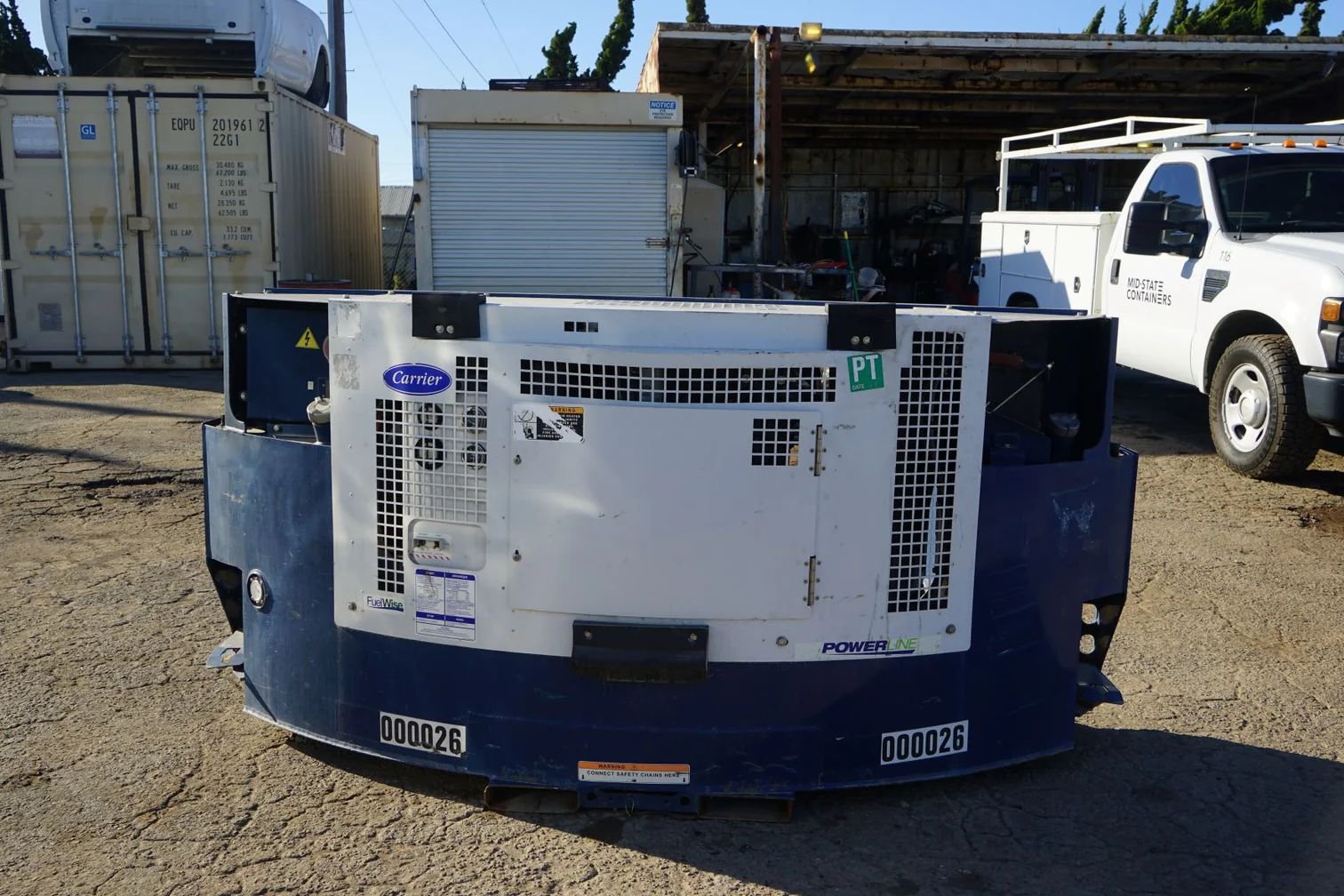

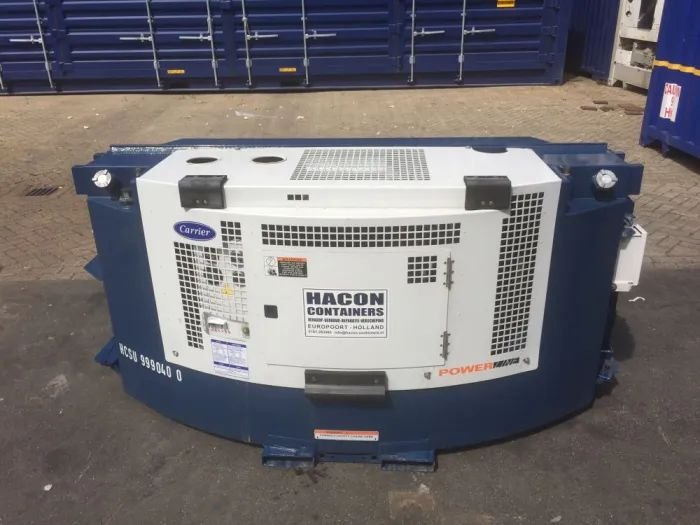

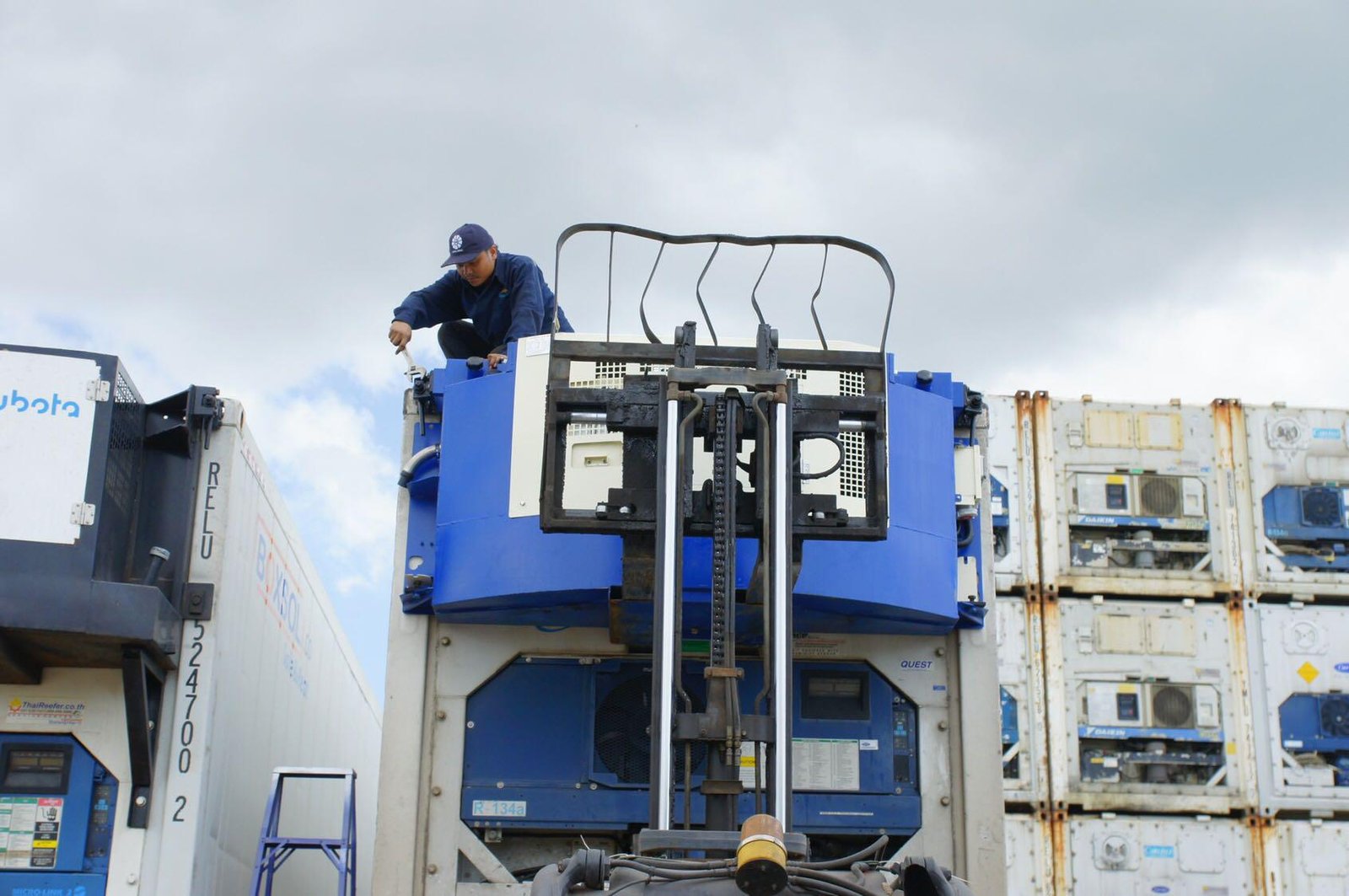

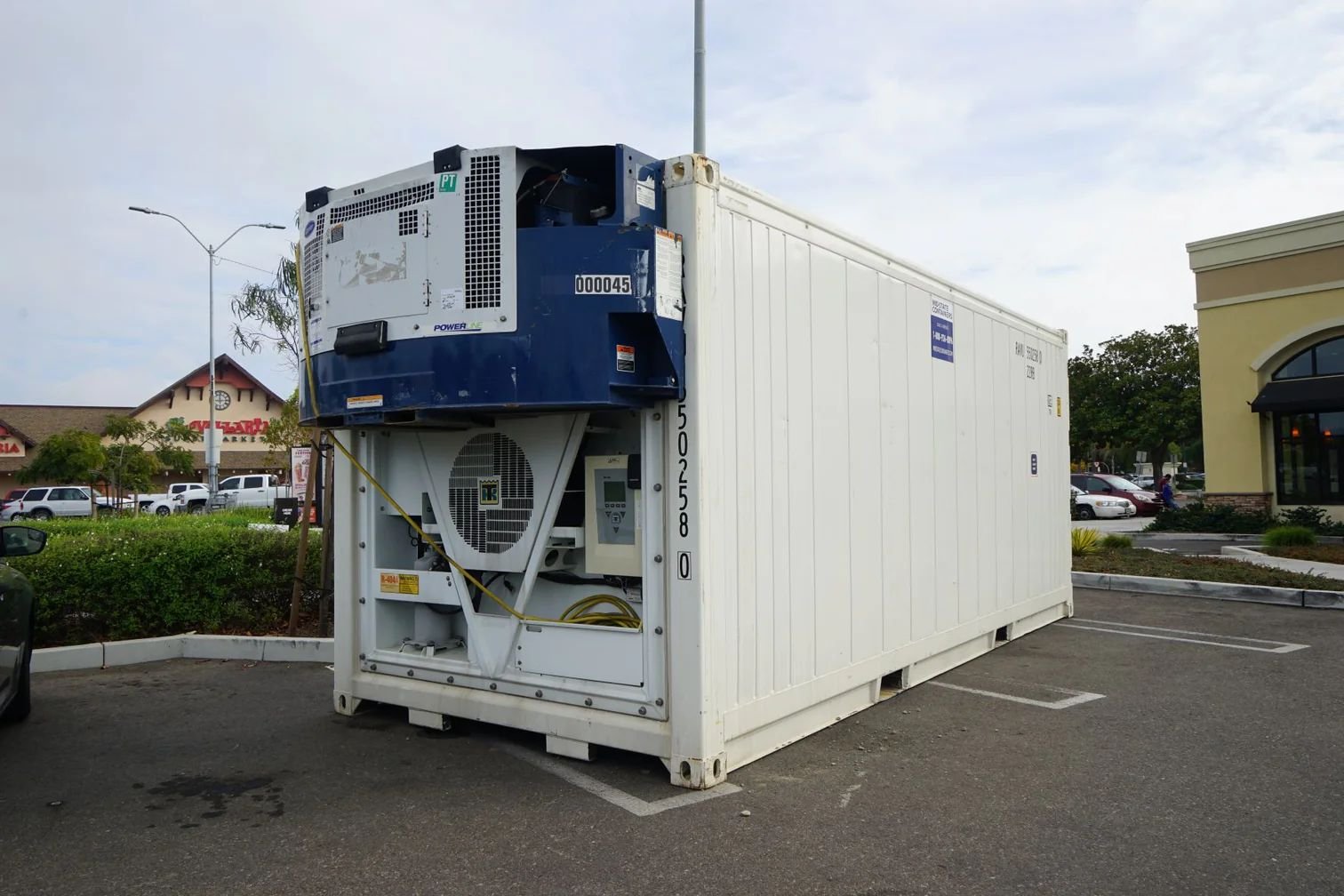

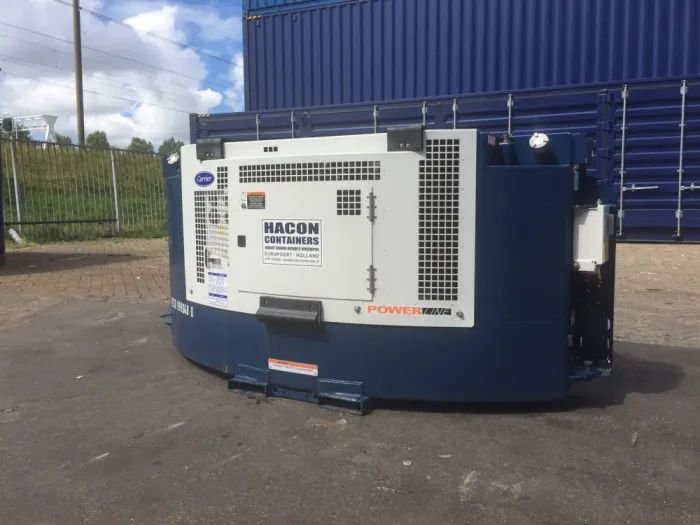

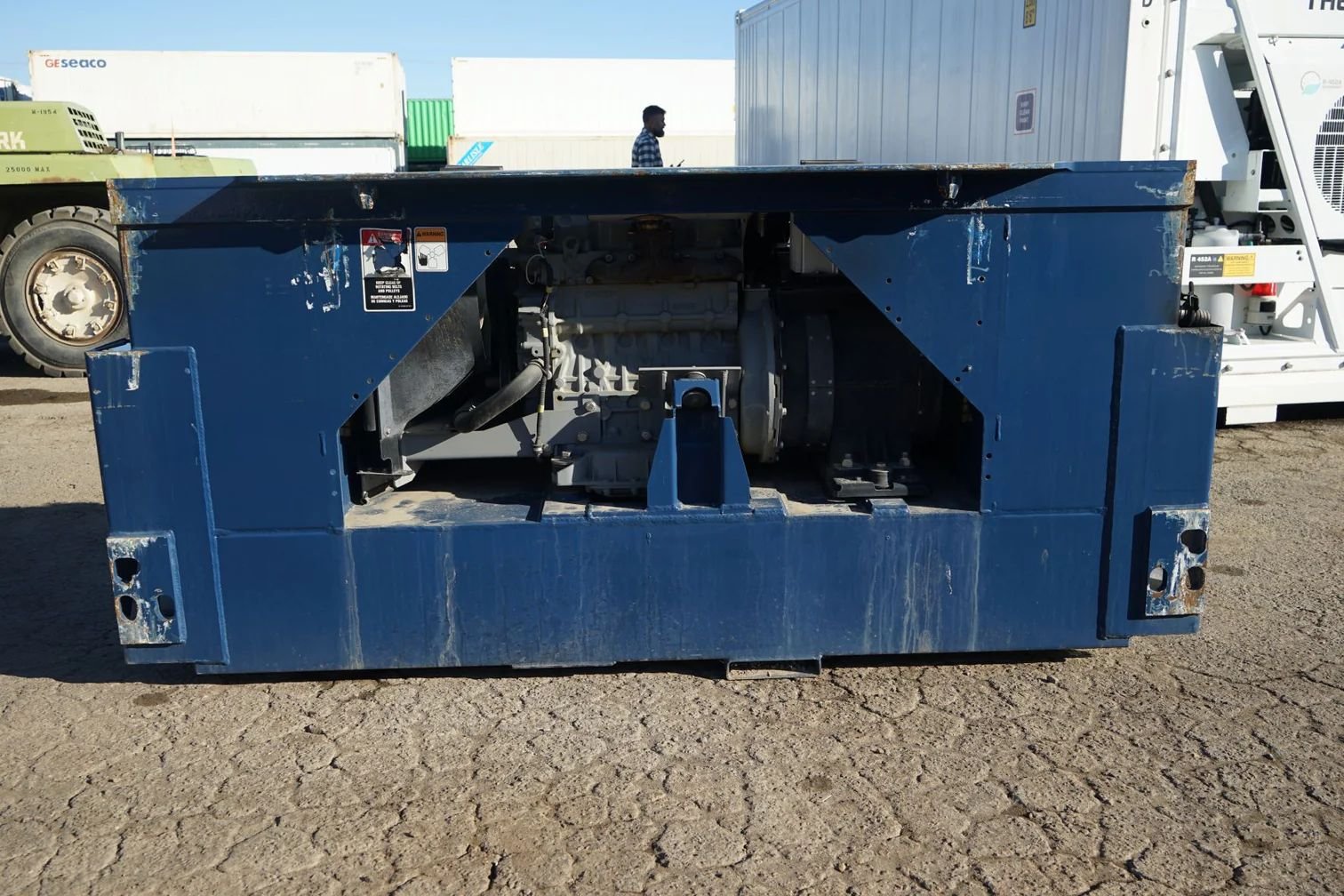

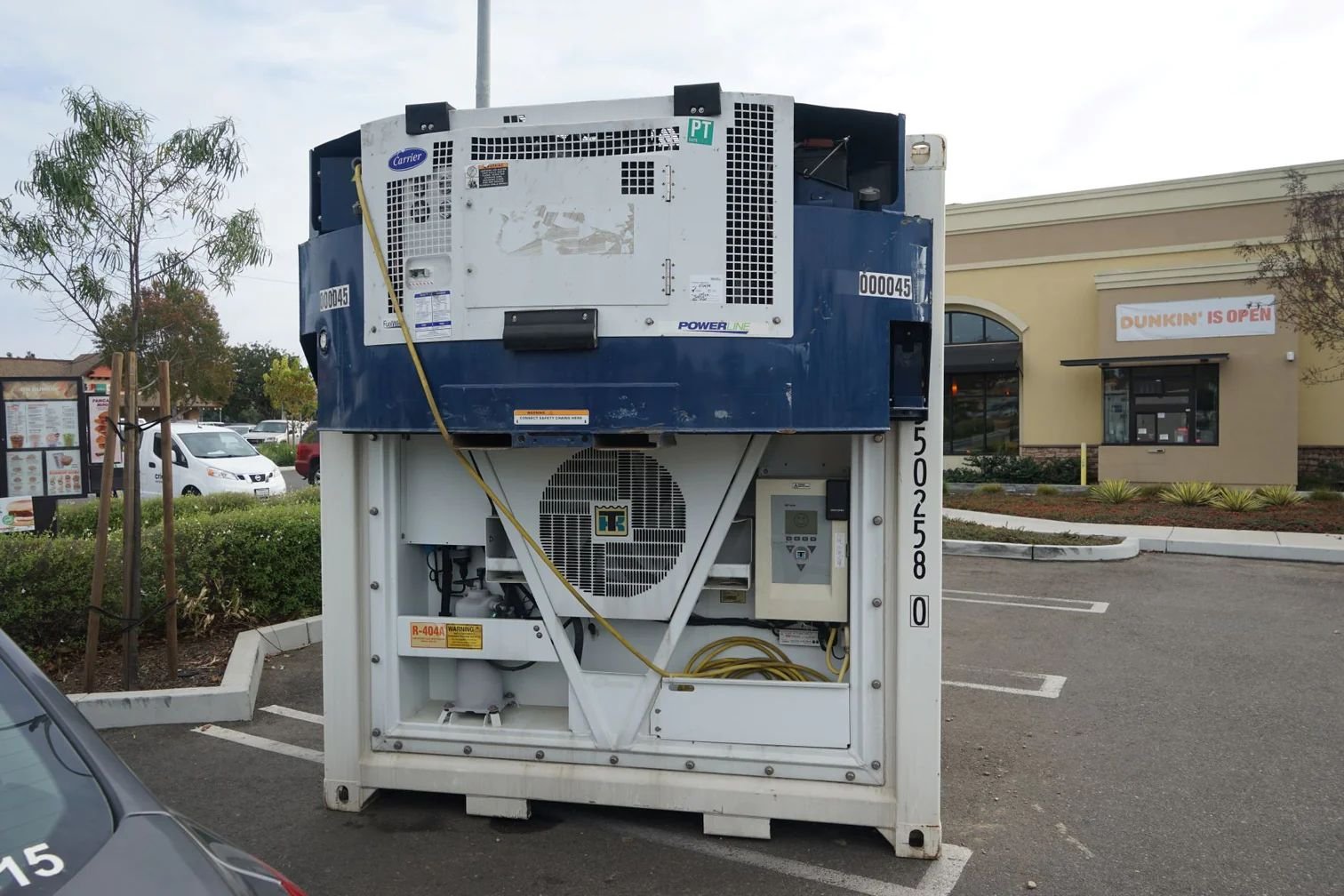

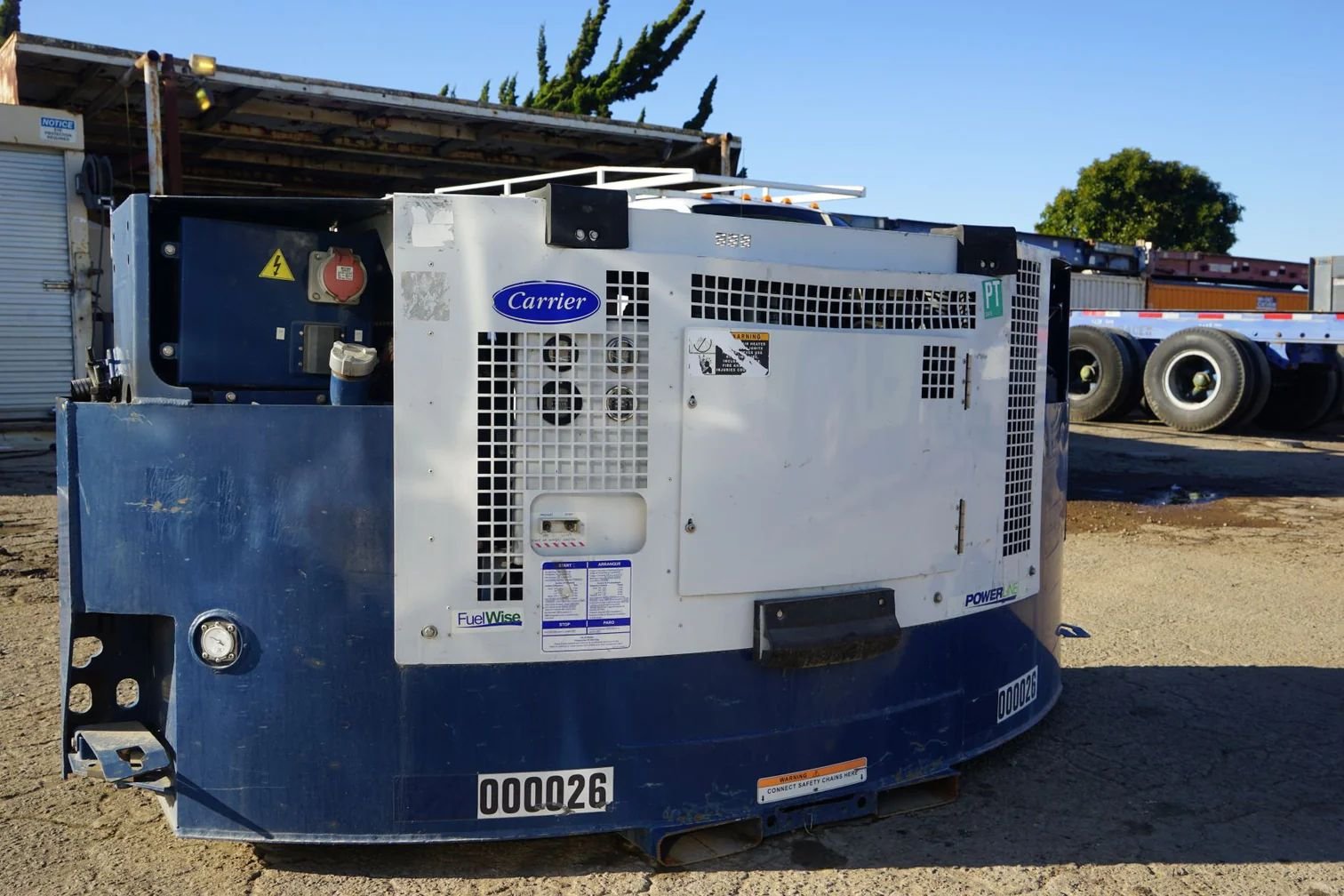

The Carrier Transicold PowerLINE® 69RG15-120W-55 Clip-On Generator Set delivers dependable, autonomous electrical power designed specifically for all-electric ISO refrigerated containers transported via road or rail. Engineered for continuous, unattended operation, this heavy-duty diesel genset mounts securely to container corner castings in minutes using pin-mounting brackets or self-aligning ratchet clamp locks.
High-Performance Diesel Power

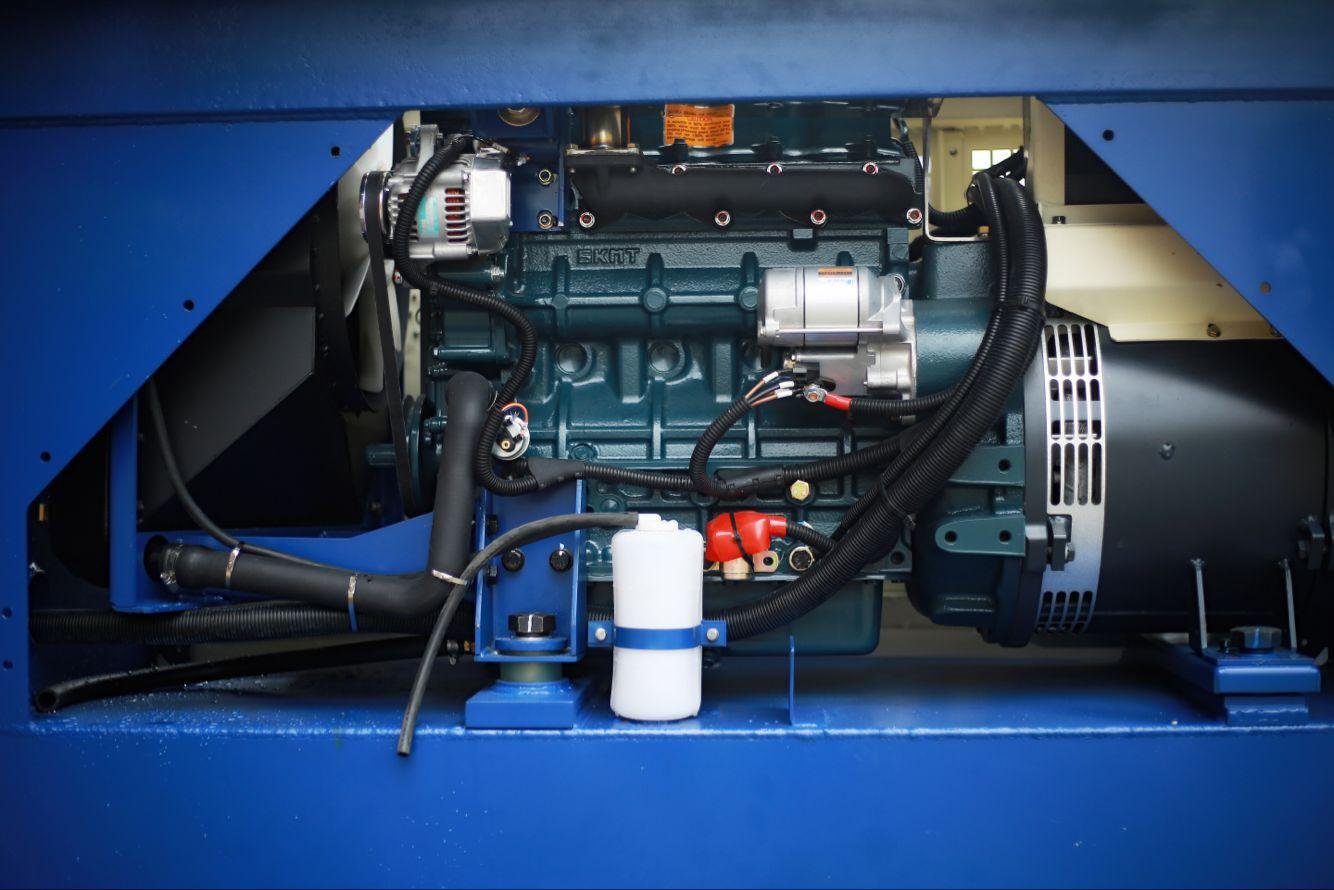

Powered by a proven CT4-134DI 4-cylinder, 2.2-liter direct-injection water-cooled diesel engine with an electronic governor and speed sensor, the system supplies a nominal 15 kW (18.75 kVA) output at 460 VAC, 3-phase, 60 Hz. A vacuum pressure-impregnated rotor, sealed large-diameter rear bearing, and radial disc cooling fan ensure durable, long-lasting performance in demanding environments.
Rugged Construction and Reliable Controls
Built to operate in ambient temperatures from -40°F to 125°F (-40°C to 52°C), the 69RG15 features low-mounted controls housed in a waterproof control box. Integrated safety stop controls protect against low oil pressure and high coolant temperatures. A substantial 130-gallon fuel tank provides extended runtime for short- or long-haul transport.
- Power Output: 15 kW / 18.75 kVA, 460V AC, 3-Phase, 60 Hz
- Engine: CT4-134DI 2.2L 4-cylinder direct-injection diesel
- Fuel Capacity: 130 gal (492 L)
- Mounting Compatibility: ISO and DNV 2.7-1 refrigerated containers
- Battery: 12V DC maintenance-free
| Brand | Carrier |
| Manufacturer | Carrier Transicold |
| Model Number | 69RG15-120W-55 |
| Product Type | Clip-On Generator Set |
| Power Output | 15 kW (18.75 kVA), 460V AC, 3 Phase, 60 Hz |
| Engine | CT4-134DI 4-cylinder water-cooled 2.2L direct-injection diesel |
| Fuel Tank Capacity | 130 gal (492 L) |
| Dimensions (L x W x H) | 91.5 in x 27.8 in x 42.5 in (2,324 mm x 706 mm x 1,078 mm) |
| Total Weight | 1,804 lbs (818 kg) dry with battery and fluids |
| Weight (Less Fuel) | 1,830 lbs (830 kg) |
| Battery | 12V DC maintenance-free |
| Mounting Type | Clip-on pin bracket / self-aligning ratchet clamp |
| Operating Ambient Temperature | -40°F to 125°F (-40°C to 52°C) |
| Safety Controls | Low oil pressure, high water temperature automatic shutdown |
