Description

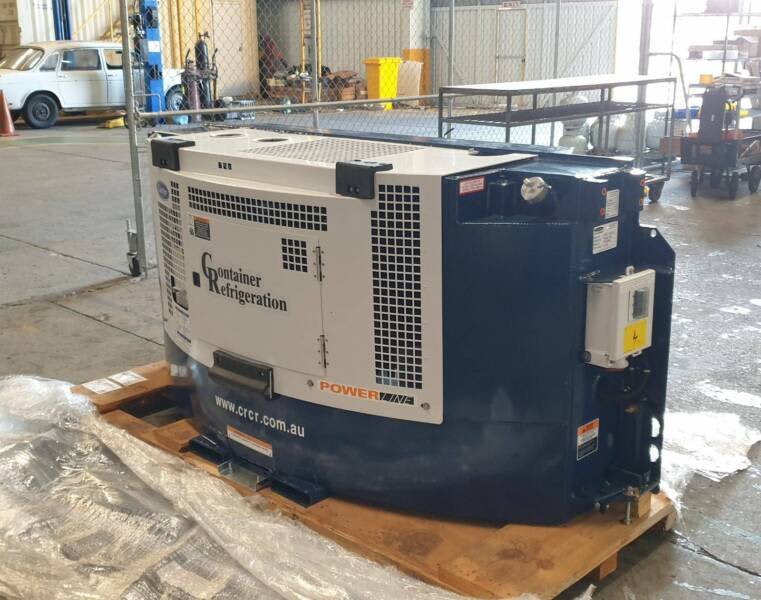

The Carrier POWERLINE 69RG15 series clip-on generator set delivers dependable, continuous power designed for ISO refrigerated containers during road and rail transport worldwide. Engineered for unattended operation, it provides autonomous power to safeguard temperature-controlled cargo.
Performance & Engine

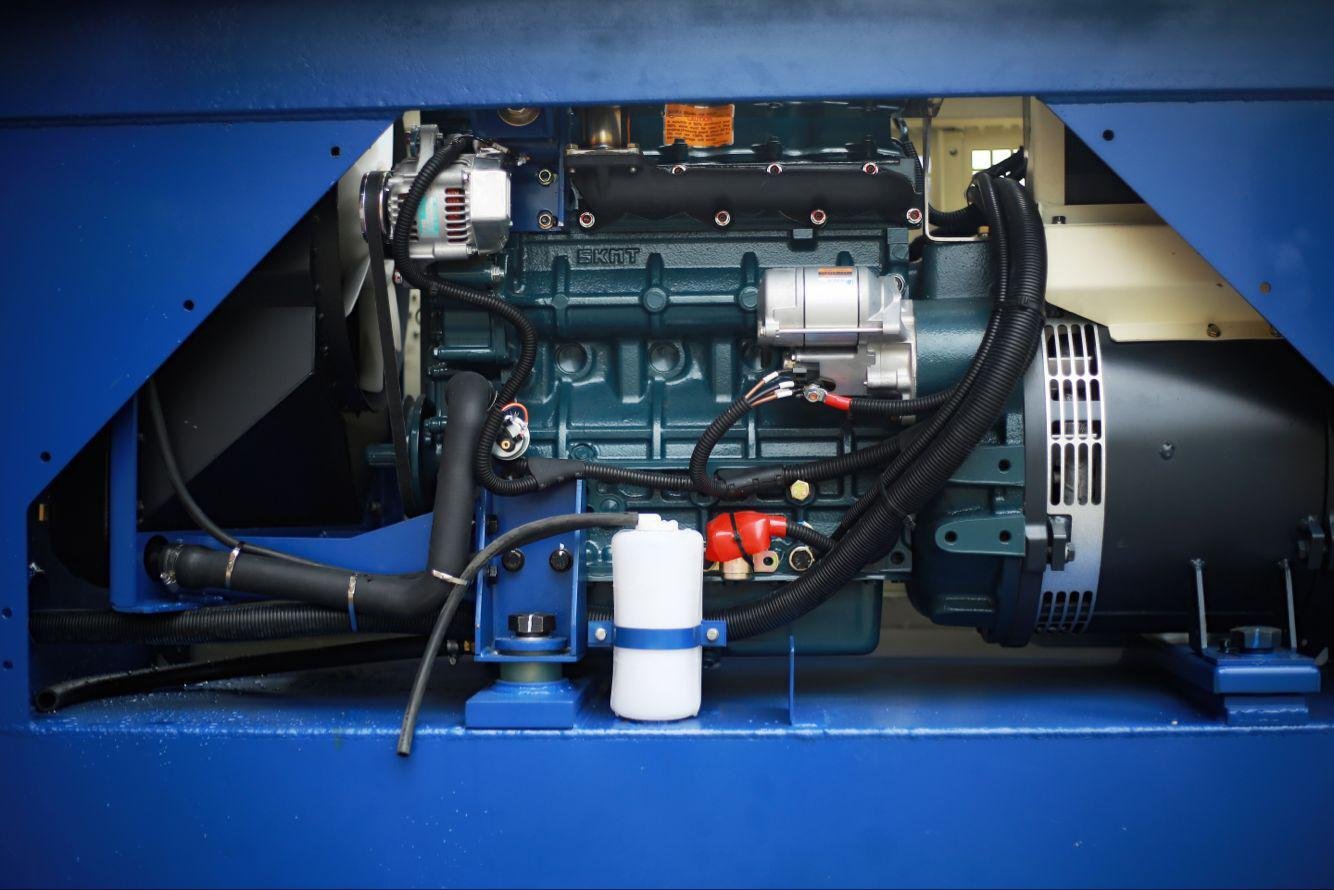

Powered by a CT4-134DI 4-cylinder water-cooled 2.2-liter direct-injection diesel engine equipped with an electronic governor and speed sensor. It features a nominal 15 kW (18.75 kVA) 460V AC, 3-phase, 60 Hz brushless generator with a vacuum pressure-impregnated rotor and a disc-type radial cooling fan with a sealed large-diameter rear bearing.
Mounting & Construction
Designed for fast and secure attachment directly to container corner castings using pin-mounting brackets or self-aligning ratchet clamp locks, enabling installation and removal in minutes. Constructed to withstand harsh operating environments ranging from -40°F to 125°F (-40°C to 52°C).
Controls & Capacity
Equipped with a low-mounted waterproof control box featuring preheat and start/run/off switches, safety shutoff controls for low oil pressure and high coolant temperature, and a 12V DC maintenance-free battery. Features an integrated 130-gallon fuel tank for extended operational runtimes.
| Brand | Carrier Transicold |
| Power Output | 15 kW / 18.75 kVA, 460V AC, 3 Phase, 60 Hz |
| Engine | CT4-134DI 4-cylinder, water-cooled 2.2L direct-injection diesel |
| Fuel Capacity | 130 gal (492 L) |
| Dimensions (L x W x H) | 91.5 in x 27.8 in x 42.5 in (2,324 mm x 706 mm x 1,078 mm) |
| Dry Weight | 1,830 lb (830 kg) |
| Battery | 12V DC maintenance-free |
| Mounting Type | Pin-mounting bracket / Ratchet clamp locks to corner castings |
| Operating Temperature Range | -15°F to 125°F (-26°C to 52°C) start; -40°F to 125°F (-40°C to 52°C) run |
| Safety Controls | Low oil pressure, high water temperature automatic shutoff |
