Description

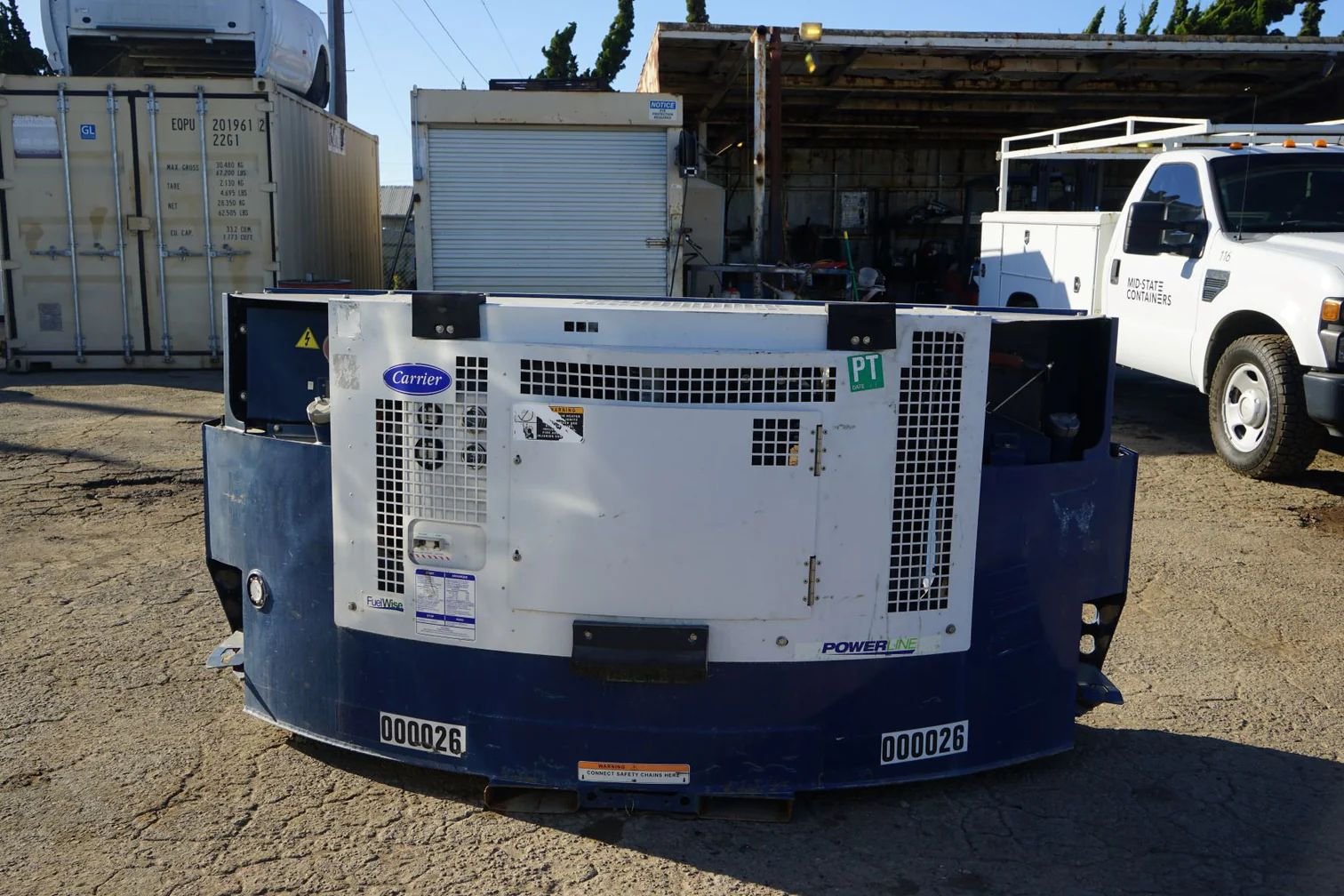

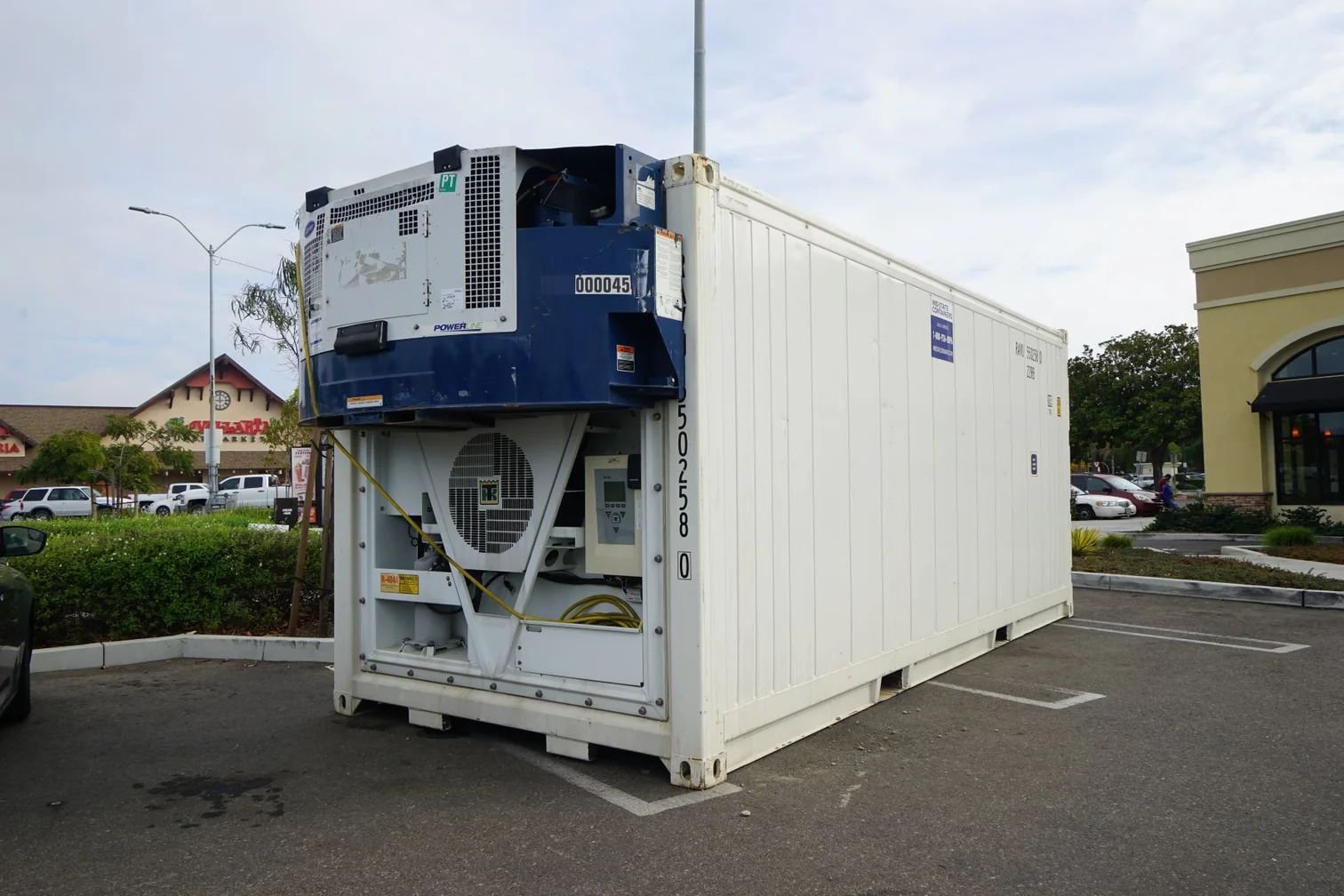

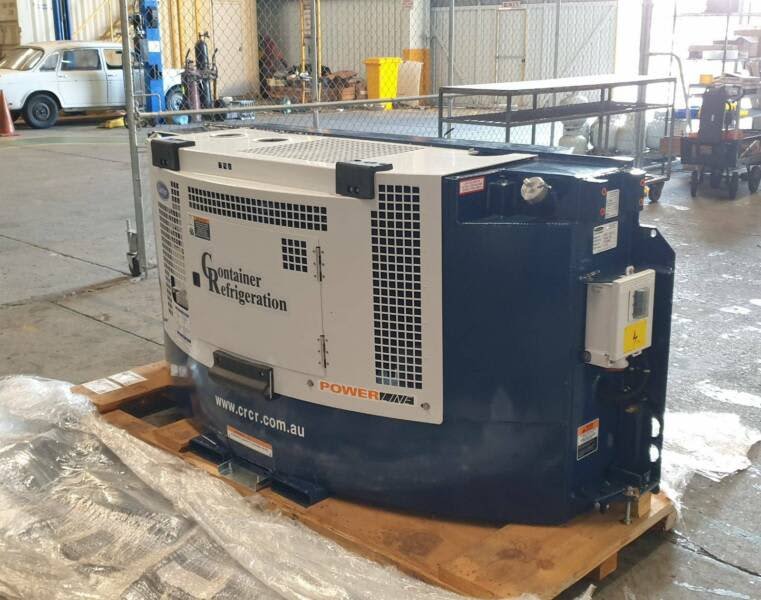

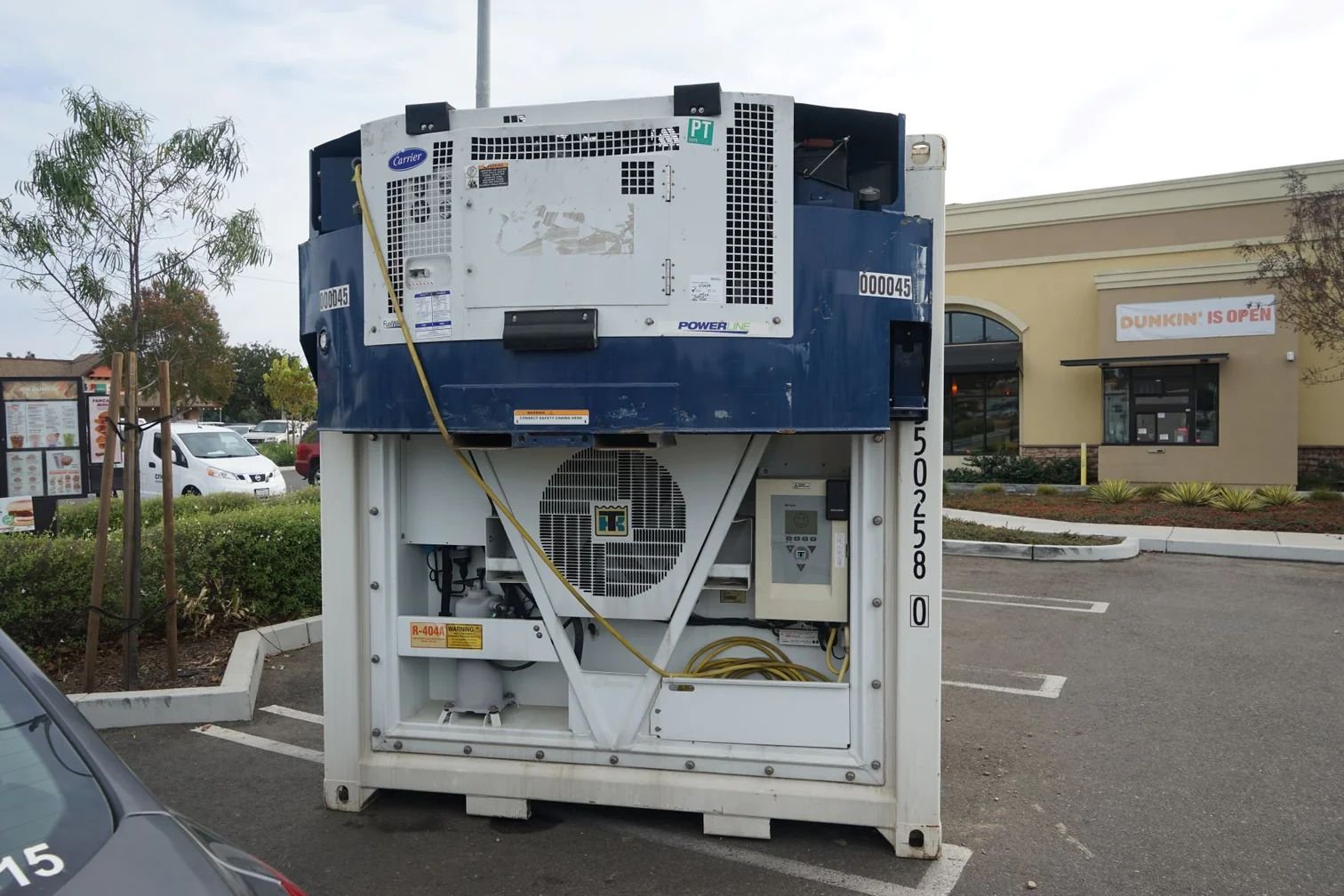

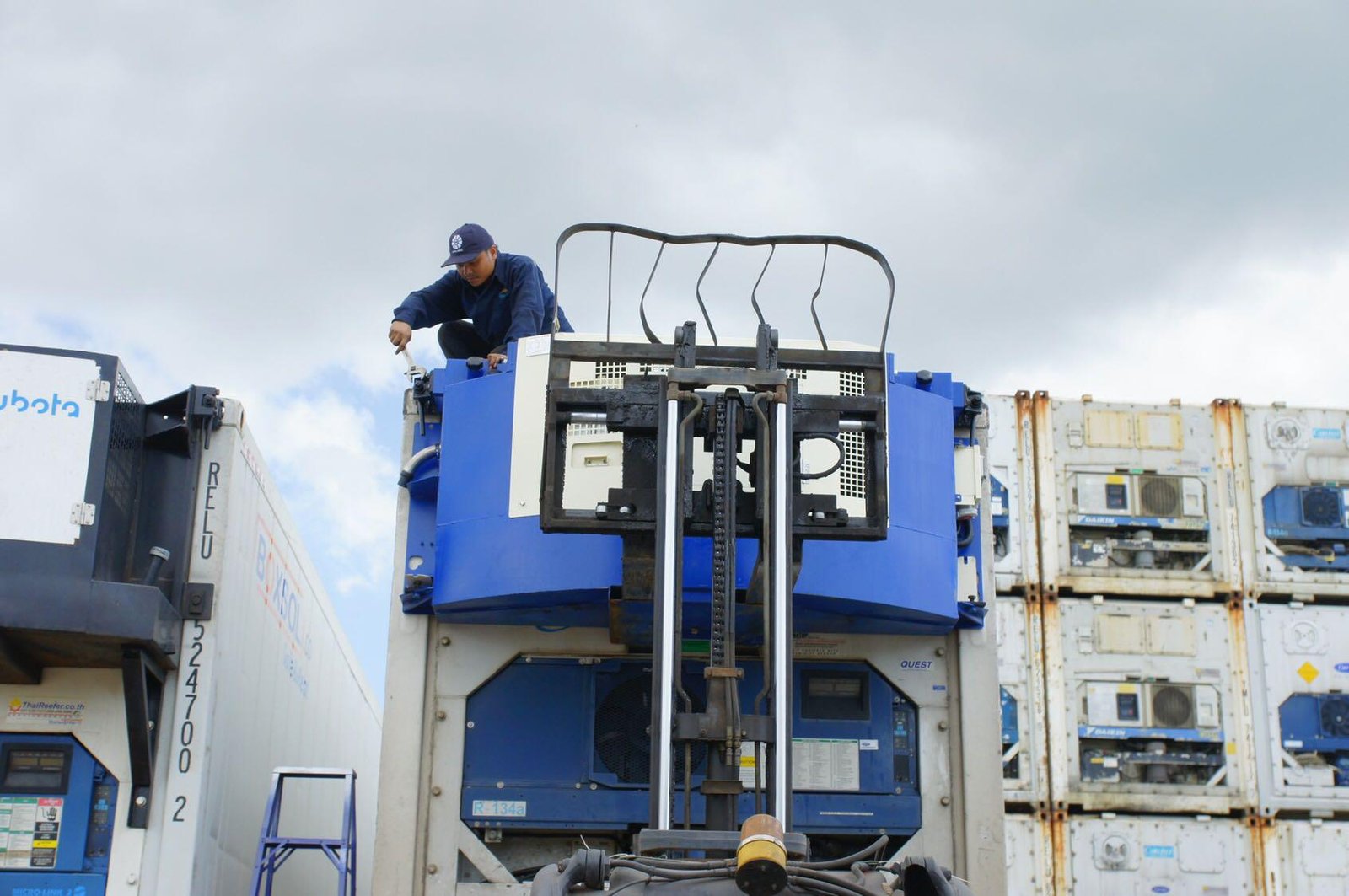

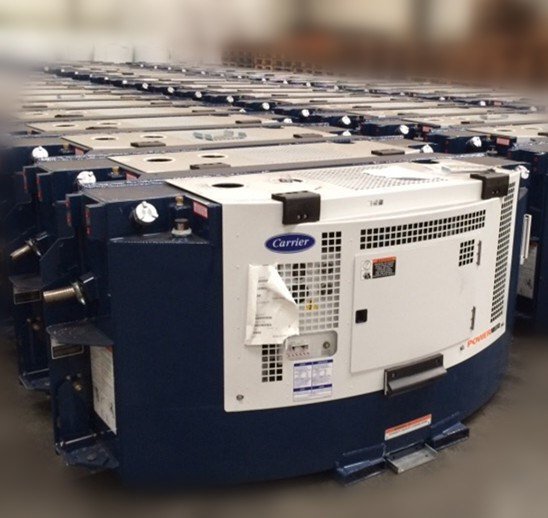

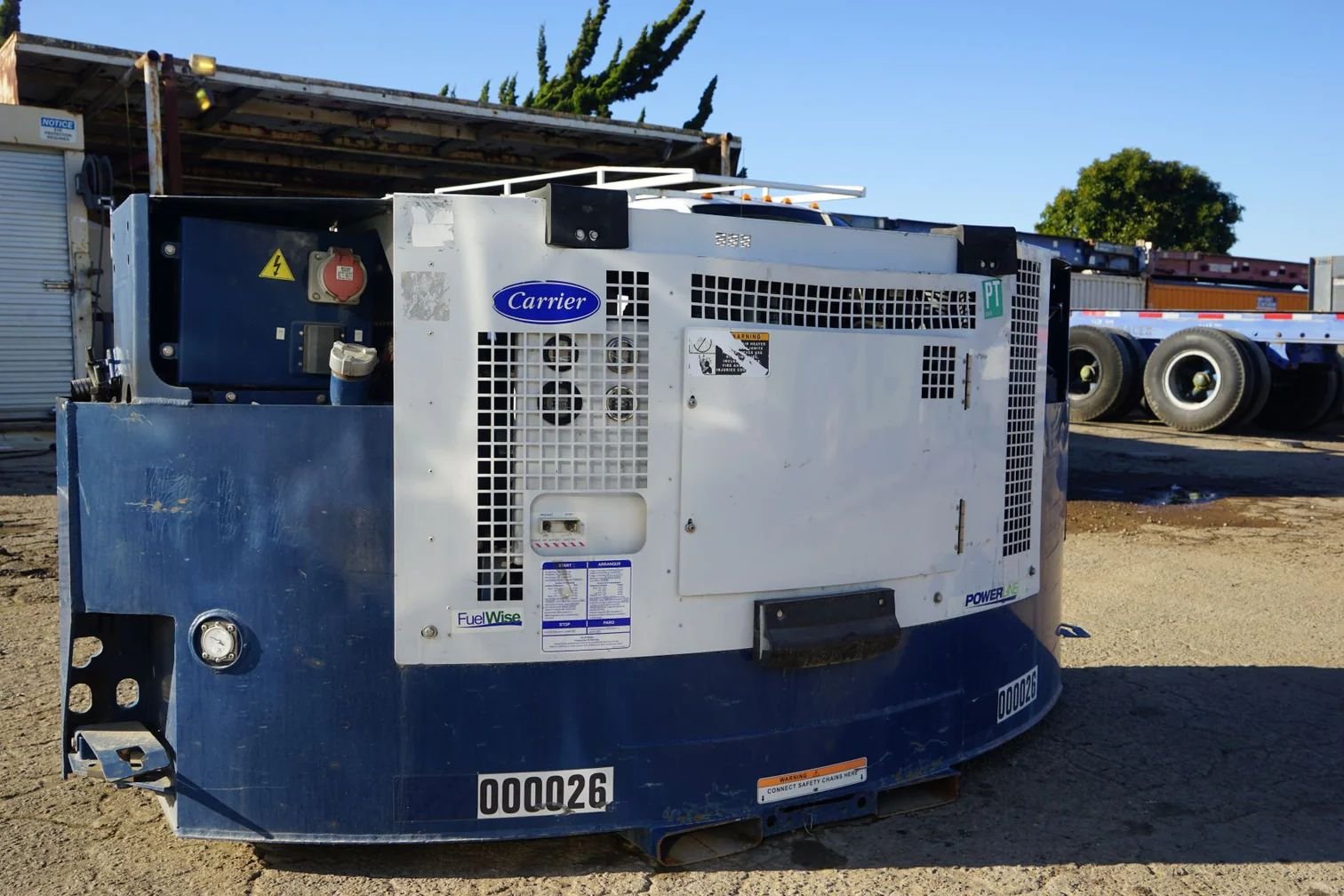

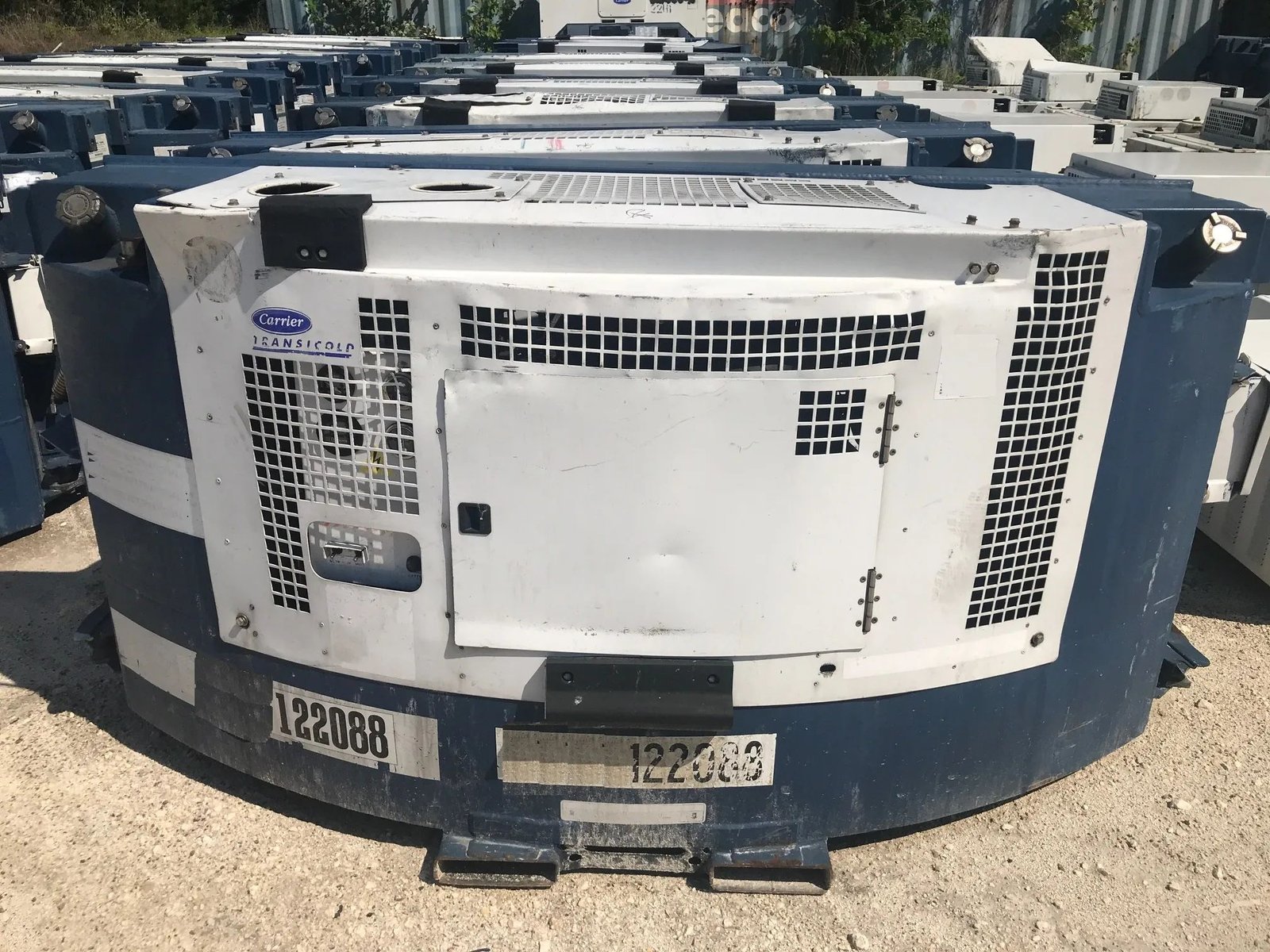

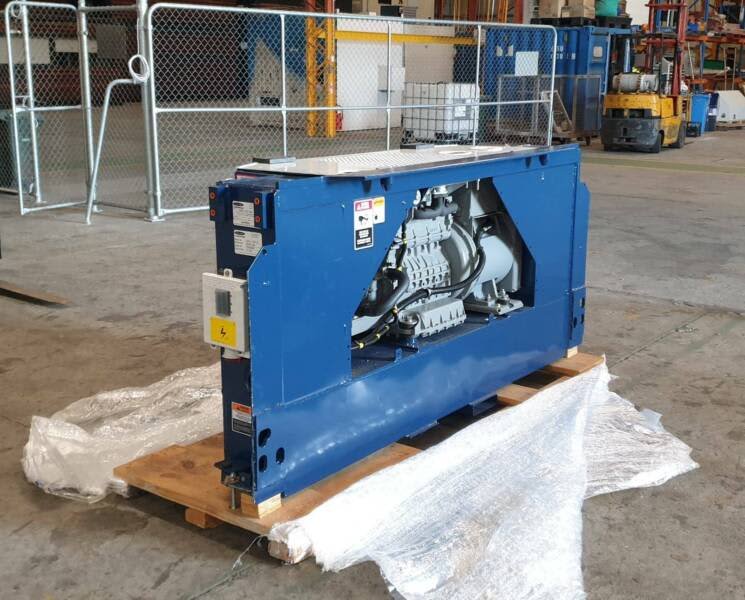

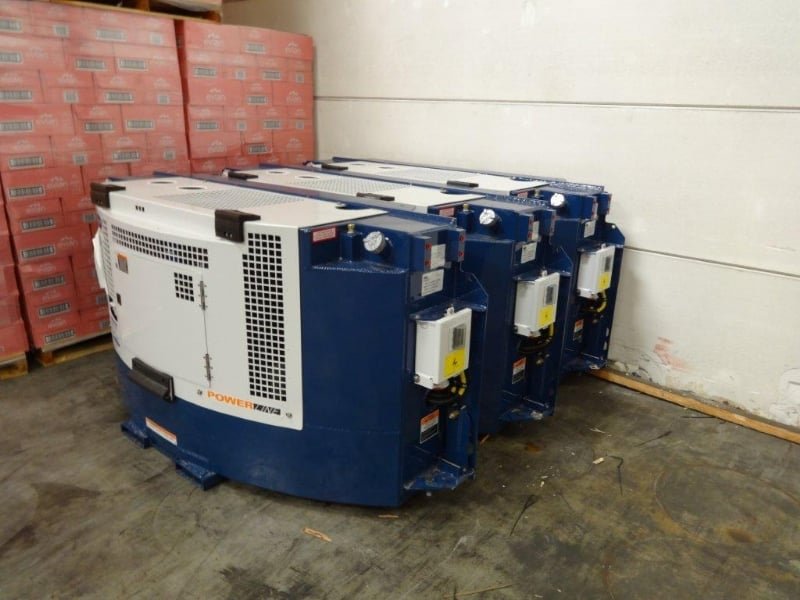

The Carrier PowerLINE 69RG15 Clip-On Generator Set provides reliable, continuous, unattended power for refrigerated containers transported across road or rail. Designed for rugged performance and straightforward operation, this genset attaches directly to container chassis corner castings via clip-on pin-mounting brackets or self-aligning ratchet clamp locks, allowing complete attachment and removal in minutes.

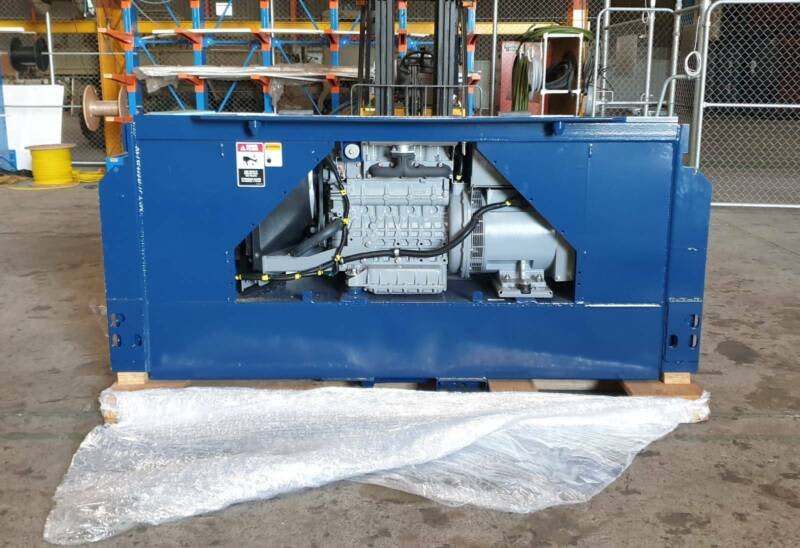

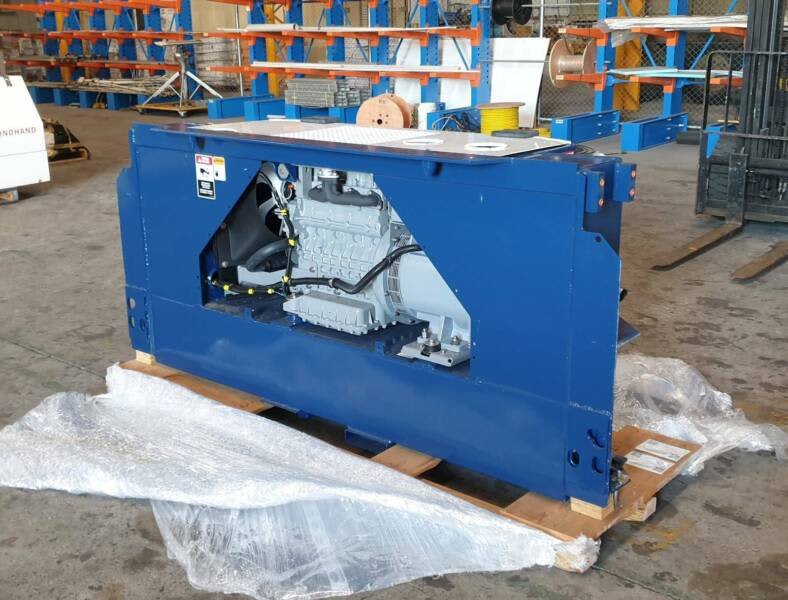

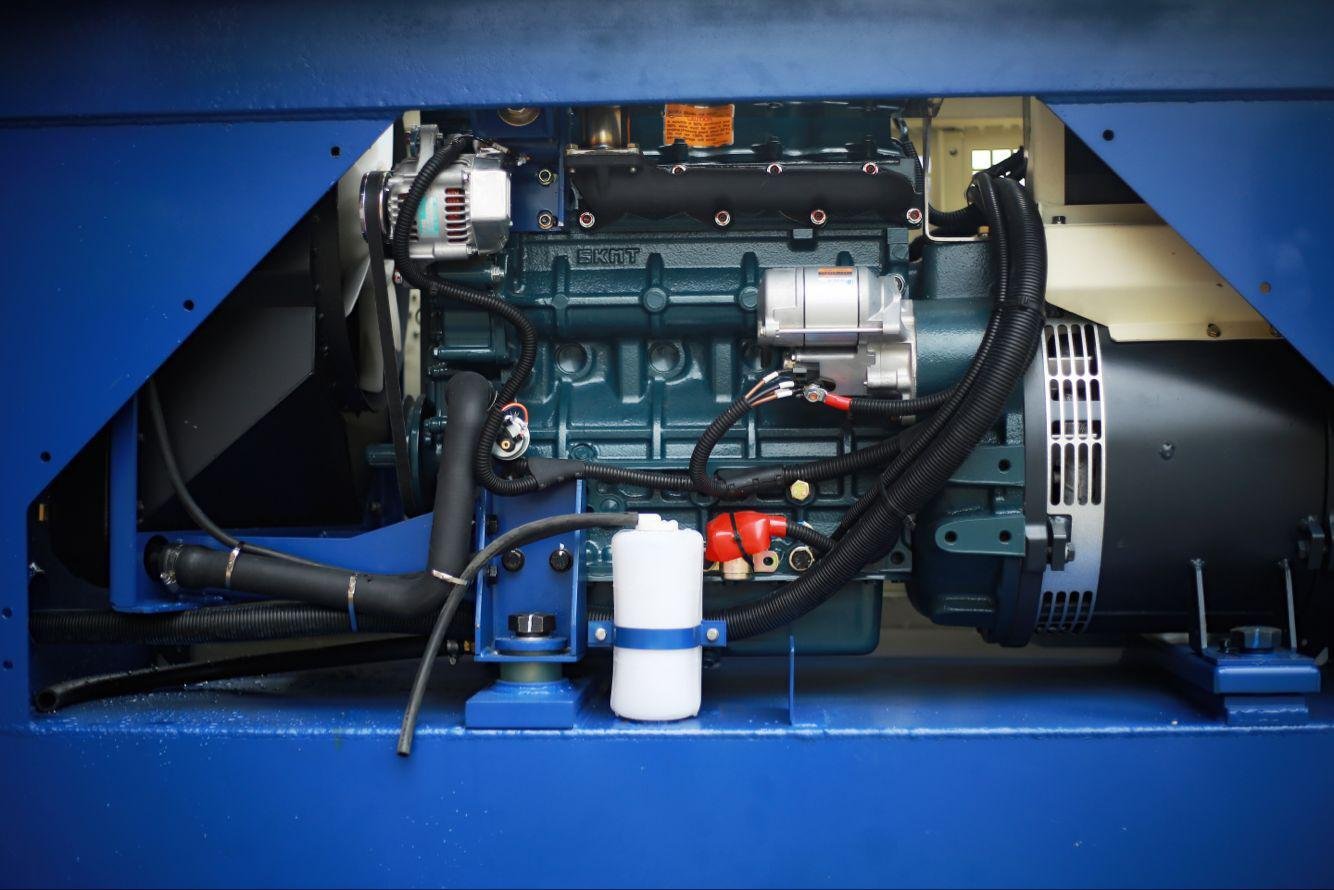

Powered by a heavy-duty CT4-134DI 4-cylinder, 2.2-liter direct-injection water-cooled diesel engine, this unit delivers a nominal 15 kW (18.75 kVA) 460V AC 3-phase output at 60 Hz. It features an integrated 130-gallon (492-liter) fuel tank, offering ample capacity for continuous long-haul transit.
- Engine: 2.2-liter direct-injection diesel engine equipped with electronic governor and speed sensor
- Cooling & Build: Disc-type radial fan cooling, vacuum pressure-impregnated rotor, and sealed large-diameter rear bearing

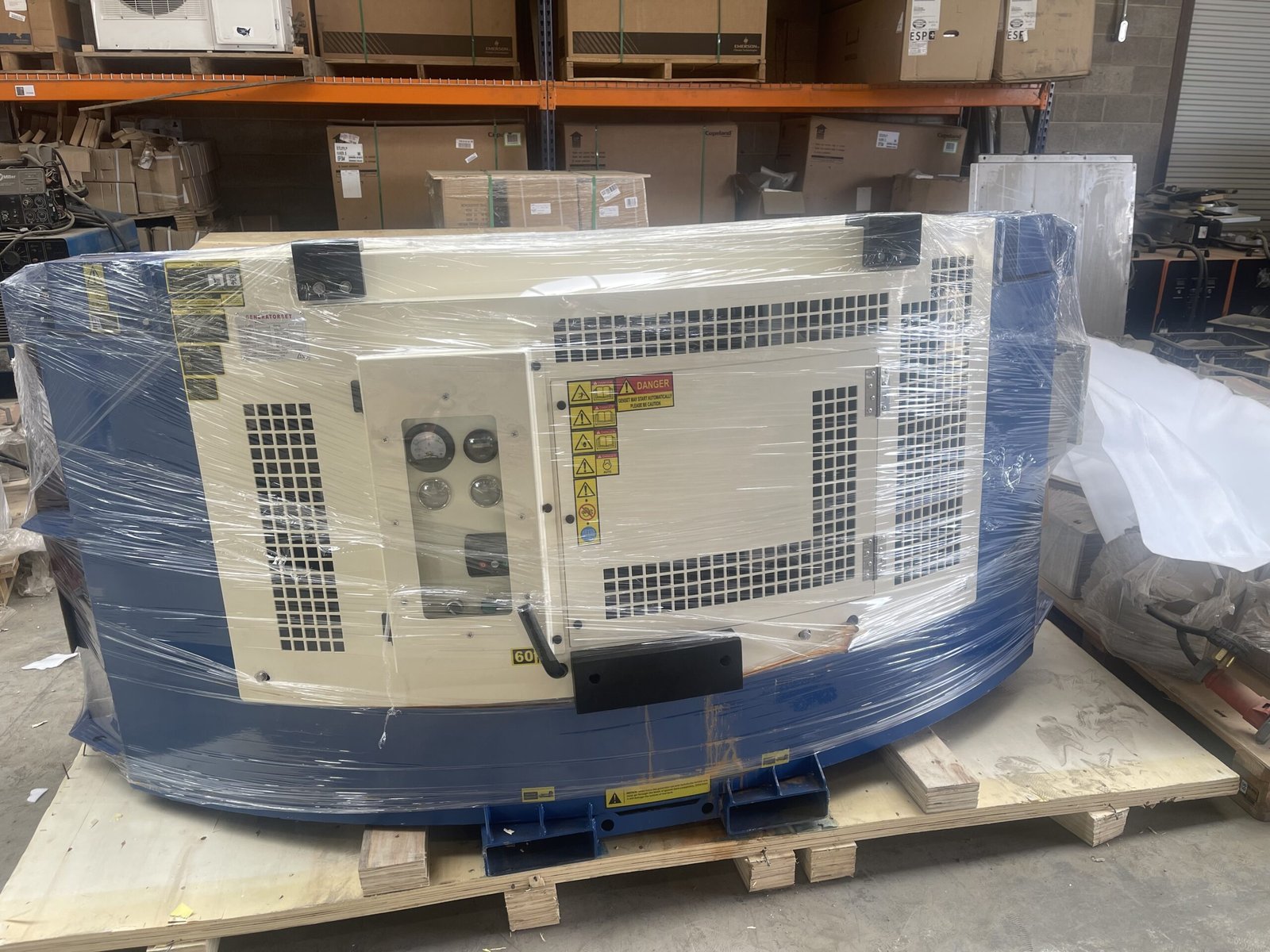

- Control Interface: Low-mounted waterproof control box with manual preheat, start/run/off controls, and 12V DC maintenance-free battery
- Integrated Safety: Automatic safety stop controls for low oil pressure and high coolant temperature
- Compatibility: Engineered for ISO and DNV 2.7-1 refrigerated container configurations
| Brand | Carrier |
| Model Series | PowerLINE 69RG15 |
| Product Type | Clip-On Generator Set |
| Engine Model | CT4-134DI 4-Cylinder Direct-Injection Diesel |
| Engine Displacement | 2.2 L |
| Electrical Output | 15 kW / 18.75 kVA, 460V AC, 3-Phase, 60 Hz |
| Fuel Tank Capacity | 130 US gal (492 L) |
| Dimensions (L x W x H) | 91.5 in x 27.8 in x 42.5 in (2,324 mm x 706 mm x 1,078 mm) |
| Weight | 1,675 lbs (760 kg) |
| Battery | 12V DC Maintenance-Free |
| Mounting Compatibility | ISO and DNV 2.7-1 Corner Castings (Pin / Clamp Mount) |
| Safety Features | Automatic Low Oil Pressure & High Water Temperature Shutdown |
