Description

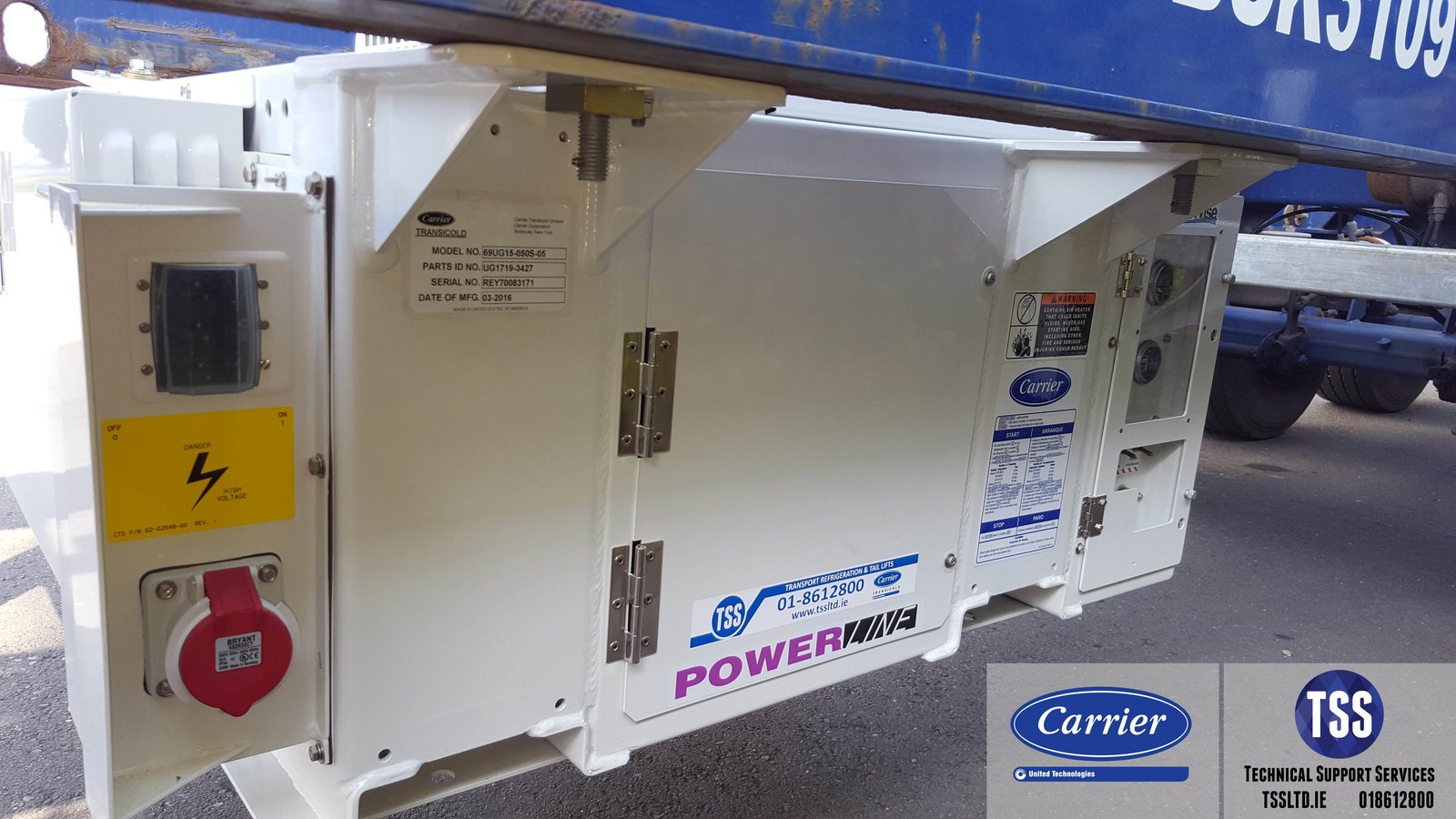

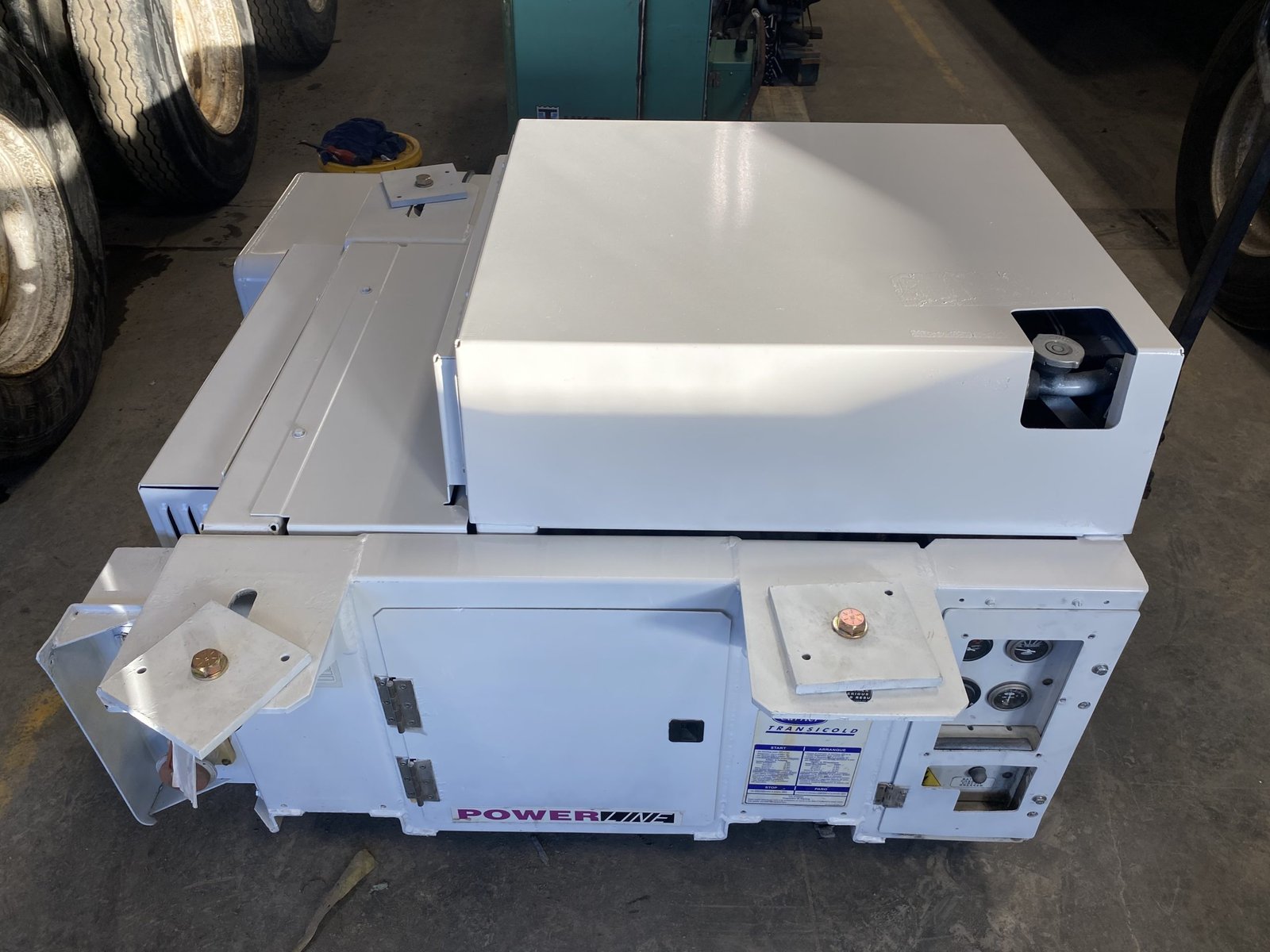

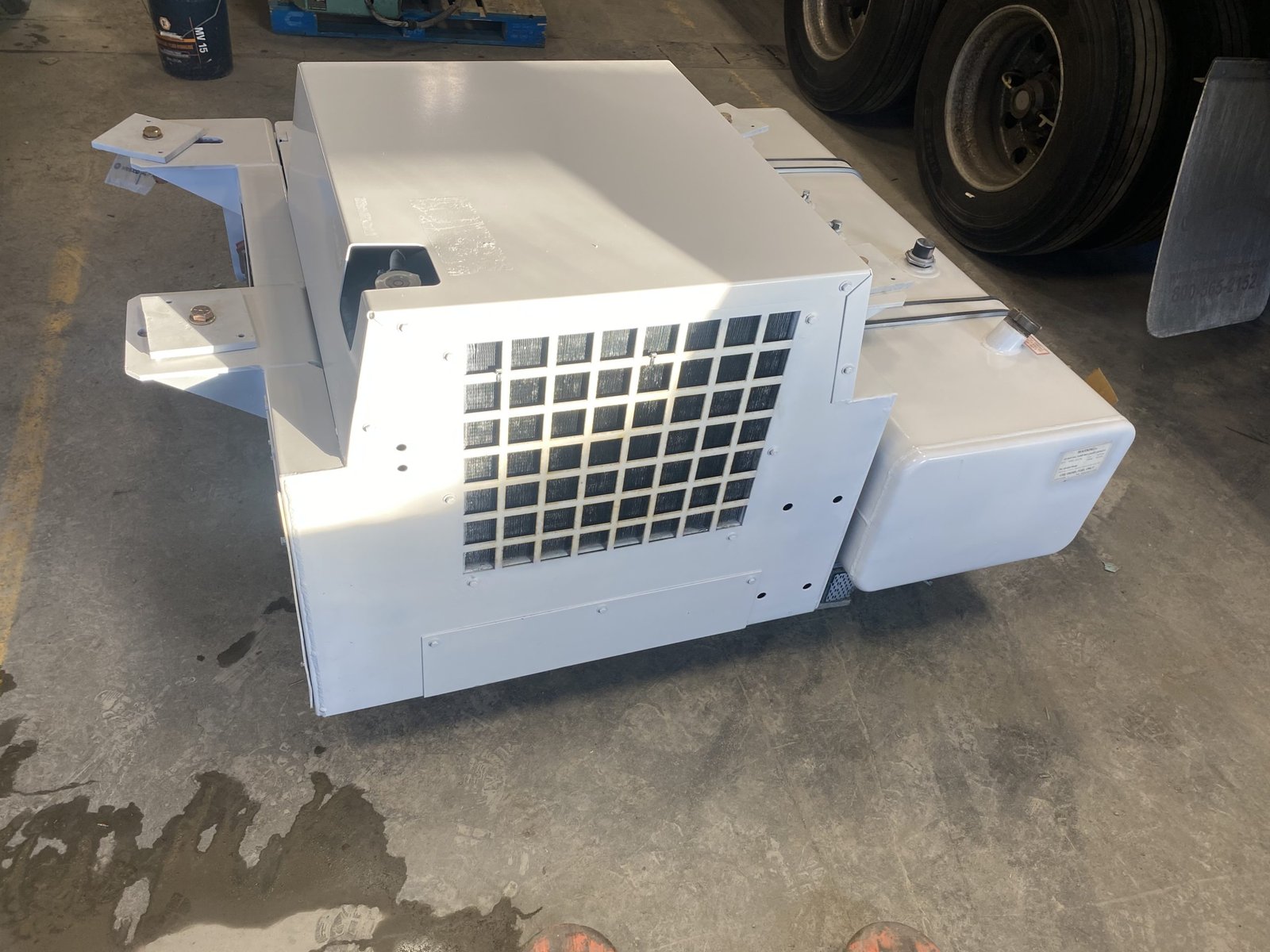

The Carrier Transicold PowerLINE 69UG15-050S-55 undermount generator set provides continuous, unattended power for refrigerated ISO containers transported by road or rail. Engineered for chassis mounting, this diesel generator system ensures dependable operation for cold chain transport even in remote locations.
High-Efficiency Power & Fuel Savings

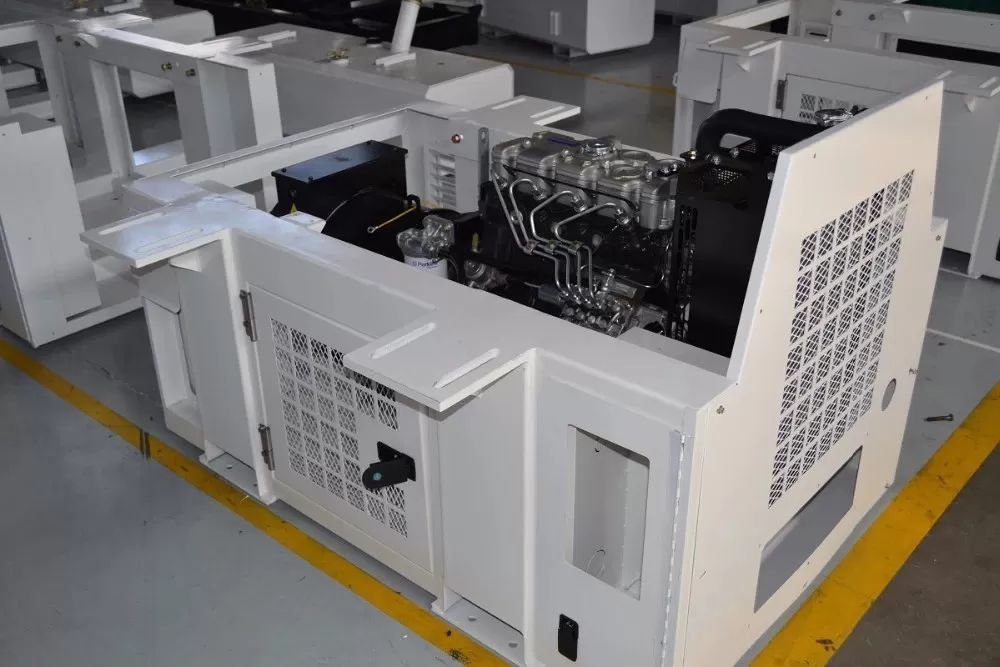

Powered by a 2.2-liter CT4-134Di 4-cylinder water-cooled direct-injection diesel engine, the unit features an ultra-high-efficiency 15 kW custom-designed permanent magnet generator (PMG). Equipped with Carrier Transicold’s FuelWise™ dual-speed technology, the system automatically switches between 1500 rpm (50 Hz) and 1800 rpm (60 Hz) according to refrigeration load, saving up to 34% on fuel during transport.
Durable Construction & Extended Maintenance
The 69UG15-050S-55 is built with an all-steel fabricated frame with powder-coated components for corrosion resistance, a stainless steel exhaust, and a patented E-coat tube and fin radiator. Maintenance intervals are optimized with a large-capacity oil pan rated for 2,000 running hours, full-flow spin-on oil filter with bypass filtration, and an integral fuel filter with a water separator and heater.
Key Specifications & Controls
- Electrical Output: 15 kW nominal output with a 460V receptacle and spring-loaded cap

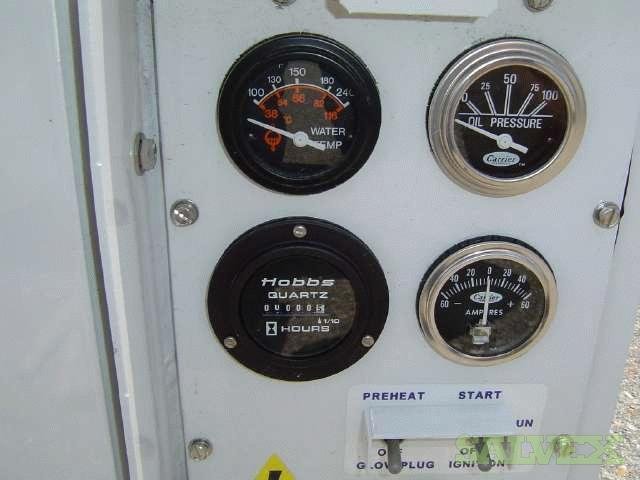

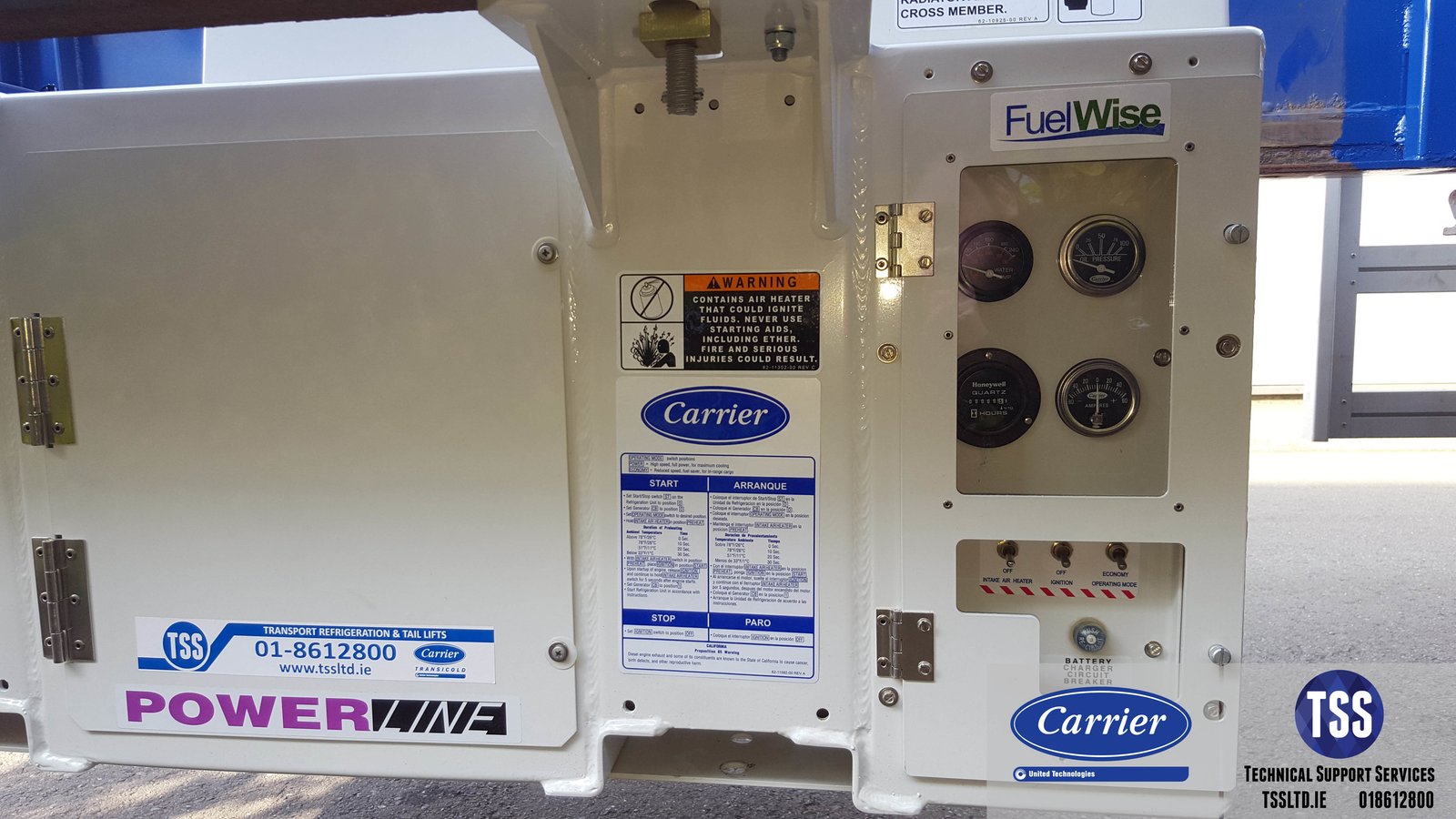

- Controls: Waterproof control box with driver-side access, preheat, and start/run/off switches
- Safety Protection: Automatic safety stop controls for low oil pressure and high water temperature
- Emissions & Standards: EU Stage V compliant engine and CE certified
- Battery System: 12V DC maintenance-free battery with solid-state charger
| Brand | Carrier |
| Manufacturer | Carrier Transicold |
| Model Number | 69UG15-050S-55 |
| Series | PowerLINE Series 55 |
| Power Output | 15 kW |
| Engine | CT4-134Di 4-cylinder water-cooled 2.2 liter direct-injection diesel engine |
| Fuel Type | Diesel |
| Voltage Output | 460V receptacle w/ spring-loaded cap |
| Generator Type | 15 kW permanent magnet generator (PMG) / brushless, self-regulated |
| Battery | 12V DC maintenance-free |
| Battery Charger | Solid-state |

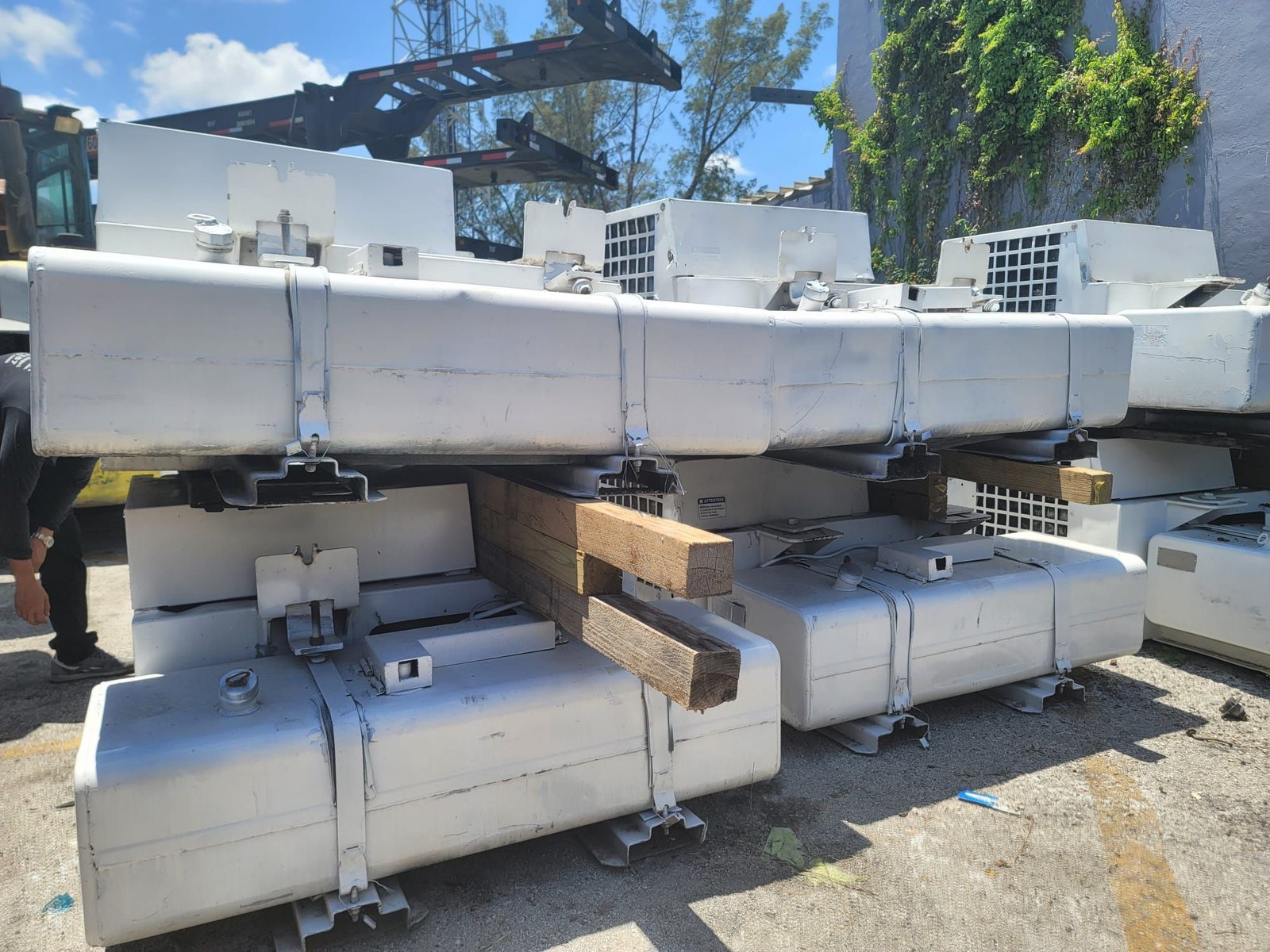

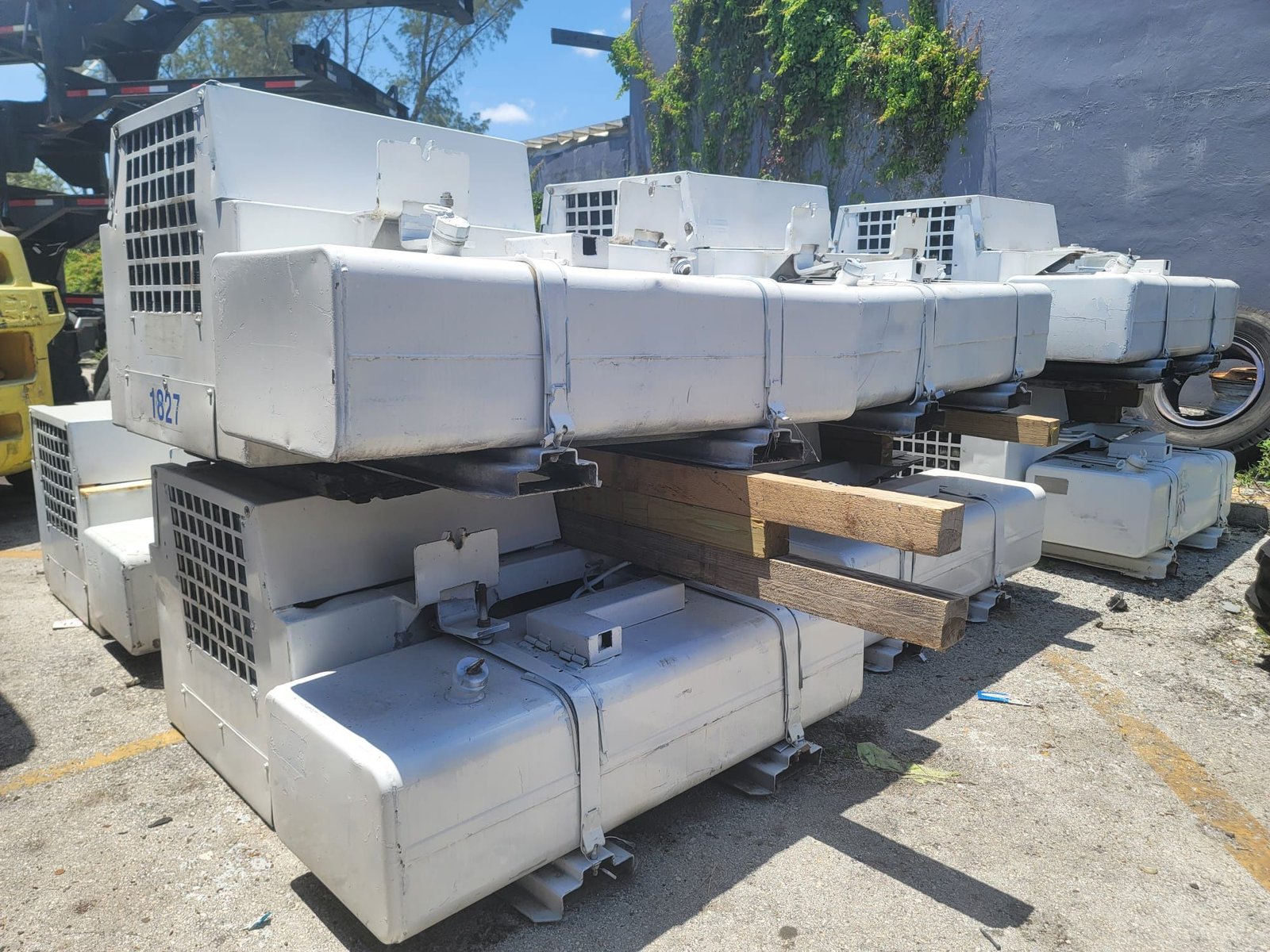

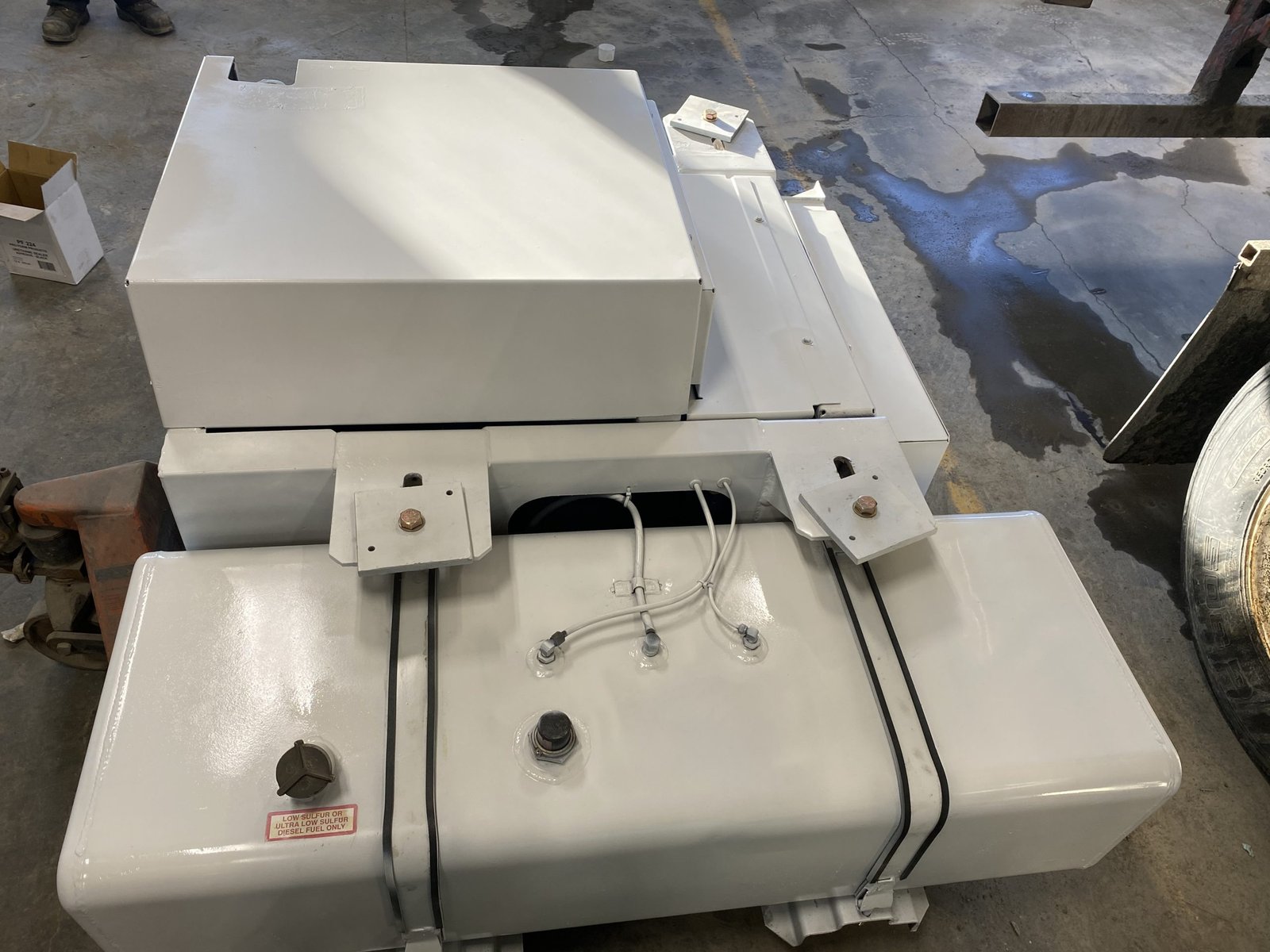

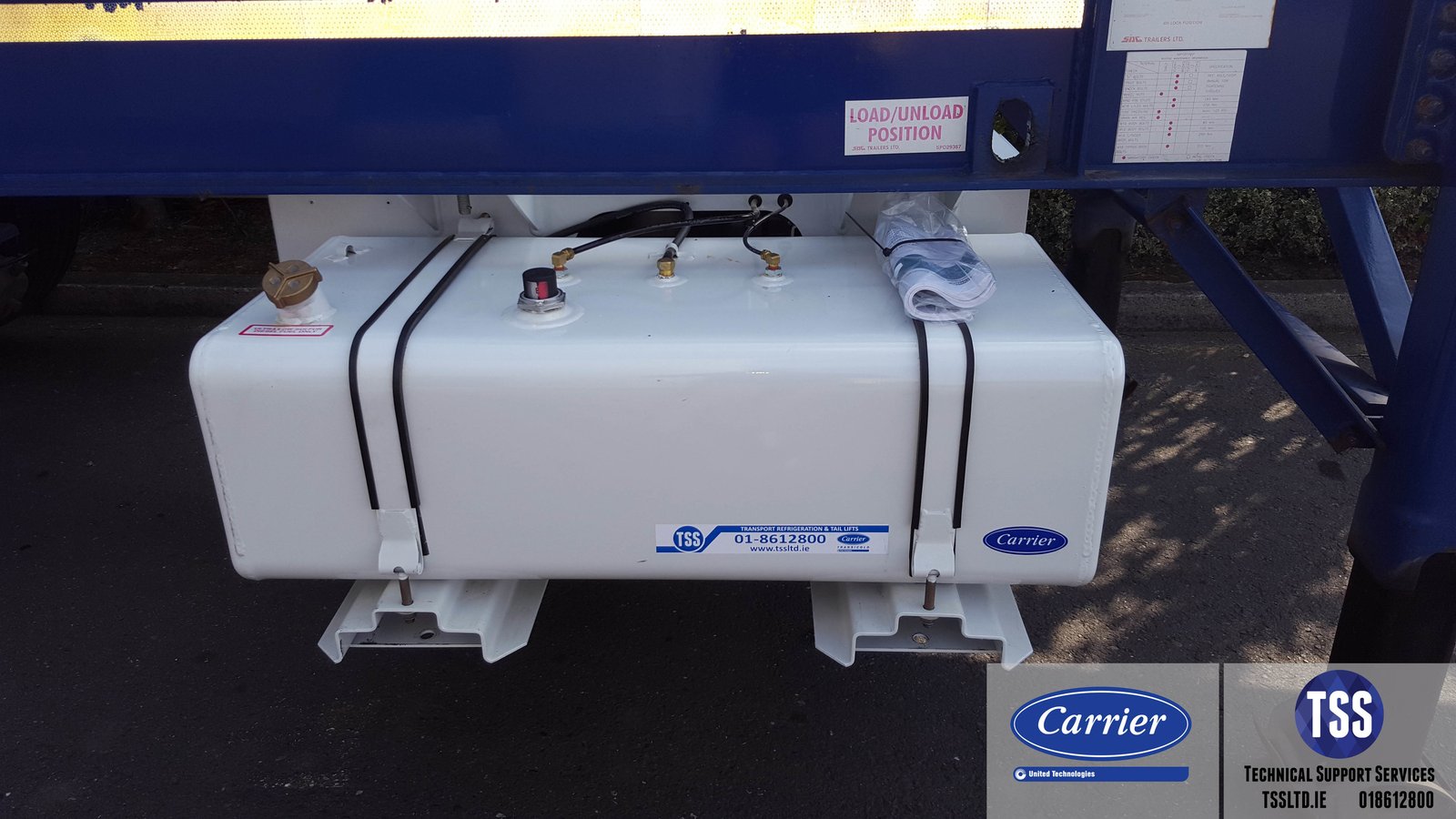

| Fuel Tank Capacity | 50 gal (189 L) standard integrated steel tank |
| Fuel Filtration | Spin-on w/ water separator and electric fuel warmer |

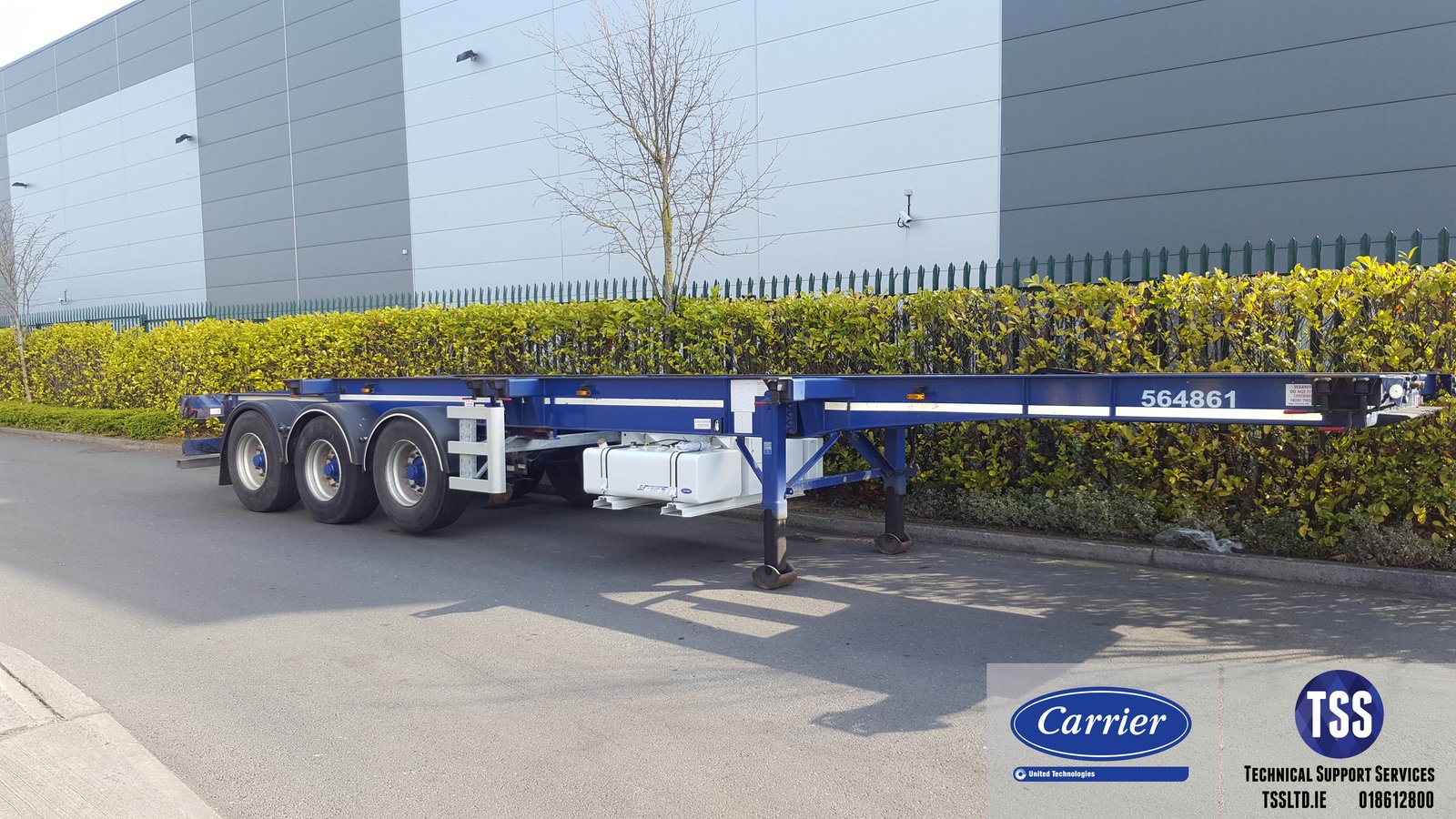

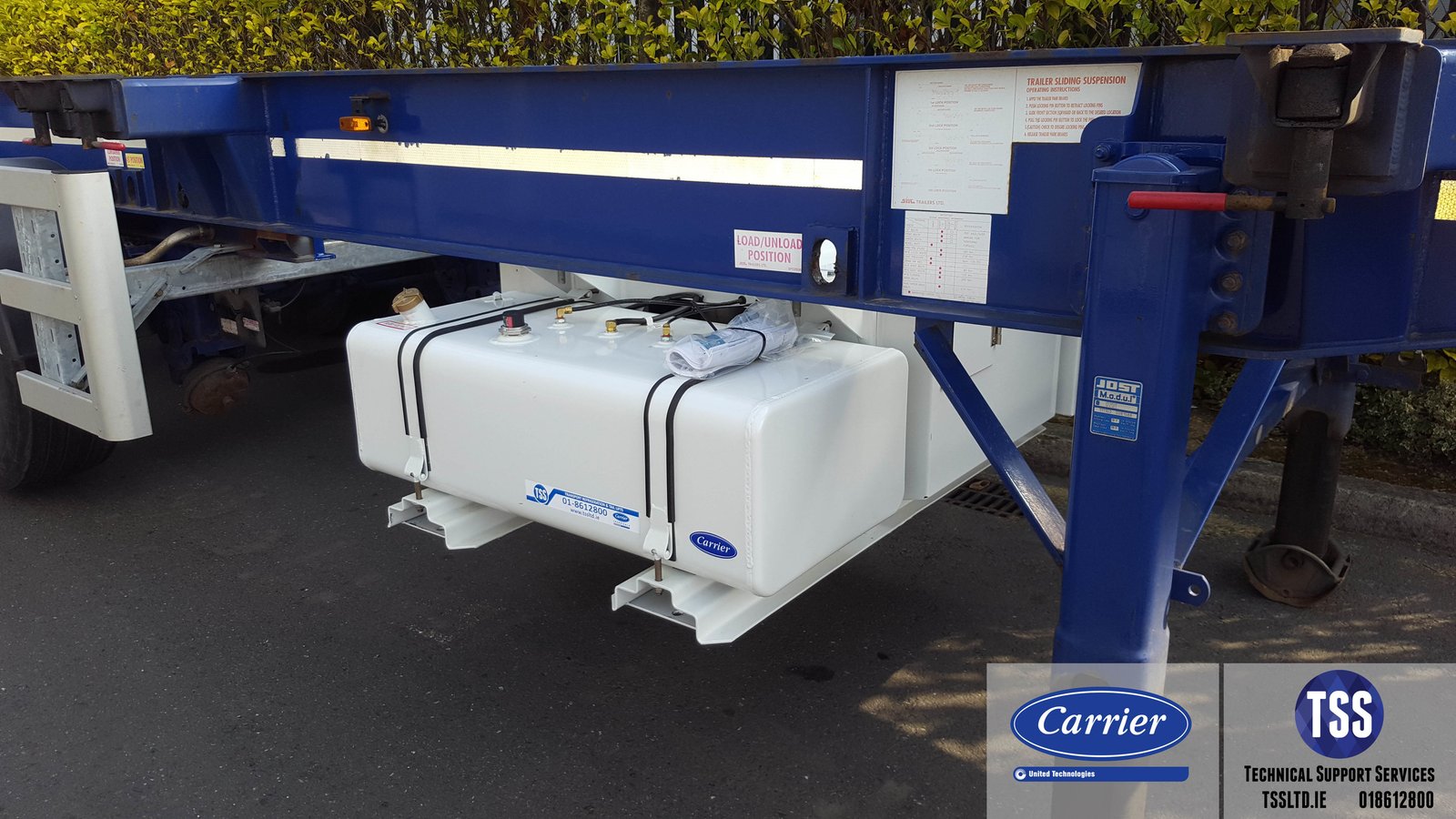

| Mounting Type | Undermount 4-point plate mount |
| Exhaust Material | Stainless Steel |
| Operating Ambient Temperature | -40°F to +125°F (-40°C to +52°C) |
| Starting Ambient Temperature | -15°F to +125°F (-26°C to +52°C) |
| Emission Standard | EU Stage V |
| Certifications | CE |
