Carrier PowerLINE 69UG15-050S-55 Undermount Genset

Description

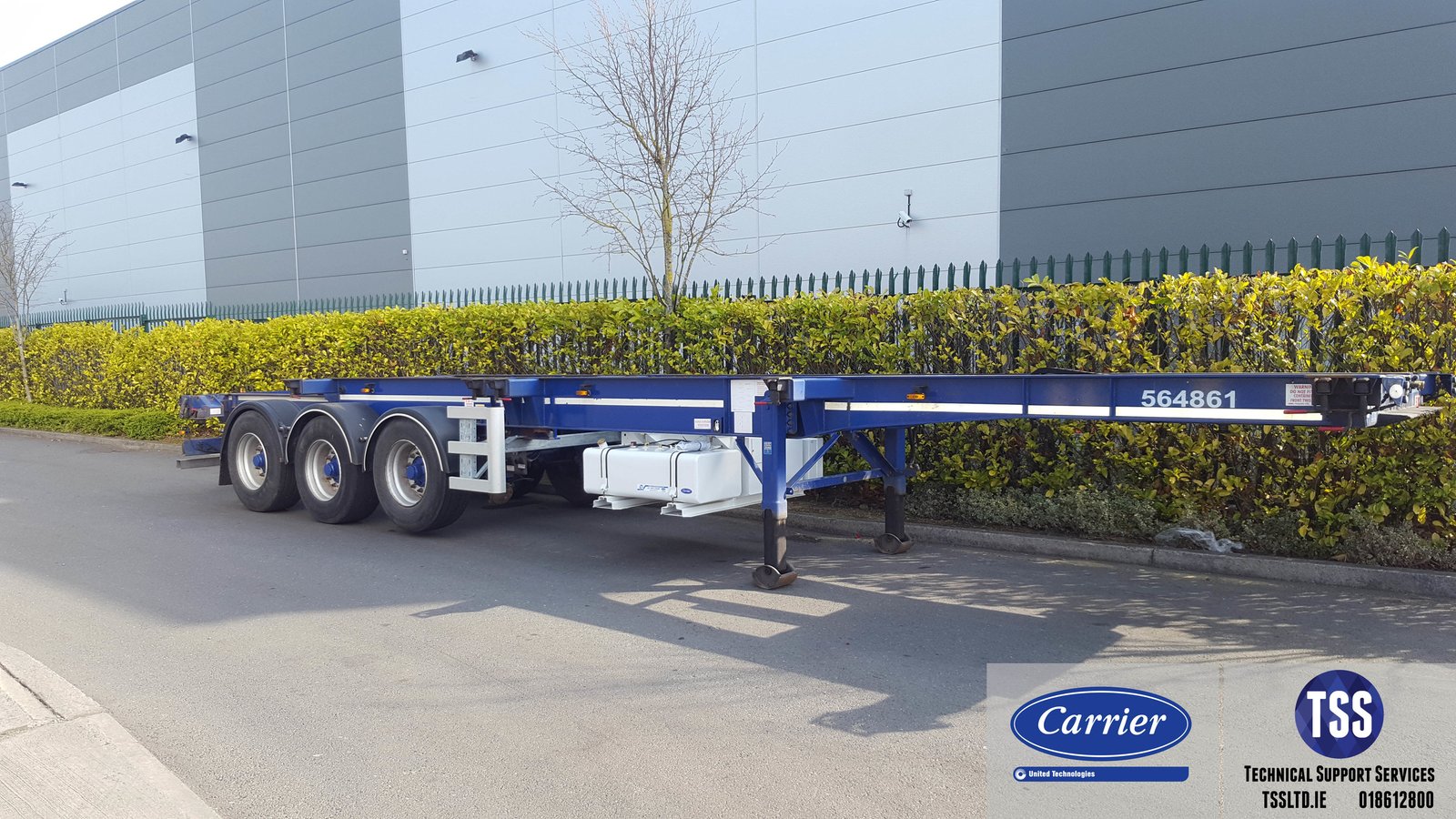

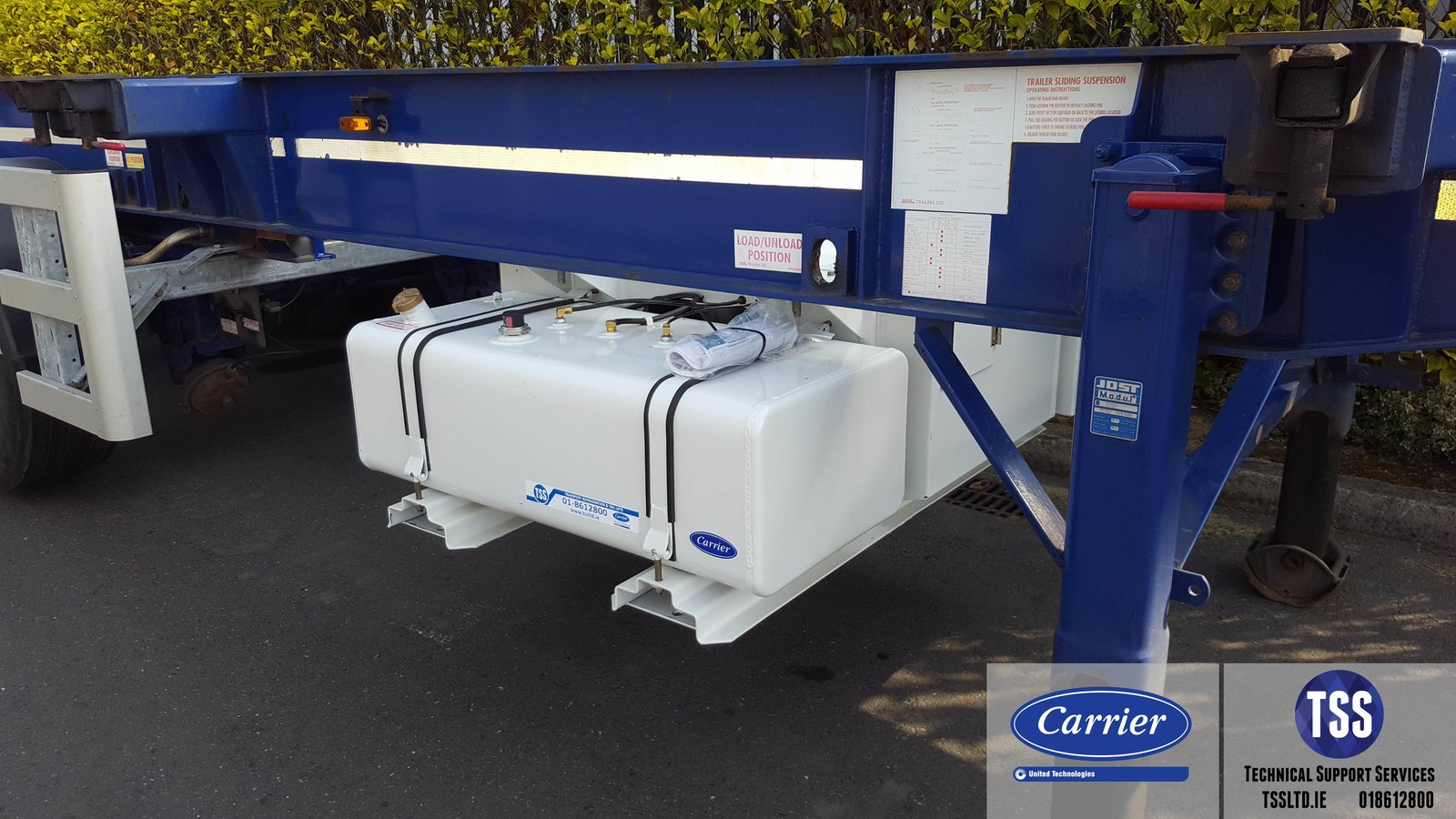

The Carrier Transicold PowerLINE 69UG15-050S-55 undermount generator set is engineered for continuous, unattended operation to power refrigerated containers during road and rail transport. Designed to mount securely underneath a container chassis, this diesel-driven unit provides reliable power for ISO reefers during transit or at remote locations lacking power infrastructure.

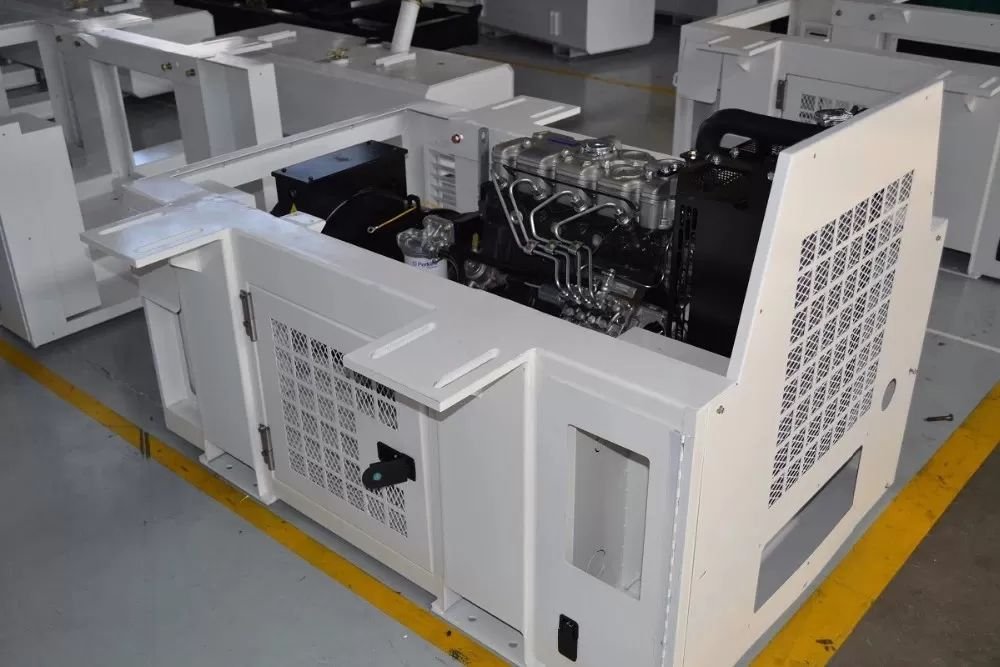

Powered by a heavy-duty CT4-134Di 4-cylinder, water-cooled 2.2-liter direct-injection diesel engine, this genset delivers a nominal 15 kW output via a brushless, self-regulated generator with a 460V receptacle. The unit complies with EU Stage V emissions standards for reduced environmental impact.

Key Features

• Engine & Power: CT4-134Di 4-cylinder 2.2L diesel engine paired with a nominal 15 kW brushless generator.

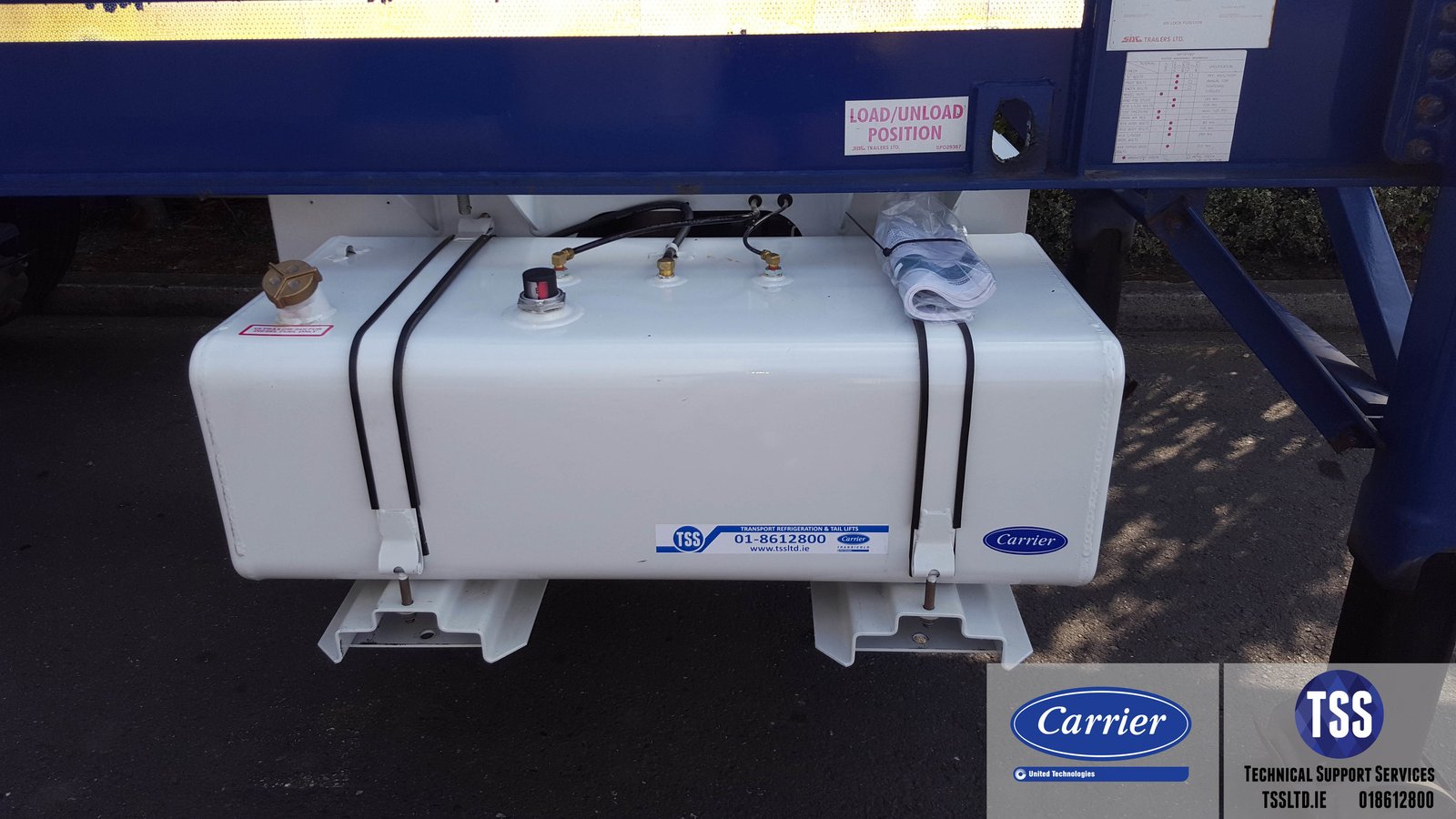

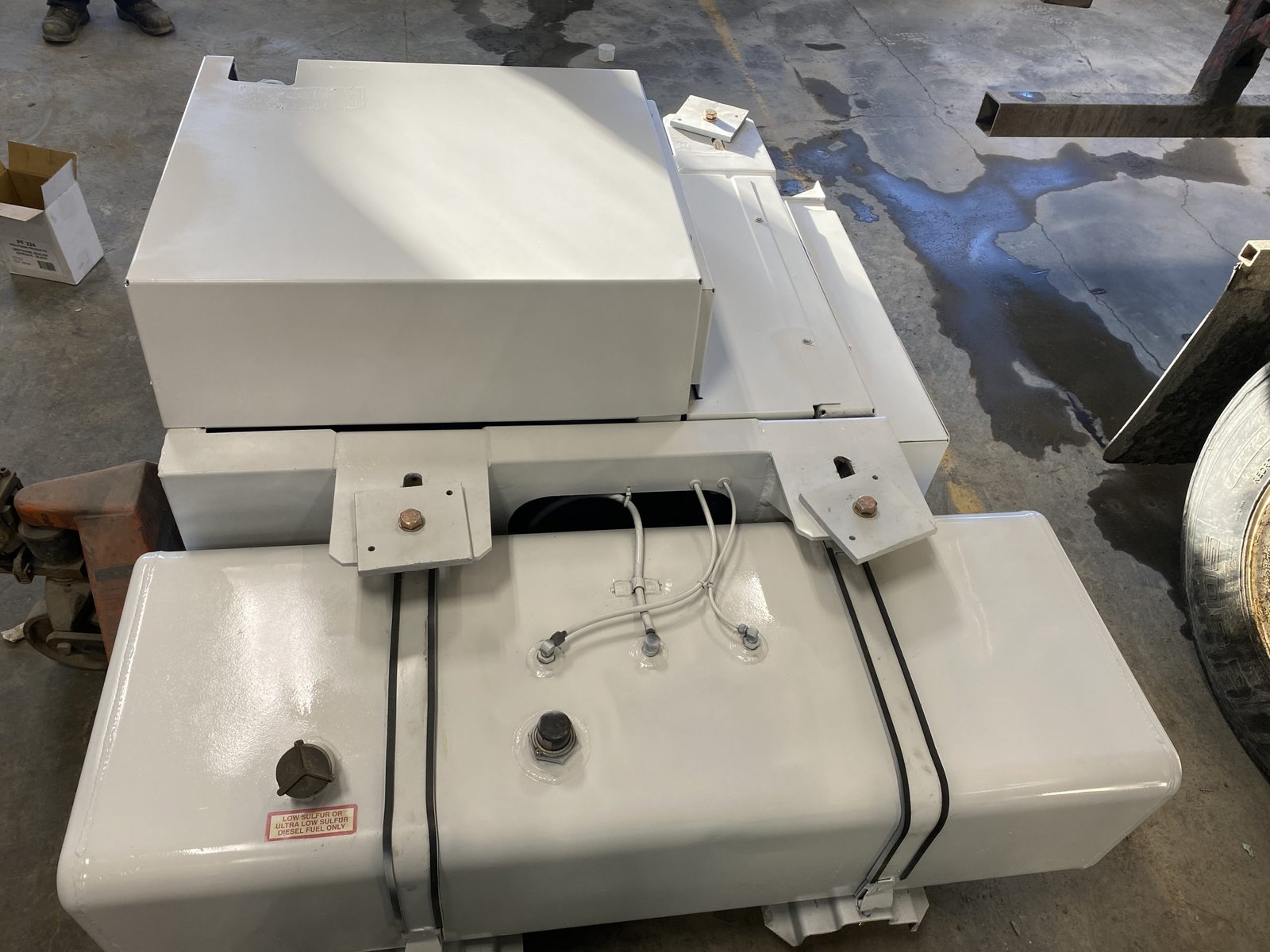

• Fuel Capacity: 50-gallon (189 L) fuel tank equipped with an integral electric fuel warmer, self-bleeding system, and spin-on fuel filter with water separator.

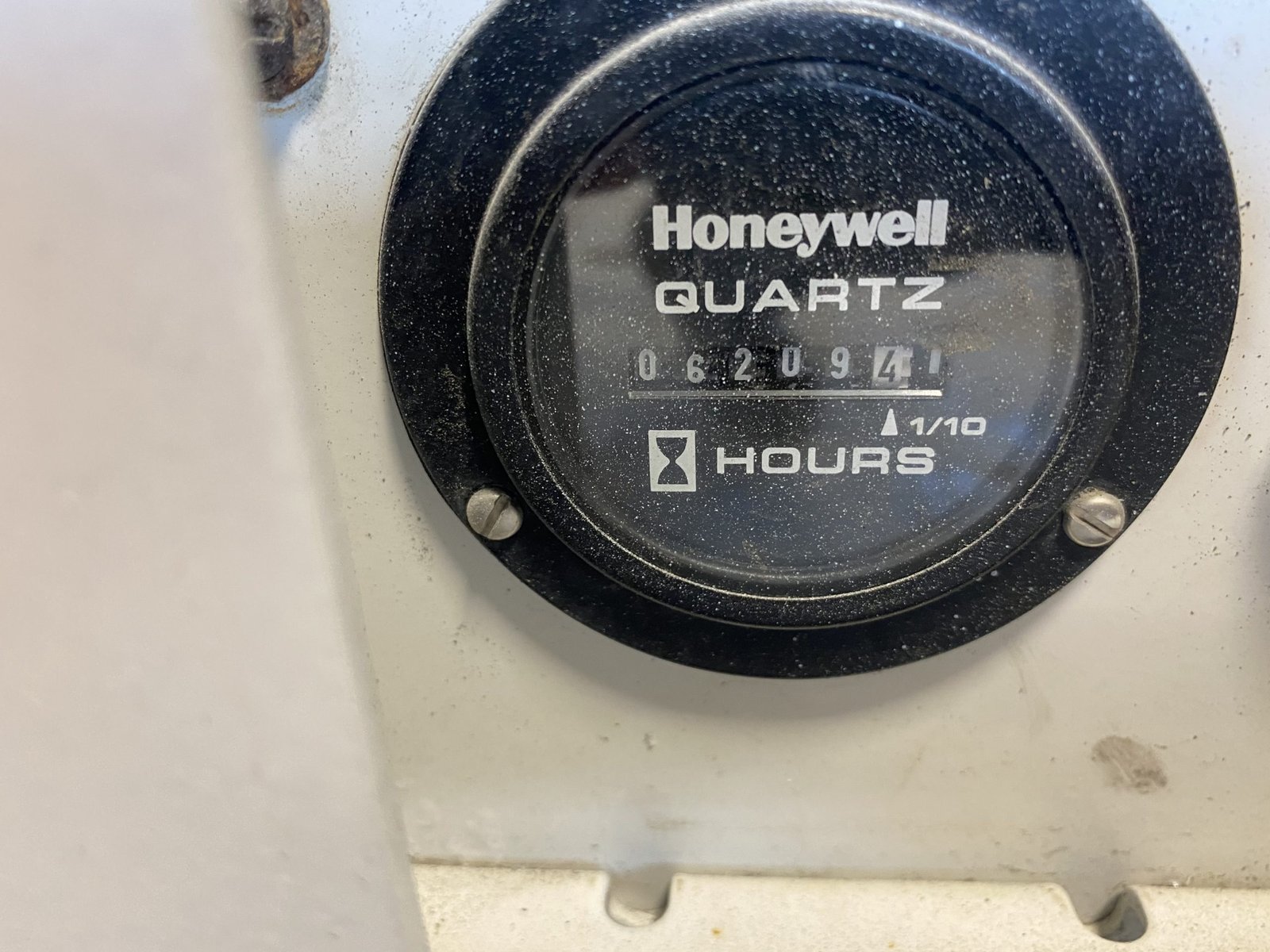

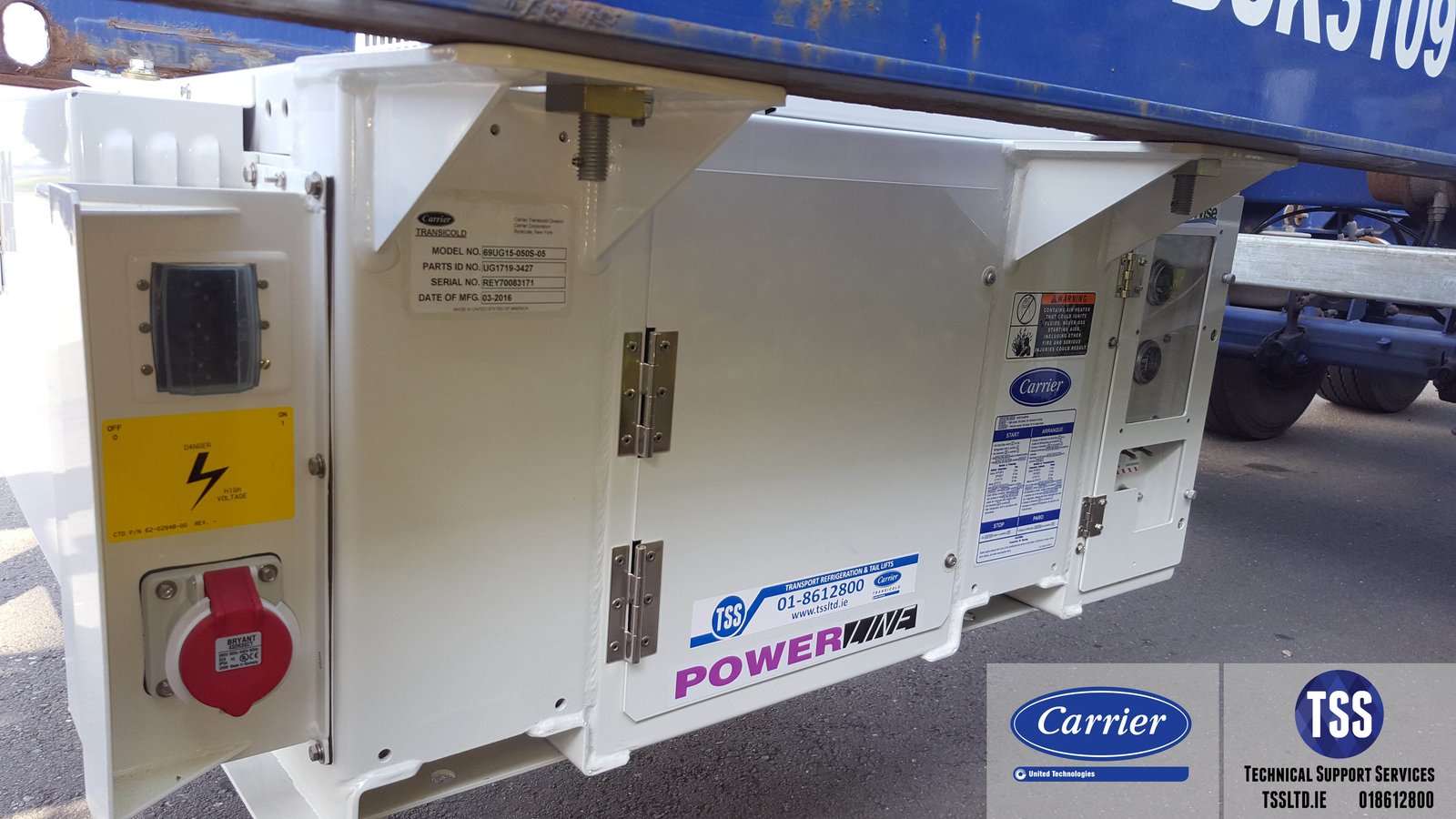

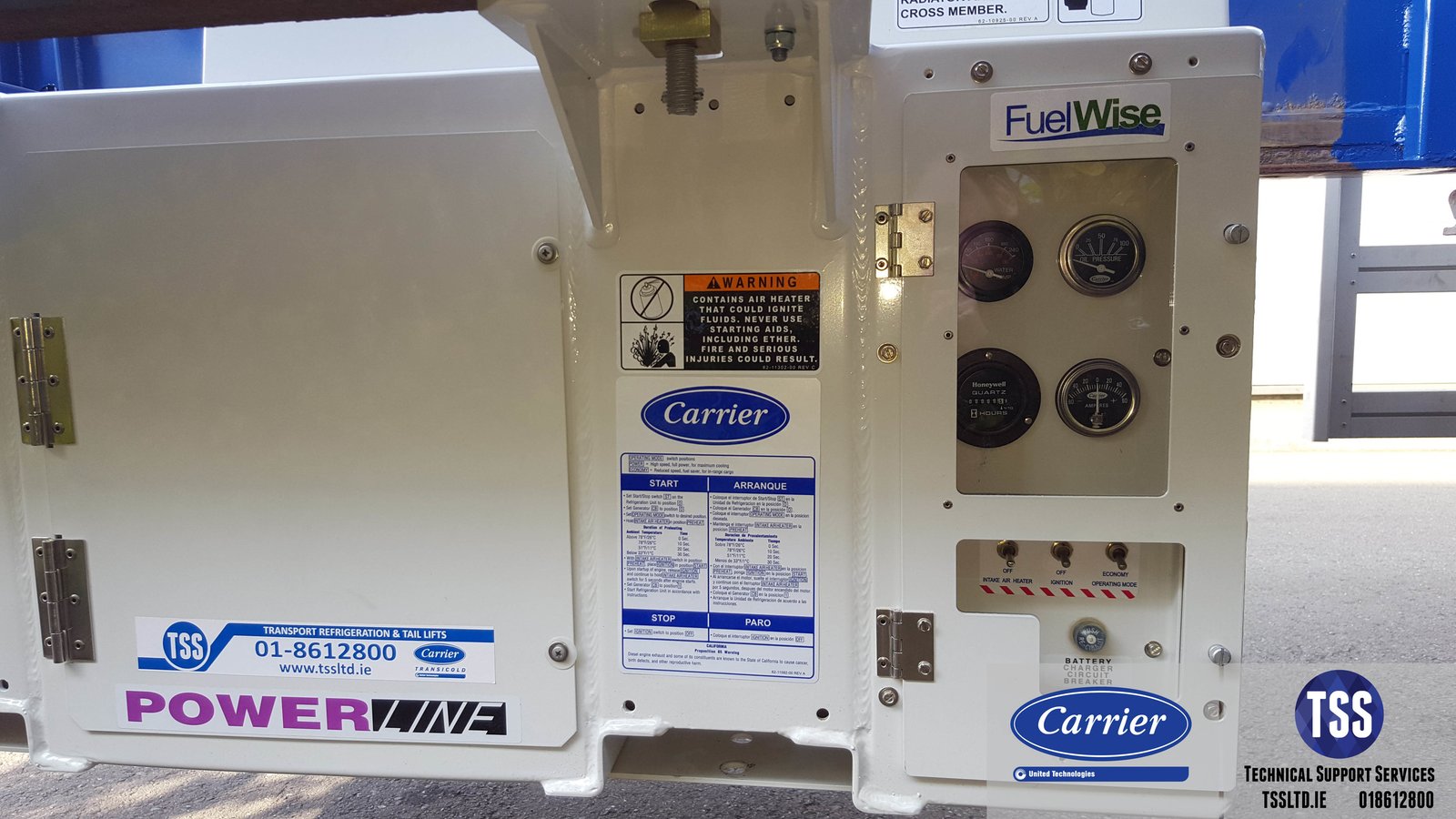

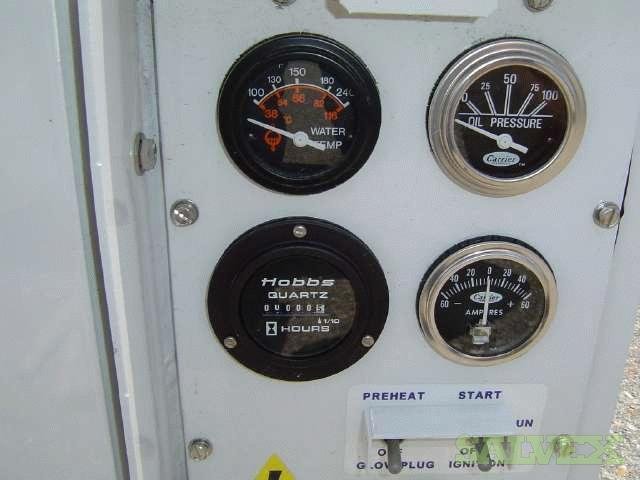

• Controls & Safety: Driver-side waterproof control box featuring oil pressure and water temperature gauges, engine hourmeter, preheat and start/run/off switches, and automatic safety shutdown for low oil pressure and high coolant temperature.

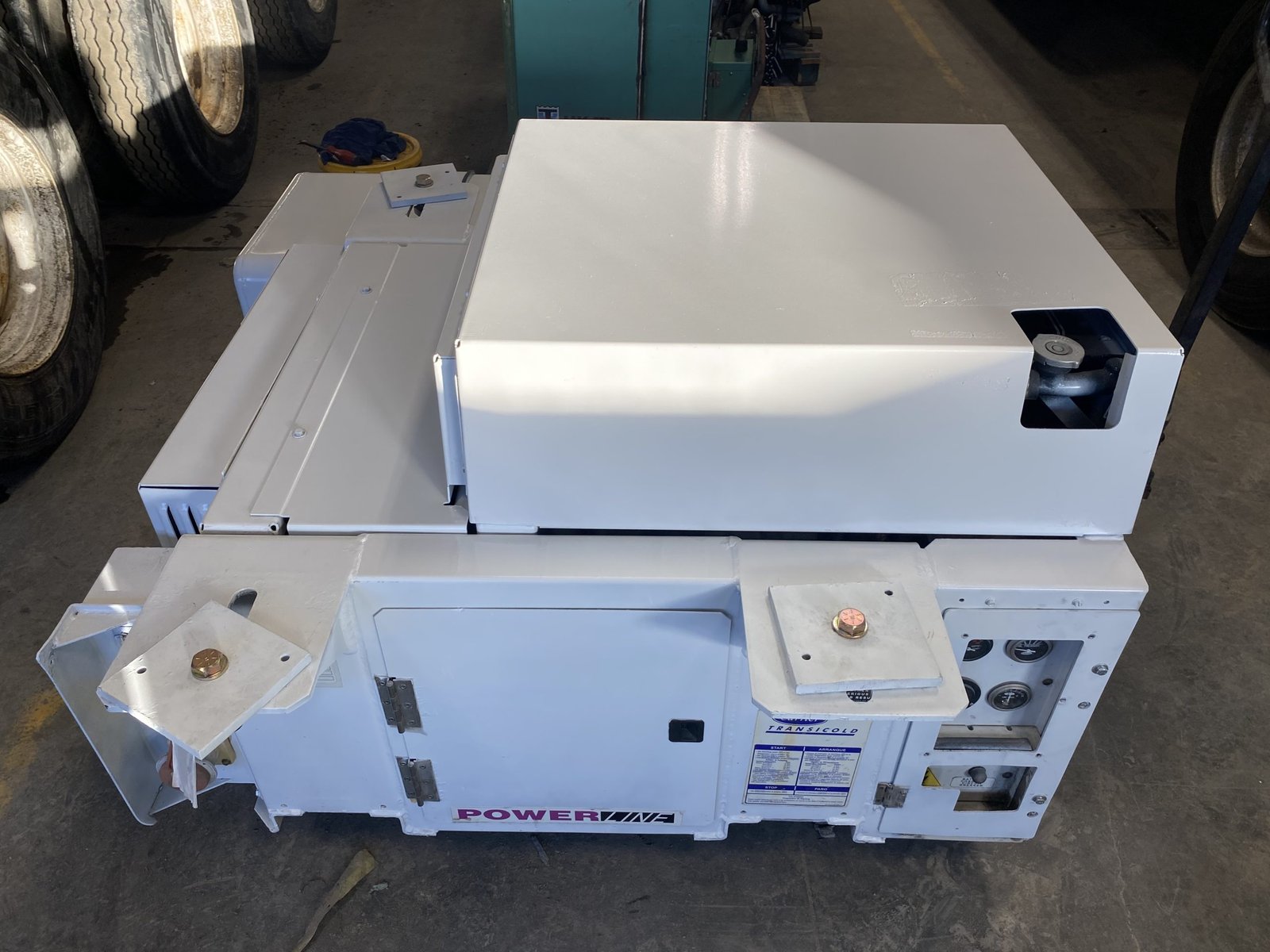

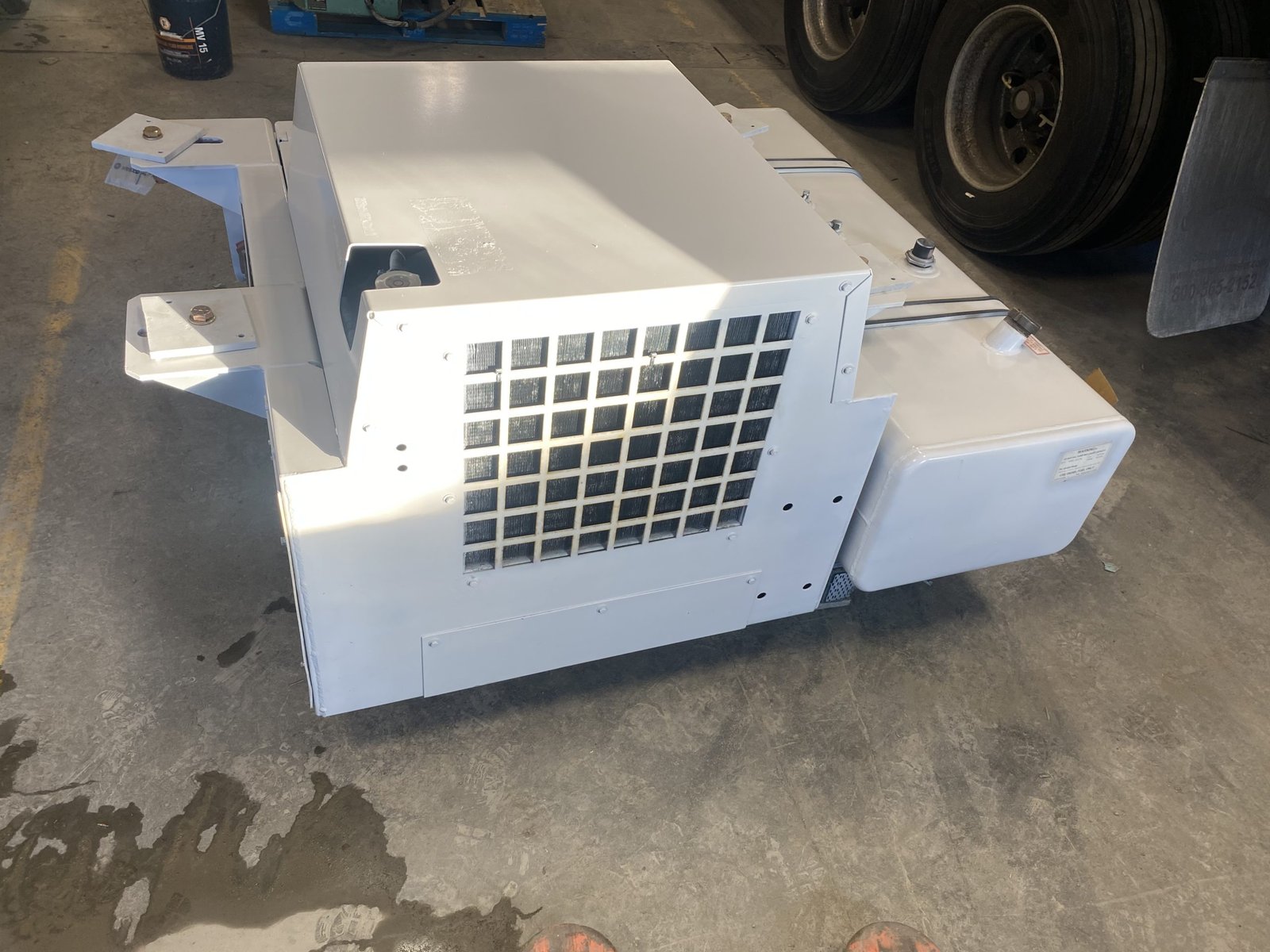

• Durable Construction: All-steel fabricated frame with 4-point plate mount hangers, stainless steel exhaust, stainless steel hinges, enclosed forklift pockets, and an epoxy-dipped tube and fin radiator.
• Extended Service Life: Large-capacity oil pan rated for up to 2,000 running hours between oil changes, complete with a full-flow spin-on oil filter and dry-element air cleaner.
