Description

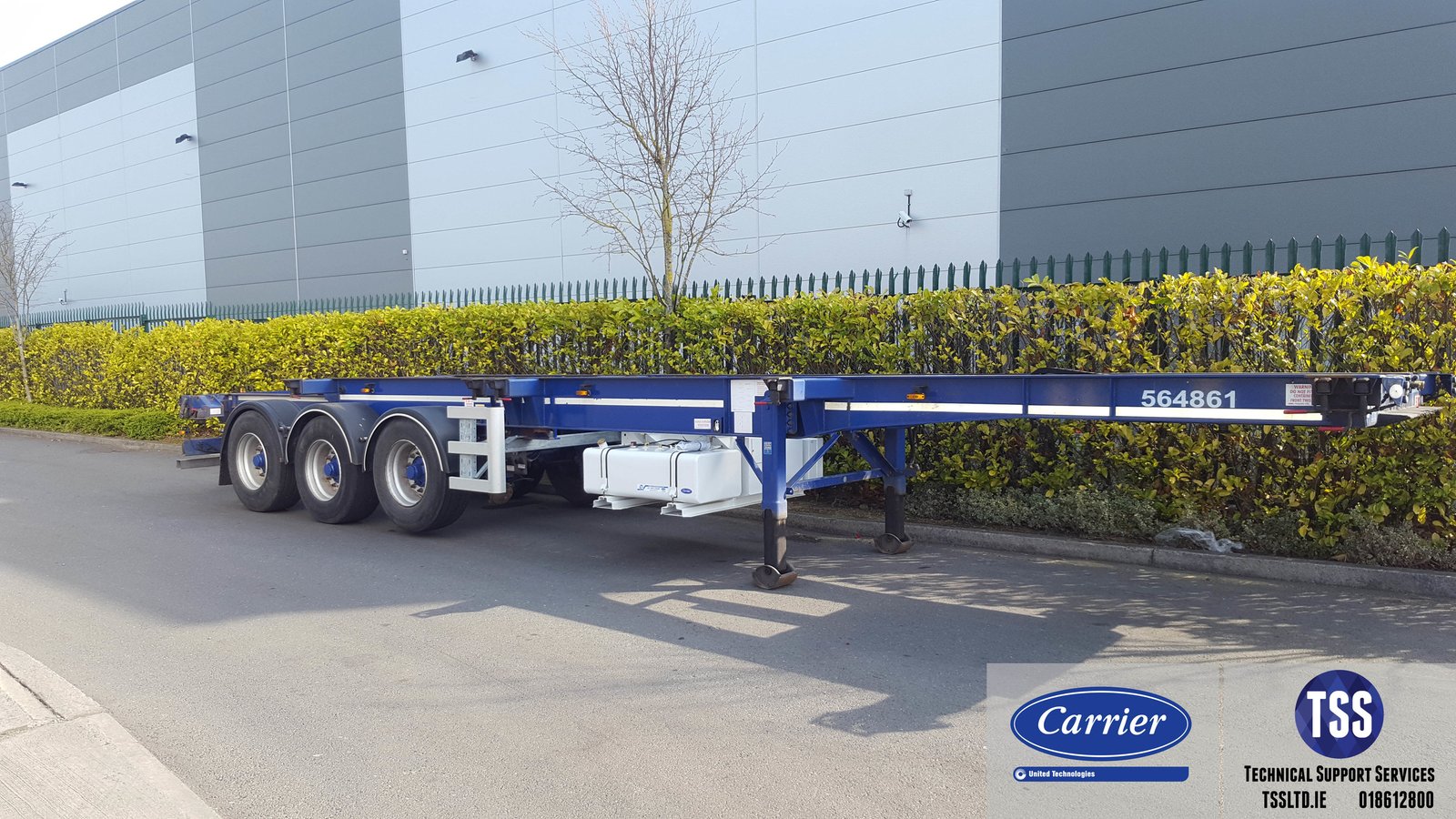

The Carrier Transicold PowerLINE 69UG15-050S-55 undermount generator set is engineered for continuous, unattended operation to power ISO refrigerated containers during road and rail transport. Built to mount beneath the chassis, this genset delivers reliable 15 kW output to keep refrigeration units fully operational across long transit routes and at remote facilities.
Key Features & Performance

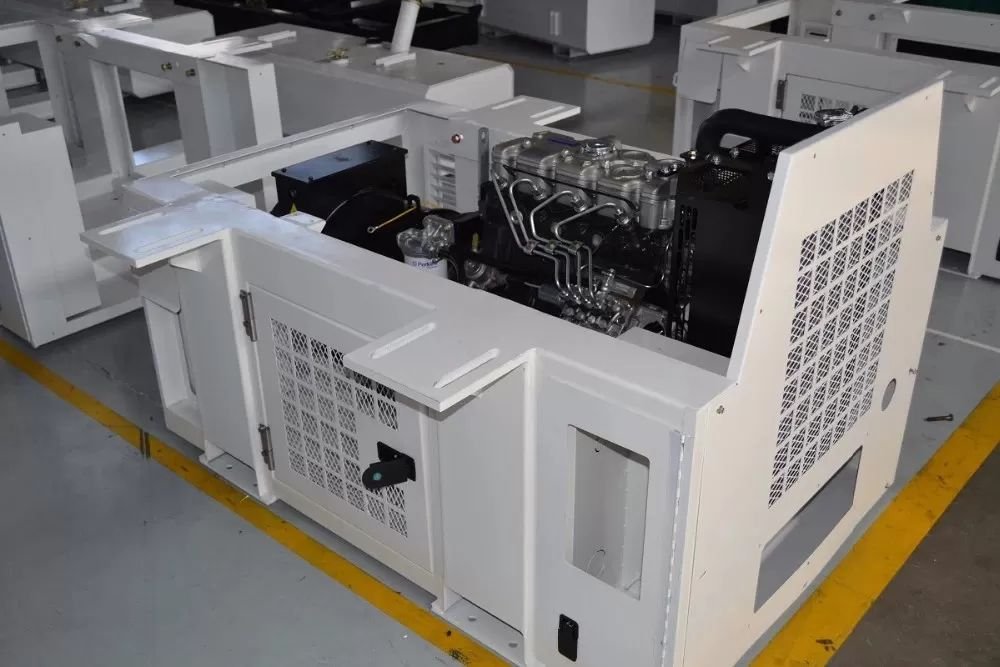

- Engine & Generator: Powered by a 2.2-liter CT4-134Di 4-cylinder water-cooled direct-injection diesel engine meeting EU Stage V emissions standards, paired with a high-efficiency 15 kW permanent magnet generator.
- Fuel Management: Includes FuelWise™ dual-speed technology to maximize fuel savings, an integral fuel filter with water separator, electric fuel heater, and an external in-line strainer with a clear bowl.

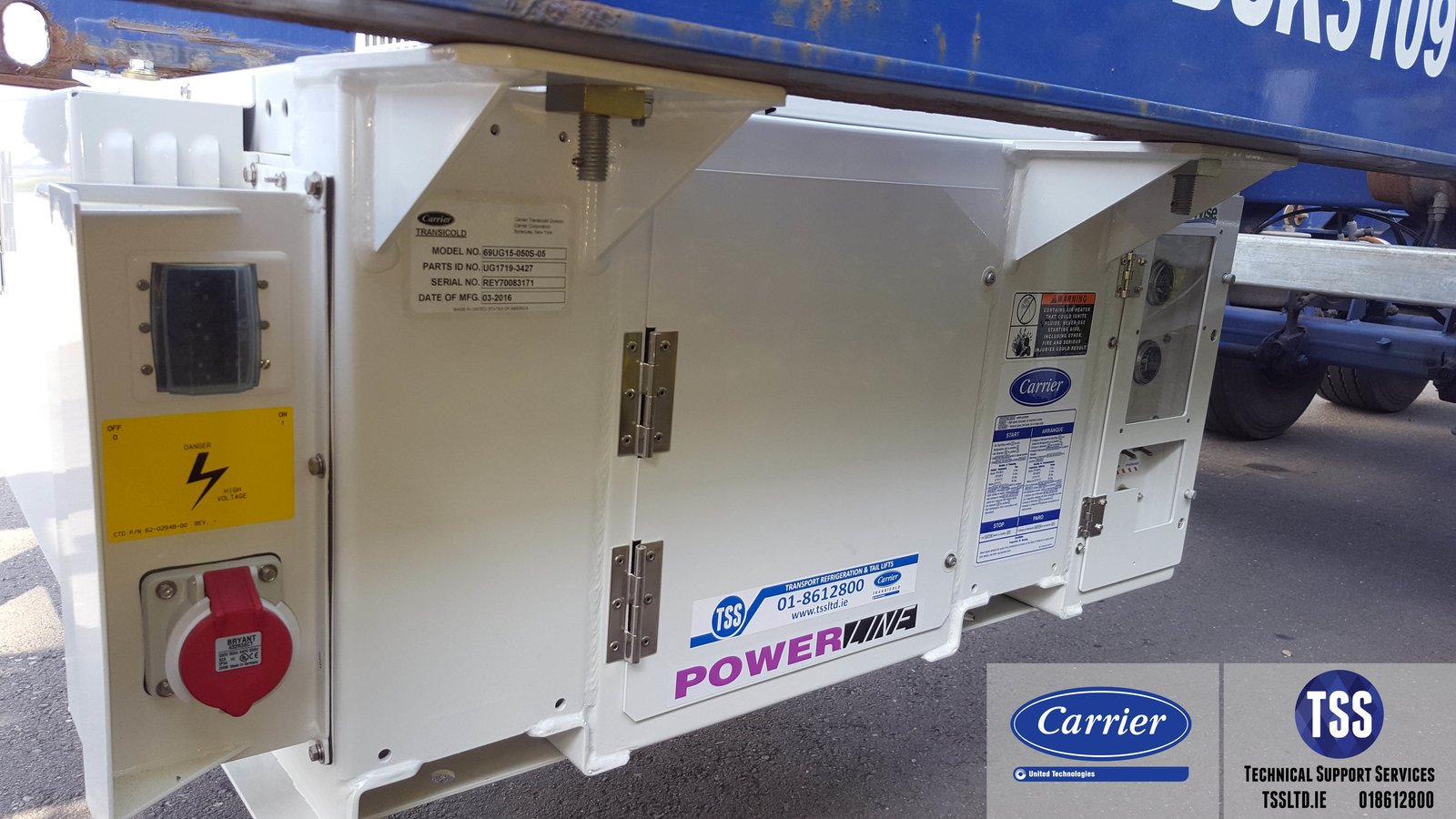

- Durable Construction: Heavy-duty powder-coated steel frame with 4-point mounting hangers, stainless steel exhaust, and an epoxy-dipped tube-and-fin radiator.
- Service & Maintenance: Extended 2,000-hour service intervals supported by a large-capacity oil pan and full-flow spin-on oil filter with bypass filtration.

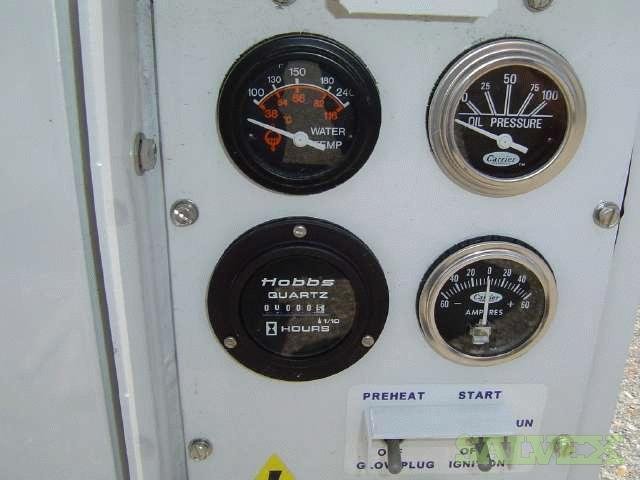

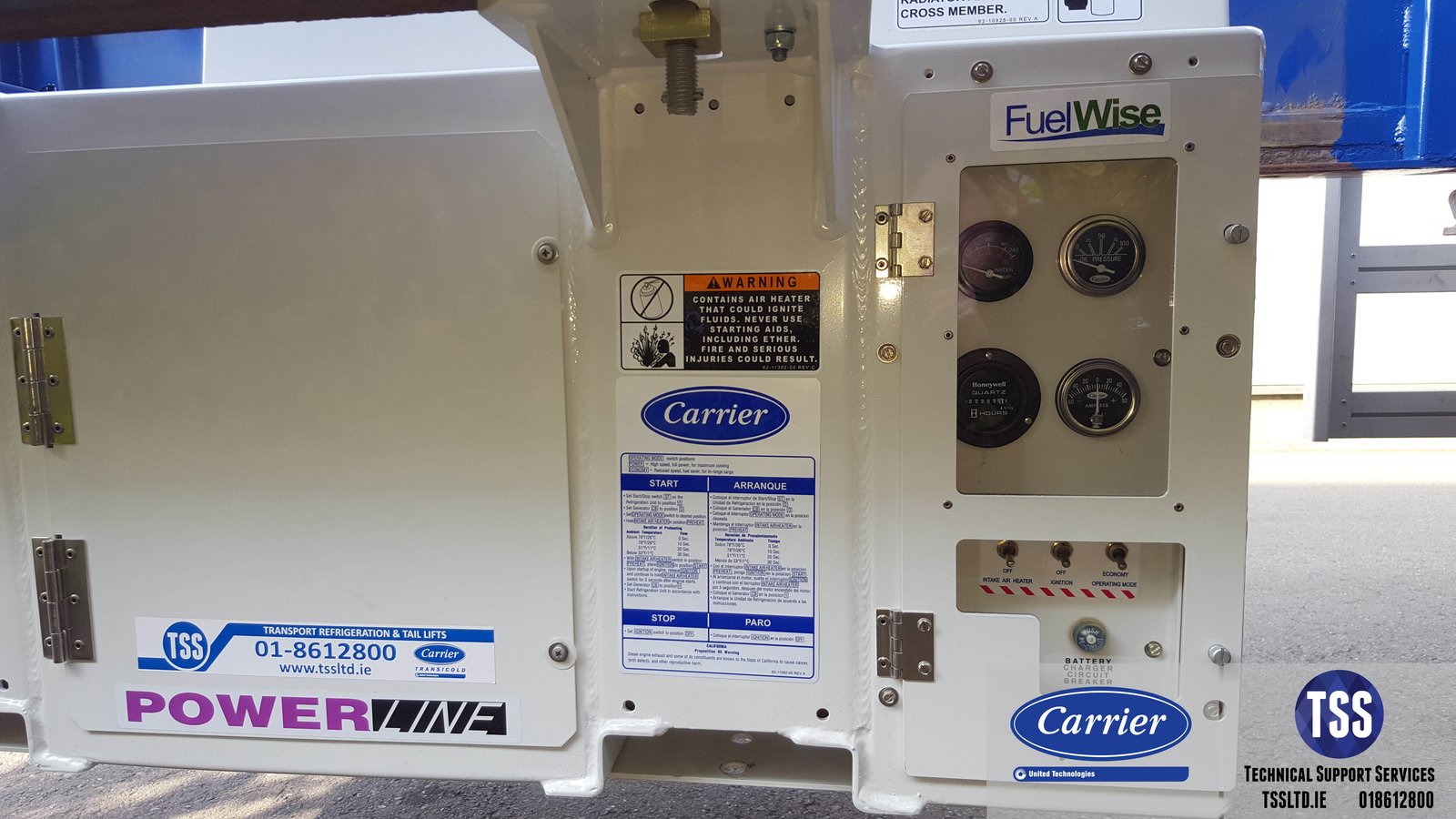

- Electrical & Controls: Waterproof driver-side control box, 12V DC maintenance-free battery with solid-state charger, and automated safety stops for low oil pressure and high water temperature.
| Brand | Carrier |
| Model Number | 69UG15-050S-55 |
| Product Type | Undermount Generator Set |
| Power Output | 15 kW |
| Engine | CT4-134Di 4-cylinder water-cooled 2.2L direct-injection diesel |
| Fuel Type | Diesel |
| Emissions Compliance | EU Stage V, CE |
| Voltage Output | 460V |
| Battery | 12V DC maintenance-free |

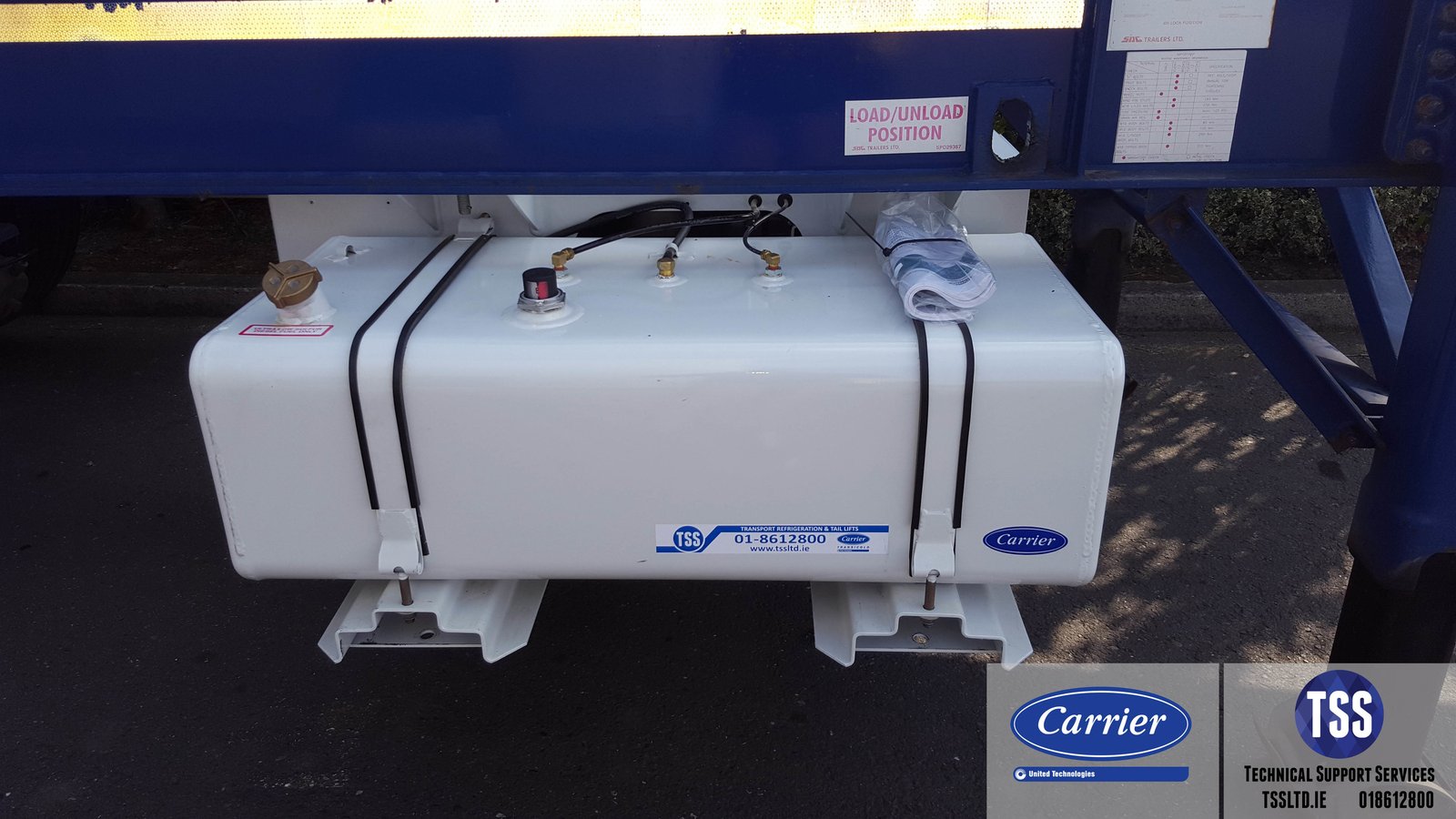

| Fuel Tank Capacity | 50 gal (189 L) |

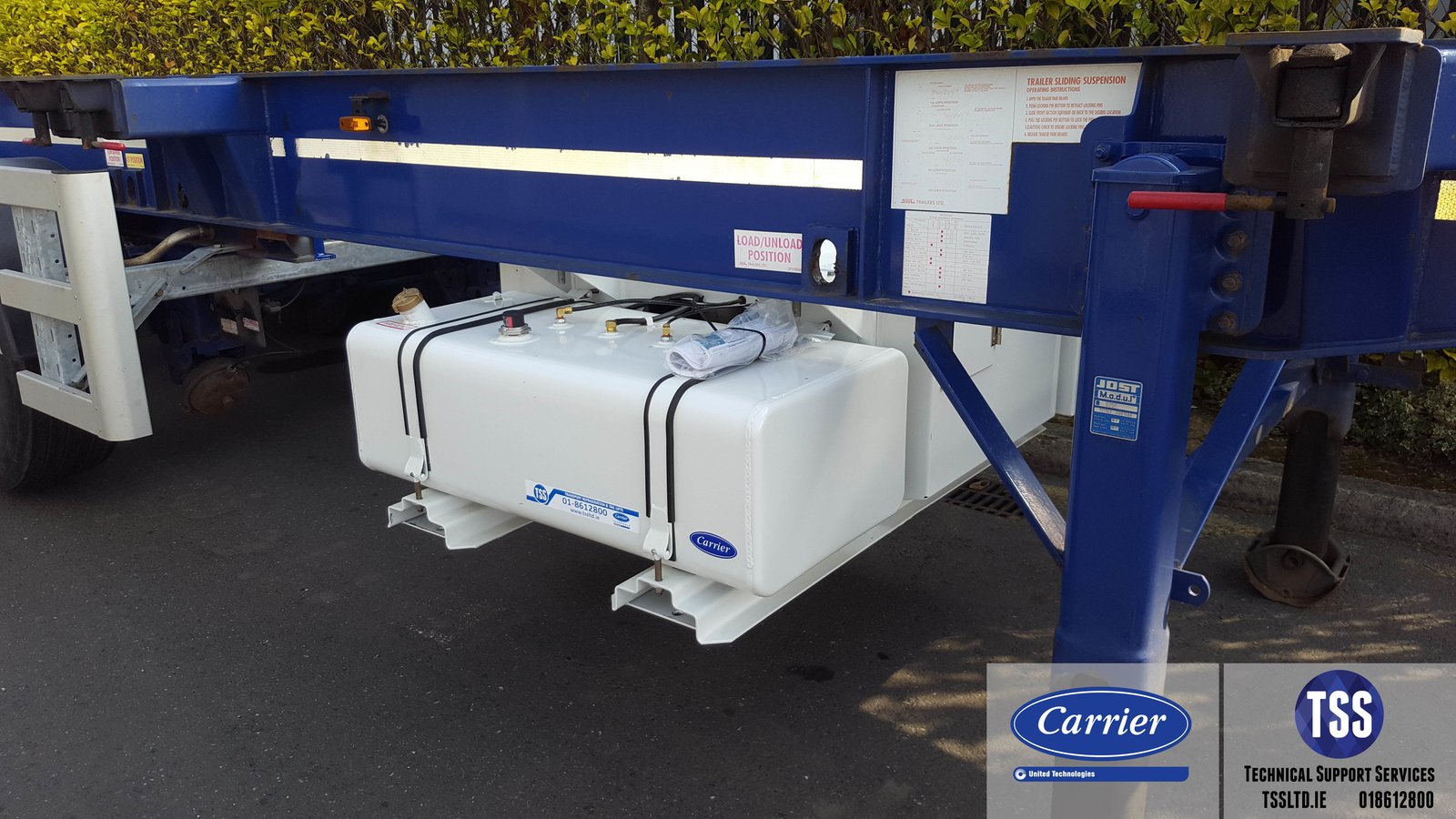

| Mounting Type | 4-point chassis plate mount |
| Operating Ambient Temperature Range | -40°C to +52°C (-40°F to +125°F) |
