Description

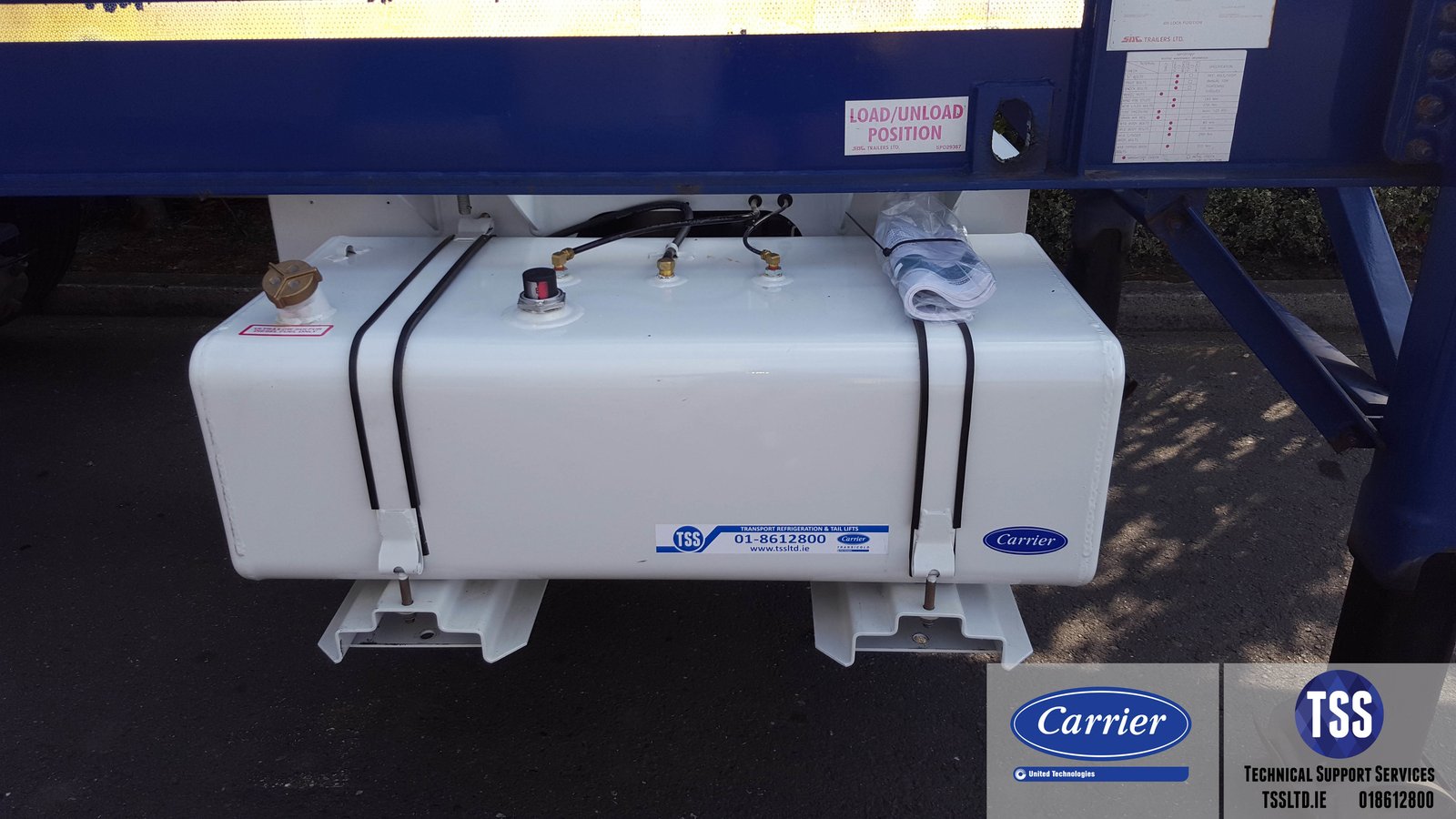

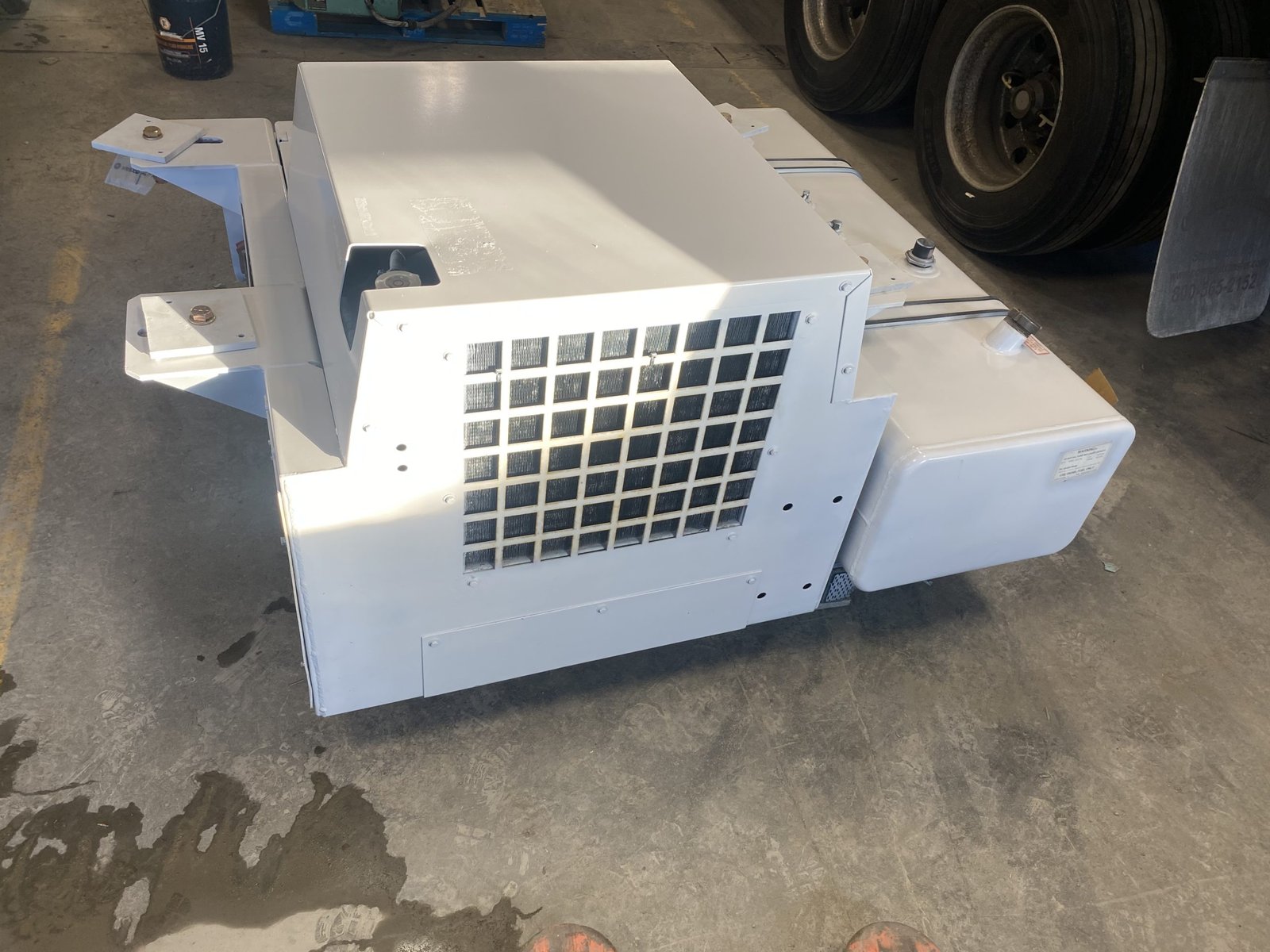

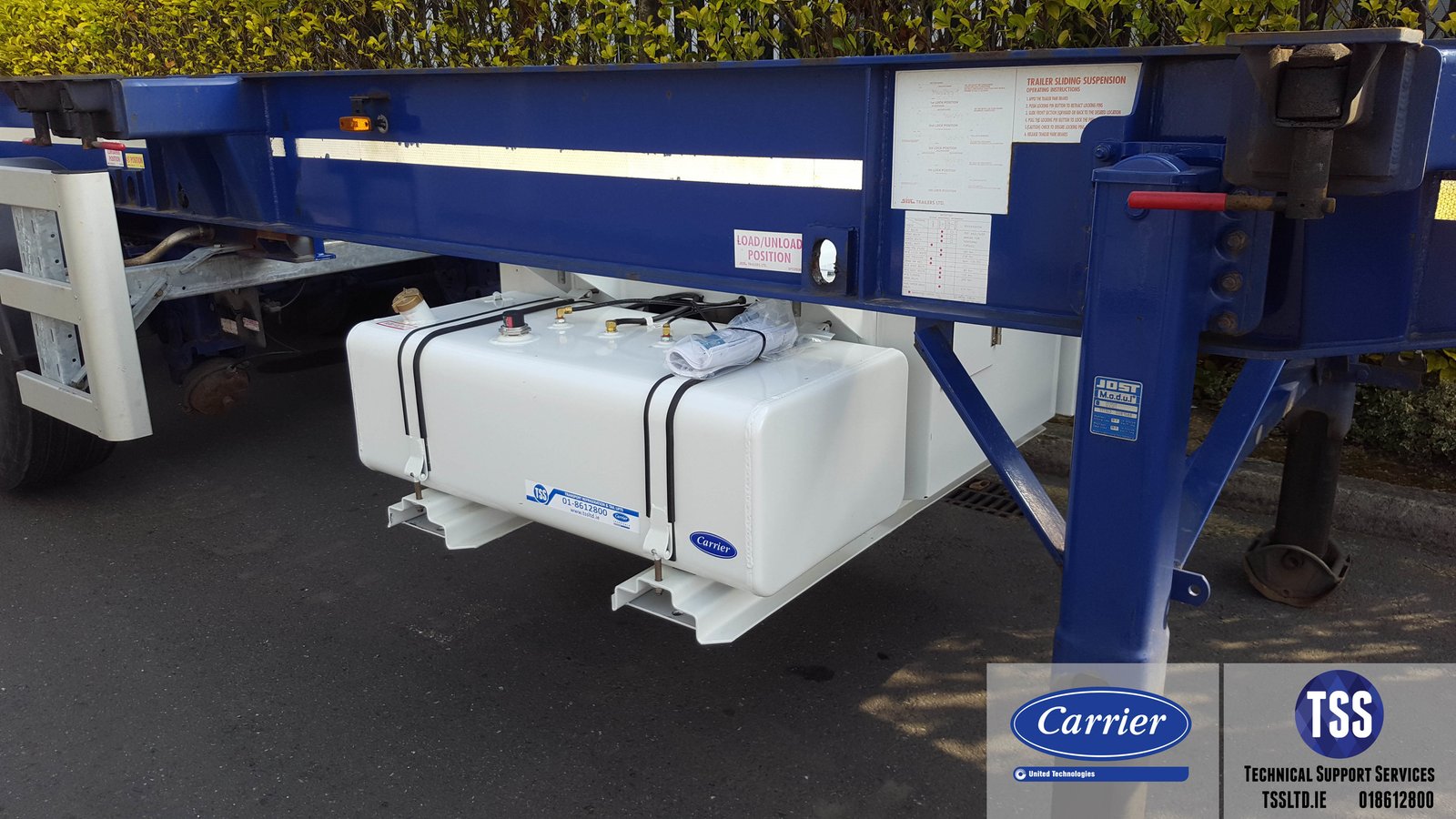

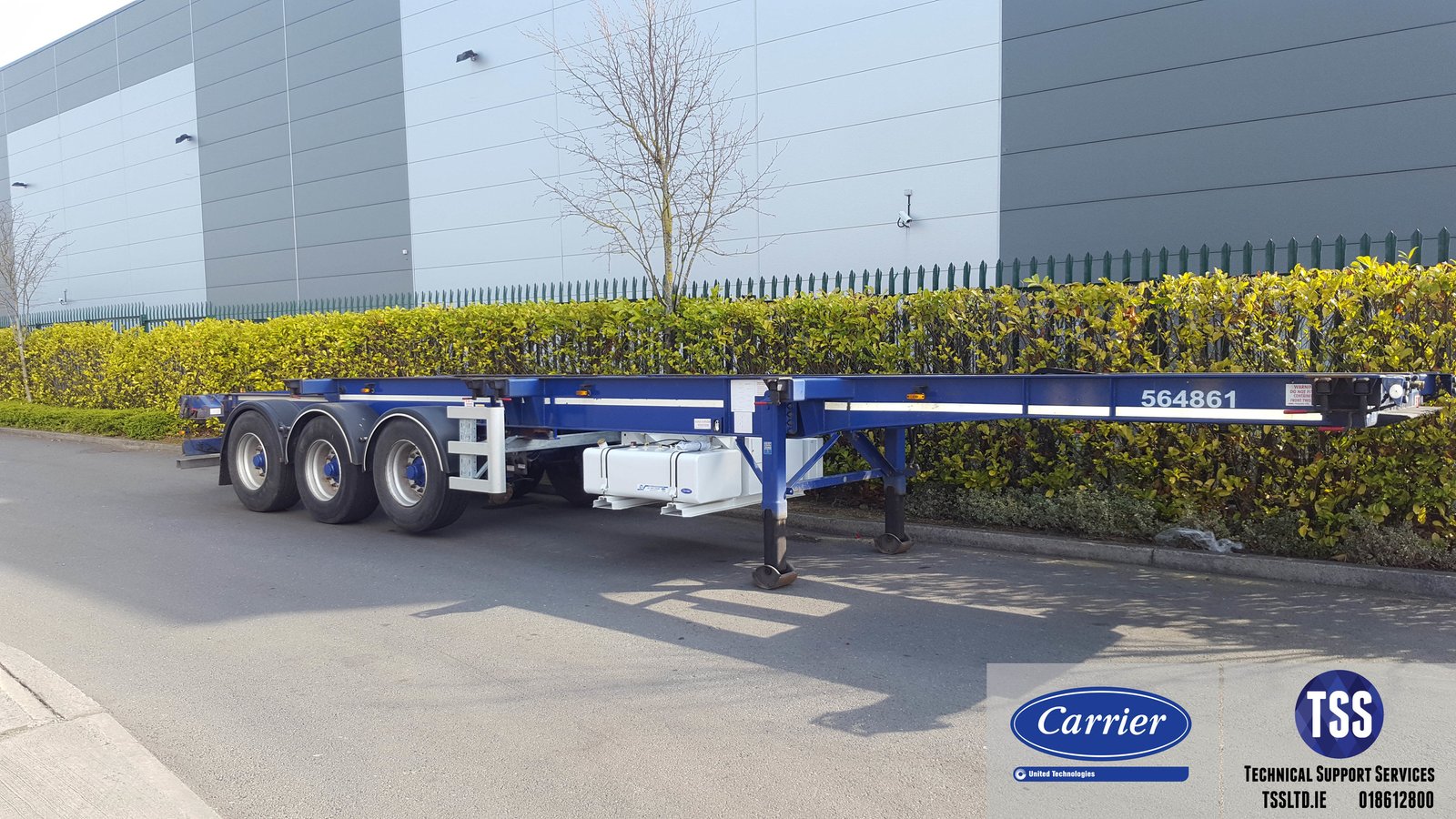

The Carrier Transicold PowerLINE 69UG15-068S-13 undermount generator set is engineered for continuous, unattended operation to power ISO refrigerated containers during road and rail transport. Built with an all-steel fabricated frame and four-point plate-mount hangars, this underslung genset mounts securely beneath a container chassis to deliver reliable electrical power wherever stationary grid supply is unavailable.

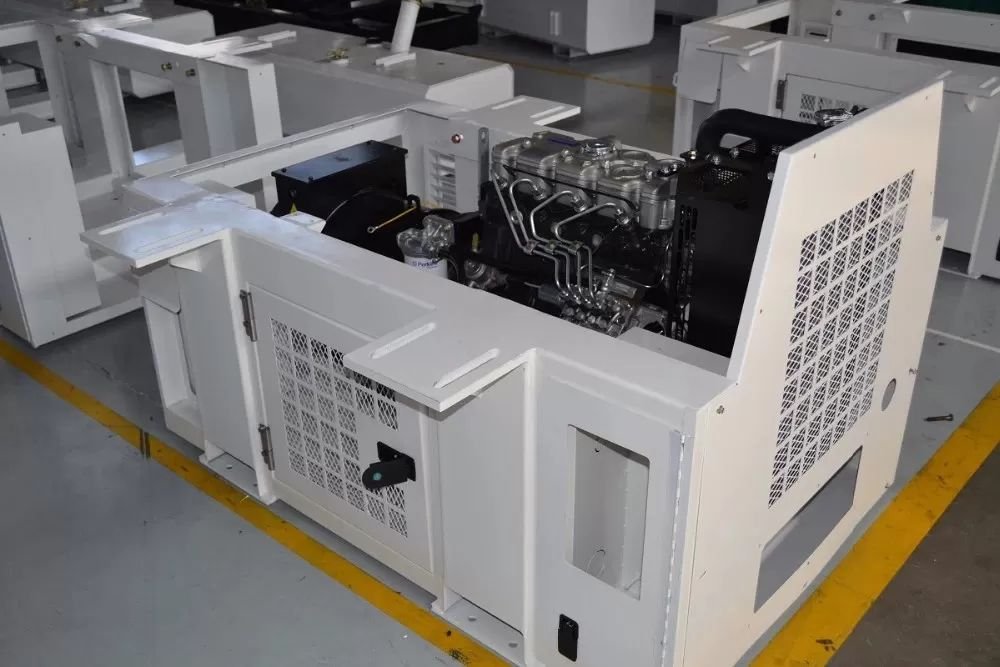

Powered by a proven 2.2-liter CT4-134Di 4-cylinder direct-injection diesel engine rated at 18.5 kW, this Tier 4-compliant unit features an ultra-high-efficiency 15 kW permanent magnet generator. Built-in FuelWise™ two-speed functionality automatically regulates engine speeds, providing up to 34% fuel savings while delivering a continuous 460V power output via a spring-loaded capped receptacle.
Key Features & Specifications
- Engine & Power: 2.2L 4-cylinder water-cooled diesel engine with electronic governor, delivering a nominal 15 kW output.
- Fuel Management: Self-bleeding fuel system with integral water-separating spin-on filter, electric fuel warmer, and shielded fuel gauge.
- Heavy-Duty Construction: Powder-coated frame and sheet metal components, epoxy-dipped tube and fin radiator, stainless steel exhaust, and enclosed forklift pockets.

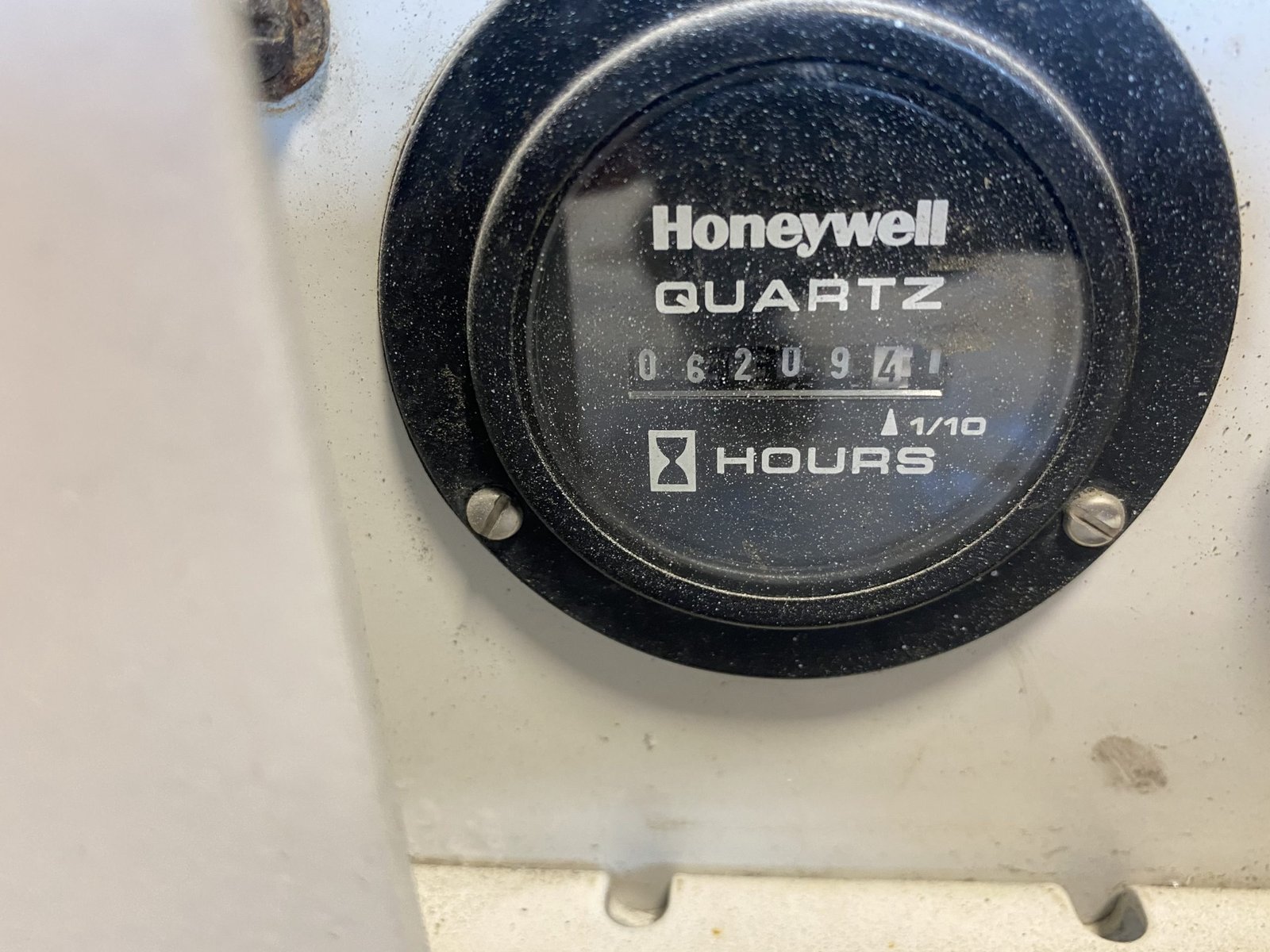

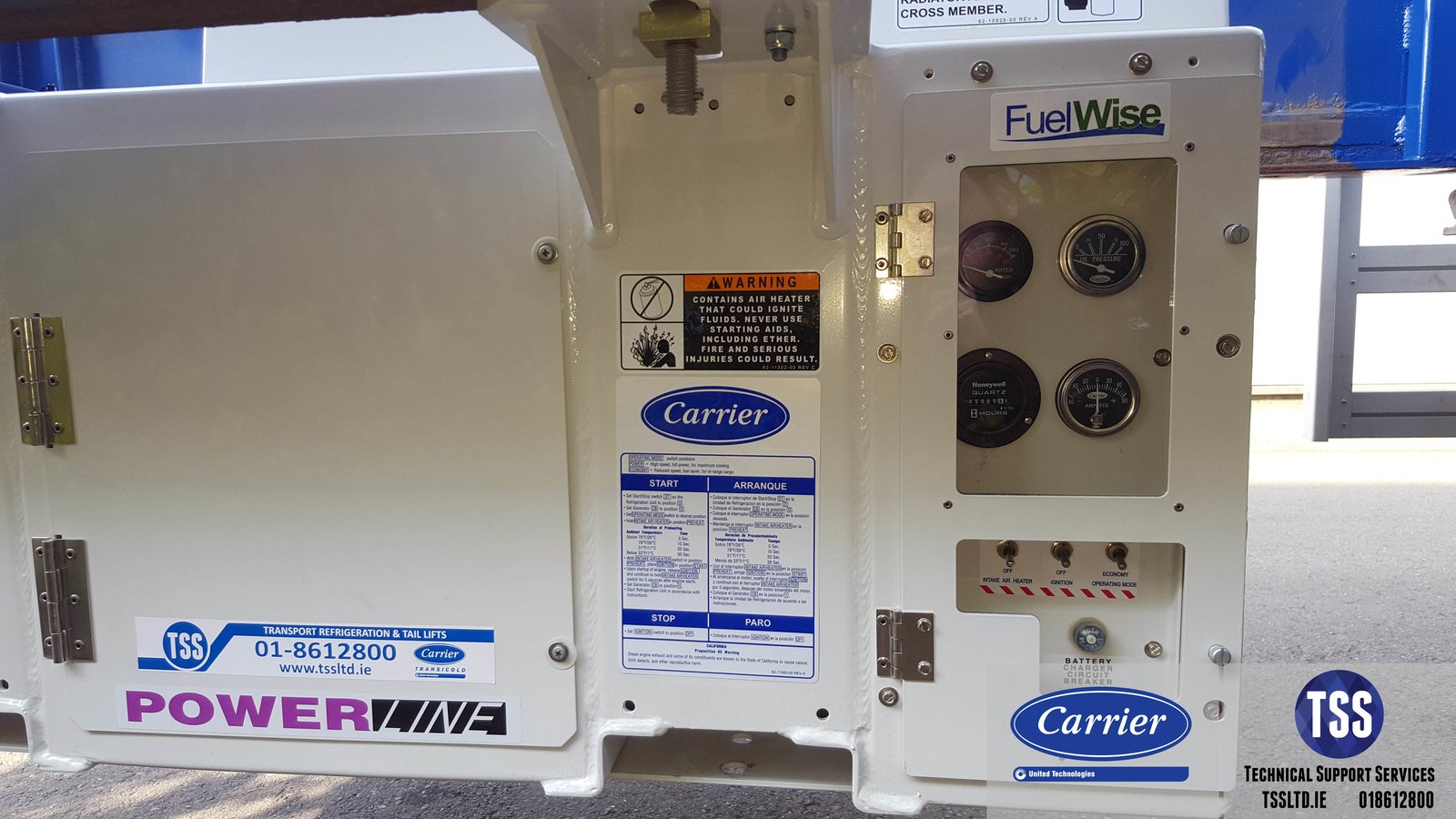

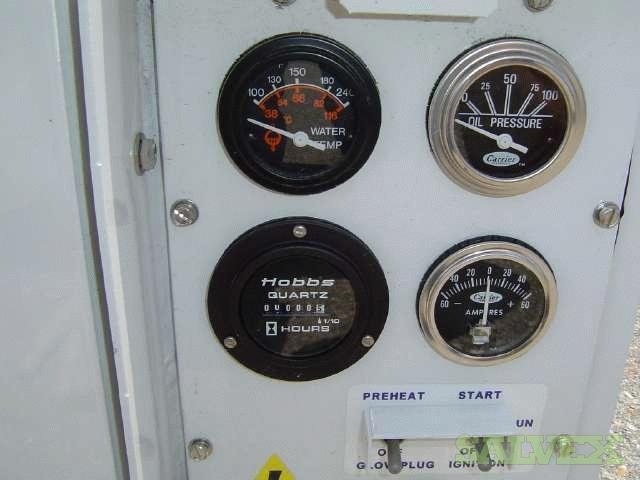

- Electrical & Controls: Driver-side waterproof control box, 12V DC maintenance-free battery with solid-state charger, engine hour meter, and automatic safety shutdowns for low oil pressure and high water temperature.
- Extended Serviceability: Full-flow spin-on oil filter and high-capacity oil pan designed for 2,000-hour service intervals.
- Operating Range: Built to operate in ambient temperatures ranging from -40°C to +52°C (-40°F to +125°F).
| Brand | Carrier |
| Manufacturer | Carrier Transicold |
| Model Number | 69UG15-068S-13 |
| Product Series | PowerLINE Series 13 |

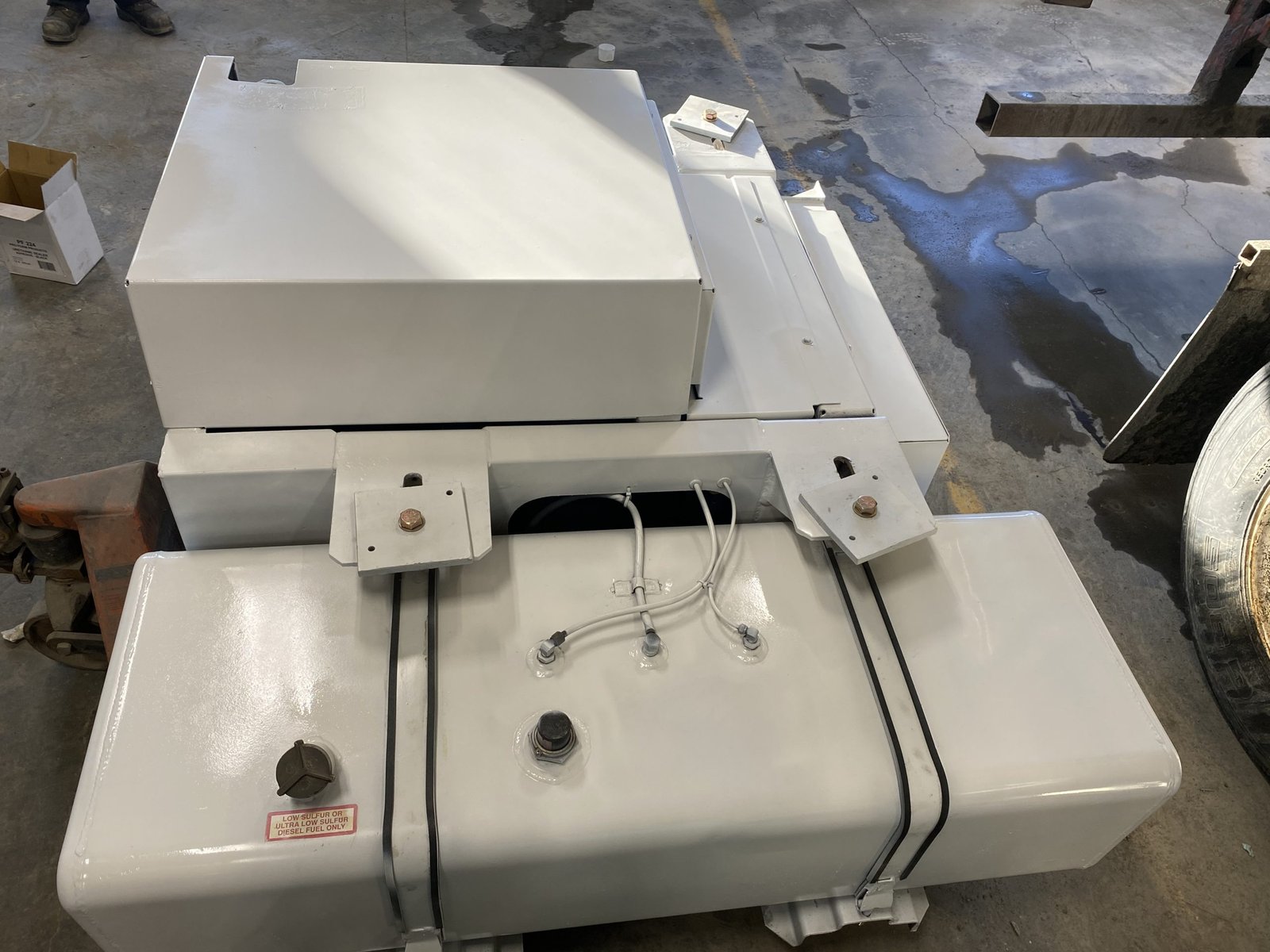

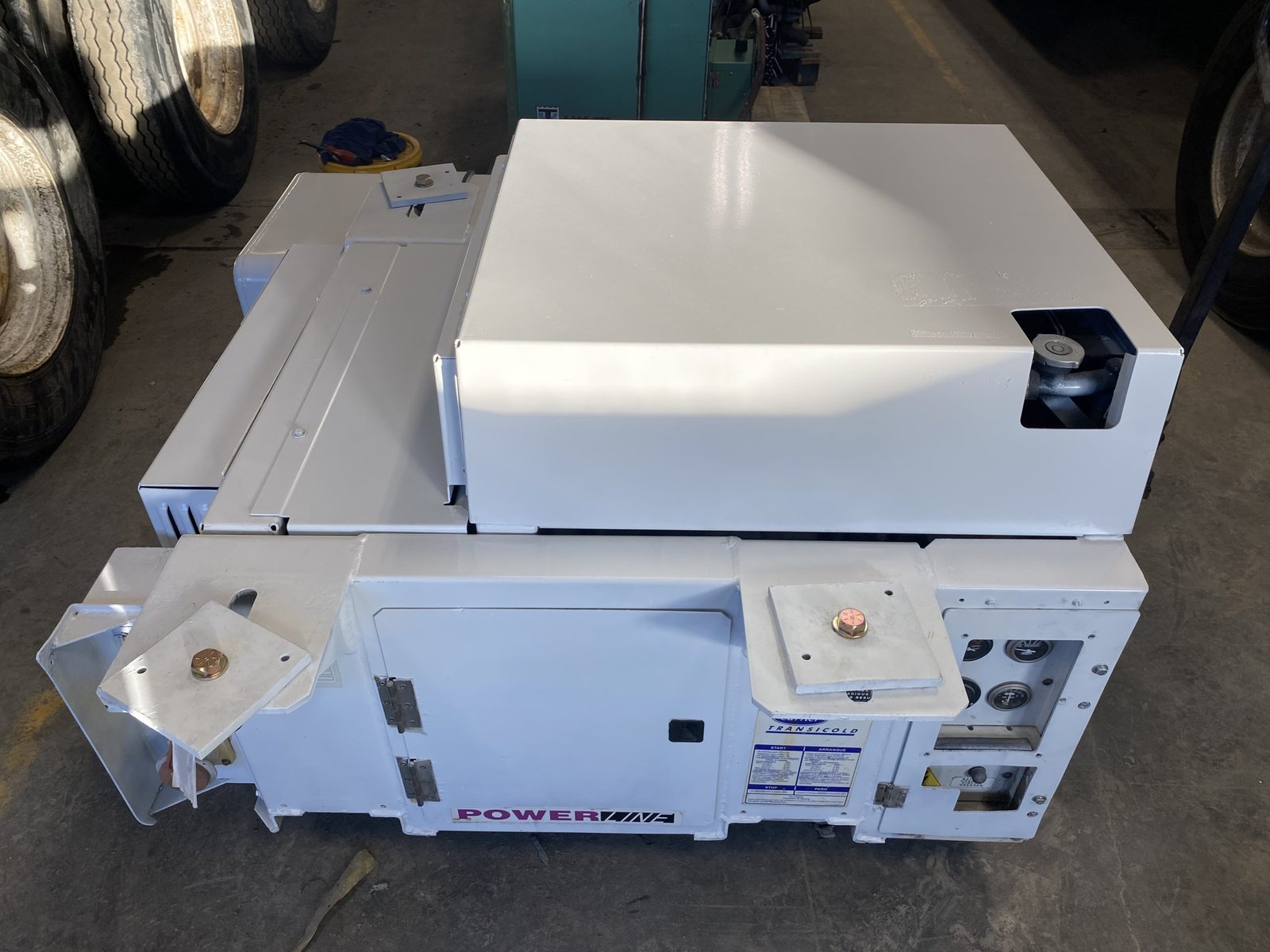

| Mount Type | Undermount / Underslung (4-Point PlateMount Hangars) |
| Engine | CT4-134Di 4-cylinder water-cooled 2.2 liter direct-injection diesel engine |
| Engine Power | 18.5 kW |
| Generator Output | Nominal 15 kW |
| Output Voltage | 460V receptacle with spring-loaded cap |
| Battery | 12V DC maintenance-free |
| Battery Charger | Solid-state |

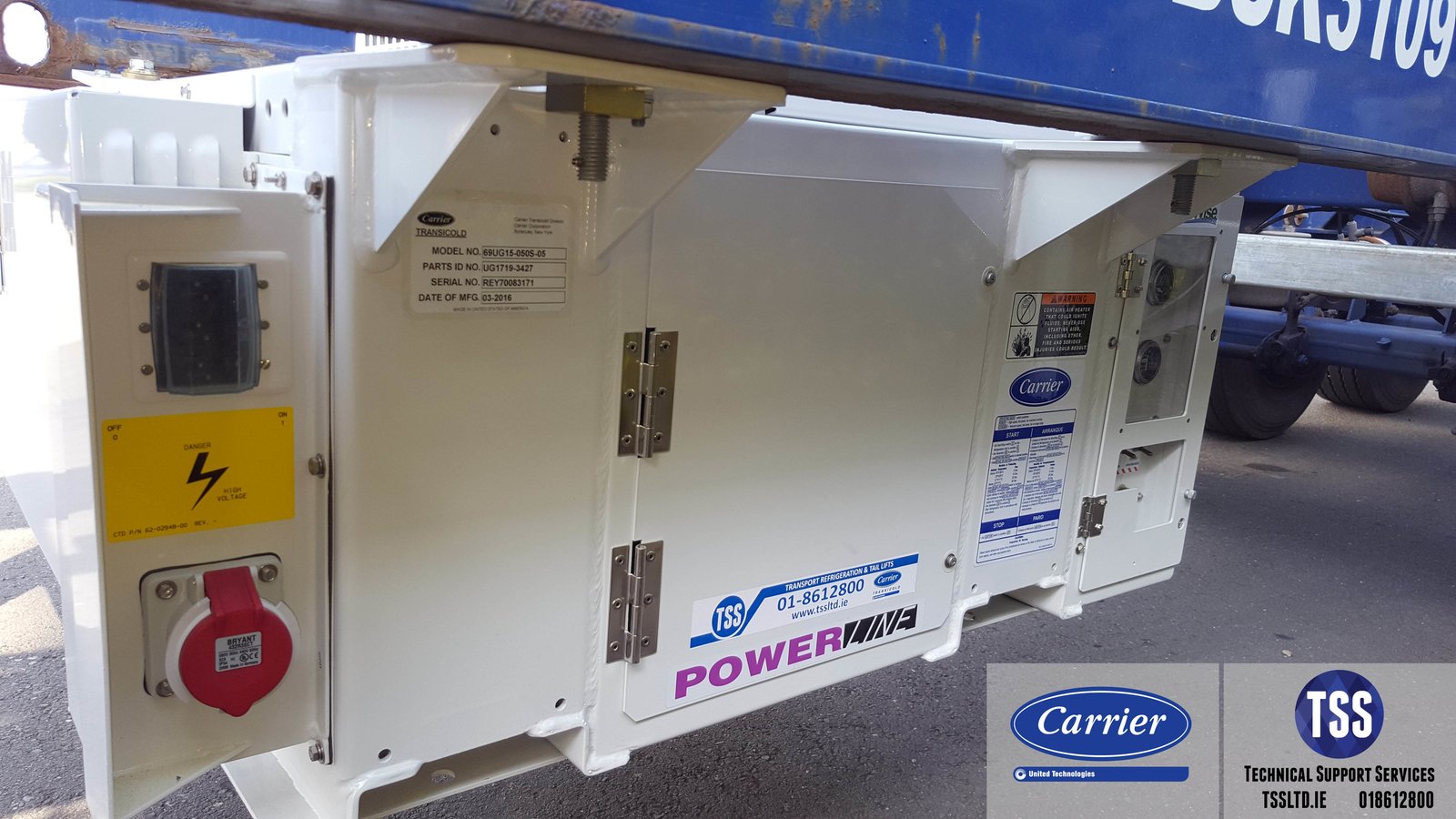

| Control Box | Driver-side waterproof control box |
| Safety Controls | Automatic stop for low oil pressure and high water temperature |
| Fuel System | Self-bleeding with integral filter and water separator |
| Radiator | Epoxy-dipped tube and fin radiator |
| Exhaust | Stainless steel |
| Ambient Temperature Range (Run) | -40 to +52°C (-40 to +125°F) |
| Weight (Less Fuel) | 621 kg (1,370 lb) |
