Description

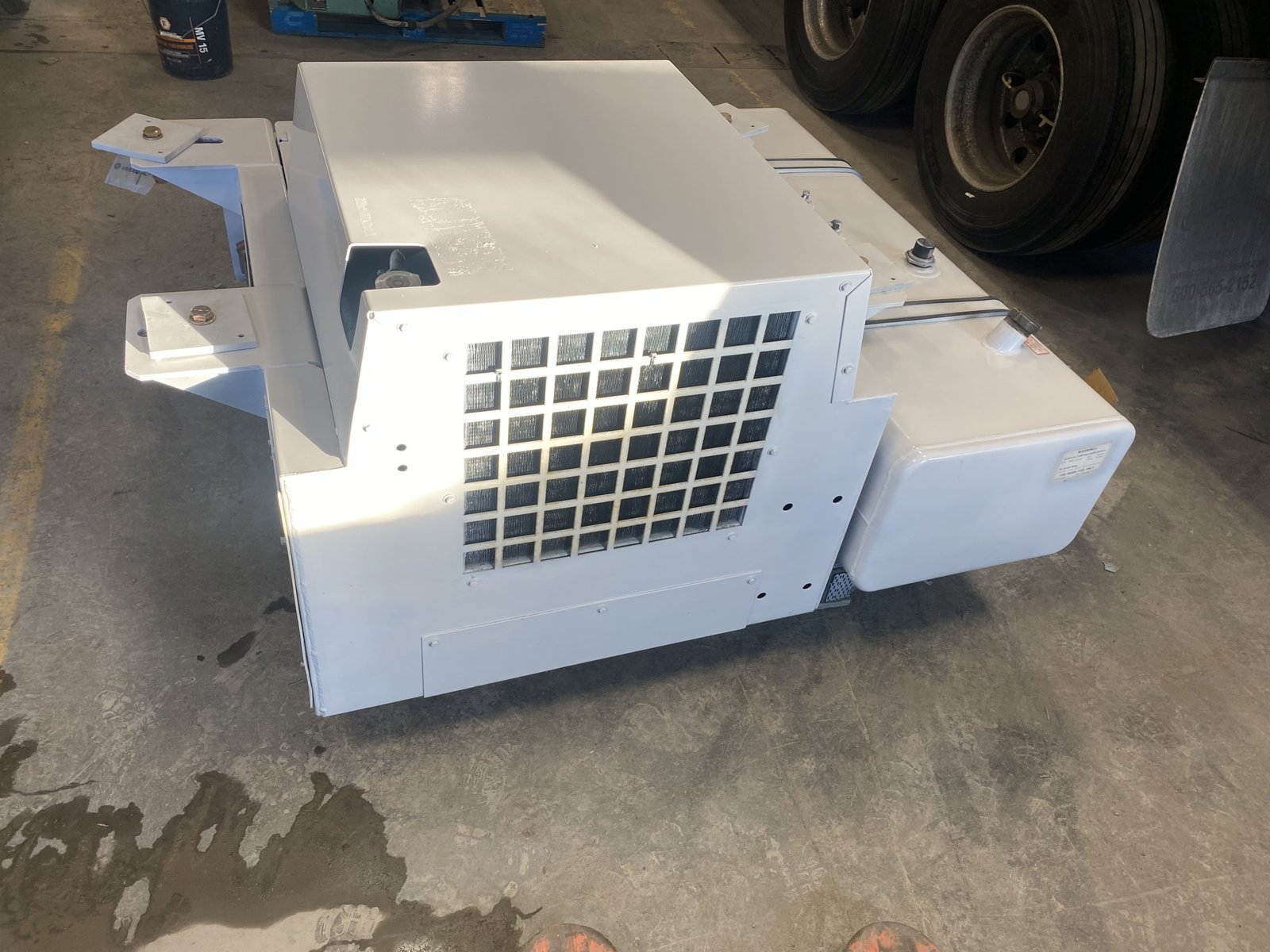

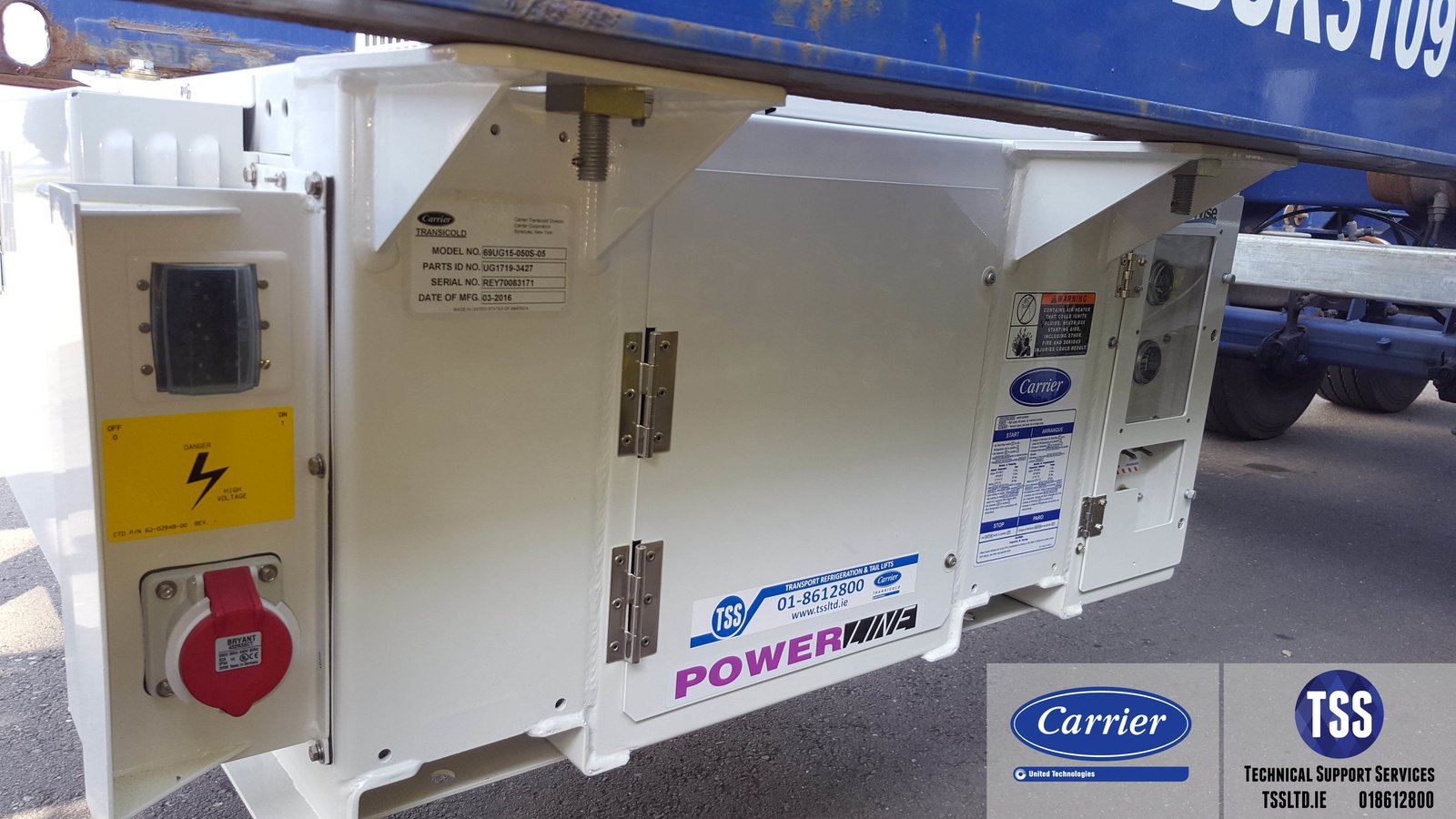

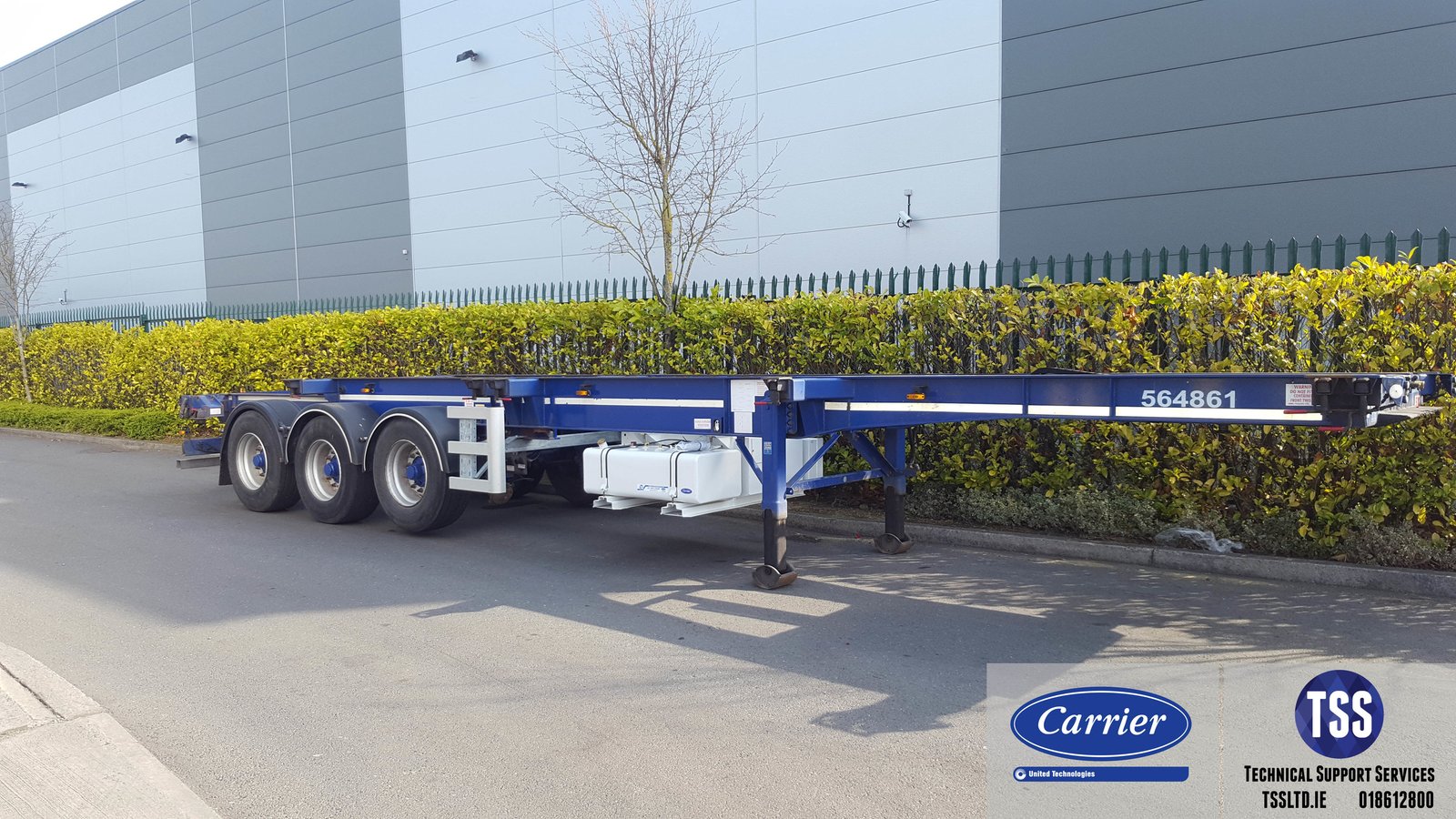

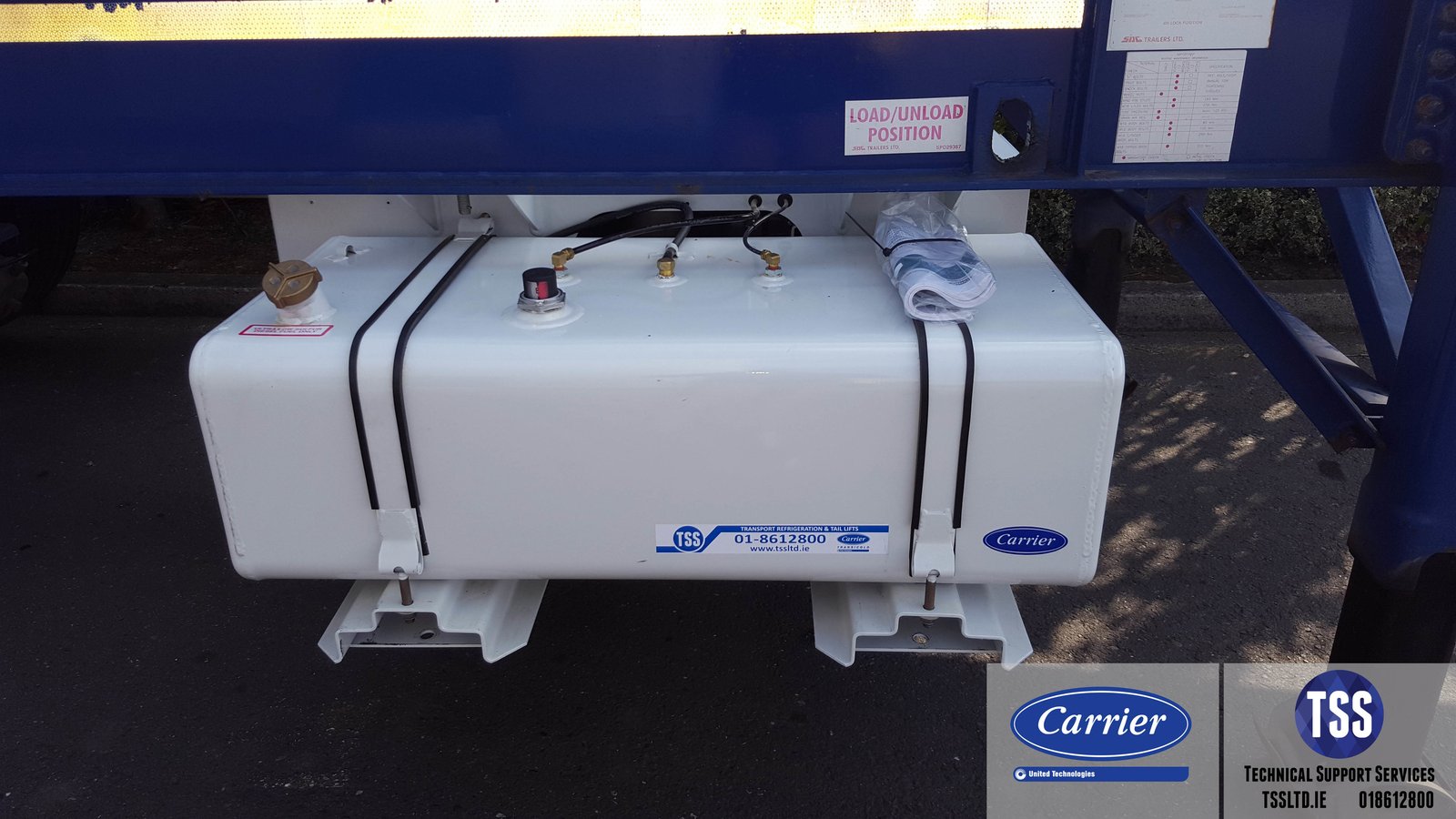

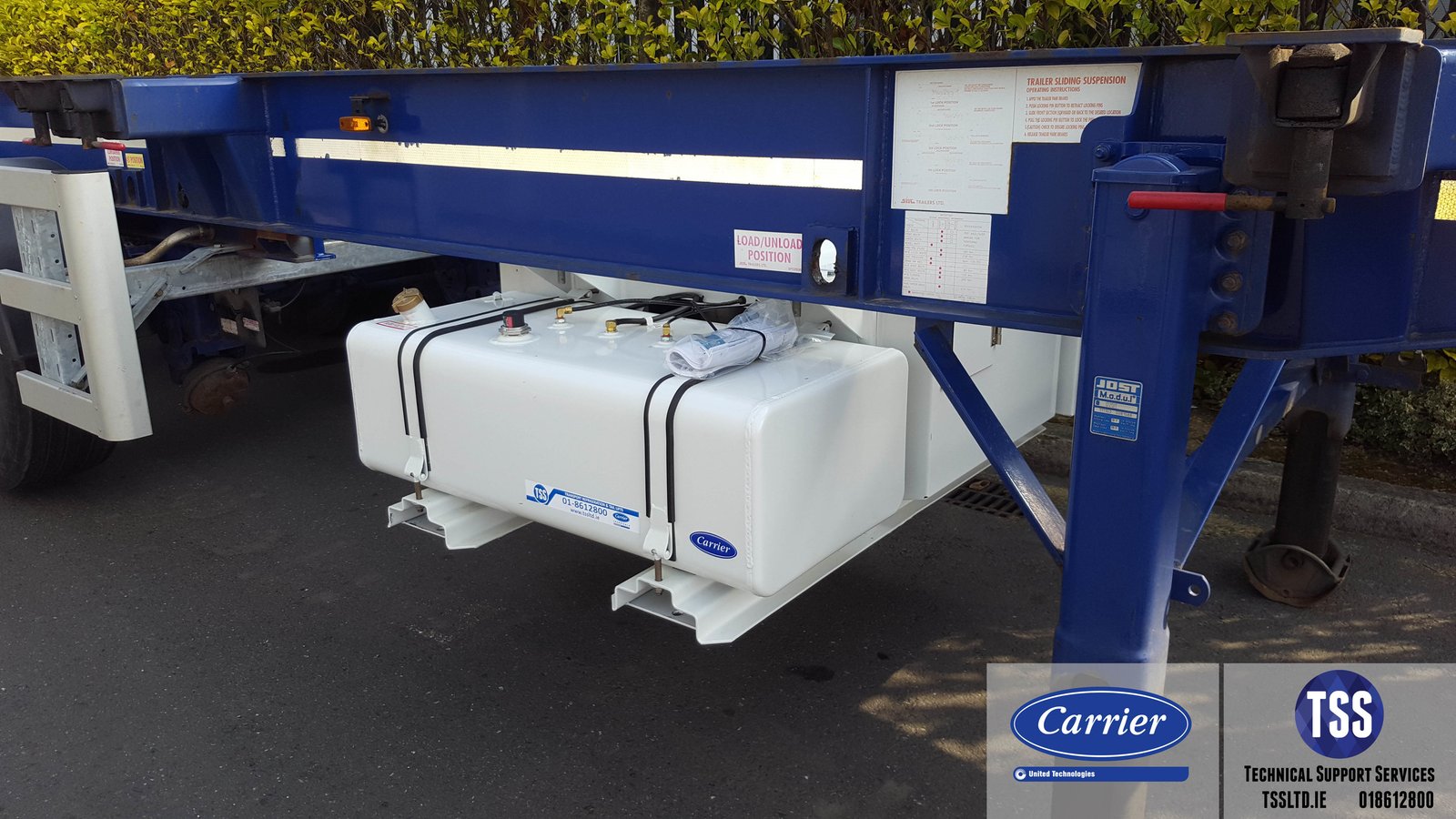

The Carrier PowerLINE 69UG15-068S-13 undermount generator set is engineered for continuous, unattended operation to power refrigerated containers during road and rail transport. Designed for seamless mounting beneath standard ISO container chassis trailers, this underslung genset provides reliable power for intermodal reefer operations in any environment.

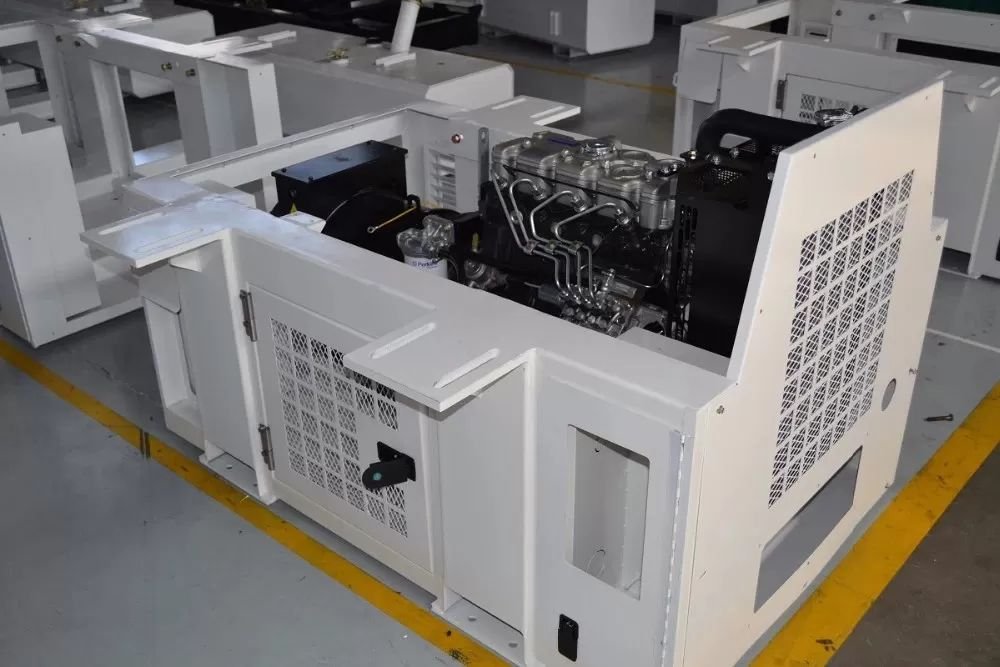

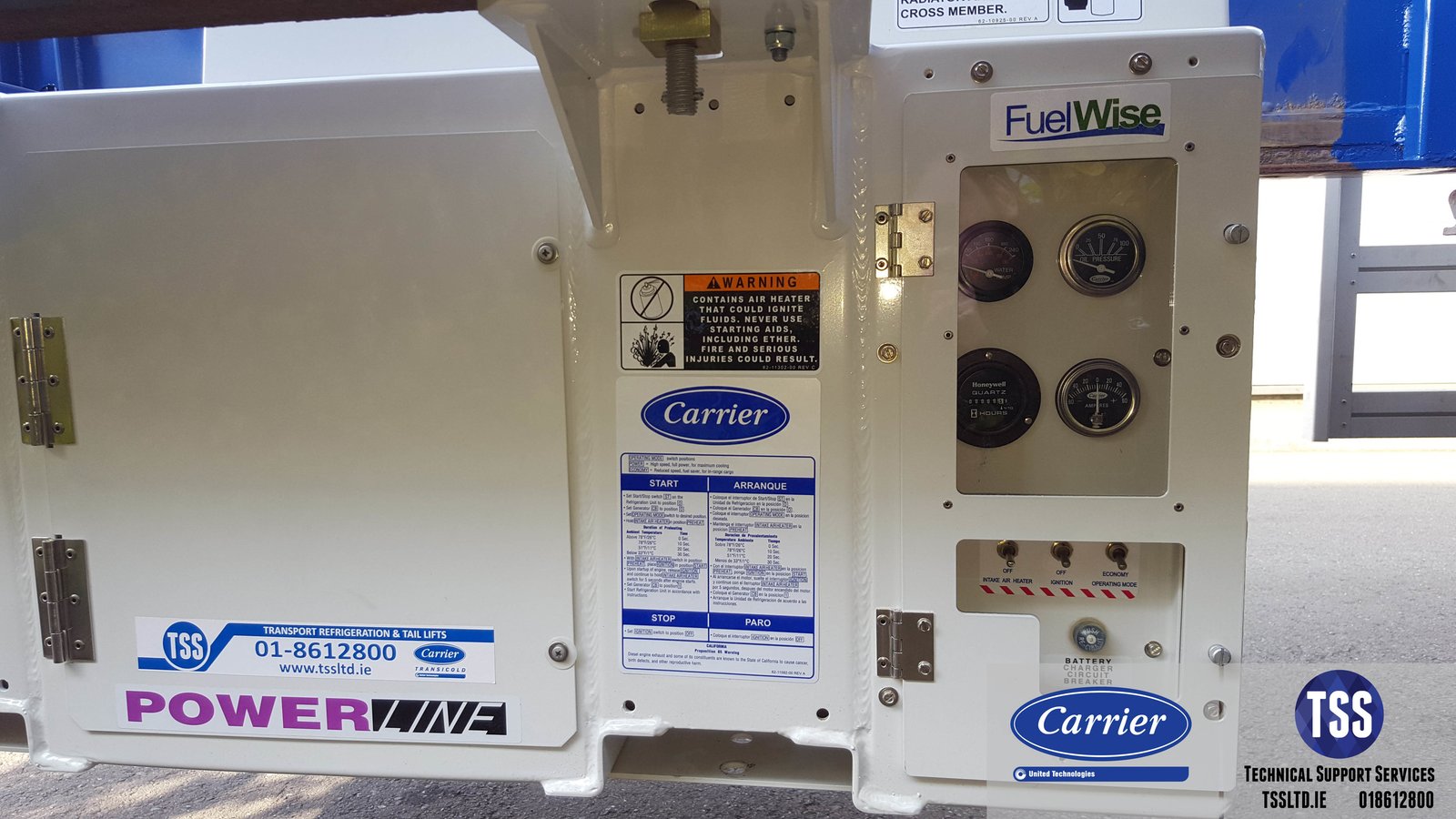

Powered by a robust 2.2-liter CT4-134Di 4-cylinder water-cooled direct-injection diesel engine rated at 18.5 kW, the unit features an ultra-high-efficiency 15 kW permanent magnet generator. Built-in FuelWise™ two-speed functionality automatically adjusts engine speed via a black box controller to optimize fuel efficiency, reducing consumption by up to 34% compared to standard models.

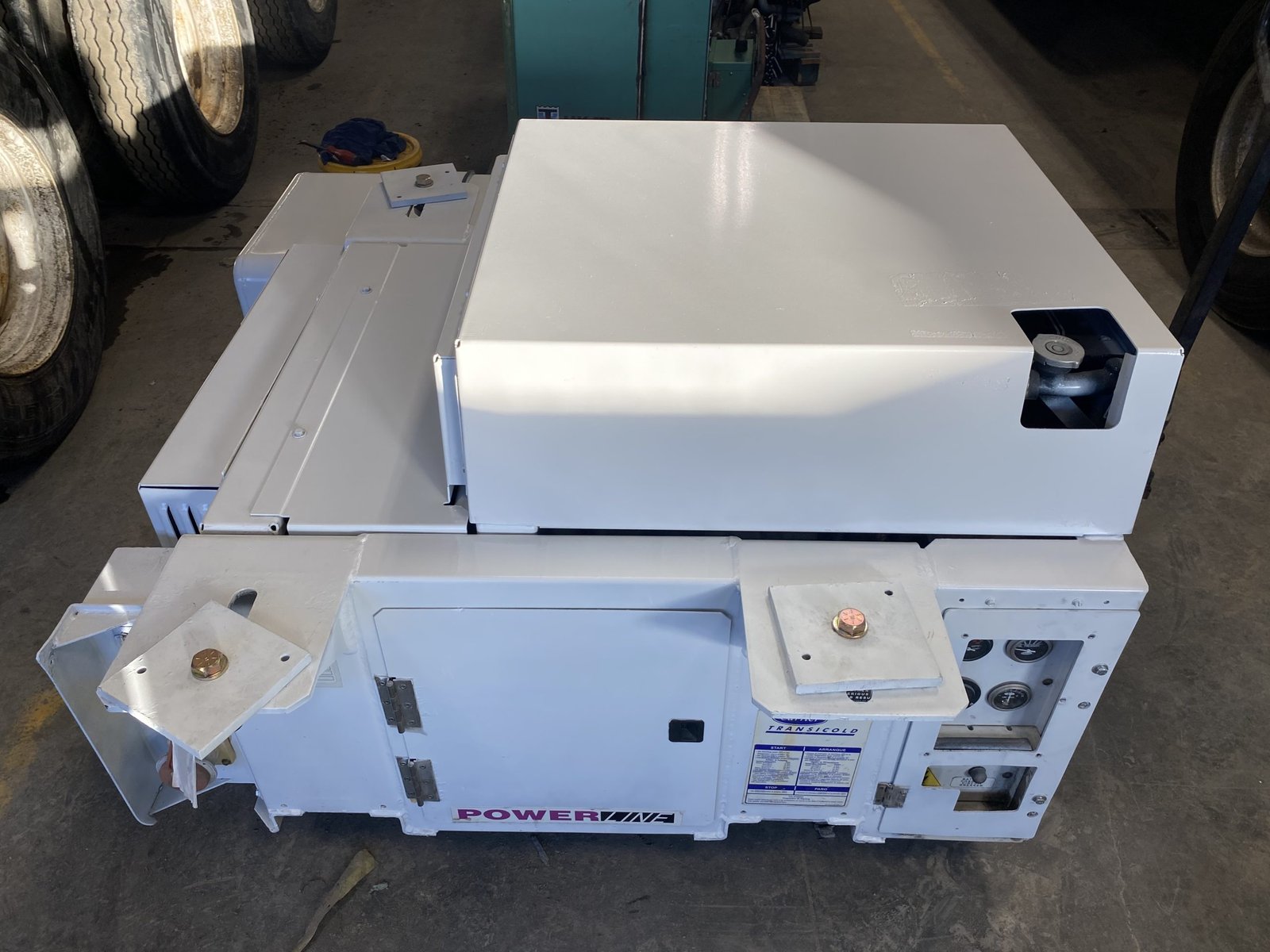

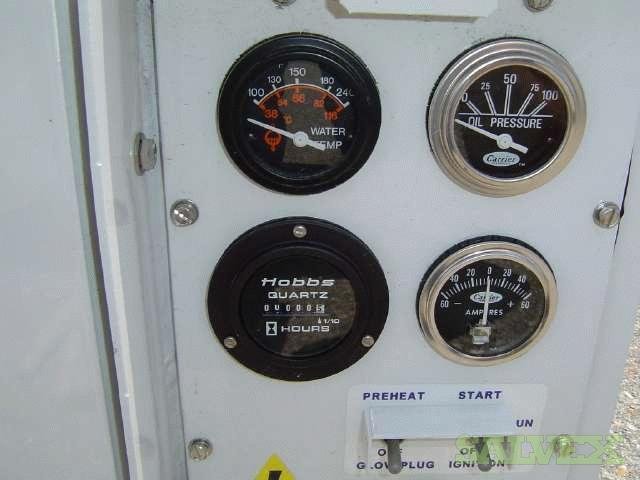

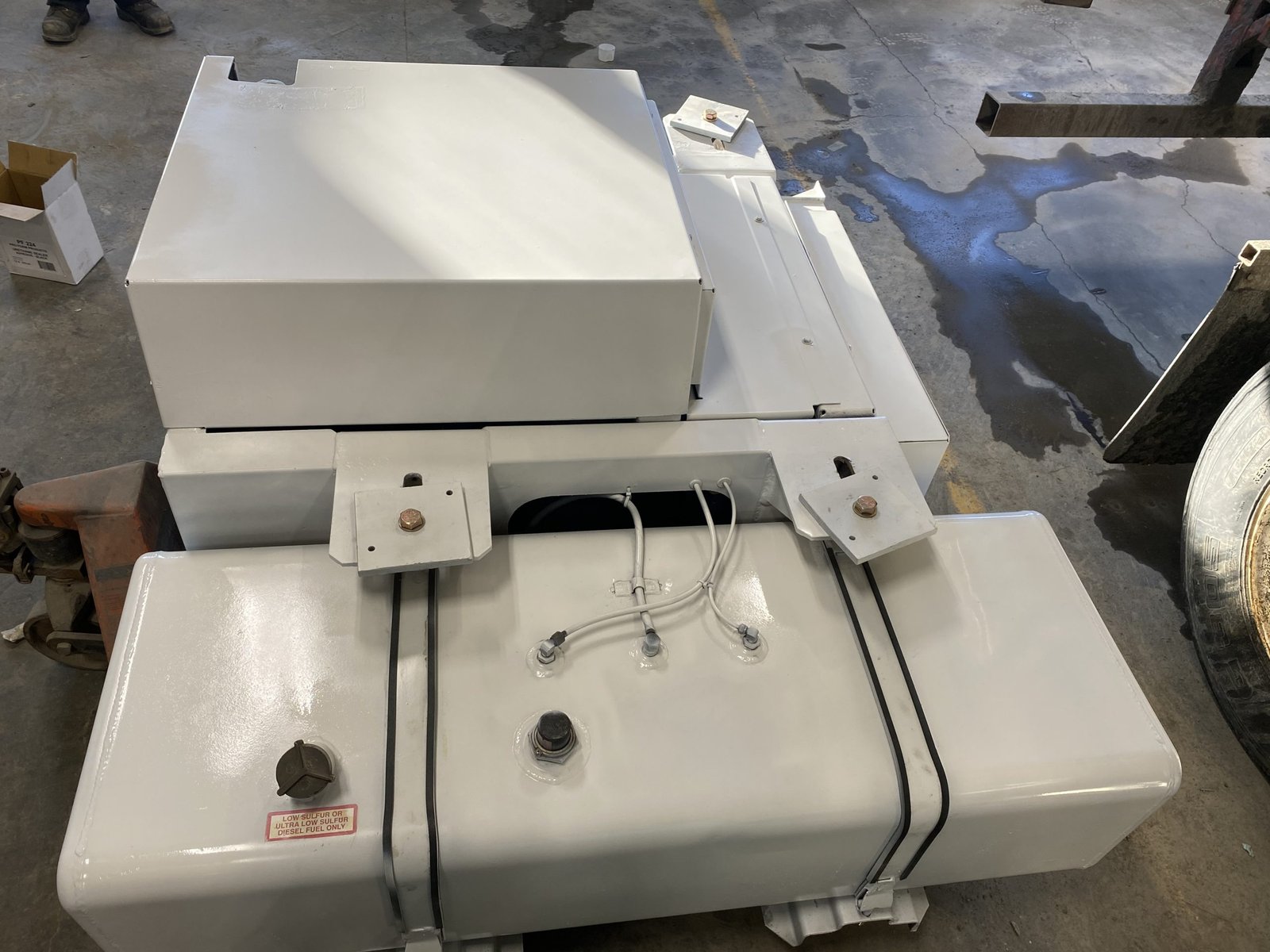

Constructed with a powder-coated steel frame for corrosion resistance, the unit includes an integral fuel tank, stainless steel exhaust, and a patented E-coat tube and fin radiator. Maintenance is simplified through a large service door with a self-locking quick-release latch, full-flow spin-on oil filtration extending oil change intervals up to 2,000 hours, and built-in safety stop controls for low oil pressure and high water temperature.
| Brand | Carrier |
| Manufacturer | Carrier Transicold |
| Model Number | 69UG15-068S-13 |
| Series | PowerLINE Series 13 |
| Engine | CT4-134Di 4-cylinder water-cooled 2.2 liter direct-injection diesel engine |
| Engine Power | 18.5 kW |
| Generator Type | Nominal 15 kW brushless permanent magnet generator |
| Electrical Output | 460V receptacle with spring-loaded cap |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 50 gal (189 L) standard / optional 68 gal (275 L) |
| Battery | 12V DC maintenance-free |
| Battery Charger | Solid-state |
| Mounting Type | 4-point PlateMount hangers |
| Emissions Compliance | US EPA Tier 4 / CARB compliant |
| Operating Ambient Temperature | -40 to +52°C (-40 to +125°F) |
| Starting Ambient Temperature | -26 to +52°C (-15 to +125°F) |
| Weight | 621 kg (1,370 lb) less fuel |
