Description

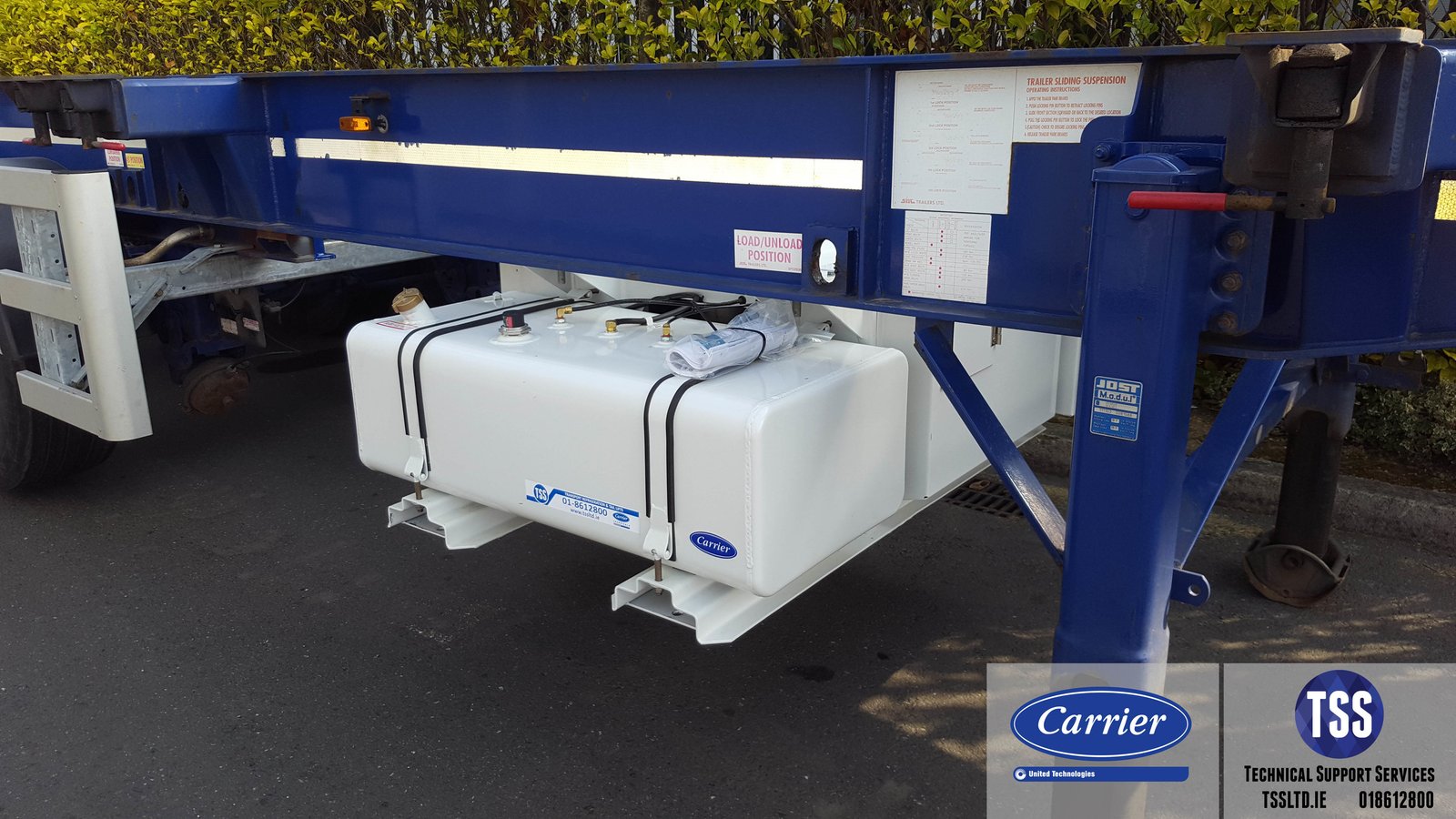

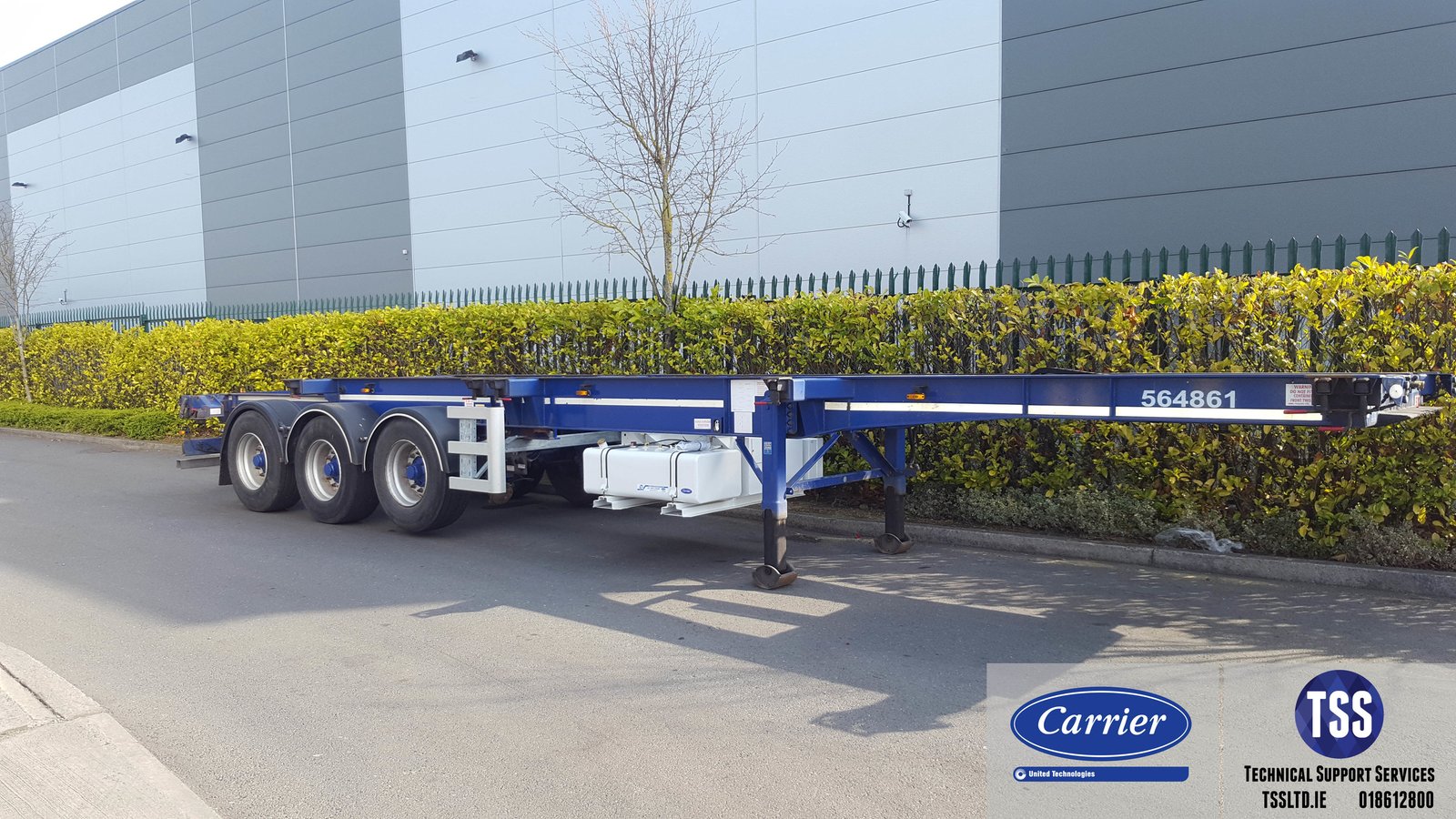

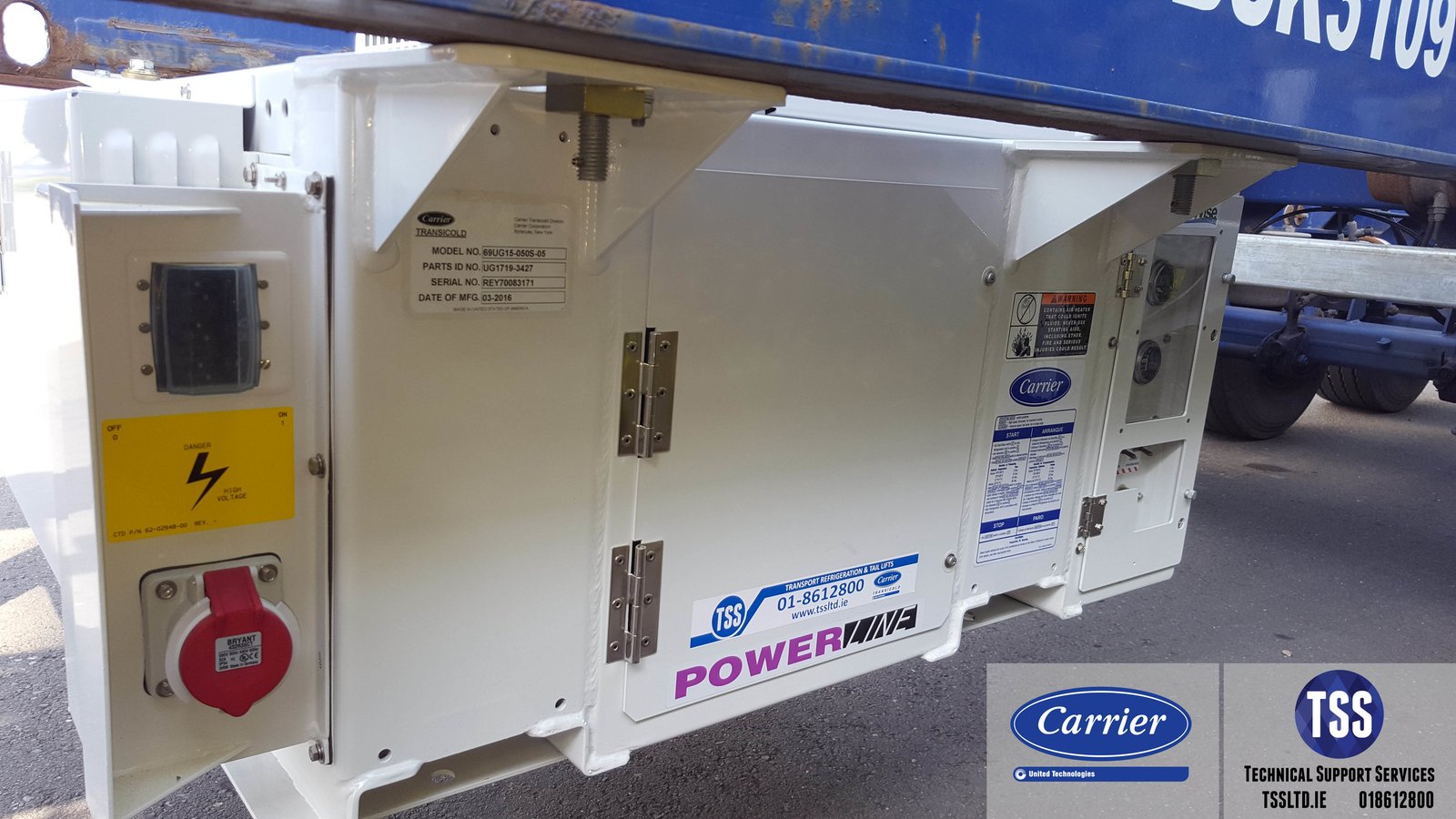

The Carrier Transicold PowerLINE 69UG15-068S-24 undermount generator set is engineered for continuous, unattended operation, providing reliable power for refrigerated containers during road and rail transport. This model meets CARB emissions regulations for engines in the 8-19KW class and is EPA Tier 4 compliant, ensuring lifetime compliance with current CARB requirements.

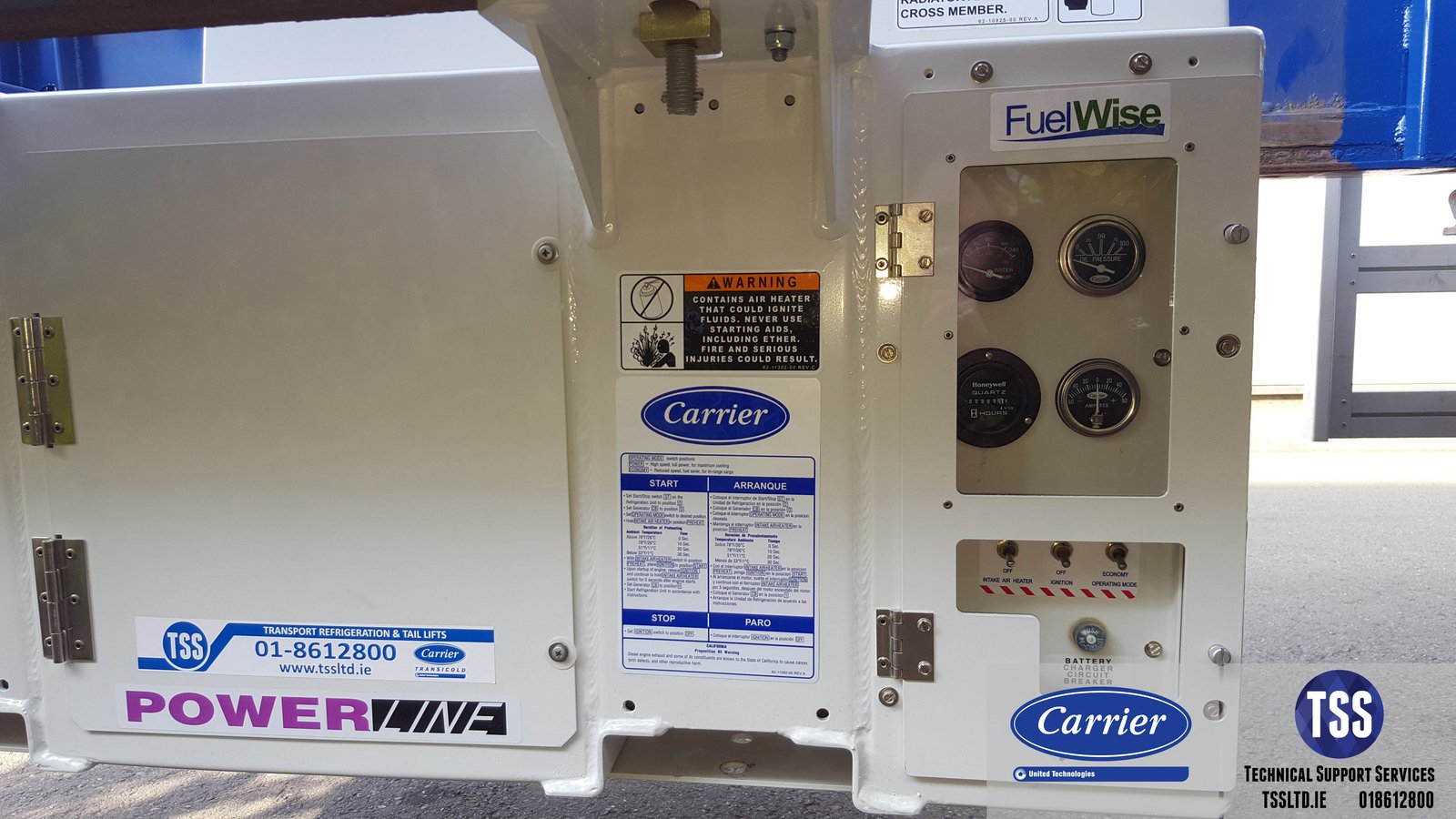

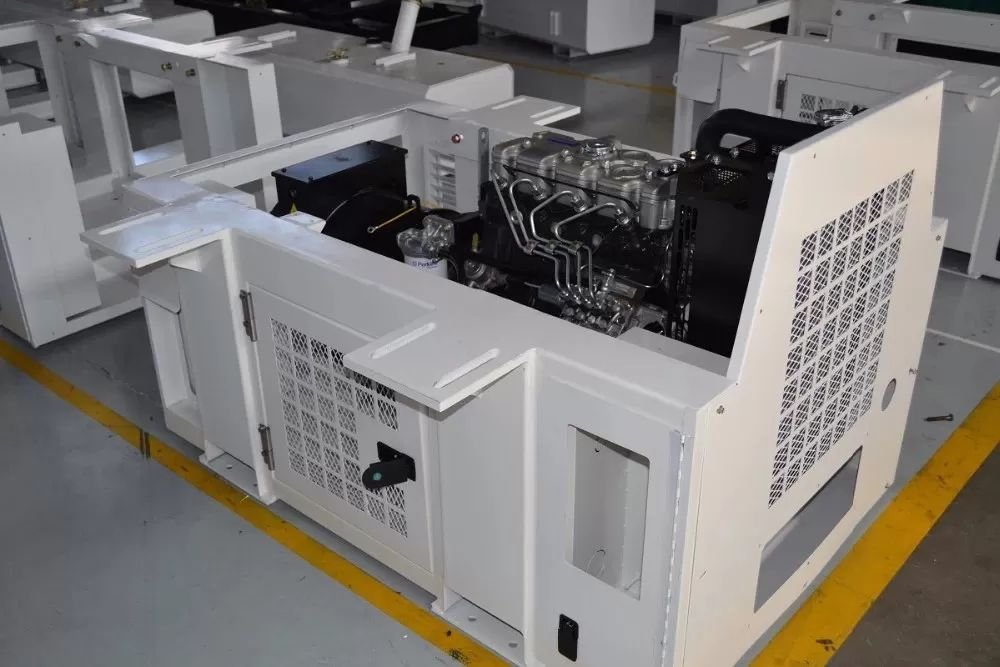

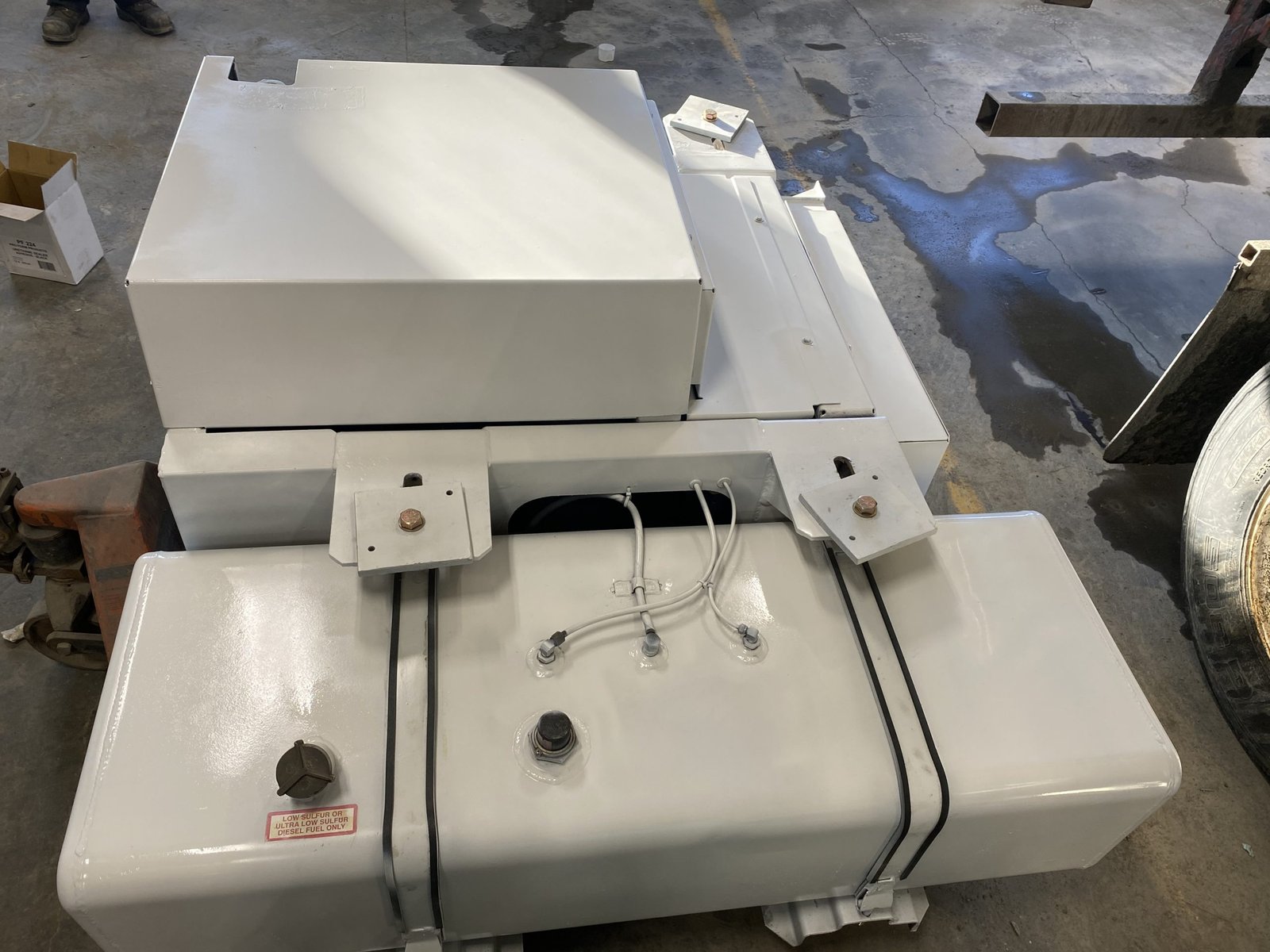

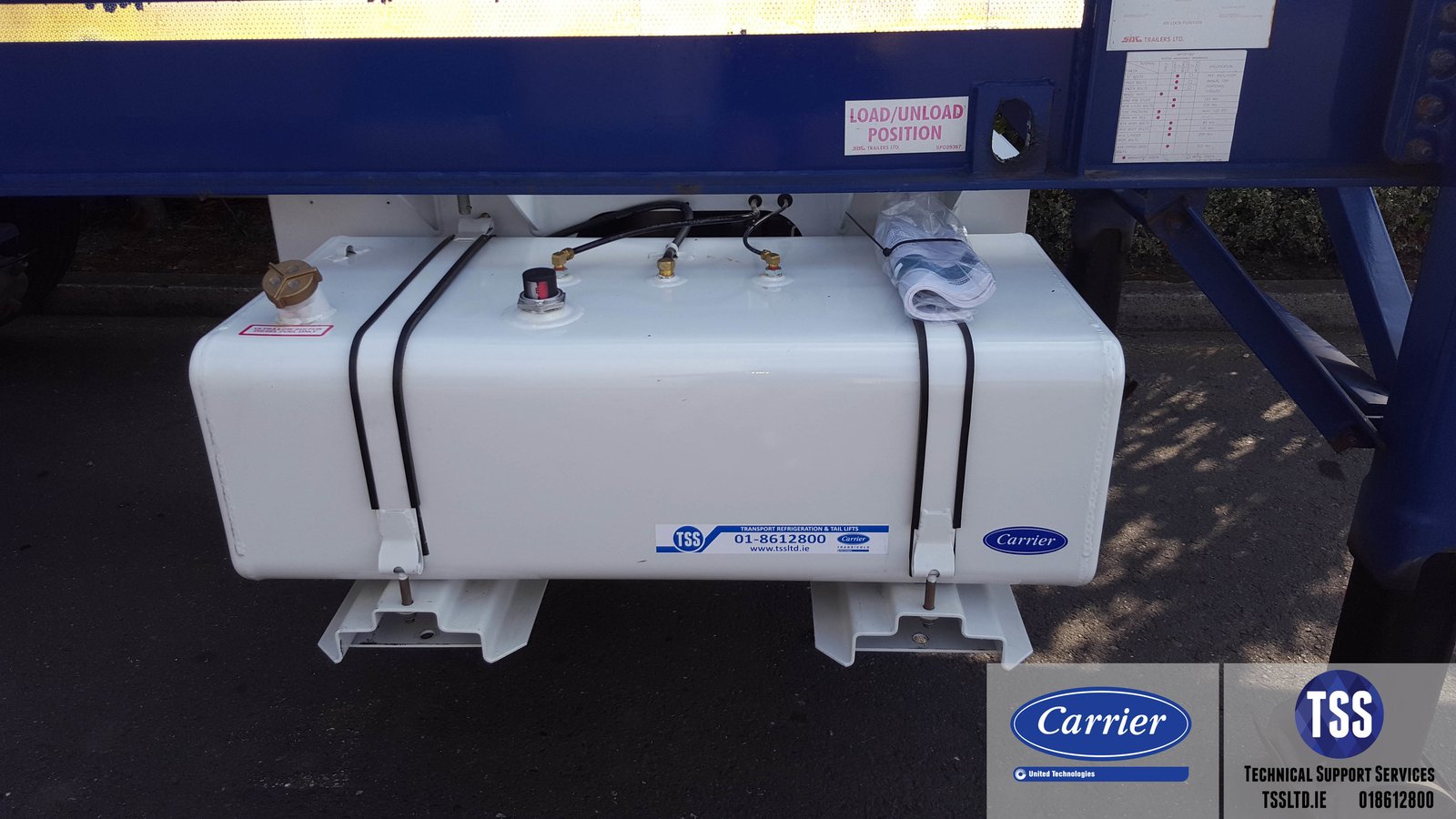

At its core is a V2403-CR-E4B 4-cylinder, water-cooled, 2.4-liter common rail injection diesel engine paired with a nominal 15 kW high-efficiency permanent magnet generator. The advanced controller features enhanced FuelWise functionality for optimized fuel consumption. A 68-gallon steel fuel tank comes standard, with optional 50-gallon steel, 50-gallon aluminum, or 80-gallon aluminum tanks available.

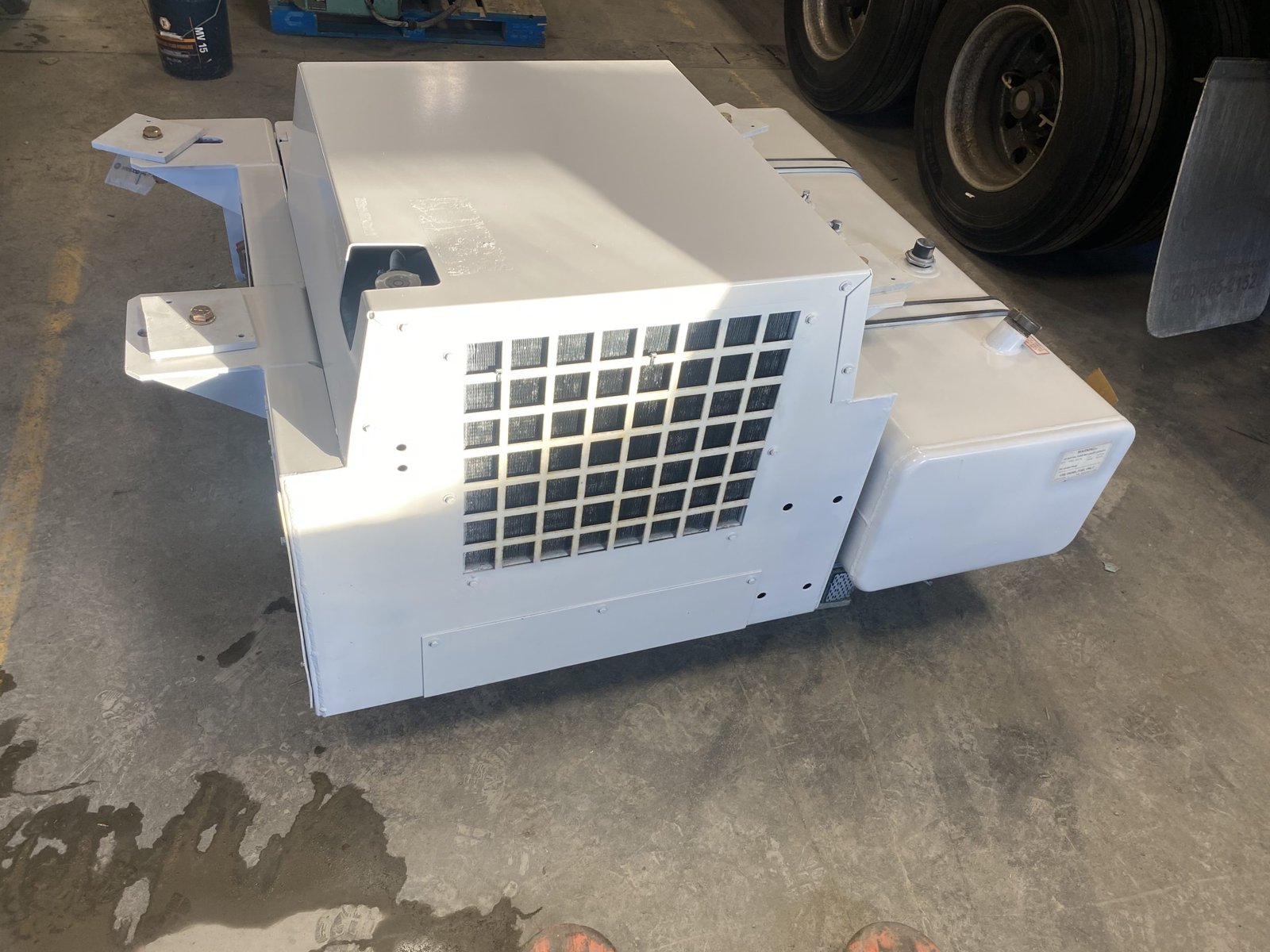

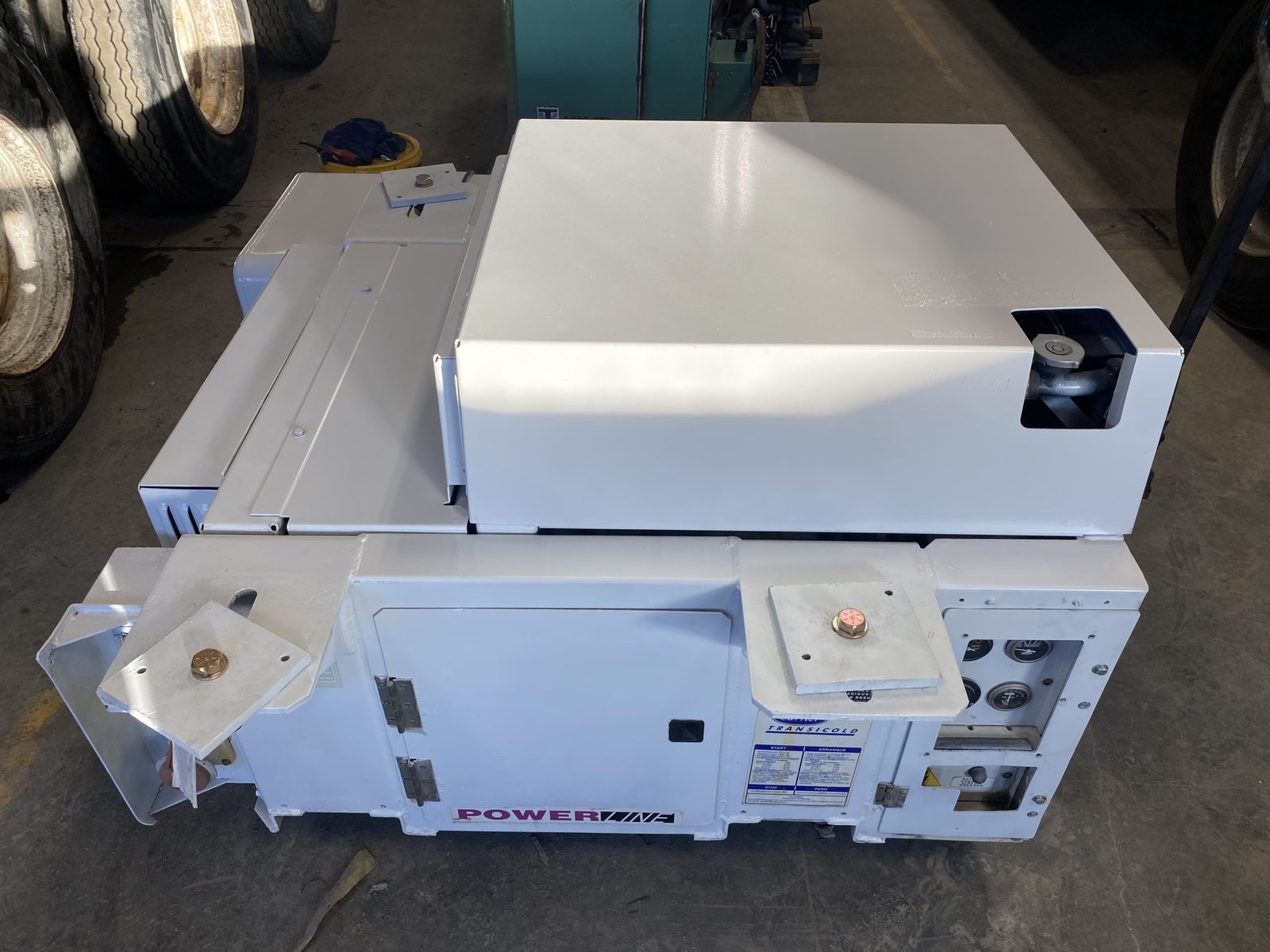

The all-steel fabricated frame features a four-point PlateMount system and durable powder-coated components. A patented E-coat tube and fin radiator, large aluminum service access door, and forklift pockets for mounting from either side simplify maintenance. Safety features include automatic stop controls for low oil pressure and high water temperature. Stainless steel exhaust and hardware provide corrosion resistance, while the large oil pan extends running hours between oil changes.
| Model | Undermount Genset Carrier |
| Power | 15 kW |
| Engine | V2403-CR-E4B, 4-cylinder, water-cooled, 2.4-liter, common rail injection diesel |
| Generator | Nominal 15 kW high-efficiency permanent magnet |
| Fuel Type | Diesel |

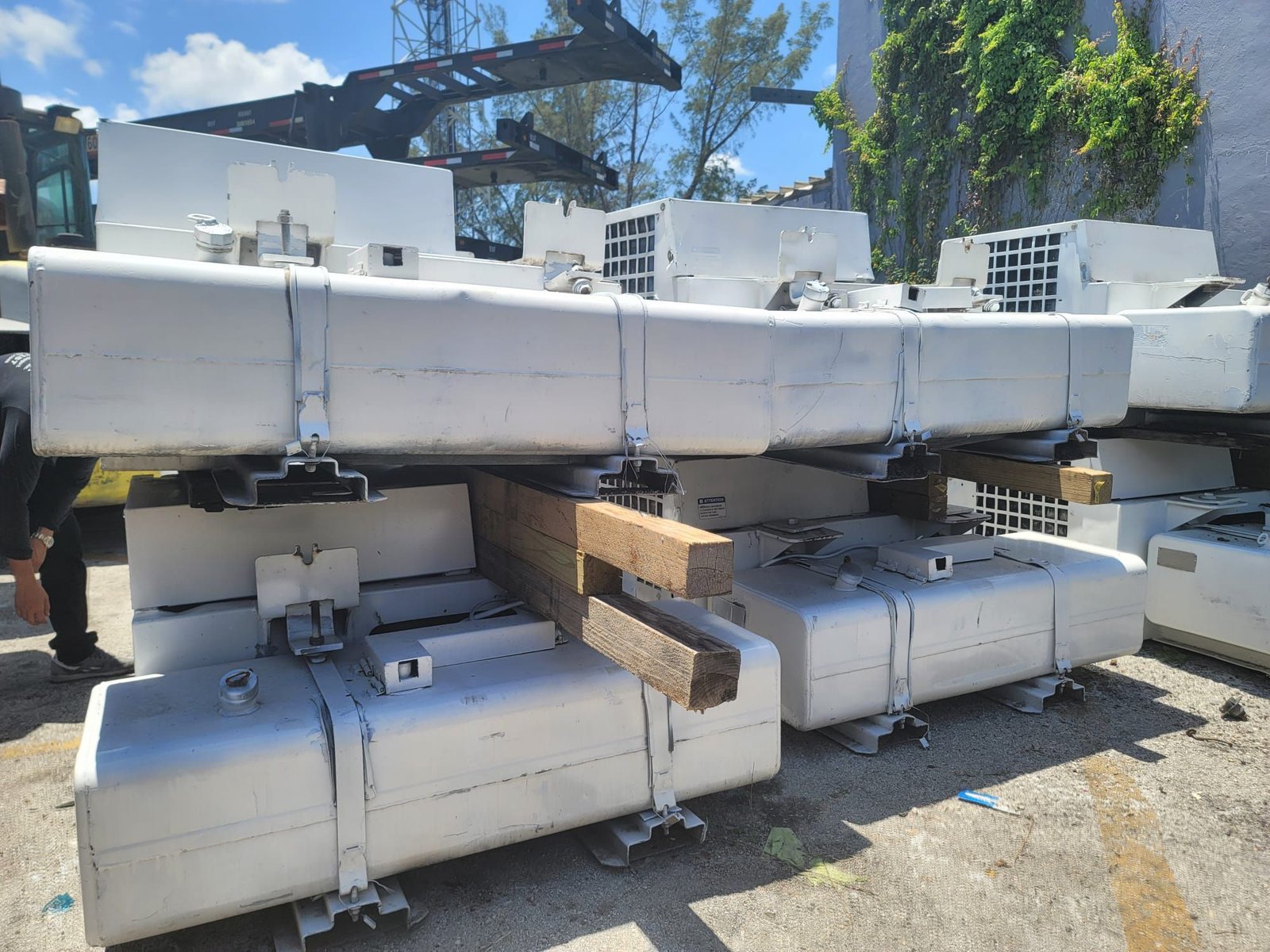

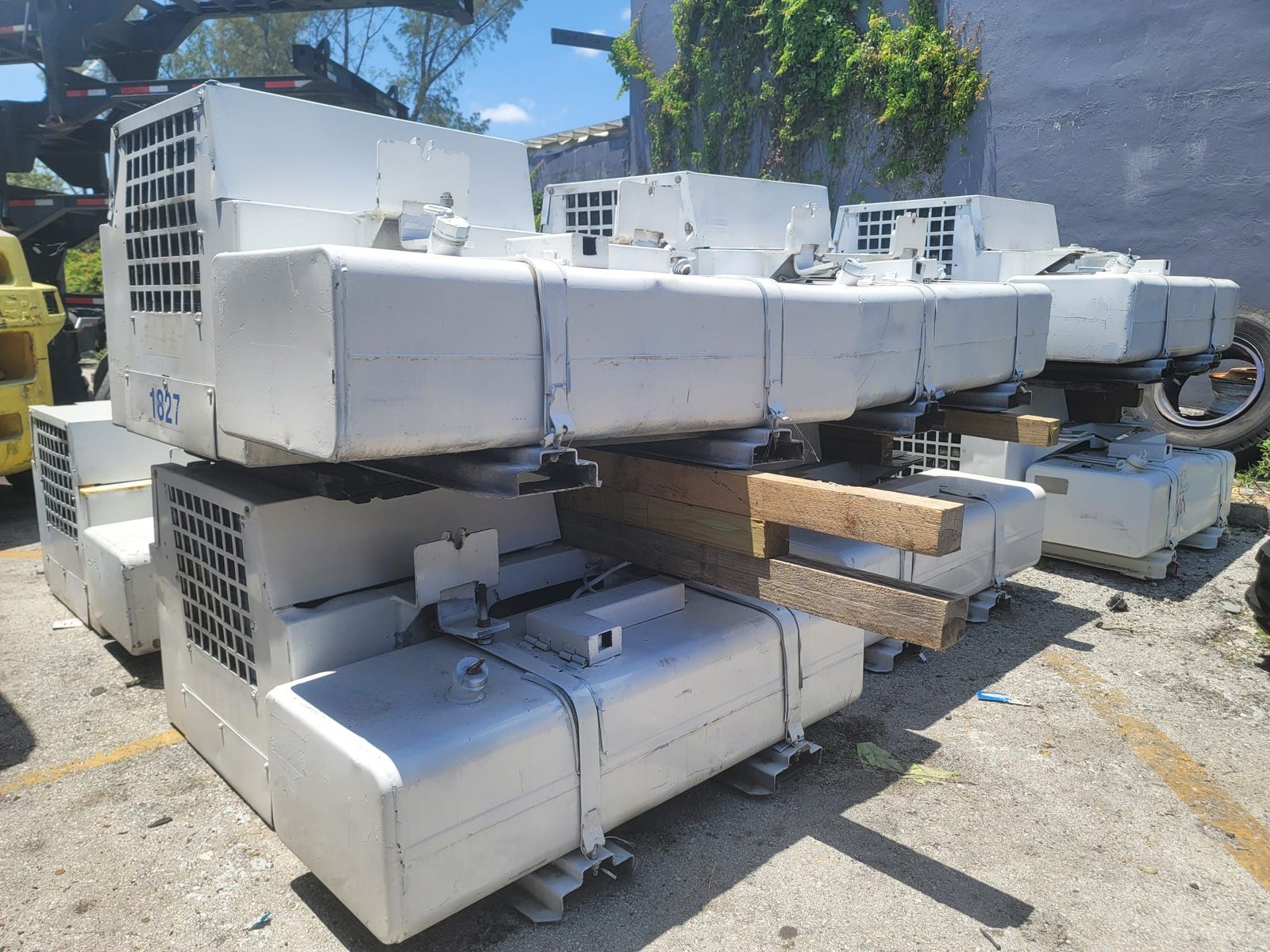

| Fuel Tank Capacity | 68 gal (257.5 L) steel; optional 50 gal (189 L) steel, 50 gal (189 L) aluminum, 80 gal (303 L) aluminum |
| Dimensions (L x W x H) | 800 cm x 135 cm x 155 cm |
| Weight | 670 – 710 kg |
| Battery | 12V DC maintenance-free |
| Emissions Compliance | EPA Tier 4, CARB (Series 24) lifetime compliance |
| Frame Construction | All-steel fabricated with four-point PlateMount system |
| Cooling System | Water-cooled engine with patented E-coat tube and fin radiator |
| Exhaust | Stainless steel |
| Hardware | Stainless steel |

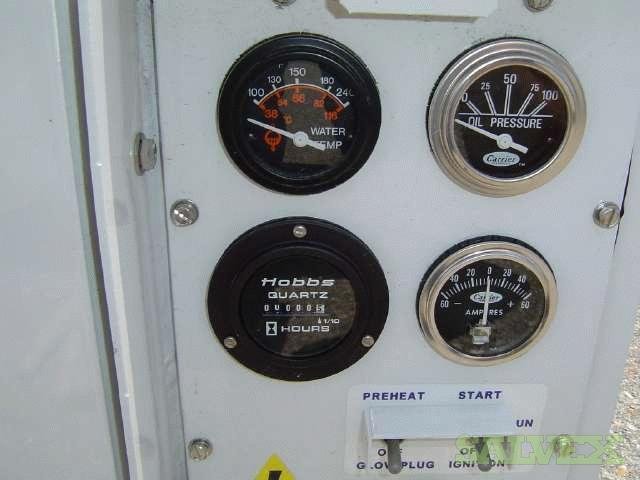

| Safety Stops | Low oil pressure, high water temperature |
| Ambient Temperature Range (Structure) | -40° to +52°C |
| Ambient Temperature Range (Operation – Start) | -26° to +52°C |
| Ambient Temperature Range (Operation – Run) | -40° to +52°C |
