Description

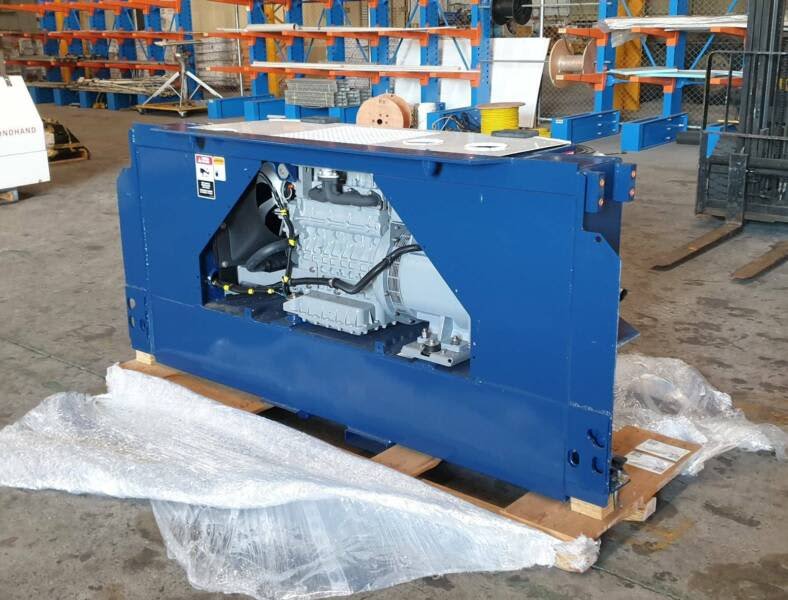

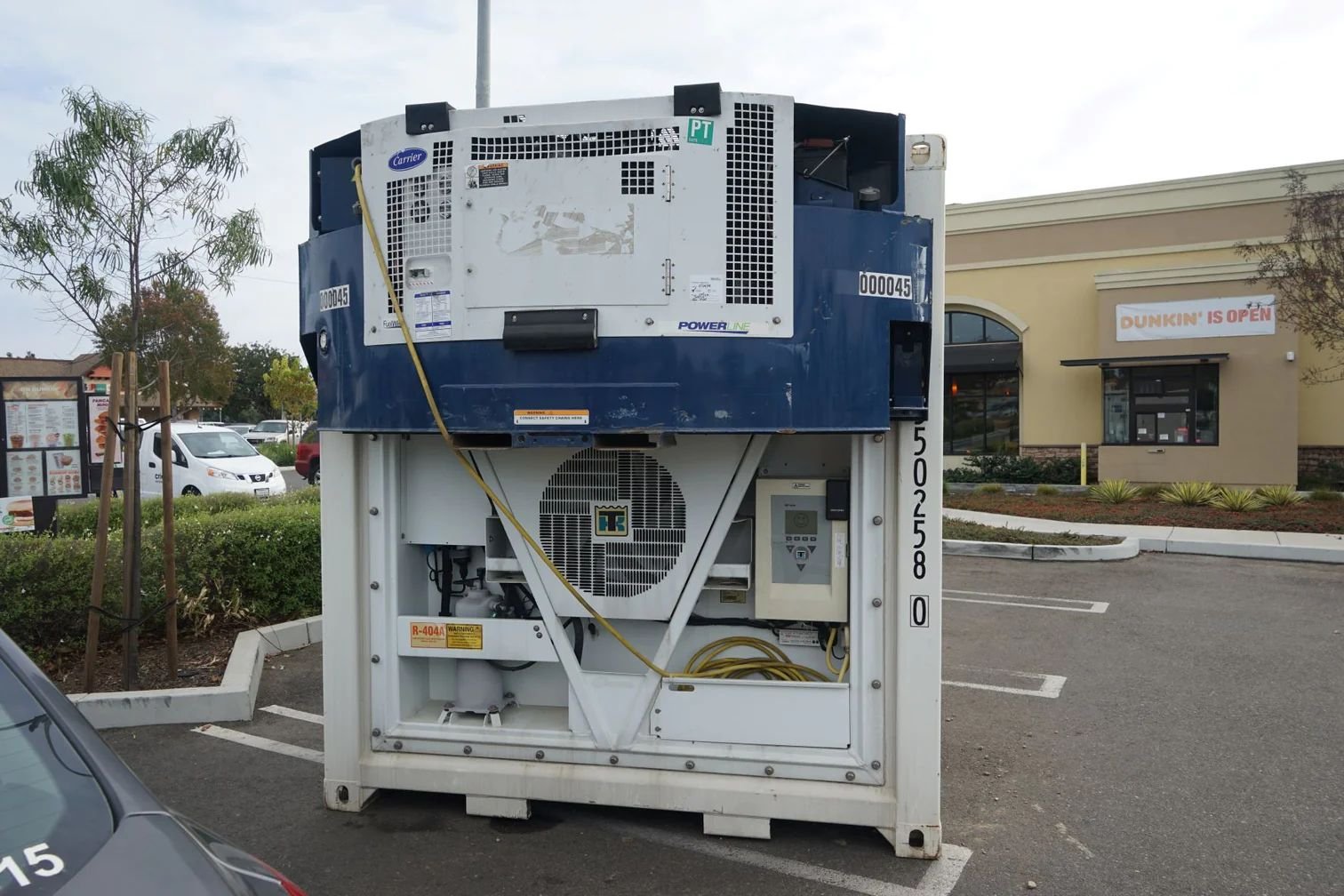

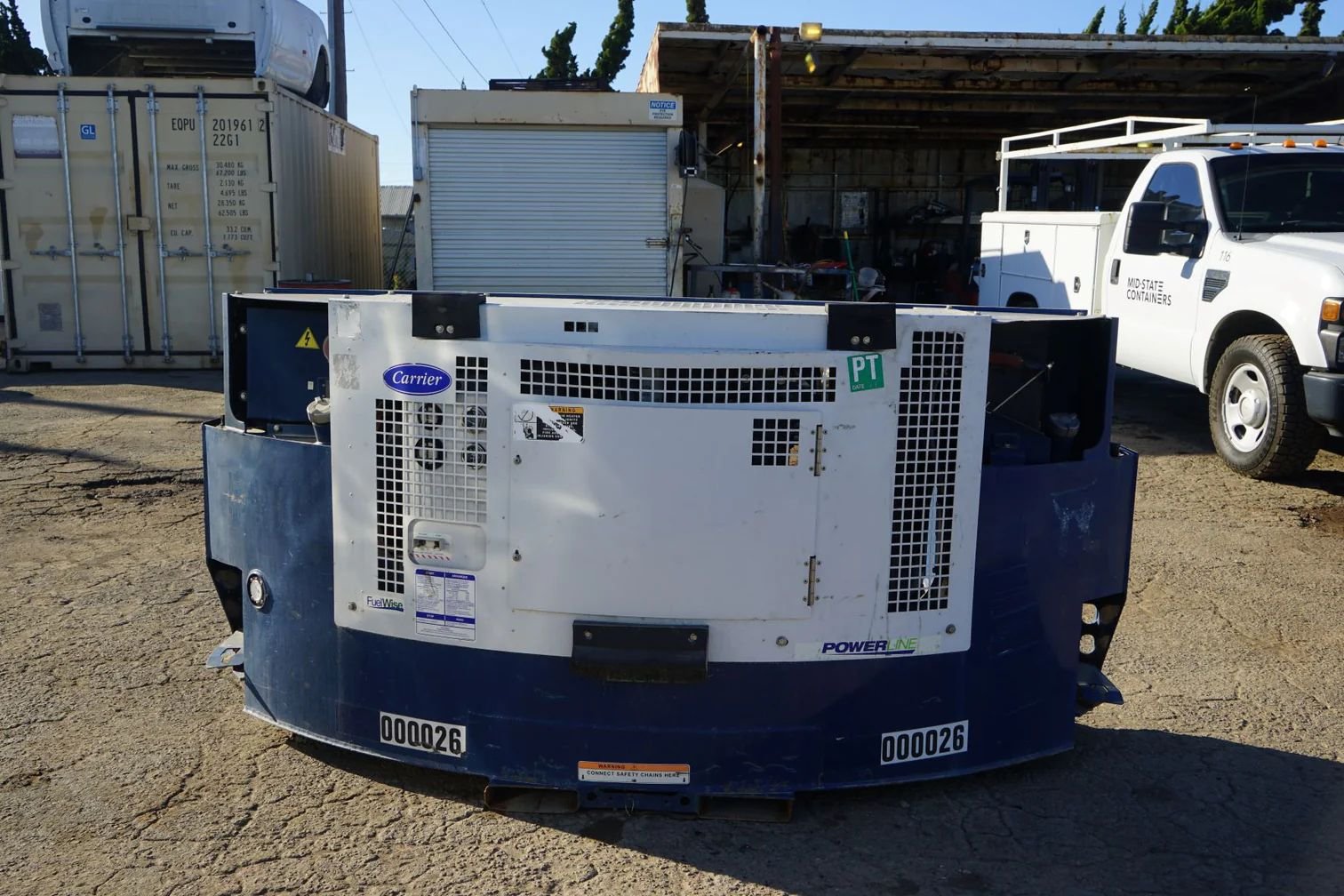

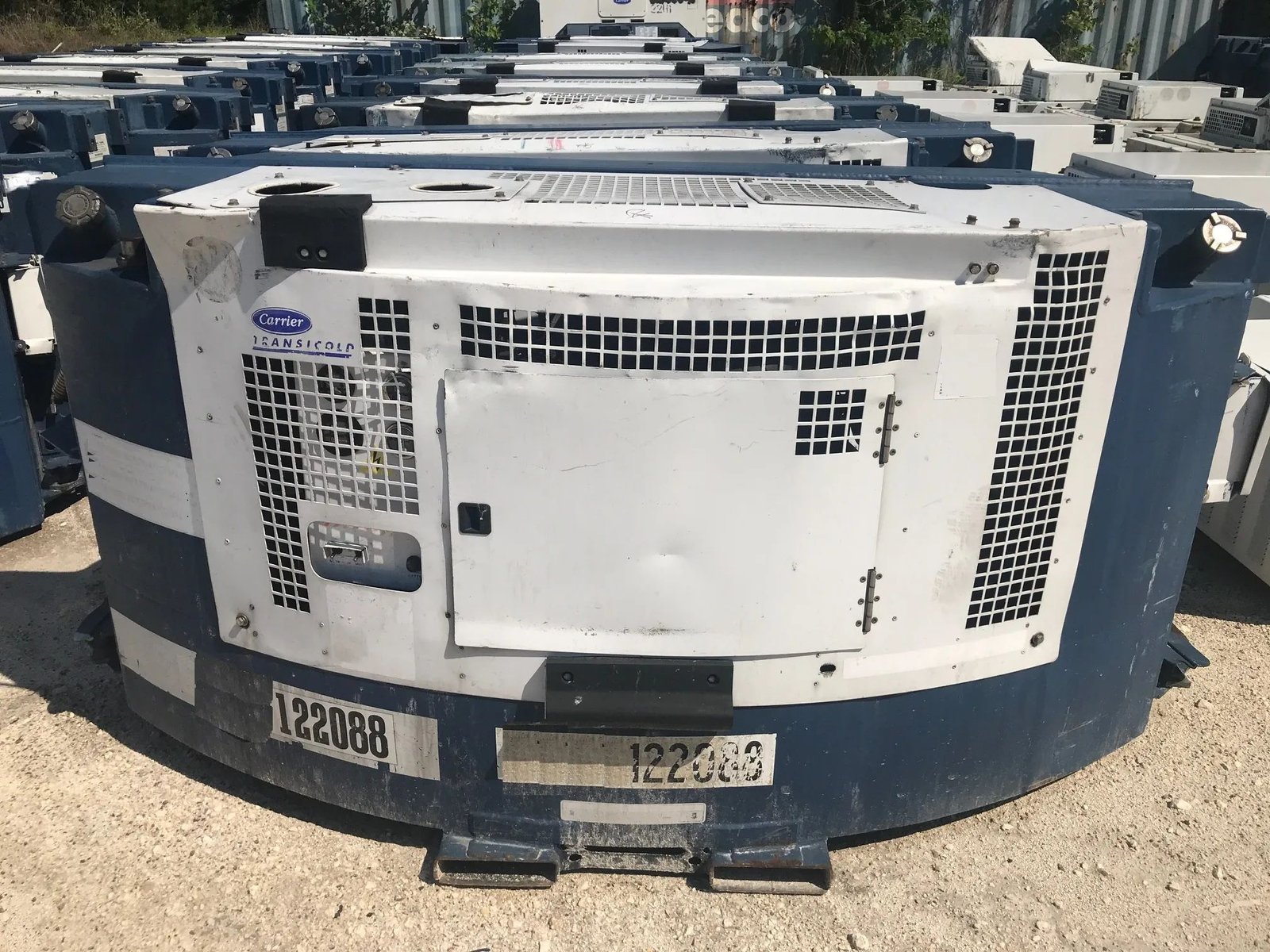

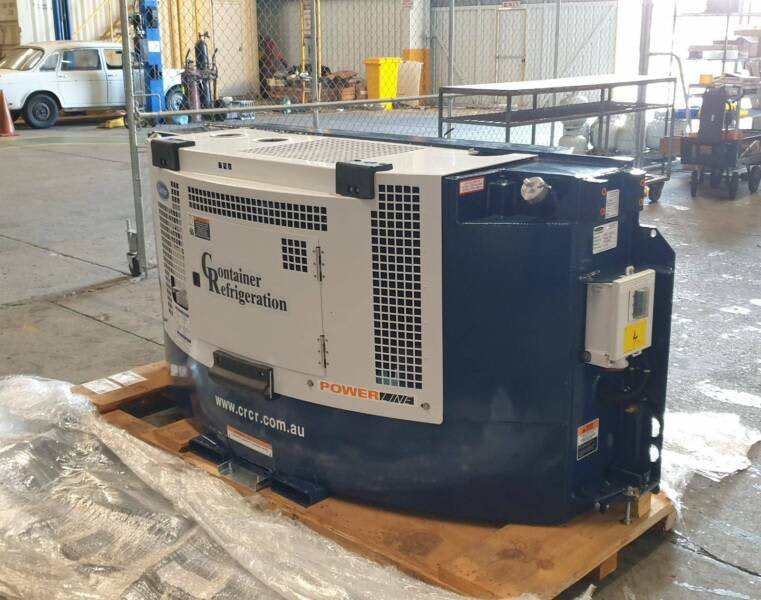

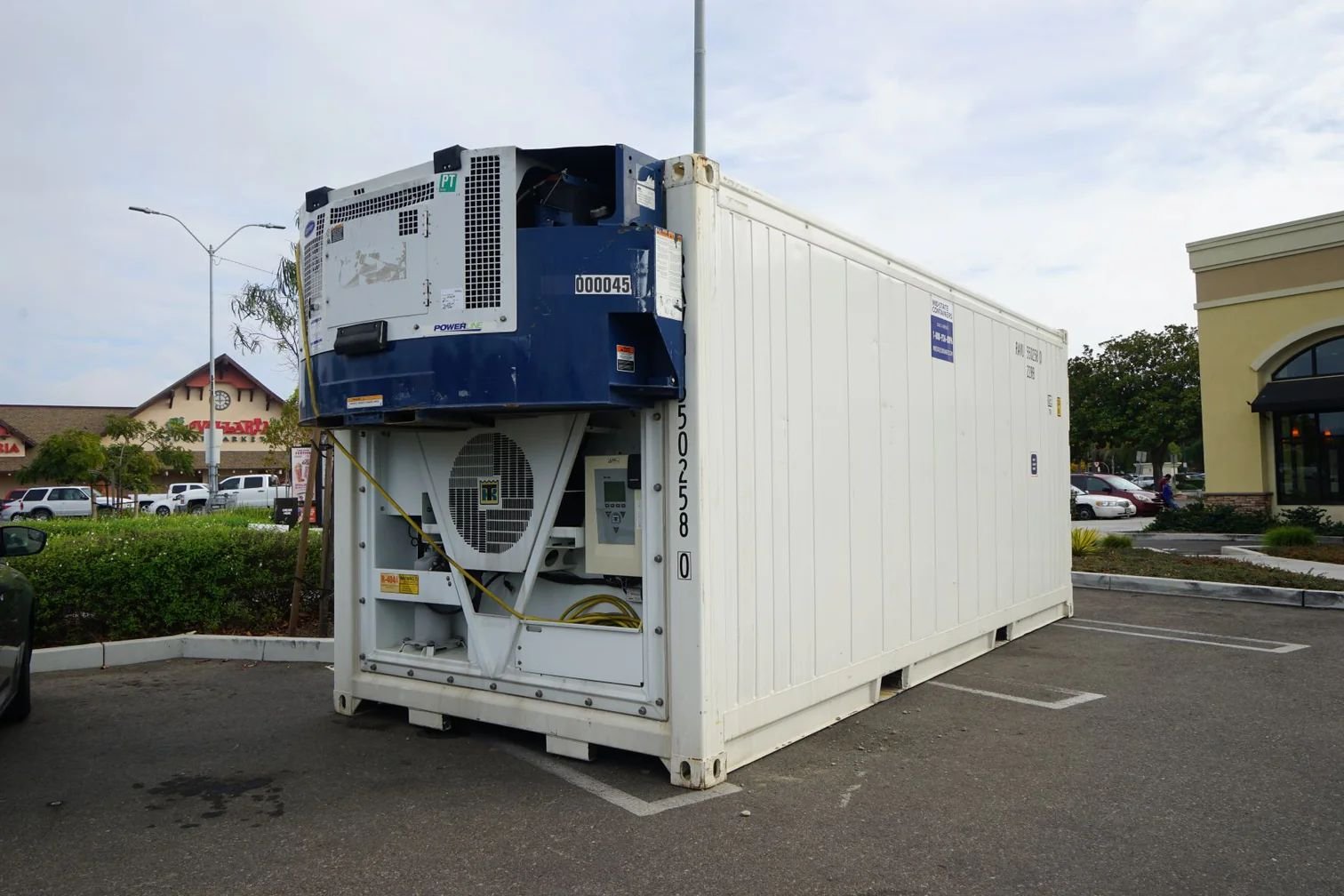

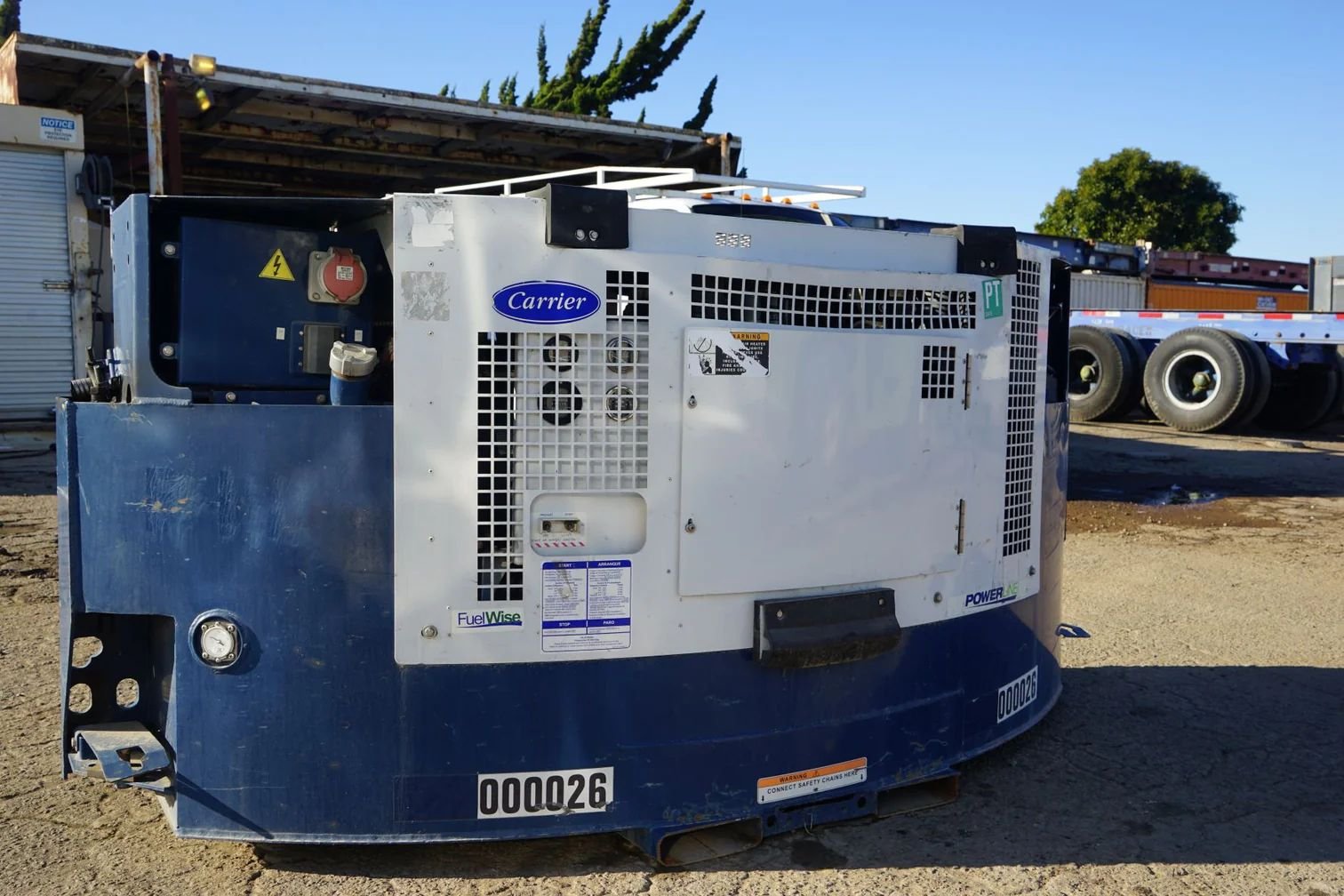

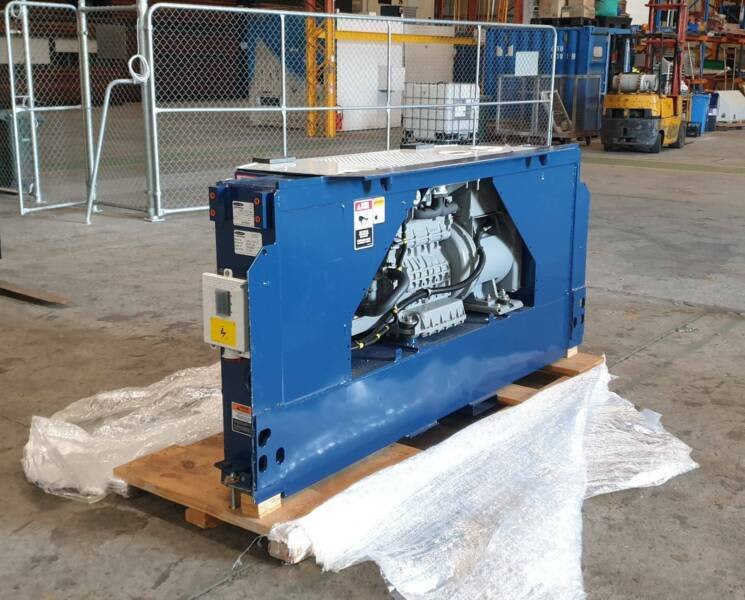

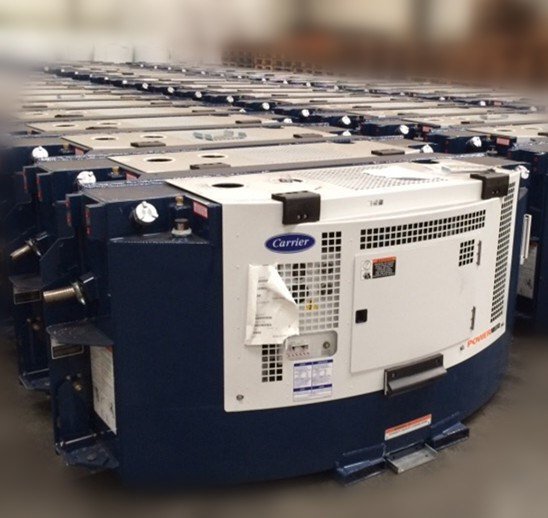

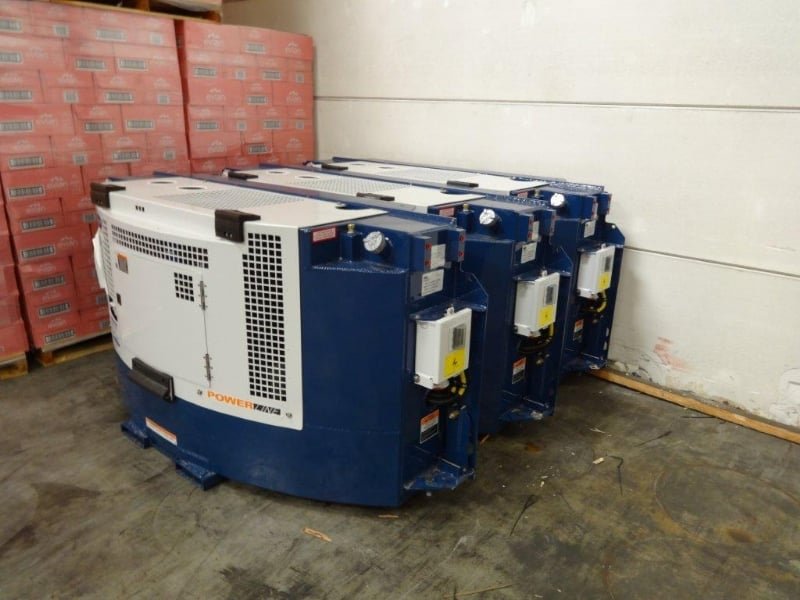

The Carrier PowerLINE Clip-On Generator Set delivers rugged, dependable electrical power for refrigerated shipping containers during road or rail transport. Designed for continuous, unattended operation, this genset attaches directly to ISO and DNV 2.7-1 reefer containers to ensure consistent temperature control without modifying the vehicle or container structure.
Key Features & Performance
- Reliable Power Supply: Delivers a nominal 15 kW (18.75 kVA, 460V AC, 3-phase, 60 Hz) output to easily start and maintain reefer cooling units.

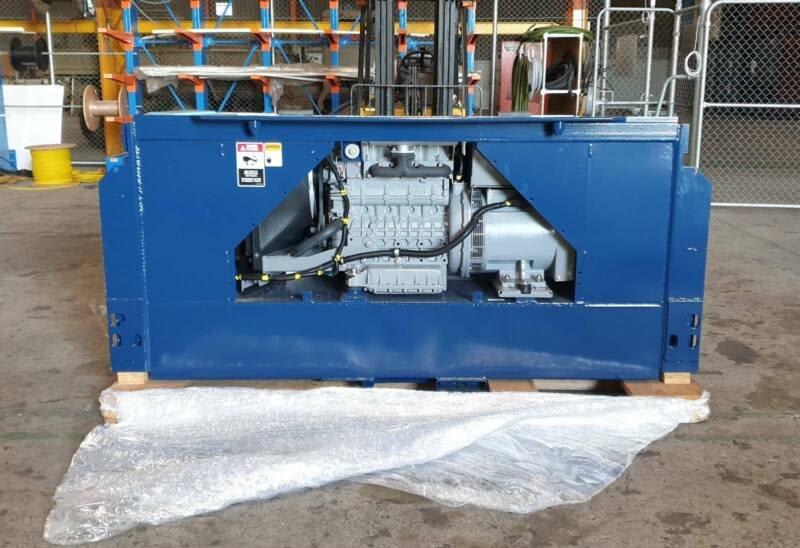

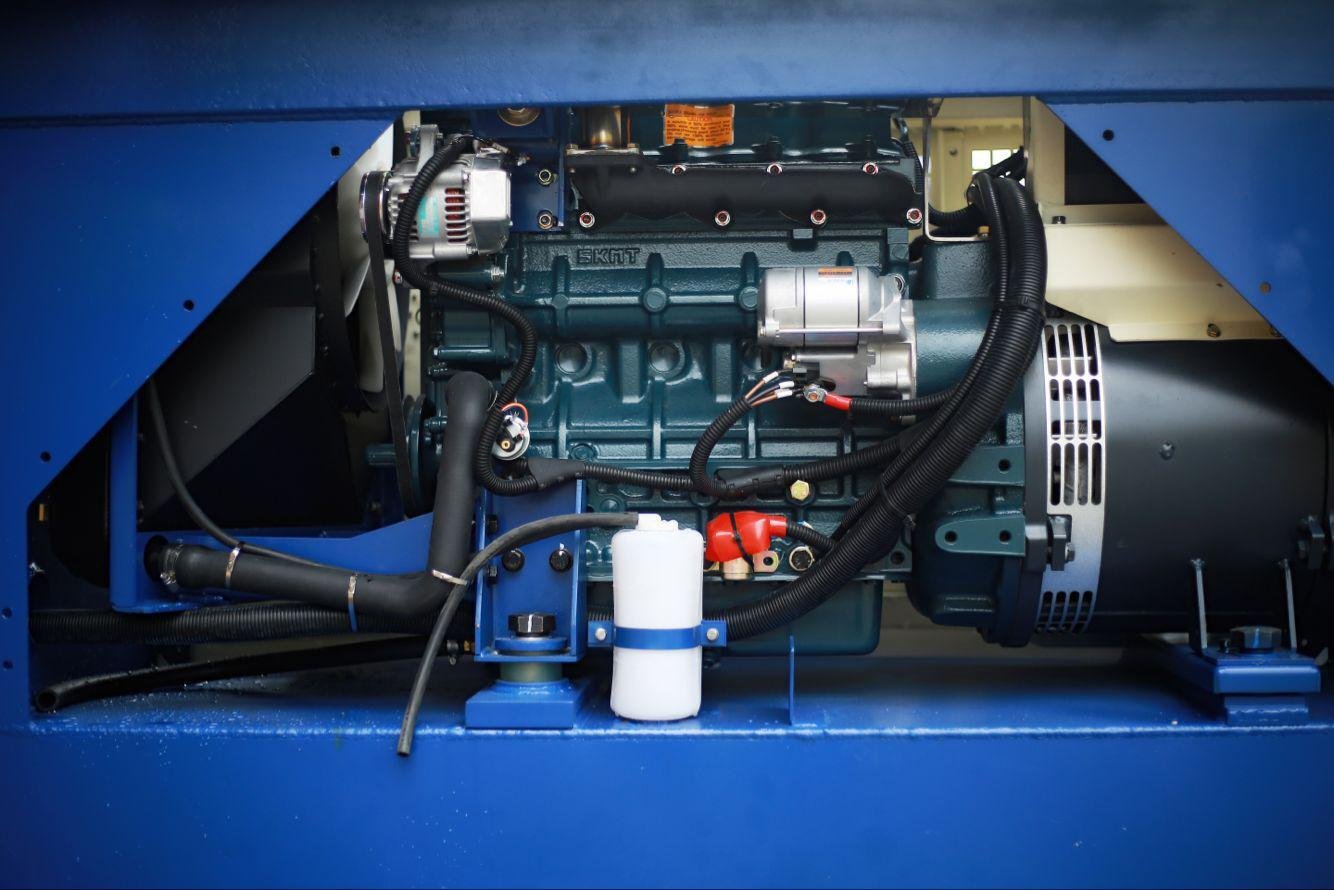

- Efficient Diesel Engine: Powered by a proven 2.2-liter direct-injection 4-cylinder diesel engine with an electronic governor and speed sensor for stable power output.
- Long-Range Autonomy: Features a 130-gallon (492 L) fuel capacity designed for extended journeys.

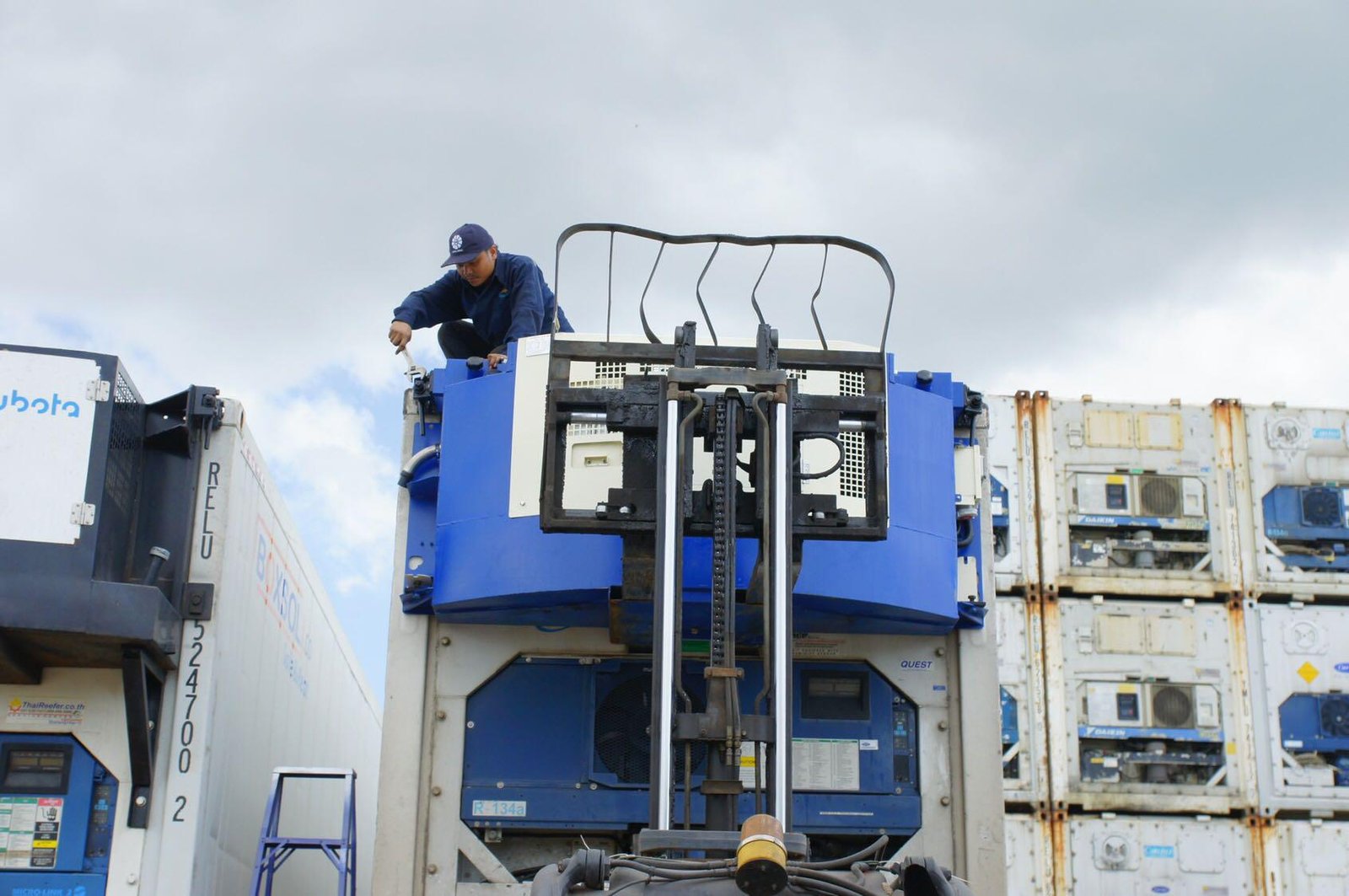

- Quick & Secure Mounting: Attaches to header rails via pin-mounting brackets or secures to corner castings with self-aligning ratchet clamps.

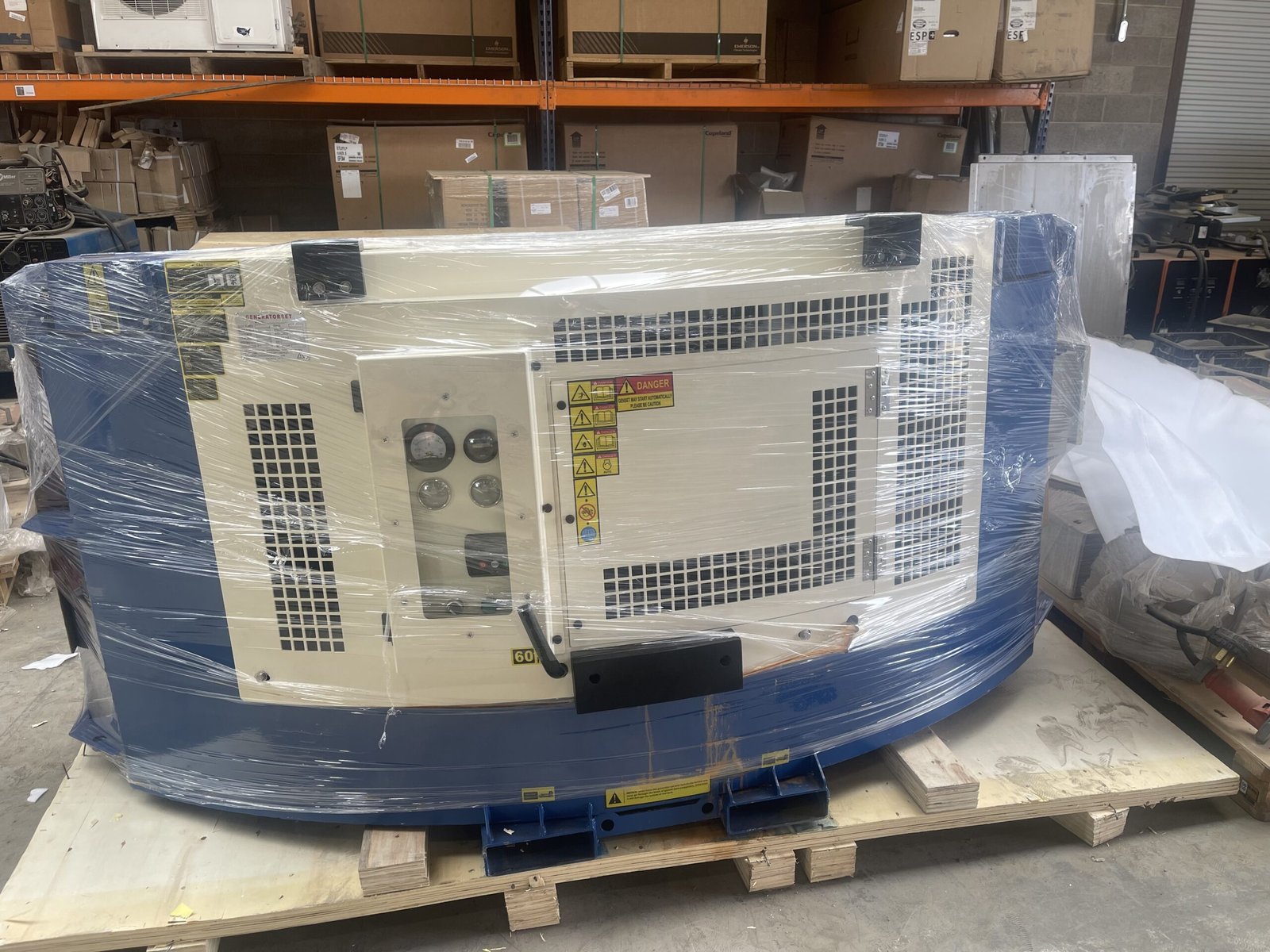

- Robust Controls & Safety: Outfitted with a waterproof control box, low-mounted analog instrumentation, 12V DC maintenance-free battery, and automatic safety shutoffs for low oil pressure and high coolant temperature.
| Brand | Carrier |
| Product Type | Clip-On Reefer Generator Set |
| Power Output | 15 kW (18.75 kVA), 460V AC, 3-Phase, 60 Hz |
| Engine | 2.2-liter 4-cylinder direct-injection diesel |
| Fuel Tank Capacity | 130 gal (492 L) |
| Battery | 12V DC maintenance-free |
| Dimensions | 2324 mm x 706 mm x 1078 mm (91.5″ x 27.8″ x 42.5″) |
| Weight | 818 kg (1804 lbs) |
| Mounting Type | Clip-on / Pin-mount or Clamp-mount to corner castings |
| Safety Features | Automatic stop for low oil pressure and high water temperature |
