Description
The Carrier PowerLINE Clip-On Generator Set provides dependable, autonomous electrical power designed for continuous, unattended operation on refrigerated containers transported across road or rail networks. Suitable for both ISO and DNV 2.7-1 reefers, this rugged genset mounts securely to container chassis corner castings via pin-mounting brackets or self-aligning ratchet clamp locks, allowing for quick installation and removal in minutes.
Reliable Diesel Performance

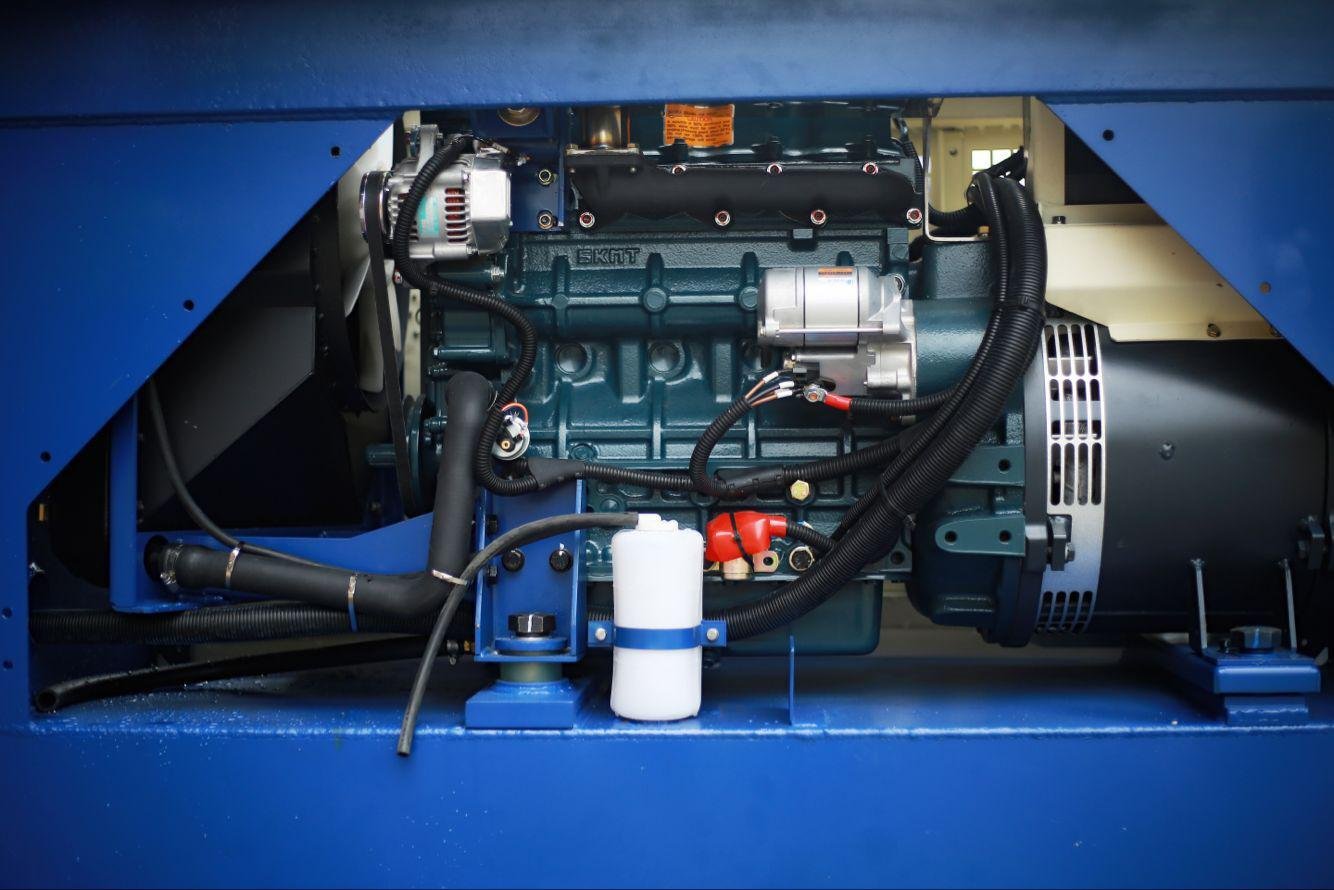

Powered by a 2.2-liter CT4-134DI 4-cylinder, water-cooled direct-injection diesel engine equipped with an electronic governor and speed sensor, the system delivers a nominal 15 kW (18.75 kVA) 460 VAC, 3-phase output at 60 Hz. The large 130-gallon fuel tank supports extended runtimes for critical cold chain logistics.
Durable Design & Controls
Built for harsh transport environments, the generator features a brushless, vacuum pressure-impregnated rotor, disc-type radial cooling fan, and a sealed large-diameter rear bearing. Operation is managed through low-mounted, waterproof control boxes featuring manual preheat/start/run/off switches and automatic safety shutdowns for low oil pressure and high water temperature.
| Brand | Carrier |
| Manufacturer | Carrier Transicold |
| Product Type | Clip-On Generator Set |
| Engine | CT4-134DI 4-cylinder water-cooled 2.2 liter direct-injection diesel engine |
| Power Output | 15 kW, 18.75 kVA, 460V AC, 3 Phase, 60 Hz |
| Fuel Capacity | 130 gal (492 L) |
| External Dimensions | 91.5 in x 27.8 in x 42.5 in (2,324 mm x 706 mm x 1,078 mm) |
| Weight | 1,675 lbs |
| Battery | 12V DC maintenance-free |
| Mounting Type | Corner casting clamp lock / RG15 pin-mounting bracket |
| Compatibility | ISO and DNV 2.7-1 Reefers |
| Controls | Low-mounted waterproof control box with preheat and start/run/off switches |
| Safety Features | Automatic safety stops for low oil pressure and high water temperature |
