Description

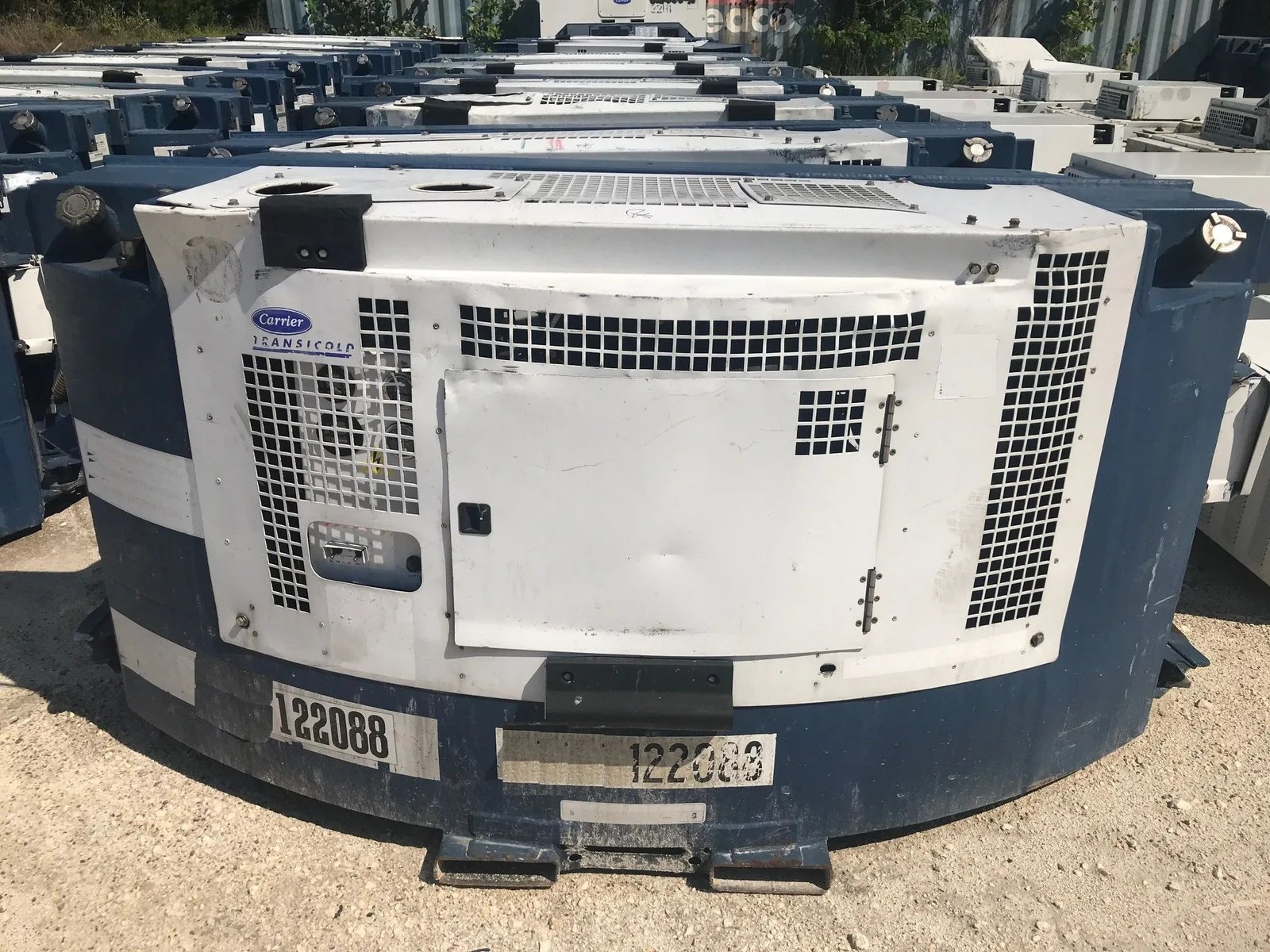

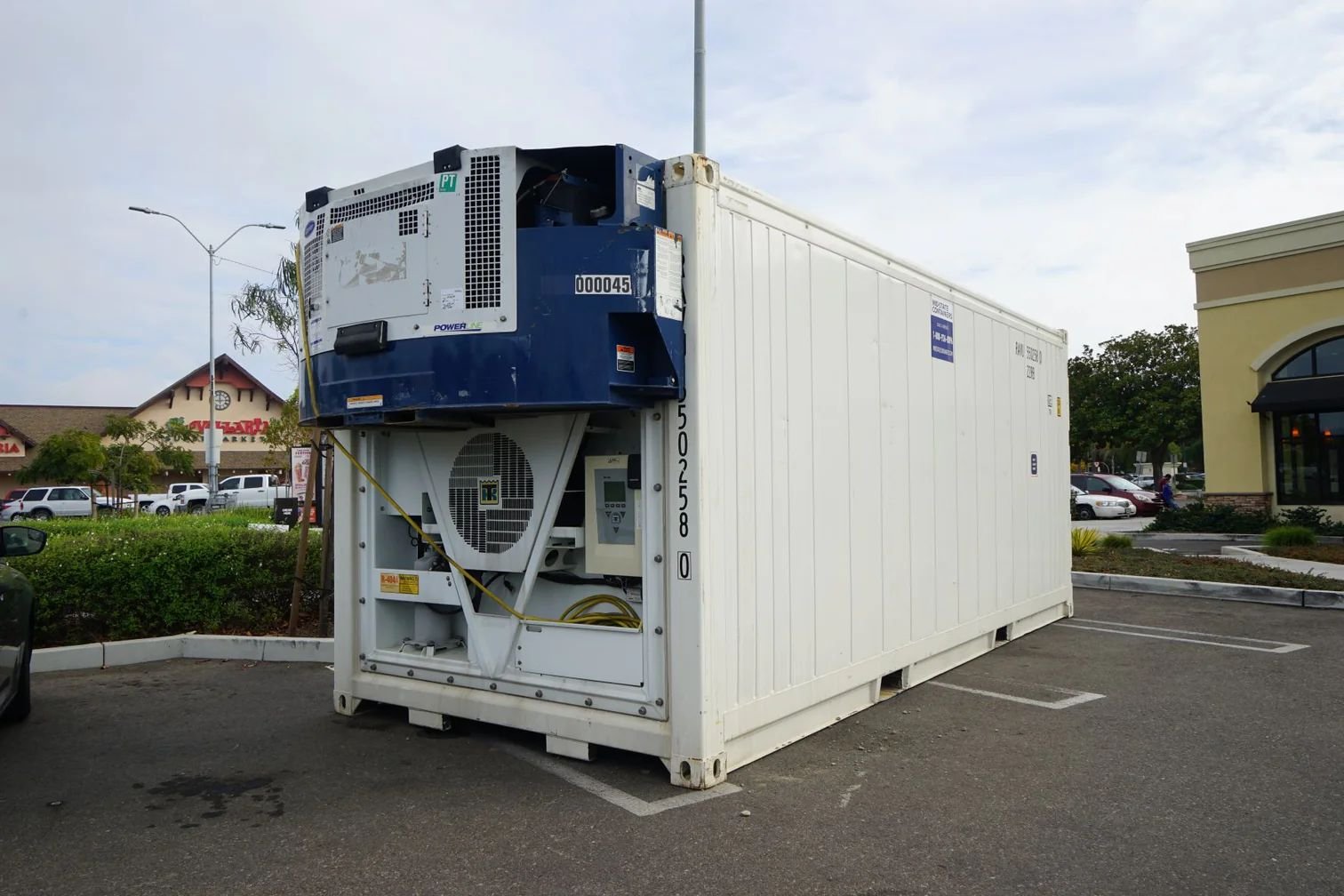

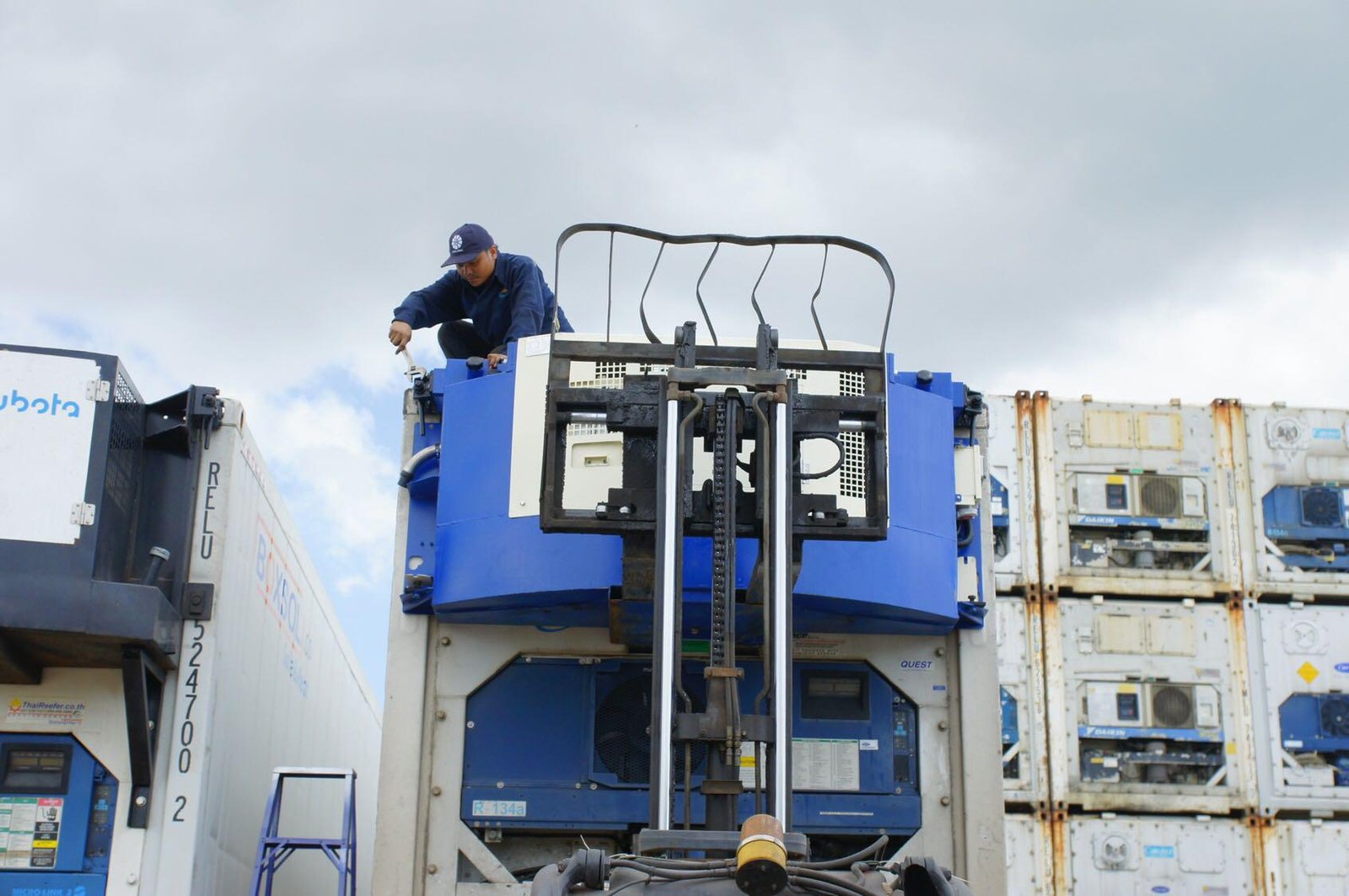

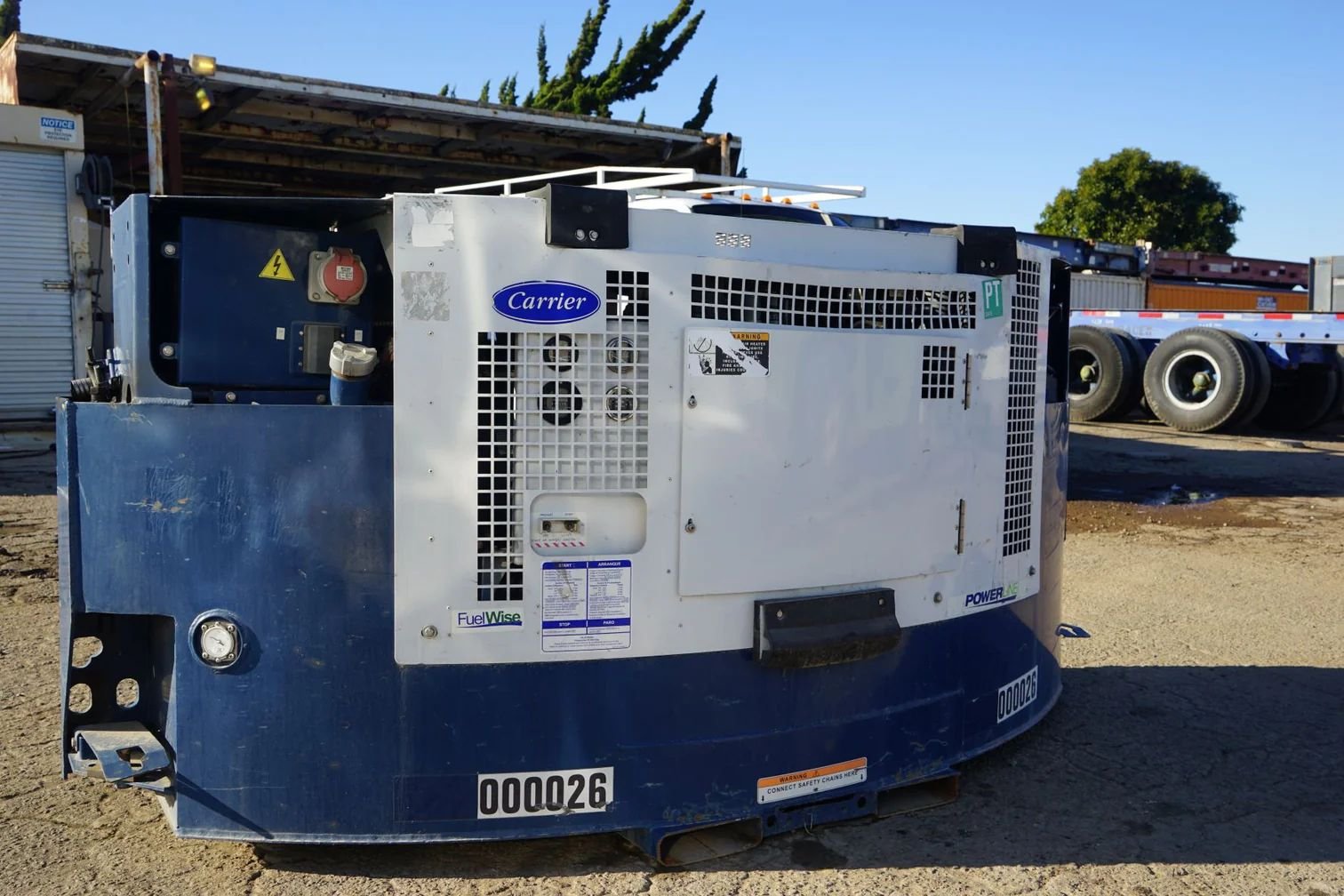

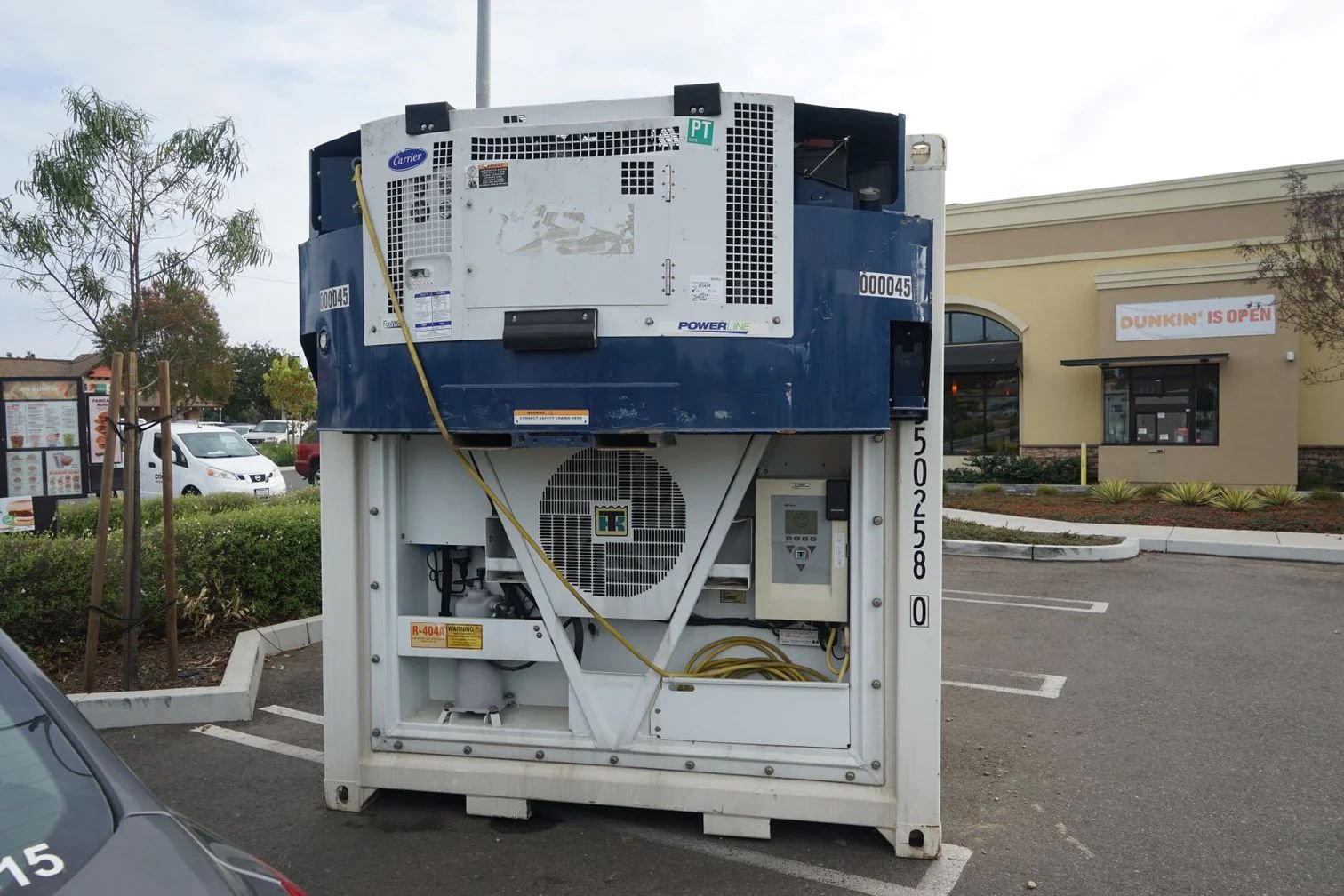

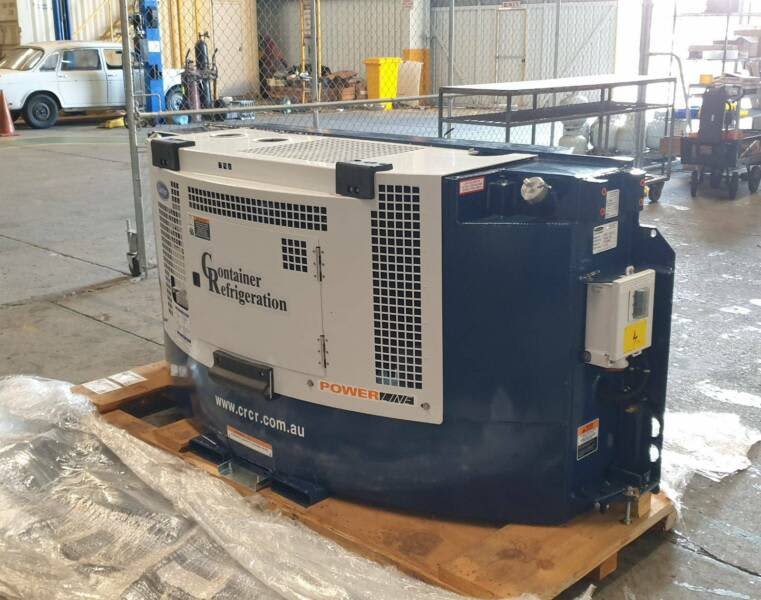

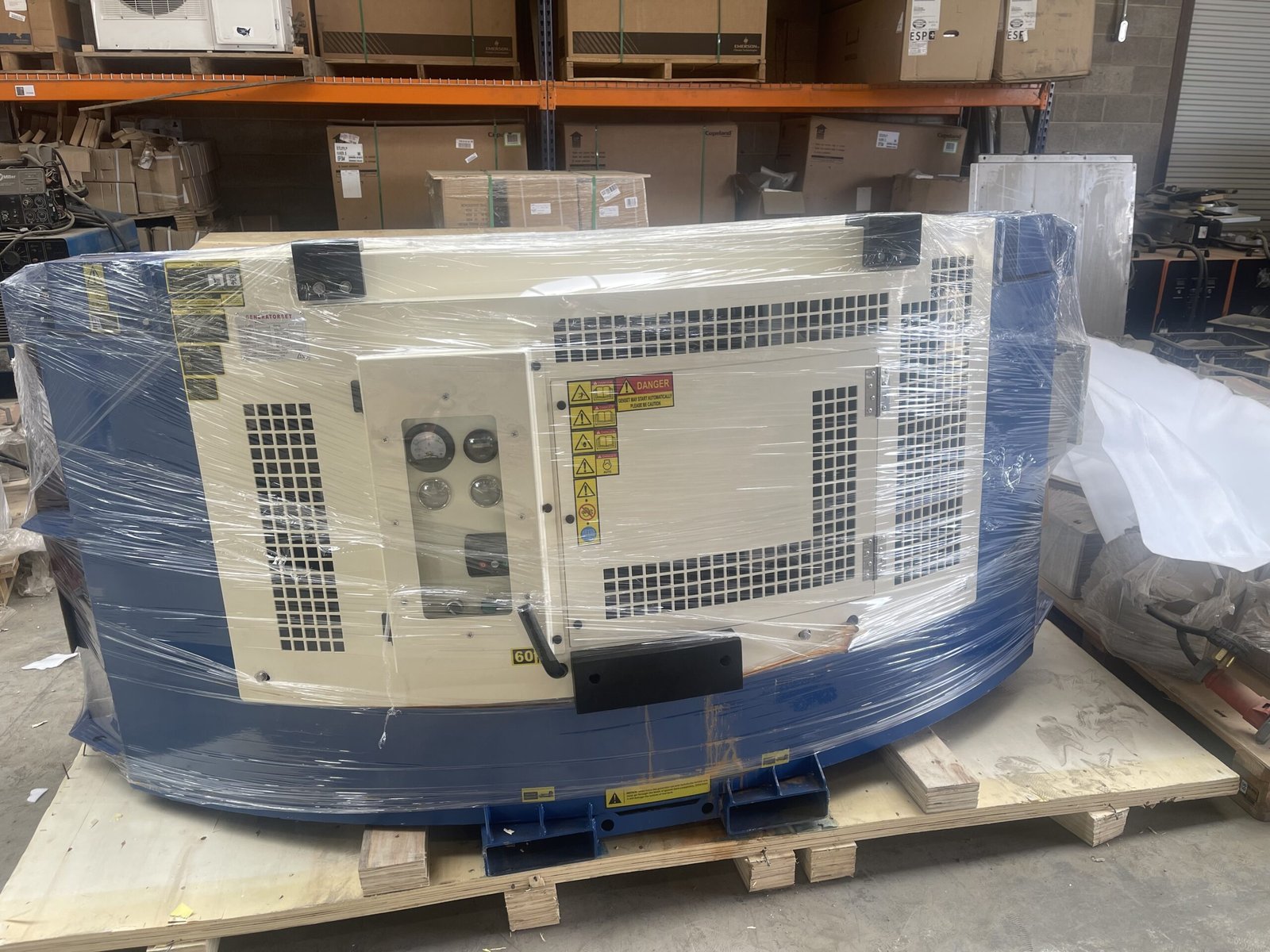

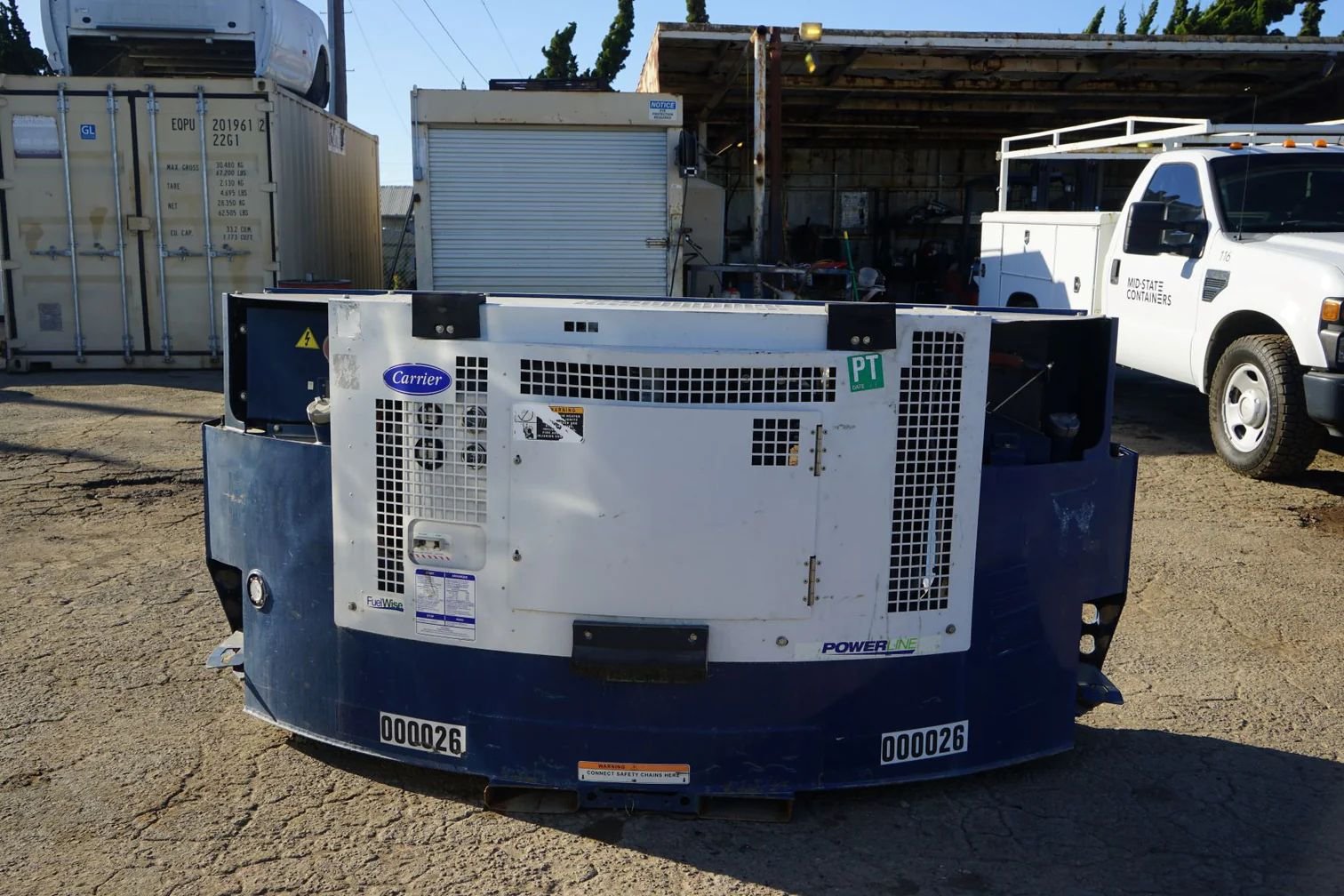

The Carrier POWERLINE Clip-On Generator Set provides reliable, continuous power for refrigerated shipping containers during road or rail transport. Designed for seamless attachment to ISO and DNV 2.7-1 reefers, this generator set mounts directly using corner castings with standard pin-mounting brackets or clamp options.

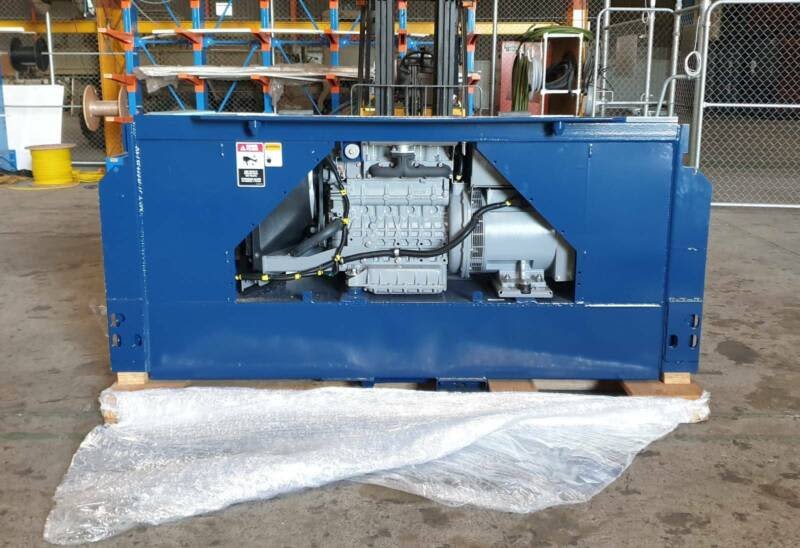

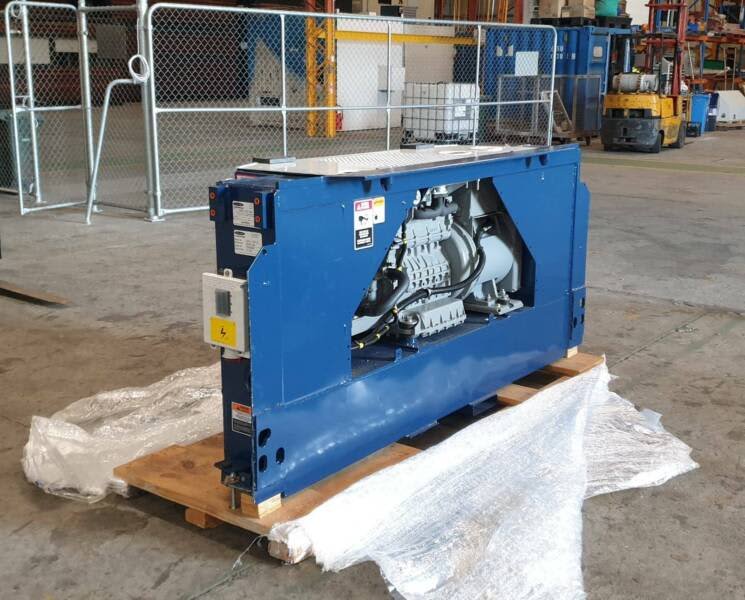

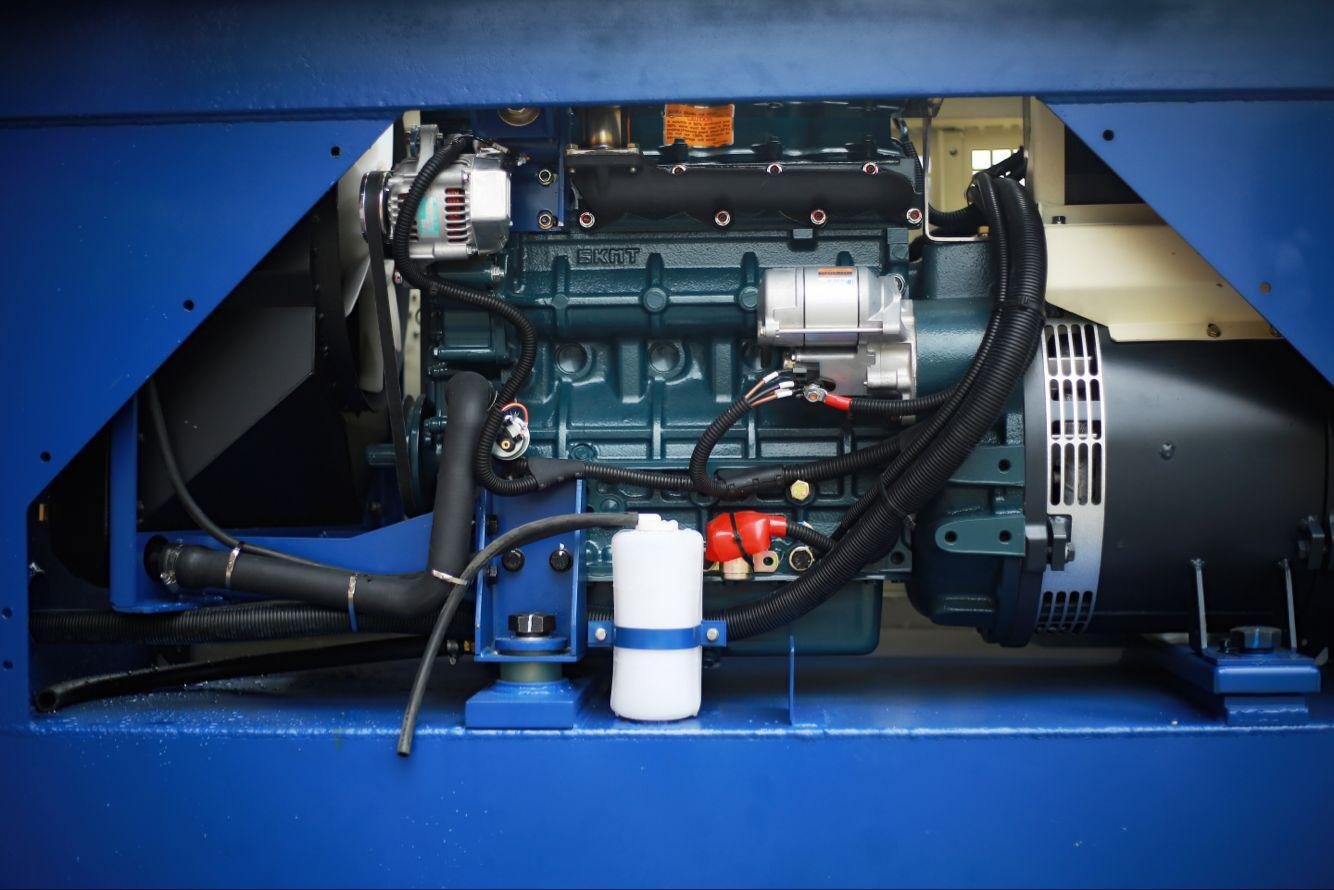

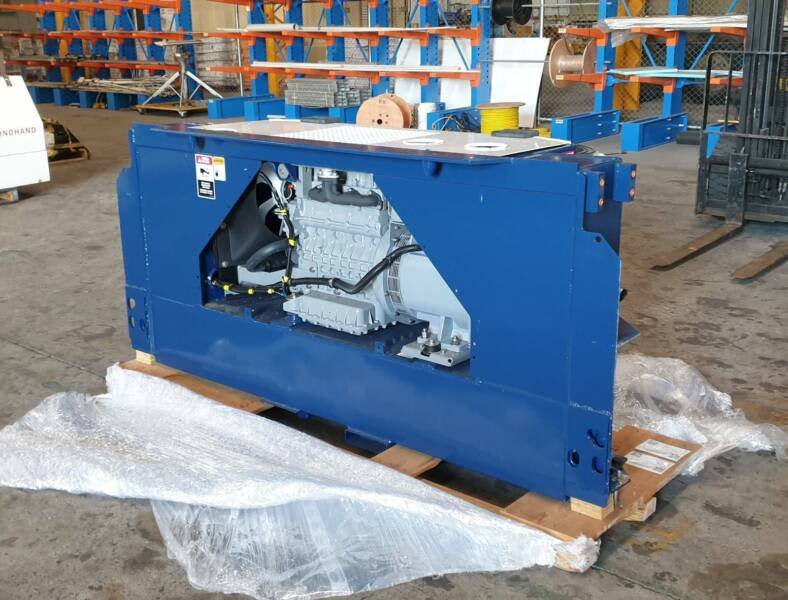

Powered by a robust 2.2-liter, 4-cylinder direct-injection diesel engine, it delivers a nominal 15 kW (18.75 kVA) 460V 3-phase output. The integrated 130-gallon fuel tank supports long-range, unattended operation. Built for demanding environments, it features rugged all-steel frame construction, low-mounted waterproof controls, and automatic safety stop systems for low oil pressure and high water temperature.
| Brand | Carrier |
| Product Type | Clip-On Generator Set |
| Engine | 4-cylinder water-cooled 2.2L direct-injection diesel |
| Electrical Output | 15 kW (18.75 kVA), 460V AC, 3 Phase, 60 Hz |

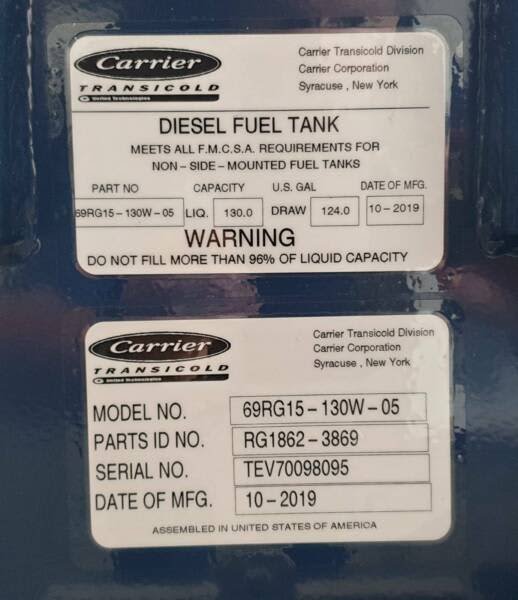

| Fuel Tank Capacity | 130 US gal (492 L) |
| Dimensions | 2,324 mm x 706 mm x 1,078 mm (91.5 in x 27.8 in x 42.5 in) |
| Weight (Less Fuel) | 830 kg (1,830 lb) |
| Battery | 12V DC maintenance-free |

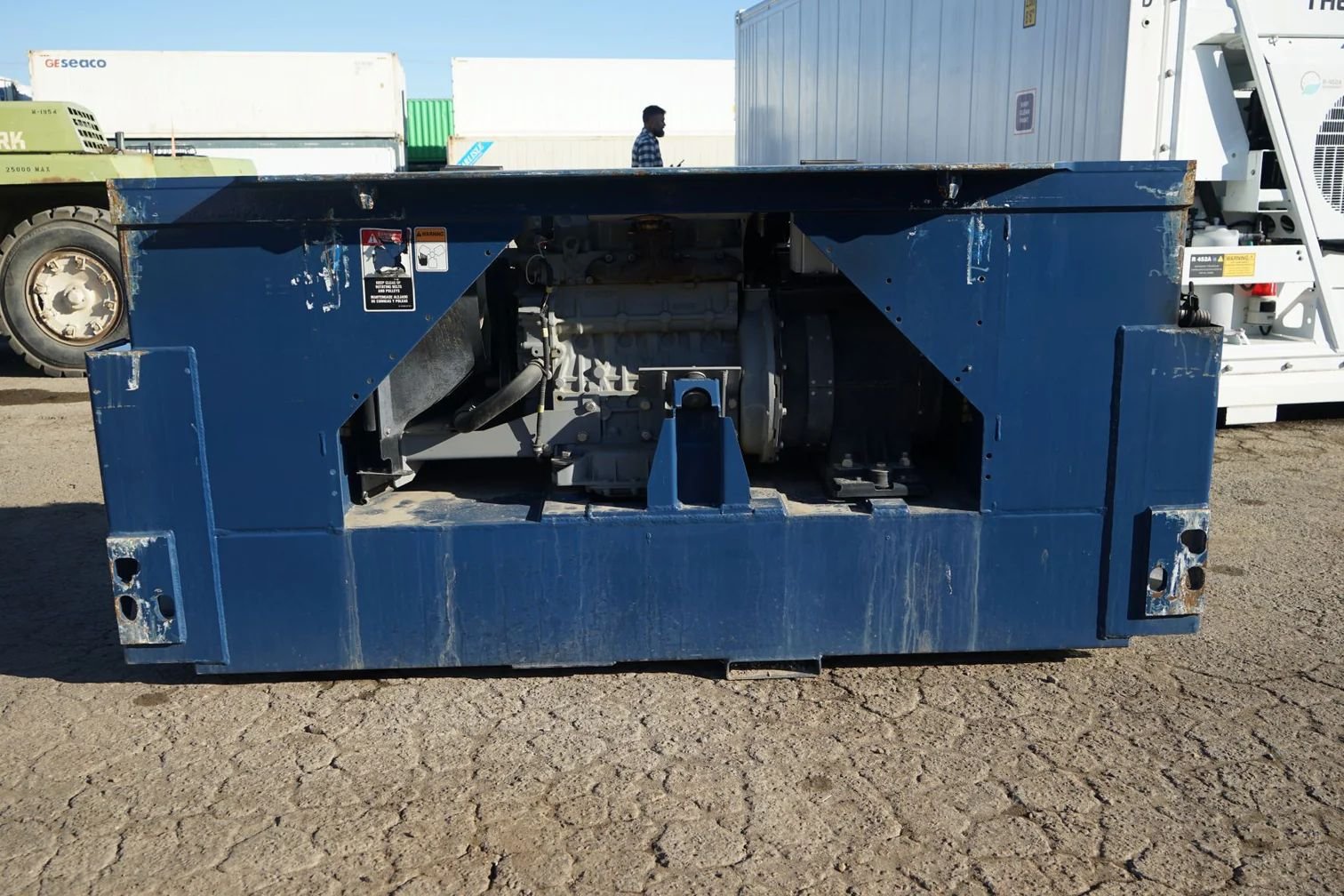

| Mounting Type | Pin mount system with clamp provision |
| Safety Controls | Low oil pressure, high water temperature shutdown |
