Description
The Carrier POWERLINE Clip-On Generator Set is engineered to provide dependable, continuous, and unattended power for refrigerated ISO and DNV 2.7-1 containers during road or rail transport worldwide.
Designed for fast and secure installation, the generator mounts directly to container corner castings using pin-mounting brackets or self-aligning ratchet clamp locks, allowing attachment and disconnection in minutes.
Key Features
- Reliable Power Delivery: Provides a nominal 15 kW (18.75 kVA, 460V AC, 3-Phase, 60 Hz) output via a brushless, self-regulated generator.

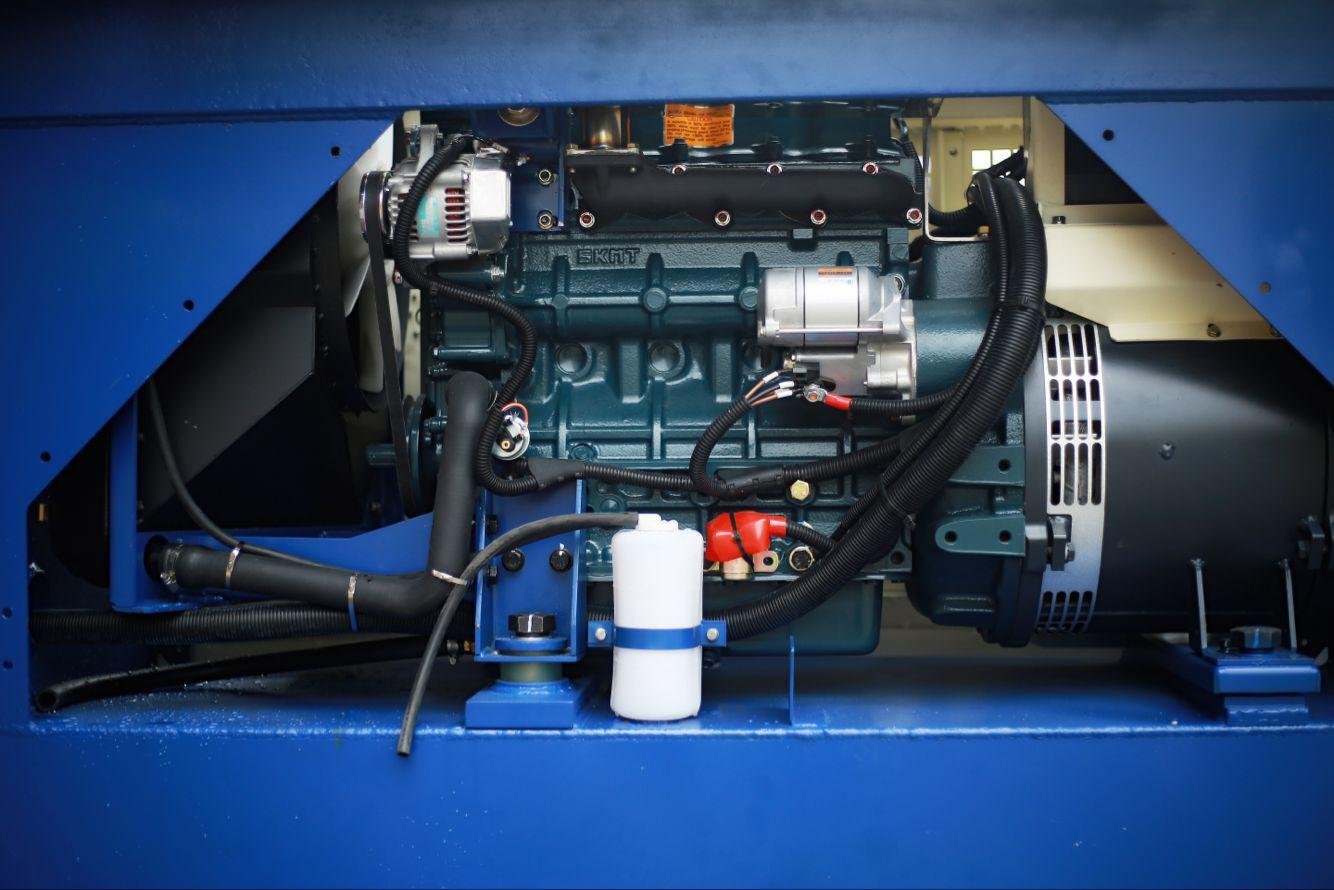

- Heavy-Duty Diesel Engine: Powered by a proven CT4-134DI 4-cylinder, 2.2-liter direct-injection water-cooled diesel engine with electronic governor and speed sensor.
- Extended Operation: Features a high-capacity 130-gallon (492 L) fuel tank to support long-haul transit requirements.
- Durable & Weatherproof Construction: Equipped with a low-mounted waterproof control box, safety shut-off controls for low oil pressure and high coolant temperature, and broad operational temperature tolerance.
| Brand | Carrier |
| Product Type | Clip-On Container Generator Set |
| Power Output | 15 kW (18.75 kVA), 460V AC, 3 Phase, 60 Hz |
| Engine | CT4-134DI 4-cylinder, 2.2 L water-cooled direct-injection diesel |

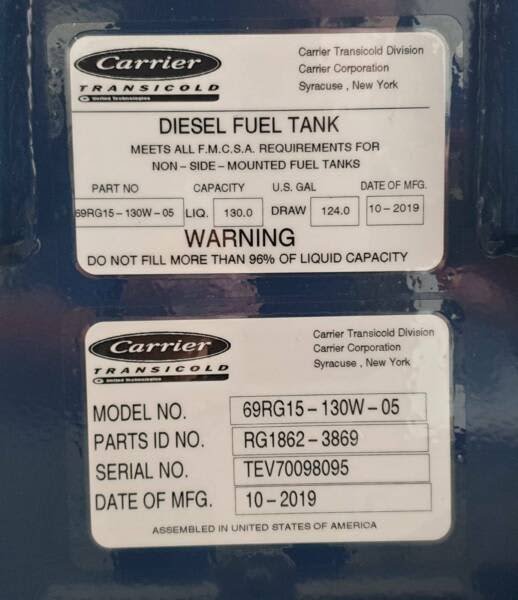

| Fuel Capacity | 130 US gal (492 L) |
| Dimensions (L x W x H) | 2,324 mm x 706 mm x 1,078 mm (91.5″ x 27.8″ x 42.5″) |
| Weight (Less Fuel) | 830 kg (1,830 lbs) |
| Generator Type | Brushless, self-regulated |
| Battery | 12V DC maintenance-free |
| Mounting Type | Pin-mounting bracket / Ratchet clamp locks to corner castings |
| Operating Ambient Temperature | -40°C to +52°C (-40°F to +125°F) |
| Compatibility | ISO and DNV 2.7-1 Refrigerated Containers |
