Description

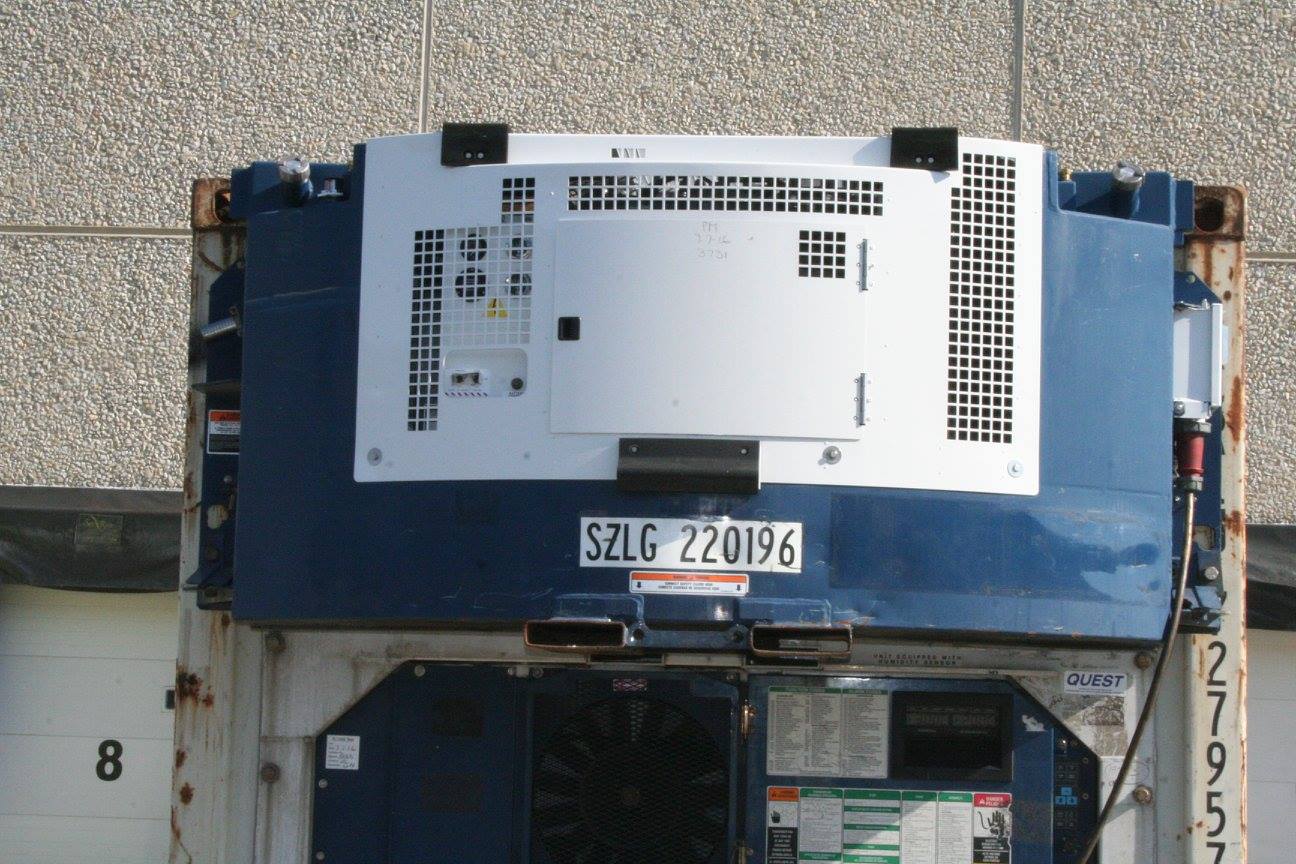

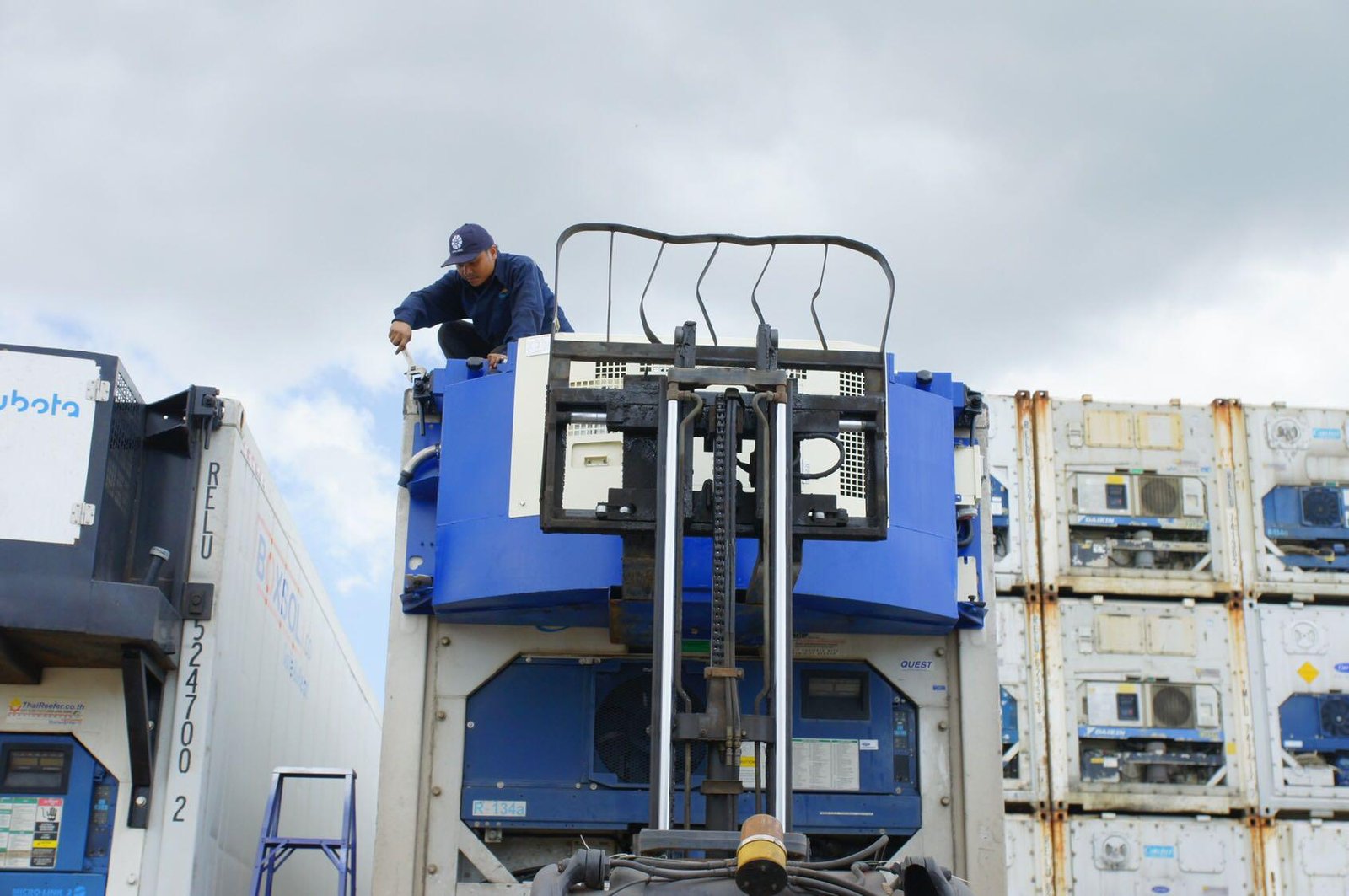

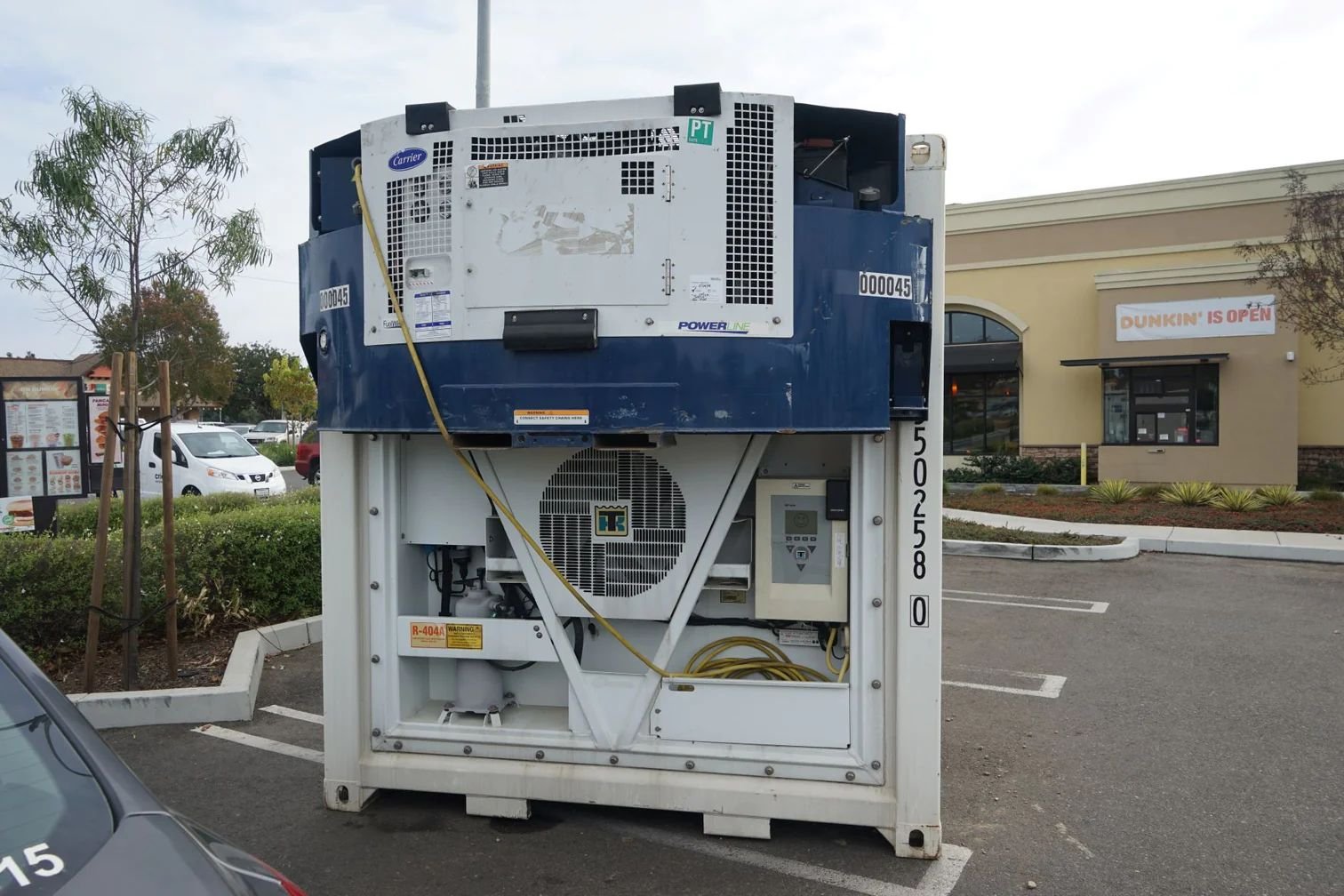

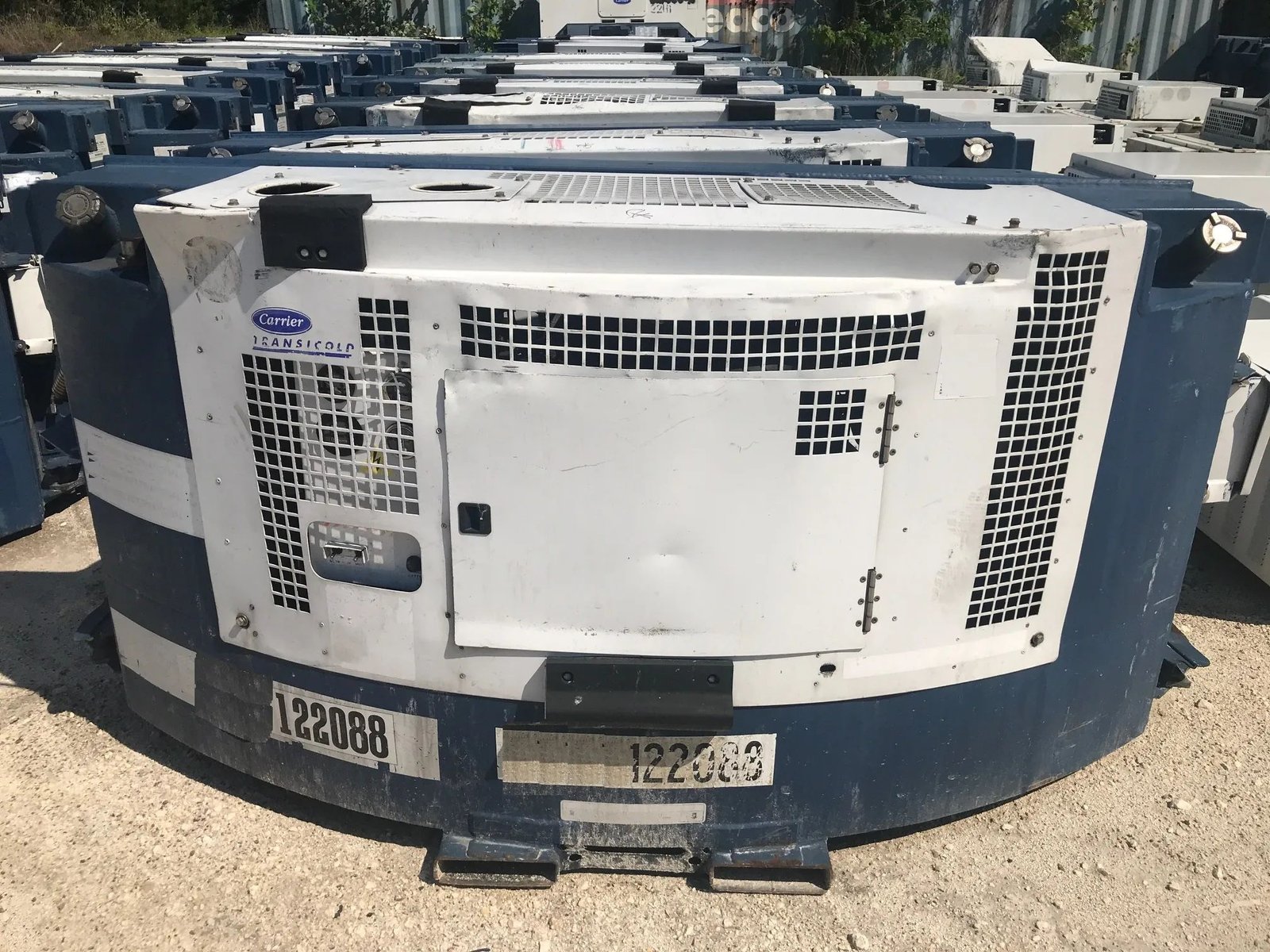

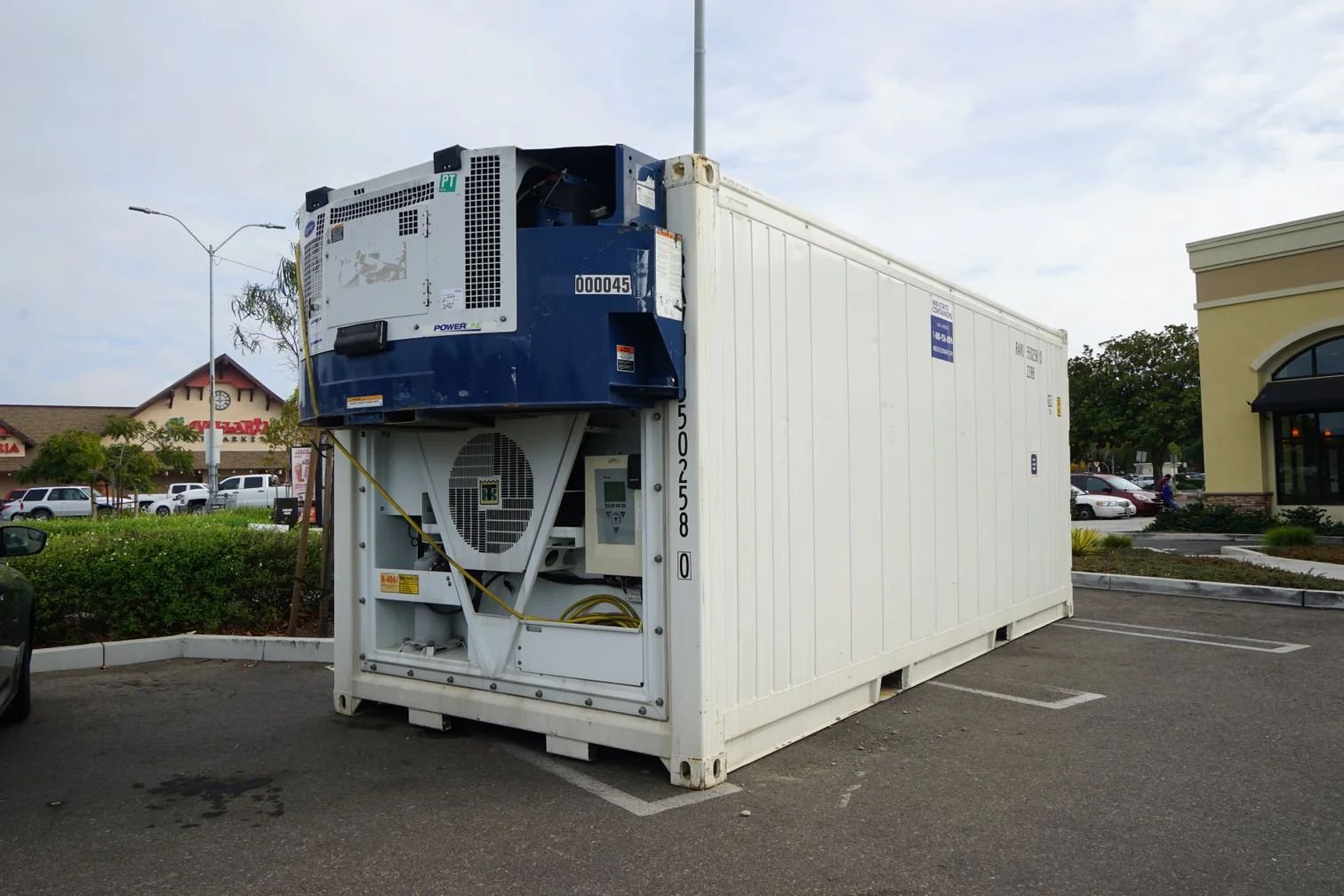

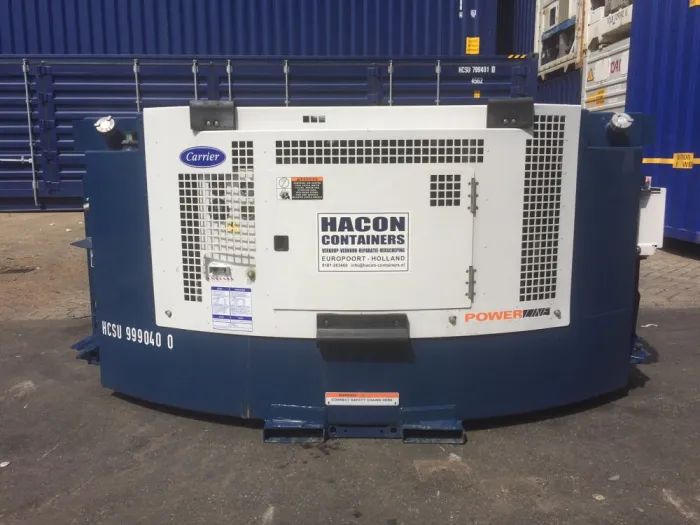

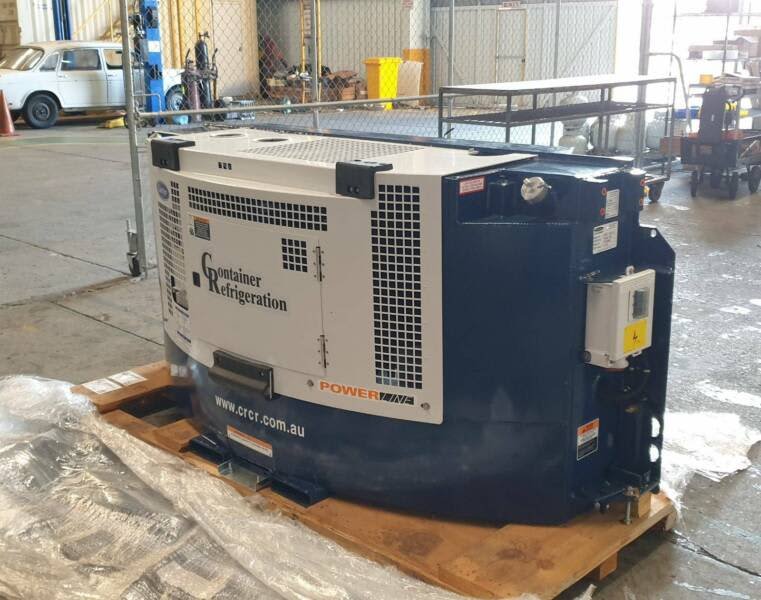

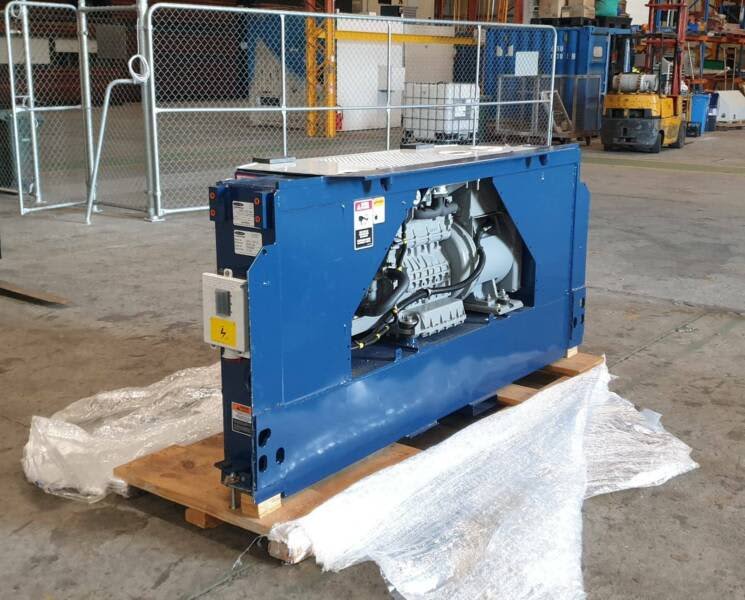

The Carrier PowerLINE® Clip-On Generator Set provides reliable, continuous, unattended power for refrigerated shipping containers transported by road or rail. Engineered for heavy-duty commercial use, this genset attaches directly to ISO and DNV 2.7-1 reefer containers using standard corner castings for secure and fast mounting.

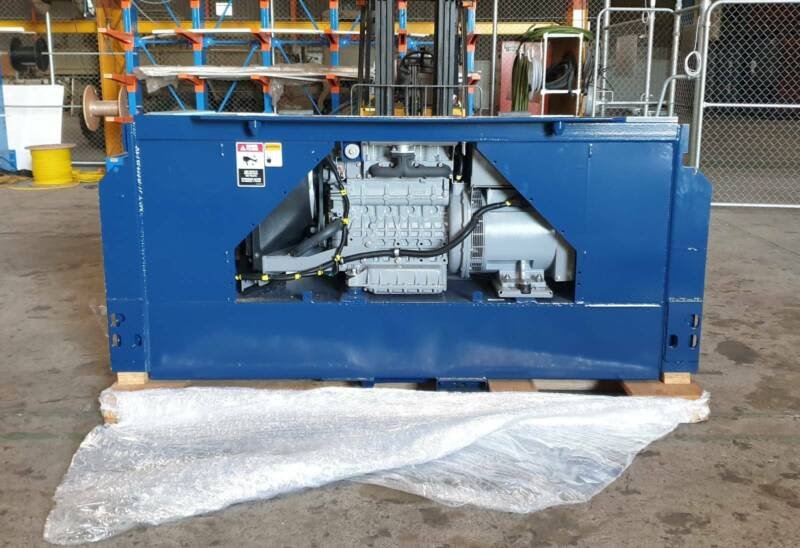

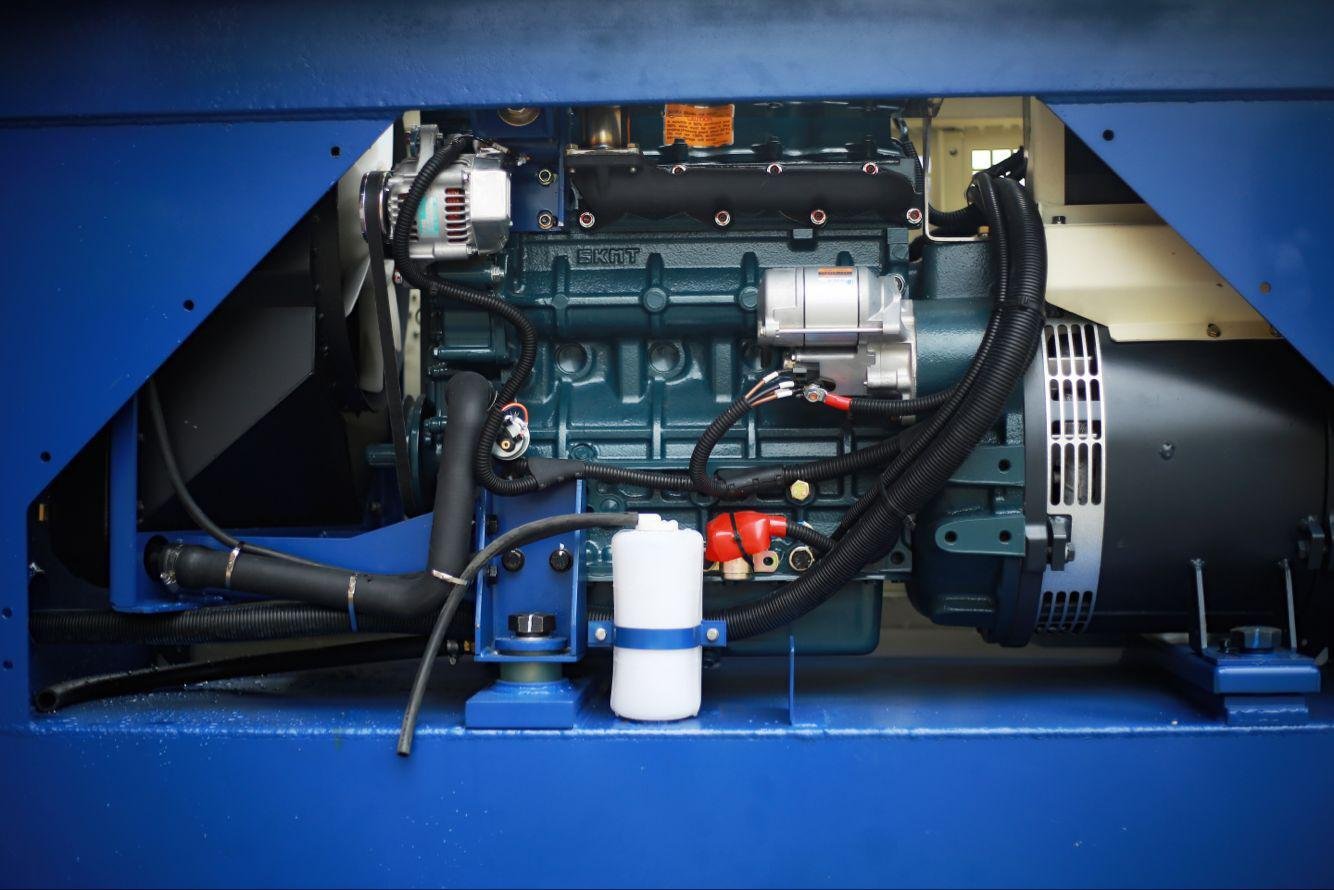

Powered by a robust CT4-134DI 4-cylinder, 2.2-liter direct-injection water-cooled diesel engine with an electronic governor and speed sensor, the system delivers nominal 15 kW (18.75 kVA) 460V AC 3-phase power at 60 Hz. A 130-gallon (492 L) fuel capacity ensures extended runtime for short- and medium-term cold chain transit.

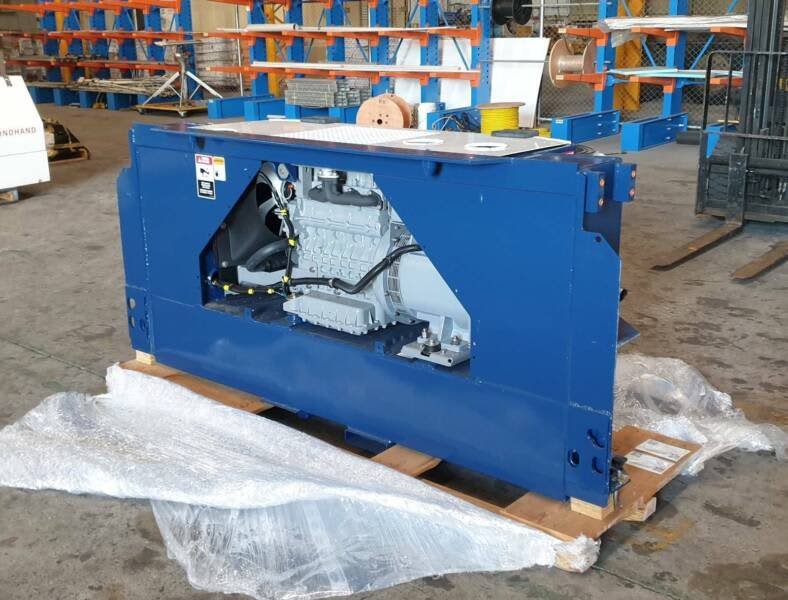

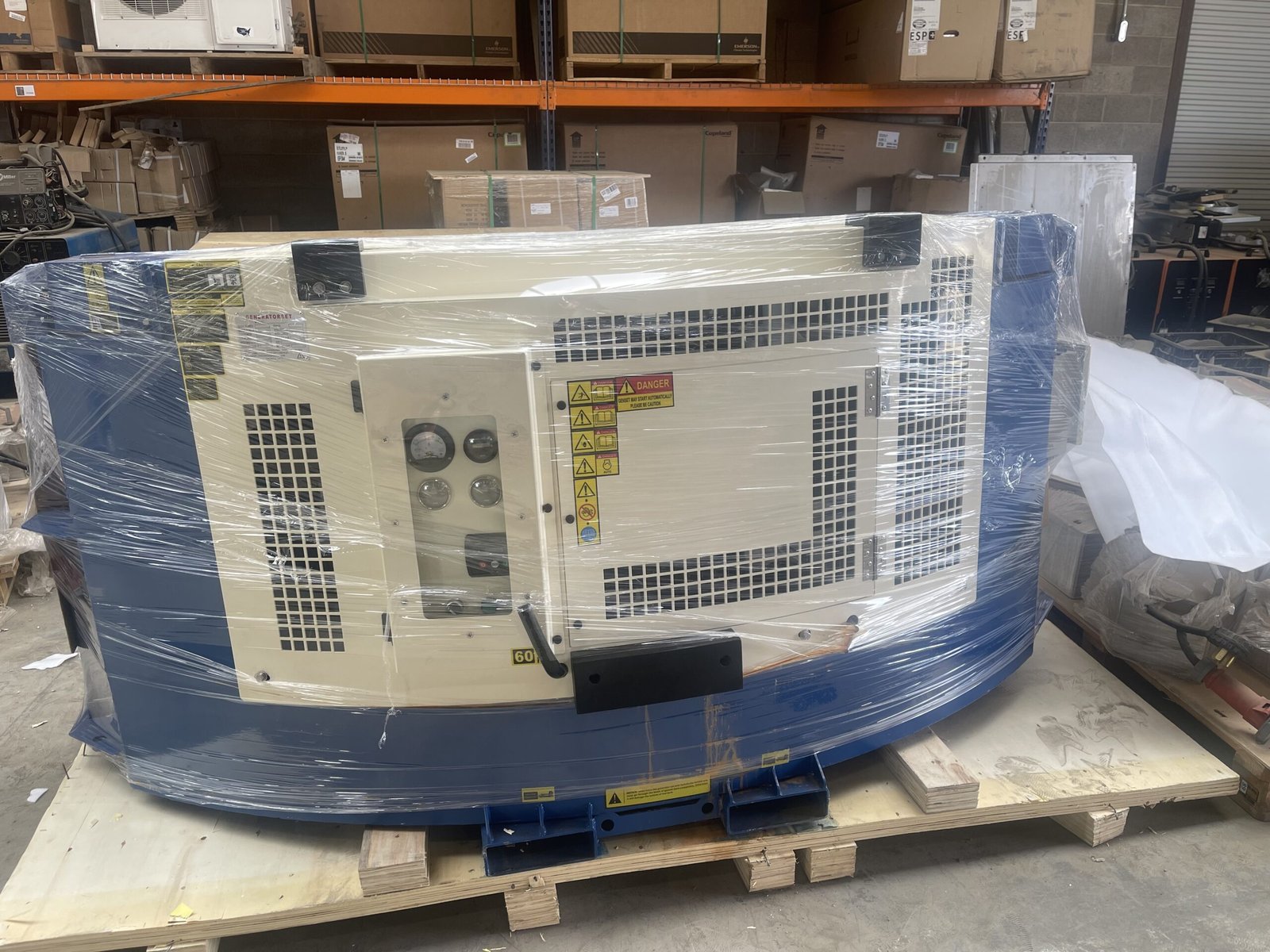

Built with rugged construction, it features a disc-type radial cooling fan, sealed large-diameter rear bearing, and a vacuum pressure-impregnated rotor. Operator-friendly low-mounted controls are housed in a waterproof control box with preheat and start/run/off switching, backed by automatic safety shutoffs for low oil pressure and high coolant temperature.
| Brand | Carrier |
| Product Type | Clip-On Generator Set |
| Engine | CT4-134DI 4-cylinder water-cooled 2.2L direct-injection diesel engine |
| Power Output | 15 kW, 18.75 kVA, 460V AC, 3 Phase, 60 Hz |
| Fuel Tank Capacity | 130 gal (492 L) |
| External Dimensions | 2,324 mm x 706 mm x 1,078 mm (91.5″ x 27.8″ x 42.5″) |
| Weight | 1,675 lbs (760 kg) |
| Battery | 12V DC maintenance-free |
| Mounting Compatibility | ISO and DNV 2.7-1 Reefers (corner casting pin/clamp mounting) |
| Control Box | Low-mounted waterproof control box with preheat and start/run/off switches |
| Safety Features | Automatic stop for low oil pressure and high coolant temperature |
