Description

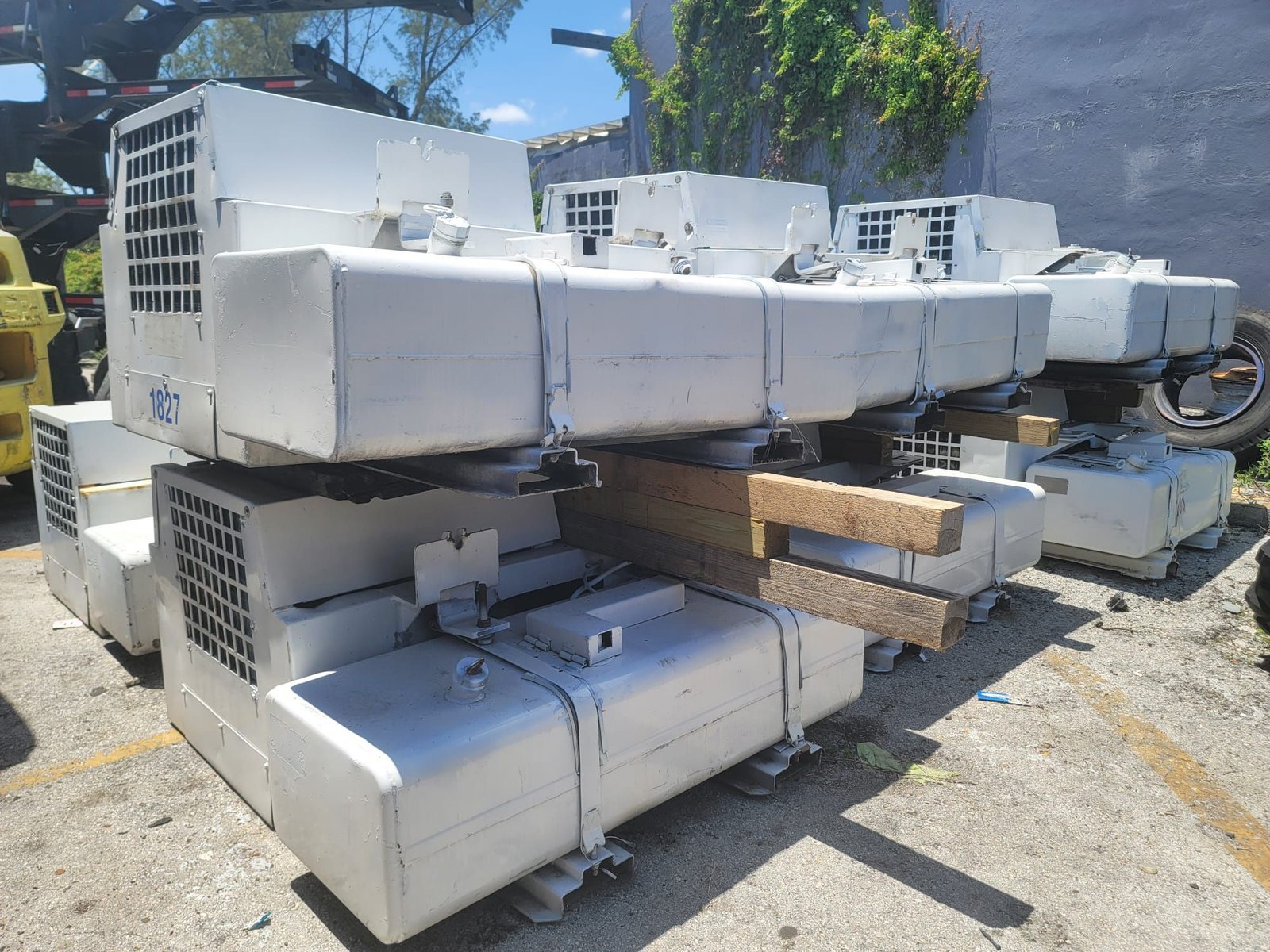

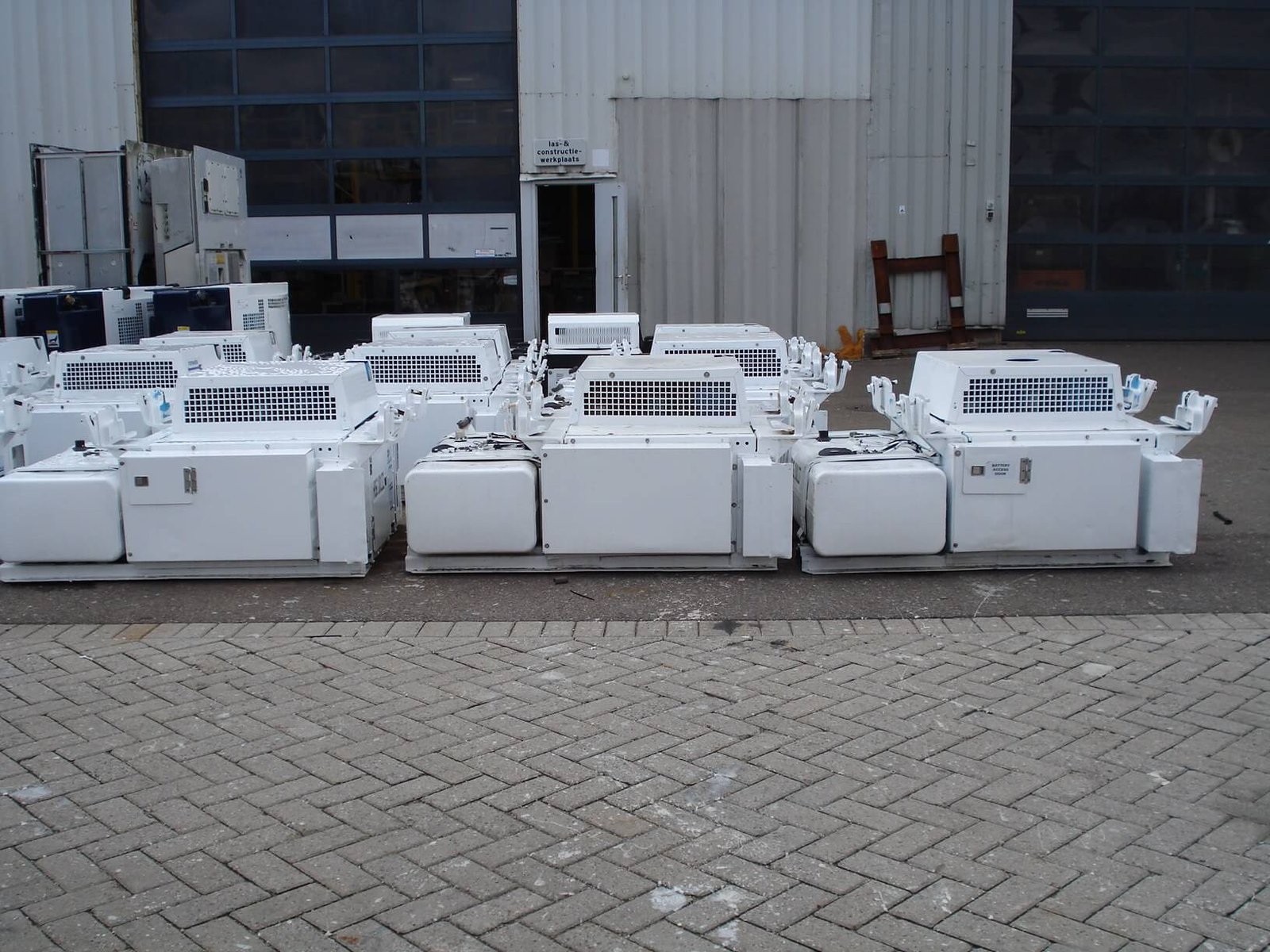

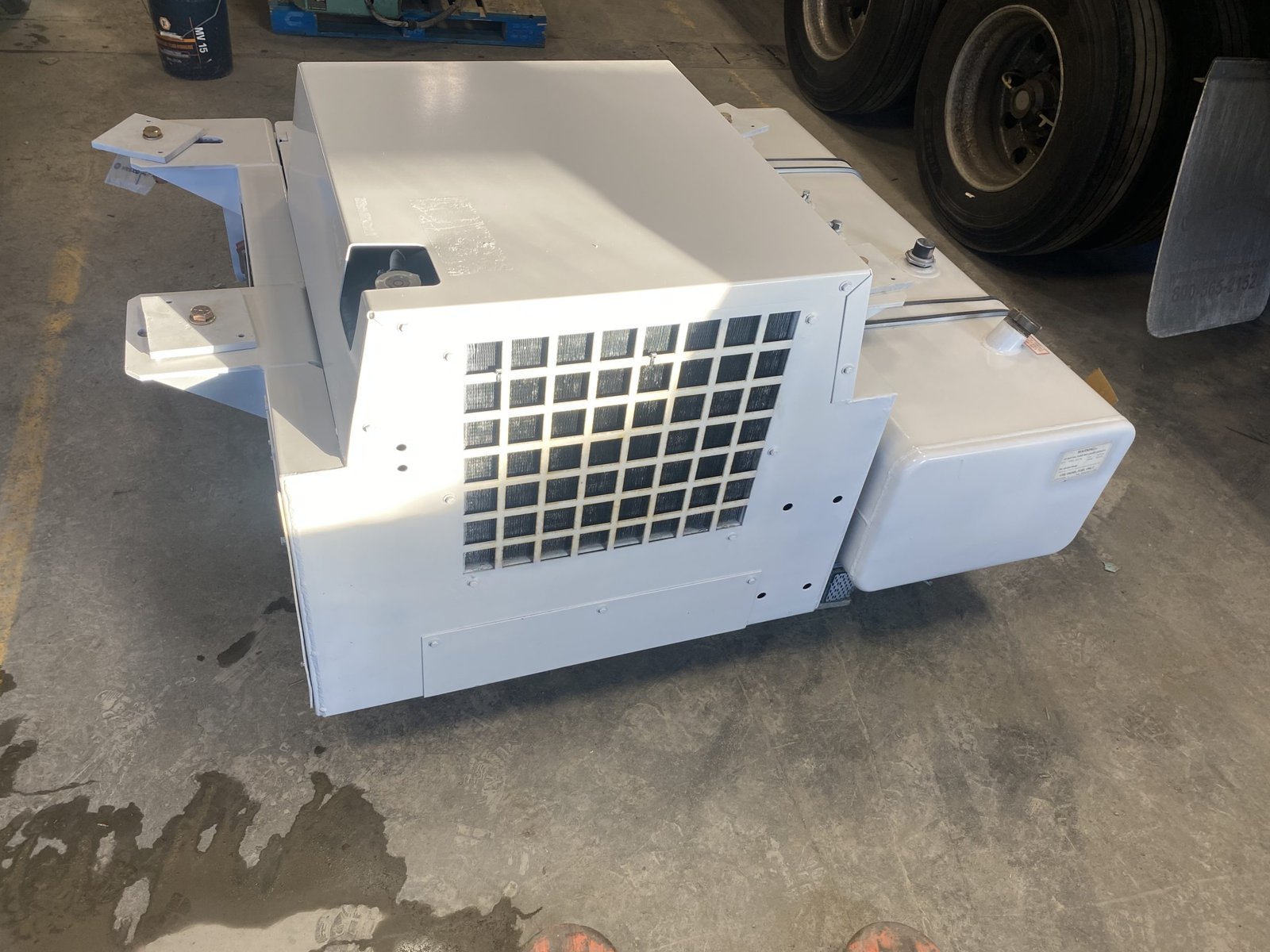

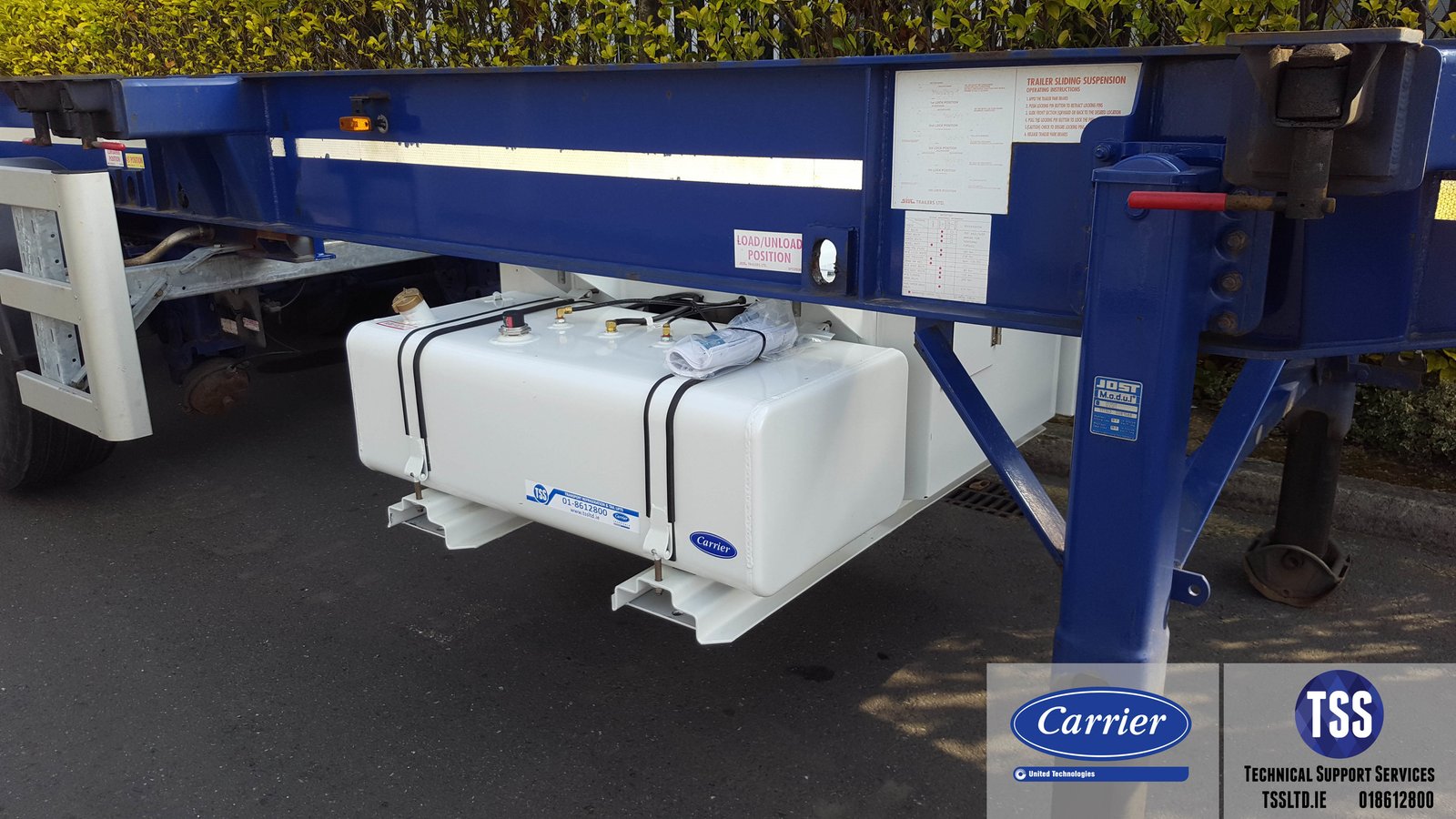

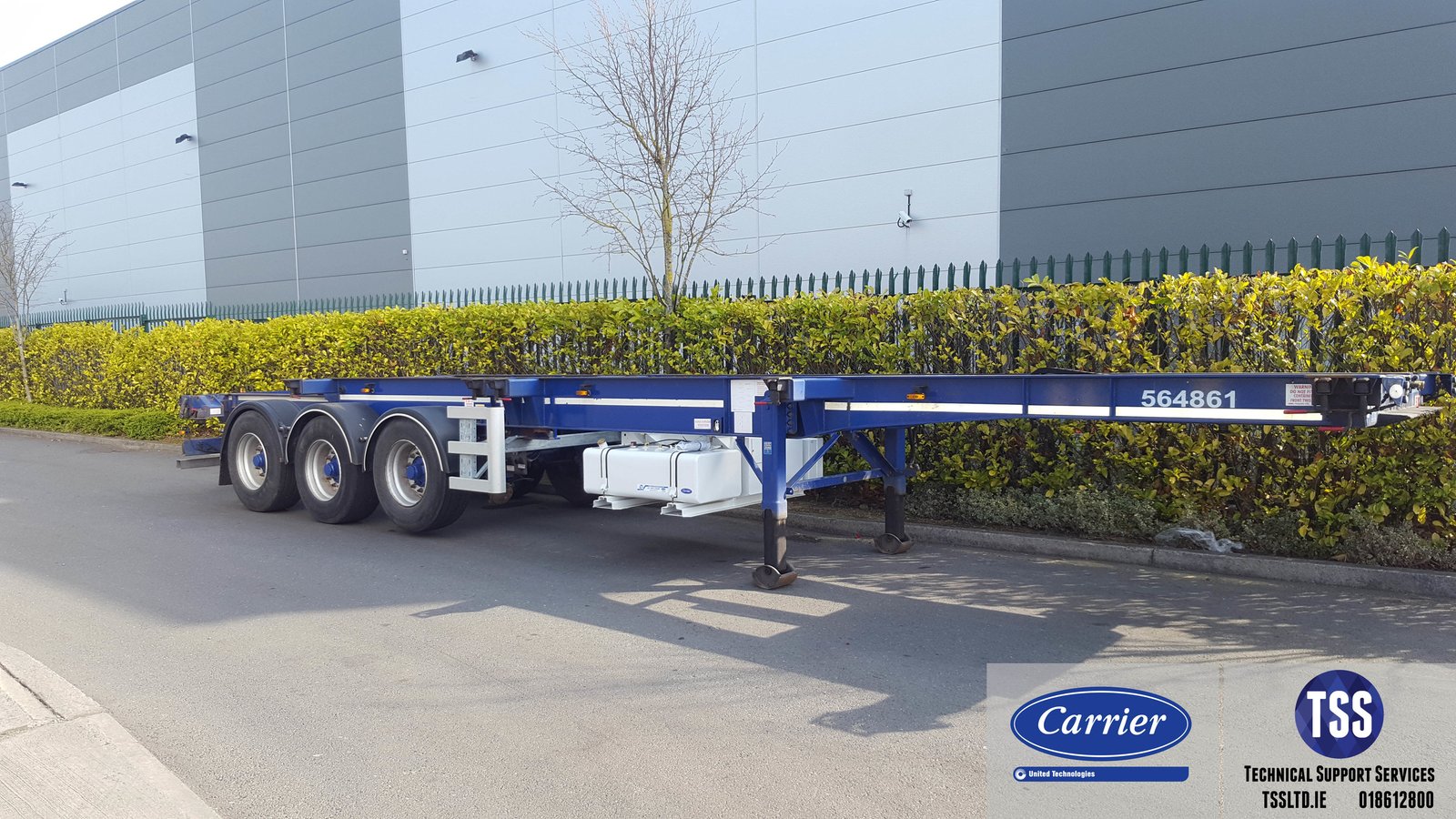

The Carrier Transicold PowerLINE 69UG15-050S-55 undermount generator set is engineered for continuous, unattended operation to power ISO refrigerated containers during road and rail transport. Built with an all-steel fabricated frame and a four-point plate-mount hanger system, this diesel generator mounts securely beneath the trailer chassis to deliver reliable over-the-road electrical power.

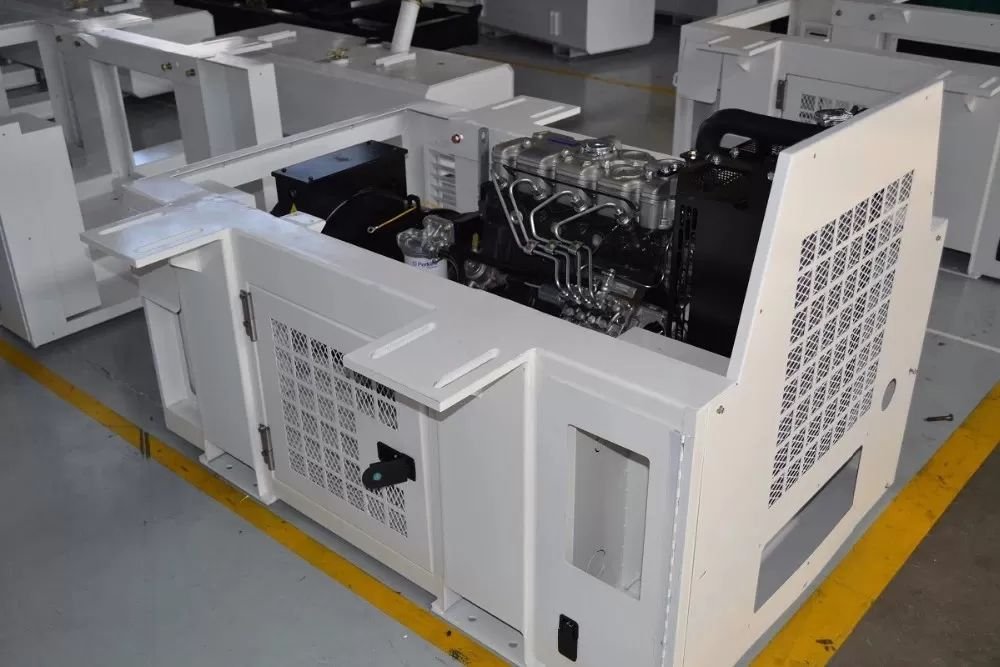

Equipped with a proven CT4-134Di 4-cylinder water-cooled 2.2-liter direct-injection diesel engine compliant with EU Stage V emission standards, the unit pairs with an ultra-high-efficiency 15 kW permanent magnet generator. Carrier’s FuelWise™ two-speed functionality automatically regulates engine speed between 1500 rpm (50 Hz) and 1800 rpm (60 Hz) based on load, reducing fuel consumption by up to 34%.

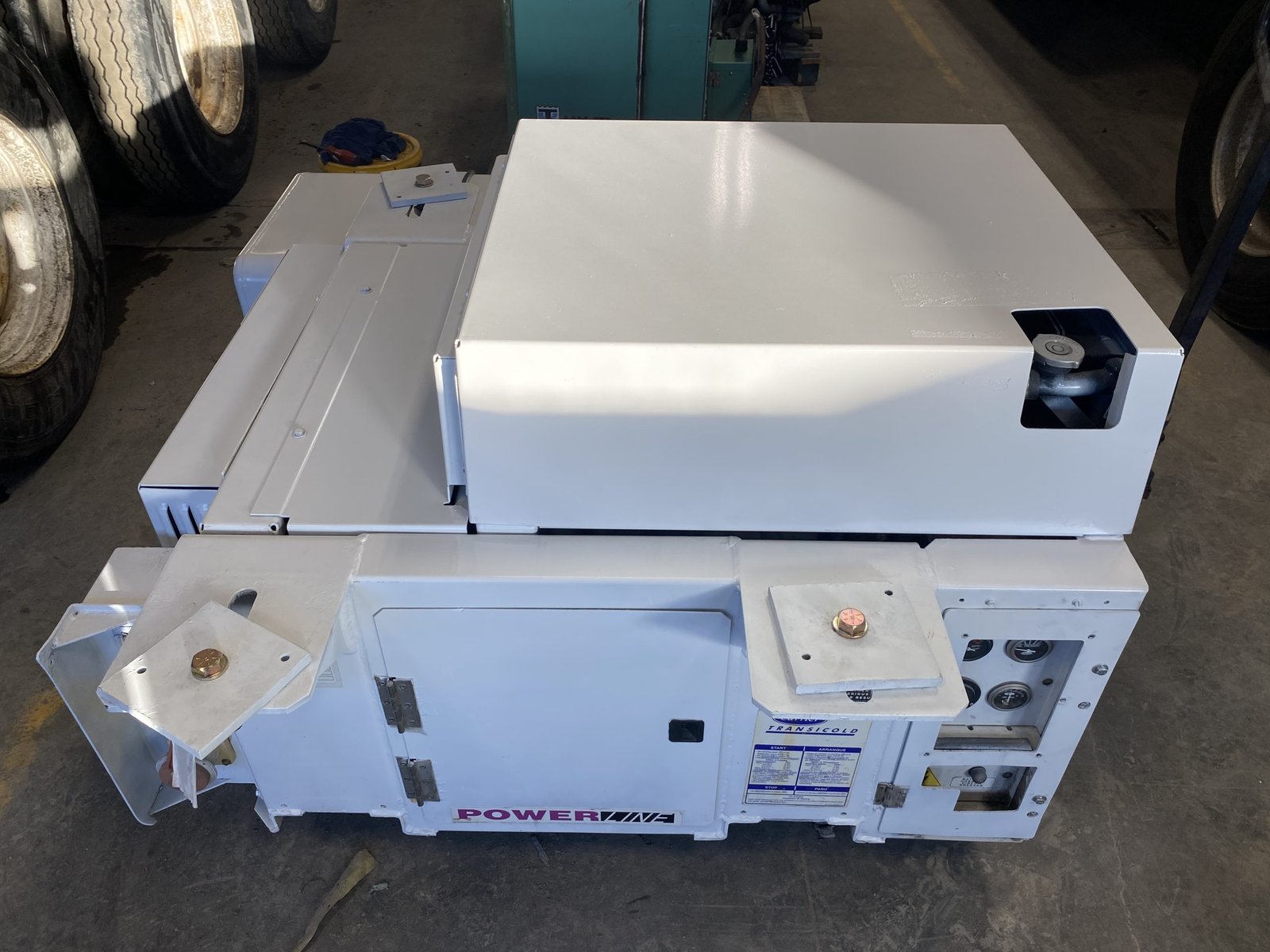

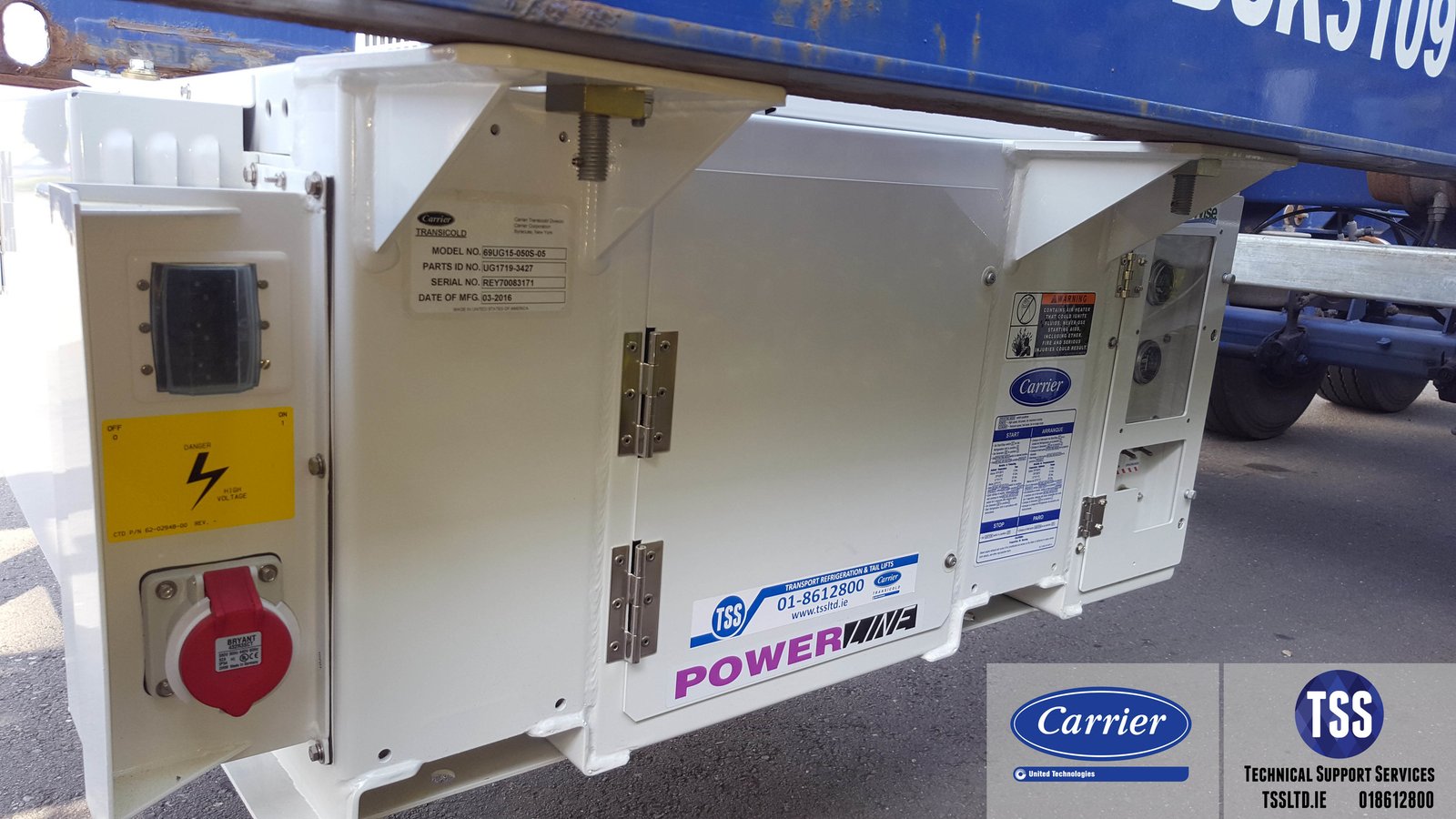

Designed for durability and streamlined maintenance, the 69UG15 features driver-side controls inside a waterproof box, safety stop controls for low oil pressure and high water temperature, a large access door with a self-locking quick-release latch, and powder-coated sheet metal with an epoxy-dipped tube and fin radiator for superior corrosion resistance.
| Brand | Carrier |
| Manufacturer | Carrier Transicold |
| Model Number | 69UG15-050S-55 |
| Engine | CT4-134Di 4-cylinder water-cooled 2.2 liter direct-injection diesel engine |
| Generator Type | Nominal 15 kW brushless, permanent magnet generator (PMG) |
| Power Output | 15 kW (460V receptacle w/ spring-loaded cap) |
| Fuel Type | Diesel |

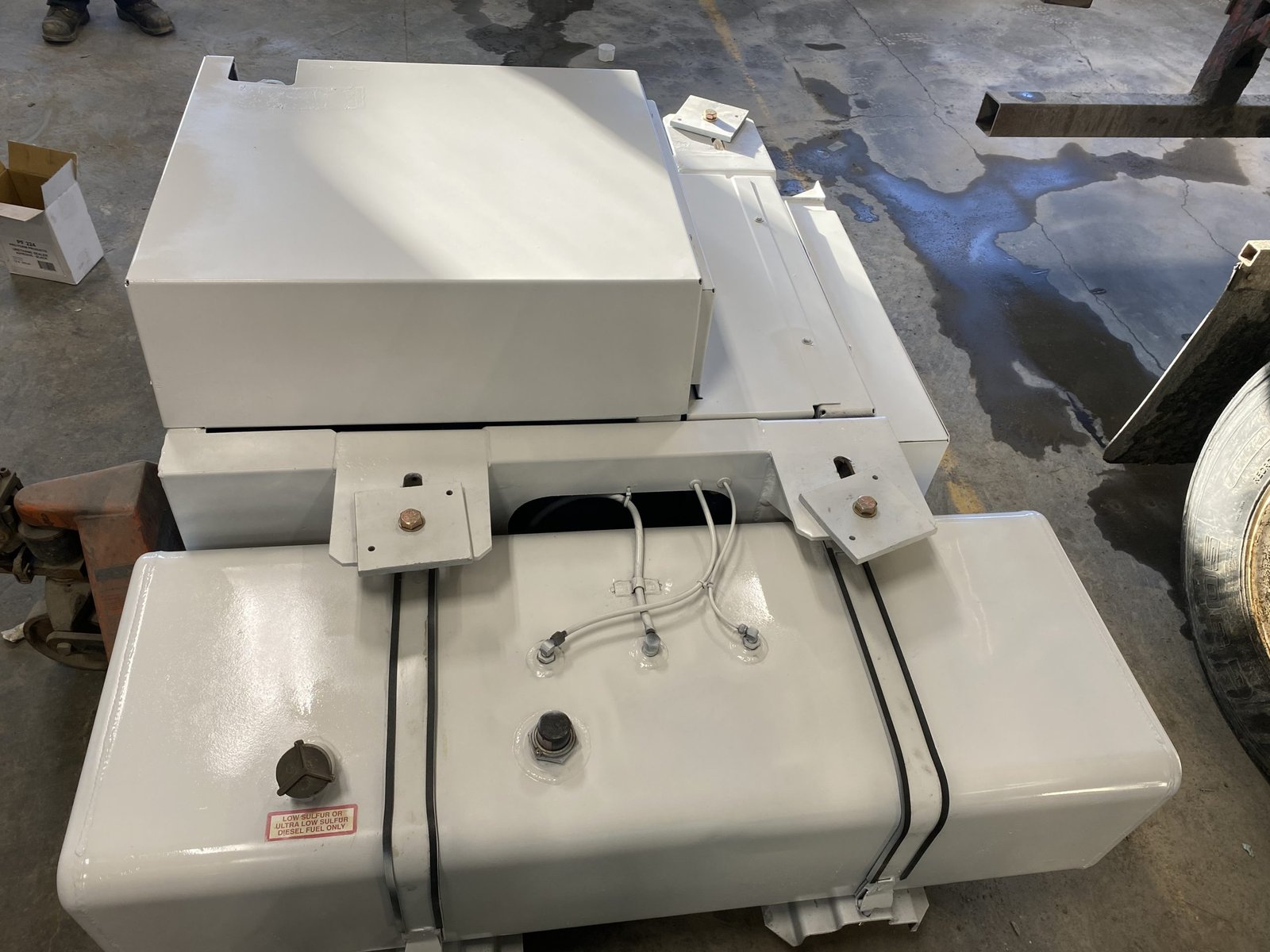

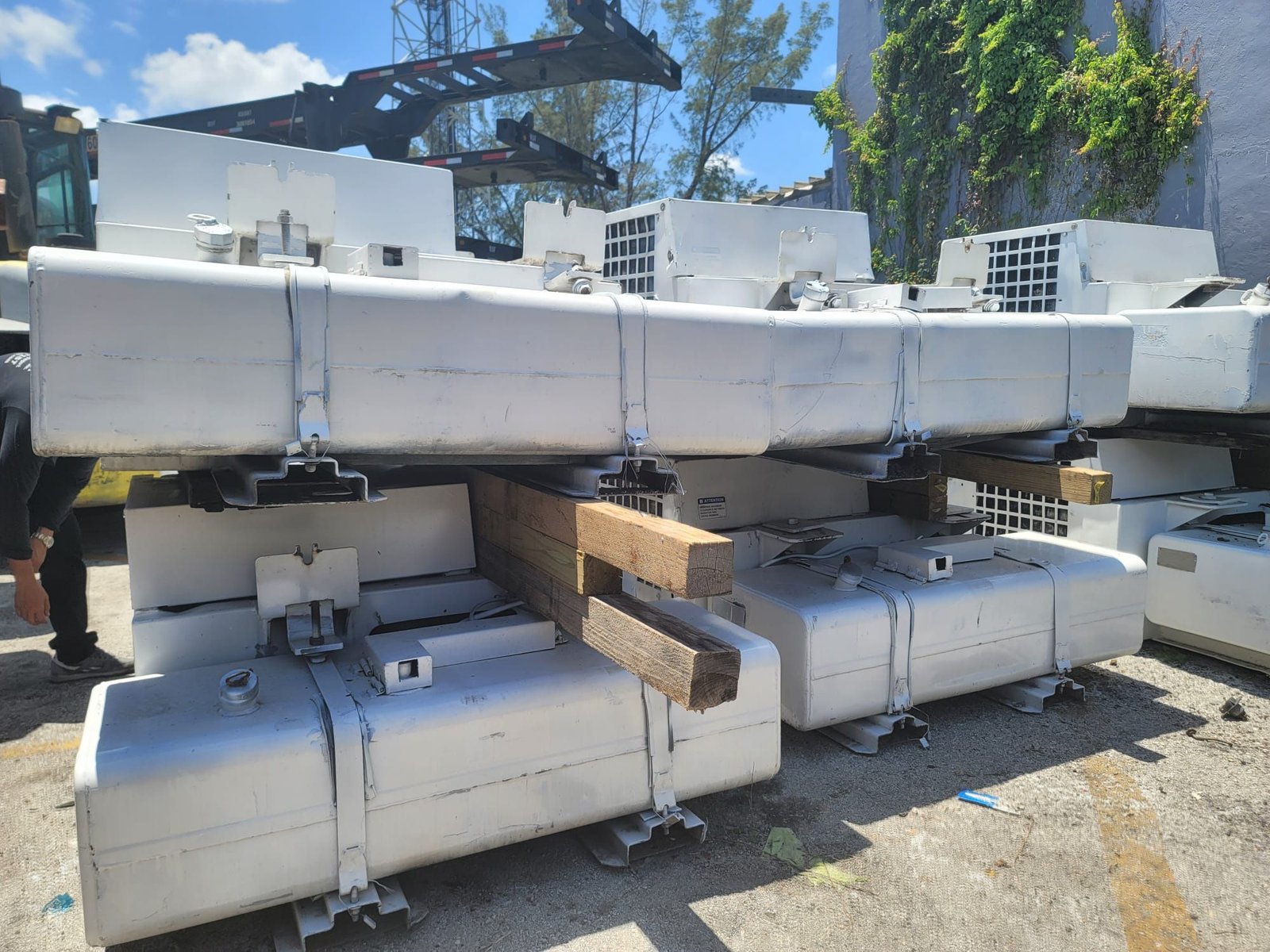

| Fuel Tank Capacity | 50-gal (189 L) / 68-gal (257 L) |
| Battery | 12V DC maintenance-free |

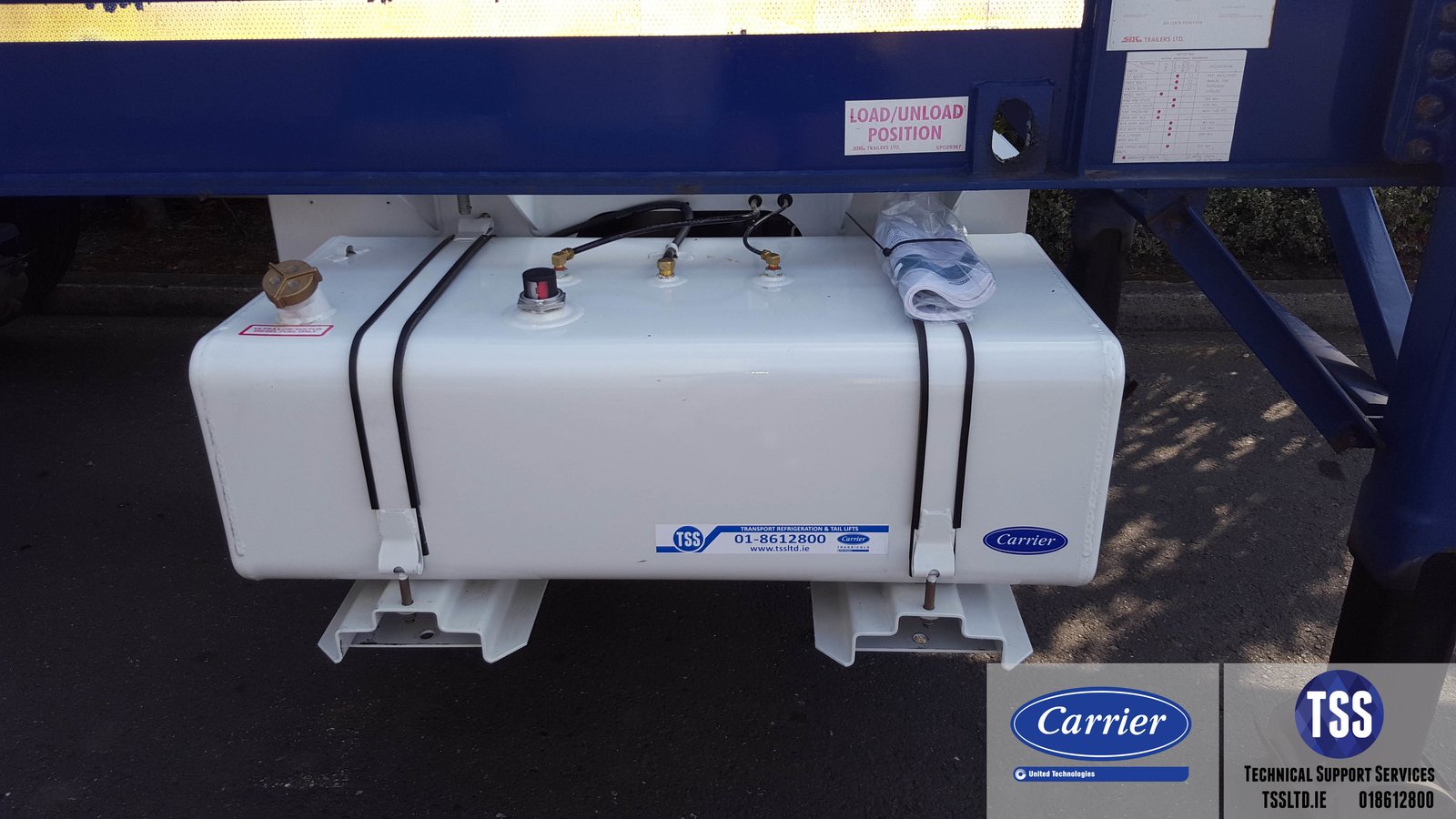

| Mounting Type | Undermount / 4-point plate mount |
| Emissions Compliance | EU Stage V |
| Operating Ambient Temperature (Run) | -40 to +52°C (-40 to +125°F) |
| Operating Ambient Temperature (Start) | -26 to +52°C (-15 to +125°F) |

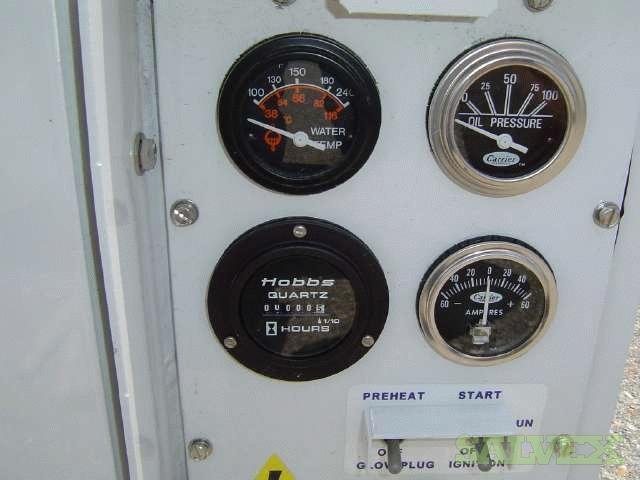

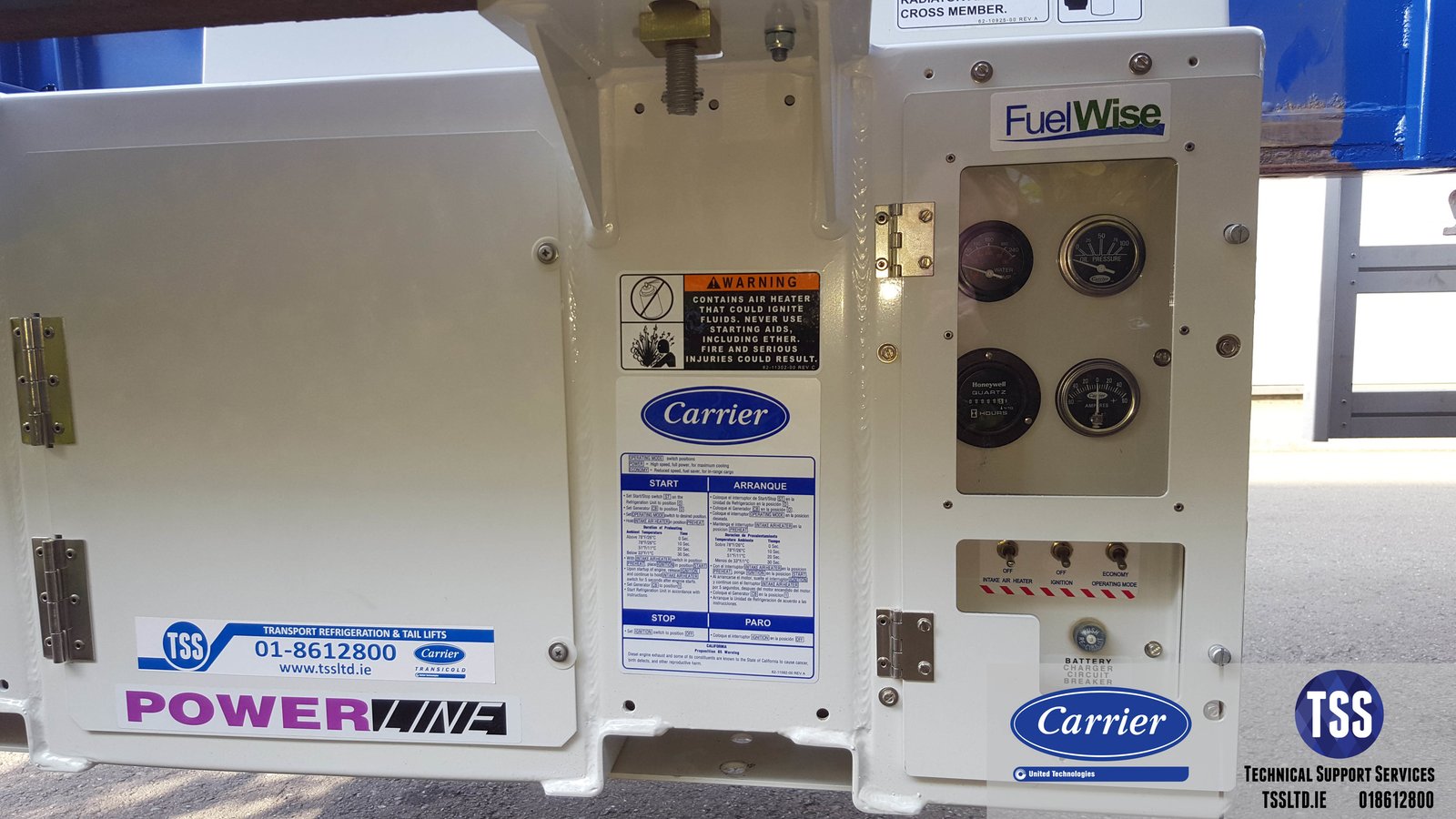

| Control Box | Driver-side waterproof control box |
| Safety Controls | Low oil pressure and high water temperature shutdown |
