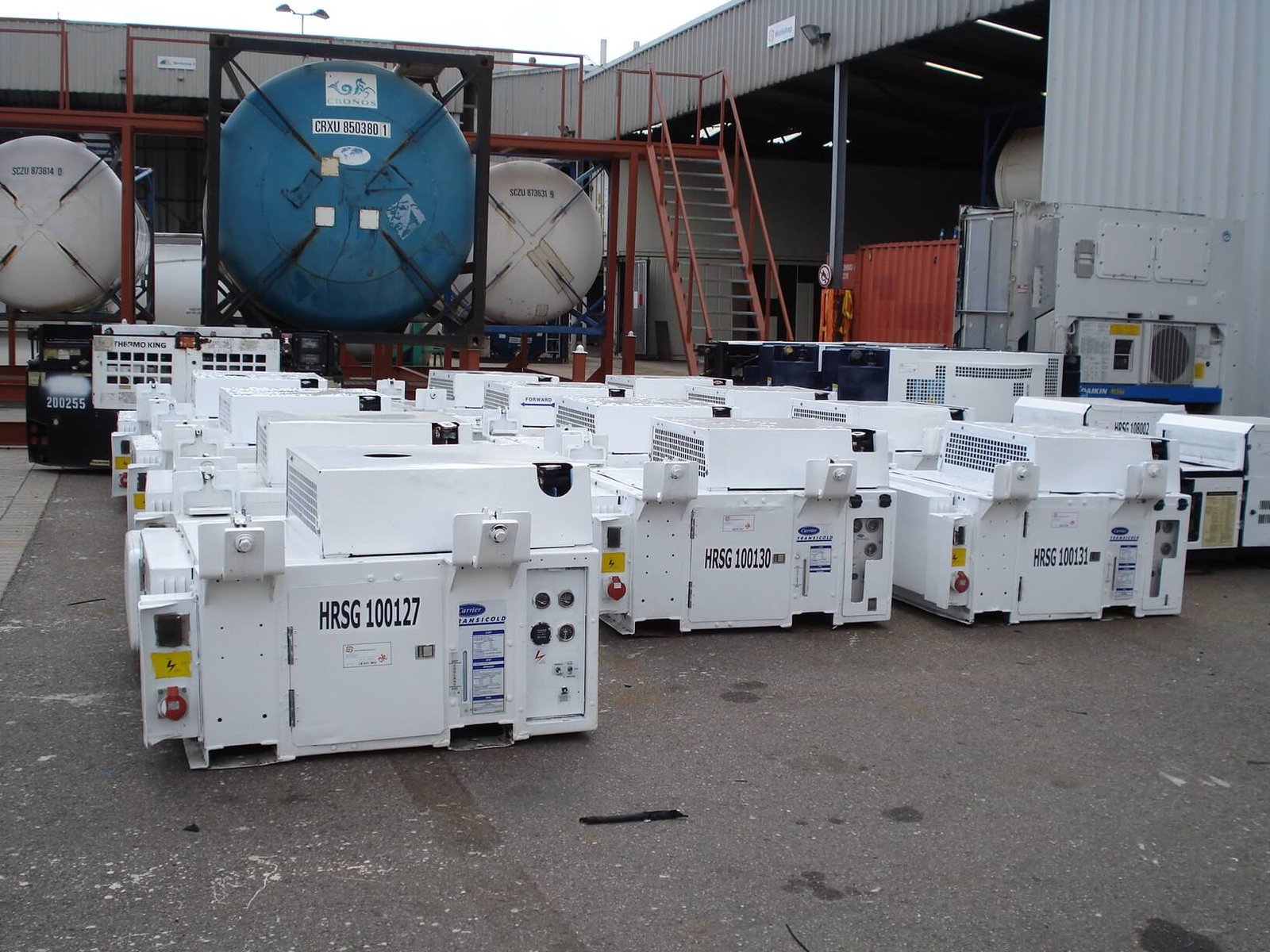

Carrier Transicold PowerLINE 69UG15-068S-05 Undermount Genset

Description

The Carrier Transicold PowerLINE 69UG15-068S-05 undermount generator set is engineered to deliver reliable, unattended continuous power for refrigerated ISO containers transported by road or rail. Powered by a 2.2-liter V2203-DI / CT4-134Di 4-cylinder, water-cooled direct-injection diesel engine producing 32 HP (23.9 kW), it delivers a nominal 15 kW brushless, self-regulated output at 460V to keep cargo refrigeration units operational across long hauls or in remote locations without utility power.

Built on a heavy-duty, all-steel fabricated frame with powder-coated components, the unit offers maximum corrosion resistance and durability. Key operational features include an electronic governor system for stable voltage regulation, driver-side analog instrumentation, a waterproof control box, and automatic safety shutdowns for low oil pressure and high water temperature. Serviceability is streamlined via a large aluminum access door with quick-release latches, full-flow spin-on oil filter with internal bypass filtration, and an integrated fuel filter with water separator and fuel heater.

• Continuous Power: 15 kW brushless, self-regulated generator with 460V output receptacle.
• Rugged Mounting: Compatible with ISO chassis I-beam centers with 36–38 in (91–96 cm) separation and standard 4-point mounting.
• Engine Protection: Integral fuel warmer, self-bleeding fuel system, and large-capacity oil pan extending service intervals.
