Description

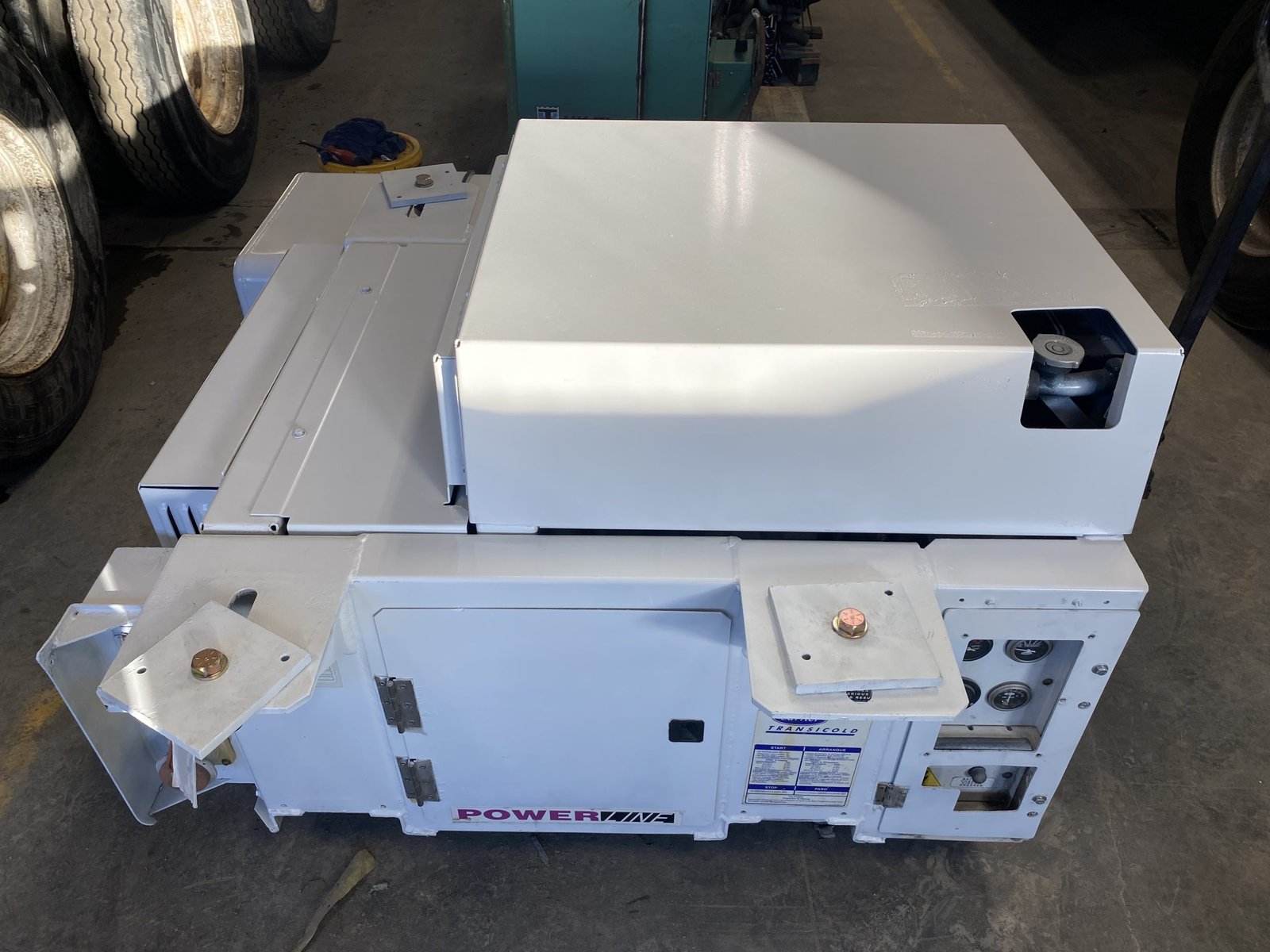

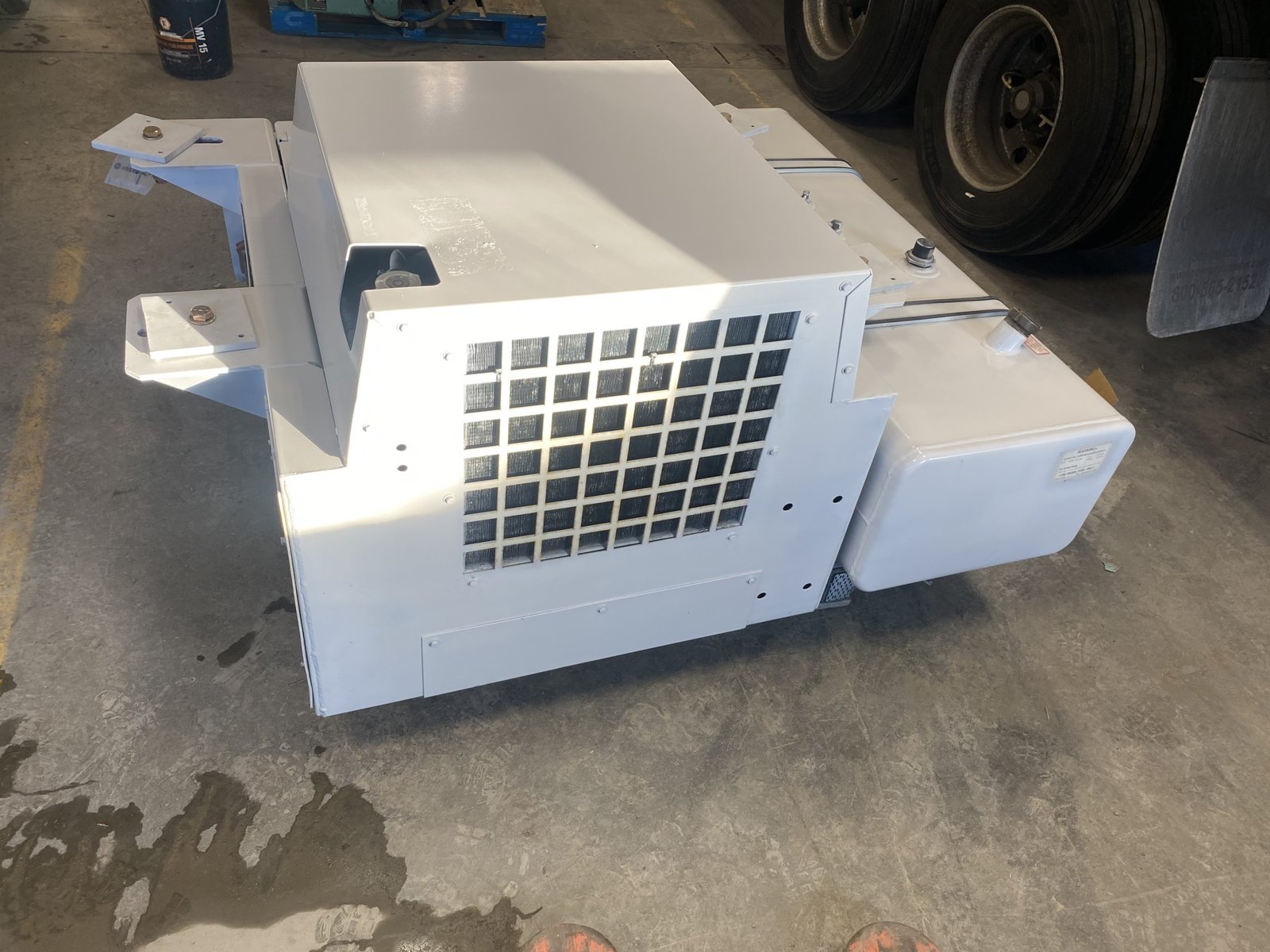

The Carrier Transicold PowerLINE Series 13 (Model 69UG15-068S-13) undermount generator set is engineered for continuous, unattended operation to power ISO refrigerated containers across road and rail transport. Featuring advanced ecoFORWARD technologies, this diesel-driven unit complies with EPA Tier 4 and CARB emissions standards while maximizing operating efficiency.
Key Features & Performance

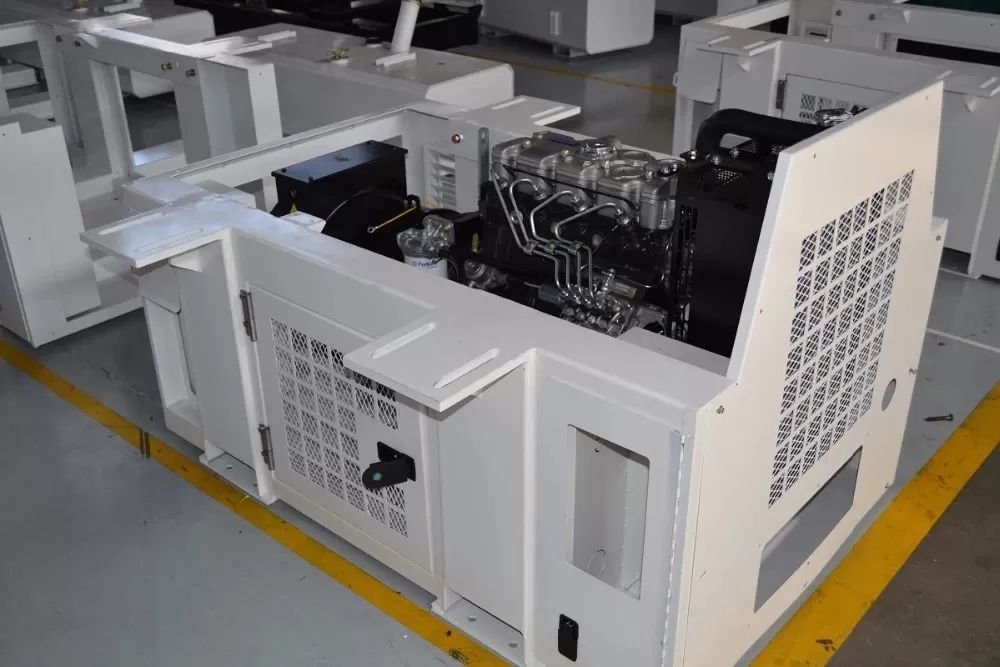

- Efficient Power Delivery: Powered by a proven 2.2-liter CT4-134Di 4-cylinder water-cooled diesel engine rated at 18.5 kW, paired with a custom-designed 15 kW permanent magnet generator.
- FuelWise Technology: Built-in two-speed functionality automatically regulates engine speeds to deliver up to 34% fuel savings compared to previous standard units.
- Robust Construction: Equipped with powder-coated frame and sheet metal components, an all-steel fabricated chassis frame, and a stainless steel exhaust for superior corrosion resistance and longevity.
- Reliable Maintenance Components: Includes a full-flow spin-on oil filter with internal bypass, an integral fuel filter with water separator, an external in-line clear fuel strainer, and an oversized oil pan extending service intervals up to 2,000 running hours.

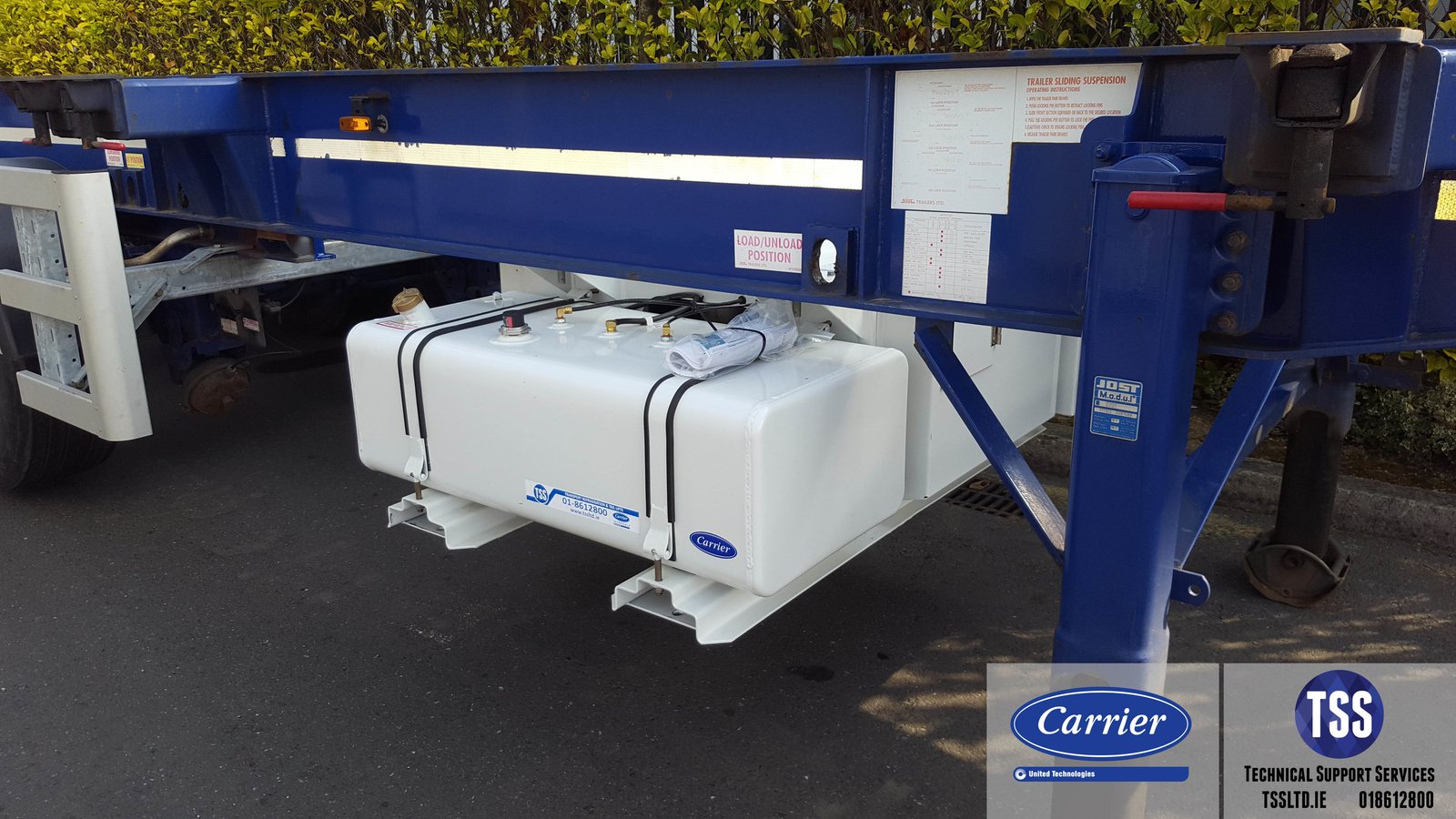

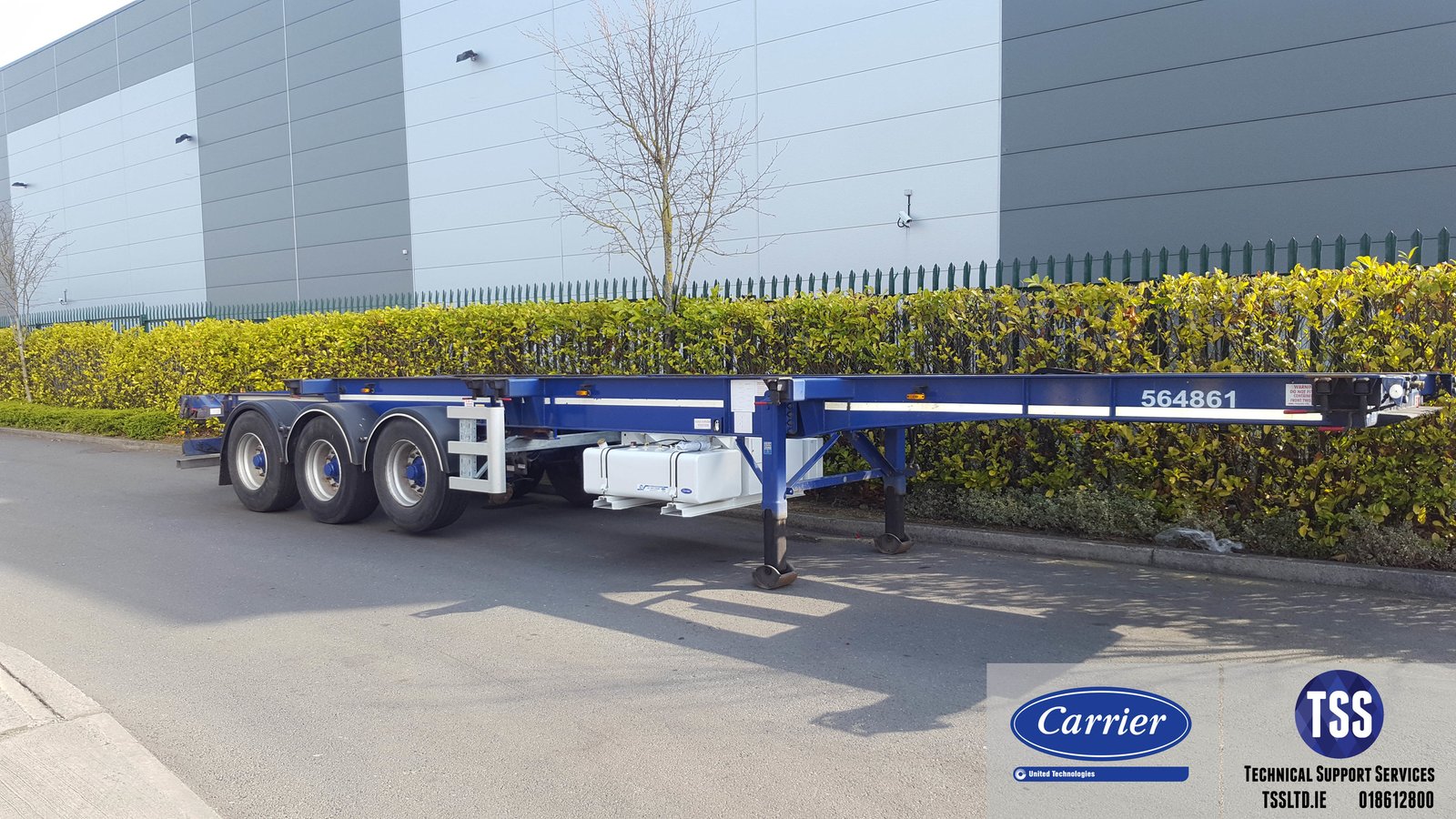

- Secure Installation: Mounts underneath container chassis utilizing standard 4-point PlateMount hangers with enclosed forklift pockets for straightforward handling.
| Brand | Carrier Transicold |
| Model | 69UG15-068S-13 |
| Series | PowerLINE Series 13 |
| Product Type | Undermount Generator Set |
| Power Output | 15 kW |
| Engine | CT4-134Di 4-cylinder water-cooled 2.2L diesel engine |
| Engine Output | 18.5 kW |
| Fuel Type | Diesel |
| Emissions Compliance | EPA Tier 4, CARB Compliant |
| Generator Type | Permanent magnet generator (PMG), brushless, self-regulated |

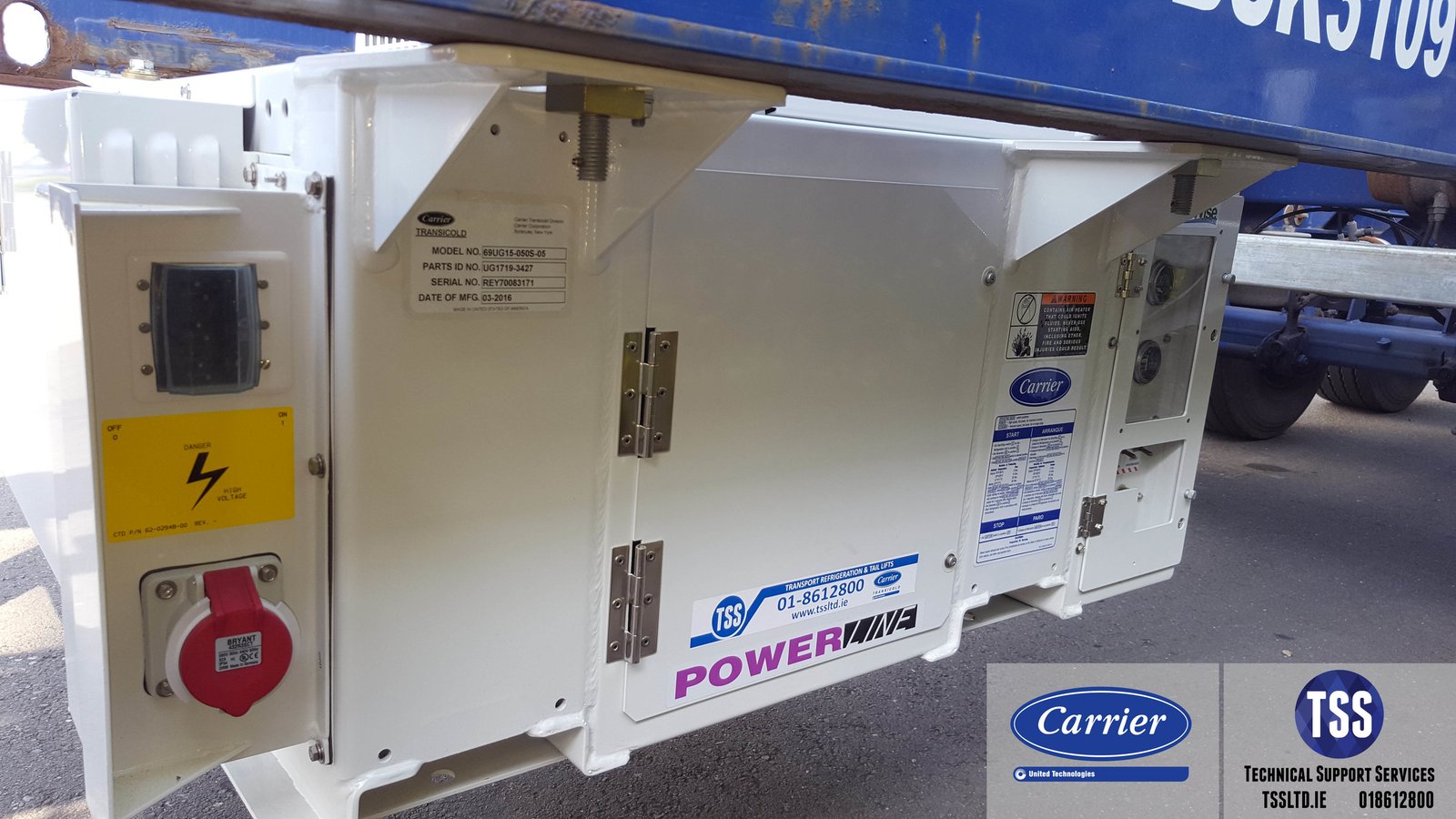

| Electrical Output | 460V receptacle w/ spring-loaded cap |
| Battery | 12V DC maintenance-free |

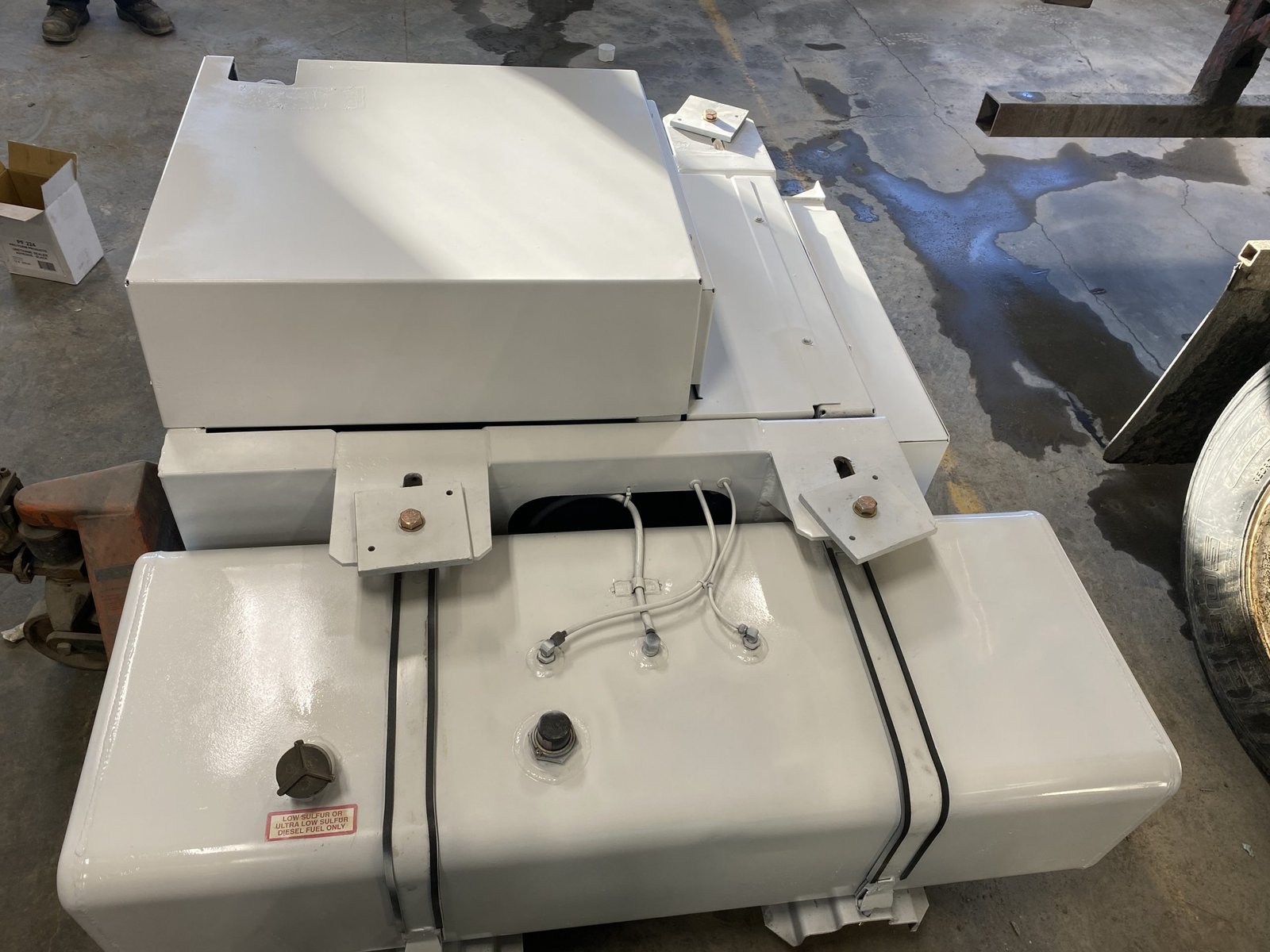

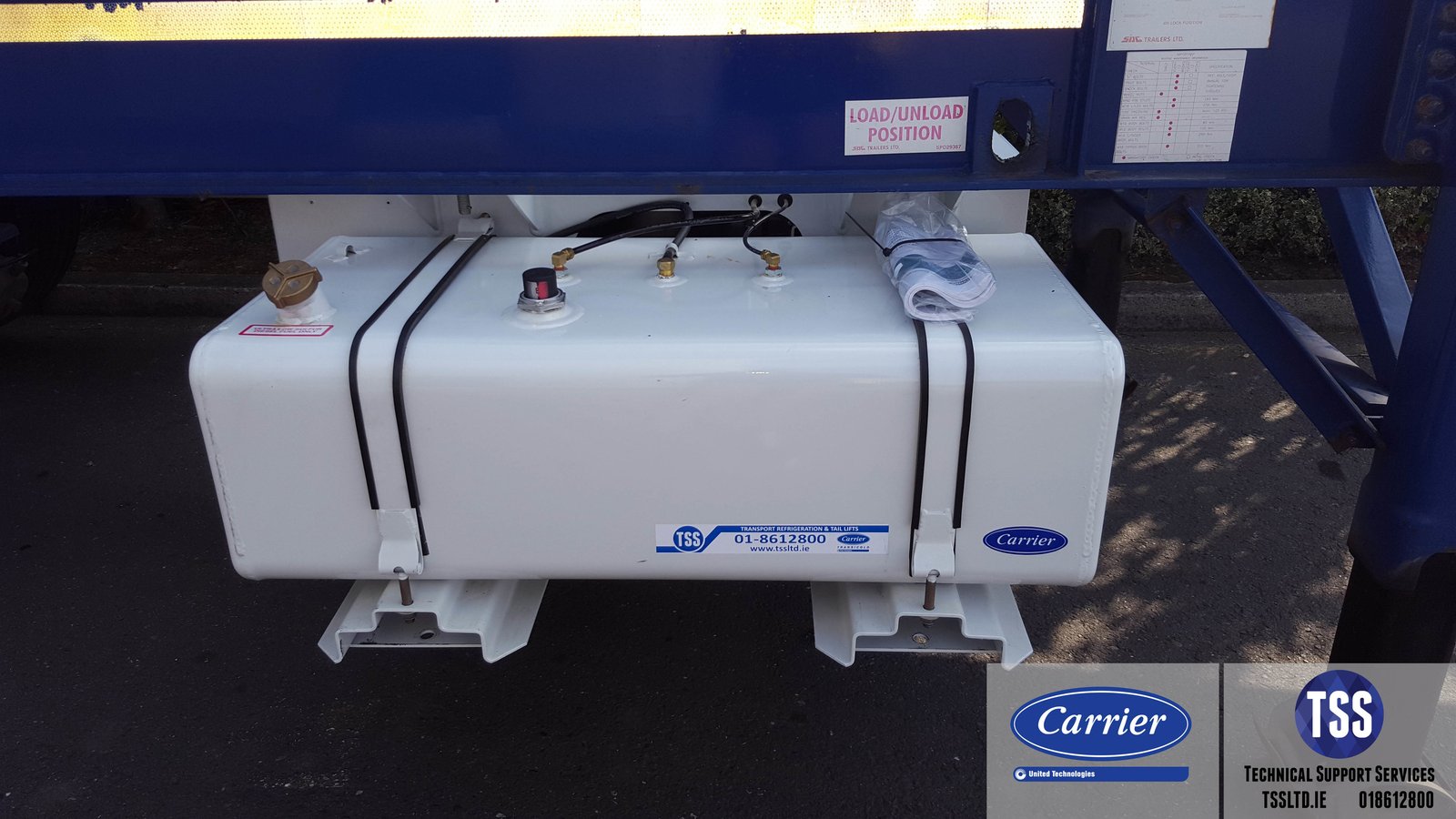

| Fuel Tank Options | 50 gal (189 L), 68 gal (257 L), 80 gal (303 L) |
| Mounting Type | 4-point PlateMount hangers |

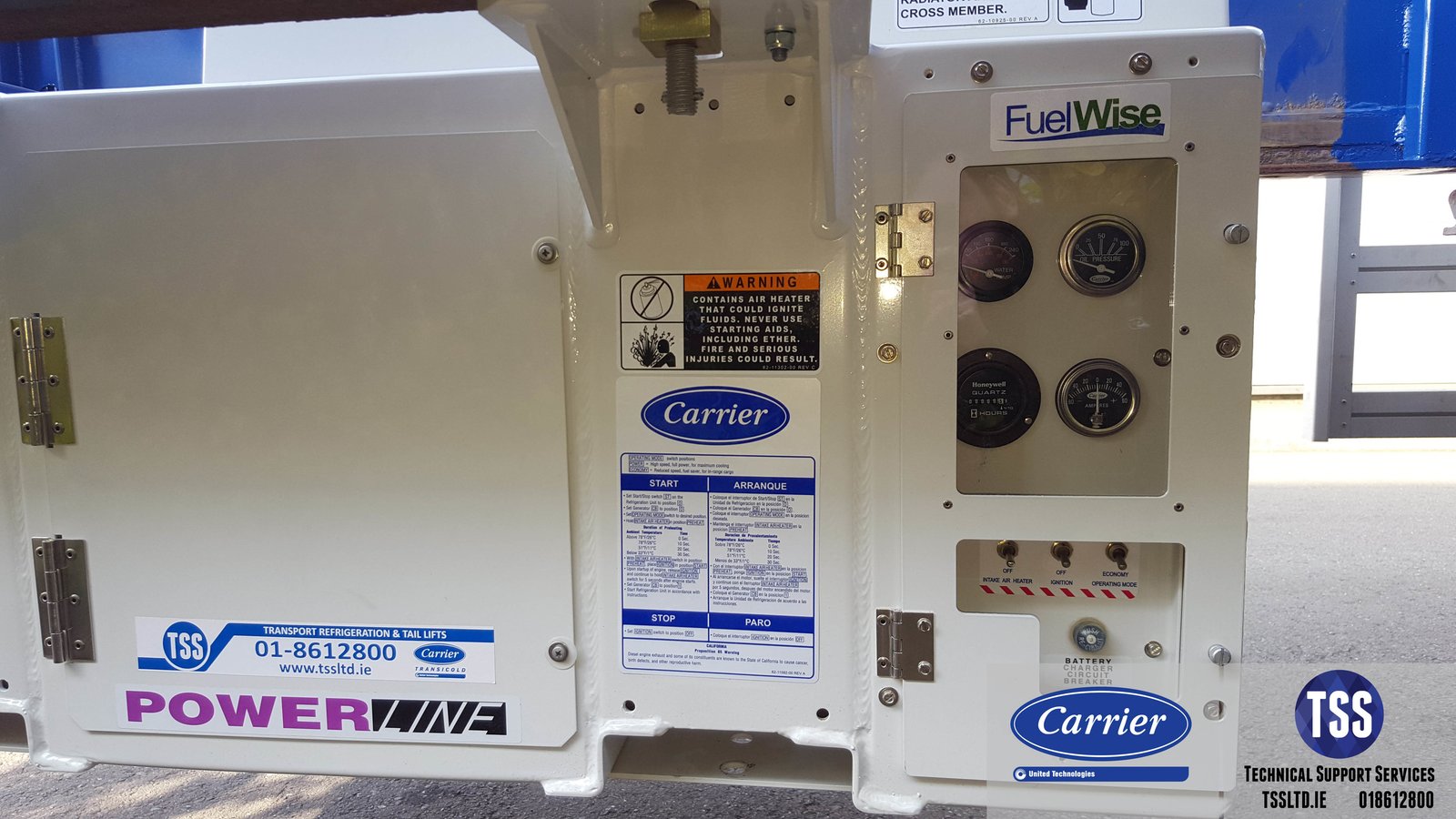

| Control Box | Driver-side waterproof control box |
| Operating Ambient Temperature | -40 to +52°C (-40 to +125°F) |
