Description

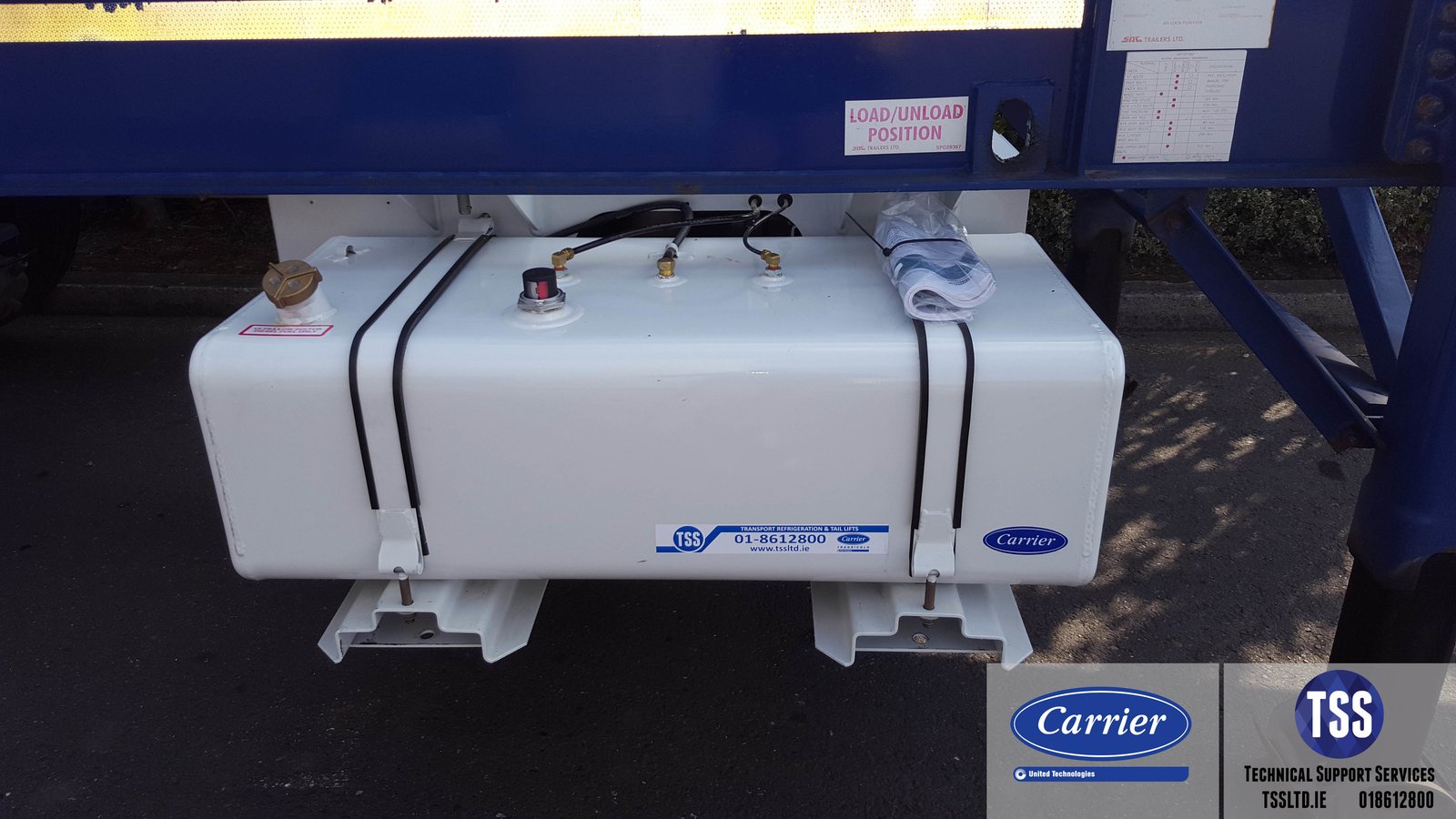

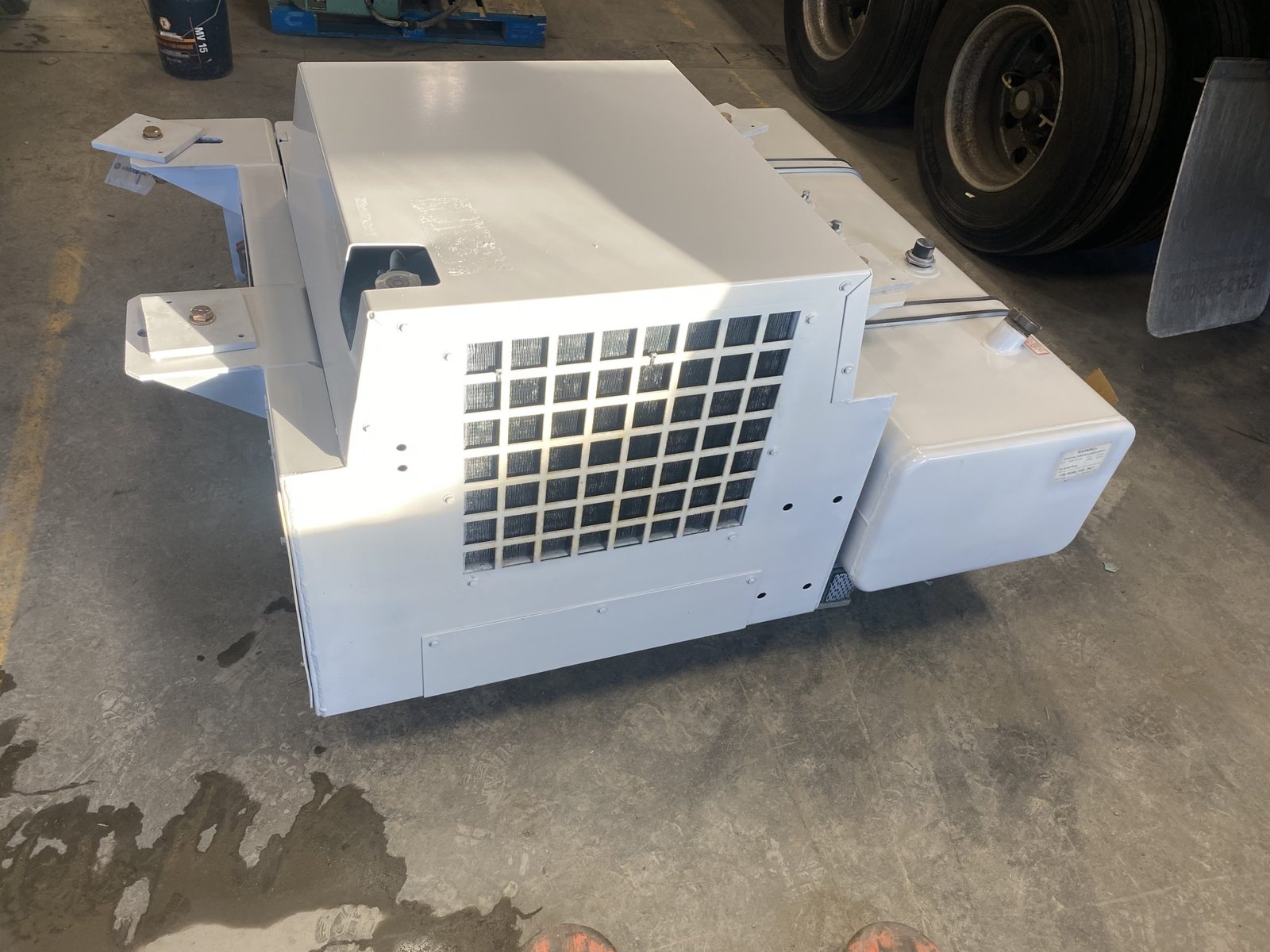

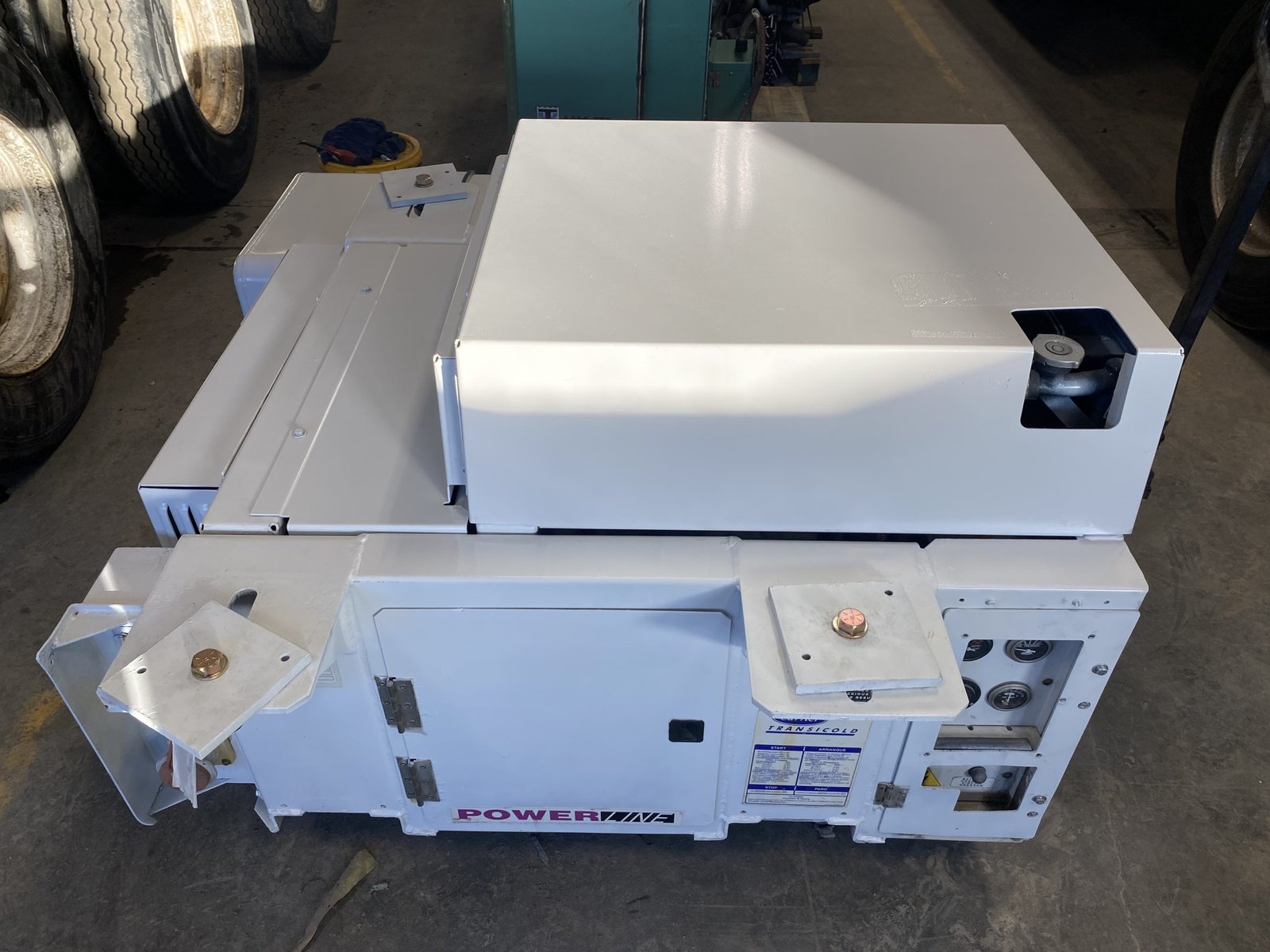

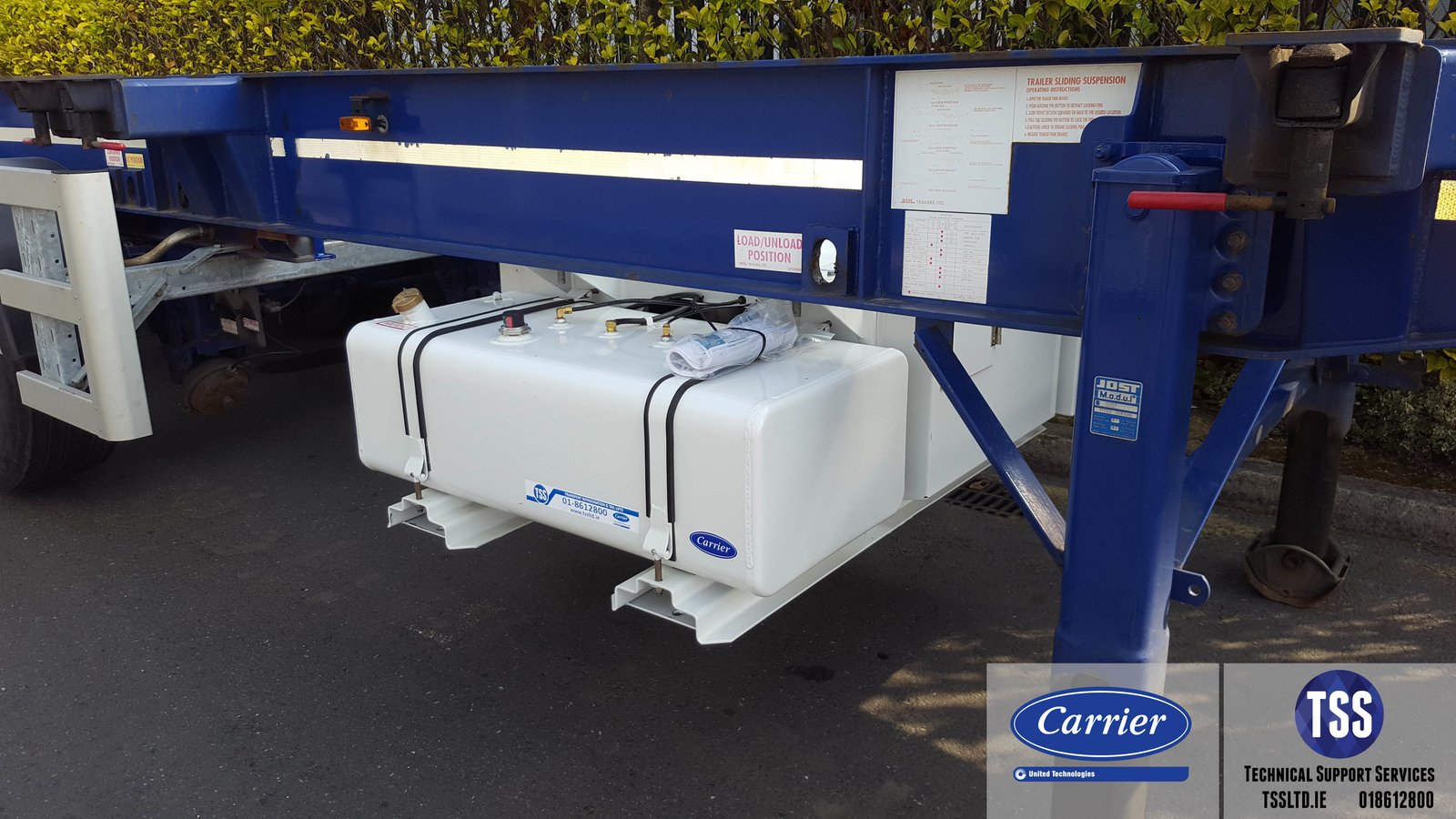

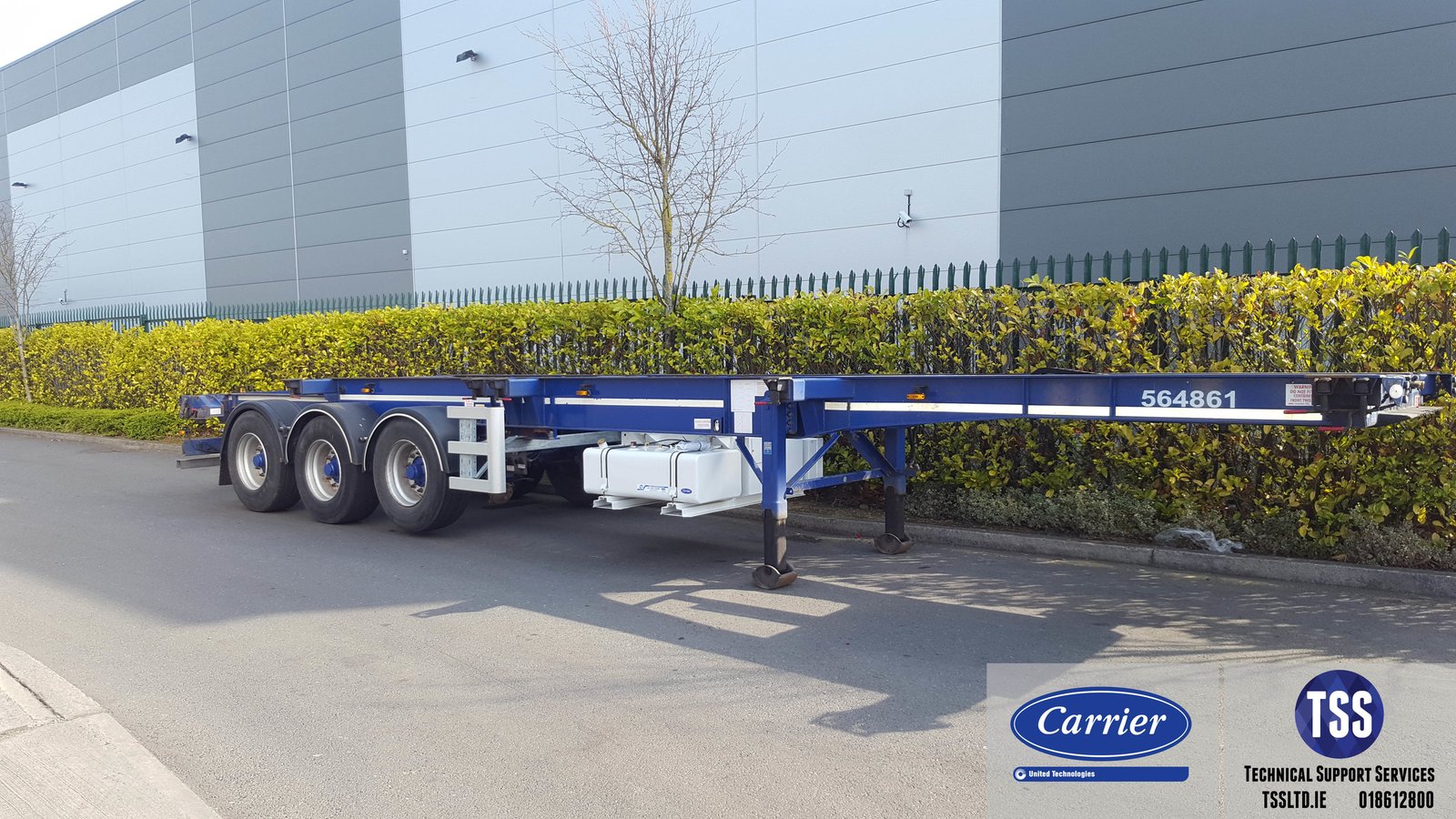

The Carrier Transicold PowerLINE® UG15 Series 24 Undermount Generator Set (Model 69UG15-068S-24) is engineered for continuous, unattended power to maintain temperature integrity for refrigerated shipping containers during road and rail transport. Designed for direct mounting beneath standard ISO container chassis, this undermount genset ensures reliable performance without the need to demount equipment during container transfers.
Equipped with a high-efficiency diesel generator providing a full 15 kW output, this unit features built-in FuelWise™ dual-speed technology to deliver up to 34% in fuel savings compared to previous standard units. The powertrain utilizes common-rail fuel injection paired with an enhanced filtration system and a maintenance-free Diesel Oxidation Catalyst, achieving significant reductions in particulate and hydrocarbon emissions while ensuring lifetime CARB and EPA compliance without complex exhaust gas recirculation (EGR).

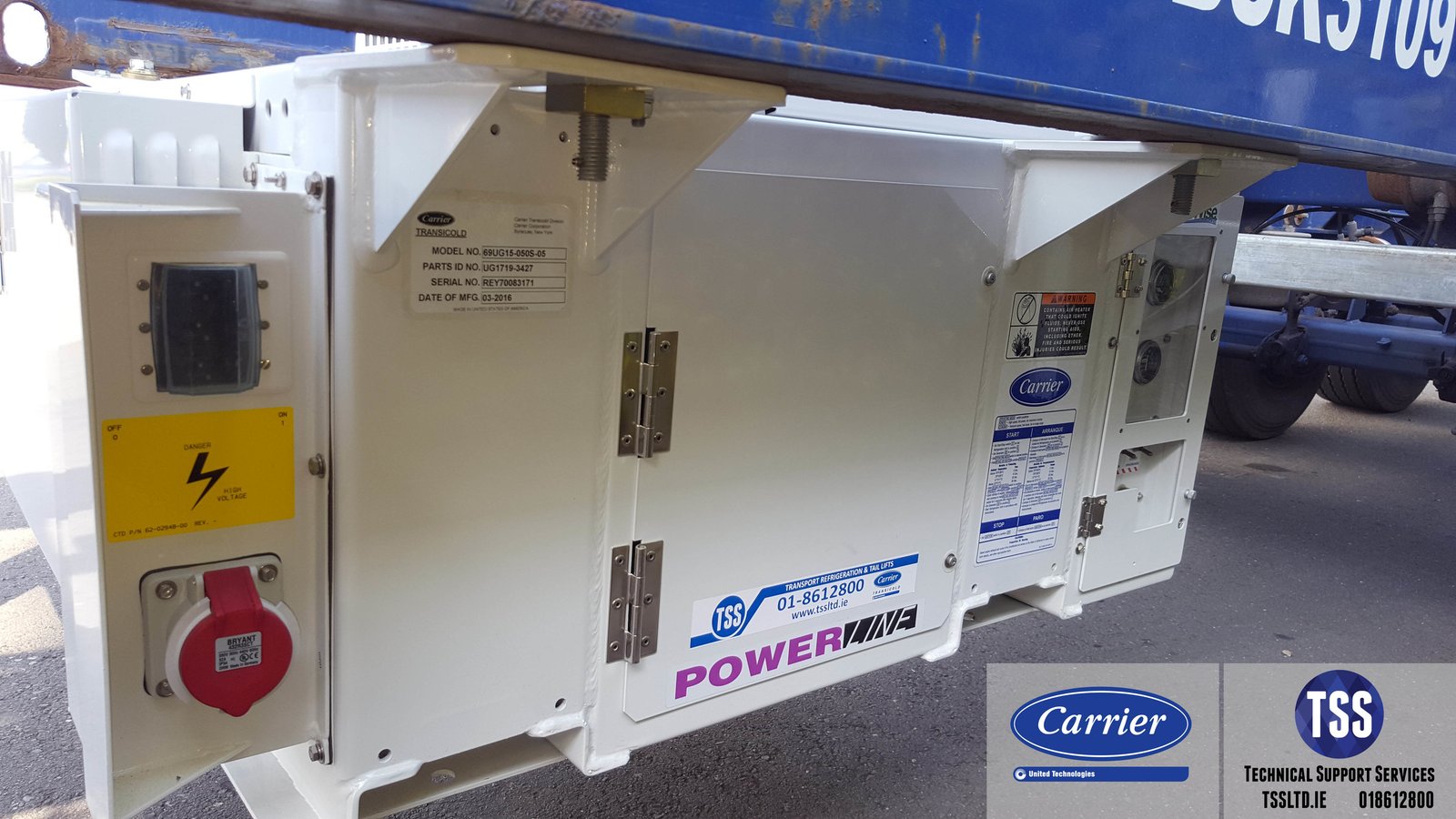

Engineered for harsh operating conditions, the unit is rated for ambient operational temperatures ranging from -40°C to +52°C (-40°F to +125°F). Standard features include driver-side operational controls within a waterproof housing, integrated safety shutdowns for low oil pressure and high coolant temperature, a 12V DC maintenance-free battery system, and an expansive service access door secured by a self-locking quick-release latch.
| Compliance Platform | CARB (Series 24) |
| Power | 15 KW |

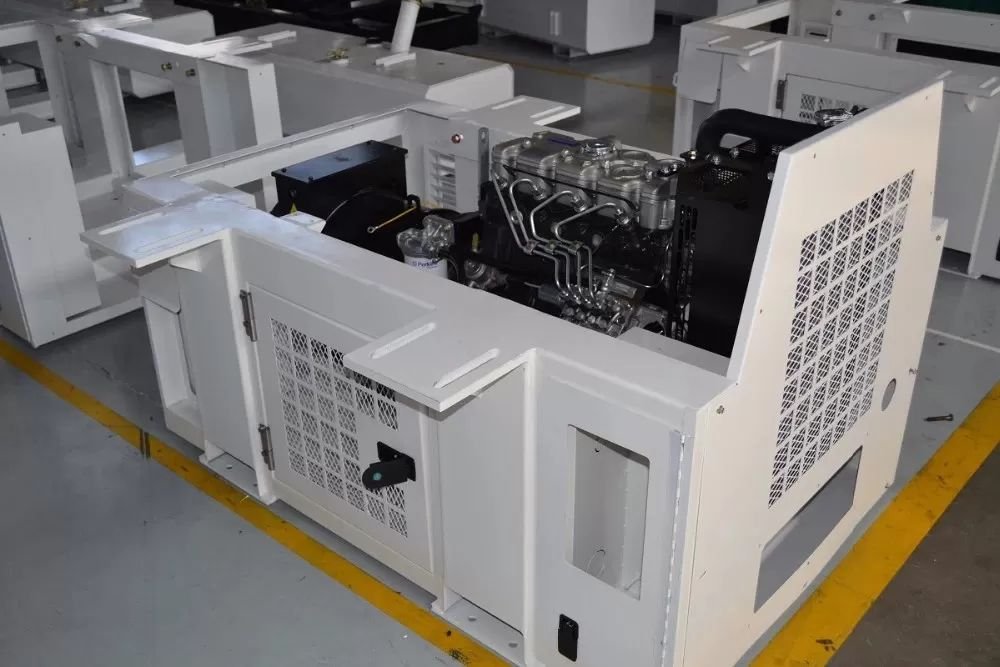

| Engine | CT4-134Di 4-cylinder water-cooled 2.2 liter direct-injection diesel engine |
| Generator | Nominal 15 KW brushless, self-regulated battery |
| Battery | 12V DC maintenance-free |

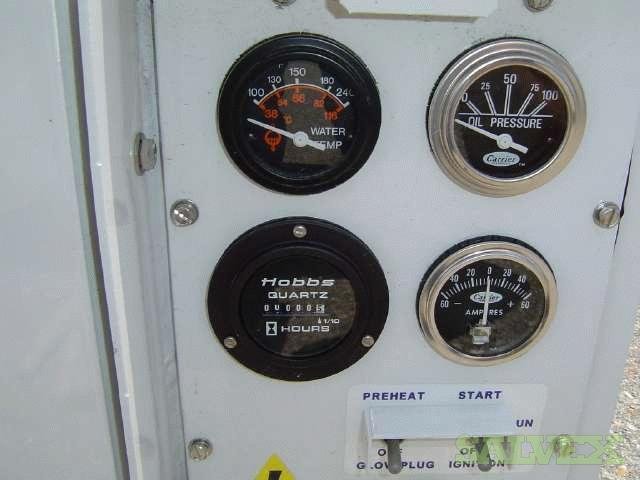

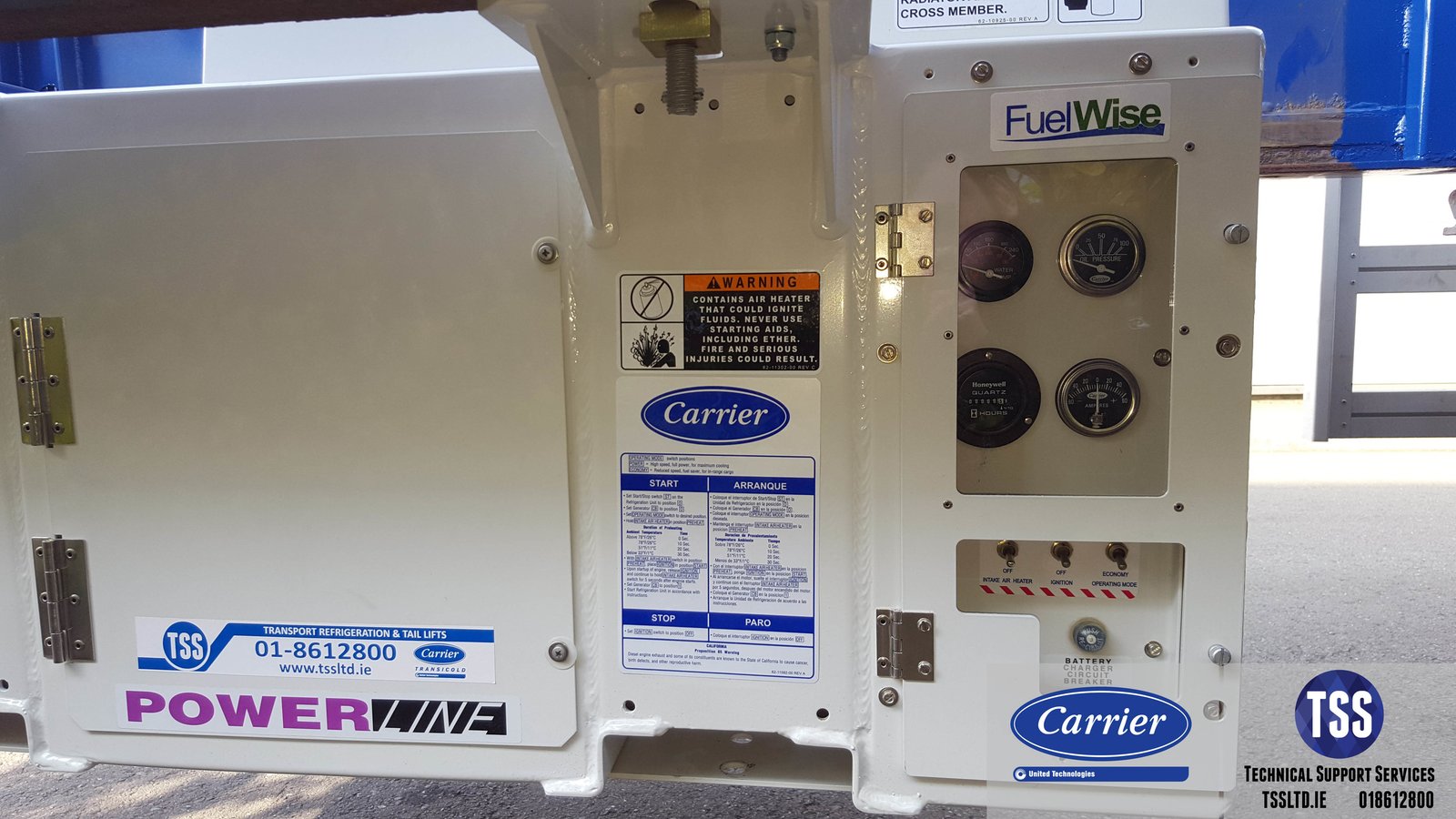

| Controls/control box | Driver-side controls, waterproof control box |
| Safety Stop Controls | For low pressure, high water temperature |
| Switches | Preheat and start/run/off |
| Service Door | Large services access door with self-locking quick-release latch |
| Fuel | Diesel |

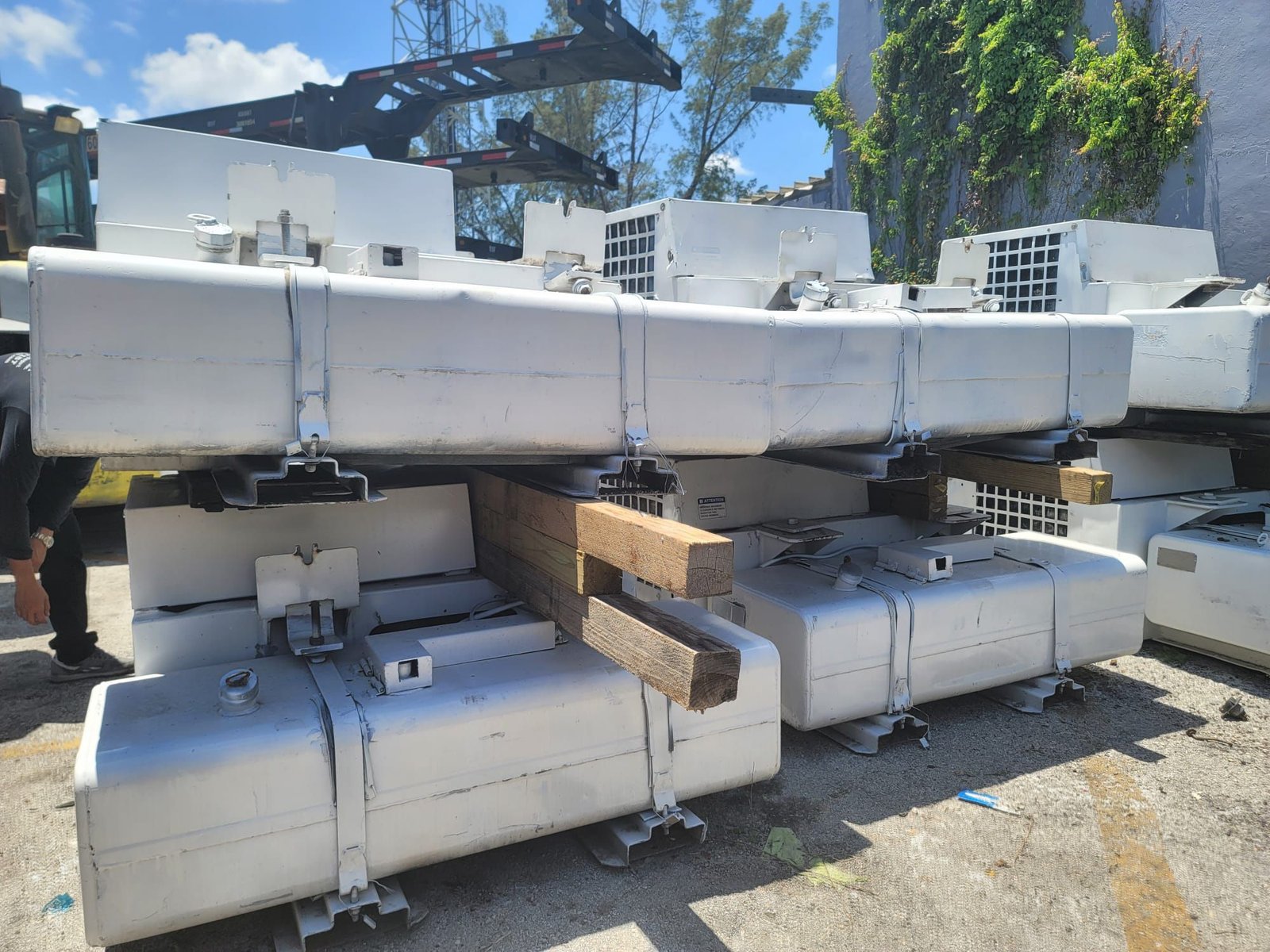

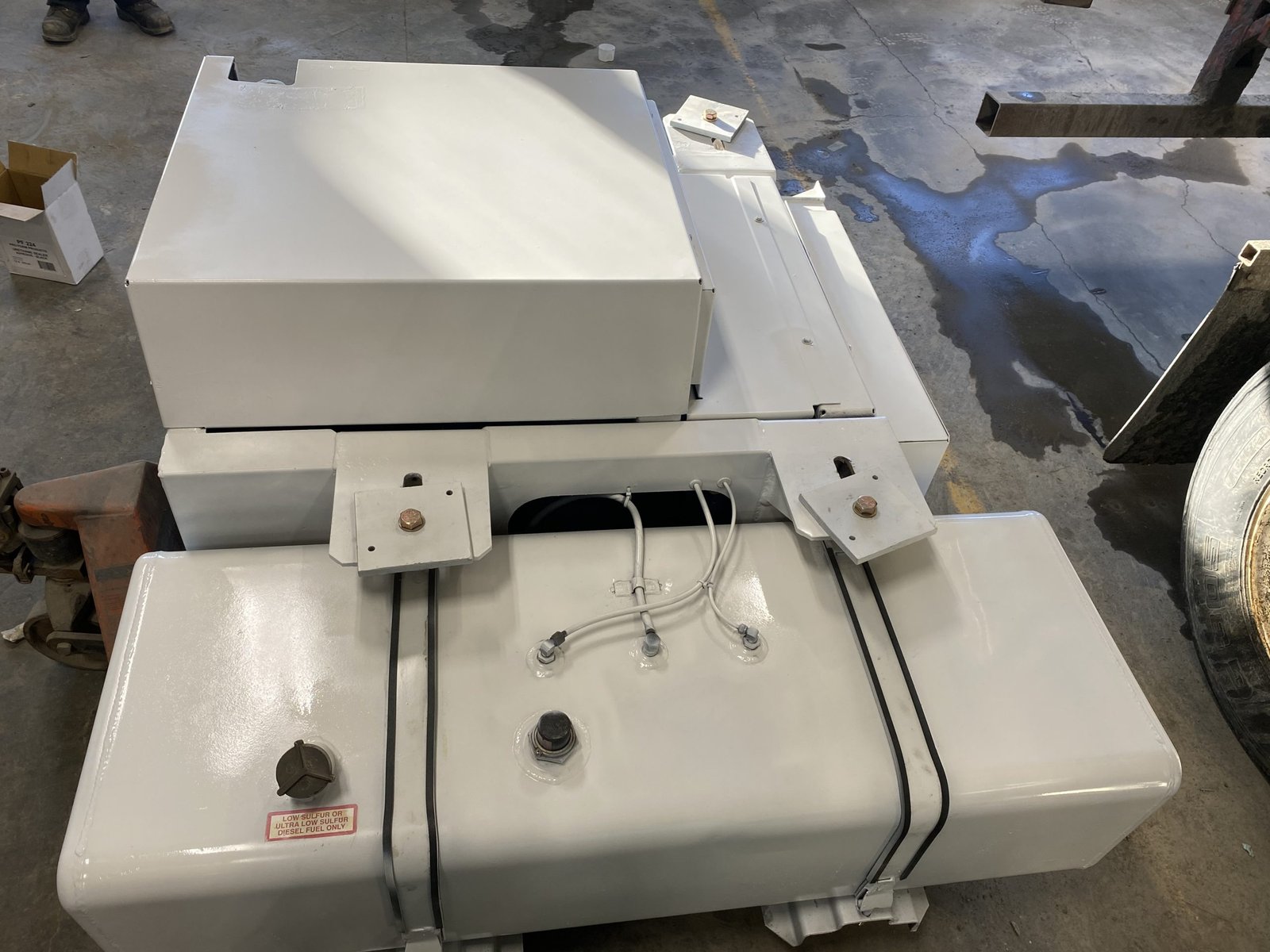

| Fuel tank | 50-gal or 68-gal |
| Weight | 1,370 lbs or 1,400 lbs |
| Ambient temperature range – Structure | -40° to +52°C (-40° to +125° F) |
| Ambient temperature range – Operation – Start | -26° to +52°C (-15° to +125° F) |
| Ambient temperature range – Operation – Run | -40° to +52°C (-40° to +125° F) |
| Approximate Weight | 1664 lb / 775 kg with 68-gallon integral steel tank, less fuel |
| Fuel tank lengths – 50 gal (189 L) | 1,143 mm (45.0 in) |
| Fuel tank lengths – 68 gal (257.5 L) | 1,485 mm (58.5 in) |
| Fuel tank lengths – 80 gal (303 L) | 1,632 mm (64.3 in) |
| Brand | Carrier |
| Manufacturer | Carrier Transicold |
| Model Number | 69UG15-068S-24 |
| Product Type | Undermount Transport Refrigeration Generator Set |
