Description

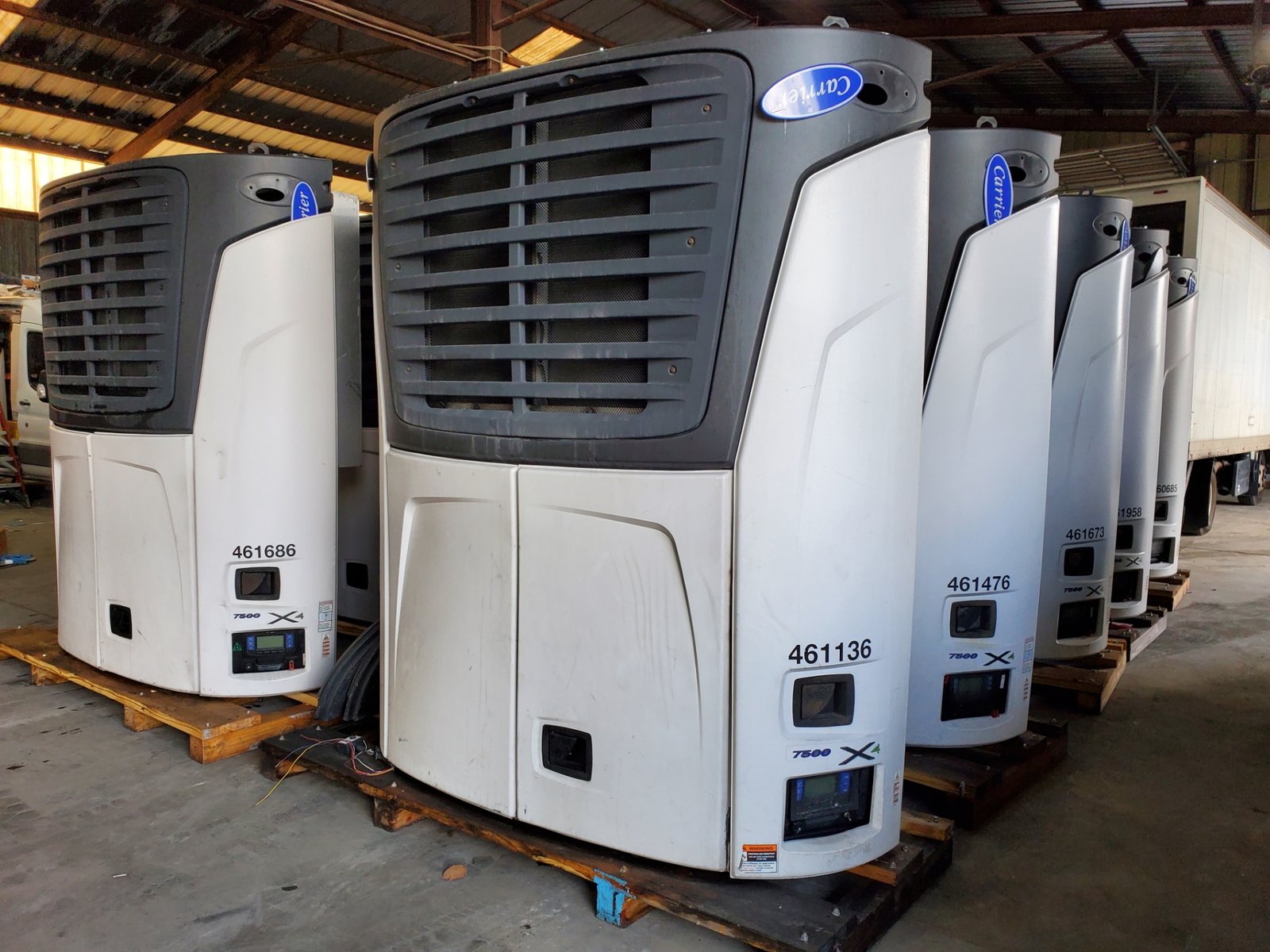

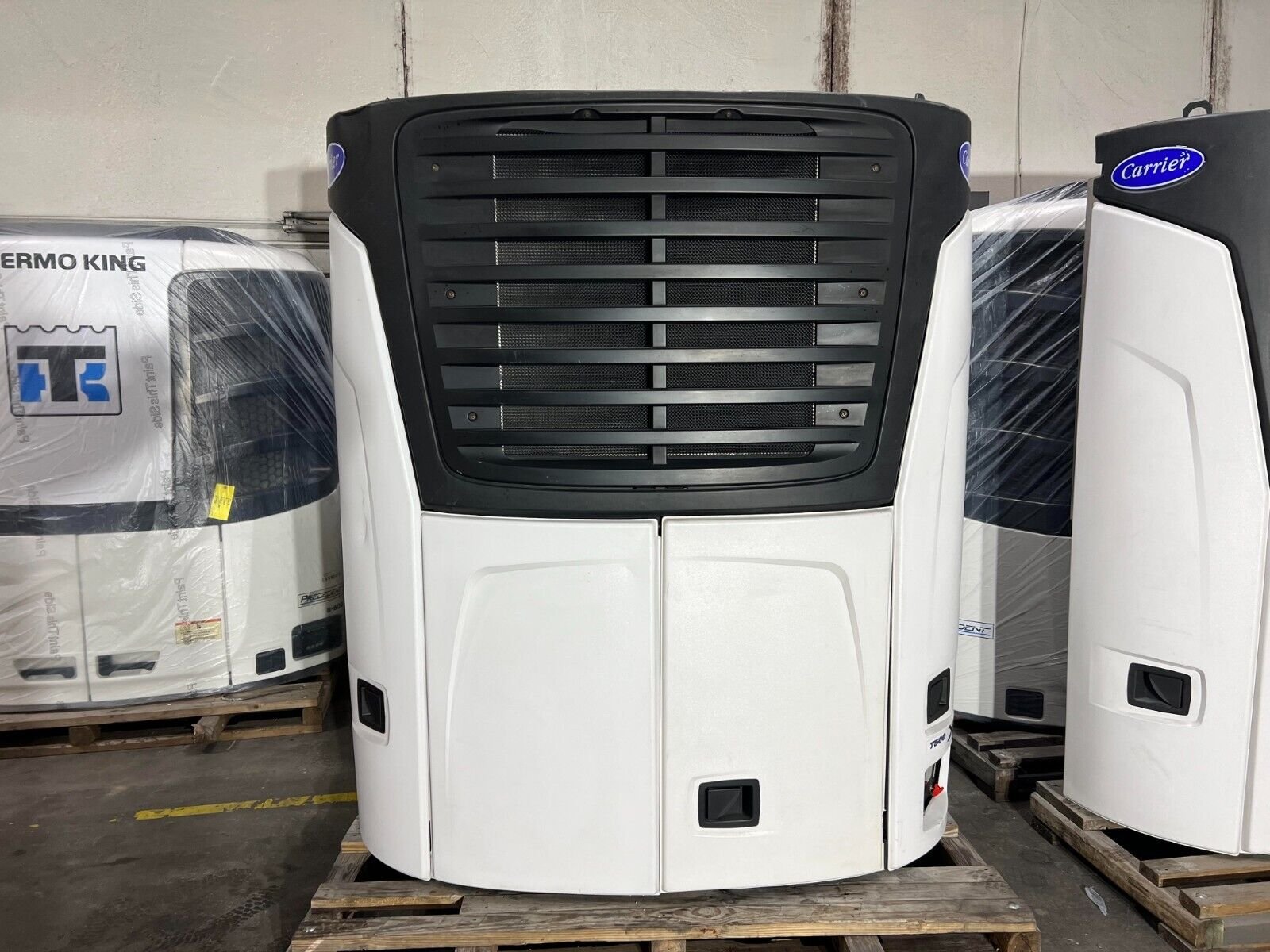

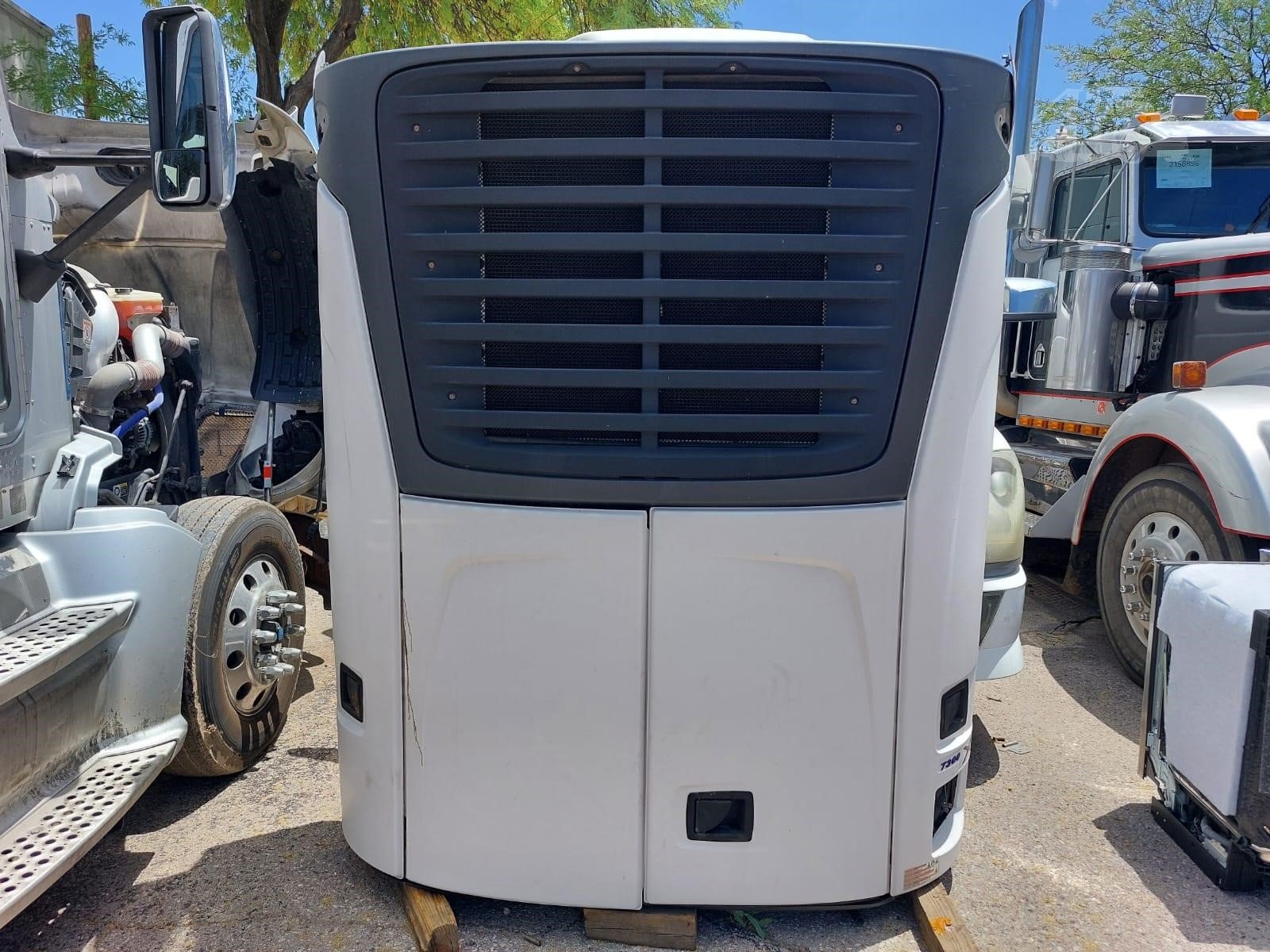

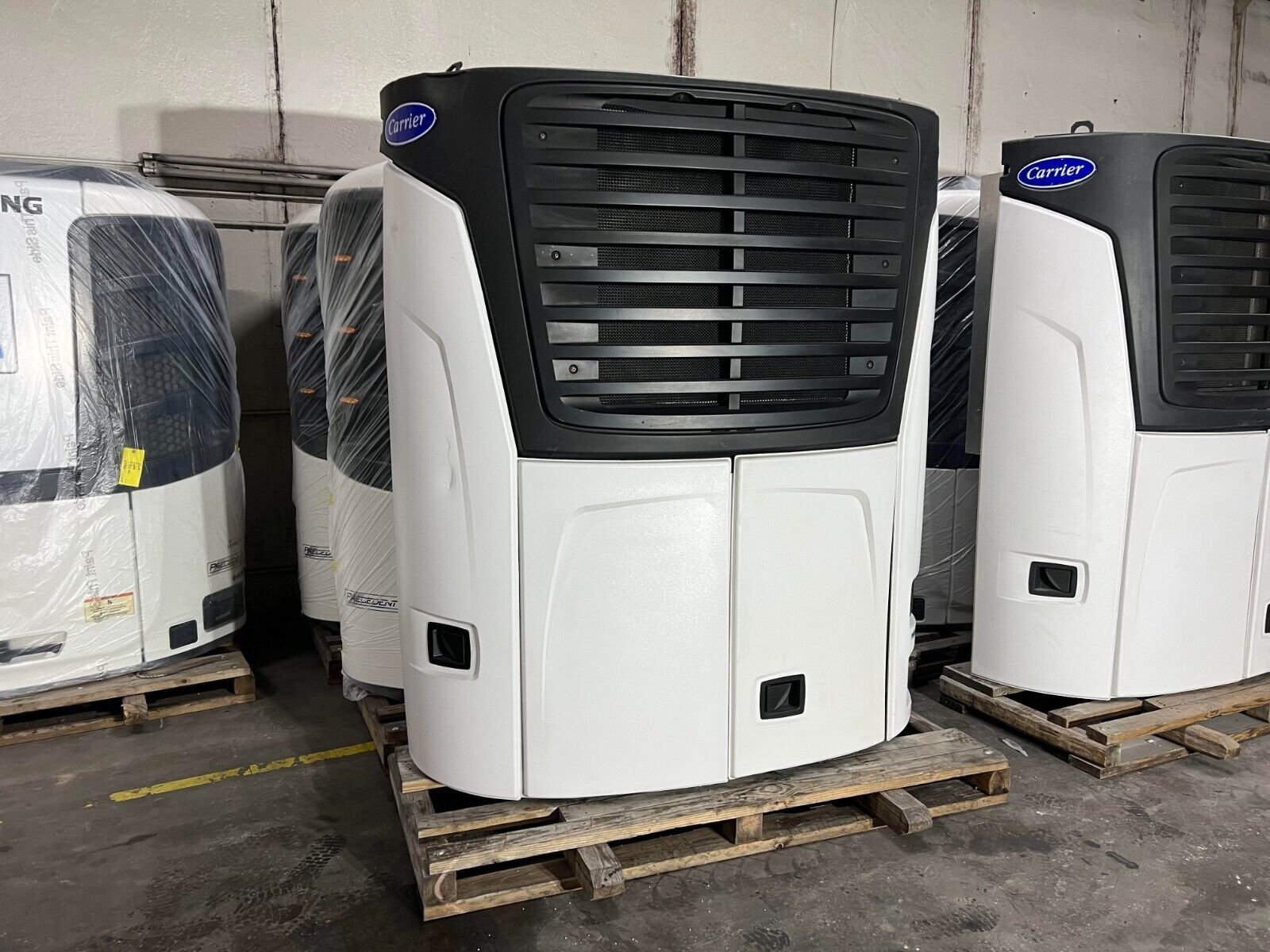

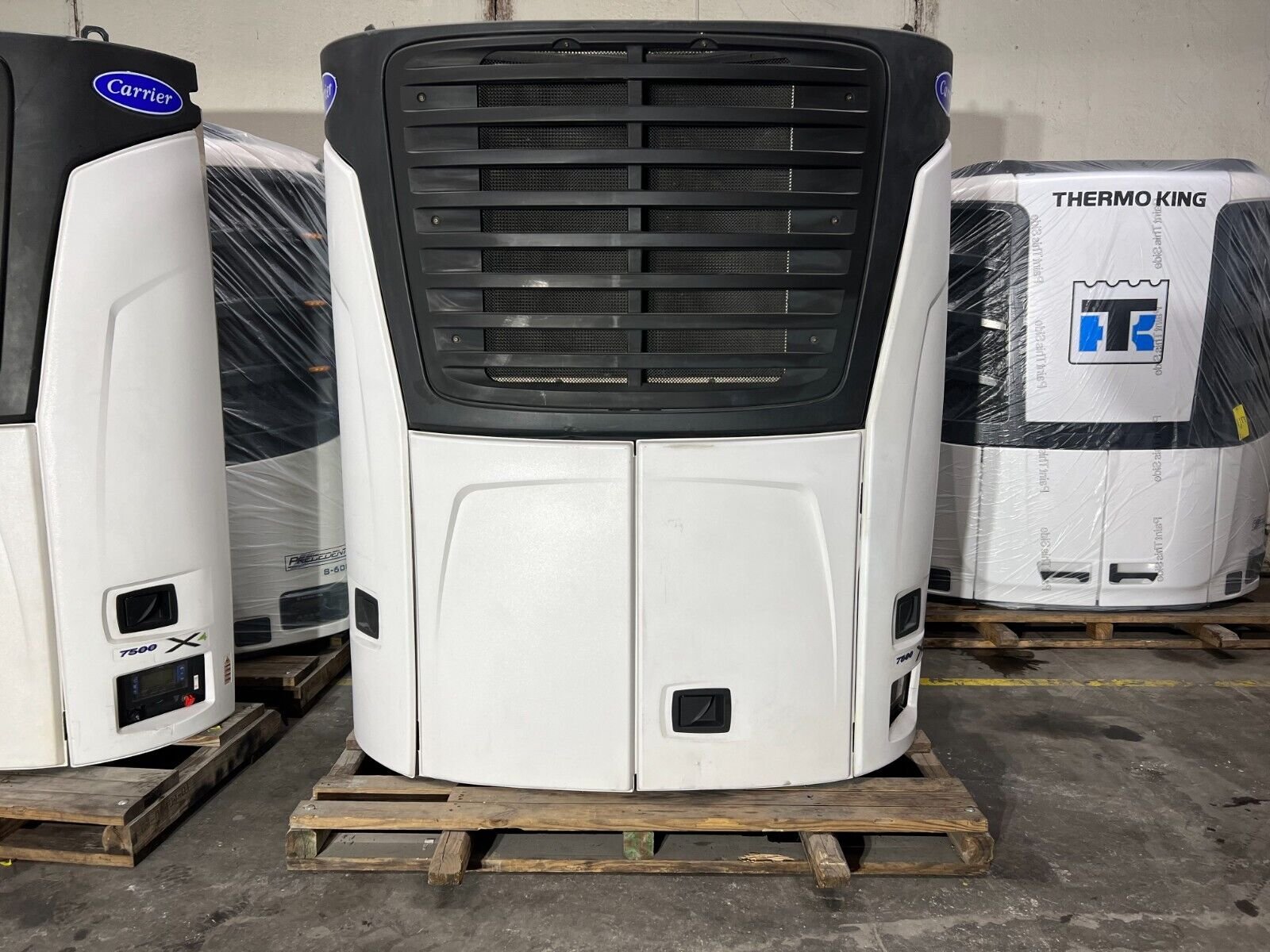

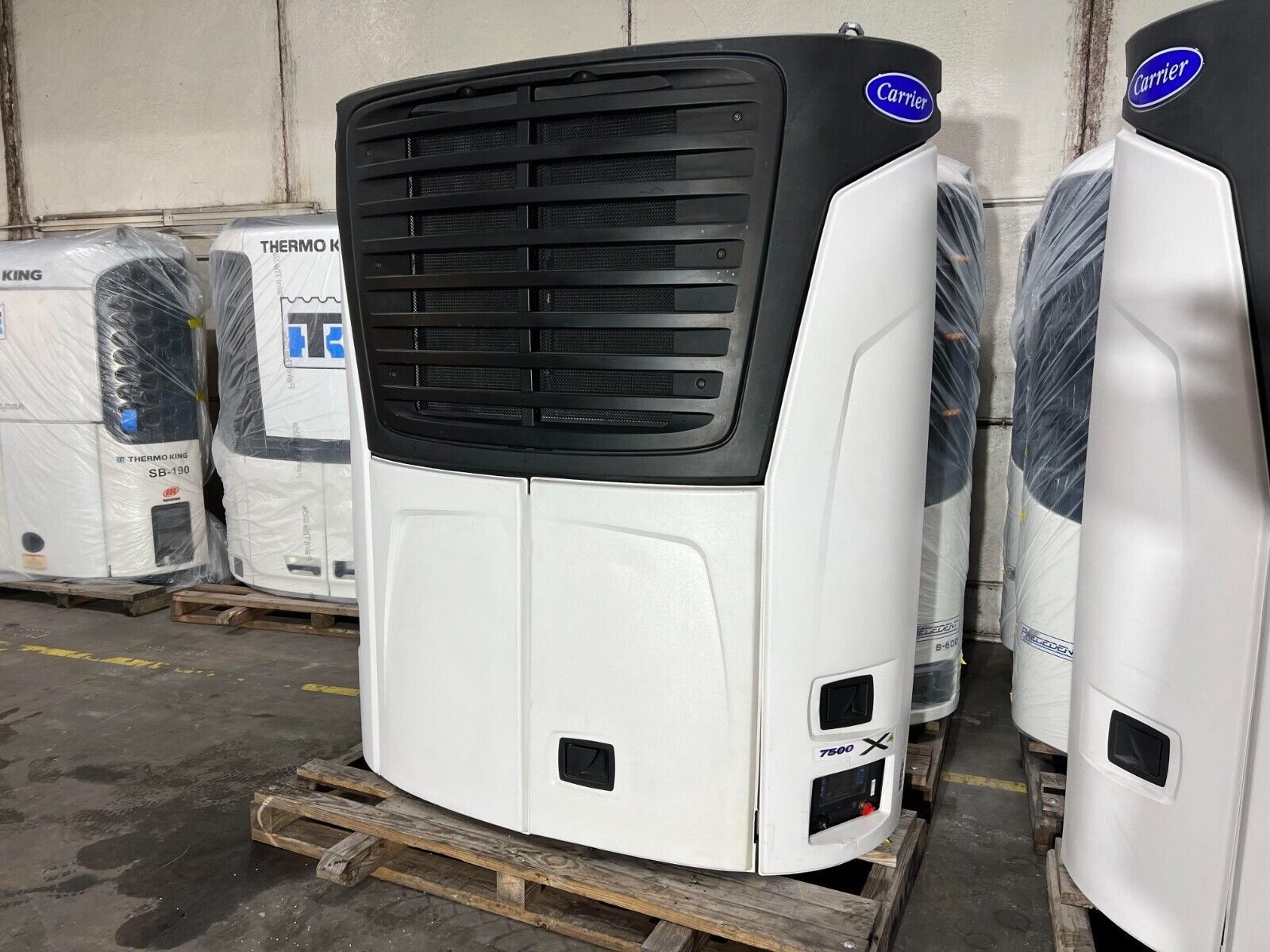

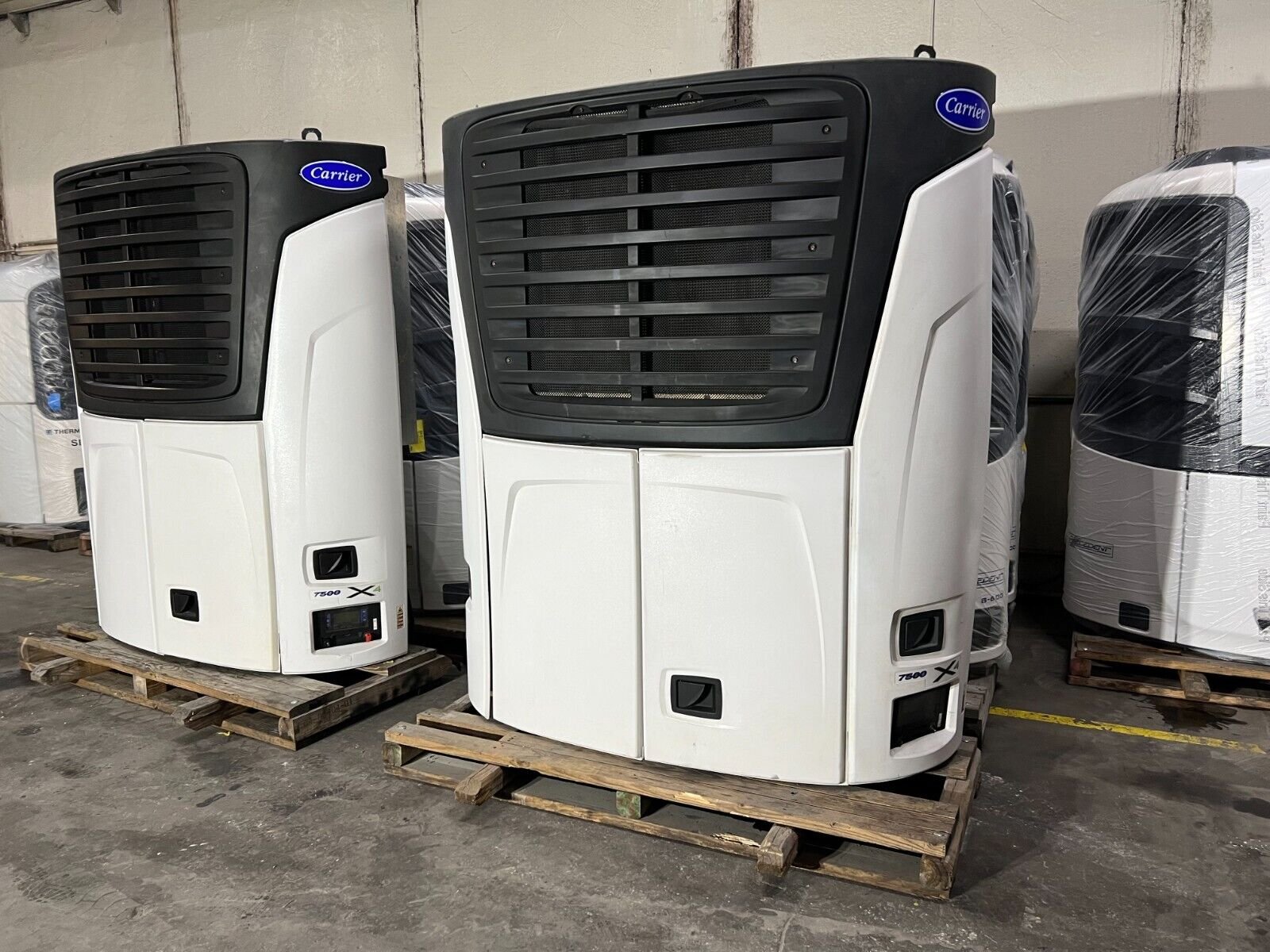

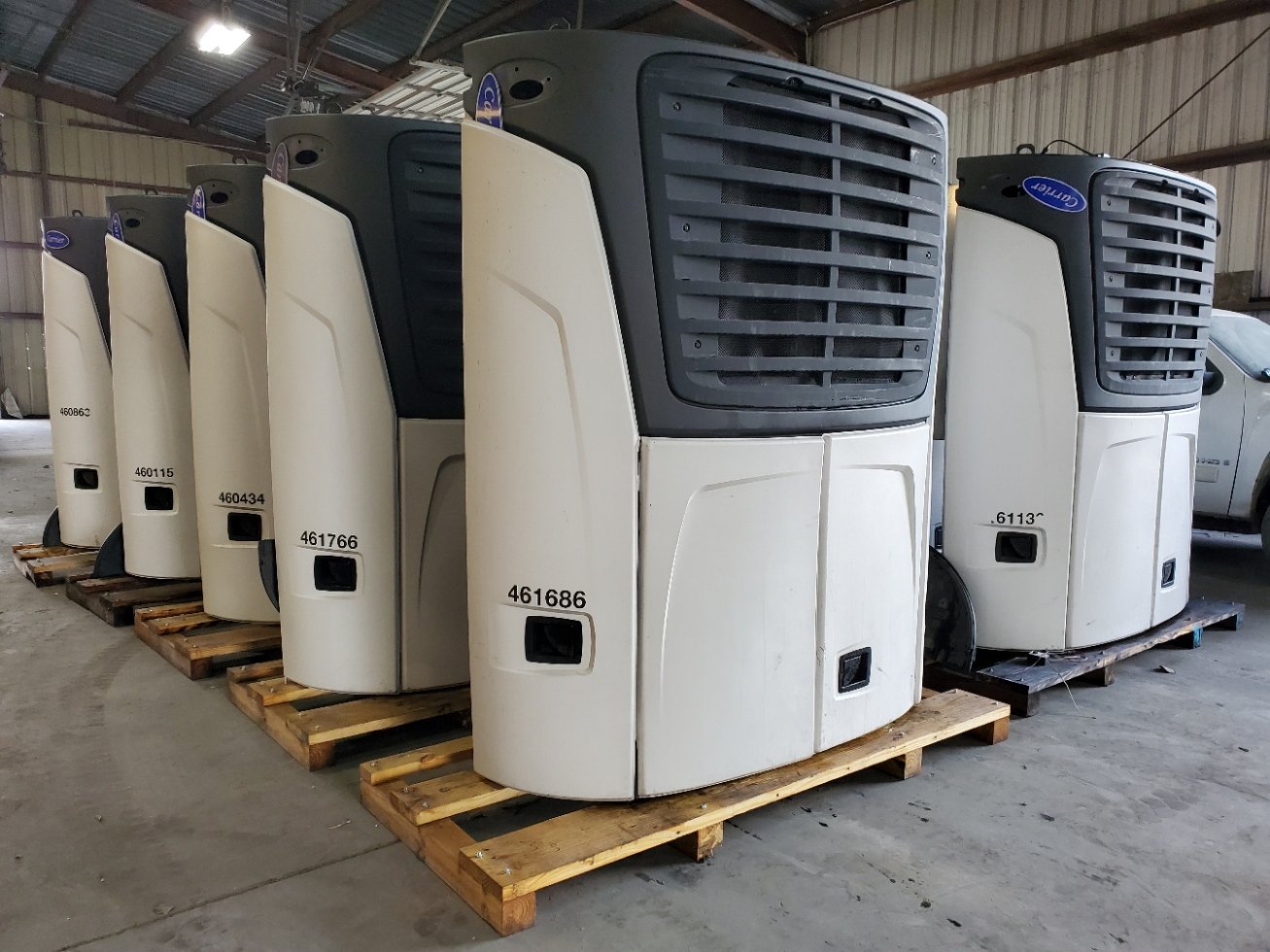

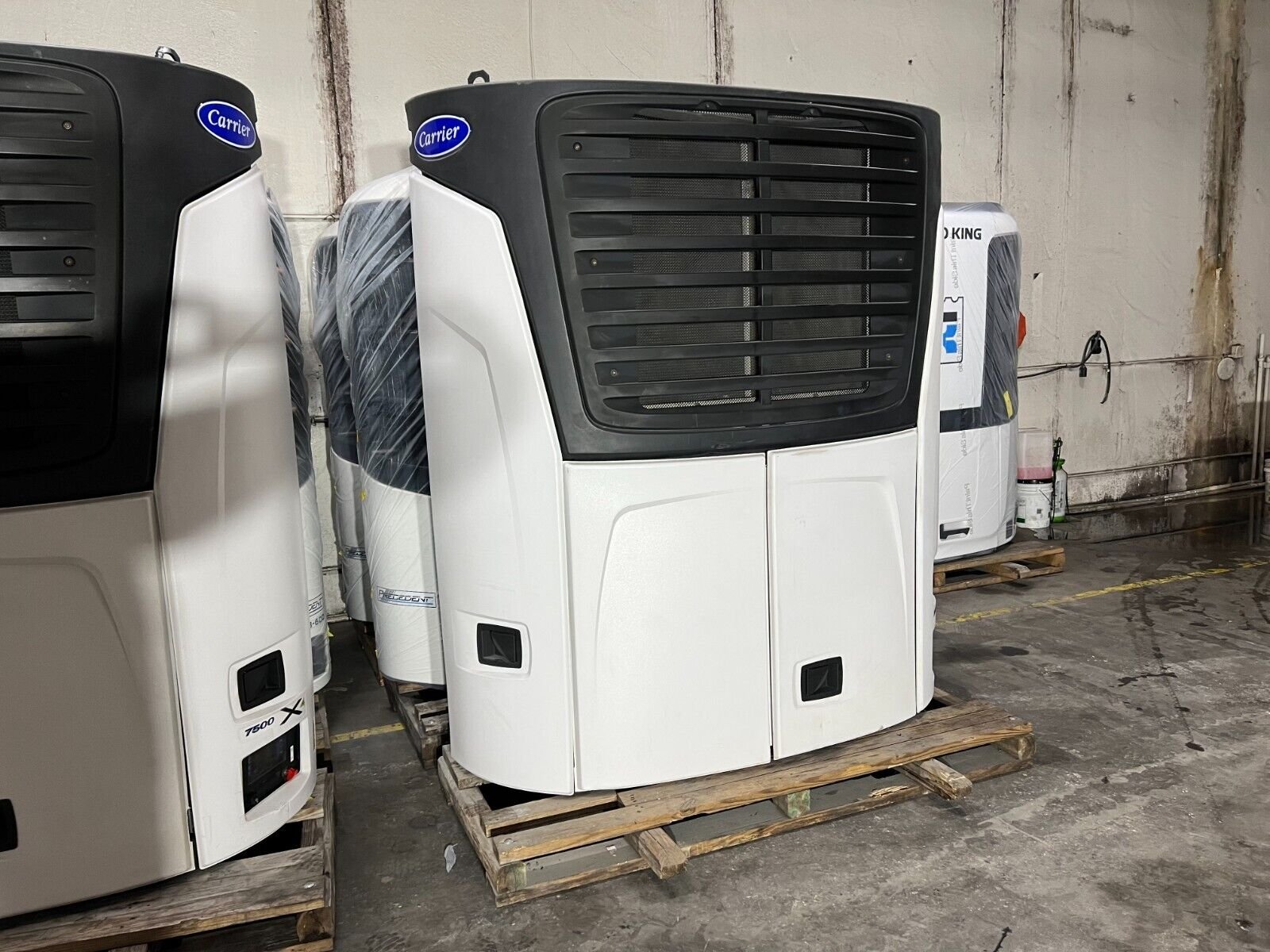

The Carrier Transicold X4 7500 trailer refrigeration unit provides high cooling capacity and precise temperature control for demanding transport refrigeration applications. Engineered on a proven platform with EcoFORWARD™ technologies, the single-temperature belt-driven model delivers up to 68,000 BTUs of cooling at AHRI rating conditions while optimizing fuel efficiency and meeting EPA Tier 4 emissions standards.
Powered by a 2.2-liter direct-injection smart diesel engine, the X4 7500 integrates high-efficiency components including an electronic expansion valve, Novation® micro-channel condenser coils, and V-Force vortex suppression fans. System management is powered by the modular APX™ Control System, offering intuitive operation, data recording, and smart diagnostics via a CAN-bus electronic interface.
Key Features & Performance
- APX™ Control System: Modular, decentralized architecture featuring IntelliSet™ with ProductShield™, Datalink™ data recording, and multilingual graphical display.
- High-Efficiency Compressor: Equipped with a 6-cylinder 05G-41CFM compressor with 40 in³ displacement and compressor unloaders.
- Extended Service Intervals: 3,000-hour service interval package featuring synthetic media filtration, extended-life coolant, and heavy-duty dry air cleaner.
- TRU-Demand Energy Efficiency: Electronic suction modulation, brazed plate heat exchanger, and automatic start/stop fuel conservation.
- Durable Construction: Composite doors with single-latch release, full bottom panel, and robust microchannel condenser assembly.
| Brand | Carrier |
| Manufacturer | Carrier Transicold |
| Model | X4 7500 |
| Product Type | Trailer Refrigeration Unit |

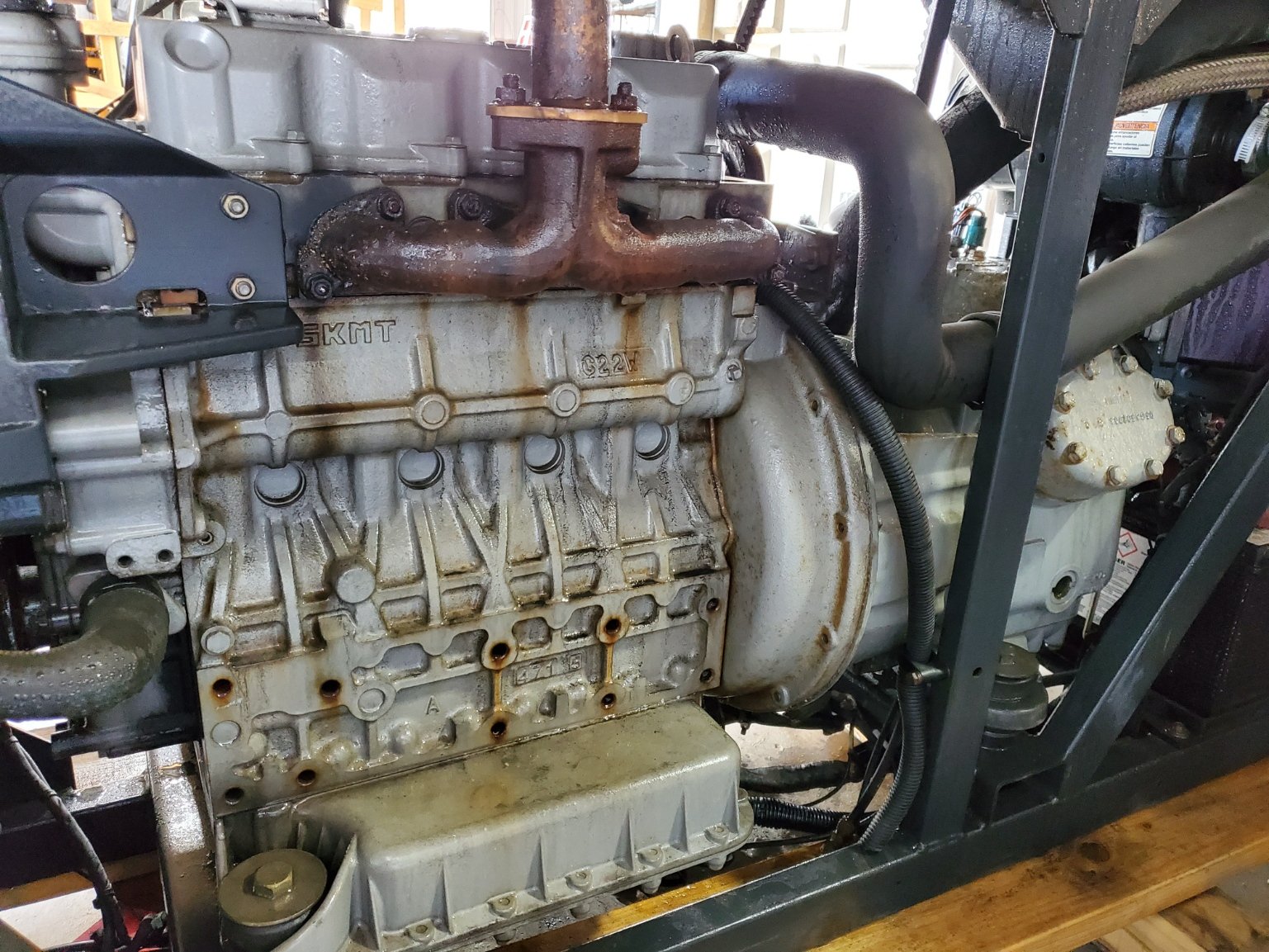

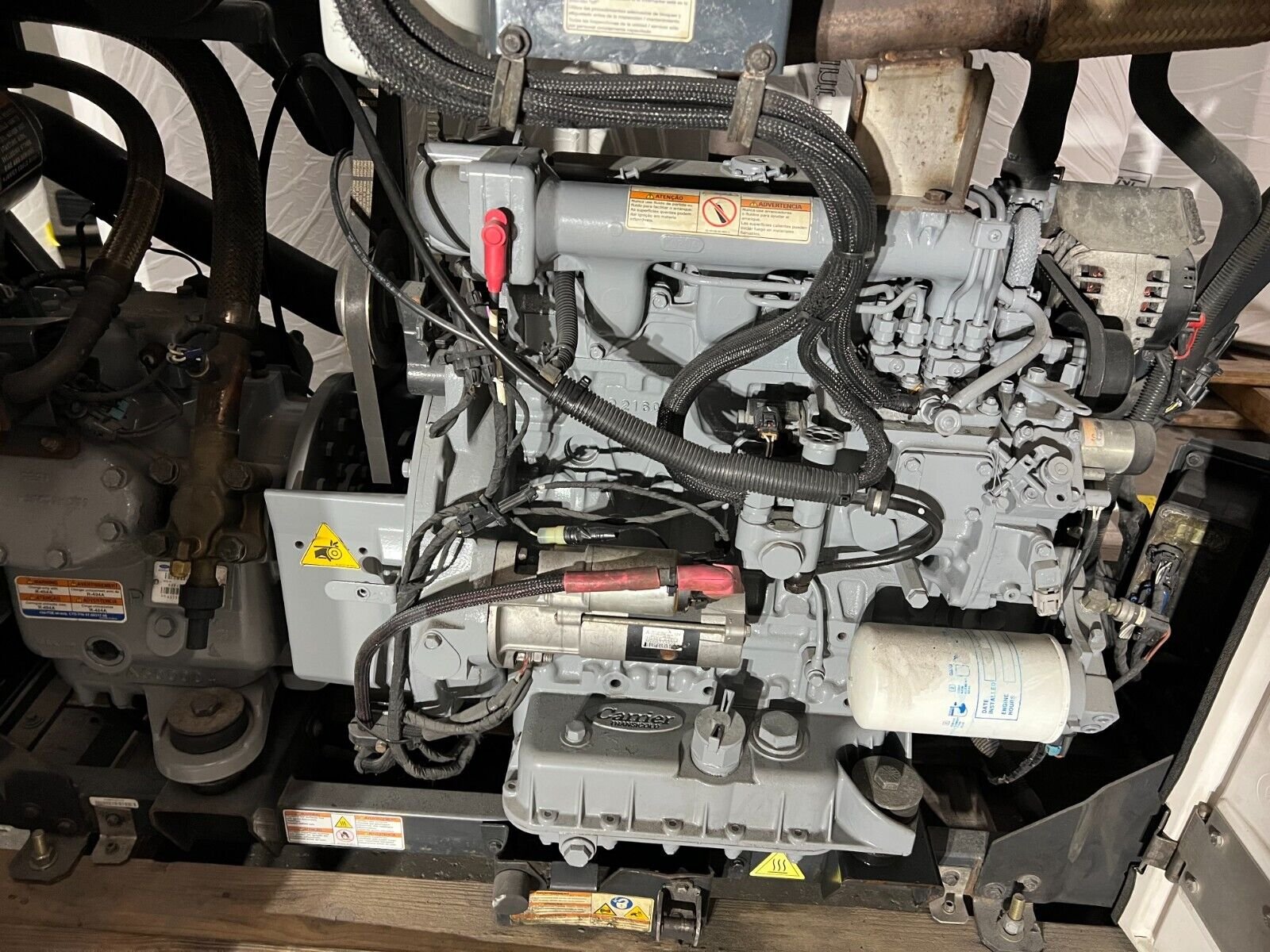

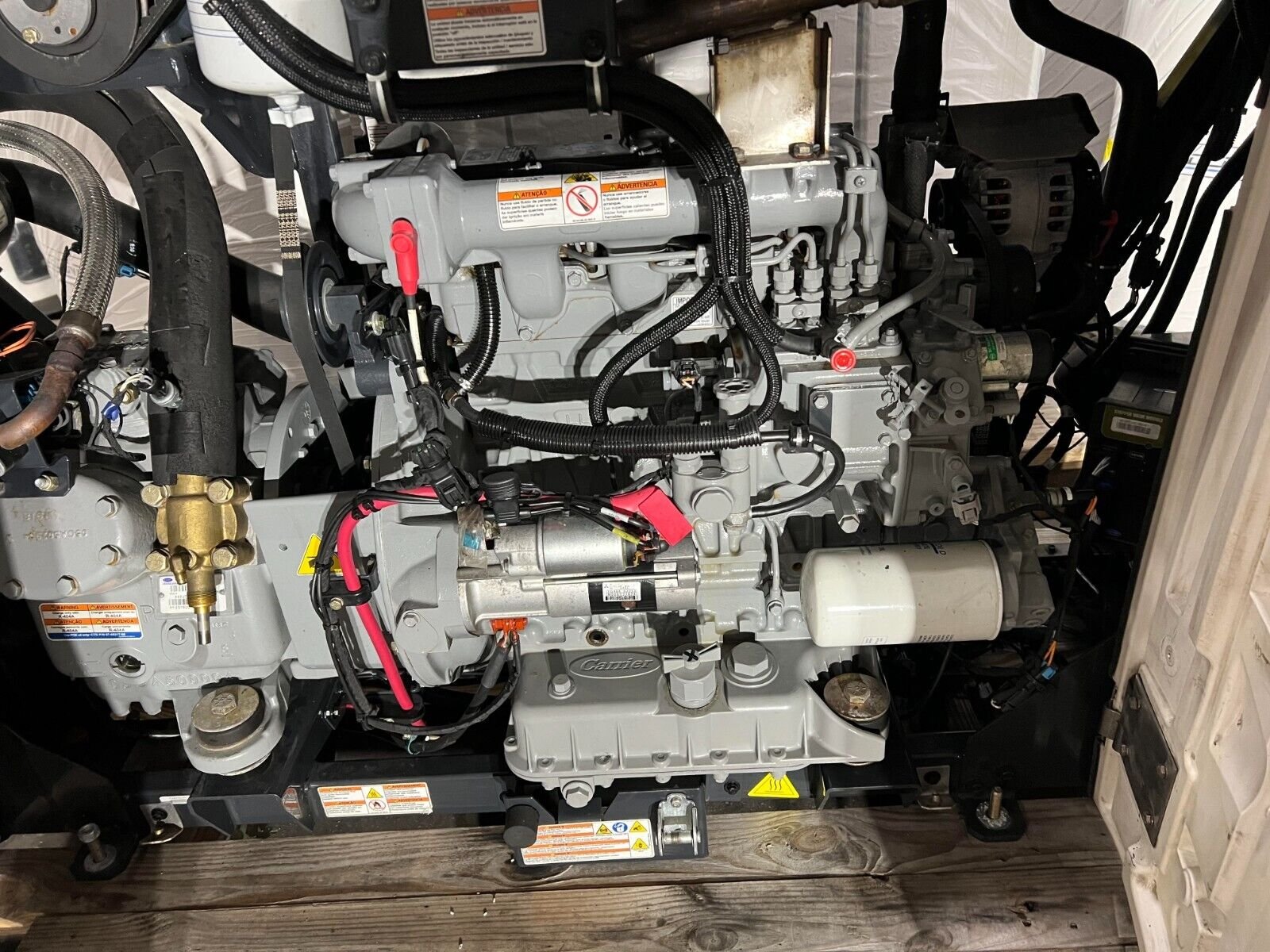

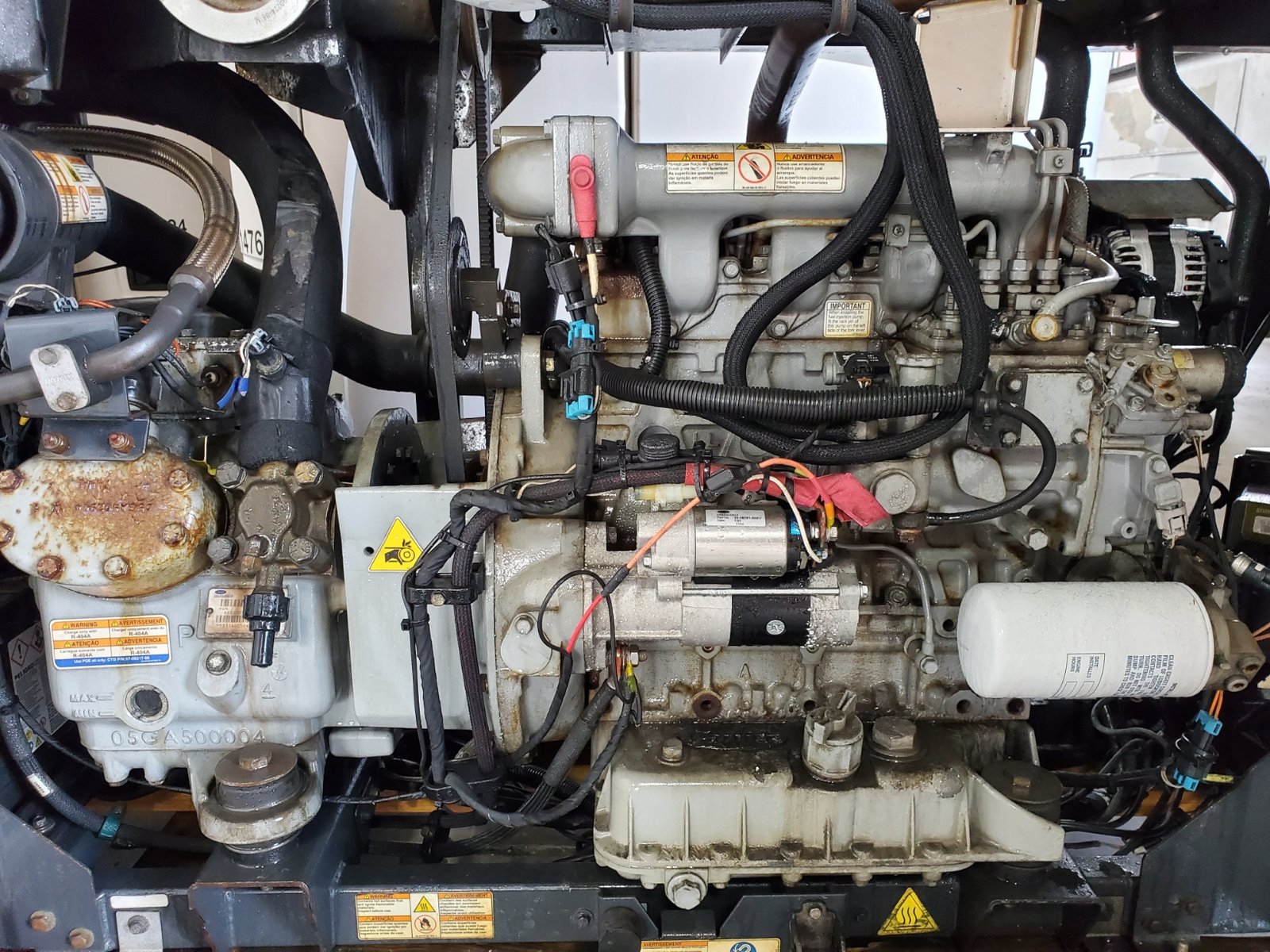

| Engine | Tier 4 Final V2203L 4-cylinder 2.2L direct-injection smart diesel |
| Engine Output | 24.8 hp (18.5 kW) at 1,800 rpm |
| Compressor | 05G-41CFM (6 cylinders, 40 in³ displacement) |
| Refrigerant | R-404A, 16.5 lb (7.5 kg) |
| Control System | APX Control System with CAN-bus interface |
| Condenser Dimensions | 76.4 in x 85.7 in x 22.8 in (1,940 x 2,176 x 579 mm) |
| Evaporator Dimensions | 66.3 in x 45.2 in x 8.2 in (1,684 x 1,149 x 280 mm) |
| Body Opening | 66.8 in x 46 in (1,696 x 1,168 mm) |
| Evaporator Airflow | 3,100 cfm (5,270 m³/hr) |
| Alternator | 70 A |
| Unit Weight | 1,690 lb (767 kg) |
| Fuel Tank Capacity | 50 gal aluminum fuel tank |
| Maintenance Interval | 3,000-hour extended service interval (ESI) |
