Description

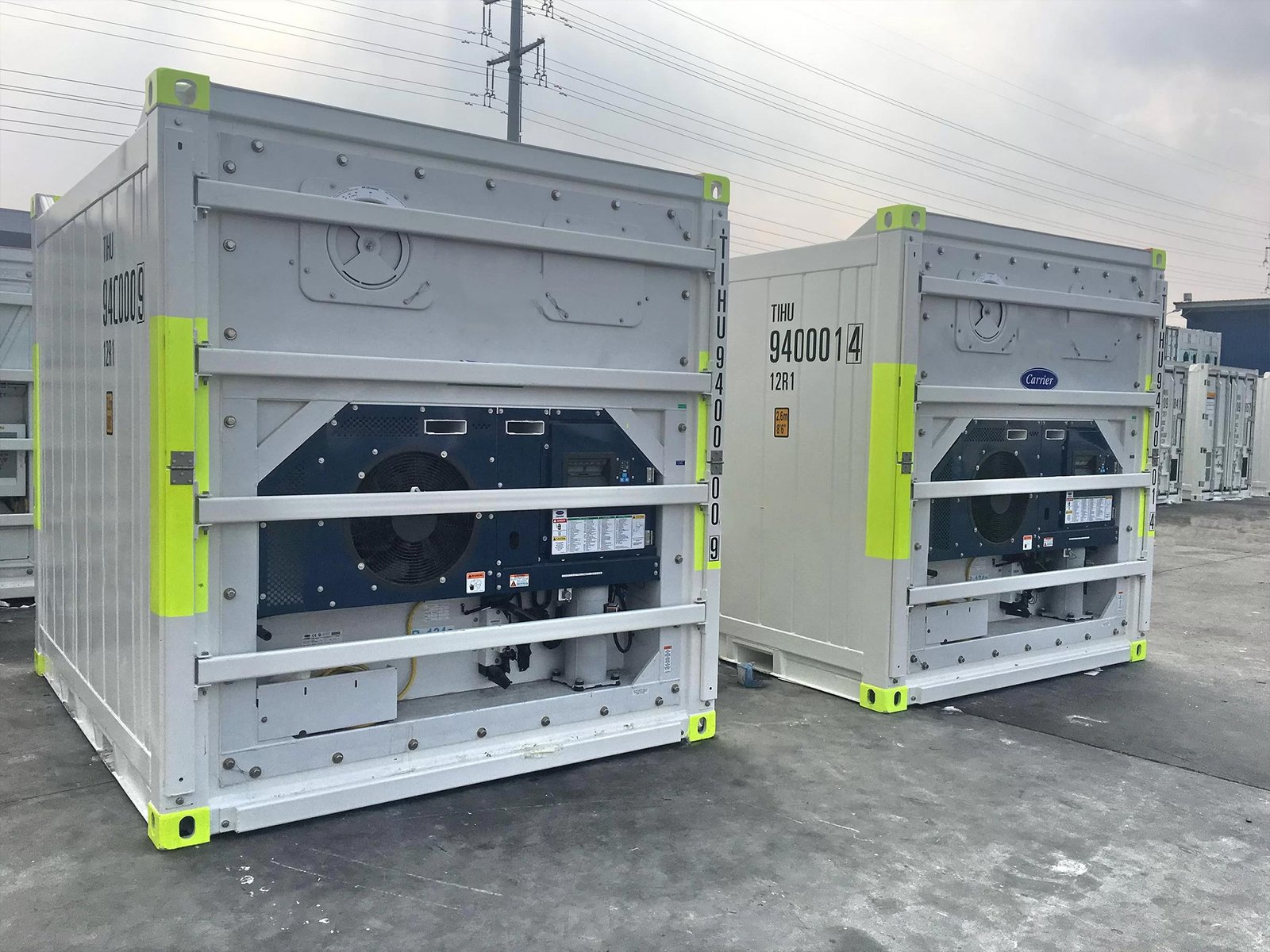

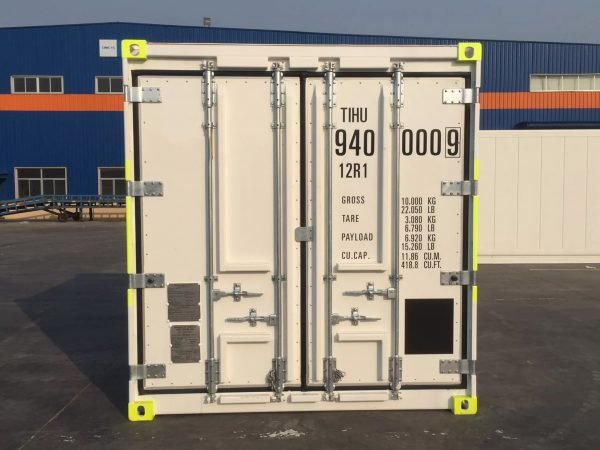

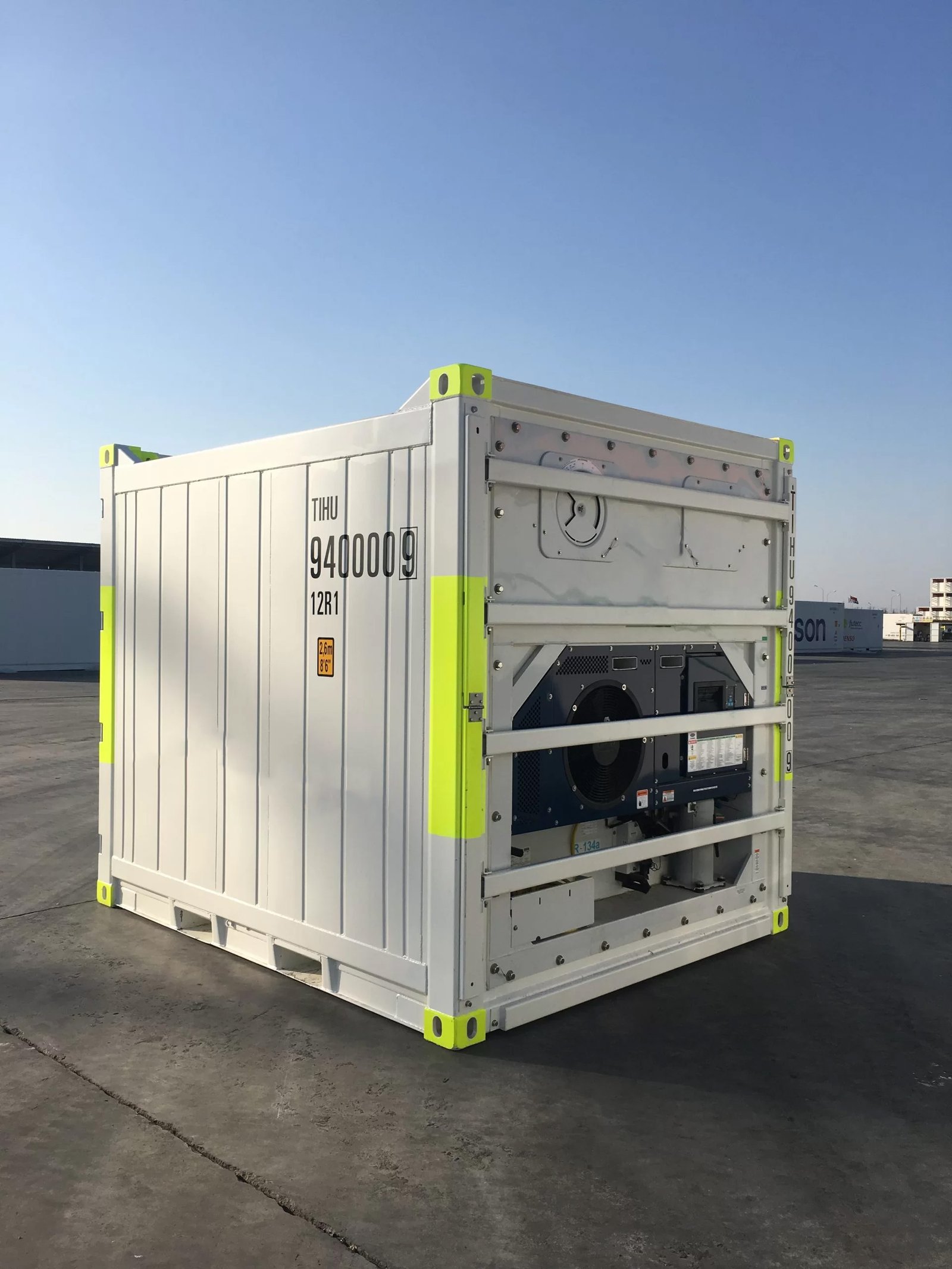

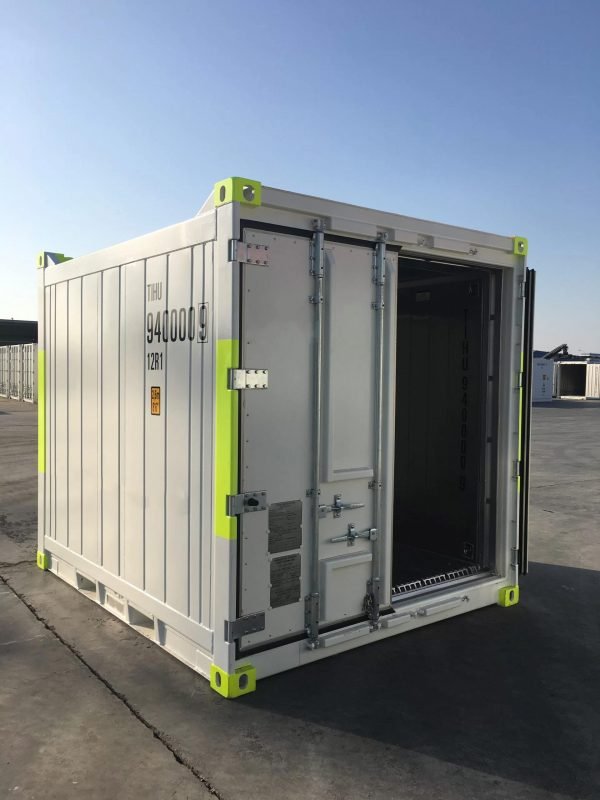

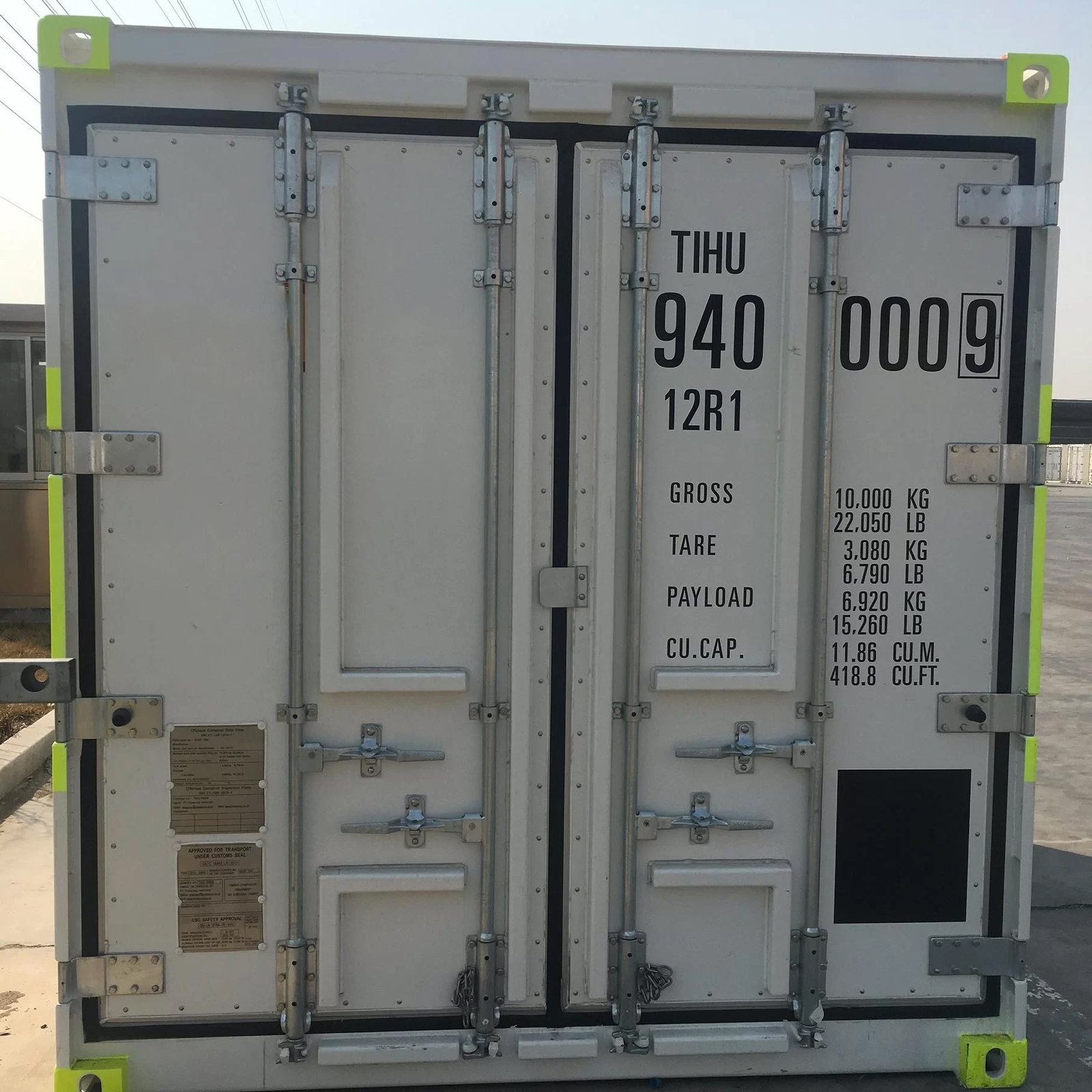

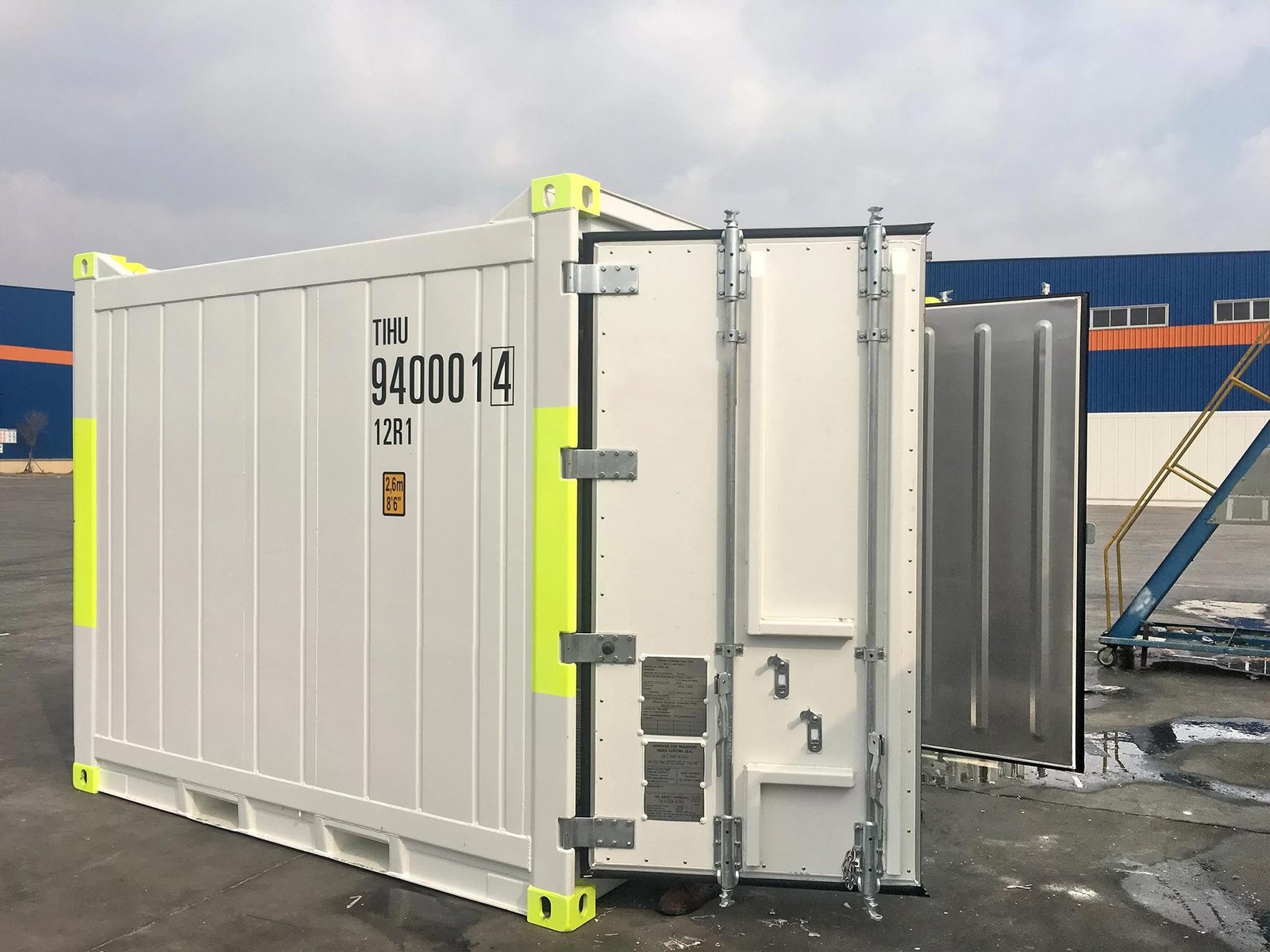

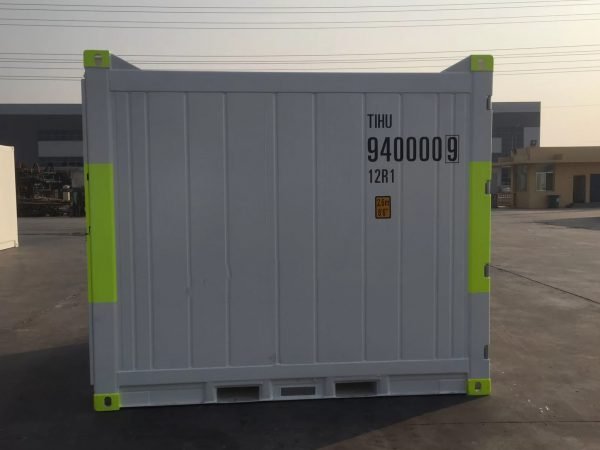

The Conex Off-Coast 10-Foot DNV Refrigerated Offshore Container is an energy-efficient, heavy-duty solution engineered for temperature-controlled storage and safe cargo transport in challenging marine environments. Built and certified to DNV 2.7-1, EN 12079, and ISO/CSC standards, this compact cold-storage unit withstands harsh weather conditions on offshore rigs, oil platforms, and marine vessels.
Key Features & Performance
- Cooling & Freezing System: Powered by a Carrier Micro-Link 3 Primeline engine, maintaining adjustable internal temperatures from -25°C to +25°C.
- Airflow & Interior: Features stainless steel interior cladding and a specialized T-bar aluminum floor for optimized cold air circulation.
- Handling & Rigging: Fitted with pad eyes for crane hoisting, standard corner castings for twist-lock stacking, forklift pockets, and protective cargo bars.
- Electrical Setup: Simple plug-and-play operation with a 32A connection (16A consumption) and an extra-long connecting cable.
- Durability: Finished in RAL 9003 marine-grade paint over robust steel paneling to resist corrosion.
Applications
Ideal for the offshore oil and gas industry, wind energy installations, and marine logistics requiring secure, regulated transport of food, pharmaceuticals, and chemicals.
| Brand | Conex Off-Coast |
| Product Type | Refrigerated Offshore Container |
| Certifications | DNV 2.7-1, EN 12079, ISO/CSC |
| External Dimensions (LxWxH) | 117.8 x 96.0 x 102.0 in |
| Internal Dimensions (LxWxH) | 93.7 x 89.9 x 89.0 in |
| Door Opening (WxH) | 89.8 x 88.3 in |
| Max Load Height | 86.8 in |
| Volume | 434.4 cu ft |
| Tare Weight | 6217.0 lb |
| Max Payload | 17637.0 lb |
| Max Gross Weight | 23854.0 lb |
| Temperature Range | -25°C to +25°C |
| Engine Type | Carrier Micro-Link 3 Primeline |
| Electrical Connection | 32A |
| Power Consumption | 16A |
| Color | RAL 9003 |
| Flooring | T-bar aluminum floor |
| Interior Lining | Stainless steel cladding |
