Description

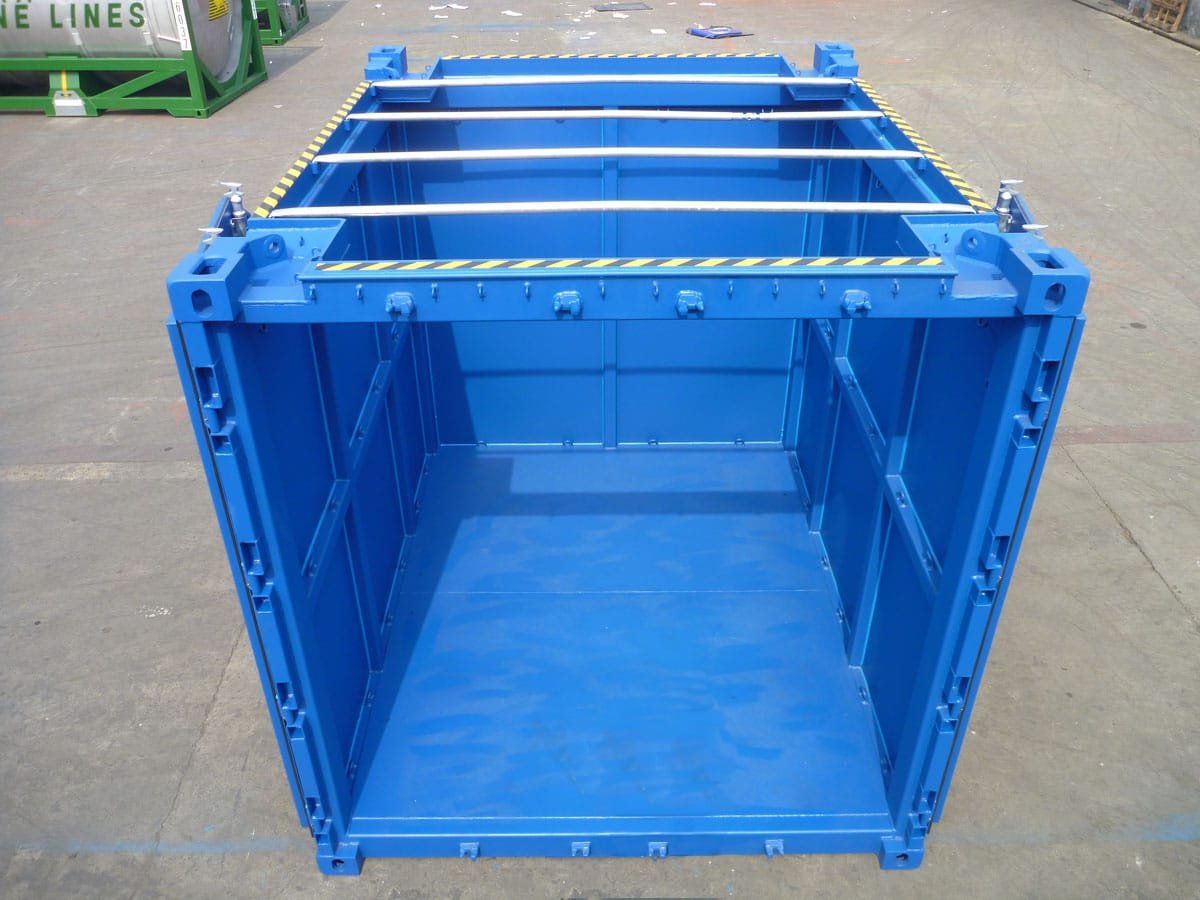

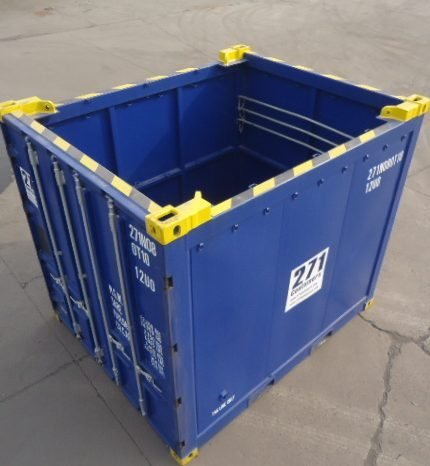

The Conex Off-Coast 10ft DNV 2.7-1 Offshore Open Top Container is engineered for the secure storage and transportation of offshore equipment, heavy machinery, and oversized cargo when deck space is limited. Designed to accommodate items that cannot be loaded via standard cargo doors, this open top unit allows for direct overhead crane loading and vertical placement of bulky gear.
- Robust Certification: Built in compliance with DNV 2.7-1, EN 12079, ISO 1161 corner fittings, and CSC safety conventions for demanding marine environments.
- Heavy-Duty Construction: Features marine-grade protective paint, anti-slip flooring surfaces, internal tie-down points, and drainage systems to maintain cargo integrity offshore.
- Handling & Maneuverability: Equipped with ISO corner castings for stacking, integrated pad eyes for crane lifting, and built-in forklift pockets for versatile yard transport.

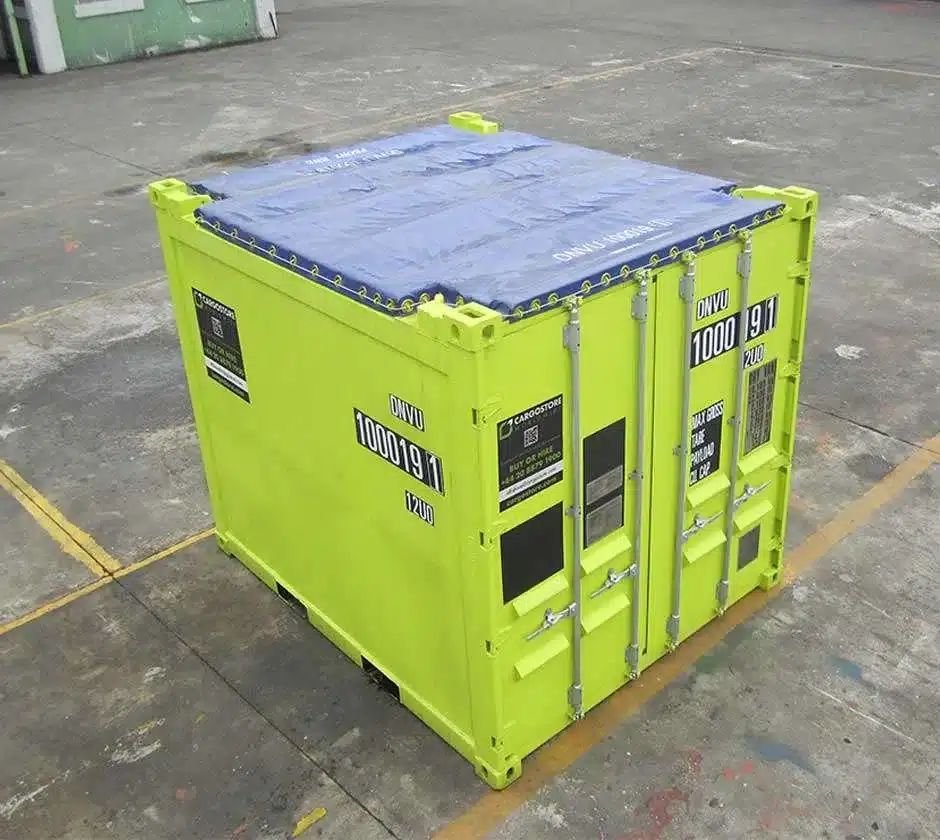

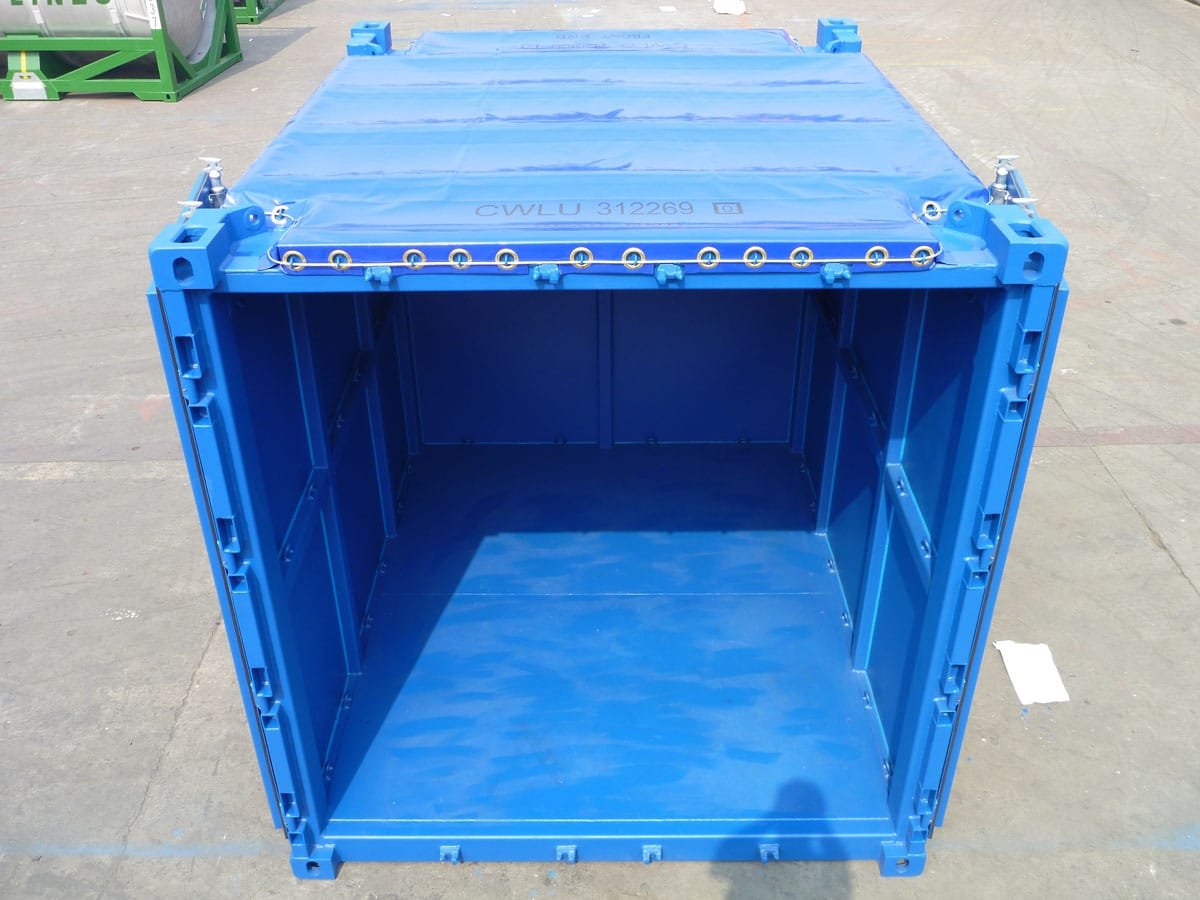

- Cargo Security: Designed to be secured with certified slings, removable tarpaulins, or cargo barrier nets to safeguard equipment during transit.
| Brand | Conex Off-Coast |
| Product Type | Offshore Open Top Container |
| Certifications | DNV 2.7-1, EN 12079, ISO 1161, CSC |

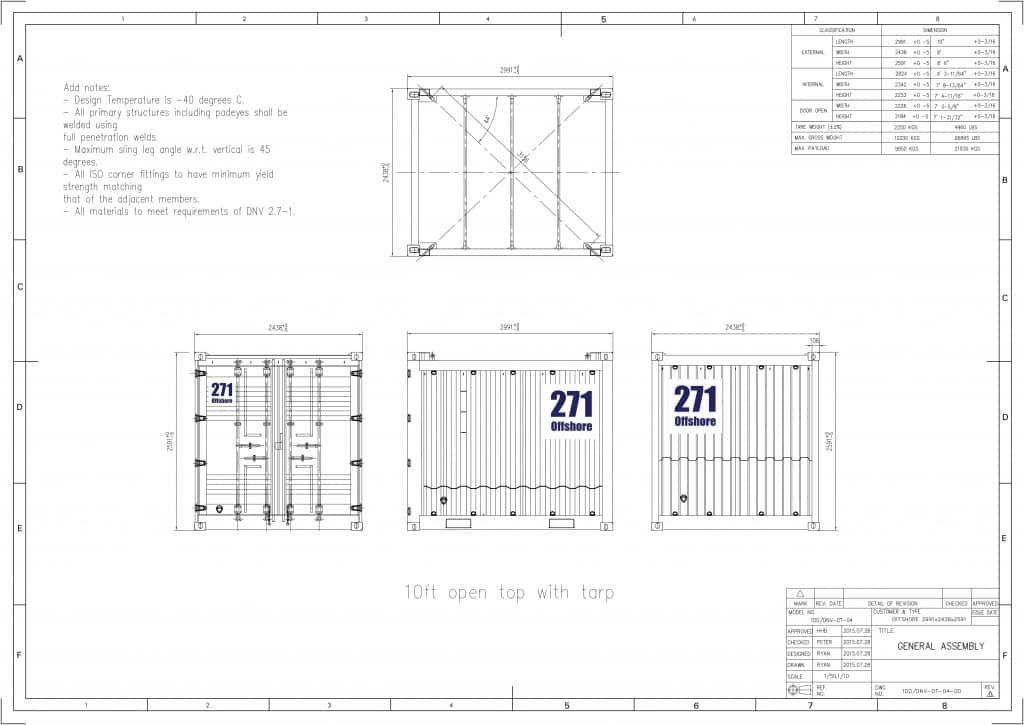

| External Nominal Dimensions | 10′ x 8′ x 8’ 6” |
| Internal Dimensions | 9′ 2″ x 7′ 4″ x 7′ 8″ |
| Cubic Capacity | 522 cu ft (14.8 m³) |
| Tare Weight | 4,630 lbs (2,100 kg) |
| Max Gross Weight (Offshore) | 21,960 lbs (9,960 kg) |
| Max Payload (Offshore) | 17,330 lbs (7,860 kg) |
| Max Gross Weight (ISO) | 22,400 lbs (10,160 kg) |
| Max Payload (ISO) | 17,770 lbs (8,860 kg) |
| Handling Features | Forklift pockets, Pad eyes, ISO corner castings |
| Stackability | Stackable with slings attached |
