Description

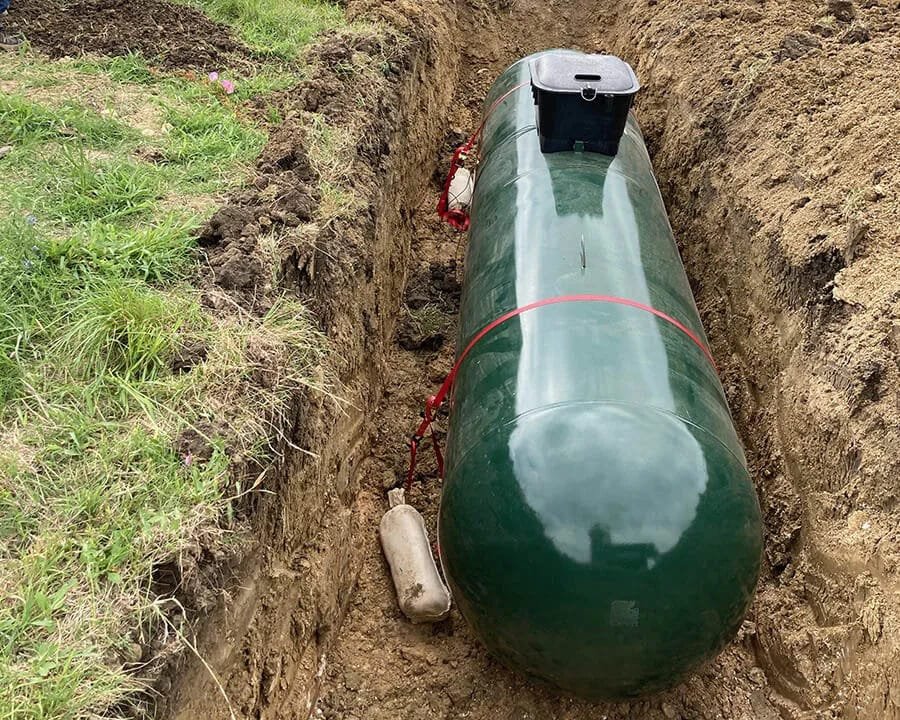

The Manchester Tank 1,000-gallon underground propane tank provides high-capacity, dependable fuel storage for residential and commercial applications. Built to be buried below ground, this ASME-compliant pressure vessel preserves landscape aesthetics and curb appeal while shielding the storage system from harsh weather conditions and temperature extremes.
Key Features & Construction
- ASME Certified: Conforms to the latest ASME Boiler and Pressure Vessel Code Section VIII, Division 1, and complies with NFPA 58.
- Corrosion Protection: Heavy-duty steel body coated with red oxide powder finish / mastic application designed for direct underground burial.
- Secure Access: Equipped with a durable black polyethylene shroud and steel dome collar to safeguard internal valves, regulators, and gauges from dirt and water.
- Pre-Purged Vessel: Factory vacuum pre-purged to streamline the initial filling process by your certified propane provider.
- Built-In Riser & Mounts: Includes lifting lugs and an anode bolt attached directly to the riser for simple, secure cathodic connection.
Applications
With an effective operating capacity of approximately 850 gallons (filled to 80% to allow for gas expansion), this tank is ideal for whole-home heating, large properties (4,500 sq. ft. and above), backup generators, pool heaters, and commercial or metered community facilities.
| Brand | Manchester Tank |
| Model Number | 68277.20 |
| Product Type | Underground Propane Tank |
| Water Capacity | 1000 gal |
| Usable Propane Capacity | Approx. 850 gal |
| Outside Diameter | 41 in |
| Overall Length | 15 ft 11 in |
| Riser Height | 6 ft 3/16 in |
| Head Type | Hemi |
| Pressure Rating | 250 psig |
| Standards Compliance | ASME Section VIII Div 1, NFPA 58 |
| Weight Empty | 1812 lbs |
| Shipping Weight | 2076 lbs |
