Description

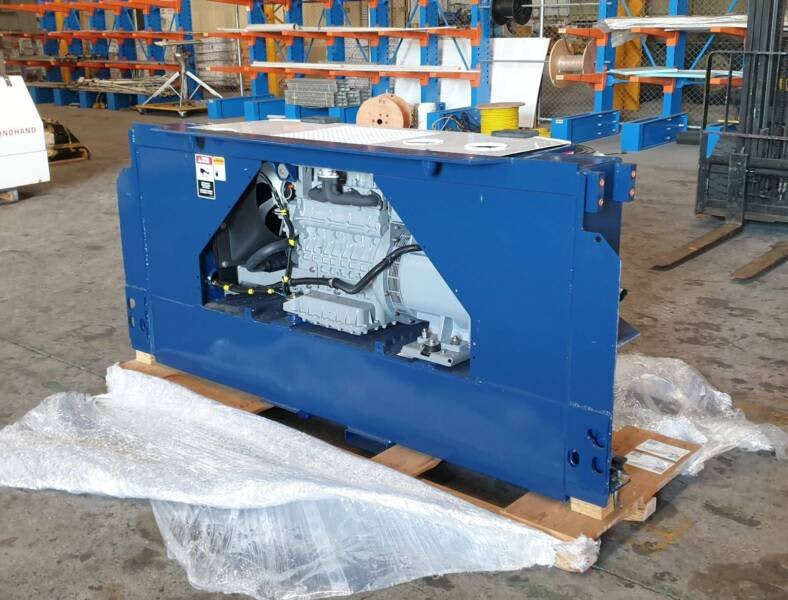

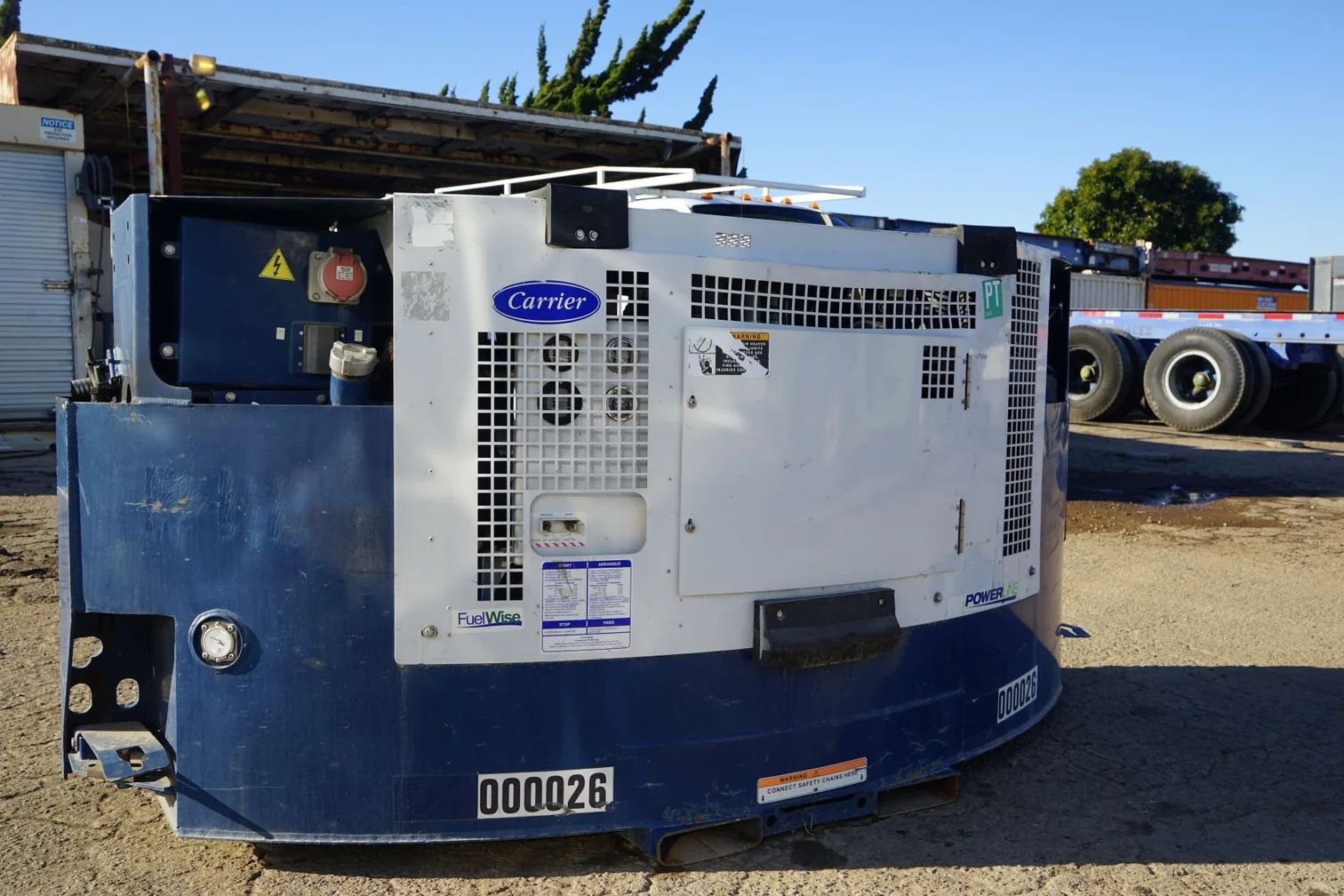

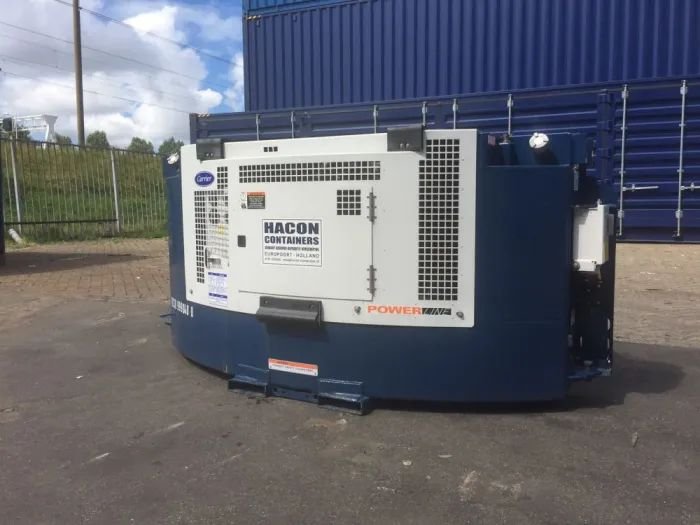

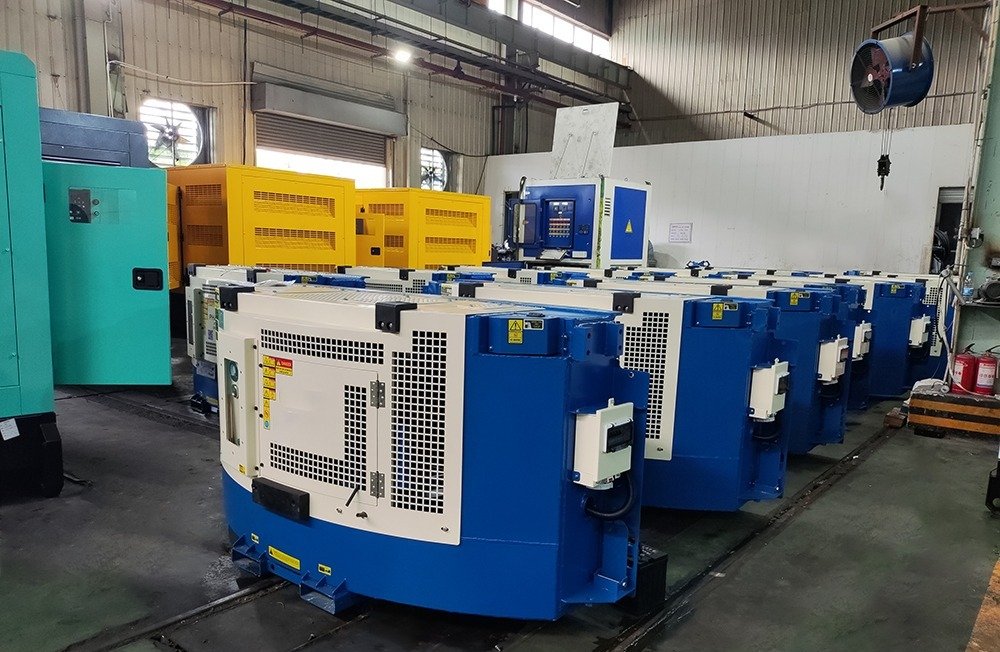

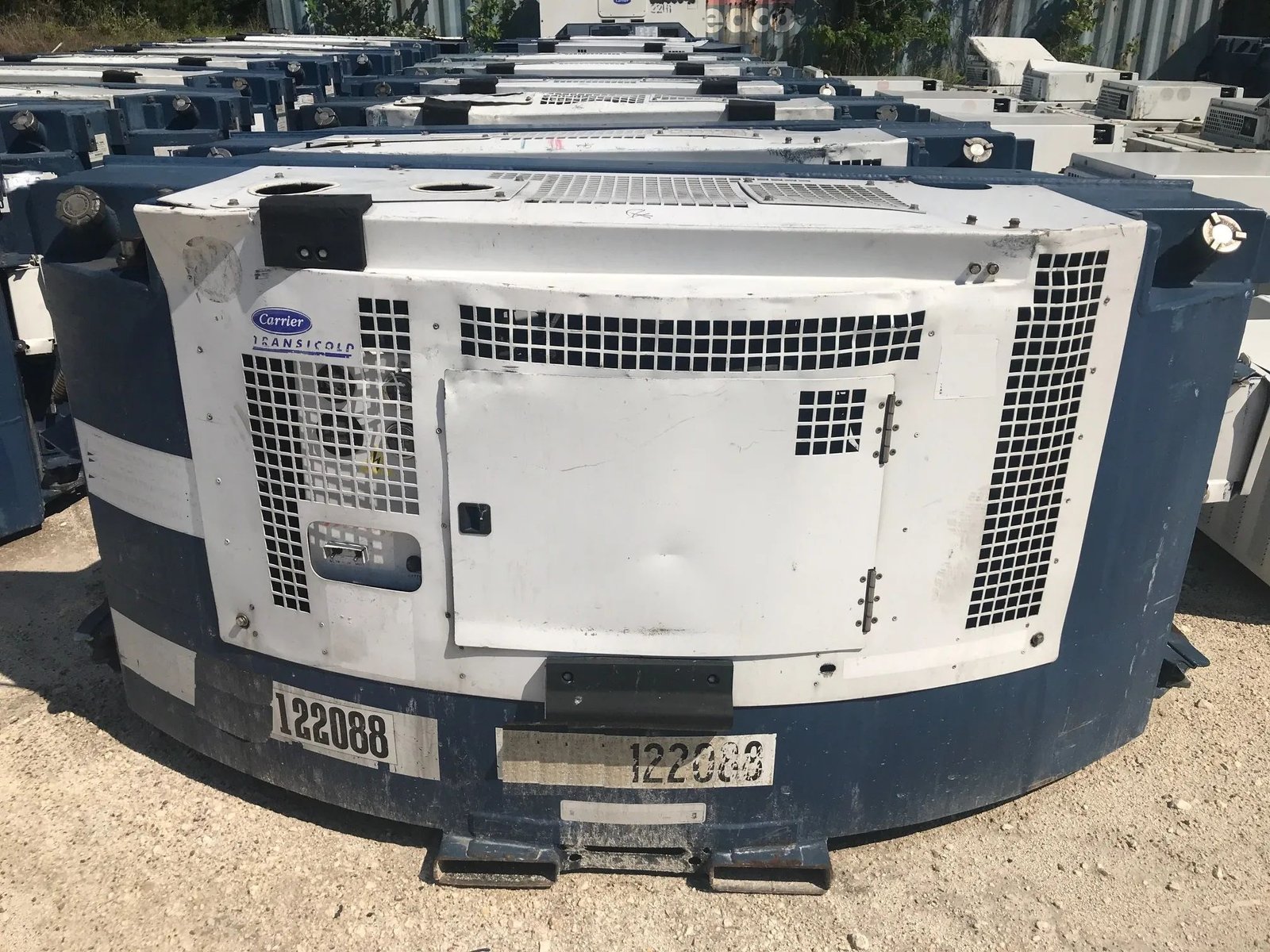

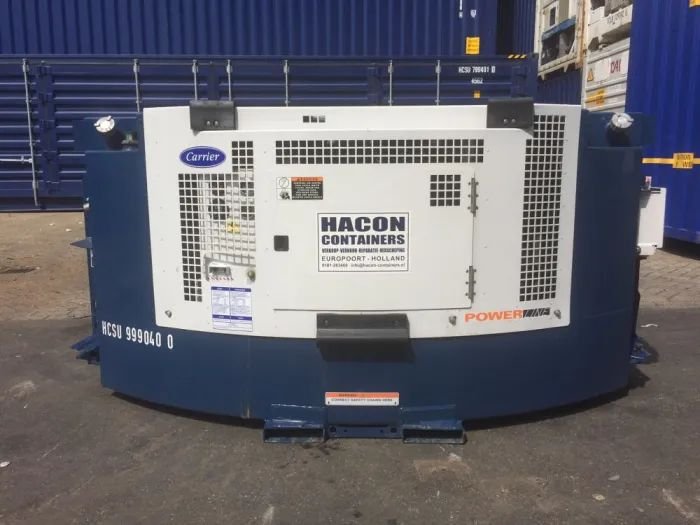

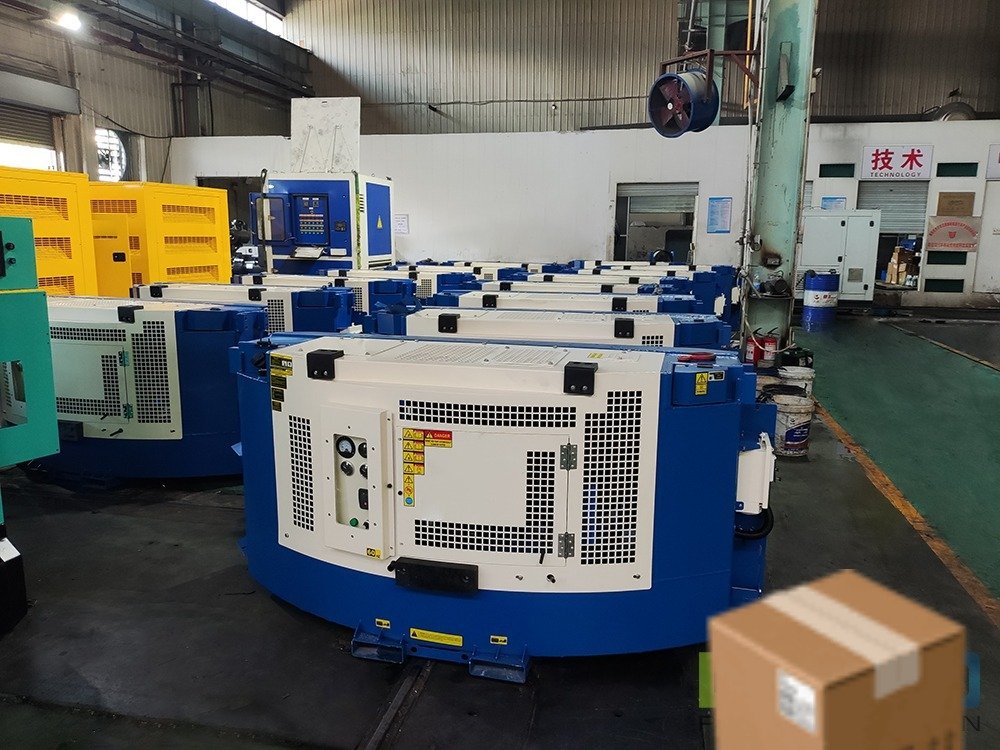

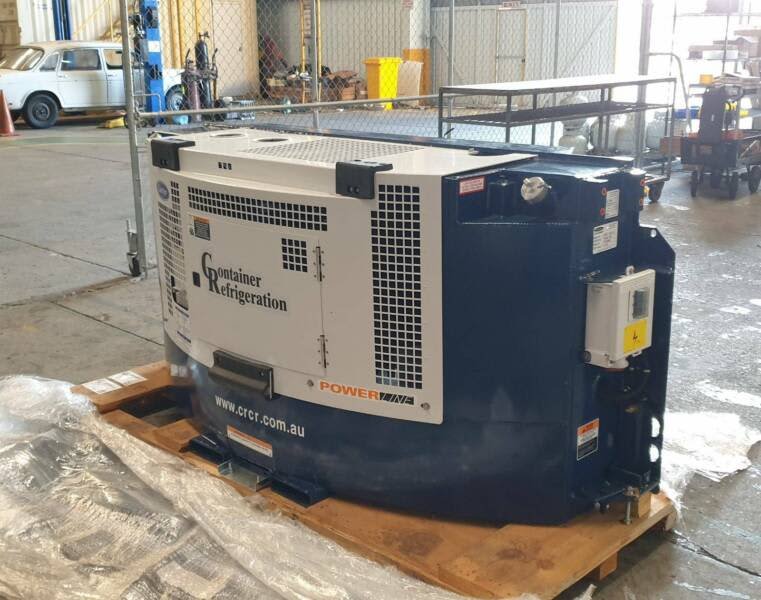

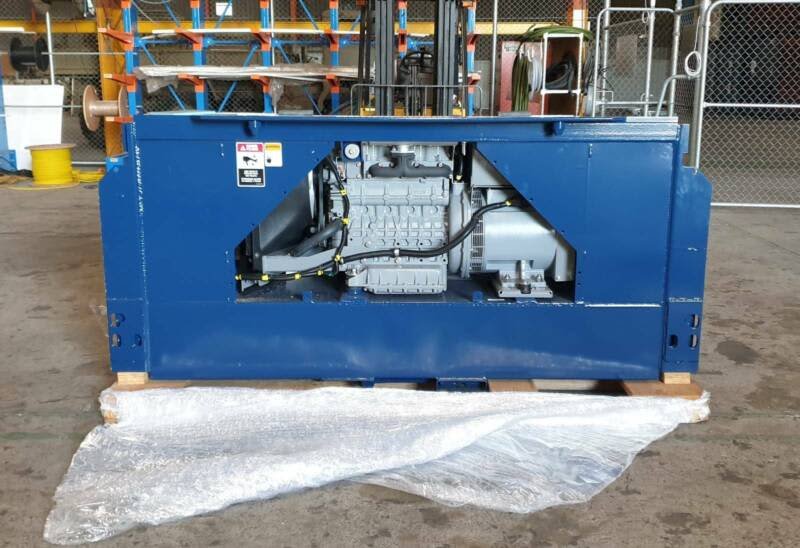

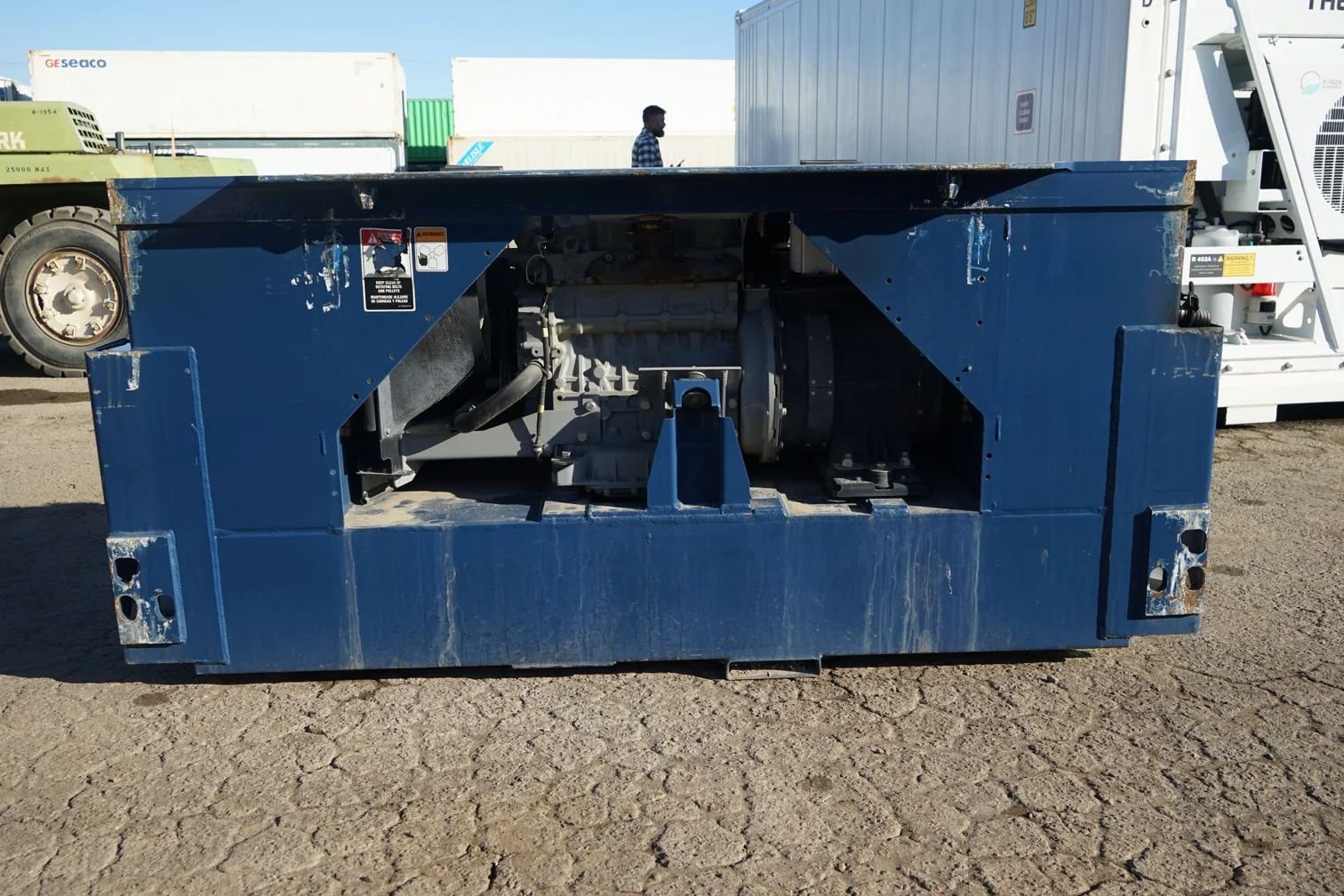

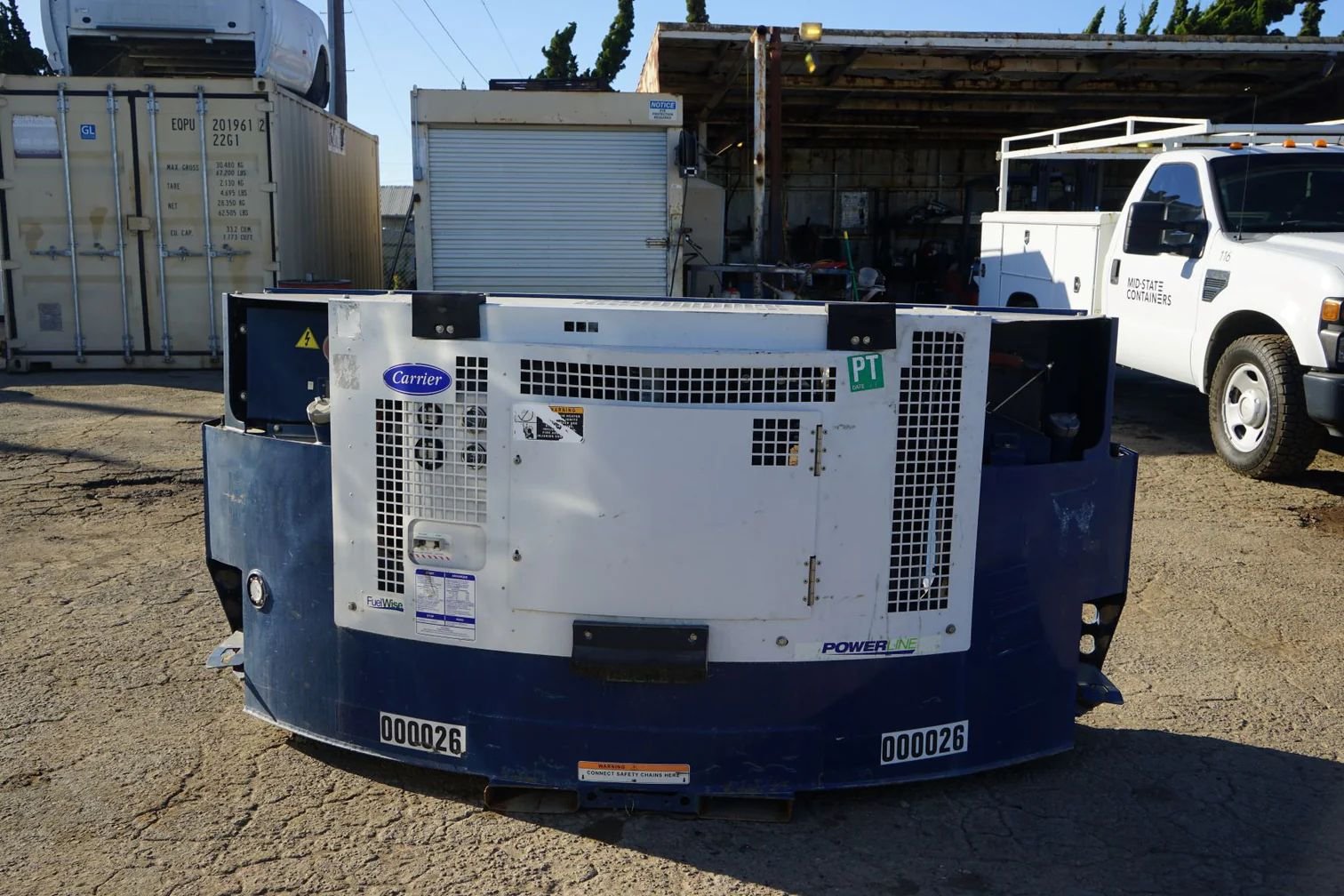

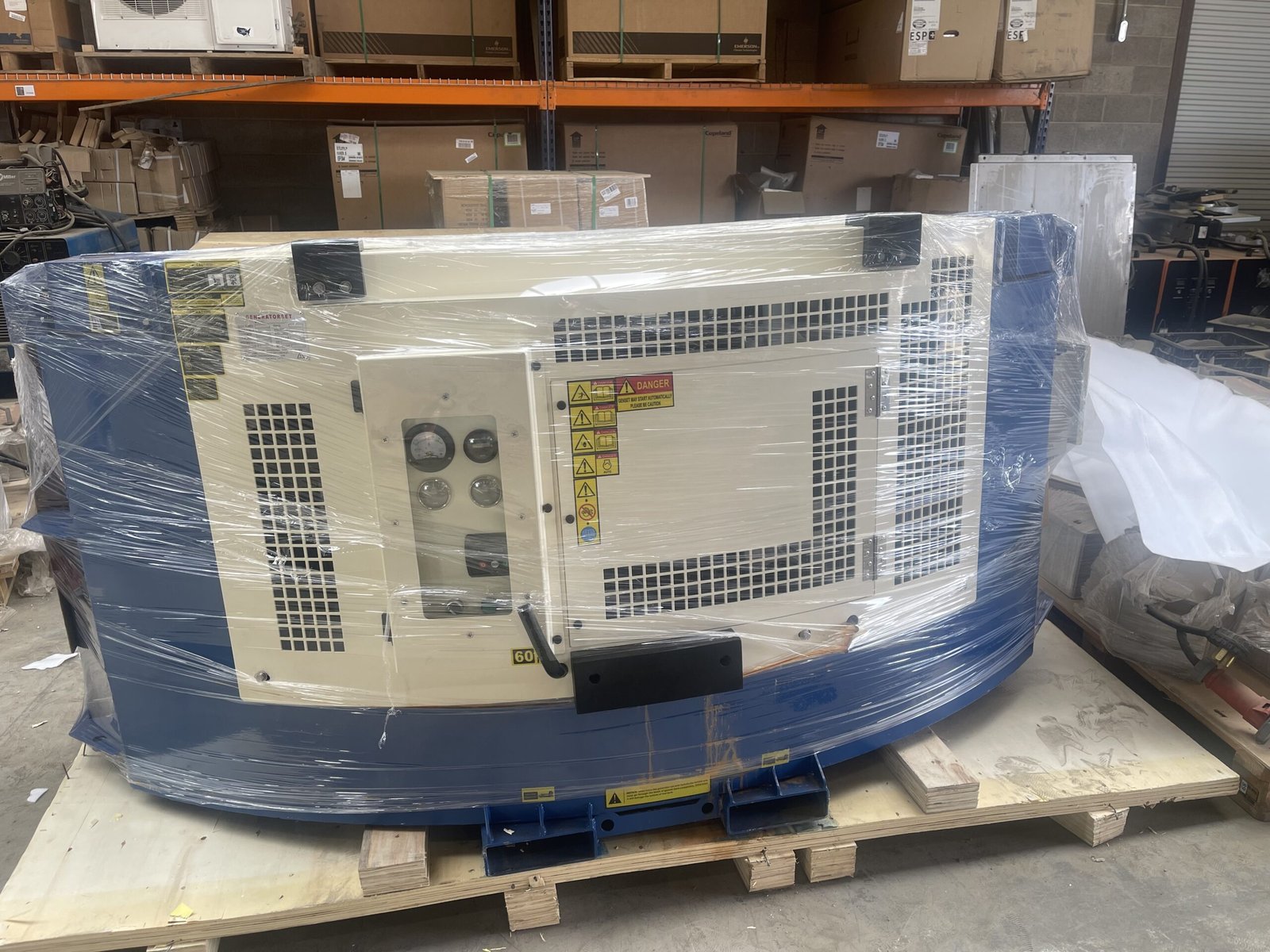

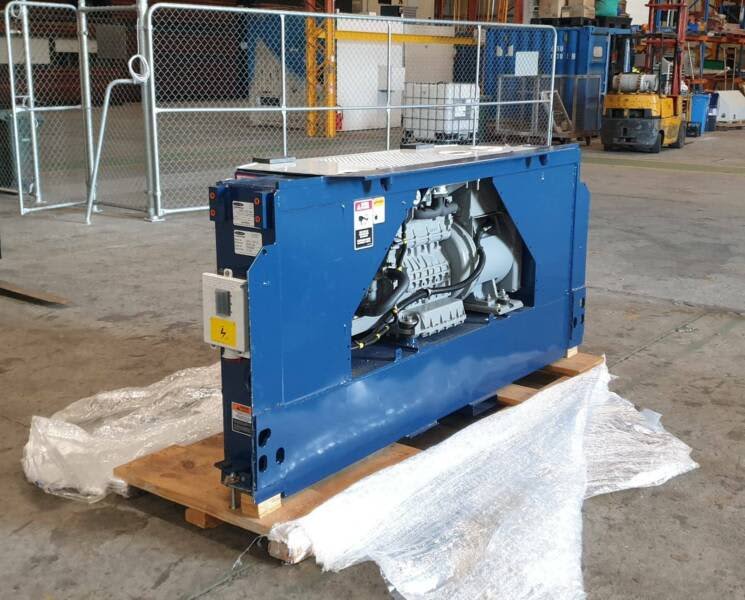

Ensure continuous, reliable power for refrigerated shipping containers during transit with this heavy-duty clip-on generator set. Designed for standard ISO and DNV 2.7-1 reefers, the genset mounts securely to container corner castings or chassis to protect temperature-sensitive cargo when external electrical power is unavailable.
Key Performance & Features
- Power Delivery: Delivers nominal 15 kW (18.75 kVA) 460V AC 3-phase power at 60 Hz to reliably operate reefer refrigeration systems.
- Robust Diesel Engine: Powered by a proven 2.2-liter direct-injection diesel engine equipped with an electronic governor and speed sensor.
- Extended Runtime: High-capacity fuel tank provides uninterrupted operation for short- and medium-duration transit.
- Secure Mounting: Rapid attachment and detachment via corner-casting pin-mounting brackets or self-aligning clamp locks.
- Safety & Protection: Integrated safety controls include automatic shutdown protection for low oil pressure and high coolant temperature, housed in a weather-resistant control enclosure.
| Product Type | Clip-On Generator Set |
| Power Output | 15 kW (18.75 kVA) |
| Electrical Configuration | 460V AC, 3 Phase, 60 Hz |
| Engine Displacement | 2.2 L |
| Engine Type | Direct-Injection Diesel |
| Fuel Capacity | 492 L (130 gal) |
| Dimensions (L x W x H) | 2324 mm x 706 mm x 1078 mm (91.5 in x 27.8 in x 42.5 in) |
| Compatibility | ISO and DNV 2.7-1 Refrigerated Containers |
| Control Box | Waterproof Enclosure with Preheat, Start/Run/Off Controls |
| Safety Controls | Low Oil Pressure & High Coolant Temperature Safety Stop |
