Description

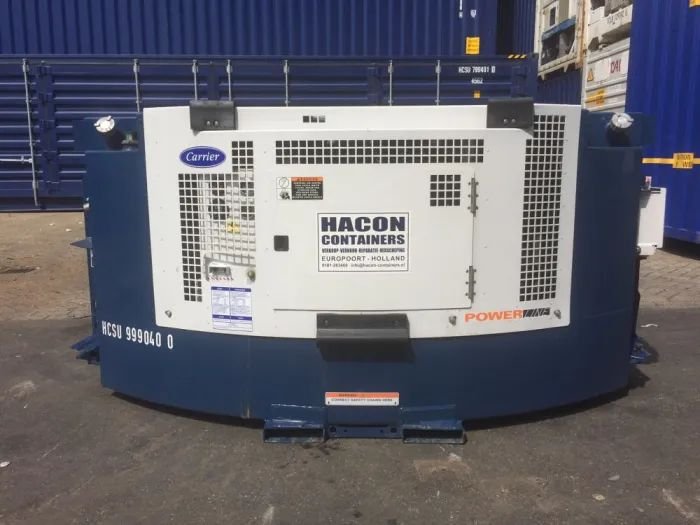

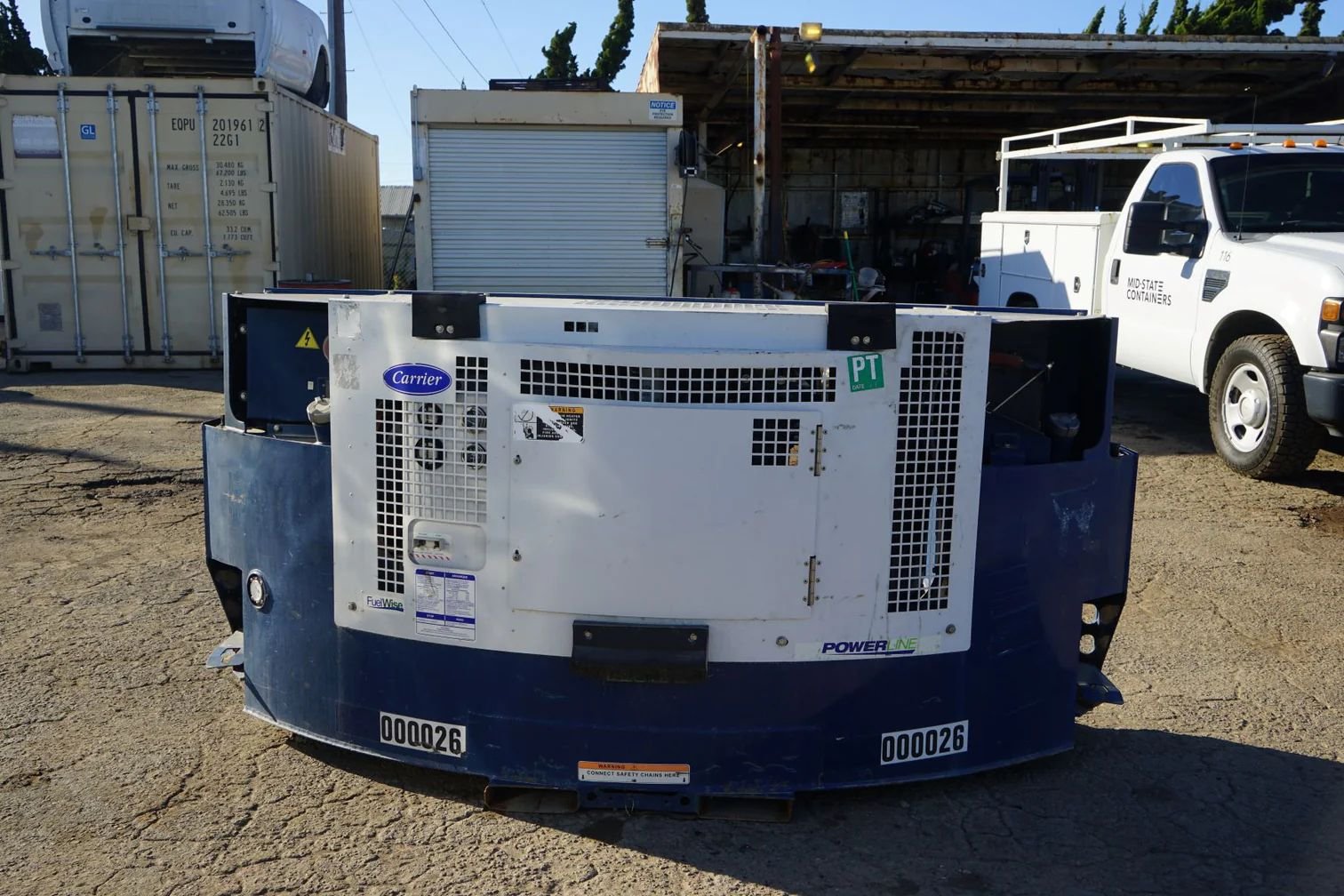

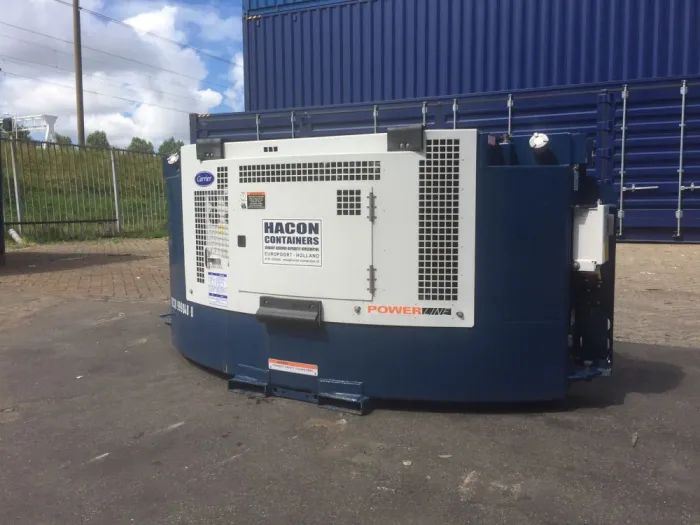

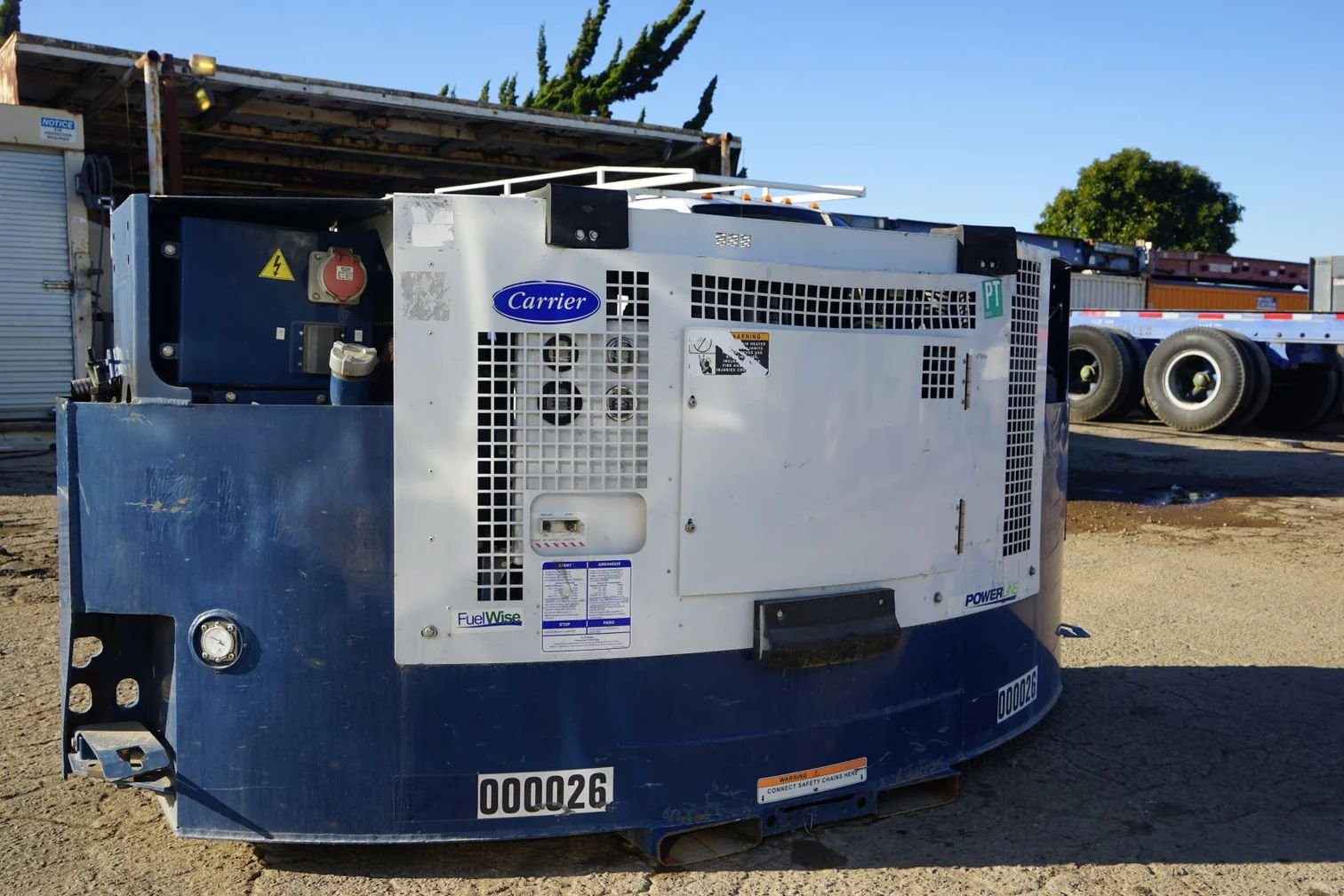

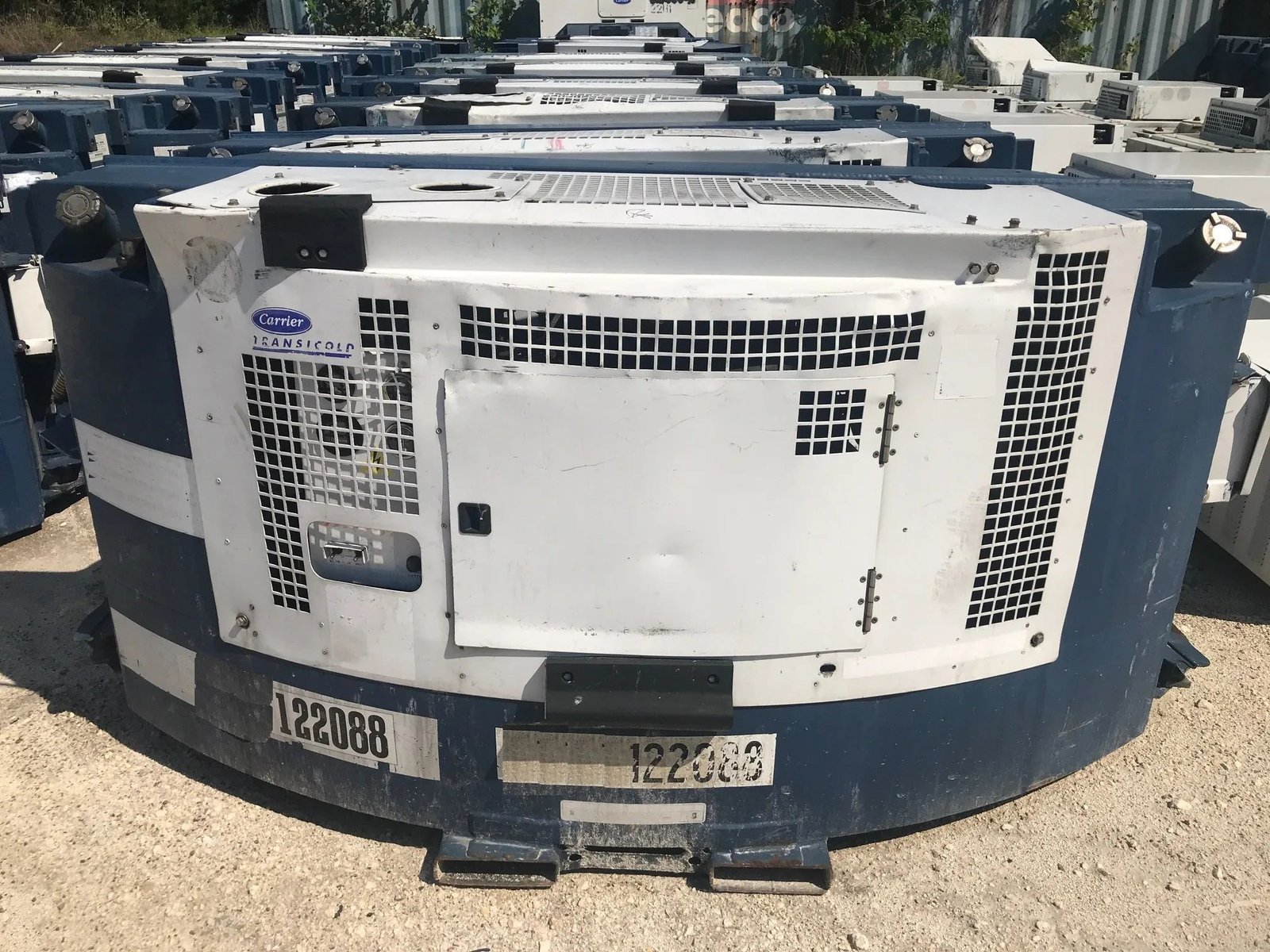

Designed to deliver reliable, independent power for refrigerated ISO and DNV 2.7-1 containers during transport, this clip-on generator set mounts directly to the front corner castings of standard shipping containers. It ensures your temperature-sensitive cargo remains protected throughout road, rail, and stationary transit when external electrical power is unavailable.

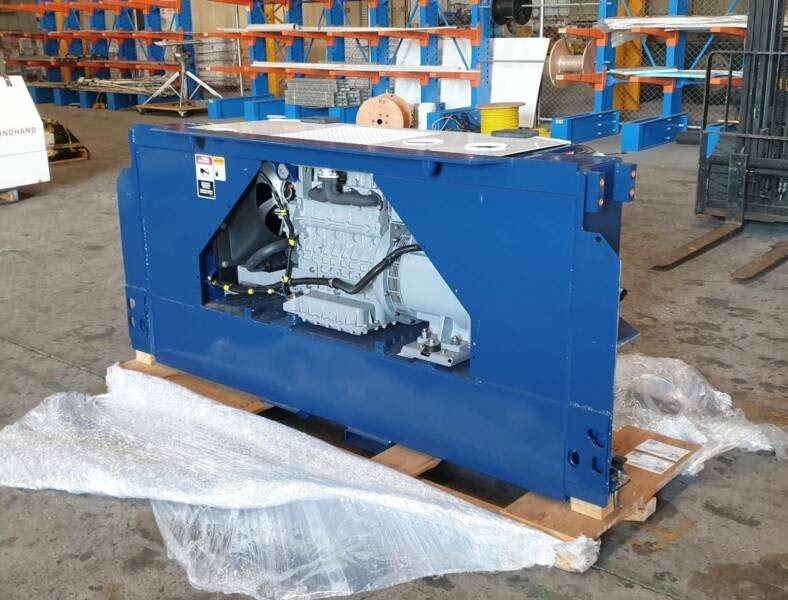

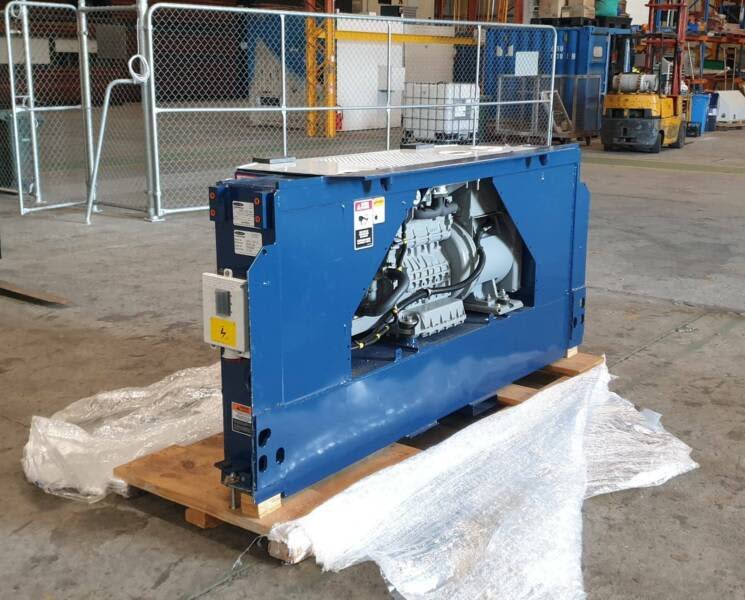

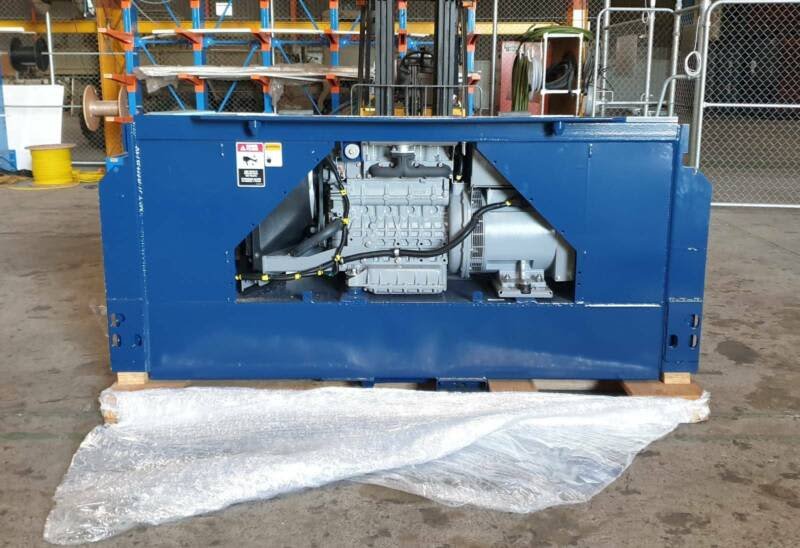

Featuring quick-attach pin-mounting brackets and self-aligning ratchet clamp locks, attaching or disconnecting the generator set takes just minutes. Engineered for heavy-duty industrial use, the genset is powered by a proven 2.2-liter direct-injection diesel engine equipped with an electronic governor and safety stop controls for low oil pressure and high coolant temperatures.
| Product Type | Reefer Clip-On Generator Set |
| Power Output | 15 kW, 18.75 kVA, 460V AC, 3 Phase, 60 Hz |
| Engine Displacement | 2.2 L |
| Fuel Capacity | 130 US gal / 492 L |
| External Dimensions | 2324 mm x 706 mm x 1078 mm (91.5 in x 27.8 in x 42.5 in) |
| Compatibility | ISO and DNV 2.7-1 Refrigerated Containers |

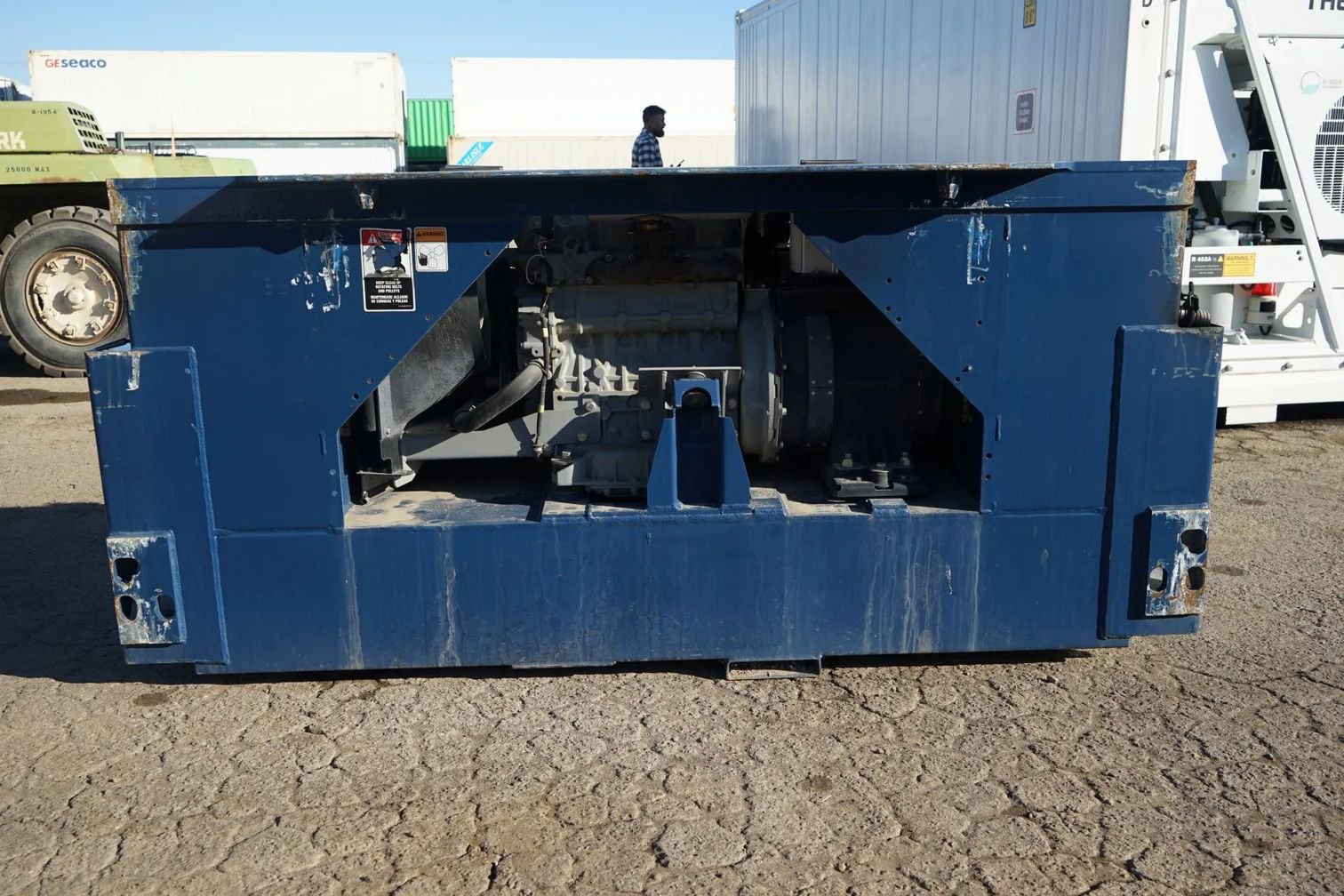

| Mounting Type | Pin-Mounting Bracket / Ratchet Corner Casting Clamps |
| Cooling System | Disc-type radial fan with liquid cooling |
| Safety Features | Automatic stop for low oil pressure and high coolant temperature |
