Description

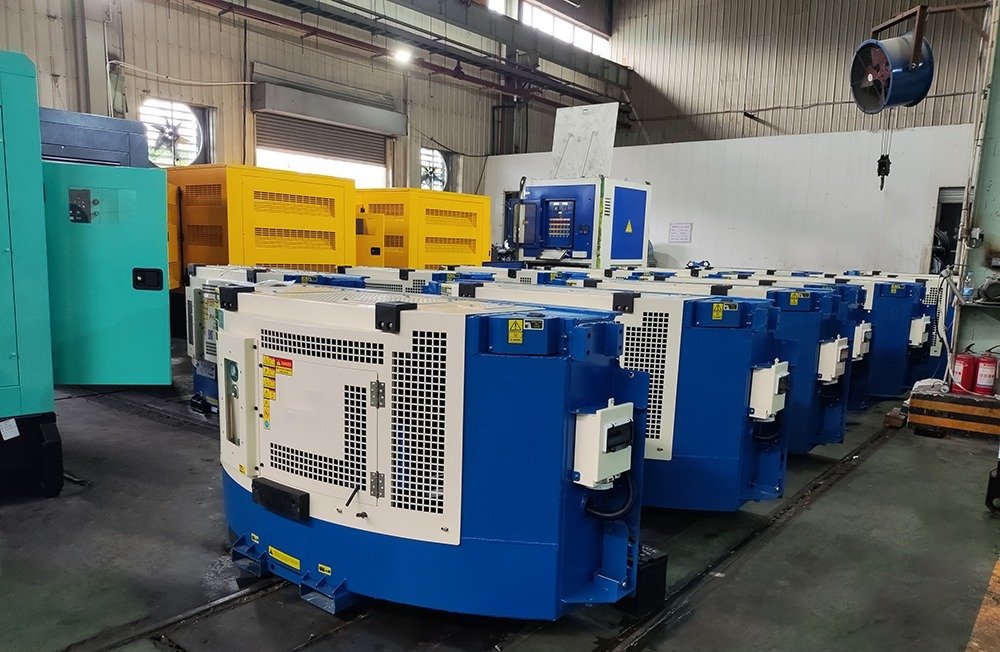

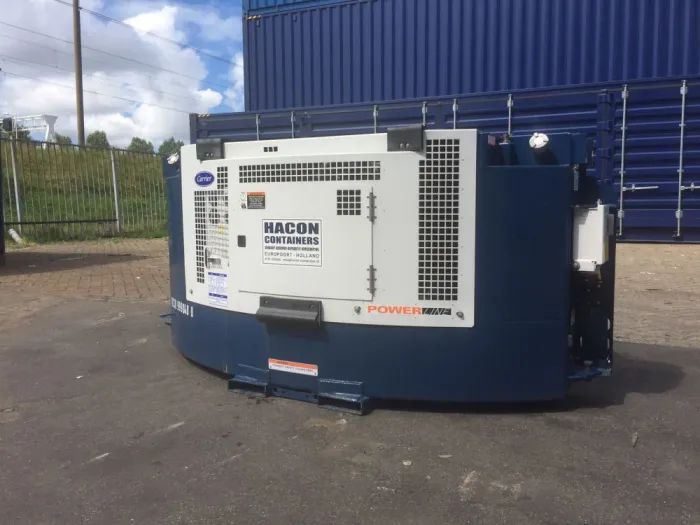

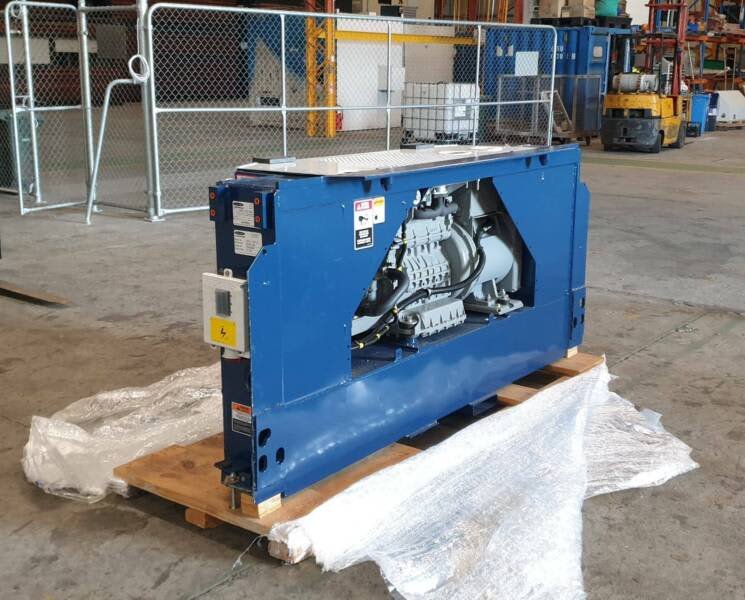

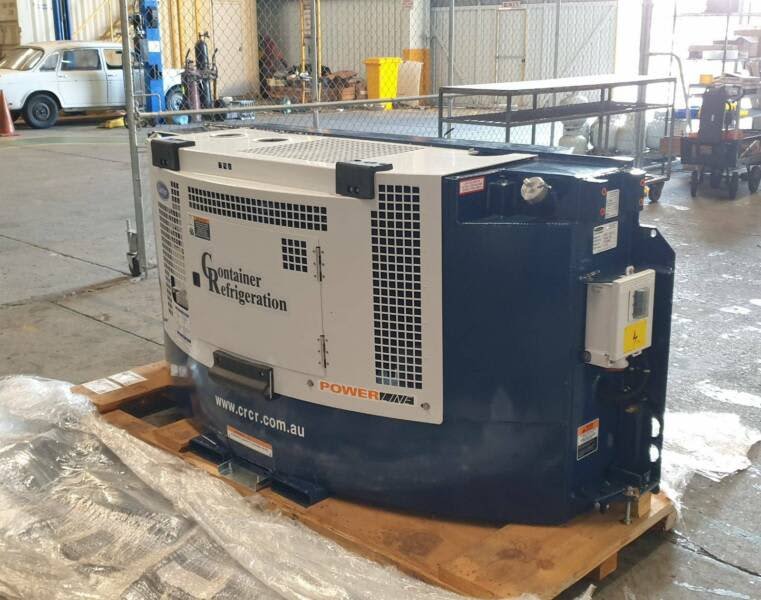

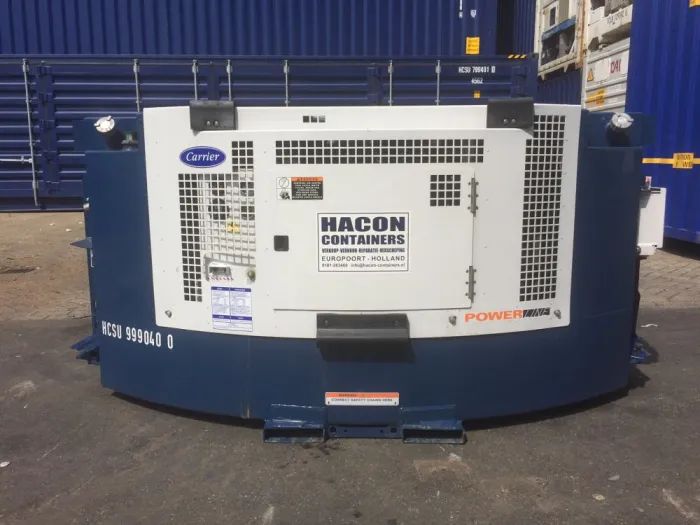

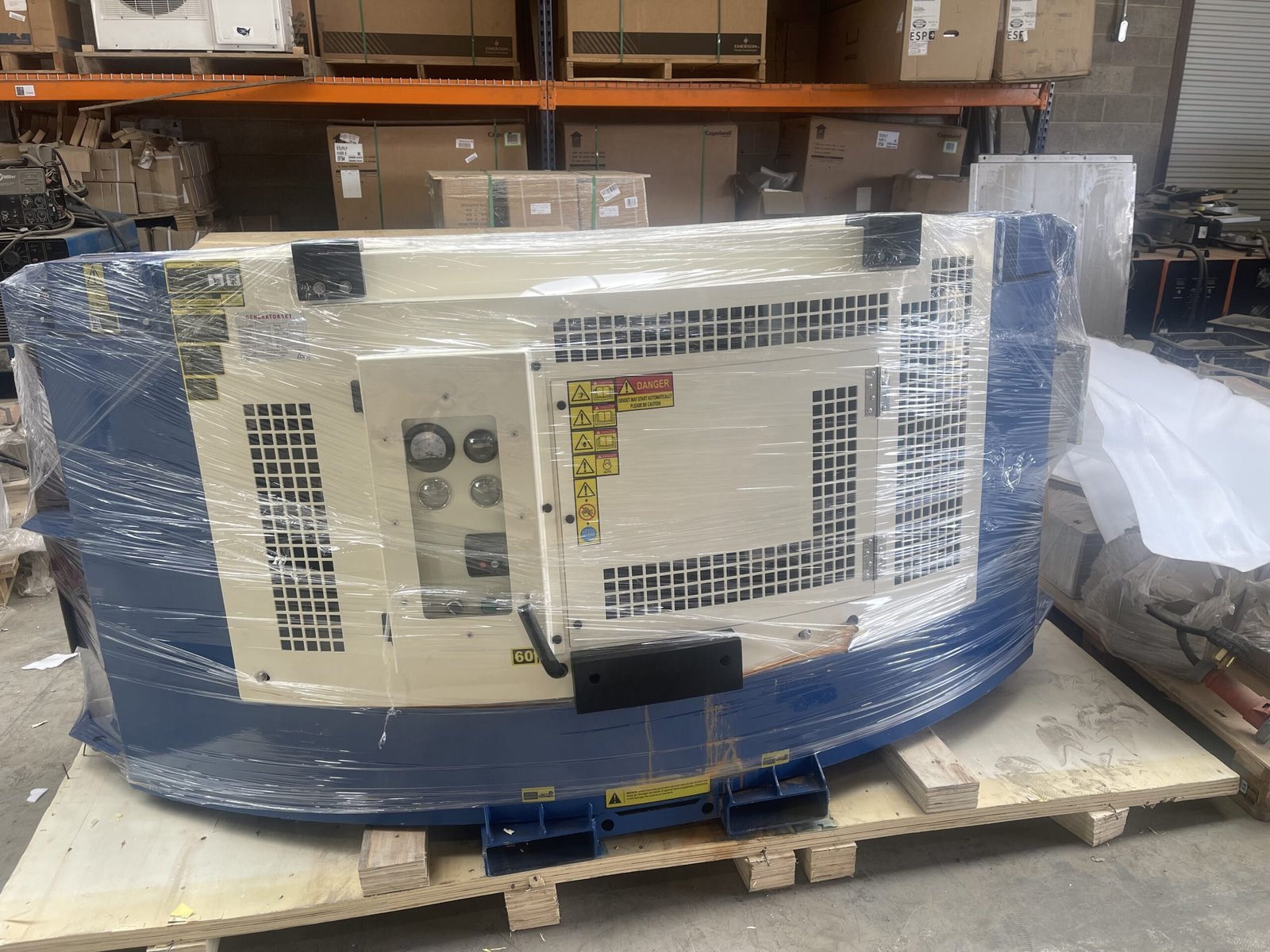

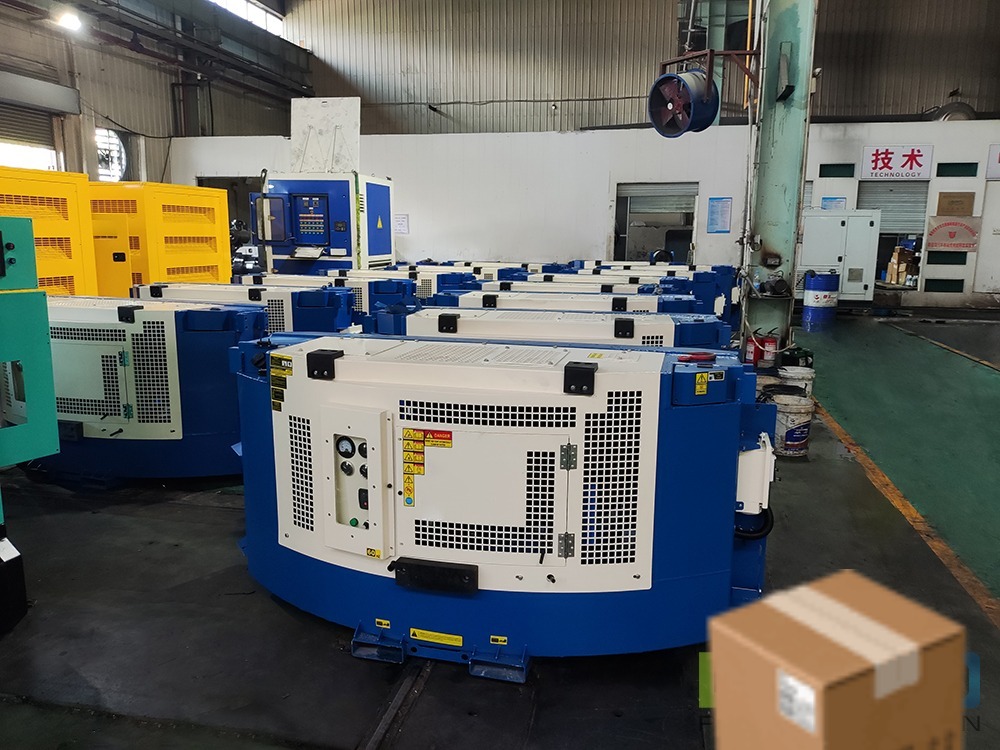

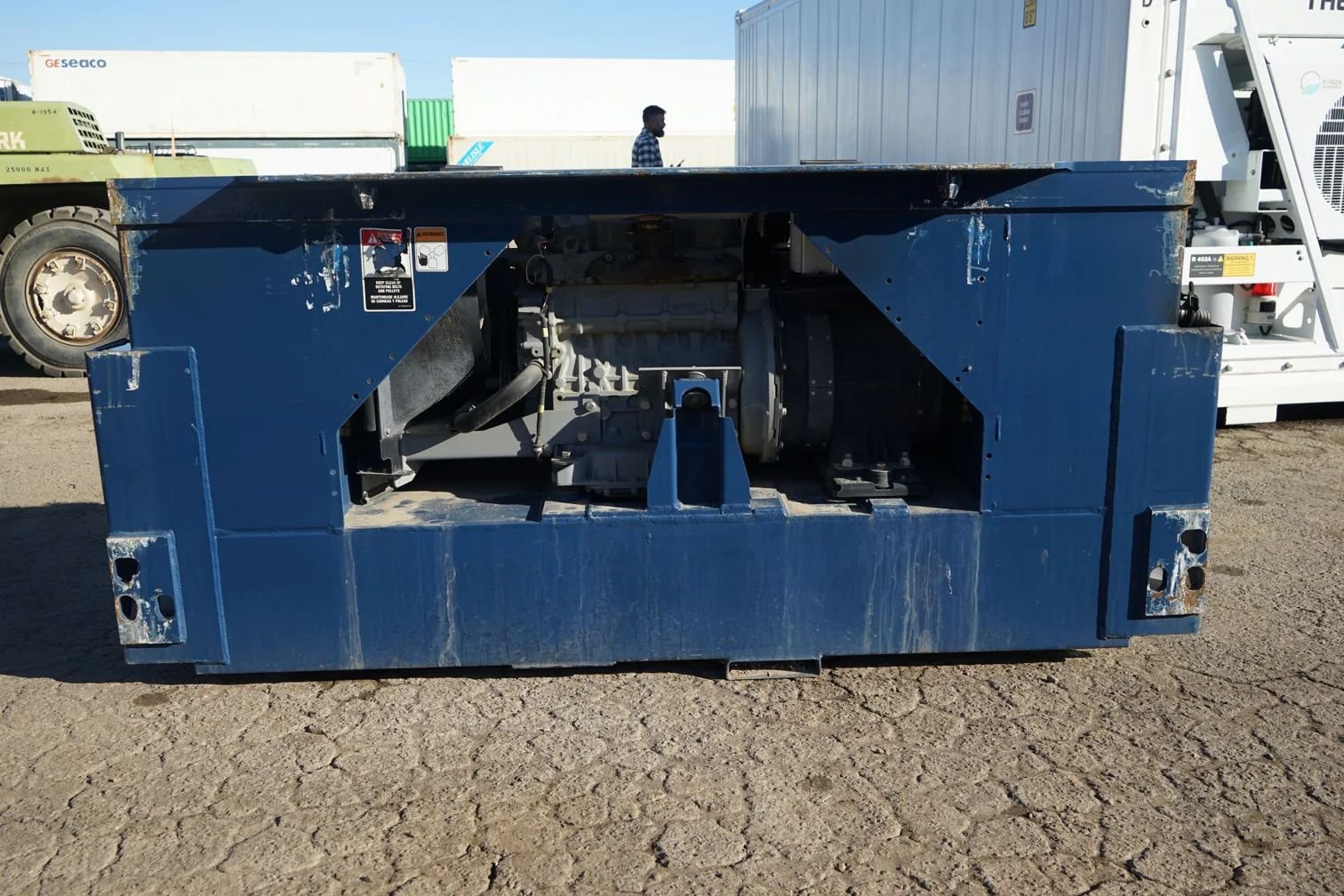

Designed to deliver reliable, independent electrical power to ISO and DNV 2.7-1 refrigerated containers during transport and remote operation, this clip-on generator set mounts directly to container chassis corner castings. It ensures seamless temperature control and cargo protection whenever external power sources are unavailable.
Powered by a heavy-duty 2.2-liter direct-injection diesel engine, the generator set delivers a robust 15 kW (18.75 kVA) 460V AC 3-phase output at 60 Hz. Built for dependable field operation, it features a disc-type radial cooling fan, sealed rear bearings, and a vacuum pressure-impregnated rotor for extended service life under demanding transit conditions.
Key Features & Performance
- Secure Mounting: Attaches quickly and securely to container corner castings using pin-mounting brackets or self-aligning ratchet clamp locks.
- Extended Runtime: High-capacity fuel tank provides continuous, autonomous operation for short- and medium-term transit routes.
- Integrated Safety Systems: Equipped with automatic safety shut-off controls for low oil pressure and high coolant temperature.
- Operator-Friendly Controls: Features a low-mounted, waterproof control box with manual switches for preheat, start, run, and off functions.
| Product Type | Clip-On Generator Set |
| Power Output | 15 kW (18.75 kVA), 460V AC, 3-Phase, 60 Hz |
| Engine Displacement | 2.2 L |
| Fuel Type | Diesel |
| External Dimensions | 2324 mm x 706 mm x 1078 mm (91.5 in x 27.8 in x 42.5 in) |
| Compatibility | ISO and DNV 2.7-1 Refrigerated Containers |
| Mounting Type | Corner Casting Pin-Mount / Ratchet Clamp |
| Safety Controls | Low Oil Pressure and High Water Temperature Auto-Shutdown |
